Abstract
本发明公开了一种电液执行器及其控制方法，所述电液执行器包括伺服缸、喷嘴挡板伺服阀、力传感器、位移传感器和运动控制器；所述伺服缸的缸体上集成设置有进油仿生流道、无杆腔仿生流道、有杆腔仿生流道和回油仿生流道；本发明通过伺服缸、喷嘴挡板伺服阀、力传感器、位移传感器和运动控制器的集成设置，实现了多元器件的高密度集成，体积小、重量轻，并利用仿生流道实现伺服缸与喷嘴挡板伺服阀的连通，无需设置连接管路，实现了喷嘴挡板伺服阀与伺服缸间无外接管路，降低了高端移动装备管路接头损坏和泄漏故障发生率，通过配套设置的运动控制器、力传感器和位移传感器实现伺服缸的控制，本发明提供了一种高度集成的一体化智能电液执行器。
The invention discloses an electro-hydraulic actuator and a control method thereof. The electro-hydraulic actuator comprises a servo cylinder, a nozzle flapper servo valve, a force sensor, a displacement sensor and a motion controller; the cylinder body of the servo cylinder is integrated with The oil inlet bionic flow channel, the rodless cavity bionic flow channel, the rod cavity bionic flow channel and the oil return bionic flow channel are provided; The integrated setting realizes high-density integration of multiple components, small size and light weight, and uses the bionic flow channel to realize the connection between the servo cylinder and the nozzle flapper servo valve, without the need to set up connecting pipelines, and realizes the nozzle flapper servo valve and servo valve. There is no external pipeline between the cylinders, which reduces the damage of high-end mobile equipment pipeline joints and the incidence of leakage failure. The control of the servo cylinder is realized through the matched motion controller, force sensor and displacement sensor. The present invention provides a highly integrated Integrated intelligent electro-hydraulic actuator.
Description
Technical Field
The invention relates to the technical field of hydraulic control, in particular to an electro-hydraulic actuator and a control method thereof.
Background
With the rapid development of science and technology, high-end mobile equipment such as engineering machinery, metallurgical machinery, aircrafts, power-assisted exoskeletons and robots are widely applied. The driving method of the high-end mobile equipment motion comprises three methods: electric drive, pneumatic drive and hydraulic drive. Because the hydraulic drive has the advantages of high active power-weight ratio, stable work, small reversing impact, large thrust and the like, the research on the hydraulic drive actuator of high-end mobile equipment becomes more important.
Non-integrated valve controlled cylinder control is currently the common drive mode used by the movement of hydraulic high-end mobile equipment. For non-integrated valve cylinder control, the main disadvantages are: 1. the valve control cylinder has more pipelines and pipe joints and more sealing points, so that the joint is easy to damage and leak; 2. the connecting pipeline between the servo valve and the servo cylinder is too long, so that the natural frequency of the system is reduced, the dynamic response speed of the motion of the high-end moving equipment is reduced, and the hydraulic power loss is increased. In conclusion, the hydraulic drive type high-end mobile equipment has a wide development prospect, but the integration of the drive actuator is not high enough at present, a matched motion controller and a related algorithm are not provided, the control precision is not high enough, and the high-performance requirement of the high-end mobile equipment cannot be met. Therefore, a highly integrated intelligent electro-hydraulic actuator is urgently needed in the movement of hydraulic high-end mobile equipment.
Disclosure of Invention
The invention aims to provide an electro-hydraulic actuator and a control method thereof, which aim to improve the integration of the electro-hydraulic actuator, and the electro-hydraulic actuator is provided with a matched motion controller and a control algorithm so as to provide a highly integrated intelligent electro-hydraulic actuator.
In order to achieve the purpose, the invention provides the following scheme:
an electro-hydraulic actuator comprises a servo cylinder, a nozzle baffle servo valve, a force sensor, a displacement sensor and a motion controller;
an oil inlet bionic flow passage, a rodless cavity bionic flow passage, a rod cavity bionic flow passage and an oil return bionic flow passage are integrally arranged on the cylinder body of the servo cylinder;
the nozzle baffle servo valve is arranged outside a cylinder body of the servo cylinder;
an oil inlet of the nozzle baffle servo valve is communicated with an oil inlet pipeline through an oil inlet bionic flow passage; a first control oil port of the nozzle baffle servo valve is communicated with a rodless cavity of the servo cylinder through a rodless cavity bionic flow passage; a second control oil port of the nozzle baffle servo valve is communicated with a rod cavity of the servo cylinder through a rod cavity bionic flow passage, and an oil return port of the nozzle baffle servo valve is communicated with an oil tank through an oil return bionic flow passage;
the force sensor is arranged at the front end of a cylinder rod of the servo cylinder; the outer cylinder of the displacement sensor is fixed on the cylinder body of the servo cylinder, and the inner sleeve of the displacement sensor is fixedly connected with one side of the cylinder rod of the servo cylinder;
the force sensor and the displacement sensor are both connected with the motion controller, the force sensor is used for collecting a cylinder rod output value of the servo cylinder, and the displacement sensor is used for collecting a cylinder rod displacement value of the servo cylinder;
the motion controller is connected with the control end of the nozzle baffle servo valve and used for controlling the states of the first control oil port and the second control oil port of the nozzle baffle servo valve according to the cylinder rod output value and the cylinder rod displacement value so as to adjust the output displacement of the cylinder rod of the servo cylinder and enable the output displacement of the cylinder rod of the servo cylinder to be expected displacement.
Optionally, the servo cylinder comprises a cylinder body and a cylinder rod; a rod cavity and a rodless cavity are arranged in the cylinder body, and the cylinder rod is arranged in the rod cavity.
Optionally, the oil inlet bionic flow passage, the rodless cavity bionic flow passage, the rod cavity bionic flow passage and the oil return bionic flow passage are arranged on the cylinder body of the servo cylinder by adopting a laser melting manufacturing process.
Optionally, the electro-hydraulic actuator further comprises a filter element;
the filter element is arranged at an oil inlet of the nozzle baffle servo valve.
Optionally, the electro-hydraulic actuator further includes a first pressure sensor and a second pressure sensor, and the first pressure sensor and the second pressure sensor are respectively disposed in the rodless cavity and the rod cavity of the servo cylinder.
Optionally, the motion controller includes a position impedance control module and a state observation module;
the position impedance control module is used for adopting an impedance characteristic formula according to the output value of the cylinder rod
Calculating an impedance control outer ring position deviation signal Xe; wherein, FLIndicating the cylinder rod output value, CDIndicating desired damping of electrohydraulic actuator, KDThe expected rigidity of the electro-hydraulic actuator is obtained, and s is a state variable; comparing the impedance control outer ring position deviation signals to obtain an expected position of a cylinder rod of the servo cylinder, and calculating a difference value between the expected position and a cylinder rod displacement value obtained through collection to serve as a position control inner ring deviation signal;
and the state observation module is used for correcting the position control inner ring deviation signal by adopting a state observation algorithm and controlling the states of the first control oil port and the second control oil port of the nozzle baffle control valve by using the corrected position control inner ring deviation signal.
A control method of an electro-hydraulic actuator, the control method comprising the steps of:
collecting a cylinder rod output value and a cylinder rod displacement value of a servo cylinder;
calculating an impedance control outer ring position deviation signal by adopting an impedance characteristic formula according to the cylinder rod output value;
comparing the impedance control outer ring position deviation signals to obtain an expected position of a cylinder rod of the servo cylinder, and calculating a difference value between the expected position and a cylinder rod displacement value obtained through collection to serve as a position control inner ring deviation signal;
and correcting the position control inner ring deviation signal by adopting a state observation algorithm, and controlling the states of a first control oil port and a second control oil port of the nozzle baffle control valve by using the corrected position control inner ring deviation signal.
Optionally, the impedance characteristic formula is:
wherein, XeRepresenting an impedance-controlled outer loop position deviation signal, FLIndicating the cylinder rod output value, CDIndicating desired damping of electrohydraulic actuator, KDS is the desired stiffness of the electro-hydraulic actuatorAnd (4) state variables.
Compared with the prior art, the invention has the beneficial effects that:
the invention provides an electro-hydraulic actuator and a control method thereof, wherein the electro-hydraulic actuator comprises a servo cylinder, a nozzle baffle servo valve, a force sensor, a displacement sensor and a motion controller; an oil inlet bionic flow passage, a rodless cavity bionic flow passage, a rod cavity bionic flow passage and an oil return bionic flow passage are integrally arranged on the cylinder body of the servo cylinder; the invention realizes high-density integration of a plurality of components through the integrated arrangement of the servo cylinder, the nozzle baffle servo valve, the force sensor, the displacement sensor and the motion controller, has small volume and light weight, realizes the communication between the servo cylinder and the nozzle baffle servo valve by utilizing a bionic runner, does not need to arrange a connecting pipeline, realizes no external pipeline between the nozzle baffle servo valve and the servo cylinder, reduces the occurrence rate of damage and leakage faults of a pipeline joint of high-end mobile equipment, and realizes the control of the servo cylinder through the motion controller, the force sensor and the displacement sensor which are arranged in a matched way.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without inventive exercise.

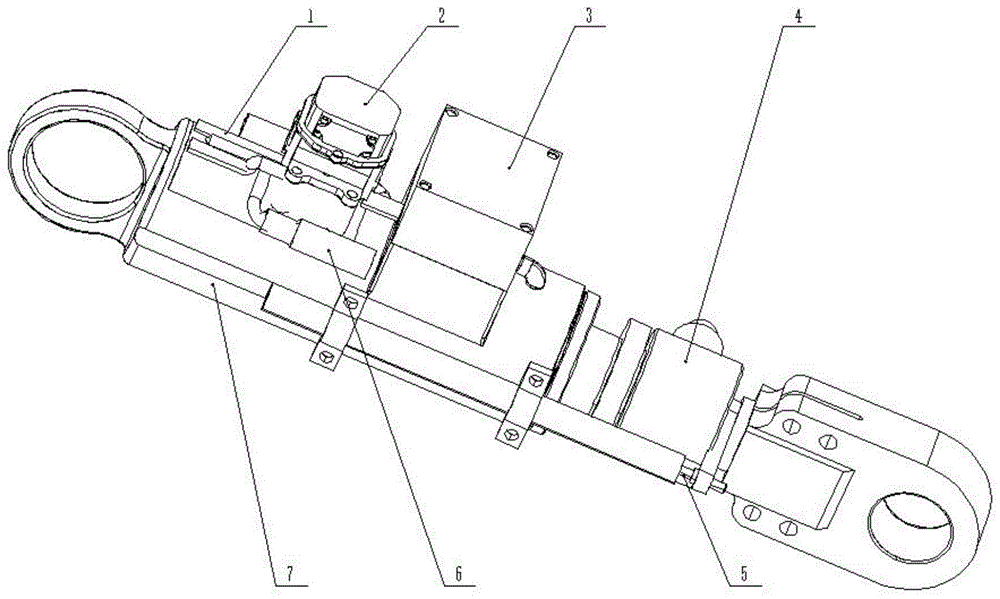

FIG. 1 is a schematic three-dimensional axial view of an electro-hydraulic actuator provided in accordance with the present invention;
FIG. 2 is a schematic illustration in partial cross-sectional elevation view of an electro-hydraulic actuator assembly provided by the present invention;
FIG. 3 is a schematic diagram illustrating the hydraulic control principle of the electro-hydraulic actuator provided by the present invention;
FIG. 4 is a schematic diagram of position impedance control in a motion controller of an electro-hydraulic actuator according to the present invention;
FIG. 5 is a schematic diagram of state observation in a motion controller of an electro-hydraulic actuator according to the present invention;
wherein, 1 is the filter core, 2 is nozzle baffle servo valve, 3 is motion control ware, 4 is force sensor, 5 is displacement sensor, 6 is pressure sensor, 7 is servo jar, 8 is the bionical runner of oil feed, 9 is the bionical runner of rodless chamber, 10 is the bionical runner of oil return, 11 is the bionical runner of pole chamber.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The invention aims to provide an electro-hydraulic actuator and a control method thereof, which aim to improve the integration of the electro-hydraulic actuator, and the electro-hydraulic actuator is provided with a matched motion controller and a control algorithm so as to provide a highly integrated intelligent electro-hydraulic actuator.
In order to make the aforementioned objects, features and advantages of the present invention comprehensible, embodiments accompanied with figures are described in further detail below.
As shown in fig. 1, the invention provides an electro-hydraulic actuator, which comprises a filter element 1, a nozzle baffle servo valve 2, a motion controller 3, a force sensor 4, a displacement sensor 5, a pressure sensor 6, a servo cylinder 7 and a bionic flow channel, wherein the bionic flow channel is integrated on a cylinder body of the servo cylinder 7 and is used for communicating the servo valve and the servo cylinder.
As shown in fig. 1, a nozzle baffle servo valve 2 and a motion controller 3 are fixedly arranged on the upper part of a cylinder body of a servo cylinder 7 in parallel through bolts, an inner sleeve of a displacement sensor 5 is fixedly connected with one side of a cylinder rod of the servo cylinder through a connecting plate, the other side of the top end of the cylinder rod of the servo cylinder 7 is connected with a force sensor 4, an outer cylinder of the displacement sensor 5 is fixed on the cylinder body of the servo cylinder 7 through two cylinder ring fixing pieces, a pressure sensor 6 is fixedly connected at the joint of one end of the cylinder body of the servo cylinder 7 and the nozzle baffle servo valve 2 through bolts, and a filter element 1 is fixedly connected in an oil inlet of the;
the motion controller is a motion controller which is independently developed and has small volume, light weight and better human-computer interaction interface, the controller takes a DSP as a core control chip to design the motion controller, a bottom layer driving module of the controller is created based on a TLC language of MATLAB, automatic generation of MATLAB/Simulink control codes is realized, seamless connection of software and hardware of a control method is facilitated, the value access efficiency of the control method is improved, and an upper computer debugging interface is developed based on Labview software.
The cylinder body structure of the servo cylinder of the electro-hydraulic actuator can be printed out in a lighter weight mode by utilizing the function of rapid prototype manufacturing of the 3D printing technology, and the 3D printing technology provides powerful technical support for manufacturing of the integrated electro-hydraulic actuator.
As shown in fig. 2, the servo cylinder is a single-rod hydraulic cylinder, a rodless cavity bionic flow passage 9 and a rod cavity bionic flow passage 11 are arranged on a cylinder body at the joint of the servo cylinder 7 and the nozzle baffle servo valve 2, and an oil inlet bionic flow passage 8 and an oil return bionic flow passage 10 are respectively arranged at the joint of the nozzle baffle servo valve 2, the filter element 1 and the oil return pipeline. The nozzle baffle servo valve is provided with an oil inlet P, a first control oil port A, a second control oil port B and an oil return port T.
As shown in fig. 3, the pressure sensor 6 is used for detecting the fluid pressure value of the flow passage between the nozzle flapper servo valve 2 and the servo cylinder 7, and the pressure sensor 6 converts the pressure value into a signal in the form of weak current to be transmitted to the motion controller 3; the displacement sensor 5 is used for detecting a real-time displacement value of a cylinder rod of the servo cylinder 7, and the displacement sensor 5 converts the displacement value of the cylinder rod into a weak voltage type signal which is amplified by the displacement amplification plate and then transmitted to the motion controller 3; the force sensor 4 is used for detecting a real-time output value of a cylinder rod of the servo cylinder 7, and the force sensor 4 converts the output value of the cylinder rod into a weak voltage form signal and transmits the weak voltage form signal to the motion controller 3 after the weak voltage form signal is amplified by the displacement amplification plate.
As shown in fig. 1-3, two pressure sensors 6 are respectively fixed on the left and right sides of a servo cylinder 7 of the electro-hydraulic actuator, namely, a first pressure sensor is arranged on the servo cylinder close to one side of a nozzle baffle servo valve, and a second pressure sensor is arranged on one side of a cylinder cover of the servo cylinder and is used for detecting the oil pressure of two cavities of the servo cylinder; the force sensor 4 is fixedly arranged at the top end of the cylinder rod of the servo cylinder 7 and is used for detecting a real-time force output value of the cylinder rod of the servo cylinder 7; the fixed part of the displacement sensor 5 is fixed on one side of the cylinder body of the servo cylinder 7 through two cylinder ring fixing pieces, and the top end of the cylinder rod of the servo cylinder 7 is connected with the moving part of the displacement sensor 5 through a connecting plate and used for detecting the real-time displacement value of the cylinder rod of the servo cylinder 7.
The motion controller comprises a position impedance control module and a state observation module; the position impedance control module is used for adopting an impedance characteristic formula according to the output value of the cylinder rod
Calculating an impedance control outer loop position deviation signal Xe(ii) a Wherein, FLIndicating the cylinder rod output value, CDIndicating desired damping of electrohydraulic actuator, KDThe expected rigidity of the electro-hydraulic actuator is obtained, and s is a state variable; comparing the impedance control outer ring position deviation signals to obtain an expected position of a cylinder rod of the servo cylinder, and calculating a difference value between the expected position and a cylinder rod displacement value obtained through collection to serve as a position control inner ring deviation signal; and the state observation module is used for correcting the position control inner ring deviation signal by adopting a state observation algorithm and controlling the states of the first control oil port and the second control oil port of the nozzle baffle control valve by using the corrected position control inner ring deviation signal.
Specifically, as shown in fig. 3-5, the motion controller 3 includes a state observation module and a position impedance control module, the motion controller 3 calculates a state quantity change characteristic through a position impedance control algorithm according to signals such as a pressure displacement load force detected by a sensor, so as to realize online correction of control parameters in the motion controller, so as to improve control robustness of the integrated electro-hydraulic actuator under the conditions of displacement, speed, load and two-cavity pressure change, the motion controller 3 is used by matching the state observation module, the position impedance control module and a multi-sensor detection element, the state quantity of the dynamic process of the integrated electro-hydraulic actuator can be detected in real time, the control parameters in the motion controller are corrected online by using a position impedance control method, and the control performance of the integrated electro-hydraulic actuator is improved.
The invention also provides a control method of the electro-hydraulic actuator. The control method of the invention has the following working procedures:
step 1: the force sensor acquires a force output value F of a cylinder rod of the servo cylinderLData; the displacement sensor acquires a displacement value X of a cylinder rod of the servo cylinderPAnd (4) data.
Step 2: the output value F collected in the step 1 is processedLData passing impedance characteristic formula
The position deviation signal X in the impedance control outer ring can be obtained after calculationeData and control the impedance by an outer loop position deviation signal XeThe data is processed by a comparator to obtain the expected position X of the cylinder rod of the servo cylinderdData; in the formula: xeIs the impedance position deviation (m), FLThe external load force (N) (the collected output force value), CDDesired damping (N.s/m), K for the systemDIs the desired stiffness of the system (N/m). Further using the displacement value X collected in step 1PThe data is amplified and biased by a displacement amplifying plate and a comparator to obtain a position control inner ring bias signal Xd-XPAnd (4) data.
And step 3: for the position control inner ring deviation signal X obtained in the step 2d-XPThe data is observed by the state observation module in the motion controller and adopts the state observation algorithm
After correction, where X ═ Xd-XPAnd the corrected inner ring deviation signal y outputs a feedback control voltage signal from the nozzle baffle servo valve amplification plate to control the corresponding opening and closing of a PTAB port of the nozzle baffle servo valve, so that the output displacement of a cylinder rod of the servo cylinder is adjusted, and the joint driving of the foot robot is realized. In the formula: a is the system state matrix and B is the system input momentAnd C is a system output matrix, G is a state observer output error feedback matrix, x 'is a state vector of the state observer, is an estimated value of x, and y' is an output vector of the state observer and is an estimated value of y.
The working process of the electro-hydraulic actuator is as follows:
(1) electrohydraulic actuator extension movement
Oil inlet: oil flows to the nozzle baffle servo valve 2 through the filter element 1 through the oil inlet bionic flow passage 8, then flows into the nozzle baffle servo valve 2 through an oil inlet of the nozzle baffle servo valve, flows out of the nozzle baffle servo valve 2 through a first control oil A port of the nozzle baffle servo valve, enters a rodless cavity bionic flow passage 9 between the nozzle baffle servo valve 2 and the servo cylinder 7, and then enters a rodless cavity of a servo cylinder body through the rodless cavity bionic flow passage 9.
Oil return: the oil liquid flows out from a rod cavity of the servo cylinder 7, flows to a second control oil port B of the nozzle baffle servo valve 2 through a rod cavity bionic runner 11 of the servo cylinder 7 and the nozzle baffle servo valve 2, flows into the nozzle baffle servo valve 2 through a second control oil port B of the nozzle baffle servo valve, flows out of the nozzle baffle servo valve 2 through an oil return port T of the nozzle baffle servo valve, and flows back to an oil tank through an oil return bionic runner 10 to complete the stretching motion of the integrated intelligent electro-hydraulic actuator.
(2) An electro-hydraulic actuator retracting movement
Oil inlet: the system oil flows in through the bionic oil inlet flow channel 8 on the oil inlet pipeline, flows to the nozzle baffle servo valve 2 through the filter element 1, flows into the nozzle baffle servo valve through an oil inlet P port of the nozzle baffle servo valve, flows out of the nozzle baffle servo valve 2 through a second control oil port B port of the nozzle baffle servo valve, enters the bionic rod cavity flow channel 11 between the nozzle baffle servo valve 2 and the servo cylinder 7, and enters the rod cavity of the servo cylinder body through the bionic rod cavity flow channel 11.
Oil return: the oil liquid flows out from a rodless cavity of the servo cylinder 7, flows to a first control oil port A of the nozzle baffle servo valve 2 through a rodless cavity bionic runner 9 of the servo cylinder 7 and the nozzle baffle servo valve 2, flows into the nozzle baffle servo valve 2 through a first control oil port A of the nozzle baffle servo valve, flows out of the nozzle baffle servo valve 2 through an oil return port T of the nozzle baffle servo valve, and flows back to an oil tank through an oil return bionic runner 10 to complete the retraction motion of the integrated intelligent electro-hydraulic actuator.
Compared with the prior art, the invention has the beneficial effects that:
1. the electro-hydraulic actuator realizes high-density integration of multiple elements, has small volume and light weight, has no external pipeline between the servo valve and the servo cylinder, reduces the occurrence rate of damage and leakage faults of a pipeline joint of high-end mobile equipment, and improves the dynamic response of movement. The performance requirement of high-end mobile equipment is met to a certain extent, and the device can be widely applied to engineering machinery, metallurgical machinery, aircrafts, power-assisted exoskeletons and robots.
2. The autonomously developed motion controller matched with the electro-hydraulic actuator is small in size, light in weight and better in man-machine interaction interface, realizes automatic generation of MATLAB/Simulink control codes, facilitates seamless connection of software and hardware of a control method, and improves the value-in efficiency of the control method.
3. By applying the electro-hydraulic servo control theory, the modern control theory and the theoretical thought and method of a linear system, the artificial intelligence control theory is fused, the state quantity of the dynamic process of the integrated electro-hydraulic actuator can be detected in real time by designing a state observation module, a state feedback control module and a multi-sensing detection element in the motion controller, and the control parameter in the controller is corrected on line by adopting state feedback, so that the control performance of the integrated electro-hydraulic actuator is improved.
The equivalent embodiments in the present specification are described in a progressive manner, each embodiment focuses on differences from other embodiments, and the same and similar parts between the equivalent embodiments can be referred to each other.
The principles and embodiments of the present invention have been described herein using specific examples, which are provided only to help understand the method and the core concept of the present invention; meanwhile, for a person skilled in the art, according to the idea of the present invention, the specific embodiments and the application range may be changed. In summary, this summary should not be construed to limit the present invention.
Claims (6)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010611041.XA CN111706569B (en) | 2020-06-29 | 2020-06-29 | An electro-hydraulic actuator and its control method |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010611041.XA CN111706569B (en) | 2020-06-29 | 2020-06-29 | An electro-hydraulic actuator and its control method |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN111706569A CN111706569A (en) | 2020-09-25 |
| CN111706569B true CN111706569B (en) | 2021-06-29 |
Family
ID=72543451
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010611041.XA Active CN111706569B (en) | 2020-06-29 | 2020-06-29 | An electro-hydraulic actuator and its control method |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN111706569B (en) |
Families Citing this family (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113515047B (en) * | 2021-07-30 | 2024-04-05 | 杭州和利时自动化有限公司 | Fault detection method, device and equipment of displacement sensor |
| CN114857128A (en) * | 2022-06-01 | 2022-08-05 | 重庆龙煜精密铜管有限公司 | Hydraulic servo control system for sliding mechanism |
| CN116658482A (en) * | 2023-05-23 | 2023-08-29 | 南京晨光集团有限责任公司 | High-integration small-sized light actuator |
| CN116690364A (en) * | 2023-06-01 | 2023-09-05 | 上海赛威德机器人有限公司 | EHA-based triangular abrasive belt polishing head, polishing robot and adjusting method of polishing robot |
| CN116557372B (en) * | 2023-06-06 | 2025-09-16 | 燕山大学 | Integrated electrohydraulic swing actuator capable of distributing oil for robot single-leg lower-level actuator |
| CN119860386A (en) * | 2025-02-05 | 2025-04-22 | 华电煤业集团数智技术有限公司 | Motor control type intelligent oil cylinder and control method thereof |
| CN119712654A (en) * | 2025-02-05 | 2025-03-28 | 华电煤业集团数智技术有限公司 | A digital valve controlled mining intelligent oil cylinder and control method thereof |
Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN103233932A (en) * | 2013-04-19 | 2013-08-07 | 燕山大学 | High integration hydraulic driving unit structure |
-
2020
- 2020-06-29 CN CN202010611041.XA patent/CN111706569B/en active Active
Patent Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN103233932A (en) * | 2013-04-19 | 2013-08-07 | 燕山大学 | High integration hydraulic driving unit structure |
Non-Patent Citations (1)
| Title |
|---|
| 液压驱动单元基于位置/力的阻抗控制机理分析与试验研究;巴凯先，孔祥东，朱琦歆，李春贺，赵华龙，俞滨;《机械工程学报》;20170630;第53卷(第12期);第172-185页 * |
Also Published As
| Publication number | Publication date |
|---|---|
| CN111706569A (en) | 2020-09-25 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN111706569B (en) | An electro-hydraulic actuator and its control method | |
| CN103233932B (en) | High integration hydraulic driving unit structure | |
| CN111546350B (en) | Multi-joint heavy-load hydraulic robot system and high-precision motion control method | |
| Feng et al. | Identification and compensation of non-linear friction for a electro-hydraulic system | |
| CN106078750B (en) | A kind of legged type robot hydraulic drive unit Active Compliance Control method | |
| CN206801992U (en) | A kind of integrated hydraulic driver for robot | |
| CN105003495B (en) | An asymmetric hydraulic cylinder real-time dynamic compensation loading device | |
| CN109210037B (en) | A position-based impedance control method and system for a hydraulic drive unit | |
| CN203239660U (en) | High-integration hydraulic drive unit structure | |
| CN110107563B (en) | Multi-hydraulic servo actuator distribution cooperative control method under load interference condition | |
| CN104132023B (en) | Controllable variable cross section hydraulic cylinder and its hydraulic control system and control method | |
| CN110398895A (en) | A position-based active compliance control method and system | |
| CN202862219U (en) | Electro-hydraulic servo remote manipulation parallel manipulator with three degrees of freedom | |
| CN111648758A (en) | A model-free adaptive control method and system for a water well drilling rig propulsion device | |
| CN107345535A (en) | A kind of flow pressure divides chamber to coordinate control load simulation method | |
| CN102878139A (en) | Piezoelectric-liquid-actuated elastic-membrane-position electric feedback two-stage servo valve and control method thereof | |
| CN110173487B (en) | A leader synchronization control method of multiple electro-hydraulic servo actuators under switching network | |
| CN204041615U (en) | Controlled variable cross section oil hydraulic cylinder and hydraulic control system thereof | |
| CN107882795B (en) | A dynamic compliance compensation control method for a highly integrated valve-controlled cylinder force control system | |
| CN117514983B (en) | Supporting mechanism of self-adaptive traction robot for complex shaft and control method of supporting mechanism | |
| Yu et al. | Design and matching control strategy of electro-hydraulic load-sensitive hydraulic power unit for legged robots | |
| CN117970803A (en) | A speed approach and disturbance compensation control method for a pump-controlled electro-hydraulic steering system | |
| CN106958556A (en) | A kind of integrated hydraulic driver and its control method for robot | |
| CN203374541U (en) | High-integration hydraulic drive unit structure | |
| Lee et al. | A dual EHA system for the improvement of position control performance via active load compensation |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
