CN111691610A

CN111691610A - Beautiful ceramic tile

Info

Publication number: CN111691610A
Application number: CN202010532838.0A
Authority: CN
Inventors: 唐震
Original assignee: Xiangxiang Zhenyu Metallurgical Materials Co ltd
Current assignee: Xiangxiang Zhenyu Metallurgical Materials Co ltd
Priority date: 2020-06-12
Filing date: 2020-06-12
Publication date: 2020-09-22

Abstract

The embodiment of the application discloses pleasing to eye ceramic tile, including shelves head, the tile body and lamp holder, the cross-section of the tile body is the wave, shelves head sets up along width direction the first end of the tile body, the second of the tile body end be provided with shelves head assorted portion of giving a position, give a position with shelves head bolted connection, the lamp holder sets up the dome of the downside of the portion of giving a position of the tile body. The beautiful ceramic tile has the advantage of safety.

Description

Beautiful ceramic tile

Technical Field

The embodiment of the application relates to a roof building material, in particular to an attractive ceramic tile.

Background

In the prior art, roof tiles mainly comprise cylinder tiles, cement tiles, glazed tiles and the like. The glazed tile is used for decorating gardens and cemetery buildings. With the development of science and technology, various lamplights are required to be installed on the outer surface of an outdoor building, and several postures are added to the surrounding environment and life. Therefore, the tile lamp is mainly used for architectural decoration and illumination, and is also used for outlining large buildings, particularly for lighting of eave at night, and is commonly used for landscape decoration of landscape buildings, ancient buildings, glazed tiles, villa communities, parks and the like. However, the existing ceramic tile lamp is usually exposed outside completely and damaged by wind, wind and rain, so that the safety of the ceramic tile lamp is poor.

Disclosure of Invention

The technical problem to be solved by the embodiment of the application is to provide a safe and attractive ceramic tile.

The embodiment of the application is realized by the following technical scheme:

the utility model provides an pleasing to eye ceramic tile, includes shelves head, tile body and lamp holder, the cross-section of tile body is the wave, shelves head sets up along width direction the first end of tile body, the second of tile body end be provided with shelves head assorted lets position portion, let position portion with shelves head bolted connection, the lamp holder sets up the dome of the downside of the position of letting of tile body.

Further, the tile body comprises a ceramic layer, a heat insulation rock wool layer and a fixed layer in sequence from outside to inside, and the lamp holder is fixed on the fixed layer. .

Furthermore, the ceramic layer is provided with transverse ribs extending along the length direction, and the fixing layer is provided with longitudinal ribs extending along the width direction.

Further, the irradiation direction of the lamp head is consistent with the length direction of the tile body.

Furthermore, the surface of the stopper is provided with a reflective coating.

The beneficial effects are that:

compared with the prior art, the pleasing to the eye ceramic tile of this application embodiment, through setting up shelves head, the tile body and lamp holder, the cross-section of the tile body is the wave, shelves head sets up the first end at the tile body along width direction, the second of the tile body is served and is provided with the portion of stepping down with shelves head assorted, let position portion and shelves head bolted connection, the lamp holder sets up the dome at the downside of the position portion of stepping down of the tile body, thereby prevent that the lamp holder from being blown by the wind and drenched, and the lamp holder is hidden in the dome, guarantee safety.

Drawings

The following detailed description of embodiments of the present application is provided in conjunction with the appended drawings, wherein:

FIG. 1 is a schematic view of an aesthetic ceramic tile according to an embodiment of the present disclosure;

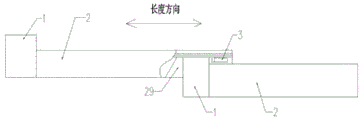

fig. 2 is a schematic view of the structural installation of two-piece aesthetic ceramic tiles according to an embodiment of the present application.

Detailed Description

In order to make those skilled in the art better understand the technical solutions of the embodiments of the present application, the embodiments of the present application are described in detail below with reference to the drawings, and the description in this section is only exemplary and explanatory, and should not have any limiting effect on the scope of the embodiments of the present application.

It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.

It should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientation or positional relationship shown in fig. 1 or the orientation or positional relationship that a product of the embodiment of the present application is usually placed when in use, which are only used for convenience of describing the embodiment of the present application and simplifying the description, but do not indicate or imply that the device or element to be referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and therefore, should not be construed as limiting the embodiment of the present application. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.

Furthermore, the terms "horizontal", "vertical", "overhang" and the like do not imply that the components are required to be absolutely horizontal or overhang, but may be slightly inclined. For example, "horizontal" merely means that the direction is more horizontal than "vertical" and does not mean that the structure must be perfectly horizontal, but may be slightly inclined.

In the description of the embodiments of the present application, it should also be noted that, unless otherwise explicitly stated or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. Specific meanings of the above terms in the embodiments of the present application can be understood in specific cases by those of ordinary skill in the art.

As shown in fig. 1 and 2, an attractive ceramic tile comprises a stopper 1, a tile body 2 and a lamp holder 3, wherein the cross section of the tile body 2 is wavy, the stopper 1 is arranged at the first end of the tile body 2 along the width direction, a position yielding part 29 matched with the stopper 1 is arranged at the second end of the tile body 2, the position yielding part is connected with the stopper 1 through a bolt, and the lamp holder 3 is arranged on a dome at the lower side surface of the position yielding part 29 of the tile body 2, so that the lamp holder 3 is prevented from being blown by wind and rain, and the lamp holder 3 is hidden in the dome to ensure safety.

One possible implementation manner, as shown in fig. 1 and 2, the tile body 2 sequentially comprises a ceramic layer 21, a heat insulation rock wool layer 22 and a fixing layer 23 from outside to inside, and the lamp cap 3 is fixed on the fixing layer 23, so that the ceramic tile is rainproof and heat insulation, the energy consumption of a building can be effectively reduced, and sustainable development is realized.

In one possible embodiment, the ceramic layer 21 is formed with transverse ribs extending in the longitudinal direction, and the fixing layer 23 is formed with longitudinal ribs extending in the width direction, thereby enhancing strength.

In a possible implementation mode, as shown in fig. 1 and fig. 2, the irradiation direction of the lamp head 3 is consistent with the length direction of the tile body 2, so that light is ensured to irradiate on the ridge on the tile body 2, and the aesthetic effect is improved.

In a possible implementation mode, the surface of the stopper 1 is provided with a reflective coating to reflect the light of the lamp holder 3, so that the light is intensively irradiated to the tile ridge on the tile body 2, and the attractive effect is improved.

The above embodiments are only used for illustrating the technical solutions of the present application and not for limiting the same, and any modification or equivalent replacement without departing from the spirit and scope of the embodiments of the present application should be covered within the technical solutions of the present application.

Claims

1. An attractive ceramic tile, characterized in that: including shelves head (1), tile body (2) and lamp holder (3), the cross-section of tile body (2) is the wave, shelves head (1) sets up along width direction the first end of tile body (2), the second of tile body (2) end be provided with the department (29) of stepping down of shelves head (1) assorted, let the department with shelves head (1) bolted connection, lamp holder (3) set up the dome of the downside of the department (29) of stepping down of tile body (2).

2. The aesthetic ceramic tile according to claim 1, wherein: the tile body (2) comprises a ceramic layer (21), a heat insulation rock wool layer (22) and a fixed layer (23) from outside to inside in sequence, and the lamp holder (3) is fixed on the fixed layer (23).

3. The aesthetic ceramic tile according to claim 1, wherein: the ceramic layer (21) is provided with transverse ribs extending along the length direction, and the fixing layer (23) is provided with longitudinal ribs extending along the width direction.

4. The aesthetic ceramic tile according to claim 2, wherein: the irradiation direction of the lamp holder (3) is consistent with the length direction of the tile body (2).

5. The aesthetic ceramic tile according to claim 2, wherein: the surface of the gear head (1) is provided with a reflective coating.
