Abstract

The invention discloses an unpacking hopper device for ferrosilicon bales, comprising a base frame, a blade assembly, a material guide groove and a material hopper. The material guide groove is installed on the base frame, the blade assembly is installed on the material guide groove, and the material hopper Located below the feed chute, the ferrosilicon clump is lifted to the top of the feed chute by a crane. When the ferrosilicon clump is placed downward, the ferrosilicon clump is in contact with the blade assembly installed on the feed chute. The lump is broken open, and the ferrosilicon enters the hopper. The unpacking hopper device also includes a track, the track is laid below the material guide groove, the bottom of the hopper is provided with a pulley, and the hopper is slidably connected on the track. The top of the hopper is provided with jaws/hanging claws, which is convenient for lifting, running and tipping the hopper. The invention also discloses a method for using the unpacking bucket device for the ferrosilicon clumps. The whole process of the unpacking bucket of the present invention is a machine operation without manual participation, the setting of the material guide trough prevents the spillage of dust during the unpacking process, and the operation is safe and reliable, and is environmentally friendly and hygienic.

Description

A kind of unpacking bucket device for ferrosilicon clump and using method thereof

technical field

The invention belongs to the technical field of metallurgical equipment, and in particular relates to an unpacking hopper device for ferrosilicon clumps and a use method thereof.

Background technique

Ferrosilicon lumps are lumps of ferrosilicon wrapped in woven bags. Bulk ferrosilicon is a commonly used alloy charge for steelmaking in the metallurgical industry. From the production site of bulk ferrosilicon to the ferrosilicon warehouse, it is transported in the form of ferrosilicon clumps. When ferrosilicon clumps are used for steelmaking, Then you need to open the ferrosilicon block to load the bucket. Due to the dangerous properties of ferrosilicon, it emits hydrogen when it comes in contact with water, alkalis or acids, can form explosive mixtures with air, and can react violently with oxidants. The highly toxic gases of arsenic and phosphine are emitted. Therefore, the storage, transportation and unpacking of ferrosilicon have strict requirements. There are also various ways to open the bale. The current working method of our company is to manually cut the bale. This operation method is very primitive and dangerous, and is prone to safety accidents.

The existing working method is to manually open the woven bag to wrap, and then load it into a hopper (that is, into a hopper). There are generally two methods for manual opening. One is to place the ferrosilicon package on the ground for unpacking or manual cutting and then loading into the bucket; The operator extends the cutting rod 9 into the bottom of the bale, and after breaking the bale from the bottom, the massive ferrosilicon falls into the hopper. At present, people use a cutting stick (metal) to put it into the fire to burn red, and then extend it into the bottom of the ferrosilicon block to iron the bag, and the woven bag is broken open by the high temperature. The former method has long time and low work efficiency; although the latter method is fast and efficient, it brings at least two problems:

1. The operation method is dangerous. The manual method is broken from the bottom of the bag, and the ferrosilicon block spilled from the bag may splash out and hurt the operator.

2. Pollute the environment. Because the bag block is suspended in the air, a large amount of dust is generated after the bag is broken, which causes environmental pollution and seriously affects the health of operators.

SUMMARY OF THE INVENTION

In view of the deficiencies in the prior art, the purpose of the present invention is to provide an unpacking hopper device for ferrosilicon bales with a simple structure and convenient use; the present invention also provides an unpacking device for ferrosilicon bales How to use the bucket device.

In order to achieve the above purpose, the technical scheme of the present invention is: an unpacking hopper device for ferrosilicon bales, which is characterized in that it includes a base frame, a blade assembly, a material guide trough and a hopper, and the material guide trough is installed in the On the base frame, the blade assembly is installed on the guide trough, the hopper is located below the guide trough, and the ferrosilicon block is lifted by the crane to the top of the guide trough. When the ferrosilicon block is placed downward, the ferrosilicon block is In contact with the blade assembly installed on the guide groove, the ferrosilicon package is broken open, and the ferrosilicon enters the hopper.

Further, the unpacking hopper device further includes a track, the track is laid below the material guide groove, the bottom of the hopper is provided with a roller, and the hopper is slidably connected on the track.

Further, the blade assembly includes a blade and a blade seat, the blade includes a blade edge and a blade back, and the blade back is connected to the blade seat.

Further, the blade seat is provided with a groove, and the blade back of the blade is inserted into the groove and fastened to the blade seat by a fastener.

Further, the sharp change angle A on both sides of the blade is 10-45 degrees, and the length direction of the blade is designed to be serrated.

Further, the material guide groove includes a material receiving groove and a dust cover, the dust cover is connected below the material receiving groove, and the blade assembly is connected to the inner side wall of the material receiving groove.

Further, the feeding trough is surrounded by four steel plates connected end to end, at least one steel plate is inclined, and the blade seat is connected to the inclined inner wall of the feeding trough; the dust cover is surrounded by rubber sheets, the rubber sheets In strips and arranged vertically.

Further, the base frame includes a column, a base plate and an upper frame, one end of the column is connected to the base plate, the other end of the column is connected to the upper frame, the base plate is fixedly connected to the ground, and the material guide trough is assembled on the base frame, The dust cover passes through the upper frame, and the feeding trough is connected to the upper frame.

Further, the unpacking bucket device also includes a photoelectric induction switch, the photoelectric induction switch is arranged on both sides of the base frame, the photoelectric induction switch is installed on the column, and the direction of the photoelectric induction switch is parallel to the track.

Based on the above-mentioned unpacking hopper device for ferrosilicon clumps, the present invention also provides a method for using the unpacking hopper device for ferrosilicon clumps, which comprises the following steps:

Step a. The hopper runs on the track and triggers the photoelectric sensor switch on one side of the base frame, prompting the hopper to enter the bottom of the guide groove. When the photoelectric sensor switch on the other side of the base frame is triggered, it prompts the hopper to be placed in place and the hopper is in place. stop running;

Step b. The ferrosilicon block is hoisted over the feed chute by a crane, and slides from top to bottom along the blade assembly set on the inclined surface of the feed chute. Under the combined action of the serrations on the blade assembly and the blade edge , to break the ferrosilicon baled block, the block ferrosilicon in the baled block is spilled from the baled block, and enters the hopper through the guide groove to complete the unpacking operation of the ferrosilicon baled block.

The advantages of adopting the technical solution of the present invention are:

1. The operation of the present invention is safe, and the entire process of unpacking the hopper is machine operation, without manual participation, and the operation is safe and reliable.

2. The present invention is environmentally friendly and hygienic, and the material guide trough is provided with rubber plate protection to prevent the spillage of dust during the unpacking process, and is environmentally friendly.

Description of drawings

The present invention will be described in further detail below in conjunction with the accompanying drawings and specific embodiments:

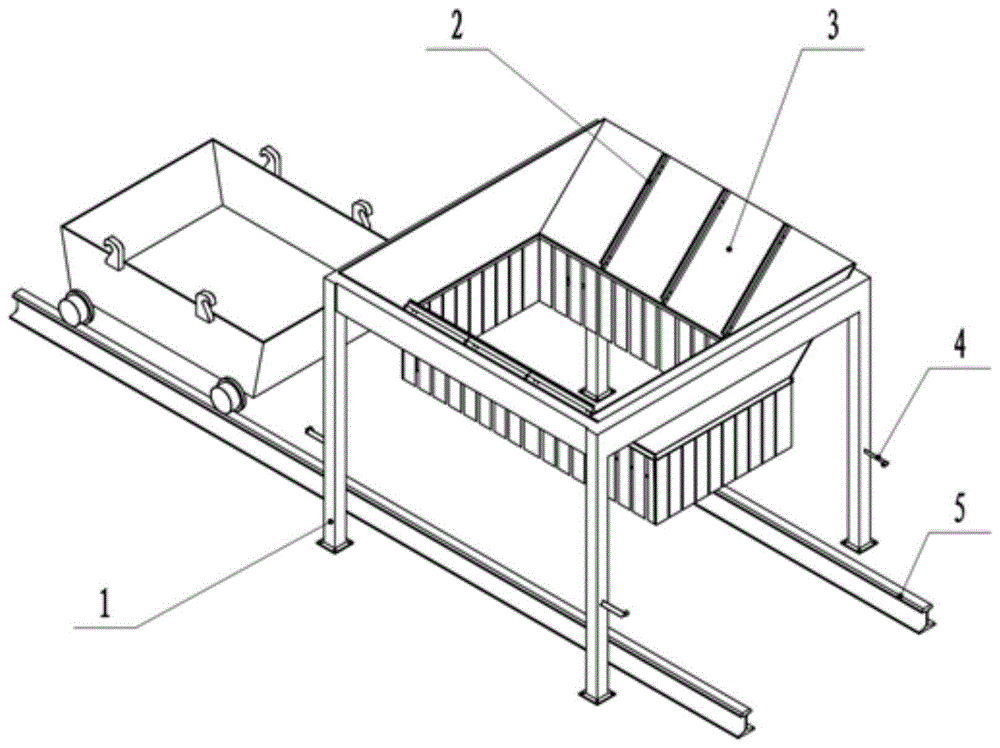

Fig. 1 is the overall structure schematic diagram of unpacking bucket device of the present invention;

2 is a schematic diagram of the structure of the base frame of the present invention;

Fig. 3 is the structural schematic diagram of the material guide chute of the present invention;

4 is a schematic structural diagram of the blade assembly of the present invention;

FIG. 5 is a schematic diagram of a manual cutting method for ferrosilicon clumps in the prior art.

The marks in the above figures are: 1, base frame; 2, blade assembly; 3, material guide trough; 4, photoelectric sensor switch; 5, track; 6, hopper; 7, hook; 8, ferrosilicon block; 9. Cutting stick.

Detailed ways

In the present invention, it should be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal" ", "top", "bottom", "inside", "outside", "clockwise", "counterclockwise", "axial", "planar direction", "circumferential", etc. indicated the orientation or position relationship is based on The orientation or positional relationship shown in the drawings is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as Limitations of the present invention.

As shown in Figures 1 to 4, an unpacking hopper device for ferrosilicon bales is characterized in that it comprises a base frame 1, a blade assembly 2, a material guide groove 3 and a material hopper 6, the material guide groove 3 It is installed on the base frame 1, the blade assembly 2 is installed on the guide groove 3, the hopper 6 is located under the guide groove 3, the ferrosilicon block is lifted by the crane to the top of the guide groove 3, and the ferrosilicon is placed downward. When the ferrosilicon clump is in contact with the blade assembly 2 installed on the material guide groove 3, the ferrosilicon clump is broken open, and the ferrosilicon enters into the hopper 6.

The unpacking hopper device also includes a track 5 , the track 5 is laid below the material guide trough 3 , the bottom of the hopper 6 is provided with a roller, and the hopper 6 is slidably connected to the track 5 . The top of the hopper 6 is provided with jaws/hanging claws, which facilitates operations such as lifting, running, and tipping the hopper.

The blade assembly 2 includes a blade 21 and a blade seat 22 , the blade 21 includes a blade edge and a blade back, and the blade back is connected to the blade seat 22 . The blade seat 22 is provided with a groove, and the blade back of the blade 21 is inserted into the groove and fastened to the blade seat 22 by a fastener. The sharp change angle A on both sides of the blade is 10 to 45 degrees, and the length direction of the blade is designed to be serrated.

The feeding chute 3 includes a feeding chute 31 and a dust cover 32. The dust cover 32 is connected below the feeding chute 31, and the blade assembly 2 is connected to the inner side wall of the feeding chute 31. The blade assembly 2 of the present invention may be a The three pieces shown in the figure may be 1 to 4 pieces. The feeding chute 31 is surrounded by four steel plates connected end to end, at least one of which is inclined, and the blade seat 22 is connected to the inclined inner wall of the feeding chute 31 . The dust cover 32 is surrounded by rubber sheets, the rubber sheets are strip-shaped and vertically arranged, and the function is to block dust when the material is blanked.

The base frame 1 includes a column 11, a base plate 12, and an upper frame 13. One end of the column 11 is connected to the base plate 12, and the other end of the column 11 is connected to the upper frame 13. The base plate 12 is fixedly connected to the ground, and is fixed by foundation screws or Welded with the embedded steel plate under the ground. The feeding chute 3 is assembled on the base frame 1 , the dust cover 32 passes through the upper frame 13 , and the feeding chute 31 is connected to the upper frame 13 .

The unpacking hopper device also includes a photoelectric sensor switch 4. The photoelectric sensor switch 4 is arranged on both sides of the base frame 1 to sense the entry and exit of the hopper and the positioning of the blanking point. The photoelectric sensor switch 4 is installed on the column 11. The photoelectric sensor switch 4 The direction is parallel to the track 5 .

Based on the above-mentioned unpacking hopper device for ferrosilicon bales, the present invention also provides a method for using the unpacking hopper device for ferrosilicon bales, the use method is: step a. The hopper 6 is on the track 5 Running (it can be electric or manual), trigger the photoelectric sensor switch 4 on one side of the base frame 1, prompting the hopper 6 to enter the bottom of the material guide trough 3, when the photoelectric sensor switch 4 on the other side of the base frame 1 When triggered, it prompts the hopper 6 to be placed in place, the hopper 6 stops running, and the device starts to work (the material can be unloaded);

Step b. The ferrosilicon block is hoisted above the feed chute 3 by a crane, and slides from top to bottom along the blade assembly 2 arranged on the inclined surface of the feed chute 31. Under the combined action of the ferrosilicon block, the ferrosilicon block is broken open, and the massive ferrosilicon in the block is spilled from the block and enters the hopper 6 through the material guide trough 3 to complete the unpacking operation of the ferrosilicon block.

The present invention has been exemplarily described above with reference to the accompanying drawings. Obviously, the specific implementation of the present invention is not limited by the above methods, as long as various insubstantial improvements made by the technical solutions of the present invention are adopted, or the If the concept and technical solutions are directly applied to other occasions, they all fall within the protection scope of the present invention.

Claims (10)

1. The utility model provides a unpacking fill device for ferrosilicon package piece which characterized in that: including bed frame (1), blade subassembly (2), baffle box (3) and hopper (6), install on bed frame (1) baffle box (3), install on baffle box (3) blade subassembly (2), hopper (6) are located the below of baffle box (3), and ferrosilicon package piece is hoisted the top of baffle box (3) by the hoist, when placing ferrosilicon package piece downwards, and ferrosilicon package piece contacts with blade subassembly (2) of installing on baffle box (3), and ferrosilicon package piece is broken open, and ferrosilicon enters into in hopper (6).

2. The unpacking bucket device for ferrosilicon ingot as set forth in claim 1, characterized in that: the packaging bucket opening device further comprises a rail (5), the rail (5) is laid below the guide chute (3), rollers are arranged at the bottom of the hopper (6), and the hopper (6) is connected to the rail (5) in a sliding mode.

3. A bucket opener for ferrosilicon ladles as claimed in claim 1 or 2, in which: the blade assembly (2) comprises a blade (21) and a blade seat (22), wherein the blade (21) comprises a blade edge and a blade back, and the blade back is connected to the blade seat (22).

4. A bucket opener for ferrosilicon ladles as claimed in claim 3, in which: the blade seat (22) is provided with a groove, and the back of the blade (21) is inserted into the groove and is fixedly connected to the blade seat (22) through a fastener.

5. The unpacking bucket device for ferrosilicon ingot as set forth in claim 4, wherein: the sharp included angle A of the two sides of the cutting edge is 10-45 degrees, and the length direction of the cutting edge is designed to be zigzag.

6. A bucket opener for ferrosilicon ladles as claimed in claim 3, in which: the guide chute (3) comprises a material receiving groove (31) and a dust cover (32), the dust cover (32) is connected below the material receiving groove (31), and the blade assembly (2) is connected on the inner side wall of the material receiving groove (31).

7. A bucket opener for ferrosilicon ladles as claimed in claim 3, in which: the material receiving groove (31) is formed by connecting four steel plates end to end in a surrounding mode, at least one steel plate is inclined, and the blade seat (22) is connected to the inner wall of the inclined surface of the material receiving groove (31).

8. The unpacking bucket device for ferrosilicon ingot as set forth in claim 7, wherein: the base frame (1) comprises a stand column (11), a foundation plate (12) and an upper frame (13), one end of the stand column (11) is connected with the foundation plate (12), the other end of the stand column (11) is connected with the upper frame (13), the foundation plate (12) is fixedly connected on the ground, a material guide groove (3) is assembled on the base frame (1), a dust cover (32) penetrates through the upper frame (13), and a material receiving groove (31) is connected onto the upper frame (13).

9. The unpacking bucket device for ferrosilicon ingot as set forth in claim 8, wherein: the packaging bucket opening device further comprises photoelectric sensing switches (4), wherein the photoelectric sensing switches (4) are arranged on two sides of the base frame (1), the photoelectric sensing switches (4) are installed on the stand columns (11), and the directions of the photoelectric sensing switches (4) are parallel to the tracks (5).

10. The use method of the packing bucket opening device for the silicon iron ladle blocks is characterized by comprising the following steps of: the unpacking bucket device for the ferrosilicon ladle block based on any one of claims 1 to 9 is used by the following method:

step a, a hopper (6) runs on a track (5), a photoelectric sensing switch (4) on one side of a base frame (1) is triggered to prompt the hopper (6) to start to enter the lower part of a material guide groove (3), when the photoelectric sensing switch (4) on the other side of the base frame (1) is triggered, the hopper (6) is prompted to be put in place, and the hopper (6) stops running;

step b, the ferrosilicon package block is hung above the guide chute (3) by a crane and slides along the top-down of the blade assembly (2) arranged on the inclined surface of the material receiving groove (31), under the combined action of sawteeth and cutting edges on the blade assembly (2), the ferrosilicon package block is broken, massive ferrosilicon in the package block is sprinkled out of the package block and enters the hopper (6) through the guide chute (3), and the operation of opening the package and filling the bucket of the ferrosilicon package block is completed.
