Abstract
本发明适用于环境艺术技术领域，提供了一种无需人工操作即可自动清理内部灯管的环境艺术照明灯，旨在解决由于照明灯的数量过多，从而使得工人在清理大量灯管上的灰尘时会浪费大量体力和时间，且清理时还需要将灯罩打开，清理工作很是繁琐，从而使得工人的工作效率降低，使得清理照明灯需要的时间延长的问题。该装置通过在灯箱内部添加清洁装置，通过清洁装置本身的旋转清洁，以及通过旋转装置来带动照明灯的旋转，使照明灯可以得到全方位的旋转，且照明灯的旋转会有间隔时间，可以将照明灯充分清洁。
The invention is applicable to the technical field of environmental art, and provides an environmental art lighting lamp that can automatically clean the internal lamps without manual operation. It will waste a lot of physical strength and time when cleaning the dust, and the lampshade needs to be opened when cleaning. The cleaning work is very cumbersome, which reduces the work efficiency of workers and prolongs the time required to clean the lighting. The device adds a cleaning device inside the light box, cleans by the rotation of the cleaning device itself, and drives the rotation of the illuminating lamp through the rotating device, so that the illuminating lamp can be rotated in all directions, and the rotation of the illuminating lamp has an interval, which can be Thoroughly clean the lights.
Description
Technical Field
The invention belongs to the technical field of environmental art, and particularly relates to an environmental art illuminating lamp convenient for dust removal.
Background
The lamp is a lighting device which can transmit light, distribute and change the light distribution of a light source, so that the light source can reliably emit light to meet the requirement of human beings on the light when the human beings are engaged in various activities. The lamp is originally called a "stirrup", which is an edible utensil in ancient times, and the "stirrup" is named because its appearance is similar to it. In English, lamp comes from Greek, is originally a torch, and is an early flame light source and lamp. Modern electric lamps include optical, electrical and mechanical components in addition to the electric light source section.
Generally can be provided with many light in the park, make people provide light for people when the activity night like this, thereby made things convenient for people's life, nearby view has also been lighted simultaneously, make nearby environment artistic facilities bright and beautiful more, however the light is convenient but the live time long can make and be covered with too much dust on the inside fluorescent tube, just so make the illuminating effect of lamp not good, thereby it clears up to need the workman dust on the fluorescent tube, because the quantity of light is too much, thereby make the workman can waste a large amount of physical power and time when clearing up the dust on a large amount of fluorescent tubes, and still need open the lamp shade during the clearance, the clearance work is very loaded down with trivial details, thereby make workman's work efficiency reduce, make the time extension that the clearance light needs.
Disclosure of Invention
The embodiment of the invention aims to provide an environment artistic lighting lamp capable of automatically cleaning an internal lamp tube without manual operation, and aims to solve the problems that a large amount of physical power and time are wasted when workers clean dust on a large number of lamp tubes due to the fact that the number of the lighting lamps is too large, the cleaning work is complicated due to the fact that a lampshade needs to be opened during cleaning, the working efficiency of the workers is reduced, and the time for cleaning the lighting lamps is prolonged.
The embodiment of the invention is realized in such a way that the environment artistic illuminating lamp convenient for dust removal comprises: the lamp box is characterized in that an inclined base is arranged at the bottom of the lamp box, a first rotating bearing is arranged on the inner wall of the side of the lamp box, an illuminating lamp is arranged on the first rotating bearing, a cleaning device is arranged below the illuminating lamp, and a connecting column is arranged at the other end of the illuminating lamp; the light-passing board is installed to the lamp house top, the light-gathering plate is installed to inside being located of lamp house between light and the light-passing board.
Preferably, the cleaning device comprises a rotating motor, the rotating motor is mounted on the side wall of the lamp box, a first rotating shaft is fixedly mounted on the other side of the rotating motor, a cleaning rod is mounted on the first rotating shaft, and bristles are arranged on the cleaning rod; first rotation axis other end fixed mounting has first trapezoidal gear, first trapezoidal gear meshing has second trapezoidal gear, the inside fixed mounting of second trapezoidal gear has the second rotation axis, second swivel bearing is installed to second rotation axis one end, the second swivel bearing other end and lamp house bottom fixed mounting, second rotation axis other end fixed mounting has the column spinner, fixed mounting has the groove of linking up on the column spinner, link up the groove and link up the post and cooperate.
Preferably, the length of the bristles is greater than the distance between the cleaning rod and the illumination lamp.
Preferably, the distance between the splicing grooves is greater than the diameter of the splicing posts.
Preferably, the light gathering plates are divided into four blocks, and the light gathering plates are connected with one another and are arranged above the illuminating lamp.
Preferably, the lamp house bottom is installed the card key, open at the base top has the recess, the inside draw-in groove that is equipped with of recess, the card key cooperatees with the draw-in groove.
Preferably, the maximum width of the catch is smaller than the width of the groove.
The environment artistic lighting lamp capable of automatically cleaning the internal lamp tube without manual operation provided by the embodiment of the invention has the following beneficial effects:
the device is through adding cleaning device in lamp house inside, through cleaning device's rotation cleanness itself to and drive the rotation of light through rotary device, make the light can obtain omnidirectional rotation, and the rotation of light has the interval time, can be fully clean the light.
Drawings

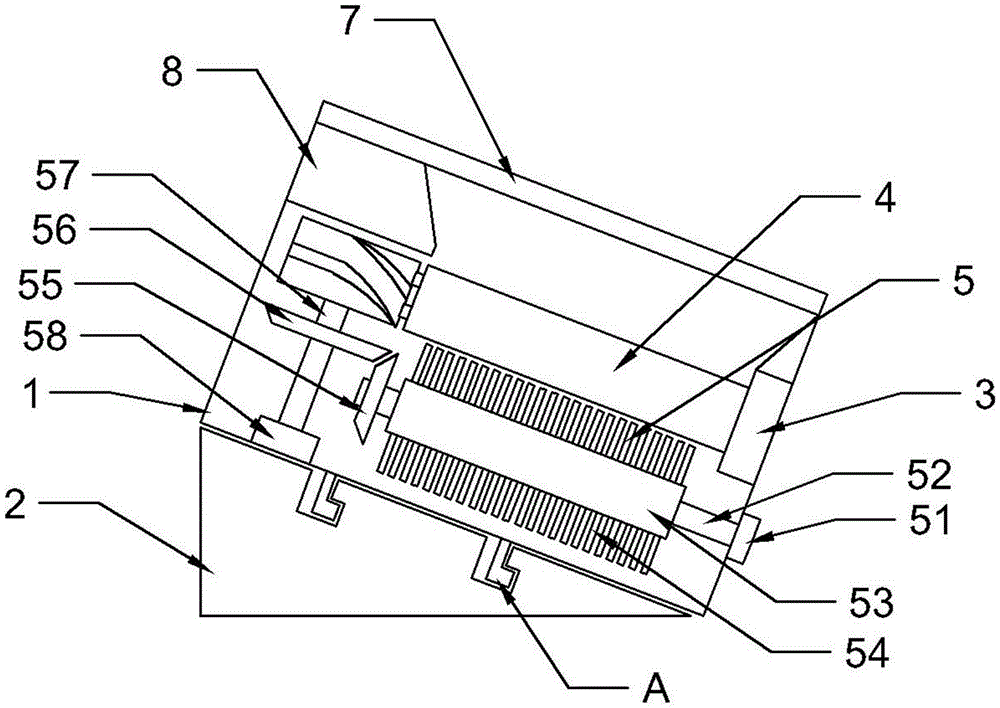

Fig. 1 is a schematic structural diagram of an environment art illuminating lamp convenient for dust removal according to an embodiment of the present invention;
fig. 2 is a top view of an environment art lighting lamp convenient for dust removal according to an embodiment of the present invention;
fig. 3 is a partial three-dimensional structure view of an environmental art lighting lamp cleaning device convenient for dust removal according to an embodiment of the present invention;
fig. 4 is a partially enlarged view of a portion a in fig. 1.
In the drawings: 1. a light box; 2. a tilting base; 3. a first rotary bearing; 4. an illuminating lamp; 5. a cleaning device; 51. a rotating electric machine; 52. a first rotating shaft; 53. a cleaning rod; 54. brushing; 55. a first trapezoidal gear; 56. a second trapezoidal gear; 57. a second rotation shaft; 58. a second rotary bearing; 59. a spin column; 510. a joining groove; 6. connecting the column; 7. a light-transmitting plate; 8. a light-gathering plate; 9. a card key; 10. a groove; 11. a card slot; .
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Specific implementations of the present invention are described in detail below with reference to specific embodiments.
Example 1:
as shown in fig. 1 and 2, in the embodiment of the present invention, the method includes: an ambient art lighting lamp convenient for dust removal, comprising: the lamp box comprises a lamp box 1, wherein an inclined base 2 is installed at the bottom of the lamp box 1, a first rotating bearing 3 is installed on the inner wall of the side of the lamp box 1, an illuminating lamp 4 is installed on the first rotating bearing 3, a cleaning device 5 is installed below the illuminating lamp 4, and a connecting column 6 is installed at the other end of the illuminating lamp 4; light-passing board 7 is installed to 1 top of lamp house, 1 inside being located of lamp house installs solar panel 8 between light 4 and the light-passing board 7.
During the use, light 4 is lighted, light 4 can give out light, see through light-passing board 7 and illuminate the view of surrounding, simultaneously, the light-condensing plate 8 that is located 4 tops of light can concentrate the light of light 4 scattering and shine, make the illumination effect of light 4 better, when needing to be clean, only need start cleaning device 5, then cleaning device 5 can clear up light 4, cleaning device 5 can be rotatory light 4 through linking up post 6 simultaneously, make every position of light 4 all can obtain the cleanness.
Example 2:
as shown in fig. 1 and 3, in the embodiment of the present invention, the cleaning device 5 includes a rotating motor 51, the rotating motor 51 is installed on a side wall of the light box 1, a first rotating shaft 52 is fixedly installed on the other side of the rotating motor 51, a cleaning rod 53 is installed on the first rotating shaft 52, and bristles 54 are arranged on the cleaning rod 53; first rotating shaft 52 other end fixed mounting has first trapezoidal gear 55, first trapezoidal gear 55 meshes has second trapezoidal gear 56, the inside fixed mounting of second trapezoidal gear 56 has second rotation axis 57, second swivel bearing 58 is installed to second rotation axis 57 one end, the second swivel bearing 58 other end and lamp house 1 bottom fixed mounting, second rotation axis 57 other end fixed mounting has column spinner 59, fixed mounting has linking groove 510 on the column spinner 59, linking groove 510 cooperatees with linking post 6.
When the lamp is used, the rotating motor 51 is started, the rotating motor 51 drives the first rotating shaft 52 to rotate, the first rotating shaft 52 drives the cleaning rod 53 to rotate, and then drives the bristles 54 to rotate, the illuminating lamp 4 is cleaned through the bristles 54, meanwhile, the first rotating shaft 52 drives the first trapezoidal gear 55 to rotate, the first rotating gear 55 drives the second rotating gear 56 engaged with the first rotating gear to rotate, and then drives the second rotating shaft 57 to rotate, the second rotating shaft 57 drives the rotating column 59 above, when the rotating column 59 rotates, the connecting groove 510 fixedly installed on the outer side wall of the rotating column 59 rotates along with the rotating shaft, because the connecting groove 510 is matched with the connecting column 6, the connecting groove 510 drags the rotating shaft to move together with the connecting column 6 matched with the connecting groove, the moving of the connecting column 6 drives the illuminating lamp 4 to rotate, and the connecting groove 510 rotates for one circle and then can be separated from the connecting column 6 matched with the rotating shaft, the illumination lamp 4 is stopped from rotating, and then the connection groove 59 is matched with another connection column 6 along with the rotation of the connection groove 59, so that the illumination lamp 4 is continuously driven to rotate, and the brush bristles 54 can clean all directions of the illumination lamp 4.
In this embodiment, the length of the brush 54 is greater than the distance between the cleaning rod 53 and the illuminating lamp 4, so that the brush 54 can contact with the illuminating lamp 4, and the cleaning effect of the brush 54 is better.
In this embodiment, the distance between the coupling grooves 510 is greater than the diameter of the coupling posts 6, preventing the coupling posts 6 from having an excessively large diameter, which may prevent them from entering the coupling grooves 510, or may cause the device to be stuck during operation.
In this embodiment, four are no less than to the solar panel 8, interconnect installs in 4 tops of light between the solar panel 8, strengthens the spotlight effect of solar panel 8, makes light 4 can all concentrate to the light of all directions scattering.
Example 3:
as shown in fig. 4, in the embodiment of the present invention, a clamping key 9 is installed at the bottom of the light box 1, a groove 10 is formed at the top of the inclined base 2, a clamping groove 11 is formed inside the groove 10, and the clamping key 9 is matched with the clamping groove 11, so that the light box 1 and the inclined base 2 are detachably designed, a function of replacing the base according to environmental requirements is provided for the light box 1, and the application range of the device is wider.
In this embodiment, the maximum width of the latch 9 is smaller than the width of the groove 10, so as to prevent the latch 9 from entering the slot 11 through the groove 10 due to the too large width of the latch 9
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.
