Abstract

The invention discloses a portable foot orthopedic brace, comprising an orthopedic brace body, an insole groove is formed on the top of the orthopedic brace body, and fixing grooves are formed on the left and right sides of the inner wall of the insole groove. The front left side of the main body is fixedly connected with a telescopic device, the back left side of the orthopedic brace body is fixedly connected with a limiting device, a fixing belt is fixedly connected inside the limiting device, and a foot sole is inserted into the insole groove. Insole, the upper and lower ends of the sole insole are provided with connecting buckles, the front of the sole insole is provided with anti-slip lines, the portable foot orthopedic support, by setting the main large area of the sole insole to use regular six The polygons are subdivided, and it is ensured that there are at least seven regular hexagons in the plum-like honeycomb structure under each large partition, which is suitable for more types of foot types and foot diseases, and can also be used for people who are similar to metatarsalgia. Minor adjustments to achieve the effect of improving the user population.

Description

A portable foot orthopedic brace

technical field

The invention relates to the technical field of medical and health care equipment, in particular to a portable foot orthopedic brace.

Background technique

Currently, there are various types of orthopedic braces on the market. According to the production method, it is divided into three categories: prefabricated foot pads (mass production); prepared models (basic models + accessories); customized models (data collection and analysis). Prefabricated foot pads (mass production): Although the production cost is low and the versatility is good, making a shoe mold once can meet mass production. However, unfavorable factors such as human factors are relatively large; the preparation model (basic model + accessories): cannot meet the subtle orthopedic adjustment; the customized model (data collection and analysis): to achieve the best effect of the orthopedic foot pad, it must be "tailored". However, the price of a pair of ordinary custom foot pads is 200 to 800 US dollars, and the price of a pair of custom foot pads with the best effect may range from 1,000 to 10,000 yuan. to solve the above problems.

In view of the above-mentioned deficiencies of the prior art, on the basis of the common foot orthopedic brace, this patent emphasizes the convenience and detailed processing. In order to take into account the general public, even patients such as metatarsalgia who need "point support" (fine adjustment) at the back of the pain area 2 to 4mm can be taken care of. Therefore, the present patent extracts characteristic data of the subject's plantar pressure. The subject's plantar pressure database contains a large amount of mechanical information, extracting characteristic data useful for brace design to the greatest extent, and presenting an orthopedic effect that is more suitable for the public.

Therefore, the applicant proposes a portable orthopedic foot brace, which is used to solve the above-mentioned problem of poor applicability of the traditional orthopedic foot brace.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a portable foot orthopaedic brace to solve the deficiencies of the prior art.

In order to achieve the above object, the present invention adopts the following technical solutions:

A portable foot orthopedic brace, comprising an orthopedic brace body, an insole groove is formed on the top of the orthopedic brace body, fixing grooves are formed on the left and right sides of the inner wall of the insole groove, and the front surface of the orthopedic brace body is provided. The left side is fixedly connected with a telescopic device, the left side of the back of the orthopedic brace body is fixedly connected with a limiting device, a fixing belt is fixedly connected inside the limiting device, and a sole insole is inserted into the insole groove. The upper and lower ends of the sole insole are provided with connecting buckles, the front of the sole insole is provided with anti-slip patterns, and the upper and lower sides of the anti-slip patterns are honeycomb partitions.

Preferably, a rotatable elastic shaft is movable inside the telescopic device, and the elastic shaft is driven by an elastic sheet.

With the above solution, the length of the fixing strap can be adjusted according to the height of the feet of different wearers.

Preferably, a fixed shaft is arranged inside the limiting device, and the diameter of the shaft does not exceed the width inside the limiting device.

Through the above solution, the fixing strap can be prevented from being too loose, thereby making it inconvenient for the user to use.

Preferably, the left end of the fixing strap is connected to the interior of the telescopic device, the fixing strap itself has a certain elasticity, and the side of the fixing strap close to the body of the orthopedic brace is provided with anti-wear cotton.

Through the above solution, while the length of the fixing belt can be adjusted to suit different groups of people, the comfort level of the user is improved.

Preferably, the front surface of the connecting buckle is provided with barbs, and both the upper and lower connecting buckles are inserted into the inner wall of the fixing groove.

Through the above solution, the sole insole can be replaced according to different needs, thereby reducing the cost of use.

Preferably, the honeycomb partition is composed of a plurality of hexagons, and the six sides of the hexagons are respectively provided with concave-convex grooves, and all of them are compatible and can be freely combined.

Through the above solution, the sole insole can be assembled, thereby improving the applicability of the device.

To sum up, due to the adoption of the above-mentioned technical solutions, the beneficial effects of the present invention are:

1. The portable foot orthopedic brace is designed by setting the main large area of the sole insole to be subdivided by regular hexagons, and ensuring that there are at least seven regular hexagons under each large partition. It is suitable for more types of foot types and foot diseases, and can also be finely adjusted for users with similar metatarsalgia, achieving the effect of improving the users.

2. The portable foot orthopedic brace is provided with a telescopic device and a fixing device on the left side of the front and back sides of the orthopedic brace body, so that the fixing belt can be adjusted according to different people, and different users can be used. It is more comfortable to use, and at the same time, it avoids the problem that different orthopedic brace bodies need to be replaced when different people use it, which greatly facilitates the use and achieves the effect of convenient use.

Description of drawings

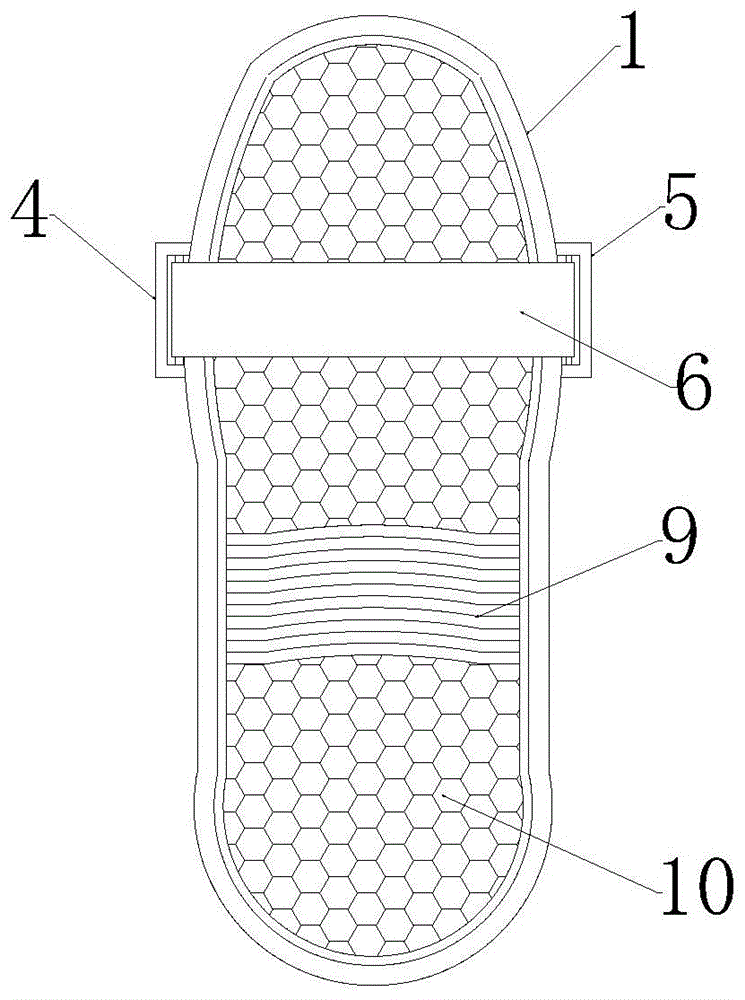

Figure 1 is a schematic structural diagram of the present invention.

Figure 2 is a schematic diagram of the body structure of the orthopedic brace of the present invention.

FIG. 3 is a schematic diagram of the internal structure of the telescopic device of the present invention.

4 is a schematic diagram of the structure of a sole insole of the present invention.

FIG. 5 is a schematic diagram of the structure of the honeycomb partition of the present invention.

Among them: 1. Orthopedic brace body; 2. Insole groove; 3. Fixing groove; 4. Telescopic device; 5. Limiting device; 6. Fixing belt; 7. Sole insole; ; 10, honeycomb partition.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

As shown in Figures 1-5, a portable foot orthopedic brace includes an orthopedic brace body 1, an insole groove 2 is opened on the top of the orthopedic brace body 1, and the depth of the insole groove 2 is equal to the thickness of the sole insole 7, The insole groove 2 is used to fix the sole insole 7 to prevent the top of the orthopedic brace body 1 from sliding off when the sole insole 7 is in use. The left and right sides of the inner wall of the insole groove 2 are provided with a fixed groove 3, and the fixed groove 3 It is used to cooperate with the connecting buckle 8, so that the sole insole 7 will not fall off during use. The front left side of the orthopedic brace body 1 is fixedly connected with a telescopic device 4, and the interior of the telescopic device 4 is wrapped with a fixing belt 6. , is used to adjust the length of the fixing belt 6, so that the device can be adapted to more people. At the same time, the side of the telescopic device 4 is provided with a fixing device to prevent the fixing belt 6 from loosening. There is a rotatable elastic shaft in the internal movement. The elastic shaft is driven by shrapnel, and its structure is similar to the spring in a mechanical clock. The left side of the back of the orthopedic brace body 1 is fixedly connected to a limiting device 5, which is used for fixing The belt 6 provides tension, so that the fixing belt 6 can play an effective fixing role under the premise of being adjustable. A fixed shaft is arranged inside the limiter 5, and the diameter of the shaft does not exceed the inner diameter of the limiter 5. The width of the limiting device 5 is fixedly connected with a fixing strap 6, and the right end of the fixing strap 6 is penetrated by the shaft in the limiting device 5, the left end of the fixing strap 6 is connected with the interior of the telescopic device 4, and the fixing strap 6 itself It has a certain elasticity, which is used to improve the comfort of the user and avoid the fixing belt 6 being too stiff and causing the foot to be strangled. In order to improve the comfort, the user can prevent the user from grinding the feet with the fixed belt 6. The insole groove 2 is inserted with a sole insole 7, and the upper and lower ends of the sole insole 7 are provided with connecting buckles 8. The front straps of the connecting buckles 8 There are barbs, and both the upper and lower connection buckles 8 are inserted into the inner wall of the fixing groove 3, so that the sole insole 7 can be easily replaced while ensuring the reliability of the connection of the sole insole 7. The front of the sole insole 7 is provided with There are anti-slip patterns 9. The anti-slip patterns 9 are used to prevent users from slipping due to sweating on the soles of their feet when using them, thereby improving the safety of the device. The upper and lower sides of the anti-slip patterns 9 are honeycomb partitions 10 and honeycomb partitions 10. It is composed of a plurality of hexagons, and the six sides of the hexagons are respectively provided with concave and convex grooves, and they are all matched and can be freely combined, so that fine-tuning can be performed by increasing or decreasing the honeycomb partition 10, so as to be suitable for more Different types of foot types and foot diseases can also be finely adjusted for users with similar metatarsalgia to further improve the applicable range.

When using, firstly adjust the honeycomb partition 10 on the sole insole 7 according to the situation of your own foot, so that the honeycomb partition 10 is suitable for your foot, and then put the sole insole 7 into the insole groove 2. At the same time, insert the two connecting buckles 8 into the fixing groove 3 and smooth the sole insole 7, then insert the foot between the fixing belt 6 and the sole insole 7 and adjust the length of the fixing belt 6 so that the fixing belt 6 Just fit the foot.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.
