CN111632166A - A kind of medical nursing disinfection treatment device - Google Patents

Abstract

The invention discloses a medical nursing disinfection treatment device, comprising a box body, a disinfection net box is fixedly connected to the inner wall of the box body, a hot air device is fixedly connected to the right side of the box body, and an upper surface of the box body is provided with a There is a liquid supply device, an adjustment device is fixedly connected to the inner wall near the left side of the box body, and the adjustment device includes a connecting frame, the surface of the connecting frame is fixedly connected with the inner wall of the box body, and the right side of the connecting frame is fixed. A positioning ring is fixedly connected, the inner wall of the positioning ring is fixedly rotated with a cylindrical casing, the inner wall of the cylindrical casing is fixedly connected with a motor, and a shaft 1 is fixedly connected to the bottom of the output shaft on the motor. The present invention, through the cooperative use of the above-mentioned structures, solves the problem that in the actual use process, because the traditional nozzles are fixed, it is difficult for the disinfectant to completely spray the medical instruments in the disinfection cage, thereby making it difficult to completely spray the medical equipment in the disinfection cage. It is difficult to ensure the quality of disinfection when medical devices undergo a complete disinfection operation, which brings inconvenience to use.

Description

A kind of medical nursing disinfection treatment device

technical field

The invention relates to the technical field of medical appliance cleaning equipment, in particular to a medical nursing disinfection treatment device.

Background technique

Medical care devices refer to instruments, equipment, appliances, in vitro diagnostic reagents and calibrators, materials, and other similar or related items that are directly or indirectly used in the human body. Medical care devices are mainly used for disease diagnosis, prevention, monitoring, treatment or In the process of nursing, some medical nursing devices generally need to be sterilized when they are used. The common disinfection treatment is that the staff rinses with disinfectant under the disinfection table and then puts them into the disinfection cabinet for multiple disinfections. The instruments are placed in the disinfection cabinet. The disinfection cabinet can only disinfect the exposed surfaces of the instruments, and the disinfection area does not. On average, a long disinfection time is required, which cannot well meet the needs of use; for this reason, people propose a medical care disinfection treatment device, such as a medical care disinfection treatment device disclosed in Chinese patent CN109589437A, which relates to the technical field of medical appliances, It includes a box body, the front side and the rear side of the inner wall of the box are clamped with bearings, and the two bearings are sleeved with the same rotating shaft, the outer surface of the rotating shaft is clamped with a cam, and the back of the rotating shaft is clamped. One end of the gear is fixedly connected with a driven gear 1. The use of surface disinfection effect monitoring can not only kill general bacteria, fungi and other microorganisms, but also kill spores and spores. It not only effectively improves the efficiency of disinfection and drying, but also meets the biological evaluation standards. laboratory needs;

However, in the actual use process, because the traditional nozzles are fixed, it is difficult for the disinfectant to completely spray the medical equipment in the disinfection cage, so that the medical equipment can be completely disinfected, and it is difficult to ensure the quality of disinfection. Inconvenience to use.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a medical care disinfection treatment device, which improves the traditional device and solves the problems in the background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a medical care disinfection treatment device, comprising a box body, the inner wall of the box body is fixedly connected with a disinfection net cage, and a hot air device is fixedly connected to the right side of the box body, A liquid supply device is arranged on the upper surface of the box body, and an adjustment device is fixedly connected to the inner wall of the box body near the left side.

The adjusting device includes a connecting frame, the surface of the connecting frame is fixedly connected with the inner wall of the box body, the right side of the connecting frame is fixedly connected with a positioning ring, and the inner wall of the positioning ring is limited and rotated with a cylindrical shell, The inner wall of the cylindrical shell is fixed with a motor, the bottom of the output shaft on the motor is fixed with a shaft one, the bottom of the shaft one is fixed with a turntable, and the lower surface of the turntable is fixed with arc teeth The inner wall of the cylindrical housing has a shaft 2 for limited rotation, the surface of the shaft 2 is fixed with two gears 1, and the surface of the gear 1 meshes with the teeth on the arc-shaped tooth plate. The right side of the cylindrical shell is fixedly connected with a connecting plate, the surface of the connecting plate is provided with a rotating arm, the bottom of the rotating arm is fixedly connected with a nozzle, and the liquid inlet of the nozzle is sealed and fixed with an infusion tube, so The top of the infusion tube is sealed and fixed with the liquid outlet on the liquid supply device, the left end of the second shaft penetrates the cylindrical housing and is fixedly connected with the second gear, the surface of the second gear is meshed with the third gear, the gear The inner wall of the third shaft is fixedly connected with a shaft three, and the right end of the shaft three is fixedly connected with the left side of the cylindrical shell. assisting equipments.

Preferably, the auxiliary device includes a cam, the cam is penetrated by the first shaft and is fixedly connected with it, a pressure plate is slidably connected to the side of the cam, a pressure rod is fixedly connected to the right side of the pressure plate, and the right end of the pressure rod is It penetrates through the cylindrical shell and is slidably connected with the side of the rotating arm. The surface of the pressure rod is sleeved with a pressure spring, and the front side of the connecting plate is limited and rotated with a shaft four, which penetrates the rotating arm and is connected with the rotating arm. For fixed connection, a torsion spring is sleeved on the surface of the fourth shaft, and both ends of the torsion spring are fixedly connected with the opposite surfaces of the rotating arm and the connecting plate.

Preferably, the position-limiting protrusion is fixedly connected to the surface of the cylindrical housing near the right side, and an annular groove for the position-limiting protrusion to slide is formed on the inner wall of the positioning ring.

Preferably, the number of the upper limit protrusions of the cylindrical shell is not less than three.

Preferably, a reinforcement frame is fixedly connected to the surface of the motor, and the top of the reinforcement frame is fixedly connected to the inner wall of the cylindrical housing.

Preferably, two limiting rings are fixedly connected to the surface of the second shaft, and the opposite sides of the two limiting rings are rotatably connected with the inner wall of the cylindrical housing.

Preferably, the right end of the pressing rod is an arc-shaped end face, and the pressing rod is slidably connected to the surface of the rotating arm through the arc-shaped end face on the pressing rod.

Compared with the prior art, the beneficial effects of the present invention are as follows:

1. The present invention can spray the sprayed disinfectant from multiple angles through the setting of the adjusting device, so that the medical instruments in the disinfection cage can be fully sprayed with the disinfectant, thereby improving the disinfection efficiency and disinfection quality.

2. The present invention connects the external power supply through the motor and turns on the switch, the output shaft on it drives the rotation of the first shaft, and the first shaft drives the rotation of the turntable and the arc tooth plate, and the arc tooth plate rotates continuously with the turntable, The arc-shaped tooth plate will alternately contact and mesh with the two gears and drive them to rotate. Since the two gears are symmetrically arranged on the vertical center line of the shaft one, the two gears will be alternately reversed. Rotate in the opposite direction, thus realizing the reciprocating rotation of shaft 2, gear 2 on shaft 2 rotates synchronously, and gear 3 meshing with gear 2 rotates with gear 2, so shaft 3 also has a cylindrical shape. The housing rotates as a whole. Since the shaft 2 and the gear 2 are reciprocating rotation, the shaft 3 also swings reciprocatingly with the cylindrical housing, so that the rotating arm and the nozzle on the connecting plate can swing and improve the work of the nozzle. range, so that the medical equipment in the disinfection cage can be fully sprayed with the disinfectant;

Through the arrangement of the auxiliary device, the working range of the nozzle can be further improved, the spraying efficiency of the disinfectant can be improved, and the disinfection quality can be improved.

3. The present invention solves the problem that in the actual use process, because the traditional nozzles are fixed, it is difficult for the disinfectant to completely spray the medical equipment in the disinfection cage, and then It is difficult to ensure the quality of disinfection for medical equipment to carry out a complete disinfection operation, which brings inconvenience to the use.

Description of drawings

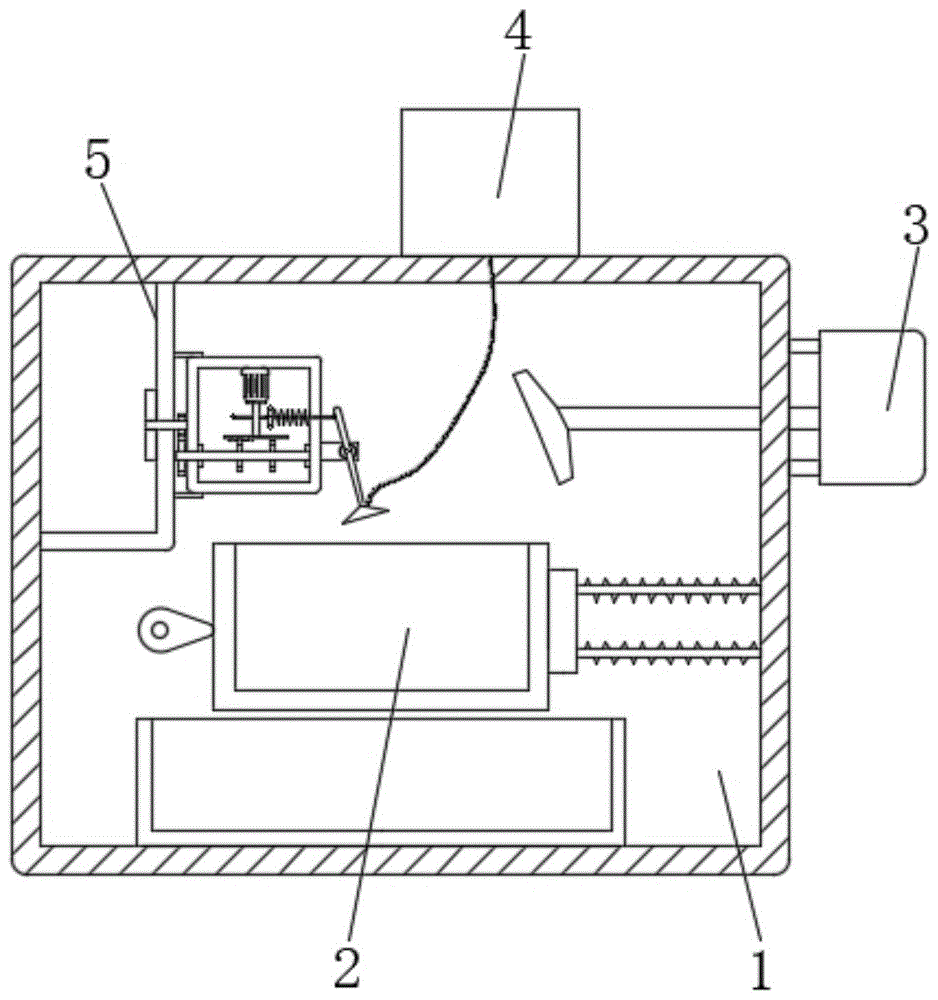

Fig. 1 is the front sectional view of the present invention;

Figure 2 is a front cross-sectional view of the cylindrical housing of the present invention.

Figure 3 is a bottom view of the turntable of the present invention.

In the picture: 1-box, 2-sterilization cage, 3-hot air device, 4-liquid supply device, 5-adjustment device, 6-connecting frame, 7-positioning ring, 8-cylindrical shell, 9-motor , 10-axis one, 11-turntable, 12-arc tooth plate, 13-axis two, 14-gear one, 15-connecting plate, 16-rotating arm, 17-nozzle, 18-infusion tube, 19-gear two , 20-gear three, 21-axis three, 22-auxiliary device, 23-cam, 24-pressing plate, 25-pressing rod, 26-pressing spring, 27-axis four, 28-torsion spring, 29-limiting protrusion , 30 - Reinforcement frame, 31 - Limit ring.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIG. 1 to FIG. 3 , the present invention provides a technical solution: a medical care disinfection treatment device, comprising a box body 1, a disinfection cage 2 is fixedly connected to the inner wall of the box body 1, and medical instruments are placed in the disinfection cage 2 The inside receives the spraying disinfection operation of disinfectant; the right side of the box 1 is fixedly connected with a hot air device 3, and the hot air device 3 includes a hot air blower, an air duct, etc., so that the hot air blower works, and the hot air blower works to sterilize the medical equipment in the cage. Drying is carried out. After the drying is completed, the hot air blower is stopped by operation. The cover plate is opened through the handle, and the medical care appliance is taken out from the disinfection cage 2. The upper surface of the box 1 is provided with a liquid supply device 4. The device 4 includes a liquid storage tank and a water pump, the disinfectant is poured into the liquid storage tank, and the disinfectant is transported to the nozzle 17 through the infusion pipe through the water pump; the inner wall of the box body 1 near the left side is fixedly connected with the adjustment device 5, through the The setting of the adjustment device 5 can spray the sprayed disinfectant from multiple angles, so that the medical instruments in the disinfection cage 2 can be fully sprayed with the disinfectant, which improves the disinfection efficiency and disinfection quality;

The adjusting device 5 includes a connecting frame 6, the surface of the connecting frame 6 is fixedly connected with the inner wall of the box body 1, the right side of the connecting frame 6 is fixedly connected with a positioning ring 7, and the inner wall of the positioning ring 7 has a cylindrical shell 8 for rotation limit rotation, The surface near the right side of the cylindrical shell 8 is fixedly connected with the limiting protrusion 29 , and the inner wall of the positioning ring 7 is provided with an annular groove for the sliding of the limiting protrusion 29 . The setting and the rotation of the limiting protrusion 29 in the annular groove on the inner wall of the positioning ring 7 improve the stability of the limiting rotation of the cylindrical shell 8 in the positioning ring 7; The number is not less than three, and by setting the upper limit protrusions 29 of the cylindrical shell 8 to be no less than three, the stability of the cylindrical shell 8 in the upper position of the positioning ring 7 can be further improved; The inner wall of 8 is fixed with the motor 9, the surface of the motor 9 is fixed with a reinforcement frame 30, the top of the reinforcement frame 30 is fixed with the inner wall of the cylindrical shell 8, the setting of the reinforcement frame 30 on the motor 9, the installation of the motor 9 Use for reinforcement to avoid accidental shaking of the motor 9 during use; a shaft one 10 is fixedly connected to the bottom of the output shaft on the motor 9, a turntable 11 is fixedly connected to the bottom of the shaft one 10, and the lower surface of the turntable 11 is fixedly connected with arc-shaped teeth The plate 12, the inner wall of the cylindrical shell 8 has a shaft 2 13 for limiting rotation, and two limit rings 31 are fixedly connected to the surface of the second shaft 13. The inner wall is rotationally connected, and through the arrangement of the two limit rings 31 on the second shaft 13, the stability of the limited rotation of the second shaft 13 in the cylindrical casing 8 can be ensured, and the left and right sides of the cylindrical casing 8 can be avoided during rotation. Move; connect the external power supply through the motor 9 and turn on the switch, the output shaft on it drives the rotation of the shaft one 10, and the shaft one 10 drives the rotation of the turntable 11 and the arc tooth plate 12 immediately, and the arc tooth plate 12 follows the turntable 11 through the arc tooth plate 12. The continuous rotation of the arc tooth plate 12 will alternately contact and mesh with the two gears 14 and drive them to rotate. Since the two gears 14 are symmetrically arranged on the vertical centerline of the shaft 10, the two gears 14 are arranged symmetrically. The first gear 14 will alternately rotate in the opposite direction, thereby realizing the reciprocating rotation of the second shaft 13;

The surface of the second shaft 13 is fixed with two gear one 14, the surface of the gear one 14 meshes with the teeth on the arc tooth plate 12, the right side of the cylindrical housing 8 is fixed with a connecting plate 15, The surface is provided with a rotating arm 16, the bottom of the rotating arm 16 is fixedly connected with a nozzle 17, the liquid inlet of the nozzle 17 is sealed and fixed with an infusion pipe 18, and the top of the infusion pipe 18 is sealed and fixed with the liquid outlet on the liquid supply device 4. , the left end of the second shaft 13 penetrates the cylindrical housing 8 and is fixedly connected with the second gear 19, the surface of the second gear 19 is meshed with the third gear 20, the inner wall of the third gear 20 is fixed with the third shaft 21, and the second gear on the second shaft 13. 19 rotates synchronously, and the third gear 20 meshing with the second gear 19 rotates along with the second gear 19, so that the third shaft 21 also rotates with the cylindrical housing 8 as a whole. Since the second shaft 13 and the second gear 19 are The reciprocating rotation makes the shaft three 21 with the cylindrical shell 8 also swing reciprocatingly, thereby enabling the rotating arm 16 and the nozzle 17 on the connecting plate 15 to swing, improving the working range of the nozzle 17, and further enabling the sterilizing cage The medical equipment in 2 is fully sprayed with the disinfectant; the right end of the shaft three 21 is fixedly connected with the left side of the cylindrical housing 8, the shaft three 21 penetrates the connecting frame 6 and rotates on the upper limit of the connecting frame 6, and the surface of the shaft one 10 The auxiliary device 22 is fixedly connected, and the setting of the auxiliary device 22 can further improve the working range of the nozzle 17, improve the spraying efficiency of the disinfectant, and improve the quality of disinfection;

The auxiliary device 22 includes a cam 23. The cam 23 is penetrated by the shaft 10 and is fixedly connected with it. The side surface of the cam 23 is slidably connected with a pressure plate 24. The right side of the pressure plate 24 is fixed with a pressure rod 25. , and the pressure rod 25 is slidably connected to the surface of the rotating arm 16 through the arc-shaped end surface on it, and the arc-shaped end surface on the right end of the pressure rod 25 is arranged to make the sliding of the pressure rod 25 on the rotating arm 16 more smooth, and the pressure rod 25 The right end of the connecting plate 15 penetrates the cylindrical housing 8 and is slidably connected to the side of the rotating arm 16. The surface of the pressing rod 25 is sleeved with a pressure spring 26, and the front side of the connecting plate 15 is limited to rotate with a shaft four 27, and the shaft four 27 penetrates the rotating arm 16. And it is fixedly connected with the rotating arm 16, the surface of the shaft four 27 is covered with a torsion spring 28, and the two ends of the torsion spring 28 are fixedly connected with the opposite surface of the rotating arm 16 and the connecting plate 15. When in use, the shaft one 10 drives the continuous cam 23. When the flange on the cam 23 is in contact with the left side of the pressing plate 24, the pressing plate 24 and the pressing rod 25 will move to the right after overcoming the elastic force of the pressing spring 26, so that the rotating arm 16 and the nozzle 17 will overcome the After the elastic force of the torsion spring 28 rotates with the axis 4 27 as the rotation center, when the concave edge on the cam 23 contacts the left side of the pressure plate 24, under the elastic force of the pressure spring 26, the pressure plate 24 carries the pressure rod 25. To reset and move to the left, at the same time, under the action of the elastic force of the torsion spring 28, the rotating arm 16 with the nozzle 17 is also synchronously reset and rotated; when the cam 23 rotates continuously, the rotating arm 16 will also swing left and right relative to the cylindrical housing 8 , to further increase the working range of the nozzle 17, that is, to increase the spraying range of the disinfectant.

Working principle: When the medical nursing disinfection treatment device is in use, by adjusting the setting of the device 5, the sprayed disinfectant can be sprayed from multiple angles, so that the medical equipment in the disinfection cage 2 can be fully sprayed with the disinfectant. , improve the disinfection efficiency and disinfection quality; connect the external power supply through the motor 9 and turn on the switch, the output shaft on it drives the rotation of the shaft one 10, and the shaft one 10 then drives the rotation of the turntable 11 and the arc tooth plate 12, through the arc The continuous rotation of the toothed plate 12 with the turntable 11 will cause the toothed plate 12 to alternately contact and mesh with the two gears 14 and drive them to rotate. The center line is symmetrically arranged, so that the two gears 14 will alternately rotate in opposite and opposite directions, thereby realizing the reciprocating rotation of the second shaft 13, and the second gear 19 on the second shaft 13 rotates synchronously, and the second gear 19. The meshed gear 3 20 rotates with the gear 2 19 accordingly, and the shaft 3 21 also rotates with the cylindrical housing 8 as a whole. The cylindrical shell 8 also swings reciprocally, so that the rotating arm 16 and the nozzle 17 on the connecting plate 15 can swing, and the working range of the nozzle 17 is improved, so that the medical equipment in the disinfection cage 2 can obtain sufficient disinfection solution. spraying; through the arrangement of the auxiliary device 22, the working range of the nozzle 17 can be further improved, the spraying efficiency of the disinfectant solution and the quality of disinfection can be improved; For a fixed setting, it is difficult for the disinfectant to completely spray the medical equipment in the disinfection cage, and then the medical equipment is completely sterilized.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a medical care disinfection processing apparatus, includes box (1), the inner wall of box (1) has linked firmly disinfection net case (2), the right side of box (1) has linked firmly hot-blast apparatus (3), the upper surface of box (1) is equipped with and supplies liquid device (4), its characterized in that: an adjusting device (5) is fixedly connected to the inner wall of the box body (1) close to the left side;

the adjusting device (5) comprises a connecting frame (6), the surface of the connecting frame (6) is fixedly connected with the inner wall of the box body (1), the right side of the connecting frame (6) is fixedly connected with a positioning ring (7), the inner wall of the positioning ring (7) is rotatably limited to a cylindrical shell (8), the inner wall of the cylindrical shell (8) is fixedly connected with a motor (9), the bottom of an output shaft on the motor (9) is fixedly connected with a first shaft (10), the bottom of the first shaft (10) is fixedly connected with a rotating disc (11), the lower surface of the rotating disc (11) is fixedly connected with an arc toothed plate (12), the inner wall of the cylindrical shell (8) is rotatably limited to a second shaft (13), the surface of the second shaft (13) is fixedly connected with a first gear (14), the surface of the first gear (14) is meshed with teeth on the arc toothed plate (12), and the right side of the cylindrical shell (8) is fixedly connected with a connecting, the surface of connecting plate (15) is equipped with rotor arm (16), the bottom of rotor arm (16) has linked firmly nozzle (17), the sealed transfer line (18) that has linked firmly of inlet of nozzle (17), the sealed solid link firmly of liquid outlet on the top of transfer line (18) and the liquid supply device (4), the left end of axle two (13) runs through cylindricality casing (8) and has linked firmly gear two (19), the surface engagement of gear two (19) has gear three (20), the inner wall of gear three (20) has linked firmly axle three (21), the right-hand member of axle three (21) links firmly with the left side of cylindricality casing (8), axle three (21) run through link (6) and spacing rotation on link (6), the surface of axle one (10) has linked firmly auxiliary device (22).

2. The medical care disinfecting treatment device according to claim 1, characterized in that: auxiliary device (22) include cam (23), cam (23) are run through by axle (10) and link firmly with it, the side sliding connection of cam (23) has clamp plate (24), the right side of clamp plate (24) has linked firmly depression bar (25), the right-hand member of depression bar (25) runs through cylindricality casing (8) and links firmly with the side sliding connection of rotor arm (16), the surface cover of depression bar (25) has pressure spring (26), the front side spacing of connecting plate (15) rotates has axle four (27), axle four (27) run through rotor arm (16) and link firmly with rotor arm (16), the surface cover of axle four (27) has torsional spring (28), the both ends of torsional spring (28) link firmly with the opposite face of rotor arm (16) and connecting plate (15).

3. The medical care disinfecting treatment device according to claim 1, characterized in that: the surface of the cylindrical shell (8) close to the right side is fixedly connected with a limiting bulge (29), and an annular groove for sliding the limiting bulge (29) is formed in the inner wall of the positioning ring (7).

4. The medical care disinfecting treatment device according to claim 3, characterized in that: the number of the limiting bulges (29) on the cylindrical shell (8) is not less than three.

5. The medical care disinfecting treatment device according to claim 1, characterized in that: the surface of the motor (9) is fixedly connected with a reinforcing frame (30), and the top of the reinforcing frame (30) is fixedly connected with the inner wall of the cylindrical shell (8).

6. The medical care disinfecting treatment device according to claim 1, characterized in that: the surface of the second shaft (13) is fixedly connected with two limiting rings (31), and the opposite sides of the two limiting rings (31) are rotatably connected with the inner wall of the cylindrical shell (8).

7. The medical care disinfecting treatment device according to claim 2, characterized in that: the right end of the pressure lever (25) is an arc-shaped end face, and the pressure lever (25) is connected with the surface of the rotating arm (16) in a sliding mode through the arc-shaped end face on the pressure lever.
