Abstract

The invention provides a display stand for architectural planning, belonging to the technical field of architectural planning, comprising a display stand, a support device, a lighting supply device and several movable display devices; the support device comprises a base and a first hydraulic cylinder fixedly arranged on the base; The table is arranged at the end of the telescopic rod of the first hydraulic cylinder, and the top of the display table is rotated with a rotating table, which is driven to rotate by the first rotating device; Several supplementary lights on the side; the display stand and the light plate are supported by several support rods; each supplementary light is driven to rotate by a second rotating device; there are several circular grooves on the top of the rotary table, and each activity display The devices are respectively arranged in a circular groove, including a display plate and an air cylinder; the air cylinder is rotatably connected to the bottom of the circular groove, and the push rod of the air cylinder is rotatably connected to the middle of the bottom of the display plate. The device can realize all-round and detailed display of architectural planning models.

Description

A display stand for architectural planning

technical field

The invention relates to the technical field of architectural planning, in particular to a display stand for architectural planning.

Background technique

Architectural planning refers to the design to meet certain construction purposes (including people's requirements for its use function and its visual experience), which makes specific material materials feasible in terms of technology and economy. It forms a product that can become an aesthetic object and shows the structure and its ideas to the outside world. The model of architectural planning is the architectural planning work that needs to be displayed to the outside world.

At this stage, the existing exhibition stands for architectural planning cannot be moved, let alone retractable, resulting in unclear display; secondly, many display stands are fixed display stands, which cannot display construction models in all directions; Separated from the model, although the integrity of the model is protected, it also widens the distance between the visitor and the model, and cannot view the details.

Therefore, the present application proposes a new architectural planning display stand.

SUMMARY OF THE INVENTION

In order to solve the above problems, the object of the present invention is to provide a display stand for architectural planning. The device can realize all-round and detailed display of architectural planning models.

To achieve the above objects, the present invention provides the following technical solutions.

A display stand for architectural planning, comprising a display stand, a support device, a lighting supply device and several activity display devices;

The support device includes a base and a first hydraulic cylinder fixedly arranged on the top of the base; the display stand is set at the end of the telescopic rod of the first hydraulic cylinder, and a rotary table is rotated on the top of the display stand, so The rotary table is driven to rotate by the first rotating device;

The light supply device includes a light disc arranged on the outer ring of the display stand and a plurality of supplementary lights evenly arranged on the inner side of the light disc; the light disc is supported above the display stand by a plurality of support rods; each Each of the supplementary lights is driven and rotated by a second rotating device;

The top of the rotary table is provided with several circular grooves, and each movable display device is respectively arranged in a circular groove, including a display plate and a cylinder; the cylinder is rotatably connected to the bottom of the circular groove, and the push rod of the cylinder is connected to the The middle of the bottom of the display tray is rotatably connected; when the cylinder is retracted, the display tray is recovered into the circular groove, and the display tray is flush with the top surface of the rotary table.

Preferably, it also includes a plurality of moving devices, the plurality of moving devices are evenly arranged on the base around the circumference, each moving device includes a second hydraulic cylinder and a universal wheel; The top of each through groove is fixedly provided with an inverted hydraulic cylinder installation cylinder, the second hydraulic cylinder is fixedly arranged inside the hydraulic cylinder installation cylinder, and the universal wheel is fixedly arranged in the first hydraulic cylinder installation cylinder. The end of the push rod of the second hydraulic cylinder; the diameter of the universal wheel does not exceed the diameter of the through slot, and when the second hydraulic cylinder is retracted, the universal wheel retracts into the through slot.

Preferably, the end of the push rod of the first hydraulic cylinder is fixedly provided with a number of supporting columns around the circumference, and the supporting columns are fixedly connected with the bottom of the display stand; The first motor in the middle of the bottom of the table; the first motor is arranged between a plurality of the support columns, the output shaft of the first motor passes through the display table, and is fixedly connected with the rotating table, and the The output shaft of the first motor is rotatably connected with the display stand.

Preferably, a plurality of fill light slots and a motor slot arranged on one side of the fill light slot are evenly opened on the side of the light disc; the second rotating device includes a second motor and a first shaft; the first A rotating shaft passes through the bottom of the fill light, and both ends of the first rotating shaft are rotatably connected to the side wall of the fill light slot; the second motor is fixedly arranged in the motor slot, and the first The output shafts of the two motors pass through the side walls of the motor slot and the fill light slot, and are drive-connected with one end of the first rotating shaft.

Preferably, a first rotating member is provided at the bottom of the circular groove, and the first rotating member includes a third motor and two first mounting plates fixedly arranged at the bottom of the circular groove; the third motor is fixedly arranged at the bottom of the circular groove. one outside of the first mounting plate; the bottom of the cylinder is fixedly provided with a rotating plate, and the rotating plate is rotated and arranged between the two first mounting plates through the second rotating shaft; the output shaft of the third motor Passing through the first mounting plate and drivingly connected with one end of the second rotating shaft.

Beneficial effects of the present invention:

The invention provides a display stand for architectural planning. The device can reasonably adjust the display height of the device through the support device, and at the same time, the rotating table is driven to rotate by the first rotating device, so as to realize the multi-angle display of the display model; The lighting supply device provides a full range of lighting supply for the display model, so that the details of the entire installation can be displayed; the device moves the model to the visitors through multiple active display devices, making it easier for the visitors to observe the details of the model; The device can be moved to any display position through the mobile device, and at the same time, the retractable structure is adopted to ensure the stability of the device during display.

The present invention will be further described below with reference to the accompanying drawings and embodiments.

Description of drawings

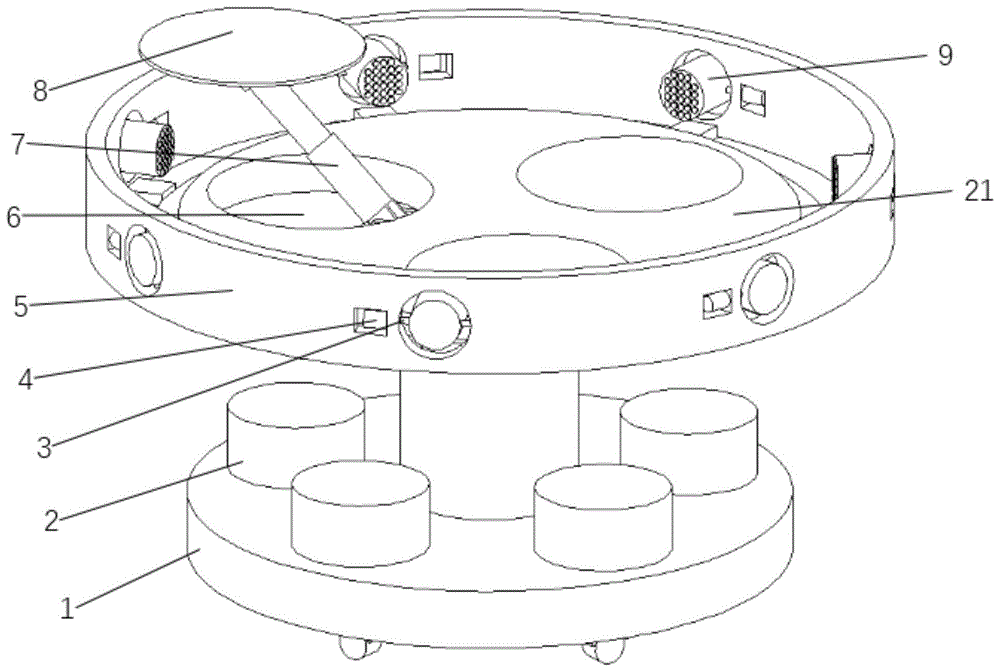

1 is an overall structural diagram of a display stand for architectural planning according to an embodiment of the present invention;

Fig. 2 is another angular structure diagram of the display stand for architectural planning according to the embodiment of the present invention;

3 is a structural diagram of an activity display device of a display stand for architectural planning according to an embodiment of the present invention;

FIG. 4 is a structural diagram of another angle of the movable display device of the display stand for architectural planning according to the embodiment of the present invention.

In the picture: 1. Base; 2. Hydraulic cylinder mounting cylinder; 3. First shaft; 4. Second motor; 5. Lighting plate; 6. Round groove; 7. Air cylinder; 8. Display plate; ; 10, the display stand; 11, the first hydraulic cylinder; 12, the support column; 13, the first motor; 14, the second hydraulic cylinder; 15, the universal wheel; 16, the third motor; 17, the first mounting plate; 18. Rotating plate; 19. Fourth motor; 20. Second mounting plate; 21. Rotating table.

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention clearer, the present invention will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, but not to limit the present invention.

Example

A display stand for architectural planning, as shown in Figures 1-4, includes a display stand 10, a support device, a lighting supply device and a number of activity display devices;

The support device includes a base 1 and a first hydraulic cylinder 11 fixedly arranged on the base 1, as shown in FIG. 2; , the rotary table 21 is driven to rotate by the first rotating device;

The light supply device includes a light disc 5 arranged on the outer ring of the display stand 10 and a plurality of supplementary lights 9 evenly arranged on the side of the light disc 5; the display stand 10 and the light disc 5 are supported by several support rods; each fill light The lights 9 are all driven and rotated by a second rotating device, which can change the angle of light emitted by the fill light 9, so that the display model can be displayed more completely;

The top of the rotary table 21 is provided with a number of circular grooves 6, and each movable display device is respectively arranged in a circular groove 6, including a display plate 8 and a cylinder 7, as shown in Figure 3-4; the cylinder 7 rotates with the bottom of the circular groove 6 Connection, the push rod of the air cylinder 7 is connected with the middle of the bottom of the display plate 8 in rotation; when the cylinder 7 is retracted, the display plate 8 is recovered to the circular groove 6 for manipulation, and the display plate 8 is flush with the top surface of the rotary table 21; according to the needs of visitors, The display tray 8 can be stretched out in front of the visitor for easy viewing of details.

Preferably, it also includes several moving devices, and several moving devices are evenly arranged on the top of the base 1 around the circumference, and each moving device includes a second hydraulic cylinder 14 and a universal wheel 15; the top of the base 1 is provided with several through slots. , the top of each through groove is fixedly provided with an inverted hydraulic cylinder installation cylinder 2, the second hydraulic cylinder 14 is fixedly arranged inside the hydraulic cylinder installation cylinder 2, and the universal wheel 15 is fixedly arranged on the push rod of the second hydraulic cylinder 14 End; the diameter of the universal wheel 15 does not exceed the diameter of the through groove. When the second hydraulic cylinder 14 is retracted, the universal wheel 15 is retracted into the through groove; by using the retractable universal wheel 15, it is possible to move more easily under the premise of being easy to move. Good guarantees the stability of the device during display.

Further, the end of the push rod of the first hydraulic cylinder 11 is fixedly provided with a number of support columns 12 around the circumference, and the support columns 12 are fixedly connected with the bottom of the display stand 10; A motor 13; the first motor 13 is arranged between a plurality of support columns 12, the output shaft of the first motor 13 passes through the display stand 10 and is fixedly connected with the rotary table 21, and the output shaft of the first motor 13 is connected to the display stand 10 Rotating connection, the rotation of the first motor 13 drives the rotating table 21 on the display stand 10 to rotate, so that the display model can be displayed more comprehensively.

Preferably, a number of fill light slots and a motor slot arranged on one side of the fill light slot are evenly opened on the side of the light disc 5; the second rotating device includes a second motor 4 and a first shaft 3; the first shaft 3 passes through At the bottom of the fill light 9, both ends of the first shaft 3 are rotatably connected to the side wall of the fill light slot; the second motor 4 is fixedly arranged on the side of the motor slot facing the fill light 9, and the output shaft of the second motor 4 Passing through the motor slot and the side wall of the fill light slot, and drivingly connected with one end of the first shaft 3; the motor drives the fill light 9 to fill light, which is convenient for operation and can be fixed at the same time.

In addition, the bottom of the circular groove 6 is provided with a first rotating member, and the first rotating member includes a third motor 16 and two first mounting plates 17 fixedly arranged at the bottom of the circular groove 6; the third motor 16 is fixedly arranged on a first mounting plate 17 Outside the plate 17; the bottom of the cylinder 7 is fixedly provided with a rotating plate 18, and the rotating plate 18 is rotatably arranged between the two first mounting plates 17 through the second rotating shaft; the output shaft of the third motor 16 passes through the first mounting plate 17, and is connected with one end of the second rotating shaft.

In addition, the end of the push rod of the cylinder 7 is fixedly provided with a second rotating member, and the second rotating member includes a fourth motor 19 and two second mounting plates 20 fixedly arranged at the end of the push rod of the cylinder 7; the fourth motor 19 is fixedly set On the outside of a second mounting plate 20; the middle bottom of the display tray 8 is fixedly provided with a rotating block, and the rotating block is rotated and arranged between the two second mounting plates 20 through the third rotating shaft; the output shaft of the fourth motor 19 passes through the second mounting plate 20. The mounting plate 20 is in driving connection with one end of the third rotating shaft.

The above-mentioned third motor 16 and fourth motor 19 realize the rotation of the air cylinder 7, and under the premise that the display tray 8 is kept horizontal, the display model can be stretched to the front of the visitor.

In this embodiment,

First, move the device to the display area, control the second hydraulic cylinder 14 to extend, push out the universal wheel 15 set in the through groove, lift the device, and move it to any display area through the universal wheel 15; control the second hydraulic pressure The cylinder 14 is recovered, and the device is stably placed on the ground;

Control the expansion and contraction of the first hydraulic cylinder 11, adjust the height of the display stand, turn on the supplementary light 9 on the light panel 5, and perform supplementary light for the devices on the rotary table 21; at the same time, the second motor 4 can be controlled to rotate to drive the supplementary light The light lamp 9 is rotated and turned to a suitable angle for fill light;

Control the rotation of the first motor 13, slowly rotate the entire rotary table 21, and show the models of different positions to the visitors, and display them in a more comprehensive and multi-directional manner;

Control the third motor 16 and the fourth motor 19 to rotate at the same time, and slowly lift the display tray 8 on the premise of keeping the display tray 8 horizontal; by controlling the extension of the air cylinder 7, the display tray 8 is extended to the front of the visitor, which is convenient for the visitor to watch the display Architectural model details on plate 8;

When the display is completed, the cylinder 7 is retracted, the display disk 8 is retracted to the rotary table 21, and the display disk 8 is flush with the table surface of the rotary table 21, and the recovery is completed.

The above are only preferred embodiments of the present invention and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention shall be included in the protection scope of the present invention. Inside.

Claims (6)

1. A display stand for architectural planning, characterized in that it comprises a display stand (10), a support device, a lighting supply device and several activity display devices; The supporting device comprises a base (1) and a first hydraulic cylinder (11) fixedly arranged on the top of the base (1); the display stand (10) is arranged on a telescopic rod of the first hydraulic cylinder (11) At the end, a rotary table (21) is rotatably provided on the top of the display stand (10), and the rotary table (21) is driven to rotate by a first rotating device; The light supply device comprises a light disc (5) arranged on the outer circumference of the display stand (10) and a plurality of supplementary lights (9) evenly arranged on the inner side of the light disc (5); the light disc (5) 5) supported above the display stand (10) by a plurality of support rods; each of the fill lights (9) is driven to rotate by a second rotating device; The top of the rotating table (21) is provided with a plurality of circular grooves (6), and each movable display device is respectively arranged in a circular groove (6), including a display plate (8) and a cylinder (7); the cylinder ( 7) It is rotatably connected to the bottom of the circular groove (6), and the push rod of the air cylinder (7) is rotatably connected to the bottom of the display tray (8) in the middle; when the cylinder (7) shrinks, the display tray (8) is recovered to inside the circular groove (6), and make the display tray (8) flush with the top surface of the rotary table (21). 2. The display stand for architectural planning according to claim 1, characterized in that it further comprises a plurality of mobile devices, and a plurality of the mobile devices are evenly arranged on the base (1) around the circumference, and each mobile device It includes a second hydraulic cylinder (14) and a universal wheel (15); a plurality of through grooves are opened on the top of the base (1), and an inverted hydraulic cylinder installation cylinder (2) is fixedly arranged on the top of each through groove. ), the second hydraulic cylinder (14) is fixedly arranged inside the hydraulic cylinder mounting cylinder (2), and the universal wheel (15) is fixedly arranged at the push rod end of the second hydraulic cylinder (14) The diameter of the universal wheel (15) does not exceed the diameter of the through groove, and when the second hydraulic cylinder (14) shrinks, the universal wheel (15) retracts into the through groove. 3. The display stand for architectural planning according to claim 1, characterized in that, the end of the push rod of the first hydraulic cylinder (11) is fixedly provided with a plurality of support columns (12) around the circumference, and the support columns ( 12) fixedly connected with the bottom of the display stand (10); the first rotating device includes a first motor (13) fixedly arranged in the middle of the bottom of the display stand (10); the first motor (13) arranged between a plurality of the support columns (12), the output shaft of the first motor (13) passes through the display stand (10) and is fixedly connected with the rotary table (21). The output shaft of a motor (13) is rotatably connected with the display stand (10). 4. The display stand for architectural planning according to claim 1, characterized in that a plurality of light-filling light slots and a motor slot arranged on one side of the light-filling light slot are evenly opened on the side of the light disc (5). ; The second rotating device comprises a second motor (4) and a first rotating shaft (3); the first rotating shaft (3) passes through the bottom of the fill light (9), and the first rotating shaft (3) ) both ends are rotatably connected to the side wall of the fill light slot; the second motor (4) is fixedly arranged in the motor slot, and the output shaft of the second motor (4) passes through the motor The groove and the side wall of the fill light groove are connected in a driving manner with one end of the first rotating shaft (3). 5. The display stand for architectural planning according to claim 1, characterized in that, a first rotating member is provided at the bottom of the circular groove (6), and the first rotating member comprises a third motor (16) and two a first mounting plate (17) fixedly arranged at the bottom of the circular groove (6); the third motor (16) is fixedly arranged on the outside of one of the first mounting plates (17); A rotating plate (18) is fixedly arranged at the bottom, and the rotating plate (18) is rotatably arranged between the two first mounting plates (17) through the second rotating shaft; the output shaft of the third motor (16) passes through It passes through the first mounting plate (17) and is drive-connected with one end of the second rotating shaft. 6. The display stand for architectural planning according to claim 1, characterized in that a second rotating member is fixedly arranged at the end of the push rod of the air cylinder (7), and the second rotating member comprises a fourth motor (19) and two second mounting plates (20) fixedly arranged at the end of the push rod of the cylinder (7); the fourth motor (19) is fixedly arranged outside one of the second mounting plates (20); the A rotating block is fixedly arranged at the middle bottom of the display tray (8), and the rotating block is rotatably arranged between the two second mounting plates (20) through a third rotating shaft; the output shaft of the fourth motor (19) passes through the It passes through the second mounting plate (20), and is drive-connected with one end of the third rotating shaft.
