CN111514327A - A portable sterilization deodorizer for shoes - Google Patents

Abstract

The invention relates to a sterilizing and deodorizing device, in particular to a portable sterilizing and deodorizing device for shoes. Odor device, the bottom plate is provided with a foldable bottom support structure, and the bottom support structure extends from the bottom plate and is supported on the bottom surface of the shoe. The present invention is a foldable mechanism. When not in use, the power board can be Fold it with the function board to reduce the size of the equipment. When in use, open the power supply and the function board. At the same time, the linkage mechanism of the equipment uses this opening and closing action to hold up two pairs of support frames. The support frame can be used to place the function board on the The upper part of the sole has a certain distance, which avoids the dead angle of cleaning caused by direct contact, and is also conducive to the full circulation of air and the full irradiation of ultraviolet light, which further improves the sterilization and deodorization effect of the equipment, and is easy to operate and highly reliable.

Description

A portable sterilization deodorizer for shoes

technical field

The invention relates to a sterilization and deodorizer, in particular to a portable sterilization and deodorizer for shoes.

Background technique

With the great enrichment of material life and the increasing improvement of living standards, people have begun to pay more and more attention to the quality of life and pursue convenience and comfort in all aspects of home life. Especially in terms of wearing, people are paying more and more attention to health and comfort while pursuing fashion. For example, shoes are a necessity for people to travel. They not only have the functions of warmth and protection, but also add style to travel. There are also various problems in cleaning, especially the inner corners of the shoes cannot completely achieve effective sterilization and deodorization under the traditional sun drying method. In response to such problems, the innovative invention is to sterilize the shoes by ultraviolet rays, and the fan accelerates the inside of the shoes. Air flows, and at the same time, activated carbon and fragrance are used to deodorize, so as to achieve the cleaning of the entire shoe. At the same time, in terms of functions, two power supply modes, solar power supply and AC power supply, are selected, which further improves the applicability and environmental protection of the equipment. People's travel brings convenience and guarantees health.

In daily life, shoes are the items that people must wear when they travel. During the process of use, because they are in close contact with the feet, and in people's daily behavior, the feet are in a state of motion most of the time, so they are very easy to perspire. Over time, sweat stains form on the inside of the shoe. Since this backlit and warm environment is very easy to breed bacteria, it will lead to an extremely poor sanitary environment inside the shoe over time. The traditional treatment methods mainly include cleaning and drying. At the same time, with the advancement of technology, ultraviolet sterilization and deodorizers have also appeared in the market. For example, the patent number CN101007178 is named as the patent of the light body sterilization and deodorizer in the shoe. In close contact, there are still more dead spots for cleaning.

1. Cleaning and drying: Cleaning removes stains by washing with water, and drying in the sun can basically solve the hygienic problem of shoes, but this process takes a long time and relies on sunlight, and it is still difficult to achieve hidden positions inside shoes. Good cleaning; drying is simply sterilized by sunlight, and it is not very effective in removing the odor inside the shoes. For people who work outside all year round and live in unstable places, neither of these two methods is suitable.

2 The existing plug-in sterilizer and deodorizer is plug-in use, although it can also play a good cleaning role, but there are certain safety hazards, and relying on power supply, resulting in energy consumption, is not the best choice for economical and environmental protection.

SUMMARY OF THE INVENTION

In order to solve the problem that the existing sterilizing and deodorizing device for shoes in the prior art has dead corners in cleaning, the present invention provides a portable sterilizing and deodorizing device for shoes with good sterilizing and deodorizing effect.

The technical scheme adopted by the present invention to solve its technical problems is:

A portable sterilizing and deodorizing device for shoes, comprising a bottom plate, on which a functional plate matching the shape of the shoe is fixed, the functional plate is provided with a sterilizing device and a deodorizing device, and the bottom plate is provided with a foldable The bottom support structure is protruded from the bottom plate and supported on the insole surface of the shoe.

Further, a slider is slidably arranged on the bottom plate, and the bottom support structure includes several link assemblies hinged between the slider and the bottom plate.

Further, the connecting rod assembly includes a first connecting rod and a second connecting rod, the head end of the first connecting rod is hinged with the slider, the tail end of the first connecting rod is hinged with the tail end of the second connecting rod, and the first connecting rod is hinged with the sliding block. The tail end of the second link is hinged with the bottom plate.

Further, the number of the connecting rod assemblies is at least three, and the sizes of the first connecting rods or the second connecting rods of each group of connecting rod assemblies correspond one-to-one.

Further, the number of the connecting rod assemblies is less than 3, and the first connecting rod or the second connecting rod is provided with a supporting leg for supporting on the bottom surface of the shoe inner.

Further, the function board is also provided with a power board, the power board is provided with a control circuit, a battery and a transformer, and a power plug is also connected to the power board.

Further, the power board is hinged on the function board, a rocker is hinged between the power board and the slider, and a solar power generation device is installed on the power board.

Further, the solar power generation device includes a fixed solar panel fixedly connected with the power supply board, and at least one side of the fixed solar panel is hinged with a movable solar panel.

Further, a protective cover is provided above the power board.

Further, the sterilizing device includes an ultraviolet germicidal lamp, and the deodorizing device includes a deodorizing box and a fan arranged near the deodorizing box.

Beneficial effects:

(1) The bactericidal effect is remarkable. The invention adopts ultraviolet sterilization in the design, which is a mature sterilization method, which can effectively inhibit the growth of microorganisms and improve the sanitary environment inside the shoes. At the same time, the ultraviolet sterilization lamp used in the invention is small in size, saving energy on the premise of not affecting the use effect. The volume is increased and the usability of the equipment is improved.

(2) Remove peculiar smell and add aroma. Compared with the existing equipment in the market, the invention adds the function of deodorizing aromatherapy, uses a fan to increase the air circulation inside the shoes, and combines activated carbon to absorb peculiar smell, and the circulating air further increases the diffusion of the fragrance agent, so that the smell in the shoes can be greatly improved. The big improvement avoids unnecessary embarrassment caused by excessive odor of shoes due to physical reasons for some people in daily life. This function also has a certain dehumidification effect.

(3) Environmentally friendly energy and strong usability. The present invention provides two energy supply methods. One is solar energy. In use, the device is placed inside the shoe, and the ultraviolet germicidal lamp is placed in the dead corner of the shoe toe. Fans and UV lamps, go to work. When the weather is bad or the solar energy is exhausted, the second function of the device can be used, connecting it to a household power socket and using AC power as the power source to maintain the device working normally. Close to the power outlet.

(4) Easy to carry and easy to operate. In order to facilitate use, the present invention is a foldable mechanism. When not in use, the power board and the function board can be folded to reduce the size of the device. When in use, the power supply and the function board can be opened, and the linkage mechanism of the device can be used. This opening and closing action supports two pairs of support frames, and the support frame can be used to place the functional board at a certain distance on the upper part of the sole, which avoids the cleaning dead angle caused by direct contact, and is also conducive to the full circulation of air and the full exposure of ultraviolet light. , to further improve the sterilization and deodorization effect of the equipment, and the operation is simple and the reliability is high.

Description of drawings

The present invention will be described in further detail below with reference to the accompanying drawings and specific embodiments.

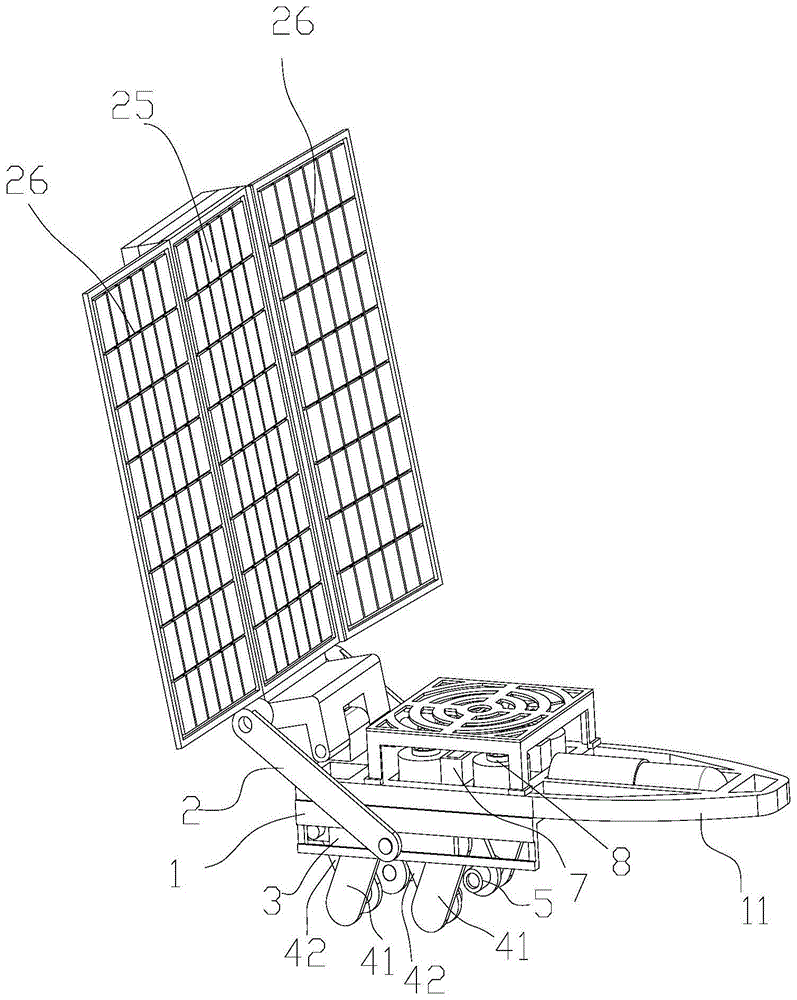

Fig. 1 is the three-dimensional structure diagram of the sterilizing and deodorizing device of the present invention in the unfolded state;

Fig. 2 is the first perspective three-dimensional structural view of the sterilizing and deodorizing device of the present invention in a retracted state;

3 is a perspective structural view of the sterilizing and deodorizing device of the present invention in a retracted state from a second perspective;

FIG. 4 is a perspective structural view of the sterilizing and deodorizing device of the present invention with a hidden protective cover in a retracted state.

Among them, 1, the bottom plate, 11, the function board, 2, the rocker, 3, the slider, 41, the first link, 42, the second link, 5, the sleeve, 6, the fan, 7, the deodorant box, 8. Ultraviolet germicidal lamp, 21, protective cover, 22, transformer, 23, battery, 24, power board, 25, fixed solar panel, 26, movable solar panel.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. The following description of at least one exemplary embodiment is merely illustrative in nature and is in no way intended to limit the invention, its application, or uses. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

It should be noted that the terminology used herein is for the purpose of describing specific embodiments only, and is not intended to limit the exemplary embodiments according to the present application. As used herein, unless the context clearly dictates otherwise, the singular is intended to include the plural as well, furthermore, it is to be understood that when the terms "comprising" and/or "including" are used in this specification, it indicates that There are features, steps, operations, devices, components and/or combinations thereof.

The relative arrangement of the components and steps, the numerical expressions and numerical values set forth in these embodiments do not limit the scope of the invention unless specifically stated otherwise. Meanwhile, it should be understood that, for the convenience of description, the dimensions of various parts shown in the accompanying drawings are not drawn in an actual proportional relationship. Techniques, methods, and devices known to those of ordinary skill in the relevant art may not be discussed in detail, but where appropriate, such techniques, methods, and devices should be considered part of the authorized description. In all examples shown and discussed herein, any specific value should be construed as illustrative only and not as limiting. Accordingly, other examples of exemplary embodiments may have different values. It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further discussion in subsequent figures.

In the description of the present invention, it should be understood that the orientations indicated by orientation words such as "front, rear, top, bottom, left, right", "horizontal, vertical, vertical, horizontal" and "top, bottom" etc. Or the positional relationship is usually based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the present invention and simplifying the description, and these orientation words do not indicate or imply the indicated device or element unless otherwise stated. It must have a specific orientation or be constructed and operated in a specific orientation, so it cannot be construed as a limitation on the protection scope of the present invention; the orientation words "inside and outside" refer to the inside and outside relative to the outline of each component itself.

For ease of description, spatially relative terms, such as "on", "over", "on the surface", "above", etc., may be used herein to describe what is shown in the figures. The spatial positional relationship of one device or feature shown to other devices or features. It should be understood that spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if the device in the figures is turned over, elements described as "above" or "over" other devices or features would then be oriented "below" or "over" the other devices or features under other devices or constructions". Thus, the exemplary term "above" can encompass both an orientation of "above" and "below." The device may also be otherwise oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptions used herein interpreted accordingly.

In addition, it should be noted that the use of words such as "first" and "second" to define components is only for the convenience of distinguishing corresponding components. Unless otherwise stated, the above words have no special meaning and therefore cannot be understood to limit the scope of protection of the present invention.

As shown in Figures 1 to 4, it includes a bottom plate 1, on which a functional board 11 matching the shape of the shoe is fixed, the functional board 11 is provided with a sterilization device and a deodorizing device, and the bottom plate 1 is provided with a foldable bottom support structure, The bottom support structure protrudes from the bottom plate 1 and is supported on the inner bottom surface of the shoe.

The bottom plate 1 is slidably provided with a slider 3 , and the bottom support structure includes several link assemblies hinged between the slider 3 and the bottom plate 1 .

The connecting rod assembly includes a first connecting rod 41 and a second connecting rod 42. The head end of the first connecting rod 41 is hinged with the slider 3, and the tail end of the first connecting rod 41 is hinged with the tail end of the second connecting rod 42. The rear end of the second link 42 is hinged with the base plate 1 . The first link 41 and the second link 42 are hinged through the sleeve 5 .

The number of connecting rod assemblies is at least three, and the sizes of the first connecting rod 41 or the second connecting rod 42 of each set of connecting rod assemblies correspond to each other one by one.

Or the number of link assemblies is less than three, the first link 41 or the second link 42 is provided with legs for supporting on the bottom surface of the shoe, as long as the function board 11 is supported to a certain height.

The function board 11 is also provided with a power supply board 24, the power supply board 24 is provided with a control circuit, a battery 23 and a transformer 22, and the power supply board 24 is also connected with a power plug.

The power board 24 is hinged on the function board 11 , the rocker 2 is hinged between the power board 24 and the slider 3 , and a solar power generation device is installed on the power board 24 .

The solar power generation device includes a fixed solar panel 25 fixedly connected with the power panel 24 , and at least one side of the fixed solar panel 25 is hinged with a movable solar panel 26 .

A protective cover 21 is provided above the power board 24 .

The sterilizing device includes an ultraviolet germicidal lamp 8 , and the deodorizing device includes a deodorizing box 7 and a fan 6 arranged near the deodorizing box 7 .

In view of the problem of sterilization, the present invention selects the currently mature ultraviolet sterilization technology. This light can well inhibit the growth and reproduction of microorganisms and play a role in sterilization. At the same time, this light will not generate excessive heat and avoid cause a safety hazard during the sterilization process.

In response to the problem of removing odors, activated carbon is selected to absorb odors, and at the same time, the fan 6 is used to accelerate the air circulation, and a fragrance agent is used to absorb and remove the odors in the shoes with the help of the circulating air, improve the air quality in the shoes, increase the fragrance, and refresh the mind. This function also has a certain dehumidification effect.

In terms of energy supply, the present invention selects two functional modes, one is to use solar energy, collect energy to supply power to the ultraviolet germicidal lamp 8 and the fan 6, and use solar energy to generate electricity in a sunny environment to achieve normal operation of the equipment. When the sunlight conditions are not ideal, or the solar power is exhausted, the device can also supply power to the device through the household power supply. After connecting with the household socket, the device will continue to work in a non-light environment to clean the shoes.

The mechanism of the present invention is mainly divided into two modules, one is the energy module, which mainly integrates the solar panel 26, the transformer 22, the control circuit and other equipment, and is placed outside the shoes when used; the other is the function board 44, which is installed with the fan 6, Deodorant box 7 (including activated carbon and fragrance), ultraviolet germicidal lamp 8. When in use, open the power board 24 and the function board 11 to drive the first connecting rod 41 and the second connecting rod 42 to rotate, and the first connecting rod 41 and the second connecting rod 42 rotate to form a propped up support frame, which is placed on the shoes. Internally, the soleplate 1 is kept at a certain distance from the bottom of the shoe to avoid hygienic dead corners. When not in use, the power board 24 and the function board 11 are closed, and the support frame formed by the first connecting rod 41 and the second connecting rod 42 is put away, so that the volume is reduced and it is convenient to carry.

The bottom of the bottom plate 1 is rectangular, with a rectangular hole in the middle, which is mainly used to ensure the open space of the fan 6 on the function board 11 when the fan 6 is used, transmit light, and reduce the structural quality when assembling with the function board 11 . There are rectangular baffles on both sides of the bottom plate 1, and a square slot is arranged in the middle for installing the slider 3, which is matched with the rocker 2. The shape of the slider 3 matches the square slot, and the slider 3 can slide in the square slot. The bottom of the base plate 1 is provided with a boss, and the boss is provided with a through hole for installing the second connecting rod 42 , and the dimensions of the first connecting rod 41 and the second connecting rod 42 are set according to requirements.

The slider 3 is a cuboid, which can slide on both sides of the bottom plate 1. There are one cylindrical boss and two cylindrical bosses on both sides of the cuboid. One of the cylindrical bosses is assembled with the rocker 2, and the other side has two cylindrical bosses. They are respectively matched with the first connecting rods 41 . A sleeve 5 is installed at the connecting position of the first connecting rod 41 and the second connecting rod 42 to ensure stable operation. A damping device such as a damping ring can also be installed on the rocker 2 or other rotational positions, so that it can remain stationary after being rotated.

The fan 6 is equipped with a fan cover and a fan plate on the outside to protect the fan 6 and avoid accidental injury by the operator. The number of fans is 4, which are distributed in an array of 2x2. A deodorant box 7 is installed in the cross space between the 4 fans 6, and activated carbon is placed. Materials such as fragrances are used to deodorize to improve air quality. The entire function board 11 and the fan board are provided with through holes to minimize the overall area, thereby reducing the material quality and increasing the light transmittance of the overall structure.

The power supply part mainly supplies power for each component of the functional part, including the protective cover 21, the transformer 22, the battery 23, the control circuit, the power board 24, and the solar panel.

The solar panel includes a fixed solar panel 25 in the middle and movable solar panels 26 on both sides, which can be folded and closed when not in use, and opened when in use. The transformer 22 and the battery 23 are on the back of the power panel 24, which are mainly used for solar charging and fixed use. Transform the power supply. Control circuits are used to implement power distribution and execution functions. The protective cover 21 is used to protect related components such as the transformer, the battery 23 and the control circuit. The power board 24 and the function board 11 are opened and closed through hinges.

The power board 24 of the present invention is linked with the slider 3, so that the power board 24 and the bottom support structure can be unfolded or retracted at the same time, and the whole structure can be fixed inside the shoe, so as to avoid complete contact with the bottom of the shoe and lead to the generation of sanitary dead corners

Operation method:

When the solar panel is used as the light source, the power board 24 and the function board 11 are opened, the support frame formed by the first link 41 and the second link 42 is supported, the function board 11 is inserted into the shoe, the fan 6 and the ultraviolet sterilization are turned on. The lamp 8 starts to work, and at the same time, open it to face the sun to collect solar energy. When the solar energy is still remaining and the outdoor care environment is poor, it is not necessary to open the movable solar panel 26, and directly turn on the fan 6 and the ultraviolet germicidal lamp 8. start working.

When using household AC power, select a socket position, connect the device to the household power supply, turn on the device and repeat the above operation, put the device in the shoes to start sterilization and deodorization.

After use, the switch is turned off, the movable solar panel 26 is retracted, the power panel 24 and the function panel 11 are closed, and the support frame formed by the first link 41 and the second link 42 is retracted to complete the recovery.

It should be understood that the specific embodiments described above are only used to explain the present invention, but not to limit the present invention. Obvious changes or modifications derived from the spirit of the present invention are still within the protection scope of the present invention.

Claims (10)

1. A portable sterilization and deodorization device for shoes is characterized by comprising a base plate (1), wherein a function plate (11) matched with the shape of the inside of a shoe is fixed on the base plate (1), a sterilization device and a deodorization device are arranged on the function plate (11), a foldable bottom supporting structure is arranged on the base plate (1), and the bottom supporting structure extends out of the base plate (1) and then is supported on the bottom surface of the inside of the shoe.

2. The portable sterilizer and deodorizer for shoes as claimed in claim 1, wherein: bottom plate (1) on slide and be equipped with slider (3), bottom sprag structure include slider (3) and bottom plate (1) between articulated a plurality of link assembly.

3. The portable sterilizer and deodorizer for shoes as claimed in claim 2, wherein: the connecting rod assembly comprises a first connecting rod (41) and a second connecting rod (42), the head end of the first connecting rod (41) is hinged to the sliding block (3), the tail end of the first connecting rod (41) is hinged to the tail end of the second connecting rod (42), and the tail end of the second connecting rod (42) is hinged to the base plate (1).

4. The portable sterilizer and deodorizer for shoes as claimed in claim 3, wherein: the number of the connecting rod assemblies is at least 3, and the first connecting rods (41) or the second connecting rods (42) of each group of connecting rod assemblies correspond to each other in size.

5. The portable sterilizer and deodorizer for shoes as claimed in claim 2, wherein: the number of the connecting rod assemblies is less than 3, and the first connecting rod (41) or the second connecting rod (42) is provided with a supporting leg for supporting the inner bottom surface of the shoe.

6. The portable sterilizer and deodorizer for shoes as claimed in claim 2, wherein: the multifunctional power supply is characterized in that a power supply board (24) is further arranged on the functional board (11), a control circuit, a storage battery (23) and a transformer (22) are arranged on the power supply board (24), and a power plug is further connected to the power supply board (24).

7. The portable sterilizer and deodorizer for shoes as claimed in claim 6, wherein: the power panel (24) is hinged to the function panel (11), a rocker (2) is hinged between the power panel (24) and the sliding block (3), and a solar power generation device is installed on the power panel (24).

8. The portable sterilizer and deodorizer for shoes as claimed in claim 7, wherein: the solar power generation device comprises a fixed solar panel (25) fixedly connected with a power panel (24), and at least one side of the fixed solar panel (25) is hinged with a movable solar panel (26).

9. The portable sterilizer and deodorizer for shoes as claimed in claim 6, wherein: and a protective cover (21) is arranged above the power panel (24).

10. The portable sterilizer and deodorizer for shoes as claimed in claim 1, wherein: the sterilizing device comprises an ultraviolet sterilizing lamp (8), and the deodorizing device comprises a deodorizing box (7) and a fan (6) arranged near the deodorizing box (7).
