CN111467124A - Low-temperature antibacterial treatment nursing rehabilitation device for patient wound - Google Patents

Abstract

The invention discloses a low-temperature antibacterial treatment nursing rehabilitation device for a patient's wound, comprising a protective plate, a fan is rotatably connected to the inside of the protective plate, a top block is rotatably connected to the bottom of the fan, and the side of the top block is rotatably connected. An upper support rod is rotatably connected, a support spring is fixedly connected to the inside of the water bladder, a pull rod is rotatably connected to the surface of the support spring, a steam block is slidably connected to the top of the water bladder, and the top of the steam block is connected A conductive rod is fixedly connected, an open-circuit wire is arranged above the conductive rod, lower support rods are provided on both sides of the conductive rod, and a push rod is rotatably connected to the side of the lower support rod, which is used to perform hypothermia on the patient's wound. The antibacterial treatment nursing rehabilitation device is used in conjunction with the protective plate and the water bladder, so as to achieve the effect of real-time detection and cooling of the wound, ensuring that the wound temperature is within a certain range, and effectively preventing the growth of bacteria.

Description

A kind of low temperature antibacterial treatment nursing rehabilitation device for patient's wound

technical field

The invention relates to the field of medical technology, in particular to a nursing and rehabilitation device for performing low-temperature bacteriostatic treatment on a patient's wound.

Background technique

Surgery is referred to as surgery, commonly known as surgery, which refers to the use of surgical equipment or surgical instruments, under the operation of surgeons or other professionals, to enter the human body or other biological tissues, to remove lesions, change structure or implant foreign objects by external force. In the treatment process, after the surgery, the doctor will suture the wound cut on the skin, and at the same time apply medicine to wait for the wound to heal.

After coating the drug on the open wound, it is necessary to use gauze to apply the open wound to fix the drug and also protect the wound. However, if the wound is covered for a long time, the temperature of the wound will rise, which is very beneficial. The growth of bacteria causes wound infection, so it is very important to cool the wound. The existing cooling treatment method is to wipe the disinfectant water when changing the gauze, and it is impossible to detect and cool the wound temperature in real time.

SUMMARY OF THE INVENTION

(1) Technical problems solved

In view of the deficiencies of the prior art, the present invention provides a low-temperature antibacterial treatment nursing rehabilitation device for a patient's wound, which has the advantages of real-time detection and cooling of the wound, ensuring that the temperature of the wound is within a certain range, and effectively preventing bacterial growth. The existing cooling method solves the problem that the temperature of the wound cannot be guaranteed to be within a certain range by wiping the disinfectant water to cool down only when the gauze is replaced.

(2) Technical solutions

In order to realize the above-mentioned purpose of real-time detection and cooling of the wound, ensuring that the wound temperature is within a certain range, and effectively preventing the growth of bacteria, the present invention provides the following technical scheme: A fan is rotatably connected to the inside of the protective plate, a top block is rotatably connected to the bottom of the fan, an upper support rod is rotatably connected to the side of the top block, and a transmission rod is fixedly connected to the inner wall of the protective plate. The bottom of the transmission rod is provided with a lower pressure rod, the side of the lower pressure rod is slidably connected with a hollow rod, the bottom of the hollow rod is slidably connected with a transition pipe, and the bottom of the transition pipe is rotatably connected with a suction cup, and the lower The bottom of the pressure rod is rotatably connected with a turntable, the inner wheel of the turntable is meshed with the limit gear rod, the outer wheel of the turntable is fixedly connected with a centrifugal tube, and the inside of the centrifugal tube is slidably connected with a massage wheel. The opposite side of the tube is rotatably connected with a stretching rod, and the opposite sides of the two stretching rods are rotatably connected with a water bag, the inner part of the water bag is fixedly connected with a supporting spring, and the surface of the supporting spring is rotatably connected with a water bag. A pull rod, the top of the water bag is slidably connected with a steam block, the top of the steam block is fixedly connected with a conductive rod, an open-circuit wire is arranged above the conductive rod, and both sides of the conductive rod are provided with lower supports a rod, a push rod is rotatably connected to the side of the lower support rod;

Preferably, an air leakage port is opened inside the protective plate;

Preferably, the central axis of the fan is an oblique threaded rod, and the time-delayed disconnection wire is disconnected to ensure that the working time of the condenser is sufficient;

Preferably, the side surface of the conductive rod is provided with an annular protrusion, which is blocked by the lower support rod;

Preferably, the water bladder is filled with half liquid water;

Preferably, a condenser is arranged inside the water bladder;

Preferably, the suction cup is squeezed until the water bladder covers the wound;

Preferably, a limiting spring is provided at the bottom of the limiting gear rod, and a cross support rod is provided at the other end of the limiting spring to limit the descending distance of the turntable and complete the reset.

(3) Beneficial effects

Compared with the prior art, the present invention provides a low-temperature antibacterial treatment nursing rehabilitation device for a patient's wound, which has the following beneficial effects:

1. This device is used for low temperature bacteriostatic treatment, nursing and rehabilitation of the wound of the patient. The protective plate is used in conjunction with the water bladder. The protective plate is placed above the wound, and the transition tubes are located on both sides of the wound. Squeeze the transition tubes to make the suction cups When the inner air is squeezed out, the suction cup will be adsorbed on the skin on both sides of the wound, until the water bag covers the wound and stops squeezing. Due to the suction of the suction cup, the entire device will be fixed above the wound. The gauze above is in direct contact, and is sensed by the conductive rod, so that once the temperature of the wound is too high, the open-circuit wire will be connected, so the condenser in the water bag will start to cool the water, and then the wound will be cooled, so that it can be cured. The wound is detected and cooled in real time to ensure that the wound temperature is within a certain range and effectively prevent the growth of bacteria.

2. The low temperature antibacterial treatment nursing rehabilitation device for the patient's wound is used in conjunction with the turntable and the lower pressure rod. When the fan rotates, the fan blades squeeze the transmission rod intermittently, causing the lower pressure rod to be continuously squeezed downward. When the pressing rod moves down, the turntable moves down, and the turntable is meshed with the limit gear rod, so when the turntable moves down, it rotates at the same time, and the massage wheel slides out along the centrifugal tube under the action of centrifugal force. After contacting the skin on both sides of the wound, it rolls and squeezes it, which promotes the circulation of blood under the skin around the wound, and reduces the phenomenon of blood coagulation after the wound is cooled, so as to promote the blood flow around the wound when the wound is cooled. , the effect of accelerating wound healing.

3. The low-temperature antibacterial treatment nursing rehabilitation device for the patient's wound is used in conjunction with the pull rod and the support spring. When the conductive rod is squeezed upward, the conductive rod continuously squeezes the lower support rod to both sides through the annular protrusion. , deflects the lower support rod, pushes the push rod to squeeze the stretch rod, makes the stretch rod dent, and then pulls the water bladder. When the stretch rod stretches the water bladder horizontally, the support spring is stretched horizontally. Drive the pull rod, the pull rod deflects to pull up the bottom wall of the water bladder, and at the same time, the fan blows up the water bladder and the wound, drying the sweat vapor condensed around the wound during cooling, ensuring the dryness of the wound , so as to achieve the effect of keeping the wound and surrounding area dry and preventing wound infection.

Description of drawings

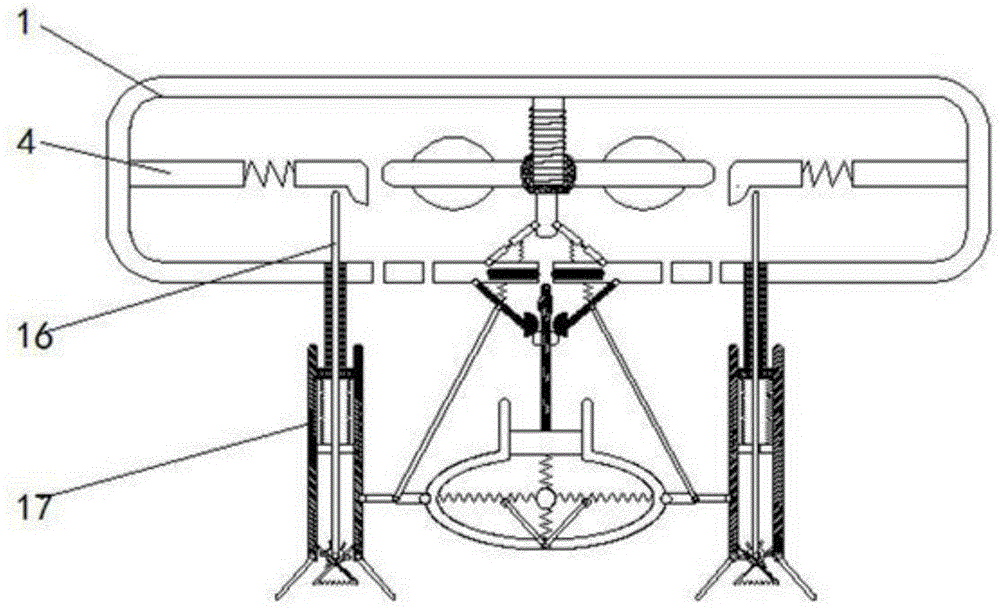

Fig. 1 is the front sectional view of the structure of the present invention;

2 is a cross-sectional view of the central axis of the fan of the present invention;

3 is a top view of the connection between the fan and the transmission rod of the present invention;

Fig. 4 is the sectional view of the structural transition pipe of the present invention;

Fig. 5 is a schematic diagram of the connection mechanism between the knot and the water bladder of the present invention;

Fig. 6 is the initial state diagram of the conductive rod of the structure of the present invention;

Figure 7 is a state diagram of the structure of the present invention after the circuit breaker is energized;

8 is a schematic diagram of the top block contacting the conductive rod after the fan of the structure of the present invention is extruded;

Fig. 9 is the initial state diagram of the structure turntable of the present invention;

Fig. 10 is the state diagram of the structure of the present invention after the turntable is moved down;

Fig. 11 is the sectional view of the centrifugal tube of the structure of the present invention;

12 is a state diagram of the structure of the present invention when the massage wheel is separated from the centrifugal tube.

In the picture: 1. Protective plate, 2. Fan, 3. Top block, 4. Transmission rod, 5. Upper support rod, 6. Breaking wire, 7. Lower support rod, 8. Conductive rod, 9. Push rod, 10 , stretch rod, 11, water bladder, 12, pull rod, 13, support spring, 14, massage wheel, 15, steam block, 16, lower pressure rod, 17, transition tube, 18, hollow rod, 19, turntable, 20, suction cup, 21, limit gear rod, 22, centrifuge tube.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Fig. 1 to Fig. 12, a kind of low-temperature antibacterial treatment nursing rehabilitation device for patient's incision wound, including a protective plate 1, the material of the protective plate 1 is light plastic, which can effectively prevent the equipment from being corroded. Extends the service life of the equipment, reduces the production cost, and plays an indispensable role in the enterprise. The inside of the protective plate 1 is provided with an air leakage port, and the interior of the protective plate 1 is rotatably connected with a fan 2. The central axis of the fan 2 is inclined. Threaded rod, time-delayed disconnection wire 6 is disconnected to ensure sufficient working time of the condenser, the bottom of the fan 2 is rotatably connected to the top block 3, the side of the top block 3 is rotatably connected to the upper support rod 5, and the inner wall of the protective plate 1 is fixedly connected with a transmission Rod 4, the bottom of the transmission rod 4 is provided with a lower pressure rod 16, the side of the lower pressure rod 16 is slidably connected with a hollow rod 18, the bottom of the hollow rod 18 is slidably connected with a transition pipe 17, and the bottom of the transition pipe 17 is rotatably connected with a suction cup 20 , the suction cup 20 is squeezed until the water bladder 11 covers the wound. , the bottom of the pressing rod 16 is rotatably connected with the turntable 19, the inner wheel of the turntable 19 is meshed and connected to the limit gear rod 21, the bottom of the limit gear rod 21 is provided with a limit spring, and the other end of the limit spring is provided with a cross support rod to limit The descending distance of the turntable 19 is completed, and the reset is completed. The outer wheel of the turntable 19 is fixedly connected with the centrifugal tube 22, the interior of the centrifugal tube 22 is slidably connected with the massage wheel 14, and the opposite side of the two transition tubes 17 is rotated and connected with the stretching rod 10, The opposite sides of the two stretching rods 10 are rotatably connected with a water bag 11, the water bag 11 is filled with half liquid water, a condenser is arranged inside the water bag 11, and a support spring 13 is fixedly connected to the inside of the water bag 11, and the support spring 13 The top of the water bladder 11 is slidably connected with a steam block 15, the top of the steam block 15 is fixedly connected with a conductive rod 8, and the side of the conductive rod 8 is provided with an annular protrusion, which is supported by the lower support rod 7 to block, an open-circuit wire 6 is arranged above the conductive rod 8, a lower support rod 7 is provided on both sides of the conductive rod 8, and a push rod 9 is rotatably connected to the side of the lower support rod 7.

When in use, place the protective plate 1 above the wound, and the transition tubes 17 are located on both sides of the wound, squeeze the transition tubes 17 to squeeze out the air in the suction cup 20, and the suction cup 20 will be adsorbed on the skin on both sides of the wound until When the water bladder 11 is covered on the wound, it stops squeezing. Due to the adsorption of the suction cup 20, the entire device is fixed above the wound.

Since the water bag 11 is in direct contact with the gauze above the wound, when the temperature of the wound surface continues to rise, the water bag 11 will continuously absorb heat energy. Since the water bag 11 is filled with half of the liquid water, the evaporation will be accelerated after absorbing the heat energy, and the water vapor will The steam blocking block 15 is lifted upwards, driving the conductive rod 8 to move upward, and the side of the conductive rod 8 is provided with an annular protrusion, which is blocked by the lower support rod 7. As the water vapor in the water bladder 11 continues to increase, the conductive rod 8 is The extrusion force is too large, so that the annular protrusion passes over the lower support rod 7 and enters between the disconnecting wires 6, and the circuit is turned on, so that the fan 2 rotates, and at the same time, the condenser arranged inside the water bag 11 works to cool the liquid water. During the treatment, the water vapor in the water bladder 11 is liquefied, so the pressing force on the conductive rod 8 is reduced.

At the same time, the fan 2 rotates, and the central axis of the fan 2 is an oblique threaded rod, which continuously moves downward during the rotation of the fan 2, which drives the lower top block 3 to move downward. When contacting, the conductive rod 8 will be squeezed downward, so that the annular protrusion on the side of the conductive rod 8 is squeezed here and crossed over the lower support rod 7 to reset again, the circuit is disconnected again, and the top block 3 is on the upper support rod 5. Under the action of the fan 2, the fan 2 is pushed up and returned to the original position.

Since the water bag 11 is in direct contact with the gauze above the wound, once the temperature of the wound is too high, the condenser in the water bag 11 will start to cool the water, thereby cooling the wound, so that the wound can be detected and cooled in real time, ensuring that The wound temperature is within a certain range, which can effectively prevent the growth of bacteria.

When the fan 2 rotates, the fan blades press the transmission rod 4 intermittently, causing the pressing rod 16 to be continuously pressed downward. When the pressing rod 16 moves downward, the turntable 19 moves downward, and the turntable 19 and The limit gear rod 21 is meshed and connected, so when the turntable 19 moves downward, it will rotate at the same time. Under the action of centrifugal force, the massage wheel 14 slides out along the centrifuge tube 22, and rolls and squeezes on it after contacting the skin on both sides of the wound. It promotes the circulation of blood under the skin around the wound, weakens the blood stagnation phenomenon after the wound is cooled, thereby achieving the effect of promoting blood flow around the wound and accelerating wound healing when the wound is cooled.

When the conductive rod 8 is squeezed upward, the conductive rod 8 continuously squeezes the lower support rod 7 to both sides through the annular protrusion, so that the lower support rod 7 is deflected, and then pushes the push rod 9 to squeeze the stretching rod 10, so that the lower support rod 7 is deflected. When the stretch rod 10 is dented, the water bladder 11 is pulled. When the stretch rod 10 stretches the water bladder 11 horizontally, the support spring 13 is laterally stretched, which drives the pull rod 12, and the pull rod 12 deflects the bottom wall of the water bladder 11. Pull up, at the same time, the fan 2 blows the water bag 11 and the wound to dry the sweat water vapor condensed around the wound during cooling, which ensures the dryness of the wound, thereby keeping the wound and the surrounding dry. , the effect of preventing wound infection.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A low temperature antibacterial treatment nursing rehabilitation device is carried out to a patient's open wound, comprising a protective plate (1), characterized in that: the interior of the protective plate (1) is rotatably connected with a fan (2), and the fan (2) ) is rotatably connected to the bottom of the top block (3), the side of the top block (3) is rotatably connected to an upper support rod (5), and the inner wall of the protective plate (1) is fixedly connected with a transmission rod (4), so The bottom of the transmission rod (4) is provided with a pressing rod (16), the side of the pressing rod (16) is slidably connected with a hollow rod (18), and the bottom of the hollow rod (18) is slidably connected with a transition pipe (17), a suction cup (20) is rotatably connected to the bottom of the transition pipe (17), a turntable (19) is rotatably connected to the bottom of the pressing rod (16), and the inner wheel of the turntable (19) is meshed and connected A limit gear rod (21), a centrifugal tube (22) is fixedly connected to the outer wheel of the turntable (19), a massage wheel (14) is slidably connected to the inside of the centrifugal tube (22), and the two transition tubes ( 17) A stretch rod (10) is rotatably connected to the opposite side, and a water bladder (11) is rotatably connected to the opposite side of the two stretch rods (10), and the interior of the water bladder (11) is fixedly connected There is a support spring (13), the surface of the support spring (13) is rotatably connected with a pull rod (12), the top of the water bladder (11) is slidably connected with a steam block (15), the steam block (15) A conducting rod (8) is fixedly connected to the top of the conducting rod (8), an open-circuit wire (6) is arranged above the conducting rod (8), and lower support rods (7) are arranged on both sides of the conducting rod (8). A push rod (9) is rotatably connected to the side of the lower support rod (7). 2 . The device according to claim 1 for performing low-temperature bacteriostatic treatment, nursing and rehabilitation on a patient's wound, characterized in that an air leakage port is opened inside the protective plate (1). 3. The device according to claim 1, characterized in that: the central axis of the fan (2) is an oblique threaded rod. 4. The device according to claim 1, characterized in that: the side surface of the conductive rod (8) is provided with an annular protrusion, and is supported by the lower support rod (7). ) block. 5. The device according to claim 1, characterized in that: the water bladder (11) is filled with half of the liquid water. 6. The device according to claim 1, characterized in that a condenser is provided inside the water bladder (11). 7. The device according to claim 1, wherein the suction cup (20) is squeezed until the water bladder (11) covers the wound. 8. The device for performing low-temperature bacteriostatic treatment, nursing and rehabilitating a patient's wound according to claim 1, characterized in that: the bottom of the limiting gear rod (21) is provided with a limiting spring, and the other end of the limiting spring is provided with a limiting spring. Set up cross brace bars.
