CN111455397A - Steel pipe immersion cleaning line - Google Patents

Abstract

The invention belongs to the technical field of steel pipe processing, in particular to a steel pipe immersion type cleaning line, comprising two parallelly distributed conveying devices, a plurality of liquid medicine pools are arranged between the two conveying devices, and the several said liquid medicine pools are arranged according to The cleaning sequence of the steel pipes is sequentially distributed along the conveying direction of the conveying device. The front end of the conveying device is provided with a steel pipe hanging table for hanging the steel pipe, and the rear end of the conveying device is provided with a steel pipe stripping table for unloading the steel pipe; After entering multiple chemical liquid pools, after the steel pipes are cleaned and dried, the steel pipes are removed from the conveying steel pipe unloading table by the staff in turn. And the next part is also working non-stop, which can effectively save labor waiting time and increase production capacity. During the cleaning process, the entire steel pipe is completely immersed under the liquid level of the liquid medicine, which can fully clean the inner and outer walls of the steel pipe. In order to make the spraying adhesion of the steel pipe in the later stage good.

Description

Steel pipe immersion cleaning line

technical field

The invention belongs to the technical field of steel pipe processing, and in particular relates to a steel pipe immersion type cleaning line.

Background technique

Powder spraying is to use powder spraying equipment (electrostatic spraying machine) to spray powder coating on the surface of the workpiece. Under the action of static electricity, the powder will be uniformly adsorbed on the surface of the workpiece to form a powder coating; Baking and leveling curing, it becomes the final coating with different effects (different types of powder coatings); the spraying effect of powder spraying is superior to the spraying process in terms of mechanical strength, adhesion, corrosion resistance, aging resistance, etc., and the cost is also Under the same effect of spray painting, the steel pipe is treated before powder spraying to improve the adhesion.

The existing technology is the water immersion type or the steel pipe vertical type. The disadvantage of the water immersion type is to grab the steel pipe and put it in the A water tank, then take it out into the B water tank, and then take it out into the C water tank, etc., which is relatively time-consuming and labor-intensive. It is necessary to wait for the front steel pipe to be taken away before the rear steel pipe can be treated. The vertical spraying of the steel pipe is disadvantageous. This production line is to erect the steel pipe for spray treatment. The inner wall of the steel pipe may not be treated, resulting in poor adhesion of the later spraying.

SUMMARY OF THE INVENTION

In order to solve the problems raised in the above background art. The invention provides a steel pipe immersion cleaning line, which integrates the existing production line, and does not need to be intervened in the whole process. The water immersion type is time-saving and labor-saving.

In order to achieve the above purpose, the present invention provides the following technical solutions: a steel pipe immersion cleaning line, including two parallelly distributed conveying devices, a number of medicinal liquid pools are arranged between the two conveying devices, and a number of the medicinal solution The pools are sequentially distributed along the conveying direction of the conveying device according to the cleaning sequence of the steel pipes. The front end of the conveying device is provided with a steel pipe hanging platform for hanging the steel pipe, and the tail end of the conveying device is provided with a steel pipe stripper for unloading the steel pipe. The conveying device is provided with a drive device for driving the conveying device at one end of the conveying device close to the steel pipe stripping platform, the drive device is electrically connected with an external power source, and the conveying device includes a carrying frame and a Several vertical columns at the bottom of the frame, the vertical columns are fixed perpendicular to the ground, the carrier frame is welded and fixed on the top of the vertical column, a conveyor frame is erected and fixed on the carrier frame, and a conveyor chain is connected to the outer side of the conveyor frame. , the conveyor chain is driven and transmitted by the driving device, and the two conveyor chains are conveyed synchronously. There are several hangers under the conveyor chains, and the hangers are detachably connected to the conveyor chain, so The hanger is provided with a plurality of hooks, and the hooks are fixedly connected with the hanger.

Preferably, a plurality of the hangers are equally spaced on the conveyor chain, the distance between two adjacent hangers is 20 to 30 cm, and the hangers are engaged with the conveyor chain and fixed.

Preferably, the number of the hooks is one to five, and the hooks are equally spaced.

Preferably, the medicinal solution pool is a bucket-shaped pool, and the medicinal solution pool has an inclined pool wall along the conveying direction of the conveying device.

Preferably, the conveying frame includes a protruding part distributed in parallel with the carrying frame and a concave part corresponding to the liquid medicine pool, and the concave part is distributed in parallel with the inner wall of the liquid medicine pool.

Preferably, the length of the hanger is greater than the distance between the recessed portion and the liquid surface, and less than the distance between the recessed portion and the bottom of the liquid medicine pool, so that the steel pipe on the hook is completely immersed under the liquid surface.

Preferably, observation platforms are provided on both sides of the medicinal solution pool, the observation platform has the same length as several of the medicinal solution pools, and the observation platform is fixedly connected to the upright column.

Preferably, the drive device includes a drive motor and a transmission mechanism, the drive motor is fixed on the bottom of the carrier, the drive motor is electrically connected to an external power source, and the output shaft of the drive motor is drive-connected to the The transmission mechanism is connected with the conveyor chain through the transmission mechanism.

Preferably, an electric heater and an ultrasonic cleaning mechanism are provided on the liquid medicine pool, and both the electric heater and the ultrasonic cleaning mechanism are fixedly connected to the liquid medicine pool and are electrically connected to an external power source.

Preferably, an exhaust fan is installed on the carrier, the exhaust fan is fixedly connected to the carrier, a single-chip controller is installed on the carrier, and the single-chip controller is signally connected to the conveying device and the driving device.

Compared with the prior art, the beneficial effects of the present invention are:

In the present invention, by setting two conveying devices that work synchronously, during operation, several hanging steel pipes placed on the hanging platform of the steel pipe are placed on the hooks of the hanging device in turn. At this time, the conveying chain is in the driving device. Driven, convey slowly, and drive the hanger below to move, the hanger will sink into the liquid medicine pool along the conveying frame with the concave part in turn, and place it below the liquid level of the liquid medicine. The other end of the liquid pool is transported up, and then enters the next liquid medicine pool, and so on. When the steel pipe of the hanger is removed, the conveying device keeps working, so the upper hanging and the lower part are also working continuously, which can effectively save the labor waiting time and increase the production capacity, and during the cleaning process, the entire steel pipe is completely Immersion below the liquid level of the liquid medicine can fully clean the inner and outer walls of the steel pipe, so that the spraying adhesion of the steel pipe in the later stage is good.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

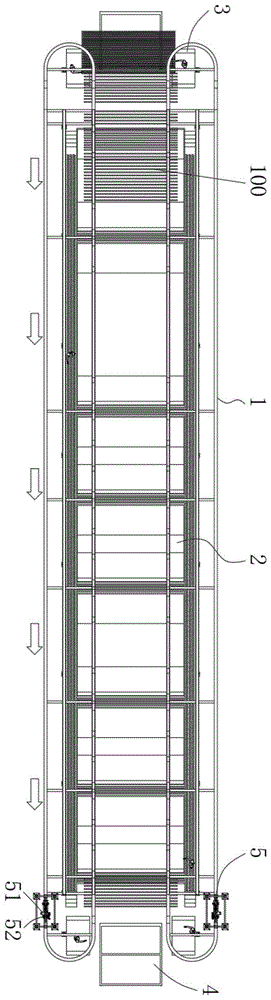

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the side view structure schematic diagram of the present invention;

Fig. 3 is the sectional structure schematic diagram of the present invention;

FIG. 4 is a schematic diagram of a partially enlarged structure of the present invention.

In the figure: 100, steel pipe; 1, conveying device; 11, column; 12, carrying frame; 13, conveying frame; 131, protruding part; 132, concave part; 14, conveying chain; 15, observation platform; 2, medicine Liquid pool; 3. Steel pipe hanging table; 4. Steel pipe unloading table; 5. Driving device; 51. Driving motor; 52. Transmission mechanism; 6. Hanging tool; 61. Hook.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1-4, the present invention provides the following technical solutions: a steel pipe immersion cleaning line, including two parallelly distributed conveying devices 1, a number of liquid medicine pools 2 are arranged between the two conveying devices 1, and several medicine liquid pools 2 are arranged between the two conveying devices 1 The liquid pool 2 is sequentially distributed along the conveying direction of the conveying device 1 according to the cleaning sequence of the steel pipes 100. The front end of the conveying device 1 is provided with a steel pipe hanging platform 3 for hanging the steel pipes 100, and the rear end of the conveying device 1 is provided with a steel pipe for unloading the steel pipe 100 steel pipe stripping table 4, the end of the conveying device 1 close to the steel pipe stripping table 4 is provided with a driving device 5 for driving the conveying device 1, the driving device 5 is electrically connected with an external power source, and the conveying device 1 includes a carrier frame 12 and A plurality of uprights 11 are arranged at the bottom of the carrier 12. The uprights 11 are fixed perpendicular to the ground. The carrier 12 is welded and fixed on the top of the upright 11. The chain 14 and the conveyor chain 14 are driven and transmitted by the driving device 5, and the two conveyor chains 14 are conveyed synchronously. There are several hangers 6 under the conveyor chains 14, and the hangers 6 are detachably connected to the conveyor chain 14. Several hooks 61 are provided, and the hooks 61 are fixedly connected with the hanger 6 .

In this embodiment, there are two conveying devices 1 distributed in parallel, and several liquid medicine pools 2 are arranged between the two conveying devices 1 . Distributed in sequence, there are several hangers 6 below the conveyor chain 14. By setting up two conveyor devices 1 that work synchronously, during work, the staff stands on the hanging platform 3 on the steel pipe, and manually hangs them. Several hanging steel pipes 100 placed on the hanging platform 3 on the steel pipe are placed on the hooks 61 of the hanger 6 in turn. At this time, the conveyor chain 14 is driven by the driving device 5, and conveys slowly, driving the lower hanger 6. When moving, the hanger 6 will sink into the liquid medicine pool 2 along the conveying frame 13 with the recessed part 132 in turn, and place it below the liquid medicine liquid level. Come up, and then enter the next liquid medicine pool 2, and so on and so forth, after entering a plurality of liquid medicine pools 2, after the steel pipe 100 is cleaned and dried, the steel pipe 100 is transported to 4 unloading tables, and the staff will hang it in sequence. The steel pipe 100 of the hanger 6 is removed, and the conveying device 1 works continuously during operation, so the upper and lower parts also work continuously, which can effectively save labor waiting time, increase production capacity, and during the cleaning process, the entire steel pipe The 100 is completely immersed below the liquid level of the liquid medicine, which can fully clean the inner and outer walls of the steel pipe 100, so that the spraying adhesion of the steel pipe 100 in the later stage is good.

Specifically, several hangers 6 are equally spaced on the conveyor chain 14, and the distance between two adjacent hangers 6 is 20 to 30 centimeters. One to five, and the hooks 61 are equidistantly distributed. By setting the hanger 6 with the hooks 61, a plurality of steel pipes 100 can be hung on the hanger 6 during use, so that when working, it is possible to The steel pipes 100 on the hanger 6 are cleaned sequentially.

Specifically, the liquid medicine pool 2 is a bucket-shaped pool, and the liquid medicine pool 2 has an inclined pool wall along the conveying direction of the conveying device 1 . The concave part 132 is distributed parallel to the inner wall of the liquid medicine pool 2. When the hanger 6 suspended under the conveyor chain 14 moves on the conveying frame 13, it can move along the track and enter and exit the liquid medicine pool 2 smoothly. , to make the whole production line smoother.

Specifically, the length of the hanger 6 is greater than the distance between the recessed portion 132 and the liquid surface, and is smaller than the distance between the recessed portion 132 and the bottom of the liquid medicine pool 2, so that the steel pipe 100 on the hook 61 is completely immersed under the liquid surface. During the process, the entire steel pipe 100 is completely immersed below the liquid level of the liquid medicine, so that the inner and outer walls of the steel pipe 100 can be sufficiently cleaned, so that the spraying adhesion of the steel pipe 100 in the later stage is good.

Specifically, observation platforms 15 are provided on both sides of the medicinal solution pool 2. The observation platform 15 is the same length as several medicinal solution pools 2. The observation platform 15 is fixedly connected with the upright column 11. Check both sides of the liquid pool 2 to watch the cleaning of the steel pipe 100 .

Specifically, the driving device 5 includes a driving motor 51 and a transmission mechanism 52. The driving motor 51 is fixed on the bottom of the carrier frame 12, and the driving motor 51 is electrically connected to an external power source. The output shaft of the driving motor 51 is connected to the transmission mechanism 52 by driving, and The transmission mechanism 52 is connected to the conveyor chain 14 through a transmission, and the drive motor 51 drives the conveyor chain 14 to drive through the belt-type or gear-type transmission mechanism 52 to drive the two groups of conveyor chains 14 to move synchronously.

Specifically, the liquid medicine pool 2 is provided with an electric heater and an ultrasonic cleaning mechanism. Both the electric heater and the ultrasonic cleaning mechanism are fixedly connected to the liquid medicine pool 2 and are electrically connected to the external power supply. Drying the wet steel pipe 100, or heating the temperature of the liquid medicine, thereby improving the activity of the liquid medicine, and cooperating with the ultrasonic cleaning mechanism, the cleaning effect is better.

Specifically, an exhaust fan is installed on the carrier frame 12, the exhaust fan is fixedly connected with the carrier frame 12, a single-chip controller is installed on the carrier frame 12, and the single-chip controller is connected with the conveying device 1 and the driving device 5 by signals, and the single-chip controller can control the cleaning line. The movement and stop of the conveying device 1; the heating of the medicinal liquid in the medicinal liquid pool 2; the control of the ultrasonic wave and the exhaust fan.

The working principle and use process of the present invention: during work, the staff stands on the steel pipe hanging table 3, and manually hangs several hanging steel pipes 100 placed on the steel pipe hanging table 3 in sequence. On the hook 61 of the hanger 6, at this time, the conveyor chain 14 is slowly conveyed by the drive device 5, and drives the hanger 6 below to move, and the hanger 6 will sink along the conveyor frame 13 with the concave portion 132 in turn. Enter into the liquid medicine pool 2, place it below the liquid level of the liquid medicine, fully contact with the liquid medicine, transport it up from the other end of the liquid medicine pool 2, and then enter the next liquid medicine pool 2, and so on and so forth, before entering the liquid medicine pool 2. After a plurality of chemical liquid pools 2, after the steel pipe 100 is cleaned and dried, the steel pipe 100 is transported to the 4 places to remove the material, and the steel pipe 100 hung on the hanger 6 is removed by the staff in turn, and the conveying device 1 works continuously during operation. Therefore, the upper and lower parts are also constantly working, which can effectively save the labor waiting time and increase the production capacity, and during the cleaning process, the entire steel pipe 100 is completely immersed under the liquid level of the liquid medicine, which can fully clean the steel pipe 100. The inner and outer walls of the steel pipe are cleaned so that the spraying adhesion of the steel pipe 100 in the later stage is good.

Finally, it should be noted that the above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, the The technical solutions described in the foregoing embodiments may be modified, or some technical features thereof may be equivalently replaced. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (10)

1. The steel pipe immersion cleaning line is characterized in that: it comprises two conveying devices (1) distributed in parallel, and several liquid medicine pools (2) are arranged between the two said conveying devices (1), and several The liquid medicine pool (2) is sequentially distributed along the conveying direction of the conveying device (1) according to the cleaning sequence of the steel pipes (100), and the front end of the conveying device (1) is provided with a steel pipe hanging platform for hanging the steel pipes (100). (3), the tail end of the conveying device (1) is provided with a steel pipe stripping table (4) for unloading the steel pipe (100), and the conveying device (1) is close to the steel pipe stripping table (4) One end is provided with a driving device (5) for driving the conveying device (1), the driving device (5) is electrically connected with an external power supply, and the conveying device (1) comprises a carrier (12) and a Several uprights (11) at the bottom of the carrier (12), the uprights (11) are fixed perpendicular to the ground, the carrier (12) is welded and fixed on the top of the upright (11), the carrier (12) ) is erected and fixed with a conveying frame (13), the outer side of the conveying frame (13) is driven and connected with a conveying chain (14), and the conveying chain (14) is driven and driven by the driving device (5), and two The conveyor chain (14) is transported synchronously, and a plurality of hangers (6) are arranged below the conveyor chain (14), and the hangers (6) are detachably connected to the conveyor chain (14). The hanger (6) is provided with a plurality of hooks (61), and the hooks (61) are fixedly connected with the hanger (6). 2. The steel pipe immersion cleaning line according to claim 1, characterized in that: a plurality of the hangers (6) are equally spaced on the conveyor chain (14), and two adjacent hangers The distance between (6) is twenty to thirty centimeters, and the hanger (6) and the conveyor chain (14) are engaged and fixed. 3 . The steel pipe immersion cleaning line according to claim 1 , wherein the number of the hooks ( 61 ) is one to five, and the hooks ( 61 ) are equally spaced. 4 . 4. The steel pipe immersion cleaning line according to claim 1, characterized in that: the medicinal solution pool (2) is a bucket-shaped pool, and the medicinal solution pool (2) is transported along the conveying device (1) Orientation has sloping pool walls. 5 . The steel pipe immersion cleaning line according to claim 4 , wherein the conveying frame ( 13 ) comprises a protruding portion ( 131 ) distributed parallel to the carrying frame ( 12 ) and a liquid medicine pool ( 2 ). 6 . ) corresponding to the concave portion (132), the concave portion (132) is distributed parallel to the inner wall of the medicinal solution pool (2). 6. The steel pipe immersion cleaning line according to claim 5, characterized in that: the length of the hanger (6) is greater than the distance from the recessed portion (132) to the liquid surface, and is less than the distance from the recessed portion (132) The distance from the bottom of the liquid medicine pool (2) is adjusted so that the steel pipe (100) on the hook (61) is completely immersed under the liquid surface. 7. The steel pipe immersion type cleaning line according to claim 1, characterized in that: two sides of the liquid medicine pool (2) are provided with observation platforms (15), and the observation platforms (15) are connected with several The length of the liquid medicine pool (2) is the same, and the observation platform (15) is fixedly connected with the upright column (11). 8. The steel pipe immersion cleaning line according to claim 1, wherein the driving device (5) comprises a driving motor (51) and a transmission mechanism (52), and the driving motor (51) is fixed to the the bottom of the carrier (12), and the drive motor (51) is electrically connected to an external power source, and the output shaft of the drive motor (51) is drivingly connected to the transmission mechanism (52), and passes through the transmission mechanism (52) is drivingly connected with the conveying chain (14). 9. The steel pipe immersion type cleaning line according to claim 1 is characterized in that: an electric heater and an ultrasonic cleaning mechanism are arranged on the medicinal liquid pool (2), and the electric heater and the ultrasonic cleaning mechanism are The medicinal liquid pools (2) are fixedly connected, and are all electrically connected with an external power source. 10. The steel pipe immersion cleaning line according to claim 9, characterized in that: an exhaust fan is installed on the bearing frame (12), the exhaust fan is fixedly connected to the bearing frame (12), and the bearing frame (12) is provided with a single-chip controller, and the single-chip controller is signal-connected with the conveying device (1) and the driving device (5).
