Abstract

The invention discloses a magnetic rod for cleaning magnetic foreign objects at an operation site after operation, comprising a rod body, one end of the rod body is connected with a handle, and the other end of the rod body is connected with a magnetic suction head. The end is a rounded blunt head, and the outer wall of the magnetic head is connected with a stripping head extending along the direction of the central axis of the magnetic head; the stripping head includes a plane part connected with the outer wall of the magnetic head, and one end of the plane part is connected with a directional magnetic head The magnetic arc surface is bent at the central axis; the magnetic suction head is provided with an electromagnet, the handle is provided with a power supply, and the handle is provided with a switch outside, and the electromagnet is connected with the power supply through a cable running through the rod body. The invention has the advantages that relatively large metal fittings such as screws and nuts that fall off at the operation site can be taken out at one time, can be moved flexibly at the operation site, and cause less physical damage to special groups.

Description

A magnetic bar for cleaning magnetic foreign bodies after surgery

technical field

The invention relates to a medical magnetic bar, in particular to a magnetic bar for cleaning magnetic foreign objects after an operation site.

Background technique

Medical magnetic rods are commonly used instruments in surgical operations. They are used for surgical openings of patients. Since surgical instruments are mostly metal products, metal fragments on some instruments will inevitably be peeled off after the operation, and even screws and nuts will fall off. If larger metal fittings such as these are placed at the surgical site, these substances left in the patient's body are likely to cause secondary disease.

At present, the commonly used medical magnetic rod is generally a rod-shaped structure with a magnetic suction head. Due to the different sensitivity of the human body to the magnetic field, an excessively strong magnetic field will destroy the original biological magnetic field in the human body after a certain period of time, and induce a micro-current. It will change the permeability of the cell membrane, seriously destroy the activity of some enzymes, and the human body will also experience dizziness and vomiting. In addition, for some special groups, such as fracture patients, metal fixation may be applied to the affected part. Needle, too strong magnetic field for too long can easily loosen the fixed needle, which is not conducive to the recovery of the bone. Another example is a patient with a cardiac pacemaker implanted in the body, too strong magnetic field for too long may interfere with the positioning of the pacemaker . Therefore, the magnetism of conventional magnetic rods should not be too strong. When in use, only some relatively light metal fragments can usually be absorbed. For relatively large metal accessories such as screws and nuts, the current magnetic rods can only play a "sensing" function. It is difficult to suck it out directly, and more often, auxiliary tools such as tweezers are needed to clamp it out after finding the position; in addition, due to the poor regularity of the muscle tissue at the surgical site after the operation, it will be accompanied by human tissues such as fascia and membrane. , which increases the difficulty of absorbing relatively large metal accessories such as screws and nuts, and also makes the movement of the magnetic rod in the surgical site more inconvenient.

Therefore, the existing medical magnetic rods have the problems that it is not easy to take out relatively large metal fittings such as screws and nuts that fall off the surgical site at one time, the movement in the surgical site is inconvenient, and it is easy to cause physical damage to special groups.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a magnetic bar for cleaning magnetic foreign bodies after surgery. It has the advantages of being able to take out relatively large metal accessories such as screws and nuts falling off the surgical site at one time, flexibly moving on the surgical site, and causing less physical damage to special groups.

The technical solution of the present invention is as follows: a magnetic rod for cleaning magnetic foreign objects after an operation site, comprising a rod body, one end of the rod body is connected with a handle, and the other end of the rod body is connected with a magnetic suction head, and the magnetic suction head is a columnar structure as a whole, Its outer end is a rounded blunt head, and the outer wall of the magnetic suction head is connected with a stripping head extending in the direction of the central axis of the magnetic suction head; the stripping head includes a plane part connected with the outer wall of the magnetic suction head, and one end of the plane part is connected with a directional magnetic head. The magnetic arc surface is bent at the central axis of the suction head; the magnetic suction head is provided with an electromagnet, the handle is provided with a power supply, and the handle is provided with a switch outside, and the electromagnet is connected with the power supply through a cable running through the inside of the rod body.

In the aforementioned magnetic rod for cleaning magnetic foreign bodies after surgery, the magnetic arc surface is a sheet-like structure, and the center of the sheet-shaped magnetic arc surface is hollowed out to form a ring.

In the aforesaid magnetic rod for cleaning magnetic foreign objects after operation, the width of the magnetic arc surface gradually narrows from one end connected to the flat surface to the other end.

In the aforementioned magnetic rod for cleaning magnetic foreign bodies after surgery, the magnetic field strength of the electromagnet is 2-5 times the magnetic field strength of the magnetic arc face.

In the aforesaid magnetic rod for cleaning magnetic foreign bodies after surgery, the peeling head and the magnetic suction head are integrally connected.

In the aforesaid magnetic rod for cleaning magnetic foreign bodies after surgery, the rod body and the handle are threadedly connected.

In the aforesaid magnetic rod for cleaning magnetic foreign bodies after surgery, the rod body and the magnetic suction head are threadedly connected.

Compared with the prior art, the present invention has two parts that can generate magnetism. Among them, the magnetic suction head has a built-in electromagnet, which is energized to generate magnetism after pressing the switch, and the peeling head connected to the outer wall of the magnetic suction head includes a curved magnetic arc. The face, the magnetic arc surface is a permanent magnet, and there is no need to press the switch on the handle during normal use, that is, the electromagnetic part does not work, and some relatively light metal fragments can be absorbed and taken out only by the magnetic arc surface. At the same time, it can also sense some relatively large metal accessories such as screws and nuts. Although the large metal accessories cannot be sucked out only by the magnetic arc surface, after sensing these accessories, you can move the magnetic suction head to the position of the accessories, press the handle After the electromagnet attracts the relatively large metal fittings, the magnetic bar is immediately removed. After using this method, the relatively large metal fittings such as screws and nuts that fall off the surgical site can be taken out at one time. After being electrified, a large magnetic field will be generated, but taking out the magnetic rod immediately makes the strong magnetic field stay in the body for a short time, causing less physical damage even to such special populations with cardiac pacemakers implanted in the body.

The peeling head of the present invention is arranged in a structure in which a plane part and a magnetic arc surface are connected. The plane part makes the peeling head easy to be integrally connected with the magnetic suction head. In addition to attracting metal fragments, the magnetic arc surface can also open the surgical site, which is convenient for the magnetic rod. In the movement of the surgical site, further, the magnetic arc surface is a sheet-like structure, and the middle of the sheet-shaped magnetic arc surface is hollowed out to form a ring body. Fascia, membranes and other sundries are easy to move, and when the surgical site moves, the hollow structure produces less resistance, which is also beneficial to movement; further, the magnetic arc surface is connected to the flat part from one end to the other. The tapered width allows the invention to be inserted and aligned quickly even with narrow surgical site openings.

In addition, the magnetic field strength of the electromagnet is 2-5 times of the magnetic field strength of the magnetic arc face, which ensures that the electromagnet has enough time to be taken out from the surgical site after being energized; They are all threaded connections, and the three can be recycled and reused, and can be replaced individually after damage, reducing the cost of surgical instruments.

To sum up, the present invention has the advantages that relatively large metal fittings such as screws and nuts that fall off the surgical site can be taken out at one time, can be flexibly moved on the surgical site, and cause less physical damage to special populations.

Description of drawings

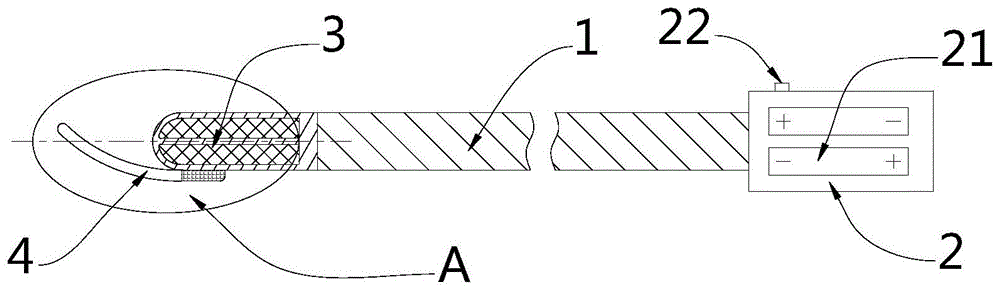

Fig. 1 is the structural representation of the present invention;

Fig. 2 is a partial enlarged view of Fig. 1 at A;

FIG. 3 is a schematic view of the structure of the peeling head.

Reference numerals: 1-rod body, 2-handle, 3-magnetic suction head, 4-peeling head, 21-power supply, 22-switch, 31-electromagnet, 41-flat surface, 42-magnetic arc surface.

Detailed ways

The present invention will be further described below in conjunction with the accompanying drawings and embodiments, but not as a basis for limiting the present invention.

Example: a magnetic rod for cleaning magnetic foreign bodies after surgery, the structure is shown in Figures 1 to 3, including a rod body 1, one end of the rod body 1 is connected with a handle 2, and the other end of the rod body 1 is connected with a magnetic suction head 3. The magnetic suction head 3 has a columnar structure as a whole, and its outer end is a rounded blunt head. The outer wall of the magnetic suction head 3 is connected with a stripping head 4 extending along the direction of the central axis of the magnetic suction head 3; the stripping head 4 includes: The plane portion 41 connected with the outer wall of the magnetic head 3, one end of the plane portion 41 is connected with a magnetic arc surface portion 42 bent toward the central axis of the magnetic attraction head 3, and the magnetic arc surface portion 42 is a permanent magnet; the magnetic attraction head 3 is provided with The electromagnet 31, the handle 2 is provided with a power supply 21, the handle 2 is provided with a switch 22 outside, the electromagnet 31 is connected to the power supply 21 through a cable running through the inside of the rod body 1, and the electromagnet 31 is energized after pressing the switch 22 to generate magnetism .

The magnetic arc surface portion 42 is a sheet-like structure, which not only attracts metal fragments, but also removes the fascia, membranes and other sundries in the surgical site to facilitate the movement of the magnetic rod in the surgical site. A ring body makes the metal detection range wider, and the hollow structure produces less resistance and is also beneficial to movement.

The width of the magnetic arc surface portion 42 gradually narrows from one end connected with the flat surface portion 41 to the other end, so that even if the opening of the surgical site is narrow, the present invention can be inserted and aligned quickly.

The magnetic field strength of the electromagnet 31 is 4 times the magnetic field strength of the magnetic arc surface 42. This magnetic field strength ensures that the electromagnet 31 can be taken out from the surgical site in sufficient time after being energized. The electromagnet 31 of the present invention can absorb some relatively large metal fittings such as screws and nuts on the surgical instrument when it is energized.

The peeling head 4 and the magnetic suction head 3 are integrally connected.

The rod body 1 and the handle 2 are threadedly connected, and the rod body 1 and the magnetic suction head 3 are threadedly connected, and the three can be recycled and reused, and can be replaced separately after damage, reducing the cost of surgical instruments.

The ends of the magnetic arc surface portion 42 are also rounded blunt ends.

The working principle of the present invention: at the surgical site, the peeling head 4 is used to remove the fascia, membranes and other sundries at the surgical site, so that the magnetic rod can be inserted into the surgical site smoothly, and there is no need to press the switch 22 on the handle 2 during use, that is, the electromagnetic part If it does not work, some relatively light metal fragments can be sucked and taken out only by the magnetic arc surface 42. The operator of the present invention needs to go through many times of use training before the actual use to train the magnetic arc surface 42 to perceive the screw and nut. When the magnetic arc surface 42 attracts the feel of these relatively large metal accessories, move the magnetic suction head 3 to the position of the accessories, press the switch 22 on the handle 2, the electromagnet 31 is energized, Immediately take out the magnetic rod after sucking the relatively large metal accessories, and take out the relatively large metal accessories such as screws and nuts that fall off the surgical site at one time, and the electromagnet 31 stays in the patient's body for a short time after power-on The physical damage caused by such special groups of implanted cardiac pacemakers is also small; the rod body 1 and the handle 2, the rod body 1 and the magnetic suction head 3 are all screwed together, and the three can be used repeatedly. can be replaced individually later.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", " The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation are therefore not to be construed as limitations of the present invention.

Claims (7)

1. The utility model provides a clearance magnetism foreign matter's magnetism stick after operation position art, includes barred body (1), barred body (1) one end is connected with handle (2), and barred body (1) other end is connected with magnetic suction head (3), its characterized in that: the whole magnetic suction head (3) is of a columnar structure, the outer end of the magnetic suction head is a round blunt head, and the outer wall of the magnetic suction head (3) is connected with a stripping head (4) extending along the central axis direction of the magnetic suction head (3); the stripping head (4) comprises a plane part (41) connected with the outer wall of the magnetic suction head (3), and one end of the plane part (41) is connected with a magnetic arc surface part (42) bent towards the central axis of the magnetic suction head (3); an electromagnet (31) is arranged in the magnetic suction head (3), a power supply (21) is arranged in the handle (2), a switch (22) is arranged outside the handle (2), and the electromagnet (31) is connected with the power supply (21) through a cable penetrating through the interior of the rod body (1).

2. The magnetic rod for cleaning magnetic foreign bodies after operation of the operation site according to claim 1, wherein: the magnetic cambered surface portion (42) is of a sheet-shaped structure, and the middle of the sheet-shaped magnetic cambered surface portion (42) is hollowed out to form a ring body.

3. The magnetic rod for cleaning magnetic foreign bodies after operation of the operation site according to claim 2, wherein: the magnetic arc surface part (42) is gradually narrowed from one end connected with the plane part (41) to the other end.

4. A magnetic wand for post-operative cleaning of magnetic foreign matter at a surgical site as claimed in claim 1, 2 or 3, wherein: the magnetic field intensity of the electromagnet (31) is 2-5 times of the magnetic field intensity of the magnetic cambered surface part (42).

5. The magnetic rod for cleaning magnetic foreign bodies after operation of the operation site according to claim 1, wherein: the stripping head (4) and the magnetic suction head (3) are integrally connected.

6. The magnetic rod for cleaning magnetic foreign bodies after operation of the operation site according to claim 1, wherein: the rod body (1) is in threaded connection with the handle (2).

7. The magnetic rod for cleaning magnetic foreign bodies after operation of the operation site according to claim 1, wherein: the bar body (1) is in threaded connection with the magnetic suction head (3).
