Abstract
本发明公开了一种智能家居灭蚊设备，其结构包括灭蚊台、上盖、按钮、清理柜，灭蚊台包括储存腔、支撑台、电蚊套、支撑杆、转轮、灭蚊灯，支撑台包括砂块、电机、转杆、卡块，卡块包括吸盘、防滑条，电蚊套内部包括定位杆、转轴、卡槽，电蚊套表面包括电网、摆杆、刷子，刷子包括刷头、限位簧，电机带动转杆转动，在卡块与卡槽的啮合下带动转轴与电蚊套转动，同时摆杆在储存腔上内壁转动，使刷子对电死的蚊子进行清扫，避免电死后的蚊子堆积在电蚊套附近，以免对电死的蚊子持续电击导致产生烧焦味影响卧室空气质量。
The invention discloses a mosquito killing device for smart home. , the support table includes sand blocks, motors, rotating rods, and clamping blocks. The clamping blocks include suction cups and anti-skid strips. The interior of the electric mosquito cover includes a positioning rod, a rotating shaft, and a card slot. The surface of the electric mosquito cover includes a power grid, a swing rod, and a brush. The brush includes The brush head, the limit spring, the motor drives the rotating rod to rotate, and the rotating shaft and the electric mosquito cover are driven to rotate under the engagement of the clamping block and the clamping groove. Avoid electrocuted mosquitoes from accumulating near the electric mosquito cover, so as not to continuously shock the electrocuted mosquitoes, resulting in a burning smell and affecting the air quality of the bedroom.
Description
Technical Field
The invention relates to the field of smart homes, in particular to a smart home mosquito killing device.
Background
In summer, the temperature is high, and the mosquitoes bite people in a large number of seasons, and the mosquitoes in bedrooms are killed by using the intelligent household mosquito killing equipment, so that the influence on the sleep quality of people caused by the fact that the mosquitoes bite people is avoided.
At present, the existing intelligent household mosquito killing equipment attracts mosquitoes by emitting light, then the mosquitoes are electrocuted through a power grid, however, the mosquitoes after electrocution are accumulated near the power grid, so that the power grid continuously shocks the electrocuted mosquitoes, scorched smell is generated, the air quality of a bedroom is affected, and the mosquitoes are adhered to the power grid and are difficult to clean.
Disclosure of Invention
Aiming at the defects that the existing intelligent household mosquito killing equipment attracts mosquitoes by emitting light, then the mosquitoes are electrocuted through a power grid, however, the mosquitoes after electrocution are accumulated near the power grid, the power grid continuously shocks the electrocuted mosquitoes, scorched smell is generated, the air quality of a bedroom is affected, and the mosquitoes are adhered to the power grid and are difficult to clean, the invention provides the intelligent household mosquito killing equipment to solve the technical problems.
The invention is realized by the following technical scheme: the utility model provides an intelligence house mosquito eradication equipment, its structure includes kill mosquito platform, upper cover, button, clearance cabinet, the upper cover is installed directly over kill mosquito platform, the button inlays and locates kill mosquito platform surface, the clearance cabinet is connected in kill mosquito platform front end through movable block, kill mosquito platform is including storing chamber, brace table, electric mosquito cover, bracing piece, runner, mosquito killer lamp, it inlays and locates inside kill mosquito platform to store the chamber, inner wall under the brace table bottom is passed through welded connection in storing the chamber, electric mosquito cover is located uniform axis with the brace table, the bracing piece passes through welded connection in electric mosquito cover surface, the runner passes through bolted connection in the bracing piece end and hugs closely inside the upper cover, mosquito killer lamp passes through welded connection in bracing piece bottom, kill mosquito platform and the inside fretwork of upper cover.
Further say, brace table includes sand piece, motor, bull stick, fixture block, the sand piece passes through welded connection in brace table bottom, the motor inlays in a brace table inner wall, the bull stick is installed in the motor top, the fixture block passes through welded connection in the bull stick surface, the fixture block has four, and inside the bull stick pierces into the electric mosquito cover to the sand piece center is in bottom in.
Furthermore, the fixture block comprises a sucker and an anti-slip strip, the sucker is fixedly embedded in the front end of the fixture block, the anti-slip strip is connected to the two sides of the fixture block through welding, the cross section of the anti-slip strip is semicircular, and the sucker and the anti-slip strip are made of rubber materials.
Furthermore, the electric mosquito cover is internally provided with a positioning rod, a rotating shaft and a clamping groove, one end of the positioning rod is connected to the inner wall of the electric mosquito cover through welding, the surface of the rotating shaft is welded with the other end of the positioning rod, the clamping groove is embedded in the rotating shaft and is positioned on the same axis, the positioning rod is provided with six positioning rods, the positioning rods are distributed between the rotating shaft and the electric mosquito cover in an annular mode, and the clamping groove is meshed with a clamping block on the rotating rod.
Furthermore, the electric mosquito cover surface comprises an electric net, a swing rod and a brush, the electric net is installed on the electric mosquito cover surface in a matched mode, the swing rod is connected to the bottom of the electric net in a welded mode, one end of the brush is embedded and fixed at the tail end of the swing rod, and the swing rod is four and is bent outwards.
Furthermore, the brush comprises a brush head and a limiting spring, wherein the brush head is arranged on the right side surface of the brush, the limiting spring is connected to the inside of the brush head through welding, and the brush head bends downwards.
Advantageous effects
Compared with the prior art, the intelligent household mosquito killing equipment has the following advantages:
1. the invention has the beneficial effects that: the button is pressed to enable the mosquito killing lamp to be lighted to attract mosquitoes in the bedroom, meanwhile, the motor drives the rotating rod to drive the electric mosquito sleeve to rotate, so that the attracted mosquitoes are electrocuted through the electric mosquito sleeve and stored in the storage cavity, and then the cleaning cabinet is pulled open to clean the killed mosquitoes.
2. The invention has the beneficial effects that: the motor drives the rotating rod to rotate, the rotating shaft and the electric mosquito sleeve are driven to rotate under the meshing of the clamping block and the clamping groove, and meanwhile, the swinging rod rotates on the upper inner wall of the storage cavity, so that the brush cleans the electrocuted mosquitoes, the fact that the electrocuted mosquitoes are accumulated near the electric mosquito sleeve is avoided, and the situation that the air quality of a bedroom is affected due to the fact that the electrocuted mosquitoes are continuously shocked by electricity to generate scorched smell is avoided.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

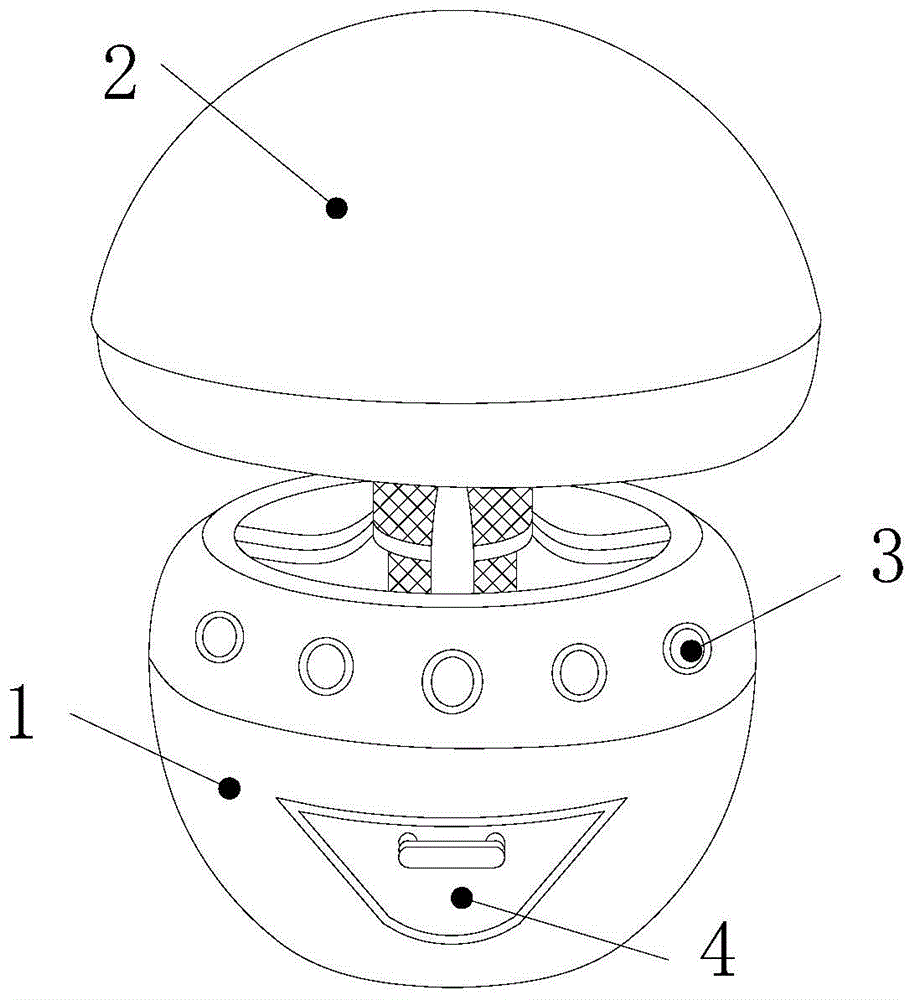

fig. 1 is a schematic structural diagram of an intelligent household mosquito killing device.
Fig. 2 is an enlarged view of the interior of the mosquito eradication table according to the present invention.
FIG. 3 is a schematic cross-sectional view of an enlarged support stage according to the present invention.
Fig. 4 is an enlarged schematic structural view of the fixture block of the present invention.
FIG. 5 is an enlarged top view of the mosquito cover according to the present invention.
FIG. 6 is a front view showing an enlarged structure of the mosquito cover according to the present invention.
Fig. 7 is an enlarged schematic view of the brush of the present invention.
In the figure: mosquito eradication table 1, upper cover 2, button 3, clearance cabinet 4, storage chamber 11, supporting bench 12, electric mosquito cover 13, bracing piece 14, runner 15, mosquito killer lamp 16, sand block a1, motor a2, bull stick a3, fixture block a4, sucking disc a41, antislip strip a42, locating lever 131, pivot 132, draw-in groove 133, electric wire netting b1, pendulum rod b2, brush b3, brush head b31, spacing spring b 32.
Detailed Description
In order to make the technical means, the original characteristics, the achieved purposes and the effects of the invention easy to understand, the following description and the accompanying drawings further illustrate the preferred embodiments of the invention.
Example 1:
please refer to fig. 1-4:
an intelligent household mosquito killing device structurally comprises a mosquito killing table 1, an upper cover 2, a button 3 and a cleaning cabinet 4, wherein the upper cover 2 is installed right above the mosquito killing table 1, the button 3 is embedded on the surface of the mosquito killing table 1, the cleaning cabinet 4 is connected to the front end of the mosquito killing table 1 through a movable clamp, the mosquito killing table 1 comprises a storage cavity 11, a supporting table 12, an electric mosquito sleeve 13, a supporting rod 14, a rotating wheel 15 and a mosquito killing lamp 16, the storage cavity 11 is embedded inside the mosquito killing table 1, the bottom of the supporting table 12 is connected to the lower inner wall of the storage cavity 11 through welding, the electric mosquito sleeve 13 and the supporting table 12 are located on a uniform axis, the supporting rod 14 is connected to the outer surface of the electric mosquito sleeve 13 through welding, the rotating wheel 15 is connected to the tail end of the supporting rod 14 through bolts and tightly attached to the inside of the upper cover 2, the mosquito killing lamp 16 is connected to the bottom of the supporting rod 14 through welding, the mosquito killing table 1 and the inside the upper cover 2 are hollowed out, the mosquito killer lamp 16 is facilitated to attract the mosquitoes into the collecting container for the electrocuted mosquitoes.
In the figure, support table 12 includes sand block a1, motor a2, bull stick a3, fixture block a4, sand block a1 passes through welded connection in support table 12 bottom, motor a2 is embedded in support table 12 inner wall, bull stick a3 installs in motor a2 top, fixture block a4 passes through welded connection in bull stick a3 surface, fixture block a4 has four, and bull stick a3 penetrates inside electric mosquito cover 13 to sand block a1 center is in the middle bottom, does benefit to balanced support table 12 and makes mosquito killing device place stably.
In the drawing, the clamping block a4 includes a suction cup a41 and a cleat a42, the suction cup a41 is embedded at the front end of the clamping block a4, the cleat a42 is connected to two sides of the clamping block a4 by welding, the cross section of the cleat a42 is semicircular, and the suction cup a41 and the cleat a42 are made of rubber, so that the friction force of the clamping block a4 on the clamping groove 133 is improved.
The specific principle of the embodiment is as follows: with the circular telegram of intelligence house mosquito killer, press button 3 and make the mosquito killer lamp 16 of bracing piece 14 bottom light, the inside motor a2 of brace table 12 drives bull stick a3 simultaneously and rotates for the fixture block a4 on bull stick a3 surface drives electric mosquito cover 13 and rotates, thereby the mosquito that draws mosquito killer lamp 16 comes dies through electric mosquito cover 13 electricity, and store inside storage chamber 11, then pull open the mosquito that clearance cabinet 4 was convenient for clear up and was killed.
Example 2:
please refer to fig. 5-7:
in the figure, inside locating lever 131, pivot 132, the draw-in groove 133 of including of electric mosquito cover 13, welded connection is passed through to locating lever 131 one end in electric mosquito cover 13 inner wall, pivot 132 surface and the welding of locating lever 131 other end, draw-in groove 133 inlays and locates pivot 132 inside and be located the same axis, locating lever 131 has six, and the annular distributes between pivot 132 and electric mosquito cover 13, and the fixture block a4 meshing on draw-in groove 133 and the pivot a3 does benefit to electric mosquito cover 13 and follows pivot 132 and rotate.
In the figure, the surface of the electric mosquito sleeve 13 comprises an electric net b1, a swing rod b2 and a brush b3, the electric net b1 is installed on the surface of the electric mosquito sleeve 13 in a matching way, the swing rod b2 is connected to the bottom of the electric net b1 through welding, one end of the brush b3 is embedded and fixed at the tail end of the swing rod b2, the swing rod b2 is four and is bent outwards, so that the tail end of the brush b3 is tightly attached to the inner wall of the storage cavity 11.
In the drawing, the brush b3 includes a brush head b31 and a limiting spring b32, the brush head b31 is installed on the right side surface of the brush b3, the limiting spring b32 is connected to the inside of the brush head b31 by welding, and the brush head b31 is bent downward to facilitate the scraping of mosquitoes on the upper inner wall of the storage chamber 11.
The specific principle of the embodiment is as follows: when the motor a2 drives the rotating rod a3 to rotate, the clamping block a4 at the tail end of the rotating rod a3 is meshed with the clamping groove 133, so that the rotating shaft 132 and the electric mosquito sleeve 13 are driven to rotate, the mosquitoes after electrocution are prevented from being accumulated near the electric mosquito sleeve 13, meanwhile, the swinging rod b2 at the bottom of the electric mosquito sleeve 13 rotates along with the electric mosquito sleeve 13 on the upper inner wall of the storage cavity 11, the brush b3 at the tail end of the swinging rod b2 cleans the mosquitoes after electrocution, and the limiting spring b32 in the brush b3 enables the brush b3 to poke back and forth when the mosquitoes are cleaned.
The technical features of the embodiments described above may be arbitrarily combined, and for the sake of brevity, all possible combinations of the technical features in the embodiments described above are not described, but should be considered as being within the scope of the present specification as long as there is no contradiction between the combinations of the technical features.
Claims (2)
1. The utility model provides an intelligence house kill mosquito equipment, its structure includes kill mosquito platform (1), upper cover (2), button (3), clearance cabinet (4), install directly over kill mosquito platform (1) upper cover (2), button (3) inlay and locate kill mosquito platform (1) surface, clearance cabinet (4) are connected in kill mosquito platform (1) front end through movable block, its characterized in that: the mosquito killing table (1) comprises a storage cavity (11), a supporting table (12), an electric mosquito sleeve (13), a supporting rod (14), a rotating wheel (15) and a mosquito killing lamp (16), wherein the storage cavity (11) is embedded inside the mosquito killing table (1), the bottom of the supporting table (12) is connected to the lower inner wall of the storage cavity (11) through welding, the electric mosquito sleeve (13) and the supporting table (12) are located on a uniform axis, the supporting rod (14) is connected to the outer surface of the electric mosquito sleeve (13) through welding, the rotating wheel (15) is connected to the tail end of the supporting rod (14) through bolts and tightly attached to the inside of the upper cover (2), and the mosquito killing lamp (16) is connected to the bottom of the supporting rod (14) through welding; the supporting table (12) comprises a sand block (a1), a motor (a2), a rotating rod (a3) and a clamping block (a4), the sand block (a1) is connected to the bottom of the supporting table (12) through welding, the motor (a2) is embedded and fixed on the inner wall of the supporting table (12), the rotating rod (a3) is installed above the motor (a2), and the clamping block (a4) is connected to the outer surface of the rotating rod (a3) through welding; the clamping block (a4) comprises a sucking disc (a41) and a non-slip strip (a42), the sucking disc (a41) is embedded at the front end of the clamping block (a4), and the non-slip strip (a42) is connected to the two sides of the clamping block (a4) through welding; the electric mosquito sleeve (13) comprises a positioning rod (131), a rotating shaft (132) and a clamping groove (133) inside, one end of the positioning rod (131) is connected to the inner wall of the electric mosquito sleeve (13) through welding, the surface of the rotating shaft (132) is welded with the other end of the positioning rod (131), and the clamping groove (133) is embedded in the rotating shaft (132) and is positioned on the same axis; the surface of the electric mosquito sleeve (13) comprises an electric network (b1), a swing rod (b2) and a brush (b3), the electric network (b1) is installed on the surface of the electric mosquito sleeve (13) in a matching mode, the swing rod (b2) is connected to the bottom of the electric network (b1) through welding, and one end of the brush (b3) is embedded and fixed at the tail end of the swing rod (b 2); the brush (b3) comprises a brush head (b31) and a limiting spring (b32), wherein the brush head (b31) is arranged on the right side surface of the brush (b3), and the limiting spring (b32) is connected to the inside of the brush head (b31) through welding.
2. The smart home mosquito eradication device according to claim 1, wherein: powering on the intelligent household mosquito killing device, pressing the button (3) to light the mosquito killing lamp (16) at the bottom of the supporting rod (14), simultaneously driving the rotating rod (a3) to rotate by the motor (a2) in the supporting table (12), driving the electric mosquito sleeve (13) to rotate by the fixture block (a4) on the surface of the rotating rod (a3), so that the mosquitoes attracted by the mosquito killing lamp (16) are electrocuted by the electric mosquito sleeve (13) and stored in the storage cavity (11), then pulling the cleaning cabinet (4) to facilitate cleaning the killed mosquitoes, when the motor (a2) drives the rotating rod (a3) to rotate, the fixture block (a4) at the tail end of the rotating rod (a3) is meshed with the fixture block (133) to drive the rotating shaft (132) and the electric mosquito sleeve (13) to rotate, preventing the mosquitoes from being accumulated near the electric mosquito sleeve (13) after the electrocution, and simultaneously driving the electric mosquito sleeve (2) at the bottom of the electric mosquito sleeve (13) to rotate along with the inner wall of the storage cavity (11), the brush (b3) at the tail end of the swing rod (b2) cleans the electrocuted mosquitoes, and the limiting spring (b32) in the brush (b3) enables the brush (b3) to be stirred back and forth when the mosquitoes are cleaned.
