CN111431292A - Multifunctional panel with wireless charging function - Google Patents

Abstract

The invention discloses a multifunctional panel with a wireless charging function, comprising a panel body and a storage opening, a storage box is arranged in the storage opening, a wireless charging carrier is slidably arranged in the storage box, and a wireless charging carrier is arranged in the wireless charging carrier The coil, the two sides of the wireless charging carrier are respectively provided with card slots, and the two card slots are respectively provided with a positive electrode connector and a negative electrode connector, and the corresponding two sides of the storage box are respectively provided with a positive electrode contact piece and a negative electrode contact piece. Both the plate and the negative contact plate are connected to the vehicle power supply through wires. At least one inner side of the upper opening of the storage box is horizontally provided with a baffle plate. The baffle plate is located above the positive electrode contact plate and the negative electrode contact plate. A lift drive mechanism for driving the wireless charging carrier to slide is arranged between the carriers.

Description

A multifunctional panel with wireless charging

technical field

The present invention relates to a multifunctional panel with wireless charging function.

Background technique

The vehicle-mounted wireless charger is already a mature product in the aspect of vehicle-mounted charging. The vehicle-mounted charger in the prior art, such as a vehicle-mounted wireless charger disclosed in CN201821383132.7, includes: a base and a charging support provided with a transmitting coil, the base A telescopic rod is arranged between it and the charging support; one end of the telescopic rod is hinged with the base, and the other end of the telescopic rod is movably connected with the charging support; The groove of the rod; the charging support is provided with a sensor, a left clamping arm and a right clamping arm; the sensor is used for sensing the approach of the mobile terminal; the left clamping arm and the right clamping arm are connected to a drive device; The driving device is used to control the left clamping arm and the right clamping arm to approach or move away. For example, CN210225066 U discloses a vehicle-mounted wireless mobile phone charger, which includes a casing, a cover plate matched with the casing, A fixed seat assembly connected with the casing, an electric clamping arm assembly for clamping the mobile phone, and a power supply module, an installation cavity is provided between the casing and the cover plate, and a control board is arranged in the installation cavity and is electrically connected to the control board The transmitting antenna is provided with a light sensor for sensing the mobile phone on the cover, and a touch-sensitive metal sheet is arranged outside the casing. The light sensor and the touch-sensitive metal sheet are all electrically connected to the control board. A first clamping arm on one side of the casing and a second clamping arm arranged on the other side of the casing, at least one of the first clamping arm and the second clamping arm is slidably arranged relative to the casing, the first clamping arm A driving mechanism is arranged between the arm, the second clamping arm and the casing to drive the two to approach or move away from each other, and the driving mechanism is controlled by the control board.

The on-board wireless chargers in the above two technical solutions belong to the external equipment of the vehicle, and the external equipment will occupy the original space in the car. Although the on-board charger can be installed in a corresponding suitable location according to the user's habits, it needs to be installed with The vehicle power supply is connected, so its installation position is bound to be limited. In addition, the vehicle wireless chargers are all suspended. In order to improve the stability of mobile phone charging, it is necessary to set clamping arms on both sides to clamp the mobile phone. On bumpy roads, the phone will still come loose from the gripping arms.

For the existing multi-function panel for vehicles, it usually includes a storage cavity, an installation cavity of the shift mechanism, and a gear mark set on it, while the current storage cavity is a fixed structure, which only has the function of storing objects. How to combine the on-board wireless charger with the storage cavity on the panel has become a technical problem that needs to be solved urgently by those skilled in the art.

SUMMARY OF THE INVENTION

The purpose of the present invention is to overcome the defects in the prior art and provide a multi-function panel with wireless charging function, which combines the vehicle-mounted wireless charger with the multi-function panel, so that the multi-function panel has the function of mobile phone wireless charging.

In order to achieve the above technical effect, the technical solution of the present invention is: a multifunctional panel with a wireless charging function, comprising a panel body, a storage opening opened on the panel body, and a storage box is arranged in the storage opening, A wireless charging carrier is slidably arranged in the storage box along the direction of the plumb weight, a wireless charging coil is arranged in the wireless charging carrier, and card slots are respectively opened on both sides of the wireless charging carrier. A positive terminal and a negative terminal are respectively provided inside, the positive terminal and the negative terminal are electrically connected with the charging coil, and the corresponding two sides of the storage box are respectively provided with positive contacts sliding along the horizontal direction. A sheet and a negative contact sheet, a first elastic member is arranged between the storage box and the positive contact sheet to make it interfere with the positive terminal, and a first elastic member is arranged between the storage box and the negative contact sheet There is a second elastic member that makes it interfere with the negative terminal, the positive contact piece and the negative contact piece are connected with the vehicle power supply through wires, and at least one inner side of the upper opening of the storage box is horizontal A baffle plate is provided, the baffle plate is located above the positive electrode contact piece and the negative electrode contact piece, and a lift drive for driving the wireless charging carrier to slide is arranged between the storage box and the wireless charging carrier mechanism.

A further improvement is that the storage box is formed by extending downward from the panel body.

A further improvement is that the storage box is detachably connected to the panel body.

A further improvement is that the side walls on both sides of the storage box are respectively provided with installation grooves, and the positive electrode contact piece and the negative electrode contact piece are respectively slidably arranged in the corresponding installation grooves.

A further improvement is that the connection ends of the positive electrode contact piece and the negative electrode contact piece are tapered or arc-shaped.

A further improvement is that the lift drive mechanism includes a drive cylinder fixedly disposed at the bottom of the storage box, and a piston rod of the drive cylinder is connected to the wireless charging carrier.

A further improvement is that a guide mechanism is provided between two sides of the wireless charging carrier and the storage box.

A further improvement is that the guide mechanism on each side includes a guide rail that is fixedly arranged on the inner side wall of the storage box and extends in the direction of the plumb bob, and is arranged at the end of the wireless charging carrier and is matched with the guide rail. guide.

A further improvement is that the panel body is provided with a control button for controlling the driving cylinder.

A further improvement is that the baffle is rotatably connected to the storage box, the storage box is provided with a limit portion for limiting the rotation angle of the baffle, and the limit portion is located at the position of the baffle. top and horizontal.

The advantages and beneficial effects of the present invention are as follows: the existing storage box is slidably provided with a wireless charging carrier, and the upper part of the storage box is provided with a baffle. When the mobile phone needs to be charged, the wireless charging carrier is moved upward to cooperate with the baffle. The mobile phone is clamped, and the mobile phone is powered on to wirelessly charge the mobile phone. When the mobile phone is not required to be charged, the wireless charging carrier is moved downward to ensure the storage space of the storage box while the power is off.

Description of drawings

Figure 1 is a schematic diagram of a multi-function panel;

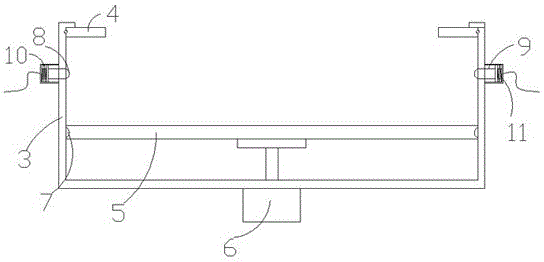

Figure 2 is a sectional view of the storage box;

3 is a schematic diagram of a side wall of a storage box;

Figure 4 is a side view of the wireless charging carrier.

In the figure: 1. Panel body; 2. Storage port; 3. Storage box; 4. Baffle plate; 5. Wireless charging carrier; 6. Lifting drive mechanism; 7. Card slot; 8. Positive contact sheet; 9. Negative electrode Contact sheet; 10, first elastic piece; 11, second elastic piece; 12, guide rail; 13, guide piece.

Detailed ways

The specific embodiments of the present invention will be further described below with reference to the accompanying drawings and embodiments. The following examples are only used to illustrate the technical solutions of the present invention more clearly, and cannot be used to limit the protection scope of the present invention.

Embodiment 1: As shown in FIG. 1-FIG. 4, a multifunctional panel with wireless charging function includes a panel body 1, a storage port 2 opened on the panel body 1, and the storage port 2 is provided with There is a storage box 3, and a wireless charging carrier 5 is slid in the storage box 3 along the plumb direction. A wireless charging coil is arranged in the wireless charging carrier 5, and two sides of the wireless charging carrier 5 are respectively opened. There is a card slot 7, the two card slots 7 are respectively provided with a positive terminal and a negative terminal, the positive terminal and the negative terminal are electrically connected with the charging coil, and the two corresponding The sides are respectively provided with a positive contact piece 8 and a negative contact piece 9 slid along the horizontal direction. Elastic member 10, a second elastic member 11 is arranged between the storage box 3 and the negative electrode contact piece 9 to make it abut against the negative electrode connector, the positive electrode contact piece 8 and the negative electrode contact piece 9 All are connected to the vehicle power supply through wires, and at least one inner side of the upper opening of the storage box 3 is horizontally provided with a baffle 4, and the baffle 4 is located between the positive contact piece 8 and the negative contact piece 9. Above, between the storage box 3 and the wireless charging carrier 5, a lift driving mechanism 6 that drives the wireless charging carrier 5 to slide is provided.

In this embodiment, the storage box 3 is formed by extending downward from the panel body 1 , that is, the storage box 3 and the panel body 1 are integrally formed, and the current multi-function panel is usually manufactured by molding The storage box 3 is formed in the cavity of the mold.

In order to facilitate installation and processing, the side walls on both sides of the storage box 3 are respectively provided with installation grooves, and the positive electrode contact piece 8 and the negative electrode contact piece 9 are respectively slidably arranged in the corresponding installation grooves. When the wireless charging carrier 5 is driven by the lift drive mechanism 6 to move upward to the position of the positive electrode contact piece 8 and the negative electrode contact piece 9, firstly, the first elastic member 10 and the second elastic member 11 are squeezed to be deformed, and the positive electrode contact piece 8 and the negative contact piece 9 are compressed into the installation groove, and when the slot 7 on the wireless charging carrier 5 corresponds to the positive contact piece 8 and the negative contact piece 9, the elasticity of the first elastic member 10 and the second elastic member 11 Under the action of force, the positive contact piece 8 is pushed into the card slot 7 to interfere with the positive terminal, and the negative contact piece 9 is pushed into the card slot 7 to interfere with the negative terminal, and then the power is turned on, and the wireless charging coil starts to work for wireless charging. In addition, the wireless charging carrier 5 cooperates with the baffle 4 at the storage port 2 to clamp the mobile phone at this position. In addition, although the wireless charging carrier 5 moves upward, the mobile phone is still in the storage box 3, so that the mobile phone can be multi-directionally mounted. Therefore, the charging stability is good, even the bumpy road will not cause the mobile phone, and when the mobile phone does not need to be wirelessly charged, the lifting drive mechanism 6 is used to slide the wireless charging carrier 5 downward as the bottom surface of the storage box 3 , not only ensures that the storage box 3 has enough storage space, but also performs power-off processing at this time, and the wireless charging coil no longer generates electromagnetic waves, saving power. The components on the panel share the power supply, and there is no need to equip the wireless charger with an additional power supply. The wireless charging function can be mass-produced as a functional module of the multi-function panel, so that the corresponding vehicle is equipped with the wireless charging function of the mobile phone. No need to use a car wireless charger as an accessory.

In addition, in order to facilitate the insertion of the positive electrode contact piece 8 and the negative electrode contact piece 9 into the corresponding slot 7, the connection ends of the positive electrode contact piece 8 and the negative electrode contact piece 9 are tapered or arc-shaped.

The preferred implementation in this embodiment is that the specific structure of the lift driving mechanism 6 is not the design point of the present invention, as long as it is a driving mechanism that can drive the wireless charging carrier 5 up and down, it can be used here, such as: The lift driving mechanism 6 includes a driving cylinder fixedly arranged at the bottom of the storage box 3 , and the piston rod of the driving cylinder is connected with the wireless charging carrier 5 .

In order to facilitate the up and down movement of the wireless charging carrier 5 and reduce friction, a guiding mechanism is provided between the two sides of the wireless charging carrier 5 and the storage box 3 . Specifically, the guiding mechanism on each side includes a fixed A guide rail 12 arranged on the inner side wall of the storage box 3 and extending along the plumb direction, and a guide member 13 arranged at the end of the wireless charging carrier 5 and matched with the guide rail 12, the guide rail 12 can pass through The fasteners are fixed on the inner side of the storage box 3 by means of bonding, or can be integrally formed with the storage box 3 .

For the convenience of operation, the panel body 1 is provided with a control button for controlling the driving cylinder.

In order to facilitate storage, the baffle 4 is rotatably connected to the storage box 3 , and the storage box 3 is provided with a limit portion that restricts the rotation angle of the baffle 4 , and the limit portion is located at the The top of the baffle 4 is arranged horizontally. When the wireless charging carrier 5 supports the mobile phone to move upward, the baffle 4 is lifted up until the baffle 4 is in a horizontal position. After the wireless charging carrier 5 descends, the baffle 4 is under its own gravity. Under the action of falling, the storage opening 2 will not be restricted by the baffle plate 4 and keep the opening as large as possible, so as to facilitate the taking of articles.

No illustration, Embodiment 2: The difference from Embodiment 1 is that the storage box 3 is detachably connected to the panel body 1, and several elastic buckles can be used between the storage box 3 and the panel body 1 Make disassembly connections.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the technical principles of the present invention, several improvements and modifications can be made. These improvements and modifications It should also be regarded as the protection scope of the present invention.

Claims (10)

1. The utility model provides a multifunctional panel with wireless function of charging, includes the panel body, offers in put the thing mouth on the panel body, it is provided with storing box, its characterized in that in putting the thing mouth: the wireless charging carrier is arranged in the storage box in a sliding manner along the direction of a plumb bob, a wireless charging coil is arranged in the wireless charging carrier, two sides of the wireless charging carrier are respectively provided with a clamping groove, two clamping grooves are respectively internally provided with an anode joint and a cathode joint, the anode joint is electrically connected with the cathode joint and the charging coil, two corresponding sides of the storage box are respectively provided with an anode contact piece and a cathode contact piece which are arranged in a sliding manner along the horizontal direction, a first elastic piece which enables the storage box to be in contact with the anode joint is arranged between the storage box and the anode contact piece, a second elastic piece which enables the storage box to be in contact with the cathode joint is arranged between the storage box and the cathode contact piece, the anode contact piece and the cathode contact piece are both connected with a vehicle-mounted power supply through wires, and at least one inner side of an upper opening of the storage box is horizontally, the baffle is located the positive pole contact piece and the top of negative pole contact piece, be provided with the drive between the storing box with the wireless carrier that charges carries out gliding lift actuating mechanism.

2. The multifunctional panel with a wireless charging function according to claim 1, wherein the storage box is formed by extending the panel body downward.

3. The multifunctional panel with a wireless charging function according to claim 1, wherein the storage box is detachably connected to the panel body.

4. The multifunctional panel with the wireless charging function according to claim 1, wherein mounting grooves are respectively formed on the side walls of the two sides of the storage box, and the positive contact piece and the negative contact piece are respectively slidably disposed in the corresponding mounting grooves.

5. The multifunctional panel with a wireless charging function according to claim 1, wherein the connection end portion of the positive contact piece and the negative contact piece is tapered or curved.

6. The multifunctional panel with the wireless charging function according to claim 1, wherein the lifting driving mechanism comprises a driving cylinder fixedly disposed at the bottom of the storage box, and a piston rod of the driving cylinder is connected to the wireless charging carrier.

7. The multifunctional panel with the wireless charging function according to claim 6, wherein a guide mechanism is disposed between two sides of the wireless charging carrier and the storage box.

8. The multifunctional panel with wireless charging function according to claim 7, wherein each side of the guiding mechanism comprises a guiding rail fixedly disposed on the inner sidewall of the storage box and extending along the direction of the plumb, and a guiding member disposed at the end of the wireless charging carrier and matching with the guiding rail.

9. The multifunctional panel with wireless charging function as claimed in claim 6, wherein the panel body is provided with a control button for controlling the driving cylinder.

10. The multifunctional panel with the wireless charging function according to claim 1, wherein the baffle is rotatably connected with the storage box, a limiting portion for limiting a rotation angle of the baffle is arranged on the storage box, and the limiting portion is located above the baffle and horizontally arranged.
