CN111419044A - Electronic commerce is with encrypting display device based on gear drive - Google Patents

Abstract

The invention relates to the technical field of e-commerce, and discloses an encrypted display device for e-commerce based on gear transmission, comprising a first wheel and a casing, the first wheel is movably connected with a second wheel, and a second wheel is movably connected to the outside of the second wheel. The internal active connection is an electromagnet, the internal active connection of the runner 2 is a buckle 1, the external active connection of the runner 1 is a crawler, the external active connection of the crawler is a runner 3, and the internal active connection of the casing is a gear 1, a gear 1 The external activity of the display is connected with the second gear; through the interaction between the runner 1, the casing, the runner 2, the electromagnet, the buckle 1, the crawler, and the runner 3, when the display object is retracted, the operator can If the device is not activated, even if the device is powered on, it will not drive the subsequent display structure to operate, which greatly ensures the safety of the exhibits, avoids the loss of the exhibits, and is more conducive to the subsequent display of the merchants. Activity.

Description

An encrypted display device for e-commerce based on gear transmission

technical field

The invention relates to the technical field of electronic commerce, in particular to an encrypted display device for electronic commerce based on gear transmission.

Background technique

E-commerce refers to the commercial activities centered on the exchange of commodities by means of information network technology; it can also be understood as the activities of electronic transactions and related services on the Internet, intranets and value-added networks, which are traditional commercial activities. The electronic, networked, and informatized aspects of each link; the commercial behaviors that use the Internet as the medium belong to the category of e-commerce.

E-commerce usually refers to a wide range of commercial and trade activities around the world, in the open network environment of the Internet, based on client/server application methods, buyers and sellers conduct various business activities without meeting each other, to achieve consumers' online shopping, It is a new type of business operation mode for online transactions and online electronic payments between merchants, as well as various business activities, transaction activities, financial activities and related comprehensive service activities.

With the continuous development of science and technology, the development of e-commerce is also becoming more and more rapid. If e-commerce wants to develop continuously, it will no longer be limited to transactions on the Internet. Nowadays, the activities of e-commerce are not only limited to online transactions, but also more and more Many e-commerce and platforms have begun to pay attention to the offline model. When carrying out offline activities, they will place products on e-commerce display devices to promote more transactions and expand their own markets. However, the existing e-commerce display activities Generally, it will be carried out for a long period of time. During this period, due to the need for a lot of manpower to take back the exhibits, general manufacturers will not take back the exhibits for convenience, so that there will be a situation where the exhibits are lost, which is not conducive to the later stage. Commodity display and there will be greater economic losses.

Therefore, in response to these problems, we need an encrypted display device for e-commerce based on gear transmission to solve.

SUMMARY OF THE INVENTION

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the present invention provides an encrypted display device for e-commerce based on gear transmission, which has the advantages of saving manpower and high security, and solves the problem that the existing e-commerce display activities generally take a long period of time. During this period, due to the need for a lot of manpower to take back the exhibits, general manufacturers will not take back the exhibits for convenience, so there will be a situation in which the exhibits are lost, which is not conducive to the later product display and there will be larger the problem of economic loss.

(2) Technical solutions

In order to achieve the above-mentioned purpose of saving manpower and high safety, the present invention provides the following technical solution: an encrypted display device for electronic commerce based on gear transmission, comprising a first wheel and a casing, and the outer movable connection of the first wheel is connected with a wheel. Wheel 2, the inner movable connection of the runner 2 is an electromagnet, the inner movable connection of the runner 2 is a buckle 1, the outer movable connection of the runner 1 is a crawler, the outer movable connection of the crawler is a runner 3, and the inner movable connection of the shell is Gear 1 is connected, gear 1 is movably connected outside with gear 2, gear 1 is movably connected with clip 2 outside, ratchet is fixedly connected on the outside of gear 1, and the inside of the ratchet is fixedly connected with a rotating rod, and the outside of the rotating rod is fixedly connected There is a third gear, a carrier plate is movably connected to the outside of the third gear, a tooth plate is movably connected to the outside of the gear one, and a baffle plate is fixedly connected to the outside of the tooth plate.

Preferably, the first runner is movably connected to the outside of the casing, the second runner is fixedly connected to the outside of the casing, and the surface of the first runner is provided with clamping grooves and the number of the clamping grooves is not less than three.

Preferably, the inner surface of the second wheel is provided with small grooves, the number of the small grooves is the same as that of the card grooves and the specifications match, the electromagnet is movably connected to the inner side of the small grooves, and the buckle 1 is mainly composed of a spring 1 and a clamping block 1. One end of the spring 1 is movably connected to the inner side of the small slot, and the other end of the spring 1 is movably connected to the outside of the first block, and the size of the first block matches the card slot.

Preferably, a rotating shaft is fixedly connected to the outside of the third runner, the rotating shaft is movably connected to the inside of the casing, and one end of the rotating shaft away from the third runner is fixedly connected to the outside of the first gear.

Preferably, the second gear is movably connected to the inside of the casing, and the outside of the two gears is movably connected with two gears one, the outside of the two gears one is movably connected with the corresponding buckle two, and the outside of the two gears one is movably connected. A corresponding ratchet wheel is fixedly connected, and the ratchet teeth of the two ratchet wheels face the same direction.

Preferably, the first gear is movably connected to the outside of the rotating rod. The second buckle is mainly composed of a second spring and a second clamping block. The second spring is movably connected to the outside of the first gear. The second block is movably connected to the outside of the ratchet, and the carrier plate is movably connected to the inside of the housing.

Preferably, the first runner and the electromagnet are both electrically connected to the driving power source, and the first runner and the electromagnet are both electrically connected to an external switch.

(3) Beneficial effects

Compared with the prior art, the present invention provides an encrypted display device for electronic commerce based on gear transmission, which has the following beneficial effects:

1. The encrypted display device for e-commerce based on gear transmission, through the interaction between the first wheel, the shell, the second wheel, the electromagnet, the first buckle, the crawler, and the third wheel, the displayed objects can be retracted. At the time, if the operator does not start the device, even if the device is powered on, it will not drive the subsequent display structure to run, which greatly ensures the safety of the display, avoids the loss of the display, and more Conducive to the merchant's follow-up display activities.

2. The encrypted display device for e-commerce based on gear transmission, through the interaction between the first gear, the second gear, the second buckle, the ratchet, the rotating rod, the third gear, the carrier plate, the tooth plate and the baffle, can make When the operator displays the exhibits, he only needs to control the external switch to raise the carrier plate and open the baffle, which can ensure that the products can be displayed normally, and it is also more conducive to recovering the products and saving money. More manpower, which is more suitable for the actual situation.

Description of drawings

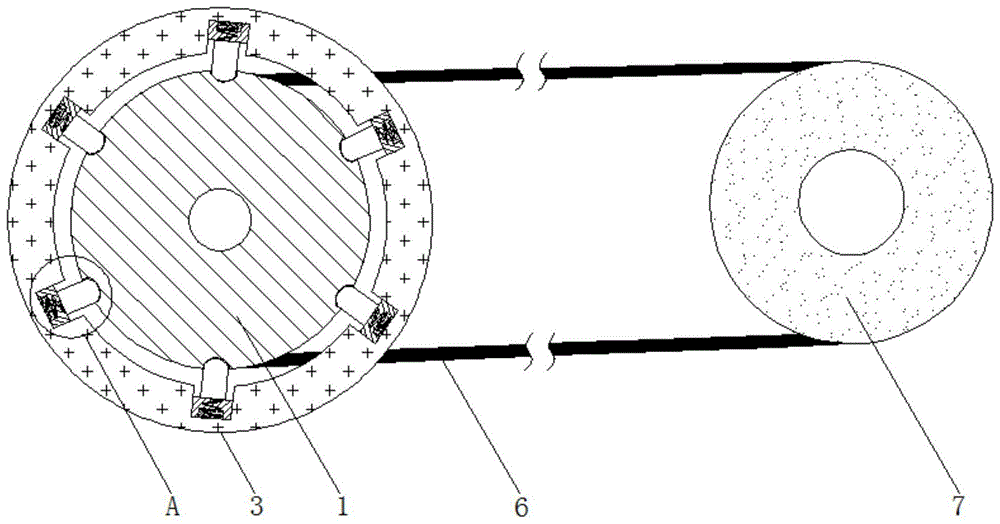

Fig. 1 is the structural schematic diagram of the connection between the first runner, the second runner, the crawler belt and the third runner according to the present invention;

Fig. 2 is the structural representation of place A in Fig. 1 of the present invention;

Figure 3 is a schematic partial cross-sectional view of the structure of the present invention;

FIG. 4 is a schematic structural diagram of the connection relationship between the tooth plate and the baffle plate of the present invention.

In the picture: 1, runner one; 2, shell; 3, runner 2; 4, electromagnet; 5, buckle 1; 6, crawler; 7, runner 3; 8, gear 1; 9, gear 2; 10. Buckle 2; 11. Ratchet; 12. Rod; 13. Gear 3; 14. Carrier plate; 15. Tooth plate; 16. Baffle.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figure 1-4, an encrypted display device for e-commerce based on gear transmission, including a runner 1 and a housing 2, the runner 1 is movably connected to the outside of the runner 1 with a runner 2 3, and the runner 1 is movably connected to the Outside the shell 2, the second wheel 3 is fixedly connected to the outside of the shell 2, the surface of the wheel one 1 is provided with card slots and the number of the card slots is not less than three; the inner part of the second wheel 3 is movably connected with an electromagnet 4 , the interior of the second wheel 3 is movably connected with a buckle 5, the inner surface of the second wheel 3 is provided with a small groove, the number of the small groove is the same as the card groove and the specifications match, and the electromagnet 4 is movably connected to the inner side of the small groove , the buckle 1 is mainly composed of a spring 1 and a clamping block 1. One end of the spring 1 is movably connected to the inner side of the small slot, and the other end is movably connected to the outside of the clamping block 1. The specification of the clamping block 1 matches the card slot; The outside of the runner 1 is movably connected with the crawler 6, and the outside of the crawler 6 is movably connected with the runner 3 7. Under the interaction between the runners 3 and 7, when the display object is retracted, if the operator does not start the device, even if the device is energized, it will not drive the subsequent display structure to operate, which greatly guarantees The security of the exhibits is avoided, the loss of the exhibits is avoided, and it is more conducive to the follow-up display activities of the merchants.

The inside of the casing 2 is movably connected with a gear one 8, the outside of the runner three 7 is fixedly connected with a rotating shaft, the rotating shaft is movably connected inside the casing 2, and the end of the rotating shaft away from the runner three 7 is fixedly connected with the outside of the gear one 8; Gear 2 9 is movably connected to the outside of gear 8, buckle 2 10 is movably connected to the outside of gear 1 8, ratchet 11 is fixedly connected to the outside of gear 1 8, gear 2 9 is movably connected to the inside of housing 2, and the outside of gear 2 9 There are two gears one 8 movably connected, the outside of the two gears one 8 are movably connected with the corresponding buckle two 10, and the outside of the two gears one 8 are fixedly connected with corresponding ratchets 11, the ratchets of the two ratchets 11 are movably connected. Teeth face the same.

The inside of the ratchet 11 is fixedly connected with the rotating rod 12, the outside of the rotating rod 12 is fixedly connected with the third gear 13, the outside of the third gear 13 is movably connected with the carrier plate 14, the gear one 8 is movably connected to the outside of the rotating rod 12, and the second buckle 10 is mainly composed of a second spring and a second clamping block. The second spring is movably connected to the outside of the first gear 8. The outer part of the spring 1 is movably connected to the second clamping block. The second clamping block is movably connected to the outside of the ratchet wheel 11. The inside of the casing 2; the gear plate 15 is movably connected to the outside of the gear one 8, and the baffle plate 16 is fixedly connected to the outside of the gear plate 15. The runner 1 and the electromagnet 4 are electrically connected to the driving power source. The iron 4 is electrically connected to the external switch, through the interaction between the gear one 8, the gear two 9, the buckle two 10, the ratchet 11, the rotating rod 12, the gear three 13, the carrier plate 14, the tooth plate 15, and the baffle plate 16. In this way, the operator can make the carrier plate 14 rise and the baffle plate 16 open only through the control of the external switch when the display object is displayed, so as to ensure that the product can be displayed normally, and also more It is beneficial to recover the goods and save more manpower, which is more suitable for the actual situation.

Working process and principle: When the device starts to be activated, because the external movement of the runner 1 is connected with the runner 2 3, the internal movement of the runner 3 is connected with the electromagnet 4, and the internal movement of the runner 3 is connected with a card. Buckle one 5, the outside of the runner 1 is movably connected with the crawler 6, the outside of the crawler 6 is movably connected with the runner 3 7, the runner 1 is movably connected to the outside of the shell 2, and the runner 2 3 is fixedly connected to the outer shell of the shell 2. Externally, the surface of the runner 1 is provided with card slots and the number of the card slots is not less than three, and the inner surface of the runner 2 3 is provided with small slots, the number of the small slots is the same as the card slots and the specifications match, the electromagnet 4 is movably connected to the inner side of the small slot, and the buckle 1 is mainly composed of a spring 1 and a clamping block 1. One end of the spring 1 is movably connected to the inner side of the small slot, and the other end is movably connected to the outside of the clamping block 1. The specifications of the runner match the card slot, the runner 1 and the electromagnet 4 are all electrically connected to the driving power supply, and the runner 1 and the electromagnet 4 are both electrically connected to the external switch; at this time, the operator makes the driving power supply the electromagnetic power supply through the external switch. The iron 4 supplies power and drives the runner 1 to rotate, the electromagnet 4 is energized to attract the block to move together, and the block moves to drive the spring to move, and the runner 1 loses the function of the block 1 and the card slot. The wheel one 1 then rotates, the rotation of the runner one 1 drives the crawler 6 to move, and the movement of the crawler 6 drives the runner three 7 to rotate clockwise.

Since the inside of the housing 2 is movably connected with the gear one 8, the outside of the gear one 8 is movably connected with the gear two 9, the outside of the gear one 8 is movably connected with the buckle two 10, the outside of the gear one 8 is fixedly connected with the ratchet 11, the ratchet 11 The inside of the gear 12 is fixedly connected with a rotating rod 12, the outside of the rotating rod 12 is fixedly connected with a gear three 13, the outside of the gear three 13 is movably connected with a carrier plate 14, the outside of the gear one 8 is movably connected with a toothed plate 15, and the outside of the toothed plate 15 is connected. A baffle plate 16 is fixedly connected, a rotating shaft is fixedly connected to the outside of the third wheel 7, the rotating shaft is movably connected to the inside of the housing 2, the end of the rotating shaft away from the third wheel 7 is fixedly connected to the outside of the gear one 8, and the second gear 9 is movably connected to the outside of the gear one. Inside the casing 2, two gears one 8 are movably connected to the outside of the two gears 9, the corresponding buckles 10 are movably connected to the outside of the two gears one 8, and the outside of the two gears one 8 are fixedly connected to the corresponding buckles. The ratchet 11, the ratchet teeth of the two ratchets 11 are in the same direction, the gear 1 8 is movably connected to the outside of the rotating rod 12, the buckle 2 10 is mainly composed of a spring 2 and a clamping block 2, and the spring 2 is movably connected to the outside of the gear 1 8. , the outside of the spring 1 is movably connected with the second block, the second block is movably connected with the outside of the ratchet 11, and the carrier plate 14 is movably connected inside the casing 2; at this time, the runner 3 7 drives the left gear 1 under the action of the rotating shaft. 8 rotates clockwise, the left gear one 8 is not engaged with the external ratchet 11 because its external block two is not engaged with the external ratchet 11, so the left gear one 8 cannot drive the left ratchet 11 to rotate, the gear one 8 rotates to drive the gear two 9 rotates, The rotation of the second 9 drives the right gear 1 to rotate. The rotation of the right gear 1 8 drives the ratchet 11 to rotate under the action of its external block 2 and its external ratchet 11. The ratchet 11 rotates to drive the rotating rod 12 to rotate. The rotating rod 12 rotates The third gear 13 is driven to rotate, and the rotation of the third gear 13 drives the carrier plate 14 to move upward; at the same time, the rotation of the two gears one 8 drives the baffle plate 16 to move under the action of the toothed plate 15, so that the display can be extended out of the casing 2. Externally, when the carrier board 14 is raised to the desired position, just turn off the driving power supply. Once the block is re-engaged with the runner 1, when the display object needs to be retracted, start the driving power supply to make the electromagnet 4 energize and push the carrier board 14. It is enough to make it enter the inside of the casing 2 .

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. An encrypted display device for electronic commerce based on gear transmission, comprising a wheel one (1) and a casing (2), characterized in that: the external activity of the wheel one (1) is connected with wheel two (3) ), an electromagnet (4) is movably connected inside the second wheel (3), a buckle (5) is movably connected inside the second wheel (3), and a crawler track ( 6), the outside of the crawler (6) is movably connected with the runner three (7), the inside of the casing (2) is movably connected with a gear one (8), and the outside of the gear one (8) is movably connected with a gear two (9), The outside of the gear one (8) is movably connected with the two buckles (10), the outside of the gear one (8) is fixedly connected with a ratchet (11), and the inside of the ratchet (11) is fixedly connected with a rotating rod (12), and the rotating rod ( Gear 3 (13) is fixedly connected to the outside of 12), the carrier plate (14) is movably connected to the outside of gear three (13), and the tooth plate (15) is movably connected to the outside of gear one (8), and the tooth plate (15) A baffle (16) is fixedly connected to the outside of the . 2. A kind of encrypted display device for electronic commerce based on gear transmission according to claim 1, characterized in that: the first wheel (1) is movably connected to the outside of the casing (2), and the second wheel (3) It is fixedly connected to the outside of the casing (2), and the surface of the first runner (1) is provided with card slots, and the number of the card slots is not less than three. 3. A kind of encrypted display device for electronic commerce based on gear transmission according to claim 1, characterized in that: the inner surface of the second wheel (3) is provided with small grooves, and the number of the small grooves is the same as the card grooves And the specifications are matched, the electromagnet (4) is movably connected to the inner side of the small slot, the buckle 1 (5) is mainly composed of a spring 1 and a clamping block 1, one end of the spring 1 is movably connected to the inner side of the small slot, and the other end is movable. It is connected to the outside of the card block 1, and the specifications of the card block 1 match the card slot. 4. A kind of encrypted display device for electronic commerce based on gear transmission according to claim 1, characterized in that: the external fixed connection of the three rotating wheels (7) has a rotating shaft, and the rotating shaft is movably connected to the outer part of the casing (2). Internally, the end of the rotating shaft away from the third wheel (7) is fixedly connected with the outside of the first gear (8). 5. An encrypted display device for electronic commerce based on gear transmission according to claim 1, characterized in that: the second gear (9) is movably connected inside the casing (2), and the outside of the second gear (9) There are two gears one (8) movably connected, the outer parts of the two gears one (8) are movably connected with corresponding buckles two (10), and the outer parts of the two gears one (8) are fixedly connected with corresponding ratchets (11), the ratchet teeth of the two ratchet wheels (11) face the same direction. 6. An encrypted display device for electronic commerce based on gear transmission according to claim 1, characterized in that: the first gear (8) is movably connected to the outside of the rotating rod (12), and the second buckle (10) It is mainly composed of a second spring and a second clamping block. The second spring is movably connected to the outside of the gear 1 (8), and the outer movable connection of the spring 1 is a second clamping block. The second clamping block is movably connected to the outside of the ratchet (11). The carrier plate ( 14) Actively connected inside the shell (2). 7. An encrypted display device for electronic commerce based on gear transmission according to claim 1, characterized in that: the first wheel (1) and the electromagnet (4) are all electrically connected with the driving power source, and the wheel one (1) (1) and the electromagnets (4) are electrically connected to the external switch.
