CN111407004A - Flip battery box - Google Patents

Abstract

The invention discloses a flip battery box, comprising: a flip cover (1) and a main body shell (18), the flip cover (1) being mounted on the main body shell (18), and characterized in that the flip cover (1) and the main body shell (18) They are connected by a spring rotating shaft flip cover assembly, and the spring rotating shaft flip cover assembly controls the opening and closing of the flip cover (1).

Description

A flip battery box

technical field

The invention relates to a flip battery box.

Background technique

At present, conventional battery boxes are hinge-type opening and closing cover or snap-type opening and closing cover, and there is no design of spring hinge-type opening and closing cover, which is very inconvenient during use; secondly, the conventional battery box is not firm after closing the cover. It is easy to pop open, which brings a lot of inconvenience to the user, and the conventional battery box is not designed with a rotating shaft spring steel sheet. Does not meet the relevant market needs.

SUMMARY OF THE INVENTION

The technical problem to be solved by the present invention is to provide a flip battery box to solve the technical problems existing in the prior art.

The technical scheme adopted by the present invention to solve the above-mentioned technical problems is as follows:

A flip battery box, comprising: a flip cover (1) and a main body shell (18), the flip cover (1) is mounted on the main body shell (18), and the flip cover (1) and the main body shell (18) are connected to each other through a spring rotating shaft flip cover assembly connected, the spring rotating shaft flip cover assembly controls the opening and closing of the flip cover (1).

Preferably, the spring rotating shaft flip assembly includes: a rotating shaft spring (15), a rotating shaft (16) and a rotating shaft riveting member (17), the rotating shaft spring (15) is sleeved on the rotating shaft (16) body from the upper end of the rotating shaft (16), The rotating shaft rivet (17) is pressed against the upper end of the rotating shaft (16) for fixing the rotating shaft spring (15). the elastic force to control the opening and closing of the flip (1).

Preferably, the spring rotating shaft flip cover assembly further comprises: a rotating shaft spring steel sheet (8) and a main body bracket (9), and the rotating shaft spring steel sheet (8) is vertically installed in the positioning groove of the main body bracket (9) to prevent the The flip cover (1) is automatically opened or closed automatically under the action of elastic force.

Preferably, the main body bracket (9) is fixed in the main body casing (18), and the lower end of the rotating shaft (16) penetrates through the main body casing (18) and is fixed.

Preferably, it further comprises: a flip magnet (2) and a main body magnet (11), the flip magnet (2) is mounted on the inner side of the flip cover (1), the main body magnet (11) is mounted on the main body bracket (9), and the flip magnet (2) ) and the main body magnet (11) magnetically attract each other, so that the flip cover (1) is more firmly closed when the cover is closed.

Preferably, it also includes: a small cigarette magnet (10), which is mounted on one side of the main body bracket (9) and is used for sucking the charging pod to prevent movement and improve contact.

After the above solution is adopted in the present invention, the adaptable pod can be placed in it for charging, and includes a spring rotating shaft flip assembly, and the opening and closing of the flip is controlled by using the spring rotating shaft flip assembly; the adapting pod includes a pod magnet, When charging, it can firmly hold the charging cigarette to prevent movement, so that the contact during charging is better.

Description of drawings

The present invention will be described in detail below with reference to the accompanying drawings, so as to make the above advantages of the present invention more clear. in,

FIG. 1 is an exploded view of the flip battery box of the present invention.

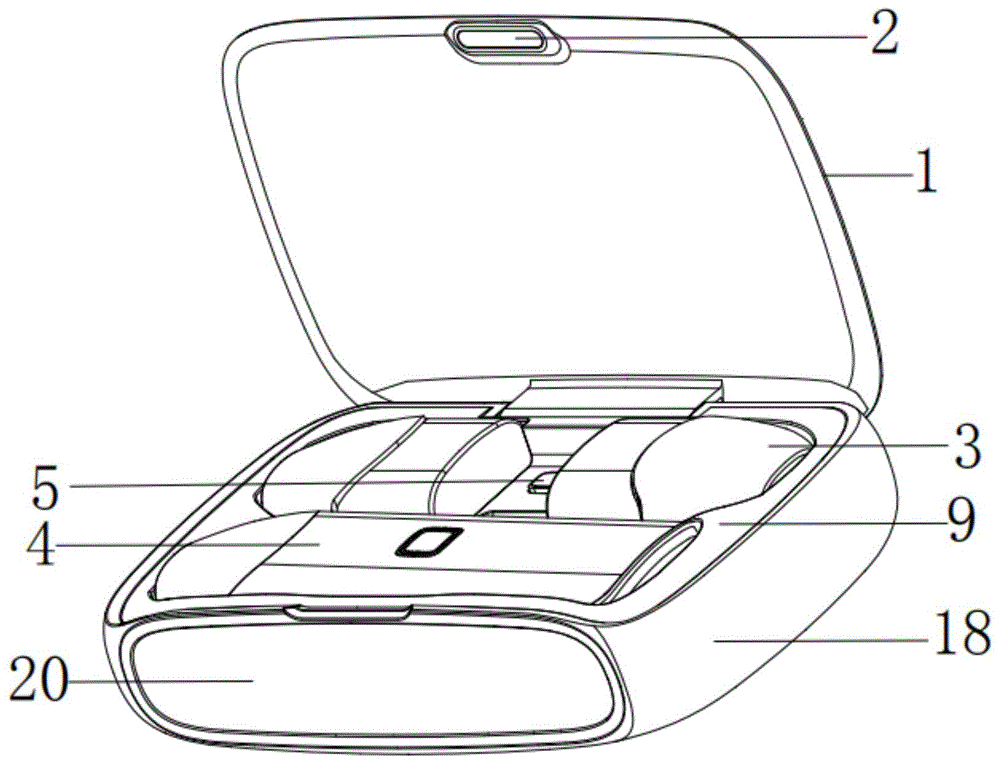

FIG. 2 is a perspective view of the flip battery box of the present invention.

3 is a cross-sectional view of the flip battery case of the present invention.

Detailed ways

The embodiments of the present invention will be described in detail below with reference to the accompanying drawings and examples, so as to fully understand and implement the implementation process of how the present invention applies technical means to solve technical problems and achieve technical effects. It should be noted that, as long as there is no conflict, each embodiment of the present invention and each feature of each embodiment can be combined with each other, and the formed technical solutions all fall within the protection scope of the present invention.

Specifically, in order to solve the shortcomings of the prior art, the flip battery box of the present invention comprises: a flip cover (1) and a main body shell (18), the flip cover (1) is mounted on the main body shell (18), and the flip cover (1) It is connected with the main body shell (18) through a spring rotating shaft flip assembly, which controls the opening and closing of the flip (1).

Preferably, the spring rotating shaft flip assembly includes: a rotating shaft spring (15), a rotating shaft (16) and a rotating shaft riveting member (17), the rotating shaft spring (15) is sleeved on the rotating shaft (16) body from the upper end of the rotating shaft (16), The rotating shaft rivet (17) is pressed against the upper end of the rotating shaft (16) for fixing the rotating shaft spring (15). the elastic force to control the opening and closing of the flip (1).

Preferably, the spring rotating shaft flip cover assembly further comprises: a rotating shaft spring steel sheet (8) and a main body bracket (9), and the rotating shaft spring steel sheet (8) is vertically installed in the positioning groove of the main body bracket (9) to prevent the The flip cover (1) is automatically opened or closed automatically under the action of elastic force.

Preferably, the main body bracket (9) is fixed in the main body casing (18), and the lower end of the rotating shaft (16) penetrates through the main body casing (18) and is fixed.

Preferably, it further comprises: a flip magnet (2) and a main body magnet (11), the flip magnet (2) is mounted on the inner side of the flip cover (1), the main body magnet (11) is mounted on the main body bracket (9), and the flip magnet (2) ) and the main body magnet (11) magnetically attract each other, so that the flip cover (1) is more firmly closed when the cover is closed.

Preferably, it also includes: a small cigarette magnet (10), which is mounted on one side of the main body bracket (9) and is used for sucking the charging pod to prevent movement and improve contact.

In one embodiment, it mainly includes: a flip cover (1), a flip cover magnet (2), a spare cartridge (3), a charging pod (4), a switch button (5), a button silicone cover (6), a screw (7) ), rotating shaft spring steel sheet (8), main body bracket (9), small smoke magnet (10), main body magnet (11), battery core EVA (12), battery core (13), control board (14), rotating shaft spring (15), the rotating shaft (16), the rotating shaft rivet (17), the main body shell (18), the lampshade (19), the main body decorative piece (20), wherein the flip magnet (2) is mounted on the inside of the flip cover (1) and fixed, and the rotating shaft The spring (15) is sleeved on the body of the rotating shaft (16) from the upper end of the rotating shaft (16), and the rotating shaft rivet (17) is pressed on the upper end of the rotating shaft (16) to fix the rotating shaft spring (15). ) both ends run through the body of the flip cover (1), the flip cover (1) is mounted on the main body shell (18) and the lower end of the rotating shaft (16) is fixed through the main body shell (18), and the input end of the control board (14) is welded to the electrical The positive and negative poles of the core (13) are mounted on the bottom of the main casing (18) and fixed, the battery core EVA (12) is attached to the surface of the battery core (13), and the battery core (13) is installed in the bottom of the main casing (18) and fixed , the shaft spring steel sheet (8) is vertically installed in the positioning groove of the main body bracket (9) to prevent the flip cover (1) from being automatically opened or closed under the action of elastic force, and the main body magnet (11) is installed in the main body bracket (9) On the top, the magnetic attraction between the flip magnet (2) and the main body magnet (11) makes the flip (1) more secure when the cover is closed, and the small cigarette magnet (10) is installed on the right side of the main body bracket (9) to hold the charging small cigarette To prevent movement and make the contact better, the button silicone cover (6) is mounted on the switch button on the main body of the control board (14), the switch button (5) is mounted on the button silicone cover (6), and the body is fixed on the main body bracket ( 9) In the switch button slot on the surface, the main body bracket (9) is installed in the main body shell (18) and fastened with screws (7). The decorative piece (20) is installed on the front of the main body shell (18), the charging pod (4) and the spare pod (3) are installed in the main body bracket (9), and the components are combined to form a battery box assembly.

The advantages of the hand-held hookah in the preferred embodiment of the present invention are as follows:

1. A spring rotating shaft flip device is designed in the battery box to use the elastic force of the rotating shaft spring to control the opening and closing of the battery box cover, which can be freely retracted during use;

2. There is a magnetic suction device on the battery box, and the magnetic attraction effect of the magnet makes the battery box more secure when the cover is closed;

3. The battery box is also equipped with a rotating shaft spring steel sheet, which can prevent the cover from automatically rebounding when the cover is opened and automatically rebounding when the cover is closed.

In other embodiments, all or some of the above advantages can be achieved by adjusting some components.

Finally, it should be noted that the above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, the The technical solutions described in the foregoing embodiments may be modified, or some technical features thereof may be equivalently replaced. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (6)

1. A flip battery box, comprising: a flip cover (1) and a main body shell (18), the flip cover (1) being mounted on the main body shell (18), and characterized in that, between the flip cover (1) and the main body shell (18) They are connected through a spring-rotating shaft flip-cover assembly, which controls the opening and closing of the flip-cover (1). 2 . The flip battery box according to claim 1 , wherein the spring rotating shaft flip cover assembly comprises: a rotating shaft spring (15), a rotating shaft (16) and a rotating shaft rivet (17), and the rotating shaft spring (15) is driven from the rotating shaft. 3 . (16) The upper end is sleeved on the body of the rotating shaft (16), the rotating shaft rivet (17) is pressed against the upper end of the rotating shaft (16) to fix the rotating shaft spring (15), and the upper end of the rotating shaft (16) penetrates through the flip cover from both ends of the flip cover (1). (1) Inside the body, and using the elastic force of the rotating shaft spring (15) to control the opening and closing of the flip cover (1). 3. The flip battery box according to claim 2, wherein the spring rotating shaft flip cover assembly further comprises: a rotating shaft spring steel sheet (8) and a main body bracket (9), and the rotating shaft spring steel sheet (8) is vertically mounted on the The positioning groove of the main body bracket (9) is used to prevent the flip cover (1) from automatically popping open or automatically closing under the action of elastic force. 4 . The flip battery box according to claim 3 , wherein the main body bracket ( 9 ) is fixed in the main body casing ( 18 ), and the lower end of the rotating shaft ( 16 ) penetrates through the main body casing ( 18 ) and is fixed. 5 . 5 . The flip battery box according to claim 1 , further comprising: a flip magnet (2) and a main body magnet (11), wherein the flip magnet (2) is mounted on the inside of the flip cover (1), and the main body magnet (11) It is mounted on the main body bracket (9), and the magnetic attraction between the flip magnet (2) and the main body magnet (11) makes the flip cover (1) more secure when the flip cover (1) is closed. 6 . The flip battery case according to claim 1 , further comprising: a small cigarette magnet (10), the small cigarette magnet (10) being mounted on one side of the main body bracket (9) and used to hold the charging battery. 7 . Smoke prevents movement for better contact.
