Abstract

The invention relates to the technical field of air conditioners, and discloses an integrated intelligent kitchen and bathroom air conditioner, comprising: a casing, wherein a mounting cavity is defined in the casing and a first air inlet, a second air inlet and an air outlet are arranged on the casing. , a first heat dissipation air inlet, a second heat dissipation air inlet and a heat dissipation air outlet; a refrigeration assembly, located in the installation cavity and including a compressor, a condenser and an evaporator; an air supply assembly, the inlet of which can be selectively connected with the first An air supply inlet or a second air supply inlet is communicated, and the outlet is communicated with the air supply outlet; the inlet of the heat dissipation component can be selectively communicated with the first heat dissipation air inlet or the second heat dissipation air inlet, and the outlet is communicated with the heat dissipation air outlet. The integrated intelligent kitchen and bathroom air conditioner disclosed by the invention has a simple structure and is easy to install. When installed on the top of the kitchen, it can cool the kitchen and supplement oxygen to the kitchen, and can also realize the refrigeration cycle of the gas in the kitchen and the compression of the interior. In addition, it also has a ventilation function.

Description

Integrated smart kitchen and bathroom air conditioner

technical field

The invention relates to the technical field of air conditioners, in particular to an integrated intelligent kitchen and bathroom air conditioner.

Background technique

According to relevant data, the cooling problem of bathrooms and kitchens in the family has not been systematically solved when the summer is hot. Yuba is generally installed in the bathroom, but because the Yuba only has a heating function, the Yuba is only used for heating in winter, and it is a decoration in summer, and users have to suffer from high temperature when using the bathroom in summer. In order to avoid the cooking fumes from entering other rooms, users generally choose to close the kitchen door, so that when the liquefied gas burns, the kitchen will consume a lot of oxygen, and the kitchen will often lack oxygen, which is manifested as dizziness, nausea, loss of appetite, etc. Affect human health.

In the prior art, some users install Liangba in the kitchen, but the Liangba is only an electric fan and cannot cool down, because of internal circulation and is greatly affected by the problem of oil fume; some users install kitchen-specific air conditioners in the kitchen, most of which are Split installation, the kitchen currently has few places to install the outdoor unit, so many families have limited installation; some users install an integrated kitchen air conditioner in the kitchen, the air intake principle is generally internal circulation, and the filter screen is used to block oil fume and oil fume. Insufficient filtering of the internal circulation will cause the kitchen oil fume to enter the refrigeration system of the internal unit, causing the evaporator and other components to block, affecting the life of the machine, reducing the cooling effect, and the heat dissipation cannot meet the system requirements. The refrigeration system and air duct lead to the accumulation of a large amount of grease and a large number of bacteria in the refrigeration system and air duct, which brings hidden dangers to the health of users. The filter screen needs to be replaced frequently, which not only wastes manpower, but also consumes a lot of filter materials, which is very energy-saving.

SUMMARY OF THE INVENTION

Based on the above, the purpose of the present invention is to provide an integrated intelligent kitchen and bathroom air conditioner, which is easy to install, and can solve the health problem caused by lack of oxygen in the kitchen, avoid the secondary consumption of the filter screen, save resources, and can also meet the The function of the bathroom is warm in winter and cool in summer.

For achieving the above object, the present invention adopts the following technical solutions:

An integrated intelligent kitchen and bathroom air conditioner, comprising: a casing, wherein an installation cavity is defined in the casing, and the casing is provided with a first air supply inlet and a second air supply inlet which are both communicated with the installation cavity , air supply outlet, first heat dissipation air inlet, second heat dissipation air inlet and heat dissipation air outlet, the first air supply inlet and the air supply outlet can be communicated with the room to be installed, the second air supply The inlet can be communicated with the outside world or other rooms, the first heat dissipation air inlet and the heat dissipation air outlet can be communicated with the outside world or other rooms, and the second heat dissipation air inlet can be communicated with the room to be installed; cooling; an assembly, the refrigeration assembly is located in the installation cavity and includes a compressor, a condenser and an evaporator; an air supply assembly, the inlet of the air supply assembly can be selectively connected with the first air supply inlet or the second air supply The air supply inlet is in communication, the outlet of the air supply assembly is in communication with the air supply outlet, and the gas is sucked into the installation cavity by the air supply assembly through the first air supply inlet or the second air supply inlet. The evaporator is discharged through the air supply outlet after heat exchange; the heat dissipation component, the inlet of the heat dissipation component can be selectively communicated with the first heat dissipation air inlet or the second heat dissipation air inlet, the heat dissipation The outlet of the component is communicated with the heat dissipation air outlet, and the gas is sucked into the installation cavity by the heat dissipation component through the first heat dissipation air inlet and discharged through the heat dissipation air outlet, or the gas passes through the second heat dissipation air inlet. After being sucked into the installation cavity by the heat dissipation component, it can exchange heat with the compressor and then be discharged through the heat dissipation air outlet.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the integrated smart kitchen and bathroom air conditioner further includes a partition, and the partition plate is located in the installation cavity and divides the installation cavity into a first installation cavity and a second installation cavity. Two installation cavities, the first air inlet, the second air inlet and the air outlet are all communicated with the first installation cavity, and the evaporator and the air assembly are located in the first installation cavity. In an installation cavity, the first heat dissipation air inlet, the second heat dissipation air inlet and the heat dissipation air outlet are all communicated with the second installation cavity, the compressor, the condenser and the The heat dissipation components are all located in the second installation cavity.

As a preferred solution of the integrated intelligent kitchen and bathroom air conditioner, the integrated intelligent kitchen and bathroom air conditioner further includes a water receiving tray, and the water receiving tray includes a first water receiving tray and a water receiving tray that communicates with the first water receiving tray. A second water receiving tray, the opening of the first water receiving tray is disposed towards the evaporator, and the opening of the second water receiving tray is disposed towards the condenser.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the integrated smart kitchen and bathroom air conditioner further includes a water pump, the water pump is arranged on the housing and the inlet of the water pump is communicated with the water receiving tray, so The outlet of the water pump is communicated with the outside to discharge the liquid in the water receiving tray.

As a preferred solution of the integrated intelligent kitchen and bathroom air conditioner, the compressor is located between the first heat dissipation air inlet and the inlet of the heat dissipation component, and the integrated intelligent kitchen and bathroom air conditioner is installed in the to-be-installed At the top of the room, the compressor is in an upright setting.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the air supply assembly is installed on the housing and includes a blower and an air louver, the inlet of the blower is communicated with the installation cavity, and the central axis of the blower The air-supply louvers are arranged perpendicular to the central axis of the compressor, and the air-supply louvers are located at the air-supply outlet and are arranged facing the air-supply outlet.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the heat dissipation component includes a heat dissipation fan and a heat dissipation louver, the inlet of the heat dissipation fan is communicated with the installation cavity, and the heat dissipation louver is located at the outlet of the heat dissipation fan and is directly opposite to the cooling fan. The cooling air outlet is provided.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the housing includes a first cover plate, and the compressor, the condenser and the evaporator are all arranged on the first cover plate.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the integrated smart kitchen and bathroom air conditioner further includes a mask, the mask cover is arranged on the casing and is spaced from the first cover plate, and the mask The second heat dissipation air inlet can be blocked.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the integrated smart kitchen and bathroom air conditioner further includes a first wind shield and a second wind shield, and the first wind shield corresponds to the first air supply inlet. is arranged and configured to be able to communicate or isolate the room to be installed and the installation cavity through the first air supply inlet, and the second air blocking member is arranged corresponding to the second air supply inlet and is configured to be able to connect or isolate the room to be installed and the installation cavity. The room to be installed and the installation cavity are communicated or isolated through the second air supply inlet.

As a preferred solution of the integrated smart kitchen and bathroom air conditioner, the integrated smart kitchen and bathroom air conditioner further includes a third wind shield and a fourth wind shield, and the third wind shield corresponds to the first heat dissipation and intake air An opening is provided and configured to be able to communicate or isolate the room to be installed and the installation cavity through the first heat dissipation air inlet, and the fourth air blocking member is disposed corresponding to the second heat dissipation air inlet and is It is configured to be able to communicate or isolate the room to be installed and the installation cavity through the second heat dissipation air inlet.

The beneficial effects of the present invention are as follows: the integrated intelligent kitchen and bathroom air conditioner disclosed by the present invention has a simple structure and is easy to install, which can realize both heating in winter and cooling in summer. When the refrigeration component is refrigerated, the gas from the outside world or other rooms enters the installation cavity through the second air supply inlet, and then the cooled gas is sent to the kitchen through the air supply outlet, which cools the kitchen and can also supply oxygen to the kitchen; When there is no oil fume and the refrigeration component is refrigerated, the gas in the kitchen enters the installation cavity through the first air supply inlet, and then the cooled gas is sent back to the kitchen through the air supply outlet, which realizes the refrigeration cycle of the gas in the kitchen; When the cooling component is refrigerated, the air from the outside or other rooms enters the installation cavity through the first heat dissipation air inlet, and the heated gas is sent out through the heat dissipation air outlet, which realizes the heat dissipation of the internal compressor and makes the cooling component The cooling efficiency is higher; when the cooling component in the kitchen is not working, the smoke in the kitchen is sucked into the installation cavity by the cooling component through the second cooling air inlet and sent out through the cooling air outlet, so as to remove the smoke or oil fume in the kitchen Exhaust to realize the ventilation function of the kitchen.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments of the present invention. Obviously, the drawings in the following description are only some embodiments of the present invention. , for those of ordinary skill in the art, other drawings can also be obtained according to the contents of the embodiments of the present invention and these drawings without creative efforts.

1 is a schematic diagram of an integrated intelligent kitchen and bathroom air conditioner provided by a specific embodiment of the present invention;

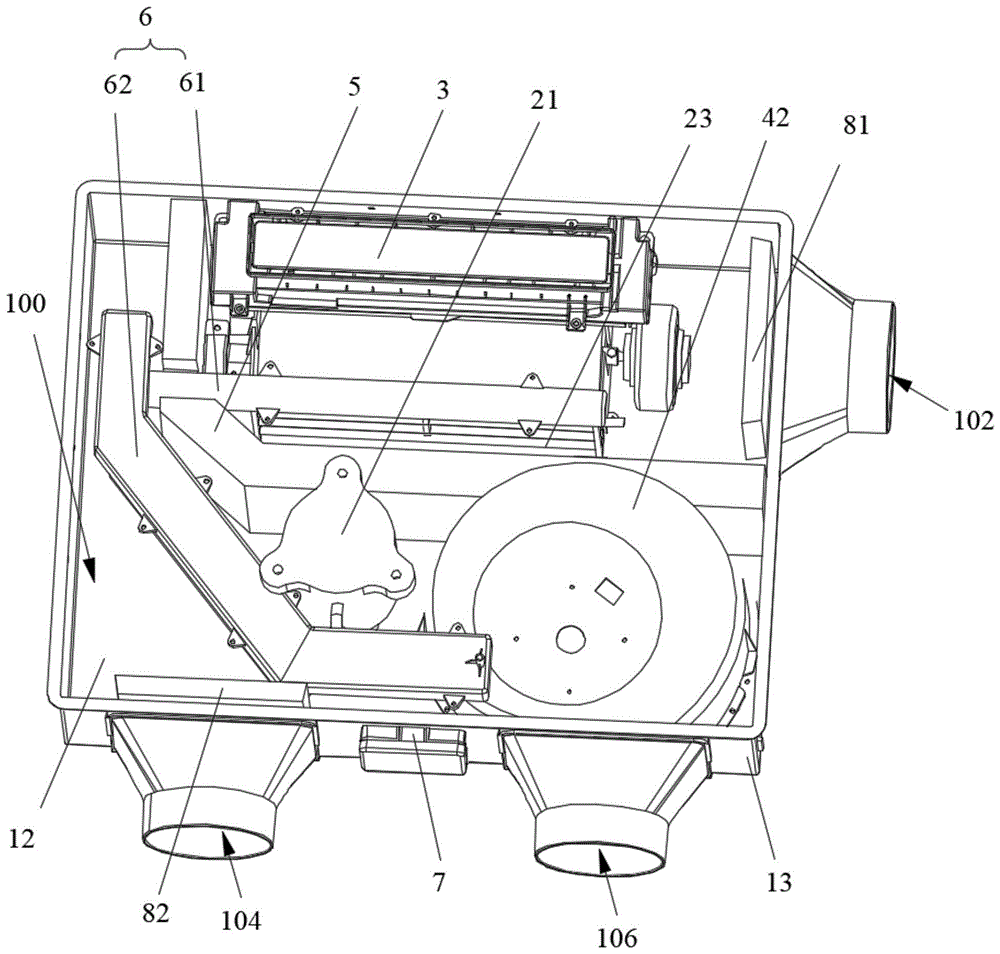

2 is a schematic diagram of the integrated intelligent kitchen and bathroom air conditioner provided by a specific embodiment of the present invention, with the first end cover and the cooling fan removed;

3 is a schematic diagram of the integrated intelligent kitchen and bathroom air conditioner provided by a specific embodiment of the present invention, with the second end cover, the enclosure frame, the cooling air duct and the partition plate removed.

In the picture:

100, installation cavity; 101, first air inlet; 102, second air inlet; 103, air outlet; 104, first heat dissipation air inlet; 105, second heat dissipation air inlet; 106, heat dissipation air outlet ; 11, the first cover; 12, the second cover; 13, the enclosure;

21. Compressor; 22. Condenser; 23. Evaporator;

3. Air supply components; 31. Blower; 32. Air supply louvers;

41. Cooling fan; 42. Cooling air duct;

5. Partition;

6. Water receiving tray; 61. The first water receiving tray; 62. The second water receiving tray;

7. Water pump;

81. The second windshield; 82, the third windshield.

Detailed ways

In order to make the technical problems solved by the present invention, the technical solutions adopted and the technical effects achieved more clearly, the technical solutions of the embodiments of the present invention will be described in further detail below with reference to the accompanying drawings. Obviously, the described embodiments are only the present invention. Some examples, but not all examples. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art without creative efforts shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. The indicated orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation or a specific orientation. construction and operation, and therefore should not be construed as limiting the invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance. Therein, the terms "first position" and "second position" are two different positions.

In the description of the present invention, it should be noted that the terms "installed", "connected" and "connected" should be understood in a broad sense, unless otherwise expressly specified and limited, for example, it may be a fixed connection or a detachable connection Connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal communication of two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

This embodiment provides an integrated smart kitchen and bathroom air conditioner, as shown in FIG. 1 to FIG. 3 , the integrated smart kitchen and bathroom air conditioner includes a housing, a refrigeration component, an air supply component 3 and a heat dissipation component. The housing defines a The installation cavity 100 has a first air inlet 101 , a second air inlet 102 , an air outlet 103 , a first heat dissipation air inlet 104 , and a second heat dissipation air inlet 105 , which are all communicated with the installation chamber 100 . And the cooling air outlet 106, the first air inlet 101 and the air outlet 103 can be connected with the room to be installed, the second air inlet 102 can be communicated with the outside world or other rooms, the first cooling air inlet 104 and the cooling air outlet 106 can communicate with the outside world or other rooms, and the second cooling air inlet 105 can communicate with the room to be installed. The room to be installed in this embodiment is a kitchen, and the refrigeration component is located in the installation cavity 100 and includes a compressor 21 and a condenser 22. and the evaporator 23, the inlet of the air supply assembly 3 is selectively connected with the first air supply inlet 101 or the second air supply inlet 102, the outlet of the air supply assembly 3 is communicated with the air supply outlet 103, and the gas passes through the first air supply inlet 101 or the second air supply inlet 102 is sucked into the installation cavity 100 by the air supply assembly 3 to exchange heat with the evaporator 23 and then discharged through the air supply outlet 103. The heat dissipation air inlet 105 is connected, the outlet of the heat dissipation component is connected with the heat dissipation air outlet 106, the gas is sucked into the installation cavity 100 by the heat dissipation component through the first heat dissipation air inlet 104 and discharged through the heat dissipation air outlet 106, or the gas is discharged through the second heat dissipation air inlet 105 is sucked into the installation cavity 100 by the heat dissipation component and can be discharged through the heat dissipation air outlet 106 after heat exchange with the compressor 21 .

Specifically, the number of the first air supply inlet 101 , the second air supply inlet 102 , the first heat dissipation air inlet 104 and the second heat dissipation air inlet 105 in this embodiment is one. In other embodiments of the present invention, the number of the first air inlet 101 , the second air inlet 102 , the first heat dissipation air inlet 104 and the second heat dissipation air inlet 105 is not limited to that of this embodiment. It can also be other numbers, which can be set according to actual needs.

It should be noted that the refrigeration assembly in this embodiment also includes structural components such as a throttle valve (not shown in the figure), a reversing valve (not shown in the figure), and the throttle valve is located between the condenser 22 and the evaporator 23 During this time, the reversing valve can communicate with the compressor 21, the condenser 22 and the evaporator 23, and changing the flow direction of the refrigerant through the reversing valve can enable the refrigeration component to achieve cooling and heating functions. The refrigeration component belongs to the prior art, and is not described here Repeat.

The integrated smart kitchen and bathroom air conditioner provided by this embodiment has a simple structure and is easy to install, which can realize both heating in winter and cooling in summer. Through the second air supply inlet 102, the gas from the outside world or other rooms enters the installation cavity 100, and then the cooled gas is sent to the kitchen through the air supply outlet 103, which can cool the kitchen and supplement the kitchen with oxygen; when there is no oil smoke in the kitchen And when the refrigeration component is refrigerated, the gas in the kitchen enters the installation cavity 100 through the first air supply inlet 101, and then the cooled gas is sent back to the kitchen through the air supply outlet 103, which realizes the refrigeration cycle of the gas in the kitchen; When the cooling component inside is refrigerated, the air from the outside or other rooms enters the installation cavity 100 through the first heat dissipation air inlet 104 and then the heated gas is sent out through the heat dissipation air outlet 106, that is, the heat dissipation of the internal compressor 21 is realized. , so that the refrigeration efficiency of the refrigeration assembly is higher; when the refrigeration assembly in the kitchen is not working, the smoke in the kitchen is sucked into the installation cavity 100 by the heat dissipation assembly through the second heat dissipation air inlet 105 and sent out through the heat dissipation air outlet 106, thereby Exhaust the smoke or oil fume in the kitchen to realize the ventilation function of the kitchen. It should be noted that when the integrated smart kitchen and bathroom air conditioner is used for heating in winter, the selection of specific functions is similar to that in summer, which will not be repeated here.

In actual use, the integrated intelligent kitchen and bathroom air conditioner of this embodiment can select the working mode of the integrated intelligent kitchen and bathroom air conditioner according to the specific conditions of the kitchen. There is hot air. At this time, if the ventilation function of the integrated smart kitchen and bathroom air conditioner is used first, the hot air located in the space above the head of the human body is extracted, and then the refrigeration component is turned on, which can achieve rapid cooling and achieve a cooling effect in a short time. The purpose is to greatly shorten the cooling time of the kitchen compared with directly turning on the refrigeration component to cool the kitchen, and can cool the kitchen faster.

Specifically, as shown in FIG. 2 , the integrated smart kitchen and bathroom air conditioner of this embodiment further includes a partition 5 , which is located in the installation cavity 100 and divides the installation cavity 100 into a first installation cavity and a second installation cavity , the first air inlet 101, the second air inlet 102 and the air outlet 103 are all connected to the first installation cavity, the evaporator 23 and the air supply assembly 3 are all located in the first installation cavity, and the first heat dissipation air inlet 104 , The second heat dissipation air inlet 105 and the heat dissipation air outlet 106 are all communicated with the second installation cavity. The compressor 21, the condenser 22 and the heat dissipation assembly are all located in the second installation cavity. This arrangement can divide the chambers with different temperatures into different parts. separated. Specifically, when the refrigeration assembly is refrigerating, the temperature in the first installation cavity is relatively low, which can cool the air entering the first installation cavity, thereby realizing the refrigeration of the kitchen, while the second installation cavity is provided with a compressor 21 and a condenser The temperature in the second installation cavity is relatively high. At this time, the first heat dissipation air inlet 104, the second heat dissipation air inlet 105 and the heat dissipation air outlet 106 are all connected to the second installation cavity, so that the second installation cavity is Cooling and improving the cooling efficiency.

As shown in FIG. 2 and FIG. 3 , the integrated smart kitchen and bathroom air conditioner of this embodiment further includes a water receiving tray 6 and a water pump 7 . The outlet of 7 is communicated with the outside world to discharge the liquid in the water receiving tray 6 . The water receiving tray 6 of this embodiment includes a first water receiving tray 61 and a second water receiving tray 62 communicating with the first water receiving tray 61 . As shown in FIG. 3 , the opening of the first water receiving tray 61 faces the evaporator 23 . The first water receiving tray 61 is located directly below the evaporator 23 , the opening of the second water receiving tray 62 is disposed toward the condenser 22 and the second water receiving tray 62 is located directly below the condenser 22 . The condensed water generated when the evaporator 23 condenses the gas can drop into the first water receiving pan 61, and the first water receiving pan 61 can guide the condensed water to the second water receiving pan 62 below the condenser 22, so that the condensed water and the The condenser 22 is in contact, and the low temperature of the condensed water is used to help the condenser 22 to dissipate heat, so that the condensed water can absorb the heat of the condenser 22 and then be discharged to the outdoors through the water pump 7, and the heat dissipation effect of the condenser 22 is better.

In the prior art, the condensed water is directly sprayed to the condenser 22 through the spray device. Although this arrangement can increase the heat dissipation of the condensed water to the condenser 22, the condensed water will reduce the air volume flowing through the condenser 22 and increase the wind resistance. , which seriously affects the heat dissipation effect, and the large area of the condenser 22 is wet, which makes the surface of the condenser 22 easy to bond dust, fluff and other debris, which further causes the wind resistance of the condenser 22 to increase, and the wet surface of the condenser 22 forms a water curtain and affects the ventilation rate. The phenomenon of shutdown of the integrated intelligent kitchen and bathroom air conditioner occurs. However, the arrangement of this embodiment, because it is only in contact with part of the condenser 22 and does not affect the ventilation volume, greatly reduces the probability of shutdown of the integrated intelligent kitchen and bathroom air conditioner.

As shown in FIG. 2 and FIG. 3 , the compressor 21 of this embodiment is located between the first heat dissipation air inlet 104 and the inlet of the heat dissipation component, so that the compressor 21 can fully dissipate heat, and the integrated intelligent kitchen and bathroom air conditioner is installed in the kitchen At the top, the compressor 21 is arranged vertically. In the prior art, the compressor 21 is often arranged outside the first heat dissipation air inlet 104, the second heat dissipation air inlet 105 and the heat dissipation components, and is only cooled by the gas radiated by the condenser 22, so that the compressor 21 is in a natural heat dissipation state, However, when the product is in a closed state with the ceiling, natural heat dissipation cannot meet the application requirements of products in this field, and the compressor 21 in this embodiment is arranged between the first heat dissipation air inlet 104 and the inlet of the heat dissipation component, so that the compressor 21 Through mechanical air cooling, the heat dissipation effect is greatly improved. Even if the compressor 21 is used in a high temperature environment, the probability of shutdown of the integrated smart kitchen and bathroom air conditioner will be greatly reduced.

As shown in FIG. 2 , the air supply assembly 3 of this embodiment is installed on the housing and includes a blower 31 and an air supply louver 32 . The inlet of the blower 31 is communicated with the installation cavity 100 , and the central axis of the blower 31 is connected to the center of the compressor 21 . The axis is arranged vertically, and the air supply louver 32 is located at the air supply outlet 103 and is disposed facing the air supply outlet 103 . The heat dissipation assembly of this embodiment includes a heat dissipation fan 41, a heat dissipation louver (not shown in the figure) and a heat dissipation air duct 42. The inlet of the heat dissipation fan 41 is communicated with the installation cavity 100, and the heat dissipation louver is located at the outlet of the heat dissipation fan 41 and faces the heat dissipation. The air outlet 106 is provided, the heat dissipation air duct 42 is provided with a communication hole at the position facing the heat dissipation air outlet 106, and the heat dissipation air duct 42 plays a role of guiding the flow. There are no other obstructions between the compressor 21 and the cooling fan 41 in this embodiment except the cooling air duct 42 and the connecting pipeline, so as to prevent the obstruction from blocking the flow direction of the air flow, thereby affecting the effect of the cooling fan 41 on the compressor. 21 The cooling effect of heat dissipation.

As shown in FIG. 1 to FIG. 3 , the housing of this embodiment includes a first cover plate 11 , a second cover plate 12 and a surrounding frame 13 . The second cover plate 12 and the surrounding frame 13 are integrally formed. The compressor 21 , the condenser Both the evaporator 22 and the evaporator 23 are arranged on the first cover plate 11 , so that the installation and assembly of the compressor 21 , the condenser 22 and the evaporator 23 are more convenient. Of course, in other embodiments of the present invention, the compressor 21 , the condenser 22 and the evaporator 23 may all be arranged on the second cover plate 12 , or at least one of the compressor 21 , the condenser 22 and the evaporator 23 may be arranged on the second cover plate 12 . One is arranged on the first cover plate 11, and the rest are arranged on the second cover plate 12, which are specifically arranged according to actual needs.

As shown in FIG. 3 , the integrated smart kitchen and bathroom air conditioner of this embodiment further includes a first wind shield (not shown in the figure), a second wind shield 81 , a third wind shield 82 and a fourth wind shield (not shown in the figure), the first air blocking member is disposed corresponding to the first air supply inlet 101 and is configured to be able to communicate or isolate the kitchen and the installation cavity 100 through the first air supply inlet 101, and the second air blocking member 81 Corresponding to the second air inlet 102 is provided and configured to be able to communicate or isolate the kitchen and the installation cavity 100 through the second air inlet 102, and the third air baffle 82 is provided corresponding to the first heat dissipation air inlet 104 and is configured to be able to The kitchen and the installation cavity 100 are communicated or isolated through the first heat dissipation air inlet 104 , and the fourth air shield is provided corresponding to the second heat dissipation air inlet 105 and is configured to be able to connect the kitchen and the installation cavity through the second heat dissipation air inlet 105 . 100 connected or isolated.

Preferably, the integrated smart kitchen and bathroom air conditioner of this embodiment further includes a controller (not shown in the drawings), the controller is arranged in the installation cavity, and the controller is respectively connected with the above-mentioned refrigeration component, air supply component 3, heat dissipation component, and water pump. 7. The first wind shield, the second wind shield 81, the third wind shield 82 and the fourth wind shield are electrically connected. The controller can be a centralized or distributed controller. For example, the controller can be a single single-chip microcomputer, or it can be composed of multiple distributed single-chip microcomputers. The single-chip microcomputer can run the control program, and then control the refrigeration components and air supply components 3 , the heat dissipation assembly, the water pump 7, the first wind shield, the second wind shield 81, the third wind shield 82 and the fourth wind shield realize their functions.

Of course, in other embodiments of the present invention, the first wind shield, the second wind shield 81 , the third wind shield 82 and the fourth wind shield can also be manually operated by the user to realize the connection with the installation cavity 100 . Connected or disconnected, it is set according to the actual needs of users.

It should be noted that the work of the integrated smart kitchen and bathroom air conditioner in this embodiment also includes a mask (not shown in the figure), and the mask is provided on the first cover 11 of the housing. When the mask is provided on the housing At this time, the first air supply inlet 101 and the second heat dissipation air inlet 105 are blocked, that is, the mask can block the first air supply inlet 101 and the second heat dissipation air inlet 105, and the mask is provided with an air supply outlet. 103 corresponds to the set vent. When the mask is removed, the first air supply inlet 101 and the second heat dissipation air inlet 105 are exposed.

When the integrated intelligent kitchen and bathroom air conditioner of this embodiment works, the specific implementation is as follows:

When there is oil smoke in the kitchen in summer, the user turns on the refrigeration component to realize the cooling function, the blower 31 operates, and the air from the outside or other rooms outside the kitchen is cooled from the second air inlet 102 through the evaporator 23 to form air with a lower temperature. The generated condensed water falls into the first water receiving pan 61, and then flows to the second water receiving pan 62 to contact with the condenser 22 and is discharged to the outside through the water pump 7, and the air with a lower temperature passes through the air supply outlet 103 and the air supply louver 32. When it is sent to the kitchen, there is no oil fume entering in the whole process, and the air outside the kitchen is also sent into the kitchen to achieve cooling and replenish fresh air and oxygen. 104 is sucked into the installation cavity 100. Under the action of the cooling fan 41, the air cools the compressor 21 and the condenser 22 and is discharged through the cooling air outlet 106, thereby discharging the heat of the compressor 21 and the condenser 22. The intelligent kitchen and bathroom air conditioner realizes a complete cooling and cooling process.

When there is no oil fume in the kitchen, the user turns on the refrigeration component to realize the refrigeration function, the blower 31 operates, and the air in the kitchen is cooled from the first air supply inlet 101 through the evaporator 23 to form lower temperature air, and the lower temperature air is sent through The air outlet 103 and the air supply louvers 32 are sent to the kitchen. This cycle belongs to the internal cycle. At the same time, the cooling fan 41 works, and the air from the outside or other rooms is sucked into the installation cavity 100 through the first cooling air inlet 104. Under the action of 41, the compressor 21 and the condenser 22 are cooled and then discharged through the heat dissipation air outlet 106, so as to discharge the heat generated by the compressor 21 and the condenser 22.

When the user does not need cooling, the cooling fan 41 works, the air in the kitchen is sucked into the installation cavity 100 through the second cooling air inlet 105, and the air in the room is selected to be sucked into the installation cavity 100 by the cooling fan 41, and is sucked into the installation cavity 100 by the cooling louver. The air in the kitchen is exhausted to realize the ventilation function of the kitchen.

The all-in-one smart kitchen and bathroom air conditioner of this embodiment can be installed regardless of whether the user has an external device platform. It has a compact structure and an ingenious design, and can realize functions such as cooling, heating, ventilation, and fresh air. When the quality of the space is not ideal, no filter equipment is needed, energy saving and environmental protection, improving the user's health index can also supplement the fresh air, solving the problems that have plagued the summer kitchen for many years, and improving the user satisfaction. The installation of the integrated intelligent kitchen and bathroom air conditioner does not require outdoor operation, which reduces the danger of outdoor high-altitude operation for the installer due to high-altitude installation, saves the external unit and reduces the cost. Reduced shipping costs.

When the integrated intelligent kitchen and bathroom air conditioner of the present invention is applied to the bathroom, when the refrigeration component realizes the cooling function, it solves the problem of cooling the bathroom in summer, and when the refrigeration component heats, the energy efficiency ratio is higher than that of the traditional Yuba, and the vast number of users' families are realized. energy saving purpose.

In the description of this specification, description with reference to the terms "some embodiments", "other embodiments", etc. means that a particular feature, structure, material or characteristic described in connection with the embodiment or example is included in at least one implementation of the invention example or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The above contents are only preferred embodiments of the present invention. For those of ordinary skill in the art, according to the idea of the present invention, there will be changes in the specific embodiments and application scope. limits.

Claims (11)

1. An integrated intelligent kitchen and bathroom air conditioner, characterized in that, comprising: A housing, an installation cavity (100) is defined in the housing, and a first air supply inlet (101), a second air supply inlet (102), a first air supply inlet (102), a second air supply inlet (102), An air supply outlet (103), a first heat dissipation air inlet (104), a second heat dissipation air inlet (105) and a heat dissipation air outlet (106), the first air supply inlet (101) and the air supply outlet (103) can be communicated with the room to be installed, the second air supply inlet (102) can be communicated with the outside world or other rooms, the first heat dissipation air inlet (104) and the heat dissipation air outlet (106) are both Can communicate with the outside world or other rooms, and the second heat dissipation air inlet (105) can communicate with the room to be installed; a refrigeration assembly, which is located in the installation cavity (100) and includes a compressor (21), a condenser (22) and an evaporator (23); An air supply assembly (3), the inlet of the air supply assembly (3) can be selectively communicated with the first air supply inlet (101) or the second air supply inlet (102), the air supply assembly ( The outlet of 3) is communicated with the air supply outlet (103), and the gas is sucked into the air by the air supply assembly (3) through the first air supply inlet (101) or the second air supply inlet (102). The installation cavity (100) is discharged through the air supply outlet (103) after heat exchange with the evaporator (23); A heat dissipation assembly, the inlet of the heat dissipation assembly can be selectively communicated with the first heat dissipation air inlet (104) or the second heat dissipation air inlet (105), and the outlet of the heat dissipation assembly is connected with the heat dissipation air outlet (106) is connected, and the gas is sucked into the installation cavity (100) by the heat dissipation component through the first heat dissipation air inlet (104) and discharged through the heat dissipation air outlet (106), or the gas is discharged through the second heat dissipation The air inlet (105) is sucked into the installation cavity (100) by the heat dissipating component, can exchange heat with the compressor (21) and then is discharged through the heat dissipating air outlet (106). 2 . The integrated intelligent kitchen and bathroom air conditioner according to claim 1 , wherein the integrated intelligent kitchen and bathroom air conditioner further comprises a partition (5), and the partition plate (5) is located in the installation cavity. 3 . (100) and the installation cavity (100) is divided into a first installation cavity and a second installation cavity, the first air supply inlet (101), the second air supply inlet (102) and the air supply The air outlets (103) are all communicated with the first installation cavity, the evaporator (23) and the air supply assembly (3) are both located in the first installation cavity, and the first heat dissipation air inlet ( 104), the second heat dissipation air inlet (105) and the heat dissipation air outlet (106) are all communicated with the second installation cavity, the compressor (21), the condenser (22) and the The heat dissipation components are all located in the second installation cavity. 3. The integrated intelligent kitchen and bathroom air conditioner according to claim 1, wherein the integrated intelligent kitchen and bathroom air conditioner further comprises a water receiving tray (6), and the water receiving tray (6) includes a first A water receiving tray (61) and a second water receiving tray (62) communicated with the first water receiving tray (61), the opening of the first water receiving tray (61) faces the evaporator (23) The opening of the second water receiving tray (62) is arranged toward the condenser (22). 4. The integrated intelligent kitchen and bathroom air conditioner according to claim 3, wherein the integrated intelligent kitchen and bathroom air conditioner further comprises a water pump (7), and the water pump (7) is arranged on the housing In addition, the inlet of the water pump (7) is communicated with the water receiving tray (6), and the outlet of the water pump (7) is communicated with the outside to discharge the liquid in the water receiving tray (6). 5. The integrated intelligent kitchen and bathroom air conditioner according to claim 1, wherein the compressor (21) is located between the first heat dissipation air inlet (104) and the inlet of the heat dissipation assembly, When the integrated intelligent kitchen and bathroom air conditioner is installed on the top of the room to be installed, the compressor (21) is arranged vertically. 6. The integrated intelligent kitchen and bathroom air conditioner according to claim 1, characterized in that the air supply assembly (3) is mounted on the housing and comprises an air supply fan (31) and an air supply louver (32), The inlet of the blower (31) is communicated with the installation cavity (100), the central axis of the blower (31) is perpendicular to the central axis of the compressor (21), and the blower louver (32) is located at the center of the compressor (21). The air supply outlet (103) is arranged at and facing the air supply outlet (103). 7. The integrated intelligent kitchen and bathroom air conditioner according to claim 1, wherein the heat dissipation component comprises a heat dissipation fan (41) and a heat dissipation louver, and the inlet of the heat dissipation fan (41) is connected to the installation cavity (41). 100) is communicated, and the heat dissipation louver is located at the outlet of the heat dissipation fan (41) and is disposed facing the heat dissipation air outlet (106). 8. The integrated intelligent kitchen and bathroom air conditioner according to any one of claims 1 to 7, wherein the housing comprises a first cover plate (11), the compressor (21), the condenser Both the evaporator (22) and the evaporator (23) are arranged on the first cover plate (11). 9 . The integrated smart kitchen and bathroom air conditioner according to claim 8 , wherein the integrated smart kitchen and bathroom air conditioner further comprises a mask, the mask cover is provided on the housing and is connected with the first A cover plate (11) is arranged at intervals, and the mask can shield the second heat dissipation air inlet (105). 10. The integrated intelligent kitchen and bathroom air conditioner according to any one of claims 1 to 7, wherein the integrated intelligent kitchen and bathroom air conditioner further comprises a first wind shield and a second wind shield (81 ), the first wind blocking member is disposed corresponding to the first air supply inlet (101) and is configured to be able to separate the room to be installed and the installation cavity (100) through the first air supply inlet (101). ) communication or isolation, the second wind shield (81) is disposed corresponding to the second air supply inlet (102) and is configured to be able to connect the room to be installed and the room through the second air supply inlet (102). The installation cavity (100) is communicated or isolated. 11. The integrated intelligent kitchen and bathroom air conditioner according to any one of claims 1 to 7, wherein the integrated intelligent kitchen and bathroom air conditioner further comprises a third wind shield (82) and a fourth wind shield The third windshield (82) is disposed corresponding to the first heat dissipation air inlet (104) and is configured to be able to connect the room to be installed and the environment through the first heat dissipation air inlet (104). The installation cavity (100) is communicated or isolated, and the fourth air blocking member is provided corresponding to the second heat dissipation air inlet (105) and is configured to be able to pass the second heat dissipation air inlet (105) to the The room to be installed is communicated with or isolated from the installation cavity (100).
