CN111388243A - Novel multifunctional physiotherapy cabin - Google Patents

Abstract

The invention discloses a novel multifunctional physiotherapy warehouse, comprising a physiotherapy warehouse cover, the physiotherapy warehouse cover is arched, the head side and foot side ends of the physiotherapy warehouse cover are provided with openings, and the top of the physiotherapy warehouse cover is provided with There are metal arc rods, and there are four metal arc rods at equal intervals. The physiotherapy warehouse adopts a decorative layer, which is heat preservation and power saving, which can improve the beauty of the physiotherapy warehouse. The decorative layer wraps the frame and the edge of the physiotherapy warehouse. , Different colors can be customized according to the different aesthetics of customers. The fabric of the side sealing of the physiotherapy warehouse is made of zipper to make it detachable, which is convenient for the physiotherapy warehouse cover to be flattened and folded. The blanket can also be used as an indoor electric heating screen supported by fiber rods, which can be used to heat and purify the air. The mattress of the physiotherapy warehouse has a graphene electric heating sheet heating device, which can be used as an electric mattress with multiple kinetic energy.

Description

A new multifunctional physiotherapy warehouse

technical field

The invention relates to the technical field of physiotherapy instruments, in particular to a novel multifunctional physiotherapy warehouse.

Background technique

Physiotherapy is a method of using artificial or natural physical factors to act on the human body to make it produce favorable reactions and achieve the purpose of preventing and treating diseases. It is an important content of rehabilitation therapy. Physiotherapy is an ancient and young discipline, 7000 BC. In the Stone Age, primitive people used sunlight, Bianstone, stone needles, water and massage to treat diseases and maintain health. Early documents in my country and ancient Greece, Egypt, and Rome recorded the effects of sunlight, hot water baths, cold baths, gymnastics, massage, etc. on preventing and treating diseases. The 2nd-1st century BC (Western Han Dynasty) Huangdi Neijing (Su Wen) details Gongda (acupuncture), Jiao (cupping), medicine ironing (warming), Daoyin (breathing gymnastics), pressing Qi (massage), Physical therapy such as dipping sweat (hydrotherapy). During the Spring and Autumn Period and the Warring States Period, the famous doctor Bian Que often used acupuncture, Bianstone, ironing and massage to treat diseases. my country is the first country in the world to use mineral water and magnetic fields to treat diseases.

The existing physiotherapy warehouse has a complex structure and a relatively single function, which cannot meet the actual use needs. Therefore, we provide a novel multifunctional physiotherapy chamber to solve the problems raised in the above background art.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a novel multifunctional physiotherapy chamber to solve the above-mentioned problems in the background art.

To achieve the above object, the present invention provides the following technical solutions:

A novel multifunctional physiotherapy warehouse includes a physiotherapy warehouse cover, the physiotherapy warehouse cover is arched, the head side and the foot side of the physiotherapy warehouse cover are provided with openings, and the top of the physiotherapy warehouse cover is provided with a metal arc. There are four metal arc-shaped rods at equal intervals. Fiber rods are provided at the top and the lower ends of both sides of the physiotherapy warehouse cover. The physiotherapy warehouse cover is provided with fixed ears corresponding to the metal arc-shaped rods and the fiber rods. and a fixing sleeve is sewn on the physiotherapy warehouse cover corresponding to the metal arc-shaped rod, and the metal arc-shaped rod is inserted with the fixing sleeve.

As a further solution of the present invention, a metal plug is installed at both ends of the metal arc rod, and the metal plug is arranged in a cylindrical shape, and the end of the metal plug away from the metal arc rod is provided with a cylindrical protrusion.

As a further solution of the present invention: there are three fiber rods, the three fiber rods are connected by a metal sleeve, and the fiber rods and the metal sleeve are detachably connected.

As a further solution of the present invention: the two ends of the fiber rods at both ends are sheathed with metal plugs two, the metal plugs are provided with jacks corresponding to the fiber rods, and the fiber rods are detachably connected to the metal plugs through the jacks. The structural design of the second plug is the same as that of the first metal plug.

As a further solution of the present invention: the fixing ear is made of nylon oxford fabric, the fixing ear is provided with a through hole, a metal ring is installed at the through hole, the metal ring presses the film on the fixing ear, and the inner side of the metal ring is provided with a through hole. A sleeve eye, the protrusions of the first metal plug and the second metal plug are detachably connected to the sleeve eye, and a dotted line for sewing is arranged on the fixing ear.

As a further solution of the present invention: the physiotherapy warehouse cover includes a decorative layer, an equipment layer and an inner lining layer, the decorative layer is located on the outer side of the equipment layer, the equipment layer is provided with a Velcro, and the inner lining layer is located on the equipment layer The inner side of the decorative layer is a layer of light fiber cotton fabric.

As a further solution of the present invention: the device layer is an Oxford aluminum film anti-heat fabric bearing graphene electric heating sheet, and a power supply wire is installed in the device layer.

As a further solution of the present invention, the inner lining layer is made of fleece fabric, the inner lining layer is adhered to the equipment layer through Velcro, and the fabric of the foot side sealing of the physiotherapy warehouse cover is detachably connected with a zipper.

Compared with the prior art, the beneficial effects of the present invention are:

1. Insert the metal arc rod into the fixed sleeve of the physiotherapy hood, insert the protrusion of the first metal plug into the sleeve eye, and connect the multiple fiber rods through the metal sleeve. The protrusion of the second plug is inserted into the sleeve eye, and the connection between the metal arc rod and the fiber rod is fixed by a cloth bag, so as to realize the installation of the physiotherapy warehouse. The structure of the physiotherapy warehouse is simple and easy to install.

2. The physiotherapy warehouse adopts a decorative layer, which is heat preservation and power saving, which can improve the aesthetics of the physiotherapy warehouse. The decorative layer wraps the frame and the edge of the physiotherapy warehouse. Different colors and equipment layers can be customized according to different aesthetics of customers. The right metal arc rod is shaped horizontally into an arc-shaped hood, which is supported vertically by the glass fiber rod. The graphene heating element and power supply wires in the inner lining are covered with cotton, linen or polyester-cotton linen, covering the graphene. The heating element and the power wire are easy to be fixed on the Velcro on the equipment layer, which is easy to clean. The fabric of the side sealing of the physiotherapy warehouse is made of zipper to make it removable, which is convenient for the physiotherapy warehouse cover to be flattened and folded. It can be used as a floor heating blanket, and can be used as an indoor electric heating screen supported by fiber rods, which can be used to heat and purify the air.

Description of drawings

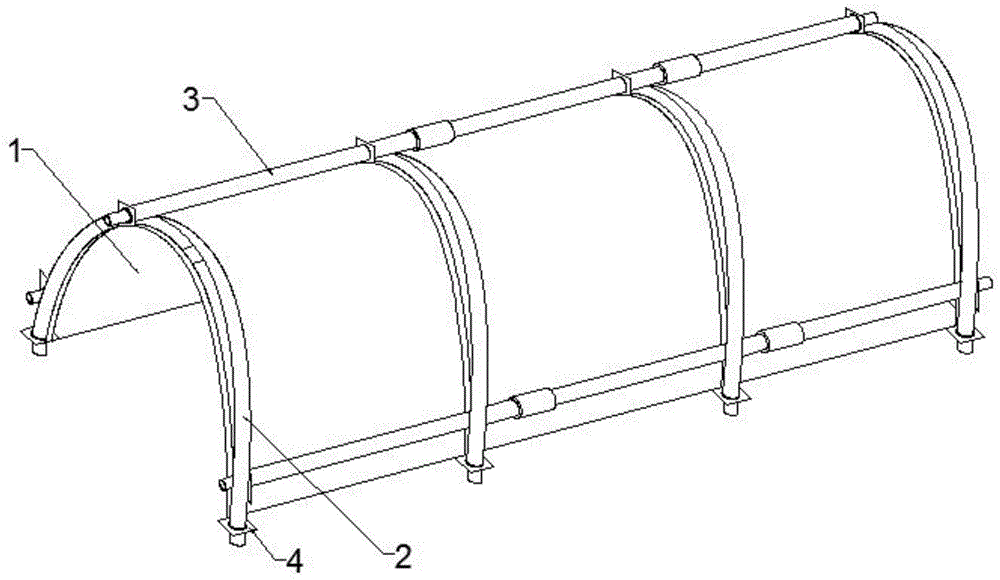

Figure 1 is a schematic structural diagram of a novel multifunctional physiotherapy chamber.

Figure 2 is a top view of a novel multifunctional physiotherapy chamber.

Figure 3 is a schematic structural diagram of a metal arc rod in a novel multifunctional physiotherapy bin.

Figure 4 is a connection diagram of a fiber rod in a new multifunctional physiotherapy chamber.

FIG. 5 is a schematic structural diagram of a fixed ear in a novel multifunctional physiotherapy chamber.

FIG. 6 is a cross-sectional view of a physiotherapy chamber cover in a novel multifunctional physiotherapy chamber.

In the picture: 1-Physiotherapy hood, 101-Decorative layer, 102-Equipment layer, 103-Inner lining, 2-Metal arc rod, 21-Metal plug one, 3-Fiber rod, 31-Metal sleeve, 32- Metal plug 2, 4-fixed ear, 41-metal ring, 42-eyelet, 43-dotted line, 5-fixed sleeve.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1-2. In the embodiment of the present invention, a novel multifunctional physiotherapy warehouse includes a physiotherapy warehouse cover 1. The physiotherapy warehouse cover 1 is in the shape of an arch. The physiotherapy warehouse cover 1 is provided on the head side and the foot side. There are openings, and the top of the physiotherapy warehouse cover 1 is provided with metal arc rods 2, and the metal arc rods 2 are provided with four equally spaced, and the top of the physiotherapy warehouse cover 1 and the lower ends of both sides are provided with fibers. Rod 3, the physiotherapy warehouse cover 1 is provided with fixing ears 4 corresponding to the metal arc rod 2 and the fiber rod 3, and the physiotherapy warehouse cover 1 is sewn with a fixing sleeve 5 corresponding to the metal arc rod 2, and the metal arc The rod 2 is inserted into the fixed sleeve 5.

Please refer to FIG. 3 , a metal plug 1 21 is installed at both ends of the metal arc rod 2 , and the metal plug 1 21 is arranged in a cylindrical shape, and one end of the metal plug 21 away from the metal arc rod 2 is provided with a cylindrical convex rise.

Please refer to FIG. 4 , there are three fiber rods 3 , the three fiber rods 3 are connected by a metal sleeve 31 , the fiber rods 3 and the metal sleeve 31 are detachably connected, and the fiber rods 3 at both ends are connected to each other. The metal plug 2 32 is sheathed at the far end. The metal plug 2 32 is provided with a socket corresponding to the fiber rod 3, and the fiber rod 3 is detachably connected to the metal plug 2 32 through the socket. The structure design of the metal plug 2 32 is similar to that of the metal plug 1 21. same.

Please refer to FIG. 5 , the fixing ear 4 is made of nylon oxford fabric, the fixing ear 4 is provided with a through hole, and a metal ring 41 is installed at the through hole. The metal ring 41 is pressed on the fixing ear 4 and the inner side of the metal ring 41 is opened There are through-holes 42 , the protrusions of the first metal plug 21 and the second metal plug 32 are detachably connected to the sleeve eyes 42 , and the fixing ears 4 are provided with dotted lines 43 for sewing.

Please refer to FIG. 6 , the physiotherapy warehouse cover 1 includes a decoration layer 101 , an equipment layer 102 and an inner lining layer 103 , the decoration layer 101 is located on the outer side of the equipment layer 102 , the equipment layer 102 is provided with a Velcro, and the inner lining The layer 103 is located on the inner side of the device layer 102, the decorative layer 101 is a layer of light and thin fiber cotton fabric, the device layer 102 is an Oxford aluminum film anti-heat fabric bearing graphene electric heating sheet, and a power supply wire is installed in the device layer 102, The inner lining layer 103 is made of fleece fabric, and the inner lining layer 103 is adhered to the equipment layer 102 by a Velcro. The fabric of the foot side sealing of the physiotherapy warehouse cover 1 is detachably connected by a zipper.

The working principle of the present invention is:

Insert the metal arc rod 2 into the fixed sleeve 5 of the physiotherapy warehouse cover 1, insert the protrusion of the metal plug 1 21 into the sleeve eye 42, connect the plurality of fiber rods 3 through the metal sleeve 31, and the metal plug 2 32 is sleeved on. At both ends of the fiber rod 3, the protrusions of the metal plug 2 32 are inserted into the sleeve holes 42, and the connection between the metal arc rod 2 and the fiber rod 3 is fixed with a cloth bag, so as to realize the installation of the physical therapy warehouse. The structural design of the physical therapy warehouse Simple and easy to install, the physiotherapy warehouse adopts the decorative layer 101, which is heat preservation and power saving, which can improve the aesthetics of the physiotherapy warehouse. The decorative layer 101 wraps the frame and the edge of the physiotherapy warehouse, which can be customized according to different aesthetics of customers. The right metal arc rod of the equipment layer 102 is shaped into an arc-shaped warehouse cover horizontally, and the flattening of the warehouse cover is supported longitudinally by the glass fiber rod. The hemp cover covers the graphene heating element and the power lead, which is easy to fix on the Velcro on the equipment layer and easy to clean. The fabric on the side sealing of the foot of the physiotherapy chamber is made detachable with zipper, which is convenient for the physiotherapy chamber cover 1 to be flattened and folded , After the physiotherapy warehouse cover 1 is flattened, it can be spread as a floor heating blanket, and can be supported by fiber rods 3 as an indoor electric heating screen, which can be used for heating and purifying the air. Mattress, with multiple kinetic energy.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (8)

1. The utility model provides a novel multi-functional physiotherapy storehouse, includes physiotherapy storehouse cover (1), its characterized in that, physiotherapy storehouse cover (1) is the arch, and the head side department and the foot side end of physiotherapy storehouse cover (1) are provided with the opening, and the storehouse cover top department of physiotherapy storehouse cover (1) is provided with metal arc pole (2), and metal arc pole (2) equidistant are provided with four, the top and the both sides lower extreme department of physiotherapy storehouse cover (1) all are provided with fibre pole (3), it is provided with fixed ear (4) to correspond metal arc pole (2) and fibre pole (3) on physiotherapy storehouse cover (1), it has fixed cover (5) to correspond metal arc pole (2) sewing on physiotherapy storehouse cover (1), and the fixed cover (5) of metal arc pole (2) cartridge.

2. The novel multifunctional physiotherapy cabin according to claim 1, characterized in that a first metal plug (21) is installed at two ends of the metal arc rod (2), the first metal plug (21) is cylindrical, and a cylindrical protrusion is arranged at one end of the first metal plug (21) away from the metal arc rod (2).

3. The novel multifunctional physiotherapy cabin as claimed in claim 1, characterized in that three fiber rods (3) are provided, the three fiber rods (3) are connected through metal sleeves (31), and the fiber rods (3) are detachably connected with the metal sleeves (31).

4. The novel multifunctional physiotherapy cabin according to claim 1, characterized in that a second metal plug (32) is sleeved at one end of the two ends of the fiber rod (3) away from each other, the second metal plug (32) is provided with a jack corresponding to the fiber rod (3), the fiber rod (3) is detachably connected with the second metal plug (32) through the jack, and the second metal plug (32) has the same structural design as the first metal plug (21).

5. The novel multifunctional physiotherapy cabin according to claim 1, wherein the fixing lugs (4) are made of nylon oxford fabric, through holes are formed in the fixing lugs (4), metal rings (41) are installed at the through holes, press films of the metal rings (41) are pressed on the fixing lugs (4), through eyelets (42) are formed in the inner sides of the metal rings (41), the protruding portions of the first metal plug (21) and the second metal plug (32) are detachably connected with the eyelets (42), and broken lines (43) for sewing are arranged on the fixing lugs (4).

6. The novel multifunctional physiotherapy cabin according to claim 1, characterized in that the physiotherapy cabin cover (1) comprises a decoration layer (101), an equipment layer (102) and an inner liner layer (103), wherein the decoration layer (101) is located on the outer side of the equipment layer (102), a magic tape is arranged on the equipment layer (102), the inner liner layer (103) is located on the inner side of the equipment layer (102), and the decoration layer (101) is a layer of light and thin fiber cotton fabric.

7. The novel multifunctional physiotherapy cabin as claimed in claim 6, characterized in that the equipment layer (102) is an Oxford aluminum film heat-reflecting fabric carrying graphene electric heating sheet, and a power supply lead is installed in the equipment layer (102).

8. The novel multifunctional physiotherapy cabin according to claim 6, characterized in that the inner liner (103) is made of a velvet fabric, the inner liner (103) is adhered to the equipment layer (102) through a magic tape, and the fabric sealed at the foot side of the physiotherapy cabin cover (1) is detachably connected through a zipper.
