CN111386803A - Seeder for farming - Google Patents

Abstract

The invention provides a planting device for agricultural planting, comprising a locomotive connecting bracket, a connecting bolt, a coulter connecting bracket, a coulter adjusting bolt, a coulter, a shovel bracket, a shovel adjusting bolt, a shovel, a pedal, and a compaction wheel bracket , compaction wheel, turntable motor, turntable structure for seeding in turn, seed funnel structure, storage battery, placement of fuselage bracket structure, turntable motor switch and seeder shell, the connecting bolts are threadedly connected to the locomotive connecting bracket. The setting of the screed plate in the present invention can bury the seeds with soil, which is beneficial to prevent birds from pecking; The setting of the seed outlet can accurately sprinkle the seeds into the pit, which is beneficial to increase the survival rate of the seeds.

Description

A seeding device for agricultural planting

technical field

The invention belongs to the technical field of agricultural tools, and in particular relates to a seeding device for agricultural planting.

Background technique

Planter is a planting machine that uses crop seeds as the sowing object. The seeder used for a certain type or a certain crop is often named with the name of the crop type, such as grain drill, corn hole seeder, cotton seeder, grass spreader, etc.

However, the existing planter still has the problems of inconvenient moving position, uneven sowing and inability to prevent birds from pecking seeds.

Therefore, it is very necessary to invent a seeding device for agricultural planting.

SUMMARY OF THE INVENTION

In order to solve the above technical problems, the present invention provides a seeding device for agricultural planting, so as to solve the problems of the existing seeder that it is inconvenient to move the position, uneven during sowing, and prevents birds from pecking seeds. A planting device for agricultural planting, comprising a locomotive connecting bracket, a connecting bolt, a coulter connecting bracket, a coulter adjusting bolt, a coulter, a stroking plate bracket, a stroking plate adjusting bolt, a stroking plate, a pedal, a compaction wheel bracket, a compactor Wheel, turntable motor, turntable structure for seeding in turn, seed funnel structure, accumulator, placing fuselage support structure, turntable motor switch and seeder casing, the connecting bolts are threadedly connected to the locomotive connecting bracket; the coulter connecting bracket Welded on the lower end of the middle position of the bottom of the planter shell; the joint of the coulter connecting bracket and the coulter is threadedly connected with coulter adjusting bolts; The junction of the shovel plate bracket and the shovel plate is threadedly connected with an escalator plate adjusting bolt; the pedal is welded on the lower right end of the planter shell; the compaction wheel bracket is welded on the lower end of the pedal; the compaction wheel shaft Connected to the lower end of the compaction wheel bracket; the screw of the turntable motor is installed at the middle position of the lower end of the inner casing of the seeder; the turntable structure key is connected to the upper end of the turntable motor; the seed funnel structure is welded to the sowing The right side inside the machine casing; the battery screw is installed on the left side of the inner lower end of the planter casing; the placement body support structure is installed on the lower end of the planter casing; the turntable motor switch is embedded in the turntable motor. For the front; the rotary seeding turntable structure includes a through hole, a turntable and a rotating shaft, and the through hole is opened on the top of the turntable; the rotating shaft is welded at the middle position of the turntable.

Preferably, the seed funnel structure includes a baffle, a baffle support frame, a guide pipe and a seed outlet, the guide pipe is glued to the lower end of the baffle; the baffle support frame is welded on the baffle upper end.

Preferably, the structure for placing the fuselage support includes a pulley, a pulley support, a shaft connecting frame, a base support, and a base, and the pulley is connected to the lower end of the pulley support; the pulley support is connected to the shaft connecting frame. the base bracket is screwed on the shaft connection frame; the base is welded on the lower end of the base bracket.

Preferably, the said placement body support structure is welded to the lower end of the planter casing through a shaft connection frame.

Preferably, the seed outlet is glued on the right side of the bottom of the planter casing; the lower end of the seed outlet runs through the right side of the bottom of the planter casing.

Preferably, the turntable motor switch, the turntable motor and the battery are electrically connected.

Preferably, the right side of the guide tube is placed in the middle of the seed funnel structure.

Preferably, the locomotive connecting bracket 1 is welded on the left end of the casing of the planter.

Compared with the prior art, the beneficial effects of the present invention are:

1. In the present invention, the setting of the turntable can make the seeds evenly spread, which is beneficial to prevent uneven sowing.

2. In the present invention, the setting of the compaction wheel can compact the soil, which is beneficial to prevent the seeds from being flushed out during irrigation.

3. In the present invention, the arrangement of the stroking plate can bury the seeds with soil, which is beneficial to prevent birds from pecking.

4. In the present invention, the arrangement of the pulley can easily push the device, which is beneficial for the user to push the device in normal times.

5. In the present invention, the arrangement of the seed outlet can accurately sprinkle the seeds into the pit, which is beneficial to increase the survival rate of the seeds.

Description of drawings

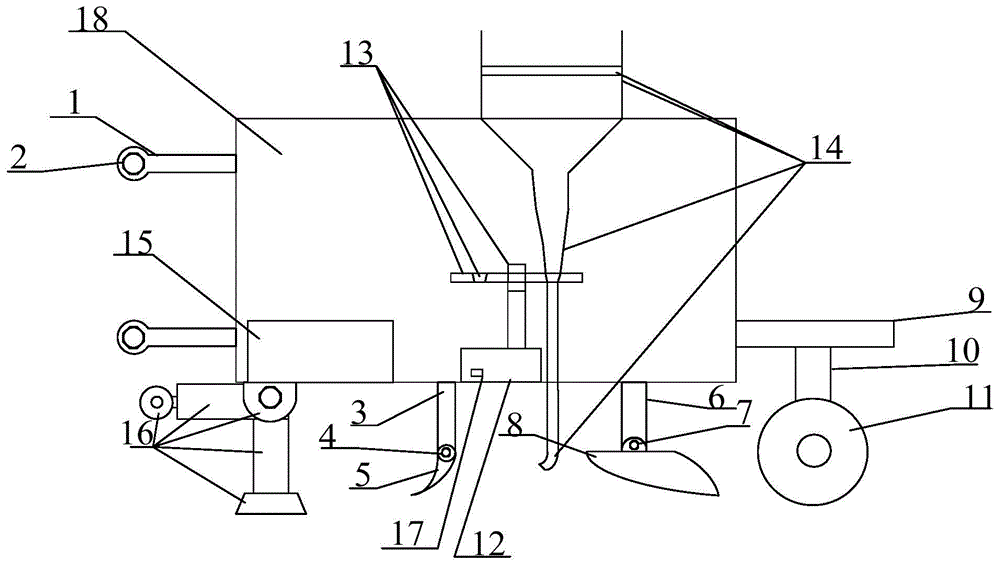

Figure 1 is a schematic structural diagram of the present invention.

FIG. 2 is a schematic view of the structure of the rotary seeding turntable of the present invention.

Figure 3 is a schematic view of the structure of the seed funnel of the present invention.

FIG. 4 is a schematic diagram of the structure of the placing fuselage bracket of the present invention.

In the picture:

1. Locomotive connecting bracket; 2. Connecting bolt; 3. Coulter connecting bracket; 4. Coulter adjusting bolt; 5. Coulter; 6. Scoping plate bracket; 7. Scoping plate adjusting bolt; 8. Scoping plate; 9. Pedal; 10. Compaction wheel bracket; 11. Compaction wheel; 12. Turntable motor; 15. Battery; 17. Turntable motor switch; Turntable; 133, rotating shaft; 14, seed funnel structure; 141, baffle; 142, baffle support frame; 143, guide pipe; 144 seed outlet 16, place the frame structure of the fuselage; 161, pulley; 162, pulley support ; 163, the axle frame; 164, the base bracket; 165, the base.

Detailed ways

The present invention will be further described below in conjunction with the accompanying drawings:

Example:

As shown in Figure 1 to Figure 4

The present invention provides a seeding device for agricultural planting, comprising a locomotive connecting bracket 1, a connecting bolt 2, a coulter connecting bracket 3, a coulter adjusting bolt 4, a coulter 5, a shovel plate support 6, a shovel plate adjusting bolt 7, a shovel plate 8, pedal 9, compaction wheel bracket 10, compaction wheel 11, turntable motor 12, turntable structure 13 for alternate seeding, seed funnel structure 14, battery 15, placement of fuselage support structure 16, turntable motor on and off 17 and planter housing 18. The connecting bolts 2 are threadedly connected to the locomotive connecting bracket 1; The coulter adjusting bolt 4 is threadedly connected at the junction; the shovel bracket 6 is welded on the lower end of the right side of the planter shell 18; Bolts 7; the pedal 9 is welded to the lower right end of the planter casing 18; the compaction wheel bracket 10 is welded to the lower end of the pedal 9; the compaction wheel 11 is axially connected to the lower end of the compaction wheel bracket 10 The described turntable motor 12 is screwed in the middle position of the inner lower end of the seeder housing 18; the described turntable structure 13 is keyed to the upper end of the turntable motor 12 for sowing in turn; the described seed funnel structure 14 is welded on the seeder housing 18 The right side of the interior; the battery 15 is screwed on the left side of the inner lower end of the planter casing 18; the placement body support structure 16 is installed on the lower end of the planter casing 18; the turntable motor switch 17 is embedded in the The front of the turntable motor 12; the turntable structure 13 for seeding in turn includes a through hole 131, a turntable 132 and a rotating shaft 133, the through hole 131 is opened on the top of the turntable 132; the rotating shaft 133 is welded on the turntable 132. in the middle.

In the above embodiment, specifically, the seed funnel structure 14 includes a baffle 141, a baffle support frame 142, a guide pipe 143 and a seed outlet 144, and the guide pipe 143 is glued to the lower end of the baffle 141; The baffle support frame 142 is welded to the upper end of the baffle 141 .

In the above-mentioned embodiment, specifically, the described placement of the fuselage support structure 16 includes a pulley 161, a pulley support 162, a shaft connection frame 163, a base support 164, and a base 165. The pulley 161 is pivotally connected to the pulley support 162. The lower end; the pulley bracket 162 is pivotally connected to the shaft connecting frame 163 ; the base bracket 164 is threadedly connected to the shaft connecting frame 163 ; the base 165 is welded to the lower end of the base bracket 164 .

In the above-mentioned embodiment, specifically, the said placement body support structure 16 is welded to the lower end of the planter casing 18 through the shaft connection frame 163 .

In the above embodiment, specifically, the seed outlet 144 is glued on the right side of the bottom of the planter casing 18 ; the lower end of the seed outlet 144 penetrates the right side of the bottom of the planter casing 18 .

In the above embodiment, specifically, the turntable motor switch 17 , the turntable motor 12 and the battery 15 are electrically connected.

In the above embodiment, specifically, the right side of the guide tube 143 is placed in the middle position of the seed funnel structure 14 .

In the above embodiment, specifically, the locomotive connecting bracket 1 is welded to the left end of the casing 18 of the planter.

working principle

In the present invention, when the locomotive connecting bracket 1 is in use, unscrew the connecting bolt 2 and install it at the corresponding place of the locomotive, and then tighten the connecting bolt 2; when the coulter 5 is in use, unscrew the coulter adjusting bolt 4, install the coulter 5 and then Tighten the coulter adjusting bolt 4, unscrew the coulter adjusting bolt 4 when not in use, and take off the coulter 5; when the flattening plate 8 is in use, unscrew the flattening plate adjusting bolt 7, install the flattening plate 8, and then adjust the flattening plate Tighten the bolts 7. When not in use, unscrew the adjustment bolts 7 of the shovel plate, and then take off the shovel plate 8. When the turntable motor switch 17 is in use, press the turntable motor switch 17, and the turntable 132 can be rotated. Press the turntable motor switch 17 again. , the turntable 132 stops working; the seed funnel structure 14 pours the seeds into the baffle when in use, and the seeds will fall out along the guide tube 143 through the turntable 132 to the seed outlet; The shaft connection frame 163 replaces the pulley 161 or the base 165, the user can move the pulley 161 when pushing the device, and can be supported by the base 165 when the user places the device.

Using the technical solutions described in the present invention, or those skilled in the art design similar technical solutions under the inspiration of the technical solutions of the present invention, and achieve the above technical effects, all fall within the protection scope of the present invention.

Claims (7)

1. The sowing device for agricultural planting is characterized by comprising a locomotive connecting support (1), a connecting bolt (2), a coulter connecting support (3), a coulter adjusting bolt (4), a coulter (5), a smoothing plate support (6), a smoothing plate adjusting bolt (7), a smoothing plate (8), a pedal (9), a compaction wheel support (10), a compaction wheel (11), a turntable motor (12), a rotary sowing turntable structure (13), a seed hopper structure (14), a storage battery (15), a machine body placing support structure (16), a turntable motor switch (17) and a sowing machine shell (18), wherein the connecting bolt (2) is in threaded connection with the locomotive connecting support (1); the coulter connecting bracket (3) is welded at the lower end of the middle position of the bottom of the seeder shell (18); a coulter adjusting bolt (4) is in threaded connection with the joint of the coulter connecting bracket (3) and the coulter (5); the flattening plate bracket (6) is welded at the lower end of the right side of the seeder shell (18); a joint of the smoothing plate bracket (6) and the smoothing plate (8) is in threaded connection with a smoothing plate adjusting bolt (7); the pedal (9) is welded at the right lower end of the seeder shell (18); the compaction wheel bracket (10) is welded at the lower end of the pedal (9); the compaction wheel (11) is coupled at the lower end of the compaction wheel bracket (10) in a shaft manner; the turntable motor (12) is arranged in the middle of the lower end in the seeder shell (18) through a screw; the alternate sowing rotary disc structure (13) is connected with the upper end of the rotary disc motor (12) in a key way; the seed funnel structure (14) is welded at the right side inside the seeder shell (18); the storage battery (15) is mounted on the left side of the lower end in the seeder shell (18) through a screw; the frame structure (16) for placing the machine body is arranged at the lower end of the shell (18) of the seeder; the turntable motor switch (17) is embedded in front of the turntable motor (12); the rotary sowing disc structure (13) comprises through holes (131), a rotary disc (132) and a rotating shaft (133), wherein the through holes (131) are formed in the rotary disc (132); the rotating shaft (133) is welded at the middle position of the rotating disc (132).

2. The sowing apparatus for agricultural planting of claim 1, wherein the seed funnel structure (14) comprises a baffle plate (141), a baffle plate support frame (142), a guide pipe (143) and a seed outlet (144), the guide pipe (143) is glued to the lower end of the baffle plate (141); the baffle supporting frame (142) is welded at the upper end of the baffle (141).

3. The seeding device for agricultural planting according to claim 1, wherein the body placing support structure (16) comprises a pulley (161), a pulley support (162), a shaft connecting frame (163), a base support (164) and a base (165), the pulley (161) is connected to the lower end of the pulley support (162) in a shaft mode; the pulley bracket (162) is coupled on the coupling bracket (163) in a shaft way; the base bracket (164) is in threaded connection with the shaft connecting frame (163); the base (165) is welded at the lower end of the base bracket (164).

4. The planting apparatus of claim 3, wherein the placement frame structure (16) is welded to the lower end of the planter housing (18) by an axle bracket (163).

5. The sowing apparatus for agricultural planting of claim 1, wherein the turntable motor switch (17), the turntable motor (12) and the storage battery (15) are electrically connected.

6. An agricultural seeding apparatus according to claim 2, wherein the right side of the guide pipe (143) is placed in the middle of the seed funnel structure (14).

7. The seeding device for agricultural planting according to claim 1, wherein the locomotive connecting bracket (1) is welded at the left end of the seeding machine shell (18).
