Abstract

The invention relates to the technical field of inclination angle adjustment, and specifically discloses a large stroke and high load inclination angle adjustment device. The device includes a flat plate, a cylindrical linear guide, a lead screw, a lead screw fixing seat, a support arm and a lifting arm, wherein the flat plate is two flat plate structures arranged up and down. The other side is provided with a cylindrical linear guide, the lead screw fixing seat is matched and set on the cylindrical linear guide through the slider, and the lifting arm is set between the lead screw fixing seat and the upper plate. , which drives the screw fixing seat to move along the cylindrical linear guide, so that the support height of the lifting arm changes, which causes the upper plate to tilt. The large-stroke and high-load inclination angle adjustment device of the present invention can install and fix equipment of large size and heavy weight, and adjust its inclination angle; meanwhile, it can realize a wide range of positive and negative inclination angle adjustment.

Description

A tilt angle adjustment device with large stroke and high load

technical field

The invention belongs to the technical field of inclination angle adjustment, and in particular relates to a large stroke and high load inclination angle adjustment device.

Background technique

In optical experiments and systems, it is often necessary to adjust the tilt angle or pitch angle of the equipment to make it level or at the desired angle and maintain good stability. Conventional tilt tables and pitch tables are based on curved guide rails or steel balls, with limited installation size, adjustment stroke and load, which cannot meet the installation and adjustment requirements of equipment with large size and high weight.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a large-stroke and high-load inclination angle adjustment device, which can fix and install related equipment with large size and high weight, and finely adjust the inclination angle thereof.

The technical scheme of the present invention is as follows: a large stroke and high load tilt angle adjustment device, the device comprises a flat plate, a cylindrical linear guide, a lead screw, a lead screw fixing seat, a support arm and a lifting arm, wherein the plate is two vertically arranged Block plate structure, one side of the upper plate and the lower plate are connected by a support arm, the other side of the lower plate is provided with a cylindrical linear guide, the screw fixing seat is set on the cylindrical linear guide through the slider matching, and the lifting arm is set on the screw fixed Between the seat and the upper plate, through the rotation of the lead screw arranged in the lead screw holder, the lead screw holder is driven to move along the cylindrical linear guide rail, so that the support height of the lifting arm changes, and the upper plate is inclined.

The outer flat surface of the lower plate is provided with a cylindrical linear guide rail, two sliding blocks are arranged on the cylindrical linear guide rail, and a screw fixing seat is arranged on the sliding block. Move the two screw holders closer to or apart from each other.

One end of the lifting arm is connected with the screw fixing seat through a pin shaft, and the other end of the lifting arm is fixedly connected with the upper plate through the rotating shaft seat. The center of the reel in the reel seat rotates.

The lower end of the support arm is fixedly connected with the lower plate, and the upper end of the support arm is connected with the upper plate through a pin, so that the upper plate can rotate around the pin at the upper end of the support arm.

A positioning clip is arranged in the middle of the cylindrical linear guide rail, and the positioning clip covers the lead screw. By rotating the rotating handle on the positioning clip, the lead screw can be locked or released.

Limiting pieces are installed on both sides of the cylindrical linear guide rail to prevent the slider from sliding out of the cylindrical linear guide rail.

The flat plate is provided with installation holes, and the installation holes can be used for the installation of other components and for carrying the equipment to be tilted.

A hand wheel (14) is installed on the end of the lead screw, and the rotation of the lead screw (11) can be realized by the hand wheel (14).

The significant effect of the present invention is that: the large-stroke and high-load inclination angle adjustment device of the present invention can install and fix large-size and heavy-weight equipment, and adjust its inclination angle; at the same time, it can realize a wide range of positive and negative Tilt angle adjustment.

Description of drawings

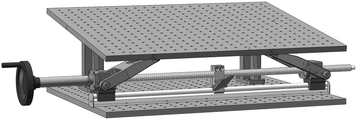

1 is a schematic structural diagram of a large-stroke and high-load tilt angle adjustment device according to the present invention;

FIG. 2 is a schematic structural diagram of the tilt adjustment process of a large stroke and high load tilt angle adjustment device according to the present invention;

In the picture: 1. Support arm; 2. Lifting arm; 3. Shaft seat; 4. Shaft; 5. Flat plate; 6. Cylindrical linear guide rail; 7. Slider; 8. Screw nut; 9. Handle; 10. Positioning Clamp; 11, lead screw; 12, lead screw holder; 13, limit piece; 14, hand wheel.

Detailed ways

The present invention will be further described in detail below with reference to the accompanying drawings and specific embodiments.

As shown in Figures 1 and 2, a large stroke and high load tilt angle adjustment device includes a flat plate 5, a cylindrical linear guide 6, a lead screw 11, a lead screw fixing seat 12, a support arm 1 and a lift arm 2, wherein, The plate 5 includes an upper plate and a lower plate arranged up and down, the inner side of the lower plate is connected with the inner side of the upper plate through two support arms 1, and the upper end of the support arm 1 is connected with the upper plate through a pin, so that the upper plate can wrap around the support arm 1. The pin at the upper end rotates; mounting holes are arranged on the flat plate 5 for installing other related components; a cylindrical linear guide 6 is installed on the outer flat surface of the lower flat plate, and two sliding blocks 7 are arranged on the cylindrical linear guide 6 , so that the slider 7 can slide left and right along the cylindrical linear guide rail 6; the slider 7 is installed with a screw fixing seat 12, and the screw 11 with the handwheel 14 at the end passes through the two screw fixing seats 12, and passes through the two screw fixing seats 12. When the handwheel 14 drives the lead screw 11 to rotate, it drives the two lead screw fixing seats 12 matched with the lead screw 11 to move in the direction of approaching or separating from each other; The shafts are connected, the other end of the lifting arm 2 is installed on the outer side of the upper plate through the shaft seat 3, and the screw fixing seat 12 moves left and right to drive the supporting height of the lifting arm to change, so that the upper plate rotates around the upper end of the lifting arm 2. The shaft seat The center of the rotating shaft 4 in 3 rotates, and the height of the support arm 1 changes very little, so as to realize the adjustment of the inclination angle; a positioning clip 10 is arranged in the middle of the cylindrical linear guide 6, and the positioning clip 10 is covered on the lead screw 11. Rotating the rotary handle 9 on the positioning clip 10 can lock or loosen the lead screw 11 ; limit pieces 13 are installed on both sides of the cylindrical linear guide 6 to prevent the slider 7 from sliding out of the cylindrical linear guide 6 .

Claims (8)

1. The utility model provides a large-stroke high-load inclination angle adjusting device which characterized in that: the device comprises a flat plate (5), a cylindrical linear guide rail (6), a lead screw (11), a lead screw fixing seat (12), a support arm (1) and a lifting arm (2), wherein the flat plate (5) is of two flat plate structures arranged up and down, one side of an upper flat plate and one side of a lower flat plate are connected through the support arm (1), the other side of the lower flat plate is provided with the cylindrical linear guide rail (6), the lead screw fixing seat (12) is matched and arranged on the cylindrical linear guide rail (6) through a sliding block (7), the lifting arm (2) is arranged between the lead screw fixing seat (12) and the upper flat plate, the lead screw (11) rotates in the lead screw fixing seat (12) through setting, the lead screw fixing seat (12) is driven to move along the cylindrical linear guide rail (6), the support height of the lifting arm (2) is changed.

2. The large-stroke high-load reclining angle adjusting device according to claim 1, wherein: lower dull and stereotyped outside on the flat plate face be equipped with cylinder linear guide (6) on be equipped with two slider (7) on be equipped with lead screw fixing base (12), through rotating lead screw (11), can make two lead screw fixing base (12) be close to each other or alternate segregation.

3. The large-stroke high-load reclining angle adjusting device according to claim 2, wherein: one end of the lifting arm (2) is connected with the screw fixing seat (12) through a pin shaft, the other end of the lifting arm (2) is fixedly connected with the upper flat plate through the rotating shaft seat (3), and the upper flat plate can be driven to rotate along the center of the rotating shaft (4) in the rotating shaft seat (3) at the upper end of the lifting arm (2) through the left-right movement of the screw fixing seat (12).

4. The large-stroke high-load reclining angle adjusting device according to claim 1, wherein: the lower end of the supporting arm (1) is fixedly connected with the lower flat plate, and the upper end of the supporting arm (1) is connected with the upper flat plate through a pin shaft, so that the upper flat plate can rotate around the pin shaft at the upper end of the supporting arm (1).

5. The large-stroke high-load reclining angle adjusting device according to claim 1, wherein: the locking device is characterized in that a positioning clamp (10) is arranged in the middle of the cylindrical linear guide rail (6), the positioning clamp (10) is coated on the lead screw (11), and the lead screw (11) can be locked or loosened by rotating a rotating handle (9) on the positioning clamp (10).

6. The large-stroke high-load reclining angle adjusting device according to claim 1, wherein: and limiting pieces (13) are arranged on two sides of the cylindrical linear guide rail (6) to prevent the sliding block (7) from sliding out of the cylindrical linear guide rail (6).

7. The large-stroke high-load reclining angle adjusting device according to claim 1, wherein: the flat plate (5) is provided with mounting hole sites which can be used for mounting other parts and carrying equipment to be inclined.

8. The large-stroke high-load reclining angle adjusting device according to claim 1, wherein: the end part of the lead screw is provided with a hand wheel (14), and the lead screw (11) can be rotated through the hand wheel (14).
