Abstract

The invention relates to a cultivation method and a pest trapping and killing device for guava orchards. The pest trapping and killing device includes a casing, a trapping unit, a connecting structure, and a trapping agent placing table; the casing is spherical; The hollow body, the diameter of the hollow body decreases linearly along the direction toward the inside of the casing, the capture unit also includes a capture head, the capture head is connected to the end with a smaller diameter of the hollow body, and is composed of more than 2 flexible sheets, the capture head The diameter becomes smaller in the direction toward the inside of the casing. The above device greatly increases the area for pests to stay, improves the trapping efficiency of pests, prevents pests from escaping, is convenient to manufacture and has low cost. Also disclosed is a guava cultivation method adopting the pest trapping and killing device of the above structure, which increases the guava yield and improves the fruit quality.

Description

A kind of guava cultivation method and pest trapping device

technical field

The invention relates to the technical field of agricultural planting, in particular to a guava cultivation method and a pest trapping and killing device.

Background technique

Guava is a tropical fruit tree, native to tropical America. It belongs to Myrtaceae guava. It is an evergreen small tree or shrub, commonly known as guava seed and Naba. Because it comes from abroad, it is called guava, which is one of the subtropical famous fruit varieties. Guava has strong growth adaptability, no choice of soil, and easy cultivation. However, during the planting process, the frequency of pests and diseases is high, which seriously affects the quality and yield. Therefore, it is very important to summarize the methods of integrated pest management of guava.

The main pests of guava are flower thrips, scale insects, fruit flies and so on.

Fruit fly adults lay their eggs in the guava peel, and after hatching, the larvae bore damage in the fruit, causing rot and early shedding of the fruit. In severe cases, the losses are enormous. In July-August, the number of insect populations is the largest, the generation overlap is serious, and there is no strict overwintering process. In southwestern Guangxi, 8 to 10 generations occur in a year, and they can occur every anniversary.

Control methods for fruit flies during guava cultivation include:

Physical control. The fruit is bagged to prevent the adult insects from laying eggs. At the young fruit stage and before the fruit fly adults lay eggs, the fruit is bagged and sprayed with 40% chlorpyrifos EC before bagging.

Drug control. In 69 months, use 800 times liquid of 40% chlorpyrifos EC, add 0.5kg of white sugar to every 50kg of the prepared liquid and spray it on the orchard weeds to trap and kill adults. After the harvest of guava each season, spray 40% chlorpyrifos EC or 800 times liquid of 45% phoxim EC on the canopy ground.

The above methods require a lot of manpower, and all use pesticides, which are detrimental to human health. In the prior art, a method of inducing and killing is generally used at the same time, that is, hanging insect traps, and guiding pests such as fruit flies into the container for killing. The insect traps in the prior art generally only have 3 or 4 induction ports located above the tank body, and the induction ports are set in a roundabout shape, so that it is difficult for pests to escape after entering the tank body. However, the circuitous structure makes it difficult to clean the trap, and there is still a risk of pests escaping due to the large cross-sectional area of the channel. In addition, the number of induced openings is small, and the outer dimension of the induced openings is small, so it is difficult for pests to find the entrance, and the effect of trapping pests is very limited.

SUMMARY OF THE INVENTION

In view of the above-mentioned defects of the prior art, the application provides a method for cultivating guava, which adopts a novel pest trapping and killing device, which effectively traps and kills insects during the guava cultivation process, and prevents the pests from escaping after entering the trapping and killing device, While the killing efficiency is greatly improved, it has the advantages of being easy to clean and simple to manufacture.

A guava cultivation pest trapping and killing device, comprising a casing 1, a capturing unit 2, a connecting structure 3, and a trapping agent placing table 4; the casing is spherical, the connecting structure is arranged directly above the casing, and the The trapping agent placing platform is located in the center of the housing; the capturing unit is arranged on the housing, the number of capturing units is more than 2, and the capturing unit includes a conical hollow body, the hollow body is directed toward the housing The diameter of the inner direction decreases linearly, the end of the hollow body with a larger diameter is located outside the casing, and the end of the hollow body with a smaller diameter is located inside the casing. The small end is connected and is composed of more than 2 flexible sheets, and the diameter of the capturing head becomes smaller in the direction toward the inside of the casing.

The above-mentioned trapping and killing device, by setting the trapping unit of the above structure, greatly increases the area where the pests stay, so that the pests enter the shell under the lure of the trapping agent, which greatly improves the trapping efficiency of the pests; One end of the small diameter is provided with a capturing head, which becomes smaller in diameter along the direction toward the center of the housing. The capturing head is composed of more than 2 flexible sheets. The above structure makes it easy for pests to enter the interior of the housing, but There is no way to escape from inside the shell. The minimum diameter of the catching head can be smaller than the diameter of the pests. Since the catching head is flexible and consists of more than 2 flexible sheets, the flexible sheets are easily stretched when the pests enter the interior of the shell, and the pests can still easily enter the shell. inside the body, but gets stuck when flying in the opposite direction.

Further, the casing is made of plastic, and the flexible sheet is made of rubber.

Further, the casing is transparent, and/or a rainproof and dustproof structure is arranged above the casing. A rain-proof and dust-proof structure can be provided when the pest trapping and killing device has a catching unit with an upward opening. The dust-proof and rain-proof structure is not shown in the figure. It is convenient to observe the pests trapped in the housing.

Further, the casing is divided into two half casings along a plane passing through the center point of the casing, and the two half casings are detachably connected. The above structure is convenient for disassembly and cleaning of the casing.

Further, the two half-shells are connected by threads.

Further, the half-shells are manufactured integrally with the hollow bodies of the capture units on the corresponding half-shells. The integrated manufacturing method is convenient to manufacture, with low cost and short construction period.

Further, the shape of the flexible sheets is a trapezoid, there is no gap between the flexible sheets, and/or the number of the flexible sheets is more than 4, which can be 4-16, preferably 6-12, as far as possible Cover the outer side of the shell, and can set trapping units directly below, the size of trapping units can be uniform, or can be large or small; the flexible sheet forms a hollow cone, and its inclination angle is the same as the hollow body of the trapping unit, or in The angle of inclination increases at the ends. Further, the end of the flexible sheet facing the center side of the casing is a tip, and/or the number of the flexible sheets is 4 or more. With the above-mentioned structure, when the pests enter the interior of the casing, the flexible sheet is easily stretched, and the pests can still easily enter the interior of the casing, but they will be stuck when flying in the opposite direction. The above two embodiments are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the present invention. within the scope of protection of the invention.

Further, the capturing head is a one-way piece that can only be opened toward the inside of the housing. In the case of no external force, it is normally closed. The one-way sheet can completely cover the small end hole of the hollow body, and is normally closed without external force. Closed state, thereby preventing pests from escaping the housing. Using the above structure, that is, replacing the capturing head with a one-way sheet, can also achieve the technical effects of improving capturing efficiency and preventing pests from escaping.

Further, the present application also discloses a guava cultivation method, which adopts the pest trapping and killing device of the above structure.

To sum up, the guava cultivation method and pest trapping and killing device of the present invention have at least the following advantages:

1. Greatly increases the area where pests stay, so that the pests enter the shell under the lure of the trapping agent, which greatly improves the trapping efficiency of the pests.

2. The design of the flexible sheet/unidirectional sheet makes the pests unable to escape from the shell after being lured into the shell, further improving the efficiency of killing pests.

3. The shell structure is easy to disassemble and clean, and the manufacturing method that the shell and the hollow body of the capturing unit are integrally formed is convenient to manufacture, with low cost and short construction period.

4. The detachable connection between the capture head and the hollow body can be replaced separately when the flexible sheet loses its elasticity when it reaches its service life or when the shell is damaged. The entire device does not need to be replaced, which further reduces the cost; it can also be based on the actual size of the pest. The capture head can be replaced according to the situation to further improve the capture efficiency.

5. In the process of guava cultivation, trap and kill fruit flies and other pests, increase guava yield and improve quality.

Description of drawings

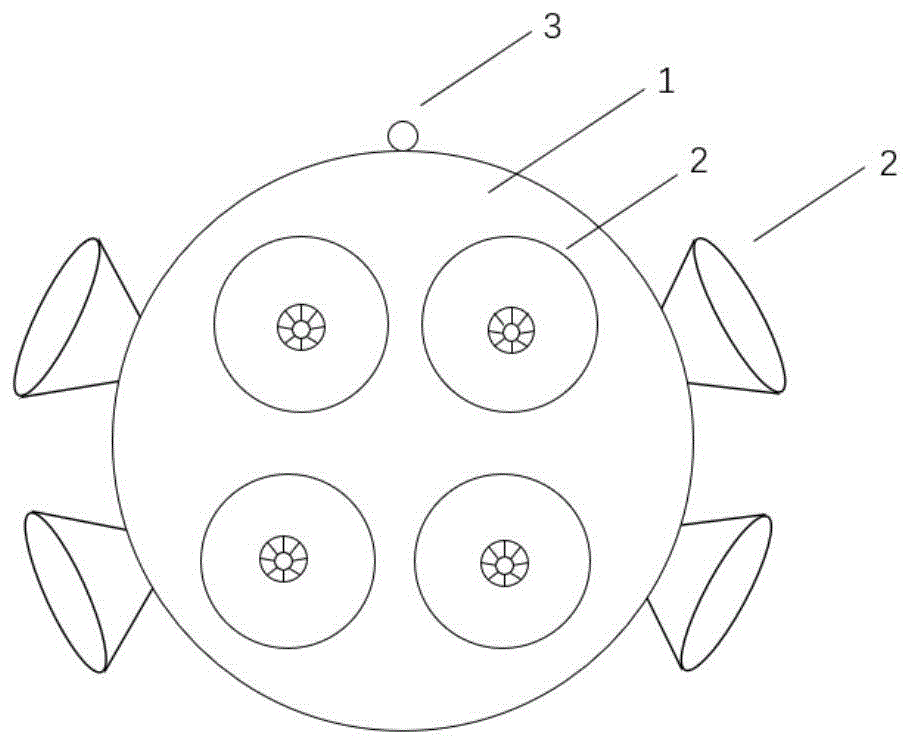

1 is a schematic diagram of the overall appearance structure of Embodiment 1 of the pest trapping and killing device of the present invention;

2 is a schematic diagram of an enlarged capture unit in Embodiment 1;

3 is a schematic diagram of the internal structure of the pest trapping and killing device in Embodiment 1;

4 is a schematic diagram of a partial structure of a capture unit in Embodiment 2 of the present invention;

FIG. 5 is a schematic diagram of a capture unit in Embodiment 3 of the present invention.

1. Housing, 2. Capture unit, 3. Connection structure, 4. Trap placement table, 21. Hollow body, 22. Capture head, 22'. Capture head, 22". Unidirectional sheet, 221. Flexible sheet, 221'. Flexible sheet.

Detailed ways

In order to facilitate understanding of the present invention, the present invention will be described more fully hereinafter with reference to the related drawings. Preferred embodiments of the invention are shown in the accompanying drawings. However, the present invention may be embodied in many different forms and is not limited to the embodiments described herein. Rather, these embodiments are provided so that a thorough and complete understanding of the present disclosure is provided.

It should be noted that when an element is referred to as being "fixed to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for illustrative purposes only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terms used herein in the description of the present invention are for the purpose of describing specific embodiments only, and are not intended to limit the present invention.

As shown in Figures 1 to 3, it is the first embodiment of the present invention, a trapping and killing device for guava cultivation pests, comprising a casing 1, a capturing unit 2, a connecting structure 3, and a trapping agent placing table 4; the casing It is spherical, the connecting structure 3 is arranged directly above the casing, the trapping agent placing table 4 is located at the center of the casing; the capturing unit 2 is arranged on the casing 1, and the number of capturing units 2 is 2 Above, the capture unit 2 includes a conical hollow body 21, the diameter of the hollow body 21 decreases linearly along the direction toward the interior of the casing, the larger diameter end of the hollow body 21 is located outside the casing, and the hollow body 21 has a smaller diameter One end of the hollow body 21 is located inside the housing, and the capture unit 2 also includes a capture head 22, which is connected to the end of the hollow body 21 with a smaller diameter, and is composed of more than two flexible sheets. The capture head 22 runs along the The diameter becomes smaller toward the inside of the housing.

The above-mentioned trapping and killing device, by setting the trapping unit of the above structure, greatly increases the area where the pests stay, so that the pests enter the shell under the lure of the trapping agent, which greatly improves the trapping efficiency of the pests; One end of the small diameter is provided with a capturing head, which becomes smaller in diameter along the direction toward the center of the housing. The capturing head is composed of more than 2 flexible sheets. The above structure makes it easy for pests to enter the interior of the housing, but There is no way to escape from inside the shell. The minimum diameter of the catching head can be smaller than the diameter of the pests. Since the catching head is flexible and consists of more than 2 flexible sheets, the flexible sheets are easily stretched when the pests enter the interior of the shell, and the pests can still easily enter the shell. inside the body, but gets stuck when flying in the opposite direction.

The housing 1 can be made of plastic, and the flexible sheet can be made of rubber. The casing 1 can be made of a transparent material, and the transparent casing can facilitate the observation of the pests captured in the casing. A rain-proof and dust-proof structure can be provided on the top of the housing 1, and a rain-proof and dust-proof structure can be set when the pest trapping and killing device has a trapping unit with an upward opening. The dust-proof and rain-proof structure is not shown in the figure. , and conventional means can be used, which will not be repeated here.

Preferably, the casing 1 is divided into two half casings (not shown in the figure) along a plane passing through the center point of the casing, and the two half casings are detachably connected. The above structure is convenient for disassembly and cleaning of the casing. Preferably, the two half-shells are connected by threads.

The half-shells are made in one piece with the hollow body 21 of the capture unit on the corresponding half-shell. The integrated manufacturing method is convenient to manufacture, with low cost and short construction period.

As shown in FIG. 2 , which is an enlarged schematic view of the capture unit, the shape of the flexible sheet 221 is a trapezoid, there is no gap between the flexible sheets, and/or the number of the flexible sheets is more than 4, and may be 4-16 , preferably 6-12, covering the outside of the shell as much as possible, and trapping units can be set directly below, the size of the trapping units can be uniform, or large or small; the flexible sheets form a hollow cone, which is inclined The angle is the same as the hollow body of the trapping unit, or the angle of inclination increases at the end.

As shown in Fig. 4, which is the second embodiment of the present invention, the end of the flexible sheet 221' facing the center side of the casing is a tip, and/or the number of flexible sheets is more than 4.

When the insect trapping head with the above two structures enters the casing, the flexible sheet is easily stretched, and the insects can still easily enter the casing, but will be stuck when flying in the opposite direction.

As shown in Fig. 5, which is the third embodiment of the present invention, the capturing head is a one-way piece 22" that can only be opened toward the inside of the housing. It is in a normally closed state when it is not affected by external force. The one-way piece 22” can completely cover the small end hole of the hollow body, and it is normally closed without external force. When the pest climbs in, it opens to the inside of the shell under the action of the pest’s thrust. After the pest enters the inside of the shell, it returns to close. state, thereby preventing pests from escaping the housing. Using the above structure, that is, replacing the capturing head with a one-way sheet, can also achieve the technical effects of improving capturing efficiency and preventing pests from escaping.

Further, the present application also discloses a guava cultivation method, which adopts the pest trapping and killing device of the above structure. The above pest trapping and trapping device is adopted to trap and kill pests such as fruit flies during the guava cultivation process, thereby increasing the guava yield and improving the quality.

The above are only preferred embodiments of the present invention and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention. within.

Claims (10)

1. The utility model provides a guava cultivation pest is caught and is trapped and kill device which characterized in that: comprises a shell, a capturing unit, a connecting structure and a trapping agent placing table; the shell is spherical, the connecting structure is arranged right above the shell, and the trapping agent placing table is positioned at the center of the shell; the capturing unit is arranged on the shell, the number of the capturing units is more than 2, the capturing unit comprises a conical hollow body, the diameter of the hollow body is linearly reduced along the direction towards the inside of the shell, the end with the large diameter of the hollow body is positioned on the outer side of the shell, the end with the small diameter of the hollow body is positioned inside the shell, the capturing unit further comprises a capturing head, the capturing head is connected with the end with the small diameter of the hollow body, the capturing head is composed of more than 2 flexible sheets, and the diameter of the capturing head is reduced along the direction towards the inside of the shell.

2. The guava cultivation pest trapping, trapping and killing device according to claim 1, wherein: the shell is made of plastics, and the flexible sheet is made of rubber.

3. The guava cultivation pest trapping, trapping and killing device according to claim 1, wherein: the shell is transparent, and/or a rainproof and dustproof structure is arranged above the shell.

4. The guava cultivation pest trapping, trapping and killing device according to claim 1, wherein: the housing is divided into two half-shells along a plane passing through the center point of the housing, and the two half-shells are detachably connected.

5. The guava cultivation pest trapping, trapping and killing device according to claim 4, wherein: the two half-shells are connected by means of a screw thread.

6. The guava cultivation pest trapping, trapping and killing device according to claim 4 or 5, wherein: the two half-shells are made integral with the hollow body of the capture unit on the corresponding half-shell.

7. The guava cultivation pest trapping and trapping device according to any one of claims 1 to 6, wherein: the flexible sheets are trapezoidal in shape, no gap is formed between the flexible sheets, and/or the number of the flexible sheets is more than 4.

8. The guava cultivation pest trapping and trapping device according to any one of claims 1 to 6, wherein: the end part of the flexible sheet facing to the center of the shell is a tip, and/or the number of the flexible sheets is more than 4.

9. The guava cultivation pest trapping and trapping device according to any one of claims 1 to 6, wherein: the capturing head is a one-way sheet which can only be opened towards the inside of the shell, and is in a normally closed state under the condition of not being influenced by external force.

10. A guava cultivation method, characterized in that the pest trapping and killing device according to any one of claims 1 to 9 is used.
