本发明提出一种卡盘便装式绝缘子，包括卡盘、卡盘固定螺丝、绝缘子固定螺丝和绝缘子。卡盘固定螺丝安装在卡盘下端的螺纹孔内，卡盘用于卡在横担上，通过卡盘固定螺丝的旋转将卡盘上沿与横担紧压在一起，并通过卡盘固定螺丝上的螺母将卡盘固定在横担上；绝缘子的下端通过绝缘子固定螺丝与卡盘上端的螺纹孔连接。本发明可以在大部分故障抢修中进行实际应用，有效提高整个重要任务工作供电保障的稳定性，具备较强的实际应用效果，提高高压供电的保障能力。
The invention provides a chuck-mounted insulator, comprising a chuck, a chuck fixing screw, an insulator fixing screw and an insulator. The chuck fixing screw is installed in the threaded hole at the lower end of the chuck. The chuck is used to clamp on the cross arm. The upper edge of the chuck and the cross arm are pressed together by the rotation of the chuck fixing screw, and the chuck fixing screw The nut on the upper part fixes the chuck on the cross arm; the lower end of the insulator is connected with the threaded hole at the upper end of the chuck through the fixing screw of the insulator. The invention can be practically applied in most fault repairs, effectively improves the stability of the power supply guarantee for the entire important task work, has a strong practical application effect, and improves the guarantee capability of high-voltage power supply.
Description
技术领域technical field
本发明属于供电技术领域，具体涉及一种卡盘便装式绝缘子。The invention belongs to the technical field of power supply, and in particular relates to a chuck-mounted insulator.
背景技术Background technique
对于锈死被击穿的绝缘子，通常采用的方法是使用钢锯锯断绝缘子的支撑杆来更换新的绝缘子，这种方法通常需要30分钟的时间，无法达到在短时间内恢复供电的要求，特别是在重要时机和工作阶段，长时间停电会造成不可估量的损失。因此，需要设计一种卡盘便装式绝缘子，以满足快速更换检修的需求。For rusted insulators that have been broken down, the usual method is to use a hacksaw to cut off the support rods of the insulators to replace the new insulators. This method usually takes 30 minutes and cannot meet the requirements of restoring power in a short time. Especially in important timing and working stages, a long-term power outage will cause immeasurable losses. Therefore, it is necessary to design a chuck-mounted insulator to meet the needs of quick replacement and maintenance.
发明内容SUMMARY OF THE INVENTION
(一)要解决的技术问题(1) Technical problems to be solved
本发明提出一种卡盘便装式绝缘子，以解决如何对绝缘子进行快速更换检修的技术问题。The invention proposes a chuck-mounted insulator to solve the technical problem of how to quickly replace and repair the insulator.
(二)技术方案(2) Technical solutions
为了解决上述技术问题，本发明提出一种卡盘便装式绝缘子，该绝缘子包括卡盘、卡盘固定螺丝、绝缘子固定螺丝和绝缘子；其中，卡盘固定螺丝安装在卡盘下端的螺纹孔内，卡盘用于卡在横担上，通过卡盘固定螺丝的旋转将卡盘上沿与横担紧压在一起，并通过卡盘固定螺丝上的螺母将卡盘固定在横担上；绝缘子的下端通过绝缘子固定螺丝与卡盘上端的螺纹孔连接。In order to solve the above-mentioned technical problems, the present invention proposes a chuck-mounted insulator, which includes a chuck, a chuck fixing screw, an insulator fixing screw and an insulator; wherein, the chuck fixing screw is installed in the threaded hole at the lower end of the chuck, The chuck is used to clamp on the cross arm, and the upper edge of the chuck and the cross arm are pressed together by the rotation of the chuck fixing screw, and the chuck is fixed on the cross arm through the nut on the chuck fixing screw; The lower end is connected with the threaded hole at the upper end of the chuck through an insulator fixing screw.
进一步地，卡盘固定螺丝设置有多个。Further, a plurality of chuck fixing screws are provided.
进一步地，卡盘具有U形结构。Further, the chuck has a U-shaped structure.
(三)有益效果(3) Beneficial effects
本发明提出一种卡盘便装式绝缘子，包括卡盘、卡盘固定螺丝、绝缘子固定螺丝和绝缘子。卡盘固定螺丝安装在卡盘下端的螺纹孔内，卡盘用于卡在横担上，通过卡盘固定螺丝的旋转将卡盘上沿与横担紧压在一起，并通过卡盘固定螺丝上的螺母将卡盘固定在横担上；绝缘子的下端通过绝缘子固定螺丝与卡盘上端的螺纹孔连接。本发明可以在大部分故障抢修中进行实际应用，有效提高整个重要任务工作供电保障的稳定性，具备较强的实际应用效果，提高高压供电的保障能力。The invention provides a chuck-mounted insulator, comprising a chuck, a chuck fixing screw, an insulator fixing screw and an insulator. The chuck fixing screw is installed in the threaded hole at the lower end of the chuck. The chuck is used to clamp on the cross arm. The upper edge of the chuck and the cross arm are pressed together by the rotation of the chuck fixing screw, and the chuck fixing screw The nut on the upper part fixes the chuck on the cross arm; the lower end of the insulator is connected with the threaded hole at the upper end of the chuck through the fixing screw of the insulator. The invention can be practically applied in most fault repairs, effectively improves the stability of the power supply guarantee for the entire important task work, has a strong practical application effect, and improves the guarantee capability of high-voltage power supply.
附图说明Description of drawings

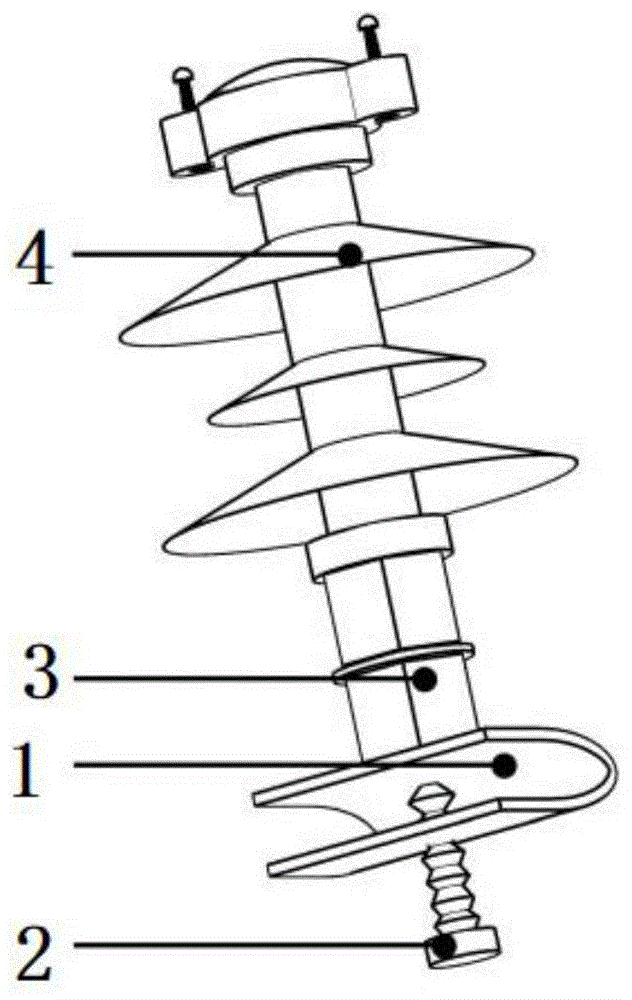

图1为本发明实施例的卡盘便装式绝缘子结构示意图。FIG. 1 is a schematic structural diagram of a chuck-mounted insulator according to an embodiment of the present invention.
具体实施方式Detailed ways
为使本发明的目的、内容和优点更加清楚，下面结合附图和实施例，对本发明的具体实施方式作进一步详细描述。In order to make the purpose, content and advantages of the present invention clearer, the specific embodiments of the present invention will be described in further detail below with reference to the accompanying drawings and embodiments.
本实施例提出一种卡盘便装式绝缘子，其结构如图1所示，主要包括卡盘1、卡盘固定螺丝2、绝缘子固定螺丝3和绝缘子4。其中，卡盘固定螺丝2安装在卡盘1下端的螺纹孔内，使用时将卡盘1卡在横担上，通过卡盘固定螺丝2的旋转产生向上的推力，从而将卡盘1的上沿与横担紧压在一起，并通过卡盘固定螺丝2上的螺母将卡盘1牢牢地固定在横担上。绝缘子4的下端通过绝缘子固定螺丝3与卡盘1上端的螺纹孔连接，从而将绝缘子4与卡盘1固定在一起。This embodiment proposes a chuck-mounted insulator whose structure is shown in FIG. 1 , and mainly includes a
本实施例的卡盘便装式绝缘子，可实现在没有固定孔的横担上安装引相线绝缘子；可在短时间内安全快速更换锈死、被击穿绝缘子；能够提高高压供电保障的稳定性。The chuck-mounted insulator of this embodiment can realize the installation of the lead wire insulator on the cross arm without a fixing hole; the rusted and broken insulator can be safely and quickly replaced in a short time; the stability of the high-voltage power supply can be improved. .
以上所述仅是本发明的优选实施方式，应当指出，对于本技术领域的普通技术人员来说，在不脱离本发明技术原理的前提下，还可以做出若干改进和变形，这些改进和变形也应视为本发明的保护范围。The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the technical principle of the present invention, several improvements and modifications can also be made. These improvements and modifications It should also be regarded as the protection scope of the present invention.
