CN111302208A - A kind of auxiliary device for lifting early warning protection of board used in construction site - Google Patents

Abstract

The invention relates to the technical field of construction, and discloses an auxiliary device for lifting, early warning and protection of a board for a construction site. The first sector gear is connected with a first shaft, the first shaft is connected with a block, the second gear is meshed with a second sector gear, and the second sector gear is connected with a second shaft. The construction site uses the plate lifting early warning protection auxiliary device. During use, if the plate is not clamped tightly and the workers do not find it, during the suspension process, the plate gradually slides in the clamping block, and as the plate gradually slides, it drives The rotation of the first gear and the second gear set in the clamping rod drives the connecting block connected to it to hold the building board, and the clamping teeth set on the block firmly clamp the building board to avoid the building board The fall creates a safety hazard.

Description

A kind of auxiliary device for lifting early warning protection of board used in construction site

technical field

The invention relates to the technical field of construction, in particular to an auxiliary device for lifting, early warning and protection of boards used in construction sites.

Background technique

Plates generally refer to soft flat materials with a thickness of more than 2 mm and hard flat materials with a thickness of more than 0.5 mm, and also refer to forged, rolled or cast metal plates. Building boards, because of their particularity, tend to be thicker.

With the rapid development of China's economy, various large-scale projects have begun to be constructed, and there are more and more construction sites. In construction sites, the importance of building boards is self-evident. Because of their own weight, building boards are also used to improve work efficiency. Efficiency, it is usually suspended by a suspension device. Due to the weight of the board on the construction site, and the working time of the construction site is too long, the bayonet of the suspension device is prone to slack, and the board may fall from the bayonet in the middle of the suspension. , There is a great potential safety hazard. These suspension devices do not have alarm devices, and it is difficult for workers to discover the problems of the suspension devices at the first time and make advance judgments.

Therefore, in view of the above situation, we propose an auxiliary device for early warning and protection of board lifting for construction sites, which has the advantages of ensuring that the board will not fall if the board is loose in the middle of the suspension, and can also make an alarm in advance.

SUMMARY OF THE INVENTION

In order to achieve the above purpose, the present invention provides the following technical solutions: an auxiliary device for lifting early warning and protection of plates for construction sites, comprising a device main body, a clamping opening is arranged at the bottom of the device main body, and a clamping opening is arranged above the clamping opening. A holding block, a holding rod is connected above the holding block, an alarm snap is connected on the holding rod, a tension spring is connected between the holding rods, and a third A gear and a second gear, the first gear is meshed with a first sector gear, the first sector gear is connected with a first shaft, the first shaft is connected with a block, the second A second sector gear is meshed with the gear, and a second shaft is connected to the second sector gear.

Preferably, the alarm snap is located at one end of the clamping rod, is symmetrical for two groups, and is movably connected with the clamping rod.

Preferably, the clamping rods are "L"-shaped rods, which are provided with two symmetrical groups, and the tension spring is located between the two clamping rods.

Preferably, both the first shaft rod and the second shaft rod are provided with a joint block, and the joint block is located directly below the clamping block.

Preferably, the size of the opening at the clamping port is consistent with the size of the opening between the clamping blocks, and both are smaller than the size of the opening between the combined blocks.

Preferably, a decompression spring is arranged inside the clamping port to reduce the rigid impact on the clamping port during clamping.

Preferably, clamping teeth are provided on the combined block to facilitate clamping and catching the building board.

beneficial effect

Compared with the prior art, the present invention provides an auxiliary device for lifting, early warning and protection of panels for construction sites, which has the following beneficial effects:

1. The construction site uses the board lifting early warning protection auxiliary device. When in use, the building board is clamped in the clamping port and in the clamping block. When the building board is clamped in the clamping block, the clamping block will be pushed toward the clamping block. When the two sides are spread apart, the clamping rod will move in the opposite direction to abut, and the alarm buckles on it will be firmly abutted together without making a sound; on the contrary, when the clamping block does not clamp the building board, The alarm buckles on the clamping rod will not abut together. When the plate is suspended, when the device is started, the alarm buckle will collide with the clamping rod during the movement, and an alarm sound will be issued, so as to facilitate the operation of the clamping rod. Workers discover problems in a timely manner and take early precautions to prevent accidents.

2. The construction site uses the board lifting early warning protection auxiliary device. When the board is not clamped tightly and the workers do not find it, the board gradually slides down in the clamping block during the suspension process, and as the board gradually slides down , drive the rotation of the first gear and the second gear arranged in the clamping rod, and then drive the rotation of the first sector gear and the second sector gear meshed with it, and the first shaft rod and the second shaft rod connected to it. Then the relative movement is carried out, and the connecting block connected to it is driven to clamp the building board, and the clamping teeth set on the block firmly clamp the building board, so as to avoid the safety hazard caused by the falling of the building board.

Description of drawings

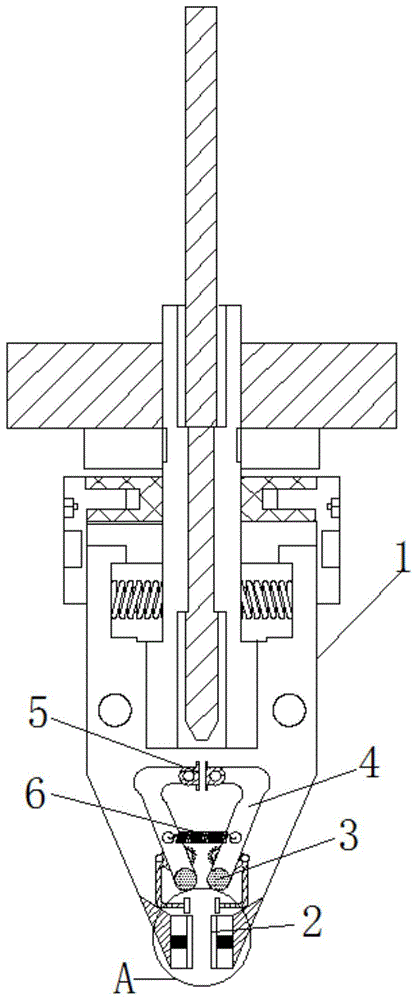

Fig. 1 is the internal structure schematic diagram of the present invention;

Fig. 2 is the structural representation of A region in Fig. 1 of the present invention;

3 is an enlarged schematic view of the structure above the clamping opening in FIG. 1 of the present invention;

4 is a schematic diagram of the connection relationship between the clamping rod of the clamping block and the alarm buckle according to the present invention;

FIG. 5 is a schematic diagram of the connection structure of the first gear, the first gear and the first sector gear and the second sector gear according to the present invention.

FIG. 6 is a schematic diagram of the motion state in FIG. 5 of the present invention.

In the figure: 1-device body, 2-clamping port, 3-clamping block, 4-clamping rod, 5-alarm buckle, 6-tension spring, 7-first gear, 8-first gear, 9-first sector gear, 10-first shaft, 11-joint block, 12-second sector gear, 13-second shaft, 14-decompression spring, 15-card teeth.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figures 1-6, an auxiliary device for lifting early warning and protection of panels for construction sites, including a device main body 1, a clamping port 2 is provided at the bottom of the device main body 1, a clamping block 3 is provided above the clamping port 2, and the clamping A clamping rod 4 is connected to the upper part of the holding block 3, an alarm buckle 5 is connected to the clamping rod 4, a tension spring 6 is connected between the clamping rods 4, and a first gear 7 and a first gear are arranged on the clamping rod 4. Second gear 8, the first gear 7 is meshed with a first sector gear 9, the first sector gear 9 is connected with a first shaft 10, the first shaft 10 is connected with a block 11, and the second gear 8 is meshed with The second sector gear 12, a second shaft 13 is connected to the second sector gear 12, the construction site uses the board lifting early warning protection auxiliary device, when in use, the building board is clamped in the clamping port 2, and the clamping block 3 Inside, when the building board is clamped in the clamping block 3, the clamping block 3 will be stretched to both sides, the clamping rod 4 will move in the opposite direction to abut, and the alarm buckle 5 on it will be firmly It is firmly abutted together without making a sound; on the contrary, when the clamping block 3 does not clamp the building board, the alarm buckle 5 on the clamping rod 4 will not abut together. When activated, the alarm snap 5 will collide with the clamping rod 4 during the movement, and an alarm sound will be emitted, so that the worker can find the problem in time and make advance prevention to prevent accidents. During use, if the plate is not clamped tightly and the worker does not find it, during the suspending process, the plate gradually slides down in the clamping block 3, and as the plate gradually slides down, the first gear set in the clamping rod 4 is driven. 7 and the rotation of the second gear 8, then drive the rotation of the first sector gear 9 and the second sector gear 12 meshing with them, and the first shaft rod 10 and the second shaft rod 13 connected to them perform relative movement accordingly. , drive the connecting block 11 to clamp the building board, and the clamping teeth 15 set on the block 11 firmly clamp the building board, so as to avoid the safety hazard caused by the falling of the building board.

The alarm snap 5 is located at one end of the clamping rod 4, which is symmetrical in two groups, and is movably connected with the clamping rod 4. The clamping rod 4 is an "L"-shaped rod, and there are two symmetrical groups. The extension spring 6 is located between the two clamping rods 4 , the first shaft rod 10 and the second shaft rod 13 are both provided with a joint block 11 , and the joint block 11 is located directly below the holding block 3 , at the clamping port 2 The size of the opening between the clamping blocks 3 is consistent with the size of the opening between the clamping blocks 3, and both are smaller than the size of the opening between the clamping blocks 11. A decompression spring 14 is arranged inside the clamping port 2 to reduce the clamping force during clamping. For the rigid impact of the mouthpiece 2, the engaging block 11 is provided with a clamping tooth 15, which is used to easily clamp and catch the building board.

Working principle: The construction site uses the board lifting early warning protection auxiliary device. When in use, the building board is clamped in the clamping port 2 and the clamping block 3. When the building board is clamped in the clamping block 3, the clamping block is clamped. 3 will be stretched to both sides, the clamping rod 4 will move in the opposite direction to abut, and the alarm buckle 5 on it will be firmly abutted together without making a sound; on the contrary, the clamping block 3. When the building board is not clamped, the alarm buckle 5 on the clamping rod 4 will not abut together. When the board is suspended, when the device is started, the alarm buckle 5 will be in the movement process. When the pole 4 collides, an alarm sound is issued, so that the workers can find the problem in time and make advance prevention to prevent accidents.

Please refer to Figures 1, 3, and 4 for the process and structure described above.

The construction site uses the plate lifting early warning protection auxiliary device. During use, if the plate is not clamped tightly and the workers do not find it, during the suspension process, the plate gradually slides down in the clamping block 3, and as the plate gradually slides down, It drives the rotation of the first gear 7 and the second gear 8 provided in the clamping rod 4, and then drives the rotation of the first sector gear 9 and the second sector gear 12 meshed with it, and the first shaft 10 connected to it. And the second shaft rod 13 moves relatively accordingly, driving the connecting block 11 connected to it to clamp the building board, and the clamping teeth 15 provided on the block 11 firmly clamp the building board to avoid the building board from being damaged. Falling creates a safety hazard.

Please refer to Figures 1, 5, and 6 for the above process and structure.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a panel promotes early warning protection auxiliary device for building site, includes device main part (1), its characterized in that: the device is characterized in that a clamping opening (2) is formed in the bottom of the device body (1), clamping blocks (3) are arranged above the clamping opening (2), clamping rods (4) are connected above the clamping blocks (3), alarming buckles (5) are connected onto the clamping rods (4), extension springs (6) are connected between the clamping rods (4), first gears (7) and second gears (8) are arranged on the clamping rods (4), first sector gears (9) are meshed on the first gears (7), first shaft levers (10) are connected onto the first sector gears (9), the closing blocks (11) are connected onto the first shaft levers (10), second sector gears (12) are meshed onto the second gears (8), and second shaft levers (13) are connected onto the second sector gears (12).

2. The board lifting early warning protection auxiliary device for the construction site as claimed in claim 1, characterized in that: the clamping rods (4) are L-shaped rods, two symmetrical groups are arranged, and the extension spring (6) is positioned between the two clamping rods (4).

3. The board lifting early warning protection auxiliary device for the construction site as claimed in claim 1, characterized in that: the alarm combining buckles (5) are positioned at one end of the clamping rods (4), are symmetrical and are movably connected with the clamping rods (4).

4. The board lifting early warning protection auxiliary device for the construction site as claimed in claim 1, characterized in that: the first shaft lever (10) and the second shaft lever (13) are both provided with a combining block (11), and the combining block (11) is positioned right below the clamping block (3).

5. The board lifting early warning protection auxiliary device for the construction site as claimed in claim 1, characterized in that: the size of the opening at the clamping opening (2) is consistent with that of the opening between the clamping blocks (3), and the sizes of the openings are smaller than those of the openings between the combining blocks (11).

6. The board lifting early warning protection auxiliary device for the construction site as claimed in claim 1, characterized in that: and a pressure reducing spring (14) is arranged in the clamping opening (2).

7. The board lifting early warning protection auxiliary device for the construction site as claimed in claim 1, characterized in that: the combination block (11) is provided with a latch (15).
