Abstract

The invention discloses an efficient and thorough cleaning device for fruit processing, comprising a washing tank, a cleaning box, a cleaning mechanism and a filtering mechanism. The cleaning box is arranged at the lower end of the cleaning mechanism, and the cleaning mechanism is fixed on the upper port of the cleaning box. The left side of the cleaning box is provided with a flushing pool, and the water inside the flushing pool is mixed with fine plastic particles, the cleaning box and the flushing pool are connected, and a first blocking plate is arranged at the connection between the cleaning box and the flushing pool, and the first blocking plate is There are dense blocking holes, and the discharge end of the cleaning mechanism is set at the upper port of the flushing tank. Through the continuous rotation of the cleaning screw in the cleaning mechanism, the fruit is continuously rolled and moved to the discharge end of the cleaning mechanism, and the bristles on the surface of the spiral belt of the cleaning screw and the inner surface of the cleaning cylinder remove impurities and garbage on the fruit. After cleaning, it has high cleaning efficiency and ensures better cleaning effect.

Description

An efficient and thorough cleaning device for fruit processing

technical field

The invention relates to the technical field of fruit cleaning, in particular to an efficient and thorough cleaning device for fruit processing.

Background technique

Fruit refers to juicy and mainly sweet and sour taste, edible plant fruit. Fruit is not only rich in nutrients, but also can promote digestion. In the existing life, various fruit products are processed to meet people's needs, and various fruit products need to be cleaned before processing to ensure processed fruit products. the quality of.

However, the existing fruit cleaning device has low cleaning efficiency for fruit, cannot achieve rapid cleaning of fruit, and cannot guarantee the thoroughness of fruit cleaning during fruit cleaning, so that impurities carried on the fruit affect the quality of subsequent processed products. quality.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an efficient and thorough cleaning device for fruit processing, which aims to improve the problems of low cleaning efficiency and incomplete cleaning of existing fruit cleaning devices.

The present invention is realized in this way:

An efficient and thorough cleaning device for fruit processing, comprising a flushing tank, a cleaning box, a cleaning mechanism and a filtering mechanism, a cleaning box is arranged at the lower end of the cleaning mechanism, and the cleaning mechanism is fixed on the upper port of the cleaning box, and the left side of the cleaning box is provided with a cleaning box. There is a flushing pool on the side, and the water inside the flushing pool is mixed with fine plastic particles. The cleaning box is connected with the flushing pool. The blocking hole, the discharge end of the cleaning mechanism is set at the upper port of the flushing tank, the feeding mechanism is set on one side of the cleaning mechanism near the right end, and the feeding mechanism is fixed on the upper end face of the cleaning box, and the feeding mechanism discharges the material. The end is connected with the cleaning mechanism, one side of the flushing tank is provided with a discharge box, and the discharging box is communicated with the flushing tank, one side of the cleaning box is provided with a filtering mechanism, and the filtering mechanism is fixedly connected with the cleaning box, and the lower port of the cleaning box A collection bucket is provided, and the collection bucket is set to a conical shape. The lower end of the collection bucket is connected with a water pump through a pipeline, and the water outlet end of the water pump is connected with the water inlet pipe of the filter mechanism through a pipeline. And the water outlet of the water pump is connected with a spray pipe through a pipeline, and the spray pipe is arranged at the upper port of the discharge box. The bottom of the flushing tank and the cleaning box are provided with legs, and the fruit to be cleaned enters the cleaning through the feeding mechanism. In the mechanism, the fruit is quickly cleaned by the cleaning mechanism, and the cleaned fruit is washed and polished in the washing tank with water mixed with plastic particles to thoroughly clean the impurities on the fruit to ensure the quality of the processed fruit products.

Further, the cleaning mechanism includes a cleaning barrel and a cleaning screw, the cleaning screw is arranged in the cleaning barrel, and the central rotating shaft of the cleaning screw passes through one end of the cleaning barrel and is fixedly connected with a motor, and the surface of the spiral blade of the cleaning screw and the inner side of the cleaning barrel are fixedly connected. The surface is provided with bristles, and the fruit cleaning cylinder is driven to roll by the continuous rotation of the cleaning screw, while the fruit is continuously brushed by the bristles, which not only has a good cleaning effect but also has a high fruit cleaning efficiency.

Further, the cleaning cylinder is composed of an upper cylinder and a lower cylinder, one side of the upper cylinder and the lower cylinder are hinged, and the other sides of the upper cylinder and the lower cylinder are fixedly provided with connecting blocks, and the two are connected. The blocks are fixedly connected by screws, the surface of the lower cylinder is provided with dense water holes, and the bristles on the inner side of the cleaning cylinder are evenly arranged on the inner surface of the lower cylinder. The cleaning cylinder is easy to open to clean the residual garbage inside, and the cleaning is convenient and quick.

Further, the filter mechanism includes a water storage cylinder and a filter cylinder, the upper port of the water storage cylinder is provided with a cylinder cover, and the lower end of the water storage cylinder is provided with a fixing plate, the water storage cylinder is fixed on the fixing plate, and one end of the fixing plate is fixed on the cleaning plate by screws. On the box, the upper end of the water inlet pipe passes upward through the fixing plate and the bottom of the water storage cylinder and is arranged in the center of the inner side of the water storage cylinder, and one end of the drain pipe passes upward through the fixing plate and the water storage cylinder and is arranged at the bottom of the inner side of the water storage cylinder near the edge. The inner side of the water cylinder is provided with a filter cartridge, and the filter cartridge is sleeved on the water inlet pipe, the water drawn from the cleaning box is filtered through the set filter cartridge, and the filtered water is discharged through the drain pipe in the water storage cylinder for recycling.

Further, the filter cartridge is a stainless steel filter cartridge, and filter cotton is arranged on the inner side wall surface of the filter cartridge, a vertical sleeve is fixedly arranged in the center of the inner side of the filter cartridge, and the upper end of the sleeve is fixedly connected with a water blocking sheet through a connecting column, The filter cartridge is sleeved on the water inlet pipe through a sleeve to facilitate the removal of the filter cartridge, to facilitate dumping of the residue filtered by the filter cartridge, and to facilitate the replacement of the filter cartridge.

Further, the feeding mechanism includes a hopper and a feeding box, the feeding box is fixedly arranged at the lower end of the hopper, and a feeding conveyor belt is arranged inside the feeding box, the discharge end of the feeding box is fixedly connected with the cleaning cylinder of the cleaning mechanism, and the hopper is fixedly connected. The inner side wall of the hopper is fixed with a spray head near the upper end, and the spray head is connected with a water pump through a pipeline, and the water inlet end of the water pump is connected with the cleaning box through a pipeline, and the fruit in the hopper is transported into the cleaning mechanism through the feeding conveyor belt for cleaning. The nozzle pre-moistens the fruit in the hopper to facilitate subsequent cleaning.

Further, the flushing tank includes a flushing box body, and a plurality of flushing pipes are arranged on the inner bottom of the flushing box body, and the lower ends of the plurality of flushing pipes pass through the bottom of the flushing box body and are connected to a water pump through pipes, and the water inlet end of the water pump passes through the bottom of the flushing box body. The pipeline is connected with a suction pipe, the water inlet end of the suction pipe is connected with the bottom of the flushing box, and the suction pipe is arranged near the front end of the flushing box. The front end of the flushing box is fixed with a discharge box, and the flushing box and the discharge box Connected to each other, a second blocking plate is arranged at the connection between the flushing box and the discharge box, and the blocking plate is located above the suction pipe, and the inner side of the flushing box is located on the rear side wall. The water of the plastic particles is pumped away and sprayed upward through the flushing pipe, so that the water mixed with the plastic particles can wash and polish the fruit, so that the fruit can be cleaned more thoroughly.

Further, a discharge conveyor belt is arranged on the inner side of the discharge box, and the discharge end of the discharge conveyor belt is inclined upward. The feeding conveyor belt sends the fruit to the feeding board and discharges it.

Further, the water diversion mechanism includes a blocking cylinder and a helical blade, one end of the blocking cylinder is fixedly arranged on the side wall of the flushing box, the surface of one end of the blocking cylinder close to the side wall of the flushing box is provided with a water replenishing hole, and the helical blade is arranged on the blocking cylinder. Inside, and the central rotating shaft of the spiral blade is fixedly connected with a motor through the side wall of the flushing box, and the fruit in the flushing box is flushed to the discharge box by the provided spiral blade to move the water flow, so that the cleaned fruit can be discharged.

Compared with the prior art, the beneficial effects of the present invention are:

(1), in the present invention, through the continuous rotation of the cleaning screw in the cleaning mechanism provided, the fruit is continuously rolled and moved toward the discharge end of the cleaning mechanism, and the spiral belt surface of the cleaning screw and the inner surface of the cleaning cylinder are provided The bristles clean up the impurities and garbage on the fruit, which has a high cleaning efficiency and ensures a good cleaning effect at the same time. The water is sprayed upward to rinse and polish the fruits in the washing box to clean the surface of the fruits, ensure the thoroughness of the cleaning of the fruits, and ensure the quality of the processed fruit products.

Description of drawings

In order to explain the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the embodiments. It should be understood that the following drawings only show some embodiments of the present invention, and therefore do not It should be regarded as a limitation of the scope, and for those of ordinary skill in the art, other related drawings can also be obtained according to these drawings without any creative effort.

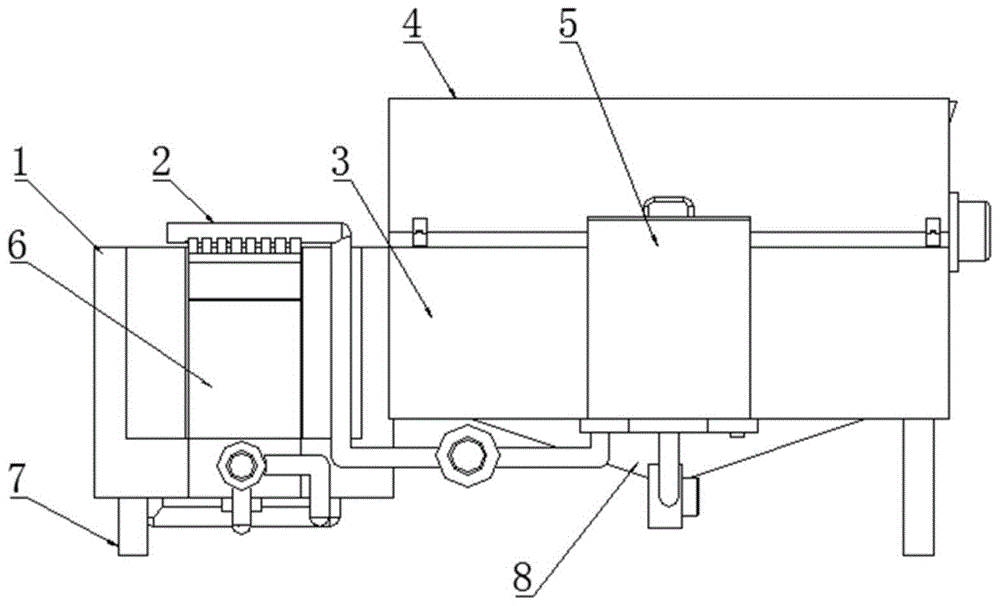

Fig. 1 is the front view of a kind of efficient and thorough cleaning fruit processing cleaning device of the present invention;

Fig. 2 is the sectional view of a kind of efficient and thorough cleaning fruit processing cleaning device shown in Fig. 1;

Fig. 3 is the top view of a kind of efficient and thorough cleaning fruit processing cleaning device shown in Fig. 1;

Figure 4 is a perspective view of a cleaning device for fruit processing with high efficiency and thorough cleaning as shown in Figure 1;

Fig. 5 is the cleaning mechanism schematic diagram of a kind of efficient and thorough cleaning fruit processing cleaning device shown in Fig. 4;

Fig. 6 is the filter mechanism schematic diagram of a kind of efficient and thorough cleaning fruit processing cleaning device shown in Fig. 4;

Fig. 7 is the filter cartridge schematic diagram of a kind of efficient and thorough cleaning fruit processing cleaning device shown in Fig. 6;

Figure 8 is a schematic diagram of the feeding mechanism of a cleaning device for fruit processing with high efficiency and thorough cleaning shown in Figure 4;

Figure 9 is a schematic diagram of a flushing tank of a cleaning device for fruit processing with high efficiency and thorough cleaning as shown in Figure 4;

Figure 10 is a schematic diagram of a flushing tank of a cleaning device for fruit processing with high efficiency and thorough cleaning shown in Figure 9;

FIG. 11 is a schematic diagram of a water-removing mechanism of an efficient and thorough cleaning device for fruit processing shown in FIG. 4 .

In the figure: 1. Flushing tank; 110, Flushing box; 120, Flushing pipe; 130, Second blocking plate; 140, Suction pipe; 2. Sprinkler pipe; 3. Cleaning box; 4. Cleaning mechanism; Cylinder body; 411, connecting block; 42, lower cylinder body; 421, water passage hole; 43, cleaning screw; 44, bristles; 5, filter mechanism; 51, water storage cylinder; 52, drain pipe; 53, cylinder cover; 54 , filter cartridge; 541, casing; 542, water baffle; 55, fixed plate; 56, water inlet pipe; 6, discharge box; 61, material guide plate; 62, discharge conveyor belt; 7, outrigger; 8 , collecting hopper; 9, water repelling mechanism; 91, blocking cylinder; 911, water replenishing hole; 92, spiral blade; 10, feeding mechanism; 101, hopper; 102, nozzle; 103, feeding box; 104, feeding conveyor belt; 11. The first blocking plate.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments These are some embodiments of the present invention, but not all of them. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention. Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Embodiment 1, please refer specifically to Fig. 1, Fig. 2, Fig. 3 and Fig. 4, a kind of efficient and thorough cleaning fruit processing cleaning device, including flushing tank 1, cleaning box 3, cleaning mechanism 4 and filter mechanism 5, cleaning The lower end of the mechanism 4 is provided with a cleaning box 3, and the cleaning mechanism 4 is fixed on the upper port of the cleaning box 3, and provides cleaning water for the cleaning mechanism 4 through the cleaning box 3. The left side of the cleaning box 3 is provided with a flushing pool 1, and the flushing pool 1. Small plastic particles are mixed in the inner water, and the surface of the fruit is polished to achieve a more thorough cleaning through the plastic particles in the water. The cleaning box 3 is connected to the flushing pool 1. The blocking plate 11, and the first blocking plate 11 is provided with dense blocking holes. The first blocking plate 11 is placed to filter the water flowing into the cleaning tank 3 in the flushing tank 1 to prevent plastic particles from mixing into the cleaning tank 3. The cleaning mechanism 4 The discharge end of the cleaning tank 1 is set at the upper port of the washing tank 1, and a feeding mechanism 10 is provided on one side of the cleaning mechanism 4 near the right end, and the feeding mechanism 10 is fixed on the upper end surface of the cleaning tank 3. The outlet of the feeding mechanism 10 The material end is communicated with the cleaning mechanism 4, a discharge box 6 is provided on one side of the flushing tank 1, and the discharging box 6 is communicated with the flushing pool 1, and a filtering mechanism 5 is provided on one side of the cleaning box 3, and the filtering mechanism 5 is connected with the cleaning mechanism 5. The box 3 is fixedly connected, the lower port of the cleaning box 3 is provided with a collection bucket 8, and the collection bucket 8 is set to a cone shape, the collection bucket 8 realizes the collection of impurities in the water in the cleaning box 3, and the lower end of the collection bucket 8 is connected by a pipeline There is a water pump, and the water outlet end of the water pump is connected with the water inlet pipe 56 of the filter mechanism 5 through the pipeline, the drain pipe 52 of the filter mechanism 5 is connected with the water pump through the pipeline, and the water outlet end of the water pump is connected with the spray pipe 2 and the cleaning box 3 through the pipeline. The sewage inside is filtered and purified by the filter mechanism 5 and sprayed out through the spray pipe 2 to realize recycling. The fruits are rinsed. The bottoms of the rinse tank 1 and the cleaning box 3 are provided with legs 7. The fruits to be cleaned enter the cleaning mechanism 4 through the feeding mechanism 10, and the fruits are quickly cleaned by the cleaning mechanism 4. In the rinsing tank 1, the impurities on the fruit are thoroughly cleaned by rinsing and grinding with water mixed with plastic particles, so as to ensure the quality of the processed fruit products.

5, the cleaning mechanism 4 includes a cleaning cylinder and a cleaning screw 43. The cleaning screw 43 is arranged in the cleaning cylinder, and the central axis of the cleaning screw 43 passes through one end of the cleaning cylinder and is fixedly connected to a motor. The surface of the spiral blade and the inner surface of the cleaning cylinder are provided with bristles 44. The continuous rotation of the cleaning screw 43 drives the fruit cleaning cylinder to roll while continuously brushing the fruit through the bristles, which not only has a good cleaning effect, but also has a high fruit quality Cleaning efficiency, the cleaning cylinder is composed of an upper cylinder 41 and a lower cylinder 42, one side of the upper cylinder 41 and the lower cylinder 42 are hinged, and the other side of the upper cylinder 41 and the lower cylinder 42 is fixedly provided with a connection. Block 411, and the two connecting blocks 411 are fixedly connected by screws, the surface of the lower cylinder 42 is provided with dense water holes 421, and the bristles 44 inside the cleaning cylinder are evenly arranged on the inner surface of the lower cylinder 42, The cleaning cylinder formed by the hinged connection of the upper cylinder 41 and the lower cylinder 42 is convenient to open to clean the residual garbage inside, and the cleaning is convenient and quick.

6 and 7, the filter mechanism 5 includes a water storage cylinder 51 and a filter cylinder 54. The upper port of the water storage cylinder 51 is provided with a cylinder cover 53, and the lower end of the water storage cylinder 51 is provided with a fixing plate 55. The water storage cylinder 51 is fixed on the On the fixing plate 55, and one end of the fixing plate 55 is fixed on the cleaning box 3 by screws, the upper end of the water inlet pipe 56 upwardly passes through the fixing plate 55 and the bottom of the water storage cylinder 51 and is arranged in the inner center of the water storage cylinder 51, and one end of the drain pipe 52 Passing upward through the fixing plate 55 and the water storage cylinder 51 and arranged at the inner bottom of the water storage cylinder 51 near the edge, the inner side of the water storage cylinder 51 is provided with a filter cylinder 54, and the filter cylinder 54 is sleeved on the water inlet pipe 56. The filter cartridge 54 filters the water extracted from the cleaning box 3, and the filtered water is discharged through the drain pipe 52 in the water storage cartridge 51 for recycling. The inner side wall surface of the cylinder 54 is provided with filter cotton, through which the filtration and purification of sewage is realized. The inner center of the filter cylinder 54 is fixedly provided with a vertical sleeve 541, and the upper end of the sleeve 541 is fixedly connected with a water blocking sheet 542 through a connecting column. , the water sprayed from the water inlet pipe 56 is blocked by the provided water blocking sheet 542 so that it is sprayed to both sides to avoid upward spraying to the outside. Taking out, it is convenient to pour out the residue filtered by the filter cartridge 54 , and at the same time, it is convenient to replace the filter cartridge 54 .

8 , the feeding mechanism 10 includes a hopper 101 and a feeding box 103 . The feeding box 103 is fixedly arranged at the lower end of the hopper 101 , and a feeding conveyor belt 104 is arranged inside the feeding box 103 . It is fixedly connected with the cleaning cylinder of the cleaning mechanism 4, and the inner side wall of the hopper 101 is fixedly provided with a spray head 102 near the upper end, and the spray head 102 is connected with a water pump through a pipeline, and the water inlet end of the water pump is connected with the cleaning box 3 through a pipeline, and is fed through a pipe. The conveyor belt 104 transports the fruit in the hopper 101 into the cleaning mechanism 4 for cleaning, and pre-wet the fruit in the hopper 101 through the nozzle 102 to facilitate subsequent cleaning.

9 and 10 , the flushing tank 1 includes a flushing box 110 , a plurality of flushing pipes 120 are arranged at the inner bottom of the flushing box 110 , and the lower ends of the plurality of flushing pipes 120 pass through the bottom of the flushing box 110 . If a water pump is connected to the pipeline, the water inlet end of the water pump is connected to a water pumping pipe 140 through the pipeline, the water inlet end of the water pumping pipe 140 is connected to the bottom of the flushing box 110, and the water pumping pipe 140 is arranged near the front end of the flushing box 110, and the flushing box 110 A discharge box 6 is fixedly arranged on the front end surface of the washing machine, and the flushing box 110 is connected with the discharging box 6. A second blocking plate 130 is provided at the connection between the flushing box 110 and the discharging box 6, and the blocking plate 130 is located in the suction pipe. Above the 140, the second blocking plate 130 is provided to block the fruit to prevent the water pipe 140 from being blocked. The inner side of the flushing box 110 is located on the rear side wall and is fixedly provided with a water diverting mechanism 9. The water is pumped away and sprayed upward through the flushing pipe 120, so that the water mixed with plastic particles washes and grinds the fruit so that the fruit is cleaned more thoroughly. The inside of the discharge box 6 is provided with a discharge conveyor belt 62, and the discharge conveyor belt The discharge end of the 62 is inclined upward, and the discharge box 6 is fixed at the front end with a guide plate 61 matched with the discharge conveyor belt 62, and the fruit is sent to the guide plate 61 through the discharge conveyor belt 62 and discharged.

11 , the water repelling mechanism 9 includes a blocking cylinder 91 and a helical blade 92, one end of the blocking cylinder 91 is fixedly arranged on the side wall of the flushing box 110, and the blocking cylinder 91 is arranged on the surface of one end of the side wall of the flushing box 110. There is a water replenishment hole 911, and the blocking cylinder 91 is provided to prevent the fruit from being sucked and cut by the spiral leaf 92. At the same time, the water replenishing hole 911 is used for the water supply of the spiral leaf 92 to replenish the water source. The central rotating shaft passes through the side wall of the flushing box 110 and is fixedly connected to a motor, and the water in the flushing box 110 is flushed to the discharge box 6 by the provided helical blade 92 to move the water flow to facilitate the discharge of the cleaned fruit.

In the present invention, the hopper 101 in the feeding mechanism 10 transports the fruit in the hopper 101 into the cleaning mechanism 4 through the feeding conveyor belt 104 for cleaning, and the fruit in the hopper 101 is pre-wetted by the nozzle 102 to facilitate subsequent cleaning. The cleaning screw 43 in the cleaning mechanism 4 is continuously rotated to drive the fruit to continuously roll and move toward the discharge end of the cleaning mechanism 4, and the fruit is removed by the bristles provided on the surface of the spiral belt of the cleaning screw 43 and the inner surface of the cleaning cylinder. The impurities and garbage are cleaned out, which has a high cleaning efficiency. The cleaned fruit enters the flushing box 110 of the flushing tank 1, and the water mixed with plastic particles is pumped away through the suction pipe 140 and sprayed upward through the flushing pipe 120. The water mixed with plastic particles is used to wash and polish the fruit, so that the cleaning of the fruit is more thorough, and the water in the flushing box 110 is flushed to the discharge box 6 by setting the spiral blade 92 of the water diverting mechanism 9 to push the water flow to facilitate cleaning. After the good fruit is discharged, the discharge conveyor belt 62 transports the washed fruit to the outside and washes away the plastic particles and impurities on the fruit under the flushing of the spray pipe 2 .

The device obtained through the above design can basically satisfy the high cleaning efficiency and thorough cleaning of the existing fruit cleaning device, but in line with the purpose of further improving its function, the designer has further improved the device.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (9)

1. an efficient and thorough cleaning device for fruit processing, comprising a flushing tank (1), a cleaning box (3), a cleaning mechanism (4) and a filtering mechanism (5), characterized in that: the cleaning mechanism (4) The lower end of the cleaning box (3) is provided with a cleaning box (3), and the cleaning mechanism (4) is fixed on the upper port of the cleaning box (3). The left side of the cleaning box (3) is provided with a flushing pool (1), and the flushing pool ( 1) Fine plastic particles are mixed in the inner water, the cleaning box (3) is communicated with the flushing pool (1), and a first blocking plate (11) is provided at the connection between the cleaning box (3) and the flushing pool (1), And the first blocking plate (11) is provided with dense blocking holes, the discharge end of the cleaning mechanism (4) is set at the upper port of the flushing tank (1), and one side of the cleaning mechanism (4) is close to A feeding mechanism (10) is provided at the right end position, and the feeding mechanism (10) is fixed on the upper end surface of the cleaning box (3), and the discharge end of the feeding mechanism (10) is communicated with the cleaning mechanism (4), the flushing One side of the pool (1) is provided with a discharge box (6), and the discharge box (6) is communicated with the flushing pool (1), one side of the cleaning box (3) is provided with a filter mechanism (5), and The filter mechanism (5) is fixedly connected with the cleaning box (3), the lower port of the cleaning box (3) is provided with a collection bucket (8), and the collection bucket (8) is arranged to be conical, the collection bucket (8) ) is connected with a water pump through a pipeline, and the water outlet end of the water pump is connected with a water inlet pipe (56) of the filter mechanism (5) through a pipeline, and the drain pipe (52) of the filter mechanism (5) is connected with a water pump through a pipeline, and The water outlet end of the water pump is connected with a spray pipe (2) through a pipeline, and the spray pipe (2) is arranged at the upper port of the discharge box (6). The bottoms are all provided with legs (7). 2. An efficient and thorough cleaning device for fruit processing according to claim 1, wherein the cleaning mechanism (4) comprises a cleaning cylinder and a cleaning screw (43), and the cleaning screw (43) ) is arranged in the cleaning cylinder, and the central rotating shaft of the cleaning screw (43) is fixedly connected with a motor through one end of the cleaning cylinder, and the surface of the spiral blade of the cleaning screw (43) and the inner surface of the cleaning cylinder are provided with bristles ( 44). 3. An efficient and thorough cleaning device for fruit processing according to claim 2, characterized in that the cleaning cylinder is composed of an upper cylinder (41) and a lower cylinder (42), the upper One side of the cylinder body (41) and the lower cylinder body (42) are hinged, and the other side of the upper cylinder body (41) and the lower cylinder body (42) are fixedly provided with connecting blocks (411), and the two connecting blocks ( 411) are fixedly connected by screws, the surface of the lower cylinder (42) is provided with dense water holes (421), and the bristles (44) on the inside of the cleaning cylinder are evenly arranged on the bottom of the lower cylinder (42). inner surface. 4. An efficient and thorough cleaning device for fruit processing according to claim 3, wherein the filter mechanism (5) comprises a water storage cylinder (51) and a filter cylinder (54), the water storage cylinder The upper port of (51) is provided with a cylinder cover (53), and the lower end of the water storage cylinder (51) is provided with a fixing plate (55), the water storage cylinder (51) is fixed on the fixing plate (55), and the fixing plate ( One end of 55) is fixed on the cleaning box (3) by screws, and the upper end of the water inlet pipe (56) passes upward through the fixing plate (55) and the bottom of the water storage cylinder (51) and is arranged in the inner center of the water storage cylinder (51), One end of the drain pipe (52) passes upward through the fixing plate (55) and the water storage cylinder (51) and is arranged at the inner bottom of the water storage cylinder (51) near the edge, and the inner side of the water storage cylinder (51) is provided with a A filter cartridge (54) is sleeved on the water inlet pipe (56). 5. a kind of efficient and thorough cleaning fruit processing cleaning device according to claim 4, is characterized in that, described filter cartridge (54) selects stainless steel filter cartridge for use, and is arranged on the inner side wall surface of filter cartridge (54) There is filter cotton, a vertical sleeve (541) is fixedly arranged in the inner center of the filter cartridge (54), and the upper end of the sleeve (541) is fixedly connected with a water blocking sheet (542) through a connecting column, and the filter cartridge (541) 54) Set on the water inlet pipe (56) through the casing (541). 6. An efficient and thorough cleaning device for fruit processing according to claim 5, characterized in that the feeding mechanism (10) comprises a hopper (101) and a feeding box (103), the feeding box (103) is fixedly arranged at the lower end of the hopper (101), and is provided with a feeding conveyor belt (104) inside the feeding box (103), the discharge end of the feeding box (103) and the cleaning cylinder of the cleaning mechanism (4) Fixed connection, the inner side wall of the hopper (101) is fixedly provided with a spray head (102) near the upper end, and the spray head (102) is connected with a water pump through a pipeline, and the water inlet end of the water pump is connected with the cleaning box (3) through a pipeline. 7. An efficient and thorough cleaning device for fruit processing according to claim 6, characterized in that the flushing tank (1) comprises a flushing box (110), and the flushing box (110) has a A plurality of flushing pipes (120) are arranged at the bottom of the inner side, and the lower ends of the plurality of flushing pipes (120) pass through the bottom of the flushing box (110) and are connected to a water pump through pipes, and the water inlet end of the water pump is connected to a water pumping pipe through pipes (140), the water inlet end of the suction pipe (140) is connected to the bottom of the flushing box (110), and the suction pipe (140) is arranged near the front end of the flushing box (110). A discharge box (6) is fixedly arranged on the front end surface, and the flushing box (110) is communicated with the discharging box (6), and a second blocking plate is arranged at the connection between the flushing box (110) and the discharging box (6). (130), and the blocking plate (130) is located above the water suction pipe (140), and the inner side of the flushing box (110) is located on the rear side wall and is fixedly provided with a water diverting mechanism (9). 8. An efficient and thorough cleaning device for fruit processing according to claim 7, characterized in that a discharge conveyor belt (62) is provided on the inside of the discharge box (6), and the discharge conveys The discharge end of the belt (62) is inclined upward, and the discharge box (6) is fixedly provided with a material guide plate (61) matched with the discharge conveyor belt (62) at the front end. 9. An efficient and thorough cleaning device for fruit processing according to claim 8, characterized in that the water diverting mechanism (9) comprises a blocking cylinder (91) and a spiral blade (92), the blocking One end of the cylinder (91) is fixedly arranged on the side wall of the flushing box (110), and one end surface of the blocking cylinder (91) close to the side wall of the flushing box (110) is provided with a water replenishing hole (911). 92) is arranged in the blocking cylinder (91), and the central rotating shaft of the helical blade (92) passes through the side wall of the flushing box (110) and is fixedly connected with a motor.
