An easy-to-operate bending machine

technical field

The invention belongs to the technical field of mechanical equipment processing, and in particular relates to a bending machine that is easy to operate.

Background technique

The bending machine is a machine that can bend thin plates. The bending machine mainly includes a processing platform. A lower die is placed on the processing platform. When the profile is bent, the profile is placed between the lower die and the upper die, and the upper die of the bending machine is lowered to process the profile. There are still various deficiencies in the current bending machines on the market. Can meet the needs of production and life.

For example, the existing bending machine has a small table, and the objects during the operation are not easy to place. For this reason, we propose a bending machine that is easy to operate.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a bending machine that is easy to operate, so as to solve the problems of the existing bending machine proposed in the above-mentioned background art that the table is small and the objects during the operation are inconvenient to be placed.

In order to achieve the above purpose, the present invention provides the following technical solutions: an easy-to-operate bending machine, including a body and an expansion mechanism, the outer walls of both sides of the body are provided with square grooves, and the top inner wall of the square groove is fixedly connected with a The crosspiece, the expansion mechanism includes a storage board, the storage board is installed on the outer side of the end of the crosspiece, the outer walls on both sides of the storage board are fixedly connected with ribs, and the storage board is connected to the bottom outer wall of the crosspiece. A hinge is fixedly connected, the inner end surface of the storage board is provided with a circular groove, the interior of the circular groove is provided with a fixed column, the outer surface of the crosspiece is provided with a positioning hole, and the positioning hole and the circular groove correspond to each other And on a straight line, the end of the fixing column is fixed inside the positioning hole.

Preferably, the inner inner wall of the circular groove is provided with a rectangular groove, and the interior of the rectangular groove is provided with a gear.

Preferably, a rotating shaft is fixedly connected to the gear and the inner walls on both sides of the rectangular groove, and the end of the gear penetrates the rectangular groove and is fixed inside the circular groove.

Preferably, the outer surface of the fixing column is provided with saw teeth, and the end of the gear and the surface of the fixing column are mutually engaged.

Preferably, a receiving groove is formed at the bottom of the inner end of the storage board, and a turning handle is arranged inside the receiving groove, and the turning handle penetrates the storage board and is fixedly connected to the end of the rotating shaft.

Preferably, an electric console is fixedly connected to the outside of one side of the body, and foot pads are fixedly connected to both ends of the bottom of the body.

Preferably, a fixing groove is opened inside the foot pad, a rubber seat is fixedly connected to the inside of the fixing groove, and the height of the rubber seat is equal to the height of the fixing groove.

Compared with the prior art, the beneficial effects of the present invention are:

Through the designed crosspiece, storage board and fixed column, the problem of the existing bending machine with a small table and the inconvenient placement of objects during operation is solved. Affecting the use and appearance of the body, the storage board is fixed horizontally by the fixed column and the rung, and the storage board is unfolded to facilitate the placement and fixation of the objects during the operation of the machine body; through the designed foot pads and rubber seats, it solves the problem of the existing bending machine A little vibration will inevitably occur during operation. The rubber seat inside the foot pad fixing groove slows down the vibration of the body, making the body more stable during operation.

Description of drawings

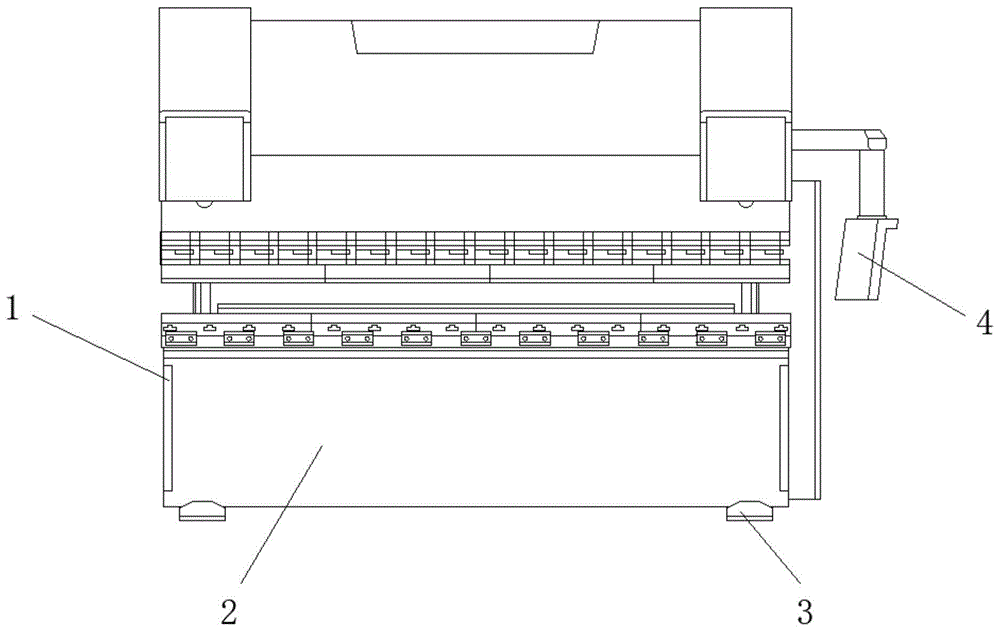

Fig. 1 is the structural representation of the present invention;

FIG. 2 is a schematic structural diagram of the storage board of the present invention;

FIG. 3 is a schematic structural diagram of a fixed column of the present invention;

Fig. 4 is the structure schematic diagram of turning handle of the present invention;

5 is a schematic diagram of the gear structure of the present invention;

FIG. 6 is a schematic diagram of the structure of the foot pad of the present invention.

In the picture: 1. Square slot; 2. Body; 3. Foot pad; 4. Electric console; 5. Rib; 6. Positioning hole; 7. Crossbar; 8. Round slot; 9. Shelf board; 10. Fixed column; 11, hinge; 12, storage slot; 13, handle; 14, shaft; 15, rectangular slot; 16, gear; 17, rubber seat; 18, fixed slot.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1-6 , the present invention provides a technical solution: an easy-to-operate bending machine, comprising a body 2 and an expansion mechanism. Square grooves 1 are formed on both outer walls of the body 2 , and the top inner wall of the square groove 1 is provided with square grooves 1 . A crosspiece 7 is fixedly connected, and the expansion mechanism includes an object storage board 9. The object storage board 9 is installed on the outer side of the end of the crosspiece 7, and the outer walls on both sides of the object storage board 9 are fixedly connected with the ribs 5. The space between the object storage board 9 and the crosspiece 7 A hinge 11 is fixedly connected to the outer wall of the bottom end, a circular groove 8 is opened on the inner end surface of the storage board 9, a fixing column 10 is arranged inside the circular groove 8, and a positioning hole 6 is opened on the outer surface of the crosspiece 7, and the positioning hole 6 is connected with the circle. The grooves 8 correspond to each other and are in a straight line, and the end of the fixing column 10 is fixed inside the positioning hole 6 .

In order to facilitate the storage and installation of the gear 16 , in this embodiment, preferably, a rectangular groove 15 is formed on the inner wall of the circular groove 8 , and a gear 16 is provided inside the rectangular groove 15 .

In order to facilitate the control of the displacement of the fixed column 10 , in this embodiment, preferably, the gear 16 and the inner walls of the rectangular groove 15 are fixedly connected with a rotating shaft 14 , and the end of the gear 16 penetrates the rectangular groove 15 and is fixed inside the circular groove 8 . .

In order to facilitate the horizontal expansion and fixation of the storage board 9 , in this embodiment, preferably, the outer surface of the fixing column 10 is provided with serrations, and the end of the gear 16 is engaged with the surface of the fixing column 10 .

In order to facilitate the control of the rotation of the gear 16 , in this embodiment, preferably, a receiving groove 12 is formed at the bottom of the inner end of the storage board 9 , and a turning handle 13 is arranged inside the receiving groove 12 , and the turning handle 13 penetrates through the storage board 9 and the rotating shaft 14 . fixed connection at the end.

In order to facilitate the operation and use of the bending machine, in this embodiment, preferably, an electric console 4 is fixedly connected to one side of the body 2 , and foot pads 3 are fixedly connected to both ends of the bottom of the body 2 .

In order to facilitate the operation process of the body 2 to be more stable, in this embodiment, preferably, a fixing groove 18 is formed inside the foot pad 3, and a rubber seat 17 is fixedly connected to the inside of the fixing groove 18. The height of the rubber seat 17 is the same as that of the fixing groove 18. are equal in height.

The working principle and use process of the present invention: after the installation of the device is completed, the storage board 9 is usually stored in the side grooves 1 on both sides of the body 2, the storage board 9 does not affect the use and appearance of the body 2, and the storage board 9 is upward through the hinge 11. The rotation is inclined and is flush with the crosspiece 7, and the inner side of the storage slot 12 at the end of the storage board 9 is rotated to rotate the handle 13. The handle 13 controls the rotation of the gear 16 through the rotating shaft 14. The end of the gear 16 and the outer surface of the fixed column 10 are mutually The rotation of the gear 16 controls the displacement of the fixed column 10, that is, the handle 13 controls the end of the fixed column 10 to be installed into the interior of the positioning hole 6, the storage board 9 is fixed horizontally by the fixed column 10 and the crosspiece 7, and the storage board 9 is unfolded It is convenient for the placement of objects during the operation of the bending machine. A little vibration will inevitably occur during the operation of the body 2. The rubber seat 17 inside the fixing groove 18 of the foot pad 3 slows down the vibration of the body 2, and the body 2 is more stable during the operation.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a bender convenient to operation, includes organism (2) and expansion mechanism, its characterized in that: square groove (1) have all been seted up to the both sides outer wall of organism (2), the top inner wall fixedly connected with crosspiece (7) of square groove (1), the expansion mechanism is including putting thing board (9), put thing board (9) and install in the tip outside of crosspiece (7), the equal fixedly connected with flange (5) of the both sides outer wall of putting thing board (9), put the bottom outer wall fixedly connected with hinge (11) of thing board (9) and crosspiece (7), circular slot (8) have been seted up on the inner surface of putting thing board (9), the inside of circular slot (8) is provided with fixed column (10), locating hole (6) have been seted up on the outside surface of crosspiece (7), locating hole (6) and circular slot (8) correspond each other and on a straight line, the tip of fixed column (10) is in the inside of locating hole (6).

2. Machine for bending conveniently operated according to claim 1, wherein: rectangular channel (15) have been seted up to the inside inner wall of circular slot (8), the inside of rectangular channel (15) is provided with gear (16).

3. Machine for bending conveniently operated according to claim 2, wherein: the gear (16) and the inner walls of the two sides of the rectangular groove (15) are fixedly connected with a rotating shaft (14), and the end part of the gear (16) penetrates through the rectangular groove (15) and is fixed in the circular groove (8).

4. Machine for bending conveniently operated according to claim 2, wherein: the outer side surface of the fixed column (10) is provided with sawteeth, and the end part of the gear (16) is meshed with the surface of the fixed column (10).

5. Machine for bending conveniently operated according to claim 3, wherein: the bottom of the inner end of the object placing plate (9) is provided with an accommodating groove (12), a rotating handle (13) is arranged inside the accommodating groove (12), and the rotating handle (13) penetrates through the end part of the object placing plate (9) and the rotating shaft (14) to be fixedly connected.

6. Machine for bending conveniently operated according to claim 1, wherein: the electric control platform is characterized in that an electric control platform (4) is fixedly connected to the outer portion of one side of the machine body (2), and foot pads (3) are fixedly connected to the two ends of the bottom of the machine body (2).

7. Machine for bending conveniently operated according to claim 6, wherein: fixed slot (18) have been seted up to the inside of callus on the sole (3), the inside fixedly connected with rubber seat (17) of fixed slot (18), the height of rubber seat (17) equals with the height of fixed slot (18).
