A kind of handling device and transport vehicle for climate chamber container

technical field

The invention relates to the field of climate chamber equipment, in particular to a handling device and a transport vehicle for a climate chamber container.

Background technique

The climatic chambers require access to different areas for measurements, thus requiring frequent transport over longer distances.

In order to facilitate transportation and unloading, the current climate chamber is often designed in the shape of a container structure, and is loaded, unloaded and transported by container loading and unloading equipment, such as the commonly used large-scale construction machinery such as tire-mounted gantry cranes, rail-mounted gantry cranes and straddle carriers.

However, such large-scale construction machinery has certain requirements for the operating environment, and there is often insufficient space for these large-scale construction machinery to carry out loading and unloading operations in fields such as fields. That is to say, the loading of the existing container-type climate chamber is restricted by external large-scale construction machinery, which makes it inconvenient to move, which is contrary to the original design of the climate chamber container.

SUMMARY OF THE INVENTION

Aiming at the deficiencies of the prior art, the present invention provides a handling device and a transport vehicle for climate cabin containers. The present invention improves the loading and unloading equipment of the phenotype cabin container, so that its structure is simplified, so that the lifting and lowering of the phenotype cabin container can be improved. The transportation can be completed with only one special vehicle, instead of the traditional "hoisting + truck" transportation method, which saves costs and saves time. The present invention specifically adopts the following technical solutions.

First of all, in order to achieve the above purpose, a handling device for climate chamber containers is proposed, which is arranged on a climate chamber container transport vehicle, including:

Hydraulic outriggers are arranged on one side of the climate chamber container transport vehicle, the hydraulic outriggers extend vertically downward when the climate chamber containers are transported and get off the vehicle, the lower ends of the hydraulic outriggers are provided with a bottom plate, and the bottom plate supports On the ground; or the hydraulic outriggers are retracted upward when the climate chamber container transport vehicle is running, and the bottom plate of the hydraulic leg is retracted to a height close to the bottom of the climate chamber container transport vehicle;

guide rails, which are arranged on the front and rear sides of the climate chamber container transport vehicle, and the guide rails are arranged parallel to the width direction of the climate chamber container;

The sliders are respectively arranged on the guide rails on the front and rear sides of the climate chamber container transport vehicle, and translate along the guide rails from the other side of the climate chamber container transport vehicle to the side close to the hydraulic outriggers when the climate chamber container gets off the vehicle. ;

The hydraulic lifting crane is fixedly connected with the sliding block, and is driven by the sliding block to translate along the guide rail, and in the process, the climate chamber container is hoisted, and the climate chamber container is transported to the side of the climate chamber container transport vehicle where the hydraulic outrigger is arranged , unload and get off.

Optionally, any of the above-mentioned handling devices for climate chamber containers, wherein the front and rear sides of the climate chamber container transport vehicle are respectively provided with integrated seats, and the integrated seats include parallel to the climate chamber containers. A casing arranged in the width direction, the top of the casing is provided with a groove parallel to the width direction of the climate chamber container, and the guide rail is arranged in the groove; an opening is arranged on one side of the casing, and the hydraulic pressure The outriggers are installed in the openings, and are vertically extended downward to be supported on the ground when the climate chamber container is transported and dismounted, or retracted upward into the opening when the climate chamber container transport vehicle is running.

Optionally, any of the above-mentioned handling devices for climate chamber containers, wherein the other side of the integrated seat is further provided with a cooling window, and the integrated seat is further provided with a hydraulic pump, and the hydraulic pump is connected to the For the hydraulic outrigger, the hydraulic pump drives the hydraulic medium to output power to the hydraulic outrigger, and drives the hydraulic outrigger to extend vertically downward to be supported on the ground, or to retract vertically upward into the opening.

Optionally, any of the above-mentioned handling devices for climate chamber containers, wherein a horizontal expansion device is fixedly connected between the upper part of the hydraulic outrigger and the interior of the integrated seat, and the horizontal expansion device is in the hydraulic pressure. During the process that the outrigger extends vertically downward and is supported on the ground, the integrated seat is horizontally extended along the width direction of the climate chamber container, and the hydraulic outrigger is pushed to be vertically supported on the ground on one side of the climate chamber container transport vehicle; the horizontal When the hydraulic outrigger is retracted vertically upward into the opening, the telescopic device retracts horizontally along the width direction of the climate chamber container into the interior of the integrated seat, and pulls the hydraulic outrigger into the opening.

Optionally, any of the above-mentioned handling devices for climate chamber containers, wherein the guide rail is gray cast iron with an I-shaped cross-section;

The lower side of the sliding block is provided with a connecting end that shrinks inward, the connecting end is clamped in the recessed part of the I-shaped cross-section in the gray cast iron, and the outer side of the connecting end is also provided with a power wheel that is fixedly connected to the sliding block. , the power wheel rotates and drives the slider to drive the hydraulic lifting crane to translate along the guide rail.

Optionally, any of the above-mentioned handling devices for climate chamber containers, wherein the hydraulic lift crane includes:

A hydraulic lifting device, which is vertically fixed on the top surface of the sliding block, and translates along the guide rail with the sliding block. the climate chamber container, or when the climate chamber container transport vehicle is running, the climate chamber container is shortened and lowered down to the height of the bottom surface of the climate chamber container transport vehicle;

The iron chain fixing device is horizontally arranged on the top of the hydraulic lifting device, the iron chain fixing device is connected with an iron chain, and the iron chain is connected and fixed with the climate chamber container, and the climate chamber container is hoisted.

Optionally, any of the above-mentioned handling devices for climate chamber containers, wherein the iron chain fixing device includes a pair of through holes that communicate with each other, and the iron chains for hoisting the climate chamber containers pass through the through holes, It is fixedly connected between the top of the hydraulic lift crane and the bottom of the climate chamber container.

At the same time, in order to achieve the above purpose, the present invention also provides a transport vehicle for the climate chamber container, comprising:

front;

A carrying device, which is connected to the rear side of the locomotive and driven by the locomotive, for carrying and transporting the climate chamber containers;

Any one of the above-mentioned conveying devices is respectively provided on the front and rear sides of the carrying device.

Optionally, any of the above-mentioned transport vehicles for climate chamber containers, wherein the integrated seat of the handling device is connected to the front and rear sides of the carrying device as a whole, and the handling devices on the front and rear sides have the same structure, size and run synchronously.

beneficial effect

The invention provides support by arranging hydraulic outriggers on the vehicle for transporting the climate cabin container, and uses the guide rails, the sliders and the hydraulic lifting crane arranged on both sides of the table container container to drive the sliding block to translate by extending the hydraulic lifting crane, so that the climate cabin can be moved in translation. The cabin container is hoisted onto the vehicle or unloaded and unloaded, and the invention can realize the handling and transportation of the climate cabin container by using a single vehicle. The present invention does not require external large-scale engineering equipment, so it does not have high requirements on the use environment and transportation conditions, and can adapt to the needs of field phenotypic tests, making climate chamber settings more flexible and adapting to different application scenarios.

Further, in the present invention, all kinds of devices for handling climate chamber containers are uniformly arranged on the integrated seat, the slide rail is fixed in the groove on the surface of the integrated seat, and the connecting end of the slider is clamped and guided by the I-shaped guide rail to cooperate with the corresponding The power wheel drives the sliding block to ensure that the hydraulic lifting crane set on the sliding block can move out smoothly and accurately along the side wall of the climate chamber container.

In the present invention, the hydraulic lifting crane can further fix the iron chain through the through hole, and by fixing the iron chain to the four corners of the bottom of the climate chamber container, the stable lifting of the climate chamber container can be realized. The invention integrates the hoisting and unloading functions on the transport vehicle of the climate chamber container, which can facilitate the medium-distance transportation of the climate chamber, avoid the overhead of large-scale construction machinery such as tire-type gantry cranes, rail-type gantry cranes and straddle carriers, and avoid large-scale engineering projects. The requirements of machinery for transportation and loading and unloading space are convenient for the moving and setting of climate chamber containers.

Other features and advantages of the present invention will be set forth in the description which follows, and in part will be apparent from the description, or may be learned by practice of the invention.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and together with the embodiments of the present invention, are used to explain the present invention, but not to limit the present invention. In the attached image:

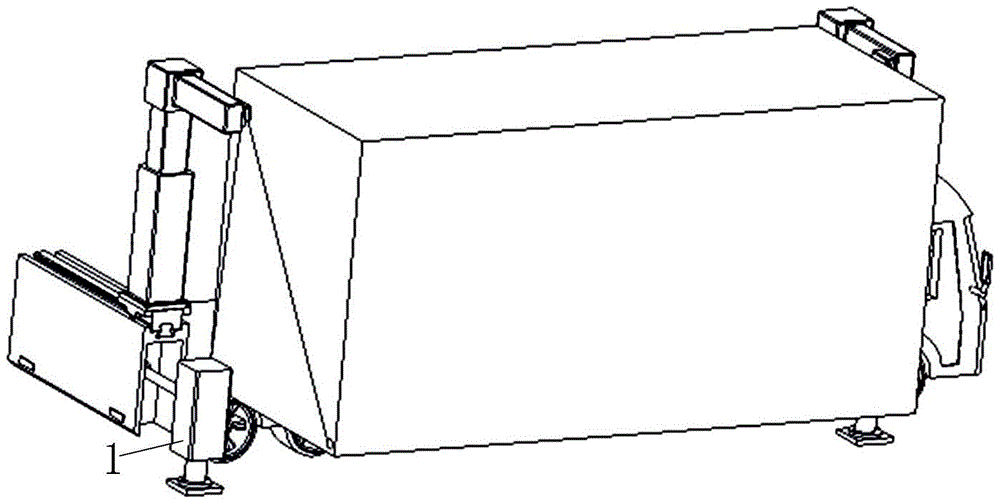

FIG. 1 is a schematic view of the handling mode of the handling device for climate chamber containers according to the present invention;

Fig. 2 is the schematic diagram of the transport vehicle of the present invention under the first angle of view;

3 is a schematic diagram of the transport vehicle of the present invention from a second perspective;

Fig. 4 is the concrete structure schematic diagram of the hydraulic lifting crane in the handling device of the present invention;

Fig. 5 is the concrete structure schematic diagram of the iron chain fixing device in the hydraulic lifting crane;

FIG. 6 is a schematic diagram of the specific structure of the sliding table in the conveying device of the present invention.

In the figure, 1 is hydraulic outrigger; 2 is hydraulic pump; 3 is guide rail; 4 is sliding table; 41 is power wheel; 5 is hydraulic lifting crane; 51 is iron chain fixing device; 52 is hydraulic lifting device; 6 is climate cabin container.

Detailed ways

In order to make the purpose and technical solutions of the embodiments of the present invention clearer, the technical solutions of the embodiments of the present invention will be described clearly and completely below with reference to the accompanying drawings of the embodiments of the present invention. Obviously, the described embodiments are some, but not all, embodiments of the present invention. Based on the described embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It will be understood by those skilled in the art that, unless otherwise defined, all terms (including technical and scientific terms) used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. It should also be understood that terms such as those defined in general dictionaries should be understood to have meanings consistent with their meanings in the context of the prior art and, unless defined as herein, are not to be taken in an idealized or overly formal sense. explain.

The meaning of "and/or" described in the present invention means that each of them exists alone or both of them exist simultaneously.

The meanings of "inside and outside" described in the present invention refer to relative to the climate chamber container itself, the direction toward the inside of the container is inside, and the direction toward the transport vehicle that transports it is outside; not the device of the present invention Institution-specific qualifications.

The meaning of "connection" described in the present invention may be a direct connection between components or an indirect connection between components through other components.

The meaning of "up and down" in the present invention means that when the user is facing the forward direction of the transport vehicle, the direction from the carrier device of the transport vehicle to the top of the climate chamber container is up, and vice versa, it is down, not for this Specific limitations of the device mechanism of the invention.

FIG. 1 is a handling device for a climate chamber container according to the present invention, which is arranged on a climate chamber container transport vehicle. The transport vehicle includes a vehicle head, and a carrying device connected to the rear side of the vehicle head and driven by the vehicle head for carrying and transporting climate chamber containers. The carrying device can be selected as a pallet structure for carrying goods, and the front and rear sides thereof are respectively provided with the handling devices shown in FIG. 2 and FIG. 3 . The handling devices can be configured to include:

The hydraulic outrigger 1 is arranged on one side of the container transport vehicle in the climate chamber. The hydraulic outrigger 1 extends vertically downward when the climate chamber container is transported and gets off the vehicle. The lower end of the hydraulic outrigger 1 is provided with a bottom plate, so The bottom plate is supported on the ground; or the hydraulic outrigger 1 is retracted upward when the climate chamber container transportation vehicle is running, and the bottom plate of the hydraulic outrigger 1 is retracted to a height close to the bottom of the climate chamber container transportation vehicle;

The guide rails 3 are arranged on the front and rear sides of the climate chamber container transport vehicle, and the guide rails 3 are arranged parallel to the width direction of the climate chamber container;

The sliders 4 are respectively arranged on the guide rails 3 on the front and rear sides of the climate chamber container transport vehicle, and translate along the guide rail 3 from the other side of the climate chamber container transport vehicle to approaching the hydraulic outriggers when the climate chamber container gets off the vehicle. 1 side;

The hydraulic lifting crane 5 is fixedly connected with the sliding block 4, and is driven by the sliding block 4 to translate along the guide rail 3, and during this process, the climate chamber container is hoisted, and the climate chamber container is transported to the climate chamber container transportation vehicle. Hydraulic support is provided. On the side of leg 1, unload and get off.

In order to conveniently set the above-mentioned handling device on a carrying device such as a pallet truck that is used for carrying climate container containers on a climate chamber container transport vehicle, the present invention may further refer to FIG. on the integrated seat. The integrated seat includes a casing parallel to the width direction of the climate chamber container, the top of the casing is provided with a groove parallel to the width direction of the climate chamber container, and the groove is arranged in the groove The guide rail 3; one side of the outer casing is provided with an opening, and the hydraulic outrigger 1 is installed in the opening, and extends vertically downward to be supported on the ground when the climate chamber container is transported to get off, or is supported on the ground in the climate chamber. The container transport vehicle retracts upward into the opening when the container transport vehicle is running.

In order to ensure the driving of the hydraulic outriggers and the hydraulic lifting crane 5, in some implementations, the corresponding hydraulic pump 2 may be further arranged in the integrated seat. The integrated seat is provided with a cooling window corresponding to the other side of the hydraulic outrigger, and a hydraulic pump 2 is integrated in the integrated seat, the hydraulic pump 2 is connected to the hydraulic outrigger 1, and the hydraulic pump 2 drives the hydraulic pressure. The medium outputs power to the hydraulic outrigger 1, which drives the hydraulic outrigger 1 to extend vertically downward to be supported on the ground, or to retract vertically upward into the opening.

In order to further stabilize the transport vehicle for supporting the climate chamber container, the hydraulic outriggers can also be arranged to protrude from the side of the vehicle to provide support outside the vehicle, so as to avoid the deviation of the center of gravity of the vehicle when the climate chamber container is hoisted and transported to the outside of the vehicle. Specifically, a horizontal telescopic device is also fixedly connected between the upper part of the hydraulic outrigger 1 and the interior of the integrated base, and the horizontal telescopic device is supported on the ground when the hydraulic outrigger 1 extends vertically downward. The integrated seat extends horizontally along the width direction of the climate chamber container, and pushes the hydraulic outrigger 1 to be vertically supported on the ground on one side of the climate chamber container transportation vehicle; the horizontal expansion device retracts vertically upward on the hydraulic outrigger 1 During the process of entering the opening, the container is horizontally shrunk along the width direction of the climate chamber container into the interior of the integrated seat, and the hydraulic outrigger 1 is pulled to enter the opening.

In order to smoothly translate the slider 4 to drive the hydraulic lifting crane 5 to hoist the climate chamber container to the corresponding position smoothly, the guide rail 3 in the present invention can be set as a gray cast iron structure with an I-shaped cross-section as shown in FIG. 6 . The lower side of the sliding block 4 is provided with a connecting end that shrinks inward, the connecting end is clamped in the recessed part of the I-shaped cross-section in the gray cast iron, and the outer side of the connecting end is also provided with a fixed connection with the sliding block 4. The power wheel 41 , the power wheel 41 rotates and drives the slider 4 to drive the hydraulic lifting crane 5 to translate along the guide rail 3 .

The hydraulic lifting crane 5 for hoisting the climate chamber container can be set to include:

The hydraulic lifting device 52 is vertically fixed on the top surface of the sliding block 4, and along with the sliding block 4 translates along the guide rail 3, the hydraulic lifting device 52 is vertically elongated and raised when the climate chamber container is disembarked. The climate chamber container hoisted by the hydraulic lifting crane 5, or the climate chamber container is lowered and lowered down to the height of the bottom surface of the climate chamber container transport vehicle when the climate chamber container transport vehicle is running;

The iron chain fixing device 51 is horizontally arranged on the top of the hydraulic lifting device 52. The iron chain fixing device 51 is connected with an iron chain, and the iron chain is connected and fixed with the climate chamber container, and the climate chamber container is hoisted.

The iron chain fixing device 51, as shown in FIG. 5, includes a pair of through holes that communicate with each other, the through holes are arranged on the outer side of the protruding piece, and the protruding piece is tightly fixed on the surface of the horizontally arranged iron chain fixing device 51 facing the surface. On the side wall of the climate chamber container, the iron chain is connected to the iron chain fixing device 51 through two through holes, and the weather chamber container is hoisted. Pick up the container. The iron chain can thus be fixedly connected between the top of the hydraulic lift trolley 5 and the bottom of the climate chamber container for hoisting or unloading the container.

Therefore, in the present invention, by connecting the integrated seat of the carrying device with the front and rear sides of the carrying device, the carrying devices on the front and rear sides of the carrying device have the same structure and size and operate synchronously, so that climate change can be achieved by the same transport vehicle. Shipping and handling of containers.

In a more specific implementation manner, the above-mentioned climate chamber container transport vehicle can be specifically selected as a truck, and the truck can select a rack as a carrying device. Among them, the guide rails set by the handling device can be installed on both sides of the truck rack and are made of gray cast iron. The gray cast iron has good wear resistance, vibration resistance and craftsmanship. The guide rail saves space on the vehicle and reduces the weight of the equipment on the vehicle. There is an electric sliding table 4 on the guide rail, and there is a small wheel on the sliding table, and the small wheel is used as the driving force to drive the sliding table to move on the guide rail and drive the movement of other equipment on the sliding table. This type of guide rail can ensure the accuracy and stability of the sliding table transportation, and has a good load-bearing capacity. One guide rail on each side can bear the weight of the hydraulic lifting crane and the climate chamber container.

The hydraulic lifting crane 5 can be fixed on the slide table 4 provided by the guide rail by means of fastening bolts, and cooperate with the hydraulic lifting device to realize the movement of up, down, left and right with two degrees of freedom. The hydraulic lifting crane is connected with the hydraulic pump 2 through the hydraulic pipeline, and the lifting height of the crane is controlled by the hydraulic pump. The hydraulic system has the advantages of small size, light weight, fast response and long life, so it is suitable for arrangement on vehicles with tight space. The end of the crane is covered with a metal cover, which protects the end structure from corrosion by rain and other factors. When the device is working, the cranes on both sides are fixedly connected with the small holes at the bottom of the container through iron chains, and the container is lifted to the height above the frame, and then the container is moved to the designated position by the horizontal movement of the sliding table, and the hydraulic lifting crane is lowered to fix the container. on the truck.

The hydraulic pump that drives the hydraulic lifting crane 5 and the hydraulic outrigger 1 can be installed on both sides of the truck compartment, and two independent hydraulic pumps can be set for the hoisting structures on the front and rear sides respectively. The two hydraulic pumps are driven synchronously, which can avoid Complicated pipelines are arranged on the bottom of the vehicle, and the climate chamber container can also be moved smoothly. The separate arrangement of the two hydraulic pumps can make the distance between the two hydraulic pumps and the hydraulic outriggers and the hydraulic lifting crane the shortest, which improves the work efficiency and helps to dissipate heat. In order to further enhance heat dissipation, we added heat dissipation windows to the car body to improve the stability of the hydraulic pump under high strength. The cooling window can be opened to facilitate the cleaning and maintenance of the hydraulic pump.

In the transport state of the transport device of the present invention, the two outriggers and the two hydraulic lifting cranes are in a retracted state, thereby saving space. In the loading and unloading state, the two outriggers are extended to support the ground to prevent rollover and tire blowout. At the same time, the two hydraulic lifting cranes are moved from the guide rail to the side where the outriggers of the truck extend, and the ends are passed through the iron chain. It is fixed with the fixing hole at the bottom of the container, and then the hydraulic lifting crane lifts up to lift the container above the height of the truck box. The guide rail carries the hydraulic lifting crane and the container returns to the original position. All devices return to their original state.

The above is only an embodiment of the present invention, and its description is relatively specific and detailed, but it should not be construed as a limitation on the patent scope of the present invention. It should be pointed out that for those of ordinary skill in the art, without departing from the concept of the present invention, several modifications and improvements can also be made, which all belong to the protection scope of the present invention.

Claims (9)

1. A handling device for a climate chamber container, characterized in that the handling device is arranged on a climate chamber container transport vehicle, comprising: The hydraulic outrigger (1) is arranged on one side of the climate cabin container transport vehicle, the hydraulic outrigger (1) extends vertically downward when the climate cabin container is transported and gets off the vehicle, and the hydraulic outrigger (1) A bottom plate is provided at the lower end, and the bottom plate is supported on the ground; or the hydraulic outrigger (1) is retracted upward when the climate chamber container transport vehicle is running, and the bottom plate of the hydraulic outrigger (1) is retracted to be close to the climate chamber container The height of the bottom of the transport vehicle; guide rails (3), which are arranged on the front and rear sides of the climate chamber container transport vehicle, and the guide rails (3) are arranged parallel to the width direction of the climate chamber container; Slide blocks (4), which are respectively arranged on the guide rails (3) on the front and rear sides of the climate chamber container transport vehicle, and move from the other side of the climate chamber container transport vehicle along the guide rails (3) when the climate chamber container gets off the vehicle Translate to the side close to the hydraulic outrigger (1); A hydraulic lifting crane (5) is fixedly connected to the sliding block (4), and is driven by the sliding block (4) to translate along the guide rail (3), and during this process, the climate chamber container is hoisted, and the climate chamber container is transported to the climate chamber The side where the hydraulic outrigger (1) is arranged in the container transport vehicle, unload and get off the vehicle. 2 . The handling device for climate chamber containers according to claim 1 , wherein the front and rear sides of the climate chamber container transport vehicle are respectively provided with integrated seats, and the integrated seats include parallel to the climate chamber. 3 . A casing provided in the width direction of the cabin container, the top of the casing is provided with a groove parallel to the width direction of the climate cabin container, and the guide rail (3) is arranged in the groove; one side of the casing is provided There is an opening, and the hydraulic outrigger (1) is installed in the opening, and extends vertically downward to be supported on the ground when transporting the climate chamber container to get off the vehicle, or retracts upward to enter the opening when the climate chamber container transport vehicle is running Inside. 3. The handling device for climate chamber containers according to claim 1-2, characterized in that, the other side of the integrated seat is further provided with a cooling window, and the integrated seat is also provided with a hydraulic pump (2 ), the hydraulic pump (2) is connected to the hydraulic outrigger (1), the hydraulic pump (2) drives the hydraulic medium to output power to the hydraulic outrigger (1), and drives the hydraulic outrigger (1) Extend vertically downwards to support the ground, or retract vertically upwards into the opening. 4. The handling device for climate chamber containers according to claim 2-3, characterized in that, a horizontal telescopic device is also fixedly connected between the upper part of the hydraulic outrigger (1) and the interior of the integrated seat, so the During the process of the hydraulic outriggers (1) extending vertically downward and being supported on the ground, the horizontal telescopic device horizontally extends out of the integrated base along the width direction of the climate chamber container, and pushes the hydraulic outriggers (1) to be vertically supported on the ground. On the ground on one side of the climate chamber container transport vehicle; the horizontal telescopic device shrinks horizontally along the width direction of the climate chamber container into the interior of the integrated seat during the process of vertically upwardly shrinking the hydraulic outriggers (1) into the opening , and pull the hydraulic outrigger (1) into the opening. 5. The handling device for climate chamber containers according to claims 1-4, wherein the guide rail (3) is gray cast iron with an I-shaped cross-section; The lower side of the sliding block (4) is provided with a connecting end that shrinks inward, the connecting end is clamped in the recessed part of the I-shaped cross-section in the gray cast iron, and the outer side of the connecting end is also provided with a connecting end with the sliding block (4). ) fixedly connected power wheel (41), the power wheel (41) rotationally drives the slider (4) to drive the hydraulic lift crane (5) to translate along the guide rail (3). 6. The handling device for climate chamber containers according to claims 1-5, wherein the hydraulic lift crane (5) comprises: A hydraulic lifting device (52), which is vertically fixed on the top surface of the sliding block (4) and translates along the guide rail (3) with the sliding block (4), the hydraulic lifting device (52) is used in the handling climate chamber When the container is disembarked, vertically extend and raise the climate chamber container hoisted by the hydraulic lifting crane (5), or shorten and lower the climate chamber container to the height of the bottom surface of the climate chamber container transport vehicle when the climate chamber container transport vehicle is running. ; An iron chain fixing device (51) is arranged horizontally on the top of the hydraulic lifting device (52), the iron chain fixing device (51) is connected with an iron chain, and the iron chain is connected and fixed with the climate chamber container, and the hoisting station The climate chamber container. 7. The handling device for climate chamber containers according to claim 6, characterized in that the iron chain fixing device (51) comprises a pair of through holes communicating with each other, and the iron chains for hoisting the weather chamber containers pass through each other. Through the through hole, it is fixedly connected between the top of the hydraulic lifting crane (5) and the bottom of the climate cabin container. 8. A transport vehicle for a climate chamber container, comprising: front; A carrying device, which is connected to the rear side of the locomotive and driven by the locomotive, for carrying and transporting the climate chamber containers; It is characterized in that, The carrying device according to any one of claims 1-7 is also provided on the front and rear sides of the carrying device, respectively. 9 . The transport vehicle for climate chamber containers according to claim 8 , wherein the integrated seat of the handling device is connected to the front and rear sides of the carrying device as a whole, and the structure of the handling device on the front and rear sides, Same size and run synchronously.
