CN111232358A

CN111232358A - Circulated ultra-thin honeycomb carton

Info

Publication number: CN111232358A
Application number: CN202010192396.XA
Authority: CN
Inventors: 李卫华; 李跃华; 刘胜祥
Original assignee: Hunan Huawang Technology Co ltd
Current assignee: Hunan Huawang Technology Co ltd
Priority date: 2020-03-18
Filing date: 2020-03-18
Publication date: 2020-06-05

Abstract

The invention discloses a recyclable ultrathin honeycomb carton which comprises a carton body, wherein the carton body comprises a side plate and a cover plate connected with at least one end of the side plate, the side plate is formed by bending and splicing at least one honeycomb paperboard for more than one time, a bending part connected with the adjacent side plate is provided with at least one inner indentation distributed on the inner side of the side plate and at least two outer indentations distributed on the outer side of the side plate, and the thickness of the honeycomb paperboard is less than or equal to 12 mm. The thickness of the honeycomb paperboard is reduced, so that the aim of saving raw materials is fulfilled; in order to ensure that the performance of the honeycomb carton is not reduced, the bending structure between adjacent side plates of the carton is improved, at least 2 external indentations and at least 1 internal indentation are combined to form a bending part, so that the bending part of the honeycomb carton is not concentrated on a certain indentation any more, but the deformation of the carton in the bending process is dispersed to the internal and external indentations, further the deformation of the honeycomb carton is reduced, and the compressive strength of the carton and the carton is improved so as to meet the requirements.

Description

Circulated ultra-thin honeycomb carton

Technical Field

The invention relates to the field of cartons, in particular to a recyclable ultrathin honeycomb carton.

Background

The honeycomb paper board is made according to the honeycomb structure principle in the nature, and is a novel environment-friendly energy-saving material with a sandwich structure, wherein corrugated raw paper is connected into a plurality of hollow three-dimensional regular hexagons by using an adhesive method to form an integral stressed piece, namely a paper core, and two surfaces of the integral stressed piece are adhered with surface paper. The honeycomb paperboard has the following characteristics:

(1) light weight, less material consumption and low cost. Compared with other various plate structures, the honeycomb sandwich structure has the largest strength/mass ratio, so that the performance/price ratio of a finished product is good, which is the key for successfully spreading the honeycomb paperboard.

(2) High strength, smooth surface and difficult deformation. The honeycomb sandwich structure is approximately isotropic, the structural stability is good, the honeycomb sandwich structure is not easy to deform, and the outstanding pressure resistance and bending resistance are the most important characteristics required by box-type packaging materials.

(3) The impact resistance and the buffering performance are good. The honeycomb paperboard is made of a flexible paper core and surface paper, has good toughness and rebound resilience, the unique honeycomb sandwich structure provides excellent buffering performance, the honeycomb paperboard has a higher energy absorption value per unit volume in all buffering materials, and the high-thickness honeycomb paperboard can replace EPS plastic foam cushions which are widely used at present.

(4) Sound absorption and heat insulation. The honeycomb sandwich structure is internally provided with closed cells which are filled with air, so that the honeycomb sandwich structure has good sound insulation and heat preservation performance.

(5) No pollution and conforms to the modern environmental protection trend. The honeycomb paperboard is made of recyclable paper materials, and can be recycled completely after being used.

The thickness of the honeycomb cardboard that honeycomb carton adopted in the existing market all is thicker, and raw and other materials are more extravagant, discloses an ultra-thin honeycomb cardboard in CN201567507, can utilize this ultra-thin honeycomb cardboard to make the honeycomb carton, and whether the honeycomb carton of nevertheless making satisfies the user demand unknown. If this honeycomb cardboard is according to prior art, the line ball is cut through dividing paper moulding press to the kink of the adjacent curb plate of honeycomb carton, and such line ball mode can not satisfy the intensity requirement after ultra-thin honeycomb cardboard becomes the case, and also can not satisfy the intensity requirement of buckling into the case again after flattening and carrying out cyclic utilization to the carton.

Disclosure of Invention

The technical problem to be solved by the invention is as follows: overcome prior art's not enough, provide a simple structure, raw and other materials use fewly, ultra-thin honeycomb carton of low in production cost can circulate, and this carton is through the structure of buckling between the adjacent curb plate that changes the honeycomb carton, reduces the honeycomb carton and flattens the deformation of depositing honeycomb carton curb plate kink at cyclic utilization in-process for but honeycomb carton cyclic utilization.

The technical scheme adopted by the invention for solving the technical problems is as follows: the utility model provides a circulated ultra-thin honeycomb carton, includes the box, and the box includes curb plate and the apron that is connected with the at least one end of curb plate, and the curb plate is buckled and the concatenation by at least a slice honeycomb cardboard more than once and is formed, and is adjacent the department of buckling that the curb plate is connected is equipped with one interior indentation that distributes at least in the curb plate inboard and two outer indentations that distribute at least in the curb plate outside, the thickness of honeycomb cardboard is less than or equal to 12 mm.

Further, the thickness of the honeycomb paperboard is 4 mm-6 mm. In the invention, if the thickness of the honeycomb paper board is less than 4mm, the compression strength of the honeycomb paper box cannot be compensated by arranging a specific bending structure between the adjacent side plates; and the thickness of the honeycomb paperboard is more than 6mm, the use of raw materials for manufacturing the honeycomb paperboard is increased, and the expectation of reducing the use of the raw materials is not met on the premise of ensuring the strength of the honeycomb carton.

Further, the thickness of the honeycomb core of the honeycomb paperboard is 3.5 mm-5 mm.

Furthermore, the number of the inner press marks is 1-3, and the number of the outer press marks is 2-4.

Further, the number of the inner press marks is three, and the number of the outer press marks is two.

Furthermore, the three inner indentations have different depths, and the depth of the inner indentation in the middle is larger than the depths of the inner indentations on the two sides.

Further, the cross section of the inner indentation and the outer indentation is U-shaped or V-shaped.

Furthermore, one side or two sides of the inner indentation are provided with pre-pressing lines.

Furthermore, the depth of the outer indentations is 1/3-2/3 of the thickness of the honeycomb paperboard, and the distance between every two adjacent outer indentations is 1.1-3.0 times of the thickness of the honeycomb carton paperboard.

Further, the inner indentation and the outer indentation are formed by pressing with a second wire wheel or pressing with a third wire wheel or touching with a wire.

The invention has the beneficial effects that:

the thickness of the honeycomb paper box is reduced, so that the use of raw materials is saved, and the production cost is reduced; on the premise of reducing the thickness of the honeycomb paper board, in order to ensure that the performance of the honeycomb paper box cannot be reduced, the invention improves the bending structure between adjacent side plates of the paper box, adopts bending parts formed by combining at least 2 external pressing marks and at least 1 internal pressing mark, and the quantity of the external pressing marks is greater than that of the internal pressing marks, so that the bending parts of the honeycomb paper board are not concentrated on a certain pressing mark any more when the side wall of the honeycomb paper box is bent, but the deformation of the paper board in the bending process is dispersed to the internal and external pressing marks, thereby reducing the deformation of the honeycomb paper board, improving the compressive strength of the paper board and the paper box and meeting the requirements.

Drawings

FIG. 1 is a perspective view of a case in example 1;

FIG. 2 is an enlarged view of A in FIG. 1;

FIG. 3 is a schematic view showing the development of the inner side surface of the joint between adjacent side plates in example 1;

FIG. 4 is an expanded view of the outer side surface of the joint between adjacent side plates in example 1;

FIG. 5 is an expanded cross-sectional view of the junction between adjacent side plates in example 1;

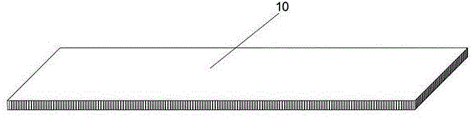

FIG. 6 is a perspective view of the honeycomb paperboard of example 1;

FIG. 7 is an internal view of FIG. 6;

FIG. 8 is a schematic view showing the development of the inner side surface of the joint between adjacent side plates in example 2;

FIG. 9 is an expanded cross-sectional view of the junction between adjacent side plates in example 2;

fig. 10-is the schematic view of the unfolded outer side of the two sheets of honeycomb cardboard of example 3.

In the figure: 1-box body, 2-side plate, 3-cover plate, 4-first external impression, 5-second external impression, 6-connecting lug, 7-connecting area, 8-internal impression, 9-pre-pressing line, 10-honeycomb paperboard, 11-first honeycomb paperboard, 12-second honeycomb paperboard, 801-first internal impression, 802-second internal impression, 803-third internal impression, 1001-first surface paper, 1002-second surface paper and 1003-honeycomb core.

Detailed Description

The invention is further explained with reference to the drawings and the embodiments.

In the description of the present invention, it is to be understood that the terms "central," "longitudinal," "lateral," "length," "width," "thickness," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "clockwise," "counterclockwise," "axial," "radial," "circumferential," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the invention and to simplify the description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the invention. Furthermore, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.

In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1: the utility model provides a circulated ultra-thin honeycomb carton, includes box 1, and the box includes curb plate 2 and the apron 3 that is connected with the curb plate both ends, and curb plate 2 is buckled and the concatenation by a slice honeycomb cardboard through the cubic and forms, and is adjacent the department of buckling that the curb plate is connected is equipped with the one inside indentation that distributes at the curb plate inboard and the two outside indentations that distribute in the curb plate outside, the thickness of honeycomb cardboard 10 is less than or equal to 12 mm.

In this embodiment, one side of the side plate is provided with a connecting lug 6, and the other side is reserved with a connecting area 7 connected with the connecting lug 6, so that the connecting lug 6 is connected with the connecting area 7, the side plate is enclosed into a semi-closed box body with openings at the upper end and the lower end, and the cover plates at the upper end and the lower end of the side plate are folded inwards along the folding parts of the cover plates and the side plate to form the honeycomb carton. The honeycomb carton adopts the nail case mode, and engaging lug and joining region utilize the nail to link together.

In this embodiment, the honeycomb paperboard 10 includes a first face paper 1001, a second face paper 1002 and a honeycomb core 1003, wherein the first face paper 1001 and the second face paper 1002 are made of kraft paper, and the kraft paper has a tough texture, high burst strength, high ring crush strength and high tear strength, and also has high water resistance; the honeycomb core is preferably bonded by a plurality of hollow regular hexagonal prisms, the regular hexagon has a compact structure, each side is equally stressed, the stress is easily dispersed, and the borne impact is larger than that of other structures. The first face paper and the second face paper are covered on two sides of the honeycomb core through glue to form the honeycomb paperboard.

In this embodiment, the thickness of the honeycomb paper board 10 is 6mm, the thickness of the honeycomb core 1003 is 5mm, and the thickness of the corresponding first and

second face papers

1001 and 1002 is 0.5 mm. The reduction in thickness of the honeycomb paperboard 10 means a reduction in consumption of raw materials for making the honeycomb paperboard, so that production costs can be saved. But under the prerequisite that reduces honeycomb cardboard thickness, the compressive strength who prevents the honeycomb carton descends by a wide margin to prevent the condition that the carton can not be used from appearing. Under the premise, the inventor improves the bending part for connecting the adjacent side plates of the honeycomb carton.

In this embodiment, the outer impressions on the outer side of the carton comprise a first outer impression 4 and a second outer impression 5; the first external impression 4 and the second external impression 5 are respectively positioned at two sides of the internal impression 8 of the side wall of the carton, and the depth of the first external impression is greater than that of the second external impression. The first outer indentation 4 and the inner indentation 8 realize that the side plate is continuously bent to a double-folded state along the bending direction in the use state in the recovery and flattening process, and the second outer indentation and the inner indentation realize that the side plate is bent to form a bent part when being recycled again or continuously bent to the opposite direction of the bending direction in the use state to the flat and straight state of the paperboard.

The depth of the first outer indentations 4 is 1/2, i.e., 3mm, of the thickness of the honeycomb paperboard 10, the depth of the second outer indentations 5 is 1/3, i.e., 2mm, of the thickness of the honeycomb paperboard 10, and the interval between two adjacent outer indentations is 1.5 times, i.e., 9mm, of the thickness of the honeycomb paperboard 10. The depth of the inner impressions 8, between the first outer impressions 4 and the second outer impressions 5, may be 2.5 mm. Both the inner 8 and outer impressions are parallel to the edge of the lateral plate 2.

Because the side plates are bent in the opposite direction to the bending direction in the use state or in the bending direction in the use state in the recycling and flattening process, even if the side plates of the side walls are bent in a flat, straight or folded manner, the deformation of the side plates after bending to the flat and straight is relatively small, and the deformation of the side plates after bending to the folded manner is relatively large, the depth of a first outer indentation on the side plate on one side in the folding direction is relatively large, the damage of the honeycomb carton during storage of the flattened honeycomb side plates can be effectively reduced, the depth of a second outer indentation on the side plate on the flat and straight side is relatively small, the structural damage degree of the honeycomb paperboard is reduced, and the compression strength of a bending part of the box body formed by bending the honeycomb side plates during reuse is further ensured; the inventor adjusts the structure of the inner press mark and the depth of the two outer press marks, so that the honeycomb carton can be recycled, the service life of the honeycomb carton can be prolonged, and the use cost of the carton can be reduced.

The depth of the inner indentation 8 is between the depth of the first outer indentation 4 and the depth of the second outer indentation 5, so that the deformation of the side plate formed by processing the honeycomb paperboard in the bending process can be met, and the performance such as the compressive strength of the bent honeycomb paperboard can be ensured to meet the requirements of the carton.

The quality of the indentation bending quality is greatly related to the indentation depth, namely the indentation angle, the indentation is too shallow, namely the depth is smaller, the section is cracked due to overlarge strain of the indentation part on the surface paper of the honeycomb paperboard 10 in the bending process, and the indentation is too deep, namely the depth is larger, the paperboard is cracked in the bending operation or the local strength along the indentation line is excessively reduced, so that the bending cannot be performed; therefore, the depth of the outer indentation is 1/3-1/2 of the thickness of the paper board of the honeycomb carton, so that the situation that the facial tissue is cracked due to excessive strain can be avoided, and the strength required by bending and the whole carton compressive strength required by the carton in the using process can be ensured.

In this embodiment, the inner indentations, the first outer indentations and the second outer indentations are designed to meet the requirement that the honeycomb paper board is reduced in thickness, and the honeycomb paper board is recycled by adjusting the structures of the inner indentations and the depths of the two outer indentations.

In this embodiment, the cross-sections of the inner and outer indentations have a U-shaped configuration. The middle part of the indentation of the structure is of a circular arc structure, so that the honeycomb paperboard can be compressed or expanded to a larger extent in the folding process of the indentation.

The two sides of the inner indentation 8 are provided with pre-pressing lines 9, and the depth of the pre-pressing lines 9 is less than or equal to 1 mm. The pre-pressing line 9 is arranged to perform shallow indentation on the honeycomb paperboard 10 in a first step, so that the honeycomb paperboard 10 is softened in the area of the pre-pressing line 9, and then external indentation with a deeper depth can be performed in the area, thereby avoiding line explosion. Based on the above principle, the pre-pressing line 9 can be arranged on one side of the outer indentation.

The outer indentation and the inner indentation 8 are formed by pressing the honeycomb paperboard 10 through a two-wire line pressing wheel or line contact.

Example 2

In this embodiment, the thickness of the honeycomb cardboard 10 for making the honeycomb carton is 12mm, and the thickness of the honeycomb core is 10 mm. The outer impressions located on the outer side of the carton comprise a first outer impression 4 and a second outer impression 5; the first external impression 4 and the second external impression 5 are respectively positioned at two sides of the internal impression 8 of the side wall of the carton, and the depth of the first external impression 4 is greater than that of the second external impression 5. Inner crease 8 on the inside of the carton comprises a first inner crease 801, a second inner crease 802 and a third inner crease 803, wherein first inner crease 801 is located between second inner crease 802 and third inner crease 803 and the depth of first inner crease 801 is greater than the depth of second inner crease 802 and third inner crease 803. Wherein first outer crease 4 is located between first inner crease 801 and second inner crease 8028 and second outer crease 5 is located between first inner crease 801 and third inner crease 803.

The first inner indentation 801, the second outer indentation 5, the second inner indentation 802 and the third inner indentation 803 realize that the side plate 2 is continuously bent to a folding state that the inner side surface of the adjacent side plate 2 is attached along the bending direction of the use state in the recycling and flattening process, the second inner indentation 802 and the second outer indentation 5 realize that the side plate 2 is bent to form a bent part or is bent to a state that the adjacent side plate 2 is flatly laid and vertically laid along the opposite direction of the bending direction of the use state when the side plate 2 is recycled, and the first outer indentation 4, the first inner indentation 801, the second outer indentation 5, the second inner indentation 802 and the third inner indentation 803 realize that the side plate 2 is continuously bent to a folding state that the outer side surface of the adjacent side plate 2 is attached along the opposite direction of the bending direction of the use state in the recycling and.

The outer indentation and the inner indentation 8 on the honeycomb carton are formed by pressing a honeycomb paperboard 10 through two three-line creasing rollers.

The cross sections of the inner indentations 8 and the outer indentations are of U-shaped structures. Or may be designed in a V-shaped configuration.

The two sides of the inner indentation are provided with pre-pressing lines, and the depth of the pre-pressing lines is less than or equal to 1 mm.

In the recyclable honeycomb carton of the embodiment, the bending part of the side wall of the recyclable honeycomb carton is composed of 2 external indentations and 3 internal indentations 8, when the honeycomb carton is folded from the honeycomb paperboard 10 which is indented by the creasing wheel, the side plates 2 of the honeycomb carton are continuously bent by 90 degrees and are packaged by adopting adhesive sealing tapes to form a semi-closed structure with the upper end capable of being turned over; when the honeycomb carton is used, the side walls of the honeycomb carton can meet the requirement of the compression strength required by the carton storage process when the side plates 2 are bent by 90 degrees under the action of the second outer crease and the second inner crease; and after the honeycomb carton has been used up, can fold the lateral wall of smoke box and flatten the space that is convenient for to retrieve the occupation of being convenient for usually, promptly, curb plate 2 can be to the fifty percent discount state of buckling to the laminating of adjacent curb plate 2 medial surface with the direction of buckling of user state the same direction, or continue to buckle to the fifty percent discount state that adjacent curb plate 2 tiling was directly put along user state buckling direction opposite direction, or continue to buckle to the fifty percent discount state of the laminating of the lateral surface of adjacent curb plate 2 along user state buckling direction opposite direction and retrieve and deposit.

1) When the side plate 2 is recovered and stored in a folded state that the side plate is bent to the inner side surface of the adjacent side plate 2 in the same direction as the bending direction in the use state, because the deformation of the end part of the side plate 2 close to the bending direction of the bent part is small, the requirements that the structure of the honeycomb paperboard 10 is not deformed and the strength is met can be met through the first inner pressing mark 801 and the second outer pressing mark 5, and the deformation of the end part of the side plate 2, which deviates from the bending direction, of the bent part is relatively large, so that the honeycomb paperboard is realized through the first outer pressing mark 4, the first inner pressing mark 801 and the third.

2) When the folded state that 2 adjacent curb plates 2 tiling were directly put is continued to buckle to the opposite direction of the direction of buckling along the user state and is retrieved and deposit as curb plate 2, the deformation of kink is whole less, and the deformation through indentation 802 in the second and the outer indentation 5 of second can realize, and is less to the intensity damage of honeycomb carton.

3) When the side plates 2 are recycled and stored in a folded state that the side plates are continuously bent to the outer side faces of the adjacent side plates 2 in the opposite direction of the bending direction in the use state, in the folding process, the side walls are bent and deformed in the 2) middle state, the phase change of the honeycomb paper board 10 is large in the process, and the honeycomb paper board can be realized only by finding out the deformation of the first outer pressing mark 4, the first inner pressing mark 801, the second outer pressing mark 5, the second inner pressing mark 802 and the third inner pressing mark 803 at the same time, so that the damage of the honeycomb paper box in the folding and storing process is reduced.

When recycling again, under the effect of second internal indentation 802 and second external indentation 5, curb plate 2 makes curb plate 2 buckle into 90, and can satisfy the compressive strength of whole case of carton again.

Example 3

Referring to fig. 9 and 10, compared to embodiment 1, the recyclable honeycomb carton of the present embodiment has the following differences:

in the present embodiment, the honeycomb carton is formed by splicing two sheets of honeycomb paperboard 10, which are defined as a first honeycomb paperboard 11 and a second honeycomb paperboard 12.

In this embodiment, one side of two honeycomb cardboard 10 all is equipped with engaging lug 6, and the opposite side all is equipped with joining region 7, and two honeycomb cardboard 10 are all through once folding, and the upper and lower both ends of honeycomb cardboard 10 form apron 3 through the cutting, and the part between the apron 3 is curb plate 2. The connecting lugs 6 of the first honeycomb paper boards 11 are glued or nailed to the connecting areas 7 of the second honeycomb paper boards 12, the connecting lugs 6 of the second honeycomb paper boards 12 are glued or nailed to the connecting areas 7 of the first honeycomb paper boards 11, and then the cover plates 3 at the lower ends of the two honeycomb paper boards 10 are closed in a gluing mode to form a box body 1 structure in a surrounding mode.

The above technical features can be understood and implemented by those skilled in the art through the text description, and therefore, the accompanying drawings are not needed to be described.

Claims

1. The utility model provides a circulated ultra-thin honeycomb carton which characterized in that: the box body comprises side plates and a cover plate connected with at least one end of each side plate, each side plate is formed by bending and splicing at least one honeycomb paperboard for more than one time, one inner indentation at least distributed on the inner side of each side plate and two outer indentations at least distributed on the outer side of each side plate are arranged at the bent part connected with the adjacent side plates, and the thickness of each honeycomb paperboard is less than or equal to 12 mm.

2. A recyclable ultra-thin honeycomb carton as claimed in claim 1 wherein: the thickness of the honeycomb paperboard is 4 mm-6 mm.

3. A recyclable ultra-thin honeycomb carton as claimed in claim 2 wherein: the thickness of the honeycomb core of the honeycomb paperboard is 3.5 mm-5 mm.

4. A recyclable ultra-thin honeycomb carton as claimed in claim 1 wherein: the number of the inner press marks is 1-3, and the number of the outer press marks is 2-4.

5. A recyclable ultra-thin honeycomb carton as claimed in claim 4 wherein: the number of the inner press marks is three, and the number of the outer press marks is two.

6. A recyclable cellular carton as claimed in claim 5 wherein: the three inner indentations have different depths, and the depth of the inner indentation in the middle is larger than the depths of the inner indentations on the two sides.

7. A recyclable honeycomb carton as claimed in claim 1 or 2 wherein: the cross sections of the inner indentations and the outer indentations are U-shaped or V-shaped.

8. A recyclable honeycomb carton as claimed in claim 1 or 2 wherein: and one side or two sides of the inner indentation are provided with pre-pressing lines.

9. A recyclable honeycomb carton as claimed in claim 1 or 2 wherein: the depth of the outer indentations is 1/3-2/3 of the thickness of the honeycomb paperboard, and the distance between every two adjacent outer indentations is 1.1-3.0 times of the thickness of the honeycomb carton paperboard.

10. A recyclable honeycomb carton as claimed in claim 1 or 2 wherein: the inner indentation and the outer indentation are formed by pressing with a two-wire wheel or two-three-wire wheel or line touching.
