Abstract
本发明公开了一种用于油烟在线监控装置的固定支架，包括悬挂组件、限位组件和理线组件，所述理线组件的两侧皆活动设置有安装组件，所述理线组件顶部的两侧皆活动设置有固定槽，所述固定槽的表面皆活动安装有限位栓，所述固定槽的顶部皆固定安装有支撑架，所述支撑架的内部皆贯穿安装有限位组件，所述支撑架之间活动安装有油烟数据采集器，所述支撑架的顶部活动安装有悬挂组件。本发明通过设置有一系列的结构使本装置在使用的过程中利用固定栓将固定板安装在支撑架的上面，接着利用挂环将本装置进行悬挂，配合安装组件将本装置进行安装，采用多种安装方式便于工作人员进行安装。
The invention discloses a fixed bracket for an oil fume online monitoring device, which includes a suspension component, a limit component and a wire management component. Mounting components are movably arranged on both sides of the wire management component. Both sides are movably provided with fixing grooves, the surfaces of the fixing grooves are movably installed with limit bolts, the tops of the fixing grooves are fixedly installed with support frames, and the interior of the support frames are all installed with limit components. An oil fume data collector is movably installed between the support frames, and a suspension component is movably installed on the top of the support frame. In the present invention, a series of structures are arranged so that the device uses the fixing bolt to install the fixing plate on the support frame during the use process, and then uses the hanging ring to suspend the device, and cooperates with the installation component to install the device. This installation method is convenient for staff to install.
Description
Technical Field
The invention relates to the technical field of oil smoke monitoring equipment, in particular to a fixing support for an oil smoke online monitoring device.
Background
The oil smoke is always an important pollution source in a kitchen, but people only know the oil smoke harm at a sharp stage, so that a real-time online oil smoke monitoring device capable of clearly revealing the oil smoke harm is necessary to design, and a fixing support is needed to be used for installation work in the using process of the online oil smoke monitoring device.
The existing fixed support for the oil smoke online monitoring device has the defects that:
1. the existing fixing support is single in installation mode, and installation work of workers is influenced;
2. the existing fixing support is inconvenient to reinforce the oil smoke online monitoring device, and influences workers to use, so that the fixing support for the oil smoke online monitoring device is provided to solve the existing problem.
Disclosure of Invention
The invention aims to provide a fixing bracket for an oil smoke online monitoring device, which aims to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a fixed bolster for oil smoke on-line monitoring device, includes suspension assembly, spacing subassembly and reason line subassembly, the both sides of reason line subassembly are all movable setting with the installation component, the both sides at reason line subassembly top are all movable setting with the fixed slot, the surface of fixed slot is all movable mounting has spacing bolt, the top of fixed slot is all fixed mounting has the support frame, the inside of support frame all runs through installs spacing subassembly, movable mounting has oil smoke data collection station between the support frame, the top movable mounting of support frame has suspension assembly.
Preferably, the suspension assembly includes the fixed plate, and the inside both sides of fixed plate all run through and install the gim peg, and the top equidistance of fixed plate is provided with the link.
Preferably, the inside of support frame is fixed and is provided with the internal thread cover, one side equidistance of support frame is provided with the support groove.
Preferably, the installation component includes the mounting groove, and the both ends of mounting groove all run through to install the erection bolt, and one side of mounting groove is fixed and is provided with the collar.
Preferably, the limiting assembly comprises a threaded rod, a limiting plate is fixedly mounted on one side of the threaded rod, and an adjusting disc is fixedly mounted on the other side of the threaded rod.
Preferably, the wire arrangement assembly comprises a wire arrangement frame, and guide sleeves are equidistantly arranged in the wire arrangement frame.
Compared with the prior art, the invention has the beneficial effects that:
1. according to the invention, the suspension assembly is movably arranged at the top of the support frame, the fixing plate can be arranged on the support frame by using the fixing bolt, then the device is suspended by using the hanging ring and is arranged by matching with the mounting assembly, and various mounting modes are adopted to facilitate installation of workers.
2. According to the invention, the supporting frames are fixedly arranged at the tops of the fixing grooves, so that the oil smoke data collector can be supported by the supporting grooves, and then the oil smoke data collector is reinforced by matching the internal thread sleeves with the limiting assemblies, so that the oil smoke data collector is convenient for workers to use.
3. According to the oil smoke data acquisition device, the limiting assemblies are arranged in the supporting frame in a penetrating mode, the adjusting disc can be rotated, the threaded rod is used for moving in the inner threaded sleeve, then the limiting plate is used for limiting the oil smoke data acquisition device, and the mounting firmness is improved.
4. According to the invention, through installing the wire arranging assembly, the guide sleeve can be used for penetrating and installing the wire, so that the wire arranging work of workers is facilitated, and the wire is prevented from being wound.
5. According to the invention, the mounting assemblies are movably arranged on both sides of the wire arranging assembly, the mounting assemblies and the wire arranging assembly can be supported by the mounting grooves, then the mounting bolts are screwed down for fixing, and then the device is further fixed by the mounting rings.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a partial structural view of the supporting frame of the present invention;
FIG. 3 is a schematic view of a partial structure of the stop assembly of the present invention;

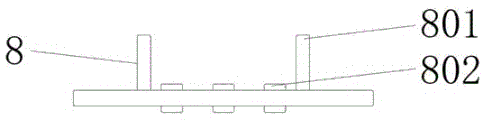

FIG. 4 is a partial structural view of the wire management assembly of the present invention;
FIG. 5 is a partial schematic view of the mounting assembly of the present invention;

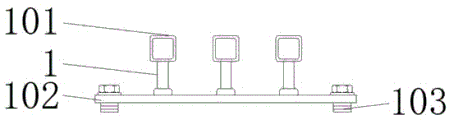

fig. 6 is a partial structural view of the suspension assembly of the present invention.
In the figure: 1. a suspension assembly; 101. hanging a ring; 102. a fixing plate; 103. a fixing bolt; 2. a support frame; 201. an internal thread sleeve; 202. a support groove; 3. an oil fume data collector; 4. fixing grooves; 5. mounting the component; 501. mounting grooves; 502. installing a bolt; 503. a mounting ring; 6. a limiting component; 601. an adjusting disk; 602. a threaded rod; 603. a limiting plate; 7. a limit bolt; 8. a wire arranging assembly; 801. a wire arranging frame; 802. and a guide sleeve.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, such as "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-6, an embodiment of the present invention is shown: a fixed support for an oil smoke online monitoring device comprises a hanging component 1, a limiting component 6 and a wire arranging component 8, wherein two sides of the wire arranging component 8 are respectively and movably provided with a mounting component 5, the mounting components 5 can be supported by a mounting groove 501 and the wire arranging component 8, then the mounting bolts 502 are screwed down for fixing, then the device is further fixed by a mounting ring 503, the wire arranging component 8 can penetrate through and mount a wire by a guide sleeve 802, so that workers can conveniently carry out wire arranging work and prevent the wire from winding, two sides of the top of the wire arranging component 8 are respectively and movably provided with a fixed groove 4, the surface of the fixed groove 4 is respectively and movably provided with a limiting bolt 7, the top of the fixed groove 4 is respectively and fixedly provided with a support frame 2, the support frame 2 can be used for supporting an oil smoke data collector 3 by a support groove 202, and then the oil smoke data collector 3 is reinforced by matching the internal thread, the oil smoke data collector 3 can be electrically connected with an external power supply through a lead, the type of the oil smoke data collector 3 can be SWZL-51 oil smoke data collector, the oil smoke data collector 3 is also provided with an expanded switching value input interface and a relay output interface, the oil smoke data collector 3 can be used for monitoring the working states of a fan and a purifier and automatically controlling the start and stop of a purification system according to the concentration state of oil smoke, so that the purpose of automatic control is achieved, and the top of the support frame 2 is movably provided with the suspension component 1, the suspension assembly 1 can install the fixing plate 102 on the support frame 2 by using the fixing bolt 103, then hang the device by using the hanging ring 101, install the device by matching with the installation assembly 5, and adopt a plurality of installation modes to facilitate installation of workers.
Further, hang subassembly 1 and include fixed plate 102, and the inside both sides of fixed plate 102 all run through and install gim peg 103, and the top equidistance of fixed plate 102 is provided with link 101, and when this device carried out the during operation, can utilize gim peg 103 to install fixed plate 102 on support frame 2, utilizes link 101 to hang this device after that, and cooperation installation component 5 installs this device, adopts multiple mounting means to be convenient for the staff to install.
Further, the fixed internal thread cover 201 that is provided with in inside of support frame 2, one side equidistance of support frame 2 is provided with and supports groove 202, when this device carries out the during operation, can utilize to support groove 202 and support oil smoke data collection station 3, utilizes internal thread cover 201 cooperation spacing subassembly 6 to consolidate oil smoke data collection station 3 afterwards, makes things convenient for the staff to use.
Further, installation component 5 includes mounting groove 501, and the both ends of mounting groove 501 are all run through and are installed installation bolt 502, and one side of mounting groove 501 is fixed and is provided with collar 503, when this device carries out work, can utilize mounting groove 501 and reason line subassembly 8 to support, then screws up installation bolt 502 and fixes, then utilizes collar 503 to further fix this device.
Further, spacing subassembly 6 includes threaded rod 602, and one side fixed mounting of threaded rod 602 has limiting plate 603, and the opposite side fixed mounting of threaded rod 602 has adjusting disk 601, and when this device carried out the during operation, can rotate adjusting disk 601, utilizes threaded rod 602 to remove in the inside of internal thread cover 201, utilizes limiting plate 603 to carry on spacingly to oil smoke data collection station 3 afterwards, improves the fastness of installation.
Further, reason line subassembly 8 is including reason line frame 801, and the inside equidistance of reason line frame 801 is provided with uide bushing 802, when this device carries out the during operation, can utilize uide bushing 802 to run through the installation with the wire, and the staff of being convenient for carries out reason line work, prevents that the wire from twining.
The working principle is as follows: before the device is used, a user firstly detects the device, confirms that no problem exists, when the device is used, the oil smoke data collector 3 is firstly supported by the supporting groove 202, then the oil smoke data collector 3 is reinforced by the matching of the internal thread bush 201 and the limiting component 6, the use by the worker is convenient, then the adjusting disc 601 is rotated, the threaded rod 602 is moved in the internal thread bush 201, then the oil smoke data collector 3 is limited by the limiting plate 603, the mounting firmness is improved, then the fixing plate 102 is arranged on the supporting frame 2 by the fixing bolt 103, then the device is hung by the hanging ring 101, the device is mounted by the matching of the mounting component 5, the mounting is convenient for the worker by adopting various mounting modes, then the guide sleeve 802 is used for installing a lead in a penetrating way, and the wire arranging work by the worker is convenient, the wire is prevented from being wound, then the wire is supported by the wire arranging component 8 through the mounting groove 501, then the mounting bolt 502 is screwed down for fixing, and then the device is further fixed through the mounting ring 503.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
