Abstract
本发明公开了一种能够实现敞口包装袋的连续自动取袋，并且配合上袋机用，取代人工操作，提高生产效率的矿山粉体敞口袋连续取袋机。该矿山粉体敞口袋连续取袋机，包括滚筒传送带送袋机构、缝边机构、成卷袋子的传送装置、切袋机构、滚轮与翻板机构；所述成卷袋子的传送装置的一端设置有放置和输出敞口袋的水平托杆与滚轮驱动装置。采用该矿山粉体敞口袋连续取袋机，能够实现从最开始成卷原料到一个独立敞口袋上袋装填前的所有步骤；其次，在滚轮随动器帮助下，折边板与缝纫机构现实自动化生产；再次，滚轮翻版机构改变敞口袋的位置方向，实现竖直方向，便于取袋。
The invention discloses a continuous automatic bag taking machine for open-mouth packaging bags, which is used in conjunction with a bag-loading machine to replace manual operation and improve production efficiency. The mine powder open bag continuous bag taking machine includes a drum conveyor belt feeding mechanism, a seaming mechanism, a conveying device for rolled bags, a bag cutting mechanism, a roller and a flap mechanism; one end of the conveying device for rolled bags is provided with Horizontal lever and roller drive for placing and exporting open pockets. The use of this mine powder open bag continuous bag taking machine can realize all the steps from the initial roll of raw materials to the filling of an independent open bag; secondly, with the help of the roller follower, the folding plate and the sewing mechanism Realize automated production; thirdly, the roller turning mechanism changes the position and direction of the open bag to achieve a vertical direction, which is convenient for taking the bag.
Description
Technical Field
The invention relates to a packaging mechanical system, in particular to a mine powder open bag continuous bag taking machine.
Background
It is well known that: with the rapid development of the production technology of ultrafine powder, the subsequent treatment of powder, including bagging and finishing processes, are continuously advanced. The initial bagging process is manual bagging, and workers directly pack the powder into bags by using tools, and then leave the factory after packaging. Because the powder is extremely tiny, workers need to be in an environment where dust flies for a long time in the bagging process, and the health of the human body is greatly influenced. With the development of the technology, the automatic bagging machine is developed slowly, the problem of powder bagging is solved by the bagging machine, but the problem of manual bagging is not solved, and a worker is required to manually place a bag on the bagging machine. Aiming at the current situation, the bag taking machine is produced as soon as possible.
The application of the automatic bagging machine in China is very mature at present, but the bag taking and feeding mechanism of the open bag is not in line with the development of the bagging machine, but lags behind the development of the bagging machine. In foreign countries, the bag taking and feeding mechanism is very mature, and a very clear production line is already used along with the bagging process. From this point of view, the difference between domestic and foreign countries is still large.
Disclosure of Invention
The invention aims to solve the technical problem of providing a mine powder open bag continuous bag taking machine which can realize continuous and automatic bag taking of open packaging bags, is matched with a bag feeding machine, replaces manual operation and improves production efficiency.
The technical scheme adopted by the invention for solving the technical problems is as follows: a mine powder open bag continuous bag taking machine comprises a roller conveyor belt bag conveying mechanism; one side of the roller conveyor belt bag conveying mechanism is provided with an edge sewing mechanism; one side of one end of the roller conveyor belt bag feeding mechanism is provided with a conveying device for conveying the open bags to coiled bags on the roller conveyor belt bag feeding mechanism; the conveying device of the coiled bags is provided with a bag cutting mechanism;
the other end of the roller conveyor belt bag conveying mechanism is provided with an open bag transverse conveying area; a bag output stick is arranged above one end of the open bag transverse conveying area; one end of the bag output rod arranged in the transverse conveying area of the open bag is provided with a roller and a plate turnover mechanism;
one end of the conveying device for the rolled bags is provided with a horizontal support rod and a roller driving device for placing and outputting the open bags.
Specifically, the roller and turning plate mechanism comprises a base, a bag feeding turning plate and a rack; the base is provided with a hinge seat; the frame is positioned on one side of the base; a press roller and a driving rod are arranged above the rack; a first driving motor for driving the driving stick to rotate is arranged on the rack;
a gap is formed between the compression roller and the driving roller; a guide rod is arranged in front of a gap between the compression roller and the driving rod;
one end of the upper bag turning plate is hinged with the hinge seat, and the other end of the upper bag turning plate is leaned against the rack and is positioned below the driving stick and the guide stick;
a sucker is arranged above the upper bag turning plate; one side of the upper bag turning plate is provided with a baffle plate, and the other side of the upper bag turning plate is provided with a whole bag plate;
the back of the upper bag turning plate is provided with a first telescopic device; one end of the first telescopic device is hinged with the upper bag turning plate, and the other end of the first telescopic device is hinged with the base.
Specifically, the bag cutting mechanism comprises a mounting frame;
a cross beam is arranged at the top of the mounting frame; a fixed plate is arranged on one side of the cross beam, and a second telescopic device is arranged on the fixed plate; a sliding plate is arranged below the fixed plate;
guide rods are arranged at two ends of the sliding plate; the guide rod penetrates through the fixing plate; a bag cutting tool is arranged below the sliding plate; the bag cutting tool is connected with the sliding plate through a connecting rod;
a second pressing rod is arranged below the cross beam; a bag conveying roller is arranged below the second pressing roller; the sliding plate is driven to move up and down through a second telescopic device; and a second driving motor for driving the bag conveying roller to rotate is arranged on the mounting frame.
Specifically, the conveying device for the rolled bags comprises a conveying rack; a first transition roller is arranged on the conveying rack; an input frame is arranged above one end of the conveying rack; the bag conveying roller is positioned at the other end of the conveying rack; the input frame is provided with a second transition roller and a third transition roller; an inclined plane is arranged between the first transition roller and the second transition roller; the inclined surface is positioned below the first transition roller and the second transition roller.
Specifically, the horizontal supporting rod and roller driving device comprises a horizontal supporting rod and a driving device for driving the horizontal supporting rod to rotate; and a guide roller is arranged in front of the horizontal support rod.
Preferably, the first telescopic device and the second telescopic device are both pneumatic cylinders, hydraulic cylinders or electric push rods.
The invention has the beneficial effects that: the continuous bag taking machine for the mine powder open bag can realize continuous bag cutting, sealing and conveying of the open bag and preparation for subsequent processes;
therefore, the continuous bag taking machine for the mine powder open bags fills up the blank of automatic production in the processes of separating, clamping, loading and filling the open bags. All steps from the initial rolling of the stock to the filling of a separate open-top bag are achieved. Secondly, with the help of the roller follower, the automatic production of the hemming plate and the sewing mechanism is realized. And thirdly, the roller turnover mechanism changes the position direction of the open bag to realize the vertical direction, so that the bag is convenient to take.
Drawings

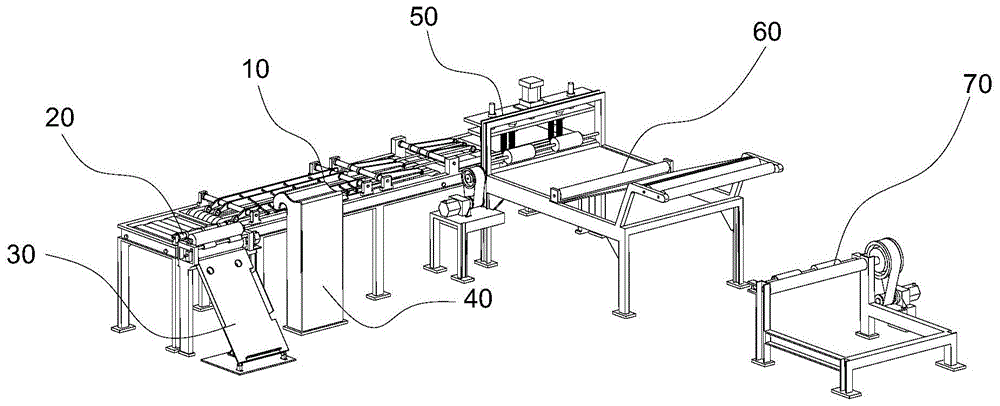

FIG. 1 is a perspective view of a mine powder open bag continuous bag taking machine in an embodiment of the invention;
FIG. 2 is a perspective view of the roller and flap mechanism in an embodiment of the present invention;
FIG. 3 is a front view of the roller and flipping mechanism in an embodiment of the present invention;
FIG. 4 is a perspective view of a roller conveyor bag feeding mechanism in an embodiment of the present invention;
FIG. 5 is a schematic structural diagram of a bag cutting mechanism according to an embodiment of the present invention;
FIG. 6 is a perspective view of the conveyor and horizontal carrier bar and roller drive of a rolled bag in accordance with an embodiment of the present invention;
the following are marked in the figure: 10-roller conveyor belt bag feeding mechanism, 20-bag output roller, 30-roller and plate turning mechanism, 40-edge sewing mechanism, 50-bag cutting mechanism, 60-coiled bag conveying device, 70-horizontal supporting rod and roller driving device and 80-open bag.
Detailed Description
The invention is further illustrated with reference to the following figures and examples.
As shown in fig. 1 to 6, the continuous mine powder open bag taking machine comprises a roller conveyor belt bag feeding mechanism 10; one side of the roller conveyor belt bag conveying mechanism 10 is provided with a hemming mechanism 40; one side of one end of the roller conveyor bag feeding mechanism 10 is provided with a conveying device 60 for conveying the open bags 80 to rolled bags on the roller conveyor bag feeding mechanism 10; the conveying device 60 of the rolled bags is provided with a bag cutting mechanism 50;
the other end of the roller conveyor belt bag feeding mechanism 10 is provided with an open bag transverse conveying area 12; a bag output stick 20 is arranged above one end of the open bag transverse conveying area 12; one end of the open bag transverse conveying area 12, which is provided with a bag output stick 20, is provided with a roller and panel turnover mechanism 30;
one end of the roll of bags conveyor 60 is provided with a horizontal bar and roller drive 70 for placing and delivering open bags 80.
In the working process:
1. placing the rolled open-top bag 80 on a horizontal support rod and roller driving device 70, leading one end out, and feeding the rolled open-top bag into a conveying device 60 for rolling bags; and is drawn into a roller below the bag cutting mechanism 50 and horizontally placed.
2. The length required by the open bag is designed, and when the designed length is reached, the bag cutting mechanism 50 is controlled, so that the bag is cut into two sections by the bag cutting mechanism 50, and the front section is the designed length.
3. The open-pocket bags 8 continue to move forward under the action of the driving rollers, so that the open-pocket bags 8 move to the roller conveyor bag feeding mechanism 10; and continues on the roller conveyor bag feeding mechanism 10, at which time lateral and longitudinal positioning is achieved.
Specifically, the bag conveying mechanism is composed of a conveying belt and a positioning roller, the conveying belt moves the open bags forwards, the positioning roller compacts the cut open bags, the open bags are neatly arranged, and edge sewing operation is prepared.
4. One end of the open bag 8 passes through the sewing mechanism 40 in the process of moving forward, and the sewing mechanism 40 cuts off one end of the thread.
5. After the open bag 8 is sealed at the sewing mechanism 40, the open bag is conveyed to the open bag transverse conveying area 12 through the roller conveyor bag conveying mechanism 10; then, the bag is conveyed from the open bag transverse conveying area 12 to the roller and flap mechanism 30, and the open bag changes the moving direction due to the action of the roller.
6. After the open-mouth bag 8 rolls down from the roller, the open-mouth bag moves downwards along the inclination angle of the turning plate, and then the position of the open-mouth bag 8 is adjusted through the roller and the turning plate mechanism 30, thereby facilitating the subsequent bag taking.
In conclusion, the continuous mine powder open bag taking machine can realize continuous bag cutting, sealing and conveying of the open bag and preparation for subsequent processes;
therefore, the continuous bag taking machine for the mine powder open bags fills up the blank of automatic production in the processes of separating, clamping, loading and filling the open bags. All steps from the initial rolling of the stock to the filling of a separate open-top bag are achieved. Secondly, with the help of the roller follower, the automatic production of the hemming plate and the sewing mechanism is realized. And thirdly, the roller turnover mechanism changes the position direction of the open bag to realize the vertical direction, so that the bag is convenient to take.
Specifically, the roller and flap mechanism 30 includes a base 31, an upper bag flap 33, and a frame 37; the base 31 is provided with a hinged seat 32; the frame 37 is positioned at one side of the base 31; a press roller 312 and a driving roller 39 are arranged above the frame 37; a first driving motor 38 for driving the driving stick 39 to rotate is arranged on the frame 37;
a gap is formed between the press roller 312 and the driving roller 39; a guide rod 310 is arranged in front of the gap between the compression roller 312 and the driving rod 39;
one end of the upper bag turning plate 33 is hinged with the hinge seat 32, and the other end leans against the frame 37 and is positioned below the driving stick 39 and the guide stick 310;
a sucker 35 is arranged above the upper bag turning plate 33; a baffle is arranged on one side of the upper bag turning plate 33, and a whole bag plate 34 is arranged on the other side;
the back of the upper bag turning plate 33 is provided with a first telescopic device 311; one end of the first telescopic device 311 is hinged with the upper bag turning plate 33, and the other end is hinged with the base 31.
The roller and the plate turnover mechanism 30 are designed to be used in cooperation with the bag feeding mechanism, and as shown in fig. 2 and 3, the main function is to convey the bags to the bag feeding mechanism and supply the bags to the bag feeding mechanism for subsequent actions, including powder bagging, weighing and the like
The bag rolling mechanism can be divided into two parts, namely a roller part and a turning plate part, wherein the roller part mainly feeds the bag roll into the turning plate, and then the turning plate pushes the turning plate upwards through the action of an air cylinder and is erected for the action of a rear mechanism.
The turning plate mechanism comprises an upper bag turning plate 33, a base 31, a hinged seat 32, a first telescopic device 311 and a bag arranging cylinder, wherein the upper bag turning plate 33 is also fixed with two vacuum suckers 35, and the function of the turning plate is to suck the bags when the upper bag cylinder pushes the turning plate to move upwards so as not to enable the bags to fall or fly forwards.
The action process of the whole mechanism is as follows:
after the bag pressing roller 312 and the driving roller 39 roll down, the bag pressing roller moves downwards along the inclination angle of the upper bag turning plate 33 to contact with the lower adjusting angle steel 36, and then the bag arranging cylinder arranged beside the upper bag turning plate 33 starts to act. The cylinder is contracted to push the bag to the left baffle for positioning.
The baffle and lower adjustment angle 36 provide a "U" shaped channel that is mounted on the upper bag flap 33 at a position that is adjustable according to the size of the bag. The reason that the bag arranging cylinder needs to be added for arranging the bags is that the turning plate needs to be clamped by a subsequent bag feeding mechanism after being erected. After the bag is completed, the suction cup 35 starts to act to firmly suck the bag, so that the bag can be attached to the upper bag turning plate 33. At this point, the first telescoping device 311 begins to actuate, extending the first telescoping device 311 outward, pushing the upper bag flap 33 upward until the upper bag flap 33 is substantially perpendicular to the underlying base 31. When the upper bag turning plate 33 is turned up, the opening part of the bag is higher than the turning plate by a certain distance for the subsequent mechanism to clamp. The principle of the roller bag feeding mechanism is the same as that of the prior transmission roller, but because the bags are not conveyed linearly, a group of rollers are added for guiding, so that the bags can be conveyed to the upper bag turning plate 33. When the first telescopic device 311 retracts to the minimum stroke, the angle between the upper bag flap 33 and the base 31 is 60 °, and the angle of the bag output between the driving roller 39 and the guiding roller 310 is 60 °, so that the two parts can be well butted. The roller mechanism is composed of three groups of rollers, wherein a main driving roller 39 is connected with a first driving motor 38 through a coupler to drive other two groups of rollers to rotate along with the driving rollers, so that the bags on the workbench are rolled in and are conveyed to the turning plate.
The bag transfer and cutting mechanism is shown in fig. 5, and can be divided into two parts, namely a front roll bag transfer device 60 and a bag cutting mechanism 50, and a rear horizontal support rod and roller driving device 70.
Specifically, the bag cutting mechanism 50 includes a mounting frame 51; a cross beam is arranged at the top of the mounting frame 51; a fixed plate is arranged on one side of the cross beam, and a second telescopic device 58 is arranged on the fixed plate; a sliding plate 54 is arranged below the fixed plate;
guide rods 55 are arranged at two ends of the sliding plate 54; the guide rod 55 penetrates through the fixing plate; a bag cutting tool 57 is arranged below the sliding plate 54; the bag cutter 57 is connected with the sliding plate 54 through a connecting rod 56;
a second pressing roller 53 is arranged below the cross beam; a bag conveying roller 52 is arranged below the second pressing roller 53; the sliding plate 54 is driven to move up and down by a second telescopic device 58; the mounting frame 51 is provided with a second driving motor 59 for driving the bag conveying roller 52 to rotate.
The rolled bag conveying device 60 comprises a conveying rack 61; a first transition roller 62 is arranged on the conveying frame 61; an input frame is arranged above one end of the conveying rack 61; the bag conveying roller 52 is positioned at the other end of the conveying frame 61; a second transition roller 64 and a third transition roller 65 are arranged on the input frame; an inclined surface 63 is arranged between the first transition roller 62 and the second transition roller 64; the inclined surface 63 is located below the first transition roller 62 and the second transition roller 64.
Specifically, the horizontal supporting rod and roller driving device 70 includes a horizontal supporting rod and a driving device for driving the horizontal supporting rod to rotate; and a guide roller is arranged in front of the horizontal support rod.
The output of the bag is completed by a horizontal support rod and a roller driving device 70, the horizontal support rod is connected with the driving device through a belt wheel, and a guide roller rolls along with the horizontal support rod. When the driving device rotates for a certain angle, the horizontal supporting rod and the guide roller rotate for a corresponding angle, the coiled bag is pulled out for a certain distance, and the pulled-out distance is used for conveying of the rear cutting mechanism. The driving device adopts a stepping motor, and after the stepping motor rotates for a certain angle, the length of the pulled bag is far greater than the total length of one bag, because the following bag cutting mechanism is also provided with a roller mechanism for pulling out the length of one bag for cutting. And the roller guide conveying is arranged between the conveying mechanism and the cutting mechanism, so that the distance of one-time pulling-out is enough for later transmission. The horizontal support rod in the bag conveying mechanism is selected from stainless steel long pipe rollers. Polyurethane is added to the outer layer of the guide roller, so that friction between the guide roller and the driving roller can be reduced.
The cutting part of the bag cutting mechanism 50 is at the foremost end of the mechanism, and the detailed structure is shown in fig. 5. The front end of the cutting part is provided with a conveying device 60 for rolled bags, the front of the conveying device 60 for rolled bags is used for conveying the bags, the foremost end is also provided with two rollers, a second transition roller 64 and a third transition roller 65, and the main function is guiding function and guiding the bags to the lower side.
The rolled bag conveying device 60 comprises a conveying rack 61; a first transition roller 62 is arranged on the conveying frame 61; an input frame is arranged above one end of the conveying rack 61; the bag conveying roller 52 is positioned at the other end of the conveying frame 61; a second transition roller 64 and a third transition roller 65 are arranged on the input frame; an inclined surface 63 is arranged between the first transition roller 62 and the second transition roller 64; the inclined surface 63 is located below the first transition roller 62 and the second transition roller 64.
An inclined surface 63 is arranged between the first transition roller 62 and the second transition roller 64; the inclined surface 63 may be welded to the frame or may be fixed to the frame by other fixing means. Its main function is to straighten the bag in preparation for subsequent severing. The bag also has a roller first transition roller 62 in front of it, which roller has the function of preventing the bag from jumping upwards when being conveyed and pulled out by the roller, thus causing conveying errors. Although the three rollers in the mechanism have different functions, the three rollers have the same working principle, so that the same guide roller can be selected and used, and the type of the guide roller is the same as that of the driving roller of the conveying mechanism. The cutting mechanism is a cutting part at the most front end, and the bag conveying mechanism is connected with the cutting mechanism after the cutting mechanism comes out. The bag is cut by 'hot cutting', namely, the bag is cut by a heated cutter, and the cutter is provided with a heating device, so that the cutter can be heated to cut the bag during operation. The hot cutting has the advantages that the end face of the cut bag is relatively regular, and the bag has good positioning effect on smoothly finishing edge folding and edge sewing at the back.
The working principle of the whole cutting mechanism is as follows: after the bag is fed out by the roller conveyor, the second telescopic device 58 above starts to operate, pushing the sliding plate 54 downwards, and the lower part of the sliding plate 54 is also provided with a guide shaft. The connecting rod 56 is connected with the edge pressing block, when moving downwards, the edge pressing block can touch the conveying table due to the fact that a groove is formed below the cutter, and the connecting rod 56 is provided with a spring. When the edge pressing block touches the workbench to press the bag, the spring starts to work when the edge pressing block continues to move downwards, and the cutter continues to cut off the bag downwards. After the cutting, the second telescopic device 58 moves upwards to drive the lower part to move upwards together, so that the whole cutting process is completed. The guide shaft is arranged in a linear bearing, and the linear bearing is selected to be of a flange type, so that the linear bearing is convenient to install.
For the convenience of control, further, the first telescopic device 311 and the second telescopic device 58 are both a pneumatic cylinder, a hydraulic cylinder or an electric push rod.
Specifically, the roller conveyor belt bag feeding mechanism 10 is connected with the bag cutting mechanism 50, the roller conveyor belt bag feeding mechanism 10 can be divided into three parts, the front part is a part connected with the bag cutting mechanism 50, the middle part is provided with a sewing edge sewing mechanism, and the last part is a bag conveying part. The whole mechanism is shown in figure 4.
The connection part with the bag cutting mechanism mainly has the function that after the bags are cut off, the cut bags are conveyed to the edge sewing mechanism 40 by the roller conveyor belt; as shown in fig. 4, in particular, after the bag is cut off, one side of the bag is already on the roller and the conveyor belt, the roller conveyor belt bag feeding mechanism 10 comprises the conveyor belt, three small rollers are arranged on the roller of the conveyor belt, the small rollers are arranged on a shaft, the shaft is arranged on a frame through a bearing seat, and the shaft can rotate. The rotation of axle stretches out and contracts through the cylinder and moves, and three small roller passes through screw and nut and installs on the platelet with axle complex, and threaded hole above the platelet can be fixed epaxially, has just so guaranteed that the axle when rotating, and the small roller fixed plate just can not rotate. After the bag is cut off, the cylinder stretches out to move, the small roller is driven by the shaft to contact with the belt, and the roller and the belt move to convey the bag to the conveying belt. Since a portion of the cut bag is already on the belt, the small rollers rotate in opposite directions as long as they contact the belt in a downward direction, similar to the meshing of gears, to "pinch" the bag into the belt. The bags are transferred to the rear hemming mechanism 40 by beginning the transfer after entering the conveyor. The conveyor belt of the hemming mechanism 40 also carries a number of small rollers, which are different from the previous ones, which are roller bearing followers, mounted on a fixed plate mounted on a shaft axially positioned by a positioning ring. The follower follows the rotation of the conveyor belt to convey the bag and prevent inaccurate positioning of the bag during edge sewing. The edge sewing mechanism is arranged beside the shelf and mainly comprises a flanging plate and a sewing machine, and the working principle is that after the bag is conveyed, the sewing machine stitches the bag after the bag passes through the flanging mechanism, the sewing machine cuts off a sewing line after sewing, and the subsequent work is carried out after cutting off.
The last part of the bag conveying and edge sewing mechanism is a conveying part which is connected with a subsequent roller plate turning mechanism to turn the sewn bag conveying belt over the plate, and the bag is conveyed to a subsequent bag feeding mechanism by the plate turning mechanism for subsequent bagging work.
Claims (6)
1. The open bag of mine powder gets bag machine in succession, its characterized in that: comprises a roller conveyor belt bag feeding mechanism (10); a hemming mechanism (40) is arranged on one side of the roller conveyor belt bag conveying mechanism (10); one side of one end of the roller conveyor belt bag feeding mechanism (10) is provided with a conveying device (60) for conveying the open bags (80) to the roller conveyor belt bag feeding mechanism (10) to form coiled bags; a bag cutting mechanism (50) is arranged on the conveying device (60) of the rolled bags;
the other end of the roller conveyor belt bag feeding mechanism (10) is provided with an open bag transverse conveying area (12); a bag output stick (20) is arranged above one end of the open bag transverse conveying area (12); one end of the open bag transverse conveying area (12) provided with a bag output roller (20) is provided with a roller and a panel turnover mechanism (30);
one end of the conveying device (60) of the rolled bags is provided with a horizontal supporting rod and a roller driving device (70) for placing and outputting the open bags (80).
2. The mine powder open bag continuous bag taking machine as claimed in claim 1, characterized in that: the roller and turning plate mechanism (30) comprises a base (31), an upper bag turning plate (33) and a rack (37); a hinged seat (32) is arranged on the base (31); the frame (37) is positioned at one side of the base (31); a press roller (312) and a driving roller (39) are arranged above the frame (37); a first driving motor (38) for driving the driving stick (39) to rotate is arranged on the frame (37);
a gap is arranged between the press roller (312) and the driving roller (39); a guide roller (310) is arranged in front of the gap between the press roller (312) and the driving roller (39);
one end of the upper bag turning plate (33) is hinged with the hinge seat (32), and the other end leans against the rack (37) and is positioned below the driving stick (39) and the guide stick (310);
a sucker (35) is arranged above the upper bag turning plate (33); a baffle is arranged on one side of the upper bag turning plate (33), and a whole bag plate (34) is arranged on the other side;
a first telescopic device (311) is arranged on the back of the upper bag turning plate (33); one end of the first telescopic device (311) is hinged with the upper bag turning plate (33), and the other end of the first telescopic device is hinged with the base (31).
3. The mine powder open bag continuous bag taking machine as claimed in claim 2, characterized in that: the bag cutting mechanism (50) comprises a mounting frame (51);
the top of the mounting frame (51) is provided with a cross beam; a fixed plate is arranged on one side of the cross beam, and a second telescopic device (58) is arranged on the fixed plate; a sliding plate (54) is arranged below the fixed plate;
guide rods (55) are arranged at two ends of the sliding plate (54); the guide rod (55) penetrates through the fixing plate; a bag cutting tool (57) is arranged below the sliding plate (54); the bag cutting tool (57) is connected with the sliding plate (54) through a connecting rod (56);
a second pressing roller (53) is arranged below the cross beam; a bag conveying roller (52) is arranged below the second pressing roller (53); the sliding plate (54) is driven to move up and down through a second telescopic device (58); and a second driving motor (59) for driving the bag conveying roller (52) to rotate is arranged on the mounting frame (51).
4. The mine powder open bag continuous bag taking machine as claimed in claim 3, characterized in that: the conveying device (60) for the rolled bags comprises a conveying rack (61); a first transition roller (62) is arranged on the conveying rack (61); an input frame is arranged above one end of the conveying rack (61); the bag conveying roller (52) is positioned at the other end of the conveying rack (61); the input frame is provided with a second transition roller (64) and a third transition roller (65); an inclined surface (63) is arranged between the first transition roller (62) and the second transition roller (64); the inclined surface (63) is positioned below the first transition roller (62) and the second transition roller (64).
5. The mine powder open bag continuous bag taking machine as claimed in claim 4, characterized in that: the horizontal supporting rod and roller driving device (70) comprises a horizontal supporting rod and a driving device for driving the horizontal supporting rod to rotate; and a guide roller is arranged in front of the horizontal support rod.
6. The mine powder open bag continuous bag taking machine as claimed in claim 5, characterized in that: the first telescopic device (311) and the second telescopic device (58) are both pneumatic cylinders, hydraulic cylinders or electric push rods.
