Abstract
本发明公开了一种用于水库水质改善的处理装置，包括支撑架、移动箱、悬浮物清理组件和污泥清理组件，移动箱通过移动轮卡接在支撑架上，悬浮物清理组件包括移动板、破碎刀盘、打捞斗、收集斗和动力电机，移动板设在移动箱下端，破碎刀盘、打捞斗和收集斗均卡接在移动板下端，动力电机设置在移动板上端，污泥清理组件包括污泥泵、滑动柱、滑动块和污泥清理辊，滑动柱设在移动板下端，滑动块卡接在滑动柱上，污泥清理辊铰接在滑动块下端，旋转电机为污泥清理辊提供动力，污泥泵用于将污泥吸入至移动箱中；本发明结构设计合理，能够对水库水面和库底同时进行清理，清理效率高，适宜大量推广。
The invention discloses a treatment device for improving the water quality of a reservoir, comprising a support frame, a moving box, a suspended matter cleaning component and a sludge cleaning component. The moving box is clamped on the support frame by a moving wheel, and the suspended matter cleaning component includes a moving Plate, crushing cutter head, salvage bucket, collecting bucket and power motor, the moving plate is arranged at the lower end of the moving box, the crushing cutter disc, salvage bucket and collecting bucket are all clamped at the lower end of the moving plate, the power motor is arranged at the upper end of the moving plate, sludge The cleaning component includes a sludge pump, a sliding column, a sliding block and a sludge cleaning roller. The sliding column is located at the lower end of the moving plate, the sliding block is clamped on the sliding column, the sludge cleaning roller is hinged on the lower end of the sliding block, and the rotating motor is used for sludge. The cleaning roller provides power, and the sludge pump is used to suck the sludge into the moving box; the invention has a reasonable structure design, can clean the water surface and the bottom of the reservoir at the same time, has high cleaning efficiency, and is suitable for mass promotion.
Description
Technical Field
The invention relates to the technical field of reservoir water body purification equipment, in particular to a treatment device and a treatment method for improving the water quality of a reservoir.
Background
The reservoir is one of the engineering measures widely adopted in flood control in China. A comprehensive utilization reservoir capable of regulating and storing flood is built at a proper position of an upstream river channel in a flood prevention area, the flood is blocked by utilizing the reservoir capacity of the reservoir, the peak flow entering the downstream river channel is reduced, and the aim of reducing and avoiding flood disasters is fulfilled. The reservoir has two different modes for regulating flood, one mode has the function of flood detention, and the other mode has the function of flood storage. In the water storage process of a reservoir, a large amount of pollutants float on the water surface due to poor flowability of water in the reservoir, and a large amount of aquatic weeds are bred, so that the oxygen content in the reservoir is reduced, aquatic organisms die, and the deterioration of water quality is further aggravated; on the other hand, due to the washing of rainwater, silt at the upstream of the reservoir enters the reservoir and is deposited at the bottom of the reservoir, so that the water storage capacity of the reservoir is seriously influenced.
The existing reservoir cleaning mostly adopts a manual cleaning mode, the cleaning efficiency is low, and certain dangerousness exists.
Disclosure of Invention
Aiming at the technical problems, the invention provides the treatment device for improving the water quality of the reservoir, which is simple to operate and has good treatment effect.
The technical scheme of the invention is as follows: a treatment device for improving the water quality of a reservoir comprises a support frame, a movable box, a suspended matter cleaning assembly and a sludge cleaning assembly; the support frame is provided with a clamping groove; the bottom of the movable box is provided with movable wheels, the movable box is clamped in the clamping grooves through the movable wheels, a device cavity and a sludge cavity are arranged in the movable box, and an installation plate is fixedly arranged on the outer wall of the movable box; the suspended matter cleaning assembly comprises a movable plate, a crushing cutter head, a fishing bucket, a collecting bucket and a power motor, the movable plate is arranged at the lower end of a mounting plate through a telescopic cylinder, the crushing cutter head comprises a rotating shaft and crushing teeth, the rotating shaft is rotatably clamped at the lower end of the mounting plate, the crushing teeth are provided with a plurality of crushing teeth, the crushing teeth are uniformly arranged along the circumferential direction of the rotating shaft, the fishing bucket is arranged at the lower end of the mounting plate through a mounting block and is positioned at the rear end of the crushing cutter head, the fishing motor is arranged in the mounting block and provides power for the fishing bucket, the collecting bucket is of a net-shaped structure and is arranged at the lower end of the mounting plate and is positioned at the rear end of the fishing bucket, the power motor is fixedly arranged at the upper end of the movable plate, and the power motor provides power for the crushing cutter head; the mud clearance subassembly includes the sludge pump, the slip post, sliding block and mud clearance roller, the vertical fixed setting of slip post is at the movable plate lower extreme, and be located broken blade disc front end, be provided with the bar groove on the slip post, the sliding block activity joint is in the bar inslot, and the sliding block can slide from top to bottom at the bar inslot, the inside rotating electrical machines that is provided with of sliding block, mud clearance roller activity articulates at the sliding block lower extreme, evenly be provided with a plurality of clearance teeth on the mud clearance roller, the rotating electrical machines provides power for mud clearance roller, the fixed arc shovel mud board that is provided with on the sliding block, arc shovel mud board is located mud clearance roller rear end, the sludge pump is fixed to be set up on the movable box, through inhaling the mud union coupling between sludge pump and the shovel board, and the last row's of sludge pump mouth and mud chamber switch on.
Furthermore, the support frames are I-shaped frames, two adjacent support frames are fixedly connected through the linkage rods and the fasteners, the support frames can be spliced and assembled according to the size of the reservoir, and the support frames capable of being spliced and assembled are arranged, so that the device can be applied to reservoirs with different sizes, the application range of the device is greatly improved, and the device is convenient to hoist and transport in the using process.
Further, the mounting panel is provided with two, and two mounting panels are located the mobile box both sides respectively, and suspended solid clearance subassembly and sludge cleaning subassembly all are provided with two, and just two suspended solid clearance subassemblies and sludge cleaning subassembly are located the mobile box both sides respectively, through set up suspended solid clearance subassembly and sludge cleaning subassembly in the mobile box both sides, have improved the equilibrium and the stability of device, have also improved the quality of water improvement efficiency of device simultaneously.
Further, the walking motor is arranged in the device cavity and provides power for the moving wheels, and the moving box is convenient to move to drive the suspended matter cleaning assembly and the sludge cleaning assembly to move on the supporting frame through the walking motor, so that the working efficiency is improved, and the labor intensity of workers is reduced.
Furthermore, the collecting hopper is movably hinged to the mounting plate, the telescopic support rods are arranged between the collecting hopper and the mounting plate, and the collecting hopper is convenient to dump pollutants collected inside the collecting hopper by arranging the telescopic support rods.
Furthermore, the salvaging hopper comprises a linkage shaft and a frame body, the linkage shaft is movably hinged with the installation block, the frame body is a net-shaped frame body with two closed ends and an opening, the number of the frame body is 3-6, the 3-6 frame bodies are uniformly arranged along the circumferential direction of the linkage shaft, the water of pollutants is conveniently filtered out through the frame body with the net-shaped structure, the weight of the pollutants entering the collecting hopper is reduced, and the operation load of the device is further reduced.
The working principle of the invention is as follows: when the device is used, the number of the support frames is selected according to the size of a reservoir to be processed, the support frames are spliced and installed through the linkage rods and the fasteners, and the spliced support frames are erected on two banks of the reservoir through external hoisting equipment; the movable part is clamped in a clamping groove on a support frame through a movable wheel, a suspended matter cleaning assembly and a sludge cleaning assembly are respectively connected to the lower ends of mounting plates on two sides of a movable box, a walking motor, a power motor, a sludge pump and a rotating motor are driven by an external power supply to start, the movable box is driven by the walking motor to move on the support frame, the distance between the suspended matter cleaning assembly and the water surface of the reservoir is adjusted through a telescopic cylinder, a crushing cutter head is driven by the power motor to rotate, pollutants and aquatic weeds floating on the water surface of the reservoir are crushed, then the crushed pollutants are salvaged through a rotating salvage bucket, and the pollutants are thrown into a collecting bucket to be collected in the rotating process of the salvage bucket; the sliding block slides to the bottom of the reservoir along the sliding column under the action of gravity, the rotating motor drives the sludge cleaning roller to rotate, sludge deposited at the bottom of the reservoir is loosened, then the sludge is shoveled by the arc-shaped shoveling plate, and finally the loosened sludge is sucked into the sludge cavity by the sludge pump to be collected; when the movable box moves to the reservoir bank, pollutants in the collecting hopper and the sludge cavity are cleaned and transferred, and then the device is moved through external hoisting equipment until all reservoir water areas are cleaned.
Compared with the prior art, the invention has the beneficial effects that: the invention has reasonable structural design, can improve and clean reservoir water areas with different sizes and has wide application range; by arranging the suspended matter cleaning assembly and the sludge cleaning assembly, pollutants suspended on the water surface and algae such as aquatic weeds can be simultaneously cleaned, powerful conditions are provided for aquatic organisms, and meanwhile, under the stirring action of the crushing cutter head and the fishing bucket, the oxygen content of reservoir water is effectively improved, so that the self-cleaning capacity of the reservoir is improved; the sludge cleaning component is used for cleaning the sludge deposited at the bottom of the reservoir, so that the effect of improving the water quality can be achieved, the water storage capacity of the reservoir can be improved, and the economic benefit is improved.
Drawings

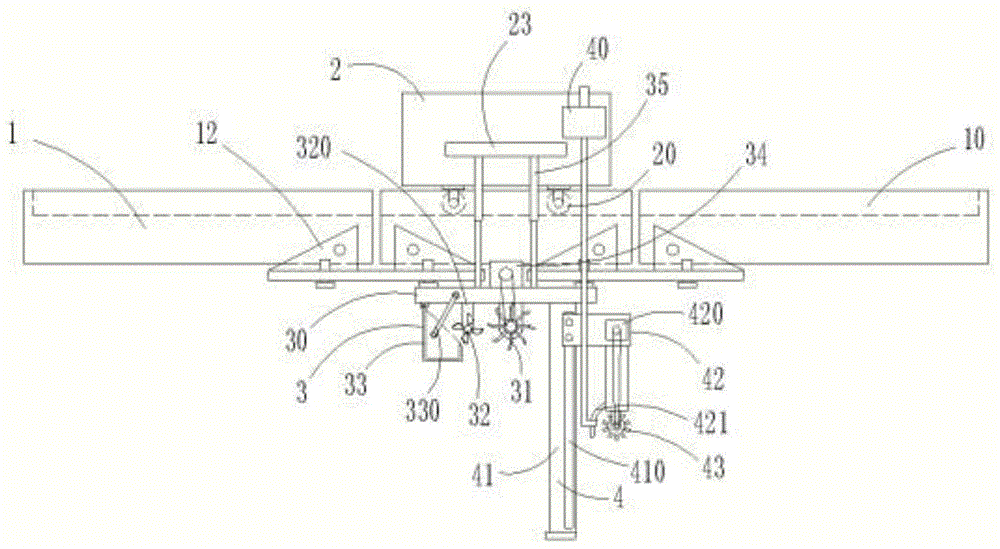

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a top view of the present invention;
FIG. 3 is a left side view of the present invention;
FIG. 4 is a right side view of the present invention;
FIG. 5 is a schematic structural view of a support frame of the present invention;
FIG. 6 is a schematic structural view of a fishing bucket of the present invention;
wherein, 1-a support frame, 10-a clamping groove, 11-a linkage rod, 12-a fastener, 2-a moving box, 20-a moving wheel, 21-a device cavity, 210-a walking motor, 22-a sludge cavity, 23-a mounting plate, 3-a suspended matter cleaning component, 30-a moving plate, 31-a crushing cutter head, 310-a rotating shaft, 311-a crushing tooth, 32-a salvaging bucket, 320-a mounting block, 321-a linkage shaft, 322-a frame body, 33-a collecting bucket, 330-a telescopic supporting rod, 34-a power motor, 35-a telescopic cylinder, 4-a sludge cleaning component, 40-a sludge pump, 41-a sliding column, 410-a strip groove, 42-a sliding block, 420-a rotating motor, 421-an arc shovel plate, 43-a sludge cleaning roller, 430-cleaning teeth.
Detailed Description
Example (b): the treatment device for improving the water quality of the reservoir as shown in figures 1 and 5 comprises a support frame 1, a moving box 2, a suspended matter cleaning component 3 and a sludge cleaning component 4; a clamping groove 10 is arranged on the support frame 1; the support frames 1 are I-shaped frames, two adjacent support frames 1 are fixedly connected through the linkage rods 11 and the fasteners 12, the support frames 1 can be spliced and assembled according to the size of the reservoir, and the support frames 1 which can be spliced and assembled are arranged, so that the invention can be applied to reservoirs with different sizes, the application range of the device is greatly improved, and the lifting and the transportation are convenient in the using process;
as shown in fig. 1, 2, 3 and 4, a moving wheel 20 is arranged at the bottom of a moving box 2, the moving box 2 is clamped in a clamping groove 10 through the moving wheel 20, a device cavity 21 and a sludge cavity 22 are arranged in the moving box 2, two mounting plates 23 are fixedly arranged on the outer wall of the moving box 2, the two mounting plates 23 are respectively arranged at two sides of the moving box 2, two suspended matter cleaning assemblies 3 and two sludge cleaning assemblies 4 are respectively arranged at two sides of the moving box 2, and the suspended matter cleaning assemblies 3 and the sludge cleaning assemblies 4 are respectively arranged at two sides of the moving box 2, so that the balance and stability of the device are improved, and the water quality improvement efficiency of the device is also improved; the traveling motor 210 is arranged in the device cavity 21, the traveling motor 210 provides power for the moving wheel 20, and the moving box 2 can drive the suspended matter cleaning component 3 and the sludge cleaning component 4 to move on the support frame 1 conveniently by arranging the traveling motor 210, so that the working efficiency is improved, and the labor intensity of workers is reduced; the walking motor 210 is powered by an external power supply, and the power motor 34 is a YS7124 type low-speed motor produced by Gaoguan motor company Limited in Dongguan;
as shown in fig. 1, 3, 4 and 6, the suspended matter cleaning assembly 3 includes a moving plate 30, a crushing cutter disc 31, a salvaging hopper 32, a collecting hopper 33 and a power motor 34, the moving plate 30 is disposed at the lower end of a mounting plate 23 through a telescopic cylinder 35, the crushing cutter disc 31 includes a rotating shaft 310 and crushing teeth 311, the rotating shaft 310 is rotatably clamped at the lower end of the mounting plate 23, a plurality of crushing teeth 311 are disposed, the plurality of crushing teeth 311 are uniformly arranged along the circumferential direction of the rotating shaft 310, the salvaging hopper 32 is disposed at the lower end of the mounting plate 23 through a mounting block 320 and is located at the rear end of the crushing cutter disc 31, the salvaging hopper 32 includes a linkage shaft 321 and a frame body 322, the linkage shaft 321 is movably hinged with the mounting block 320, the frame body 322 is a mesh-shaped frame body with two closed ends and an opening, the frame body 322 is provided with 4, the 4 frame bodies are uniformly arranged along the circumferential direction of the linkage shaft 321, the frame body 322 with a mesh-shaped structure is provided to facilitate the filtering of the water of the pollutants, the weight of pollutants entering the collecting hopper 33 is reduced, the operation load of the device is further reduced, a fishing motor is arranged inside the mounting block 320 and provides power for the fishing hopper 32, the collecting hopper 33 is of a net-shaped structure, the collecting hopper 33 is arranged at the lower end of the mounting plate 23 and is positioned at the rear end of the fishing hopper 32, the collecting hopper 33 is movably hinged with the mounting plate 23, a telescopic stay bar 330 is arranged between the collecting hopper 33 and the mounting plate 23, and the pollutants collected inside the collecting hopper 33 can be conveniently dumped by arranging the telescopic stay bar 330; the power motor 34 is fixedly arranged at the upper end of the moving plate 30, and the power motor 34 provides power for the crushing cutter head 31; the power motor 34 is powered by an external power supply, and the power motor 34 adopts an YD series variable-pole multi-speed three-phase asynchronous motor produced by Shenyang motor group;
as shown in fig. 1, 3 and 4, the sludge cleaning assembly 4 includes a sludge pump 40, a sliding column 41, a sliding block 42 and a sludge cleaning roller 43, the sliding column 41 is vertically and fixedly disposed at the lower end of the moving plate 30 and located at the front end of the crushing cutter head 31, the sliding column 41 is provided with a strip-shaped groove 410, the sliding block 42 is movably clamped in the strip-shaped groove 410, the sliding block 42 can slide up and down in the strip-shaped groove 410, a rotating motor 420 is disposed inside the sliding block 42, the sludge cleaning roller 43 is movably hinged at the lower end of the sliding block 410, the sludge cleaning roller 43 is uniformly provided with a plurality of cleaning teeth 430, the rotating motor 420 provides power for the sludge cleaning roller 43, an arc-shaped mud shoveling plate 421 is fixedly disposed on the sliding block 42, the arc-shaped mud shoveling plate is located at the rear end of the sludge cleaning roller 43, the sludge pump 40 is fixedly disposed on the moving box 2, the sludge pump 40 is connected with the mud shoveling plate 421 through a mud suction pipe, and an upper discharge port of the sludge pump 40 is communicated with the sludge chamber 22, the sludge pump 40 and the rotating motor 420 are both powered by an external power supply, the sludge pump 40 adopts a QW type non-blocking movable submersible sewage pump produced by Shanghai sunshine pump industry manufacturing company Limited, and the rotating motor 420 adopts a Y2 series three-phase asynchronous motor produced by Shenyang motor group;
when the device is used, the number of the support frames 1 is selected according to the size of a reservoir to be processed, the support frames 1 are spliced and installed through the linkage rod 11 and the fastener 12, and the spliced support frames 1 are erected on two banks of the reservoir through external hoisting equipment; the mobile 2 is clamped in a clamping groove 10 on a support frame 1 through a mobile wheel 20, a suspended matter cleaning component 3 and a sludge cleaning component 4 are respectively connected to the lower ends of mounting plates 23 on two sides of the mobile box 2, a walking motor 210, a power motor 34, a sludge pump 40 and a rotating motor 420 are driven to start through an external power supply, the mobile box 2 is driven to move on the support frame 1 through the walking motor 210, the distance between the suspended matter cleaning component 3 and the water surface of the reservoir is adjusted through a telescopic cylinder 35, a crushing cutter head 31 is driven to rotate through the power motor 34, pollutants and aquatic plants floating on the water surface of the reservoir are crushed, then the crushed pollutants are fished through a rotating fishing bucket 32, and the pollutants are thrown into a collecting bucket 33 to be collected in the rotating process of the fishing bucket 32; the sliding block 42 slides to the bottom of the reservoir along the sliding column 41 under the action of gravity, the rotating motor 420 drives the sludge cleaning roller 43 to rotate, sludge deposited at the bottom of the reservoir is loosened, then the sludge is shoveled by the arc-shaped shoveling plate 421, and finally the loosened sludge is sucked into the sludge cavity 22 by the sludge pump 40 for collection; when the movable box 2 moves to the reservoir bank, pollutants in the collecting hopper 33 and the sludge cavity 22 are cleaned and transferred, and then the device is moved by external hoisting equipment until all reservoir water areas are cleaned.
Application example: the device is applied to carry out water quality improvement treatment on a certain breeding reservoir in the north of China, and the indexes of water quality detection before treatment are as follows: 300mg/L of suspended matters, 0.8mg/L of dissolved oxygen, 1500uS/cm of electric conductivity, 480mg/L of COD and 198mg/L of BOD; after the treatment of the device, the detection results show that the indexes of the water quality of the reservoir are as follows: 35mg/L of suspended matters, 4mg/L of dissolved oxygen, 500uS/cm of electric conductivity, 40mg/L of COD and 1920mg/L of BOD; the quality of the effluent reaches the sewage discharge standard.
Therefore, the device can greatly improve the water quality of the reservoir, improve the content of dissolved oxygen in water and reduce the concentration of pollutants.
Claims (1)
1. A treatment device for improving the water quality of a reservoir is characterized by comprising a support frame (1), a movable box (2), a suspended matter cleaning component (3) and a sludge cleaning component (4); a clamping groove (10) is formed in the support frame (1); the support frames (1) are I-shaped frames, two adjacent support frames (1) are fixedly connected through a linkage rod (11) and a fastener (12), and the support frames (1) can be spliced and assembled according to the size of the reservoir;
the bottom of the movable box (2) is provided with a movable wheel (20), the movable box (2) is clamped in the clamping groove (10) through the movable wheel (20), a device cavity (21) and a sludge cavity (22) are arranged in the movable box (2), a walking motor (210) is arranged in the device cavity (21), and the walking motor (210) provides power for the movable wheel (20); the outer wall of the movable box (2) is fixedly provided with a mounting plate (23); two mounting plates (23) are arranged, and the two mounting plates (23) are respectively positioned on two sides of the movable box (2);
the suspended matter cleaning assembly (3) and the sludge cleaning assembly (4) are respectively provided with two, and the two suspended matter cleaning assemblies (3) and the sludge cleaning assembly (4) are respectively positioned on two sides of the movable box (2); suspended solid clearance subassembly (3) include movable plate (30), broken blade disc (31), salvage and fight (32), collect and fight (33) and motor power (34), movable plate (30) set up at mounting panel (23) lower extreme through telescopic cylinder (35), broken blade disc (31) include pivot (310) and broken tooth (311), the rotatable joint of pivot (310) is at mounting panel (23) lower extreme, broken tooth (311) are provided with a plurality ofly, and a plurality of broken tooth (311) are along pivot (310) circumference align to grid, salvage and fight (32) and set up at mounting panel (23) lower extreme through installation piece (320), and lie in broken blade disc (31) rear end, and installation piece (320) inside is provided with salvages the motor, salvage the motor and provide power for salvaging and fighting (32), salvage and fight (32) and include universal driving shaft (321) and framework (322), the linkage shaft (321) is movably hinged with the mounting block (320), the frame body (322) is a net-shaped frame body with two closed ends and an opening, 3-6 frame bodies are arranged on the frame body (322), and the 3-6 frame bodies are uniformly arranged along the circumferential direction of the linkage shaft (321); the collecting hopper (33) is of a net structure, the collecting hopper (33) is arranged at the lower end of the mounting plate (23) and is positioned at the rear end of the salvaging hopper (32), the collecting hopper (33) is movably hinged with the mounting plate (23), and a telescopic stay bar (330) is arranged between the collecting hopper (33) and the mounting plate (23); the power motor (34) is fixedly arranged at the upper end of the moving plate (30), and the power motor (34) provides power for the crushing cutter head (31);
the sludge cleaning component (4) comprises a sludge pump (40), a sliding column (41), a sliding block (42) and a sludge cleaning roller (43), wherein the sliding column (41) is vertically and fixedly arranged at the lower end of the movable plate (30) and is positioned at the front end of the crushing cutter head (31), a strip-shaped groove (410) is formed in the sliding column (41), the sliding block (42) is movably connected in the strip-shaped groove (410), the sliding block (42) can slide up and down in the strip-shaped groove (410), a rotating motor (420) is arranged inside the sliding block (42), the sludge cleaning roller (43) is movably hinged at the lower end of the sliding block (42), a plurality of cleaning teeth (430) are uniformly arranged on the sludge cleaning roller (43), the rotating motor (420) provides power for the sludge cleaning roller (43), an arc-shaped shoveling plate (421) is fixedly arranged on the sliding block (42), and the arc-shaped shoveling plate (421) is positioned at the rear end of the sludge cleaning roller (43), the sludge pump (40) is fixedly arranged on the movable box (2), the sludge pump (40) is connected with the mud shoveling plate (421) through a mud sucking pipe, and an upper discharge port of the sludge pump (40) is communicated with the sludge cavity (22).
