CN111151482A

CN111151482A - A cleaning device for the production of abrasive gloves

Info

Publication number: CN111151482A
Application number: CN201911338485.4A
Authority: CN
Inventors: 戴国达; 李兵
Original assignee: Wondergrip China Co ltd
Current assignee: Wondergrip China Co ltd
Priority date: 2019-12-23
Filing date: 2019-12-23
Publication date: 2020-05-15
Anticipated expiration: 2039-12-23
Also published as: CN111151482B

Abstract

The invention provides a cleaning device for abrasive glove production, comprising a fixing frame, a cleaning mechanism is arranged on the fixing frame, a product fixing mechanism and a product conveying mechanism are arranged below the cleaning mechanism, and the cleaning mechanism includes a cleaning installation frame , the cleaning installation frame can move up and down under the driving of the first drive mechanism, the cleaning installation frame is provided with a number of cleaning rollers, the surrounding side walls of the cleaning roller are provided with bristles, and the cleaning roller can be installed in the first Rotating under the driving of two driving mechanisms, the product conveying mechanism drives the product fixing mechanism to move along the direction perpendicular to the axis of the cleaning roller, and a waste recycling groove is arranged below the product fixing mechanism. The invention uses the cleaning roller to brush out the salt or mirabilite embedded in the coating, and has high cleaning efficiency, which is helpful to reduce the water consumption in the subsequent spraying and soaking processes, and the device can also effectively recover the salt or mirabilite, and has the advantages of high cleaning efficiency. Help reduce costs.

Description

Cleaning device is used in production of dull polish gloves

Technical Field

The invention belongs to the technical field of production of frosted gloves, and particularly relates to a cleaning device for production of frosted gloves.

Background

The purpose of the sanding treatment is to make an object with an originally smooth surface unsmooth, and the sanding treatment is required in the production process of the frosted gloves, for example, salt and mirabilite are required to be used for treating the surface of the coating layer so as to enable the surface of the coating layer to generate a sanding effect, but the salt and the mirabilite remained on the surface of the coating layer of the frosted gloves after the treatment are difficult to remove, and especially the salt and the mirabilite embedded in the coating layer are difficult to remove by simply spraying and soaking with water. Therefore, a cleaning device capable of solving the existing problems in the production of the frosted gloves is urgently needed.

Disclosure of Invention

The invention aims to overcome the defects in the prior art, and provides a cleaning device for producing frosted gloves, which brushes salt or mirabilite embedded in a coating out by using a cleaning roller, has high cleaning efficiency, is beneficial to reducing the water consumption of subsequent spraying and soaking processes, can effectively recover the salt or the mirabilite, and is beneficial to reducing the cost.

The invention provides the following technical scheme:

the utility model provides a cleaning device is used in production of dull polish gloves, includes the mount, be equipped with clean mechanism on the mount, the below of clean mechanism is equipped with product fixed establishment and product conveying mechanism, clean mechanism is including clean mounting bracket, clean mounting bracket can reciprocate under first actuating mechanism's drive, be equipped with a plurality of cleaning rollers on the clean mounting bracket, be equipped with the brush hair on the lateral wall all around of cleaning roller, the cleaning roller can rotate under second actuating mechanism's drive, product conveying mechanism drives product fixed establishment is along the perpendicular to clean roller axis direction removes, product fixed establishment's below is equipped with waste recycling groove.

Preferably, be equipped with upper bracket and bottom suspension strut on the mount, upper bracket with be connected with a plurality of slide bars between the bottom suspension strut, the slide bar passes clean mounting bracket, clean mounting bracket along the slide bar reciprocates.

Preferably, the first driving mechanism comprises two first driving motors, the two first driving motors are fixed on two sides of the top of the upper support frame, an output shaft of each first driving motor is connected with a first gear, one side of each first driving motor is provided with a transition gear, the two transition gears are connected through a transition shaft, the transition gears are rotatably connected with the transition shaft through bearings, each first gear is fixedly connected with one end of a moving chain, the moving chain penetrates through the transition gears, and the other end of the moving chain is fixedly connected with one side of the cleaning fixing frame.

Preferably, the second driving mechanism comprises a second driving motor, the number of the second driving motor corresponds to the number of the cleaning rollers, a first belt pulley is arranged at one end of each cleaning roller, an output shaft of the second driving motor is connected with a second belt pulley, and the first belt pulley is connected with the second belt pulley through a belt.

Preferably, the product conveying mechanism comprises a conveying net piece, the product fixing mechanism comprises fixing blocks, and a plurality of fixing blocks which are distributed in parallel are fixed on the outer surface of the conveying net piece.

Preferably, the product fixing mechanism comprises a fixing block, the product conveying mechanism comprises a moving rod and a conveying chain, two ends of the fixing block are respectively fixed on the corresponding moving rod, and two ends of the moving rod are connected through the conveying chain.

Preferably, be equipped with a plurality of bolt holes to evenly distributed on the fixed block top surface, pass through bolt and gloves mounting fixed connection on the fixed block, gloves mounting lower extreme is equipped with corresponding bolt hole.

Preferably, the top of the waste recovery groove is open, the bottom of the waste recovery groove is provided with a guide plate which is obliquely arranged, and one side of the guide plate, which is obliquely downward, is provided with a discharge pipe.

Preferably, the inside of waste recycling groove is equipped with inhales the material cover, inhale and be equipped with the filter screen in the material cover, inhale material cover bottom and be connected with the connecting pipe, the connecting pipe with inhale the material fan and link to each other, inhale the material fan and link to each other with the bin, inhale the material fan outside and be equipped with the baffle case, the bottom of waste recycling groove be equipped with the communicating discharging pipe of bin.

The invention has the beneficial effects that:

after the frosted gloves are frosted, after certain drying is carried out and before the spraying or soaking process is carried out, the bristles on the cleaning roller of the device can be utilized to brush out salt or mirabilite embedded in the coating, so that the water consumption of the subsequent spraying and soaking process is reduced, the cleaning roller can be driven by the second driving mechanism to rotate, the cleaning roller is fixed on the cleaning mounting frame, and the cleaning mounting frame can move up and down under the driving of the first driving mechanism, so that the frosted glove coating can be cleaned more comprehensively by utilizing the cleaning roller, and the cleaning efficiency is improved; the frosted gloves are fixed on the glove fixing piece, the glove fixing piece is arranged on the fixing block, the fixing block can move along with the conveying net piece or the moving rod and the conveying chain, and the cleaning time of the frosted gloves by the cleaning roller can be controlled by controlling the running speed of the conveying net piece or the conveying chain; the waste recovery tank is also provided with a material suction cover, a material suction fan, a storage tank and the like, and can further recover the salt or the mirabilite remained on the surface of the brush hair or the coating by suction.

Drawings

The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:

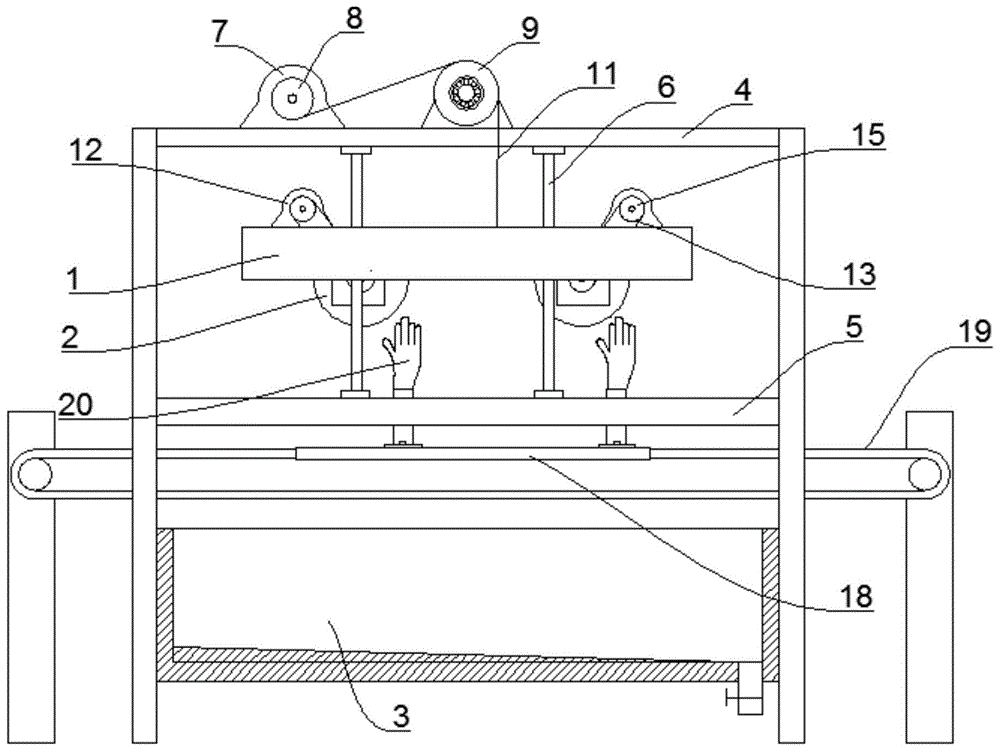

FIG. 1 is a schematic front view of the structure of embodiment 1 of the present invention;

FIG. 2 is a schematic view showing the positions of a fixed block and a movable rod in embodiment 1 of the present invention;

FIG. 3 is a schematic front view of embodiment 2 of the present invention;

fig. 4 is a left side view configuration diagram of embodiment 2 of the present invention.

Labeled as: 1. cleaning the mounting rack; 2. a cleaning roller; 3. a waste recovery tank; 4. an upper support frame; 5. a lower support frame; 6. a slide bar; 7. a first drive motor; 8. a first gear; 9. a transition gear; 10. a transition shaft; 11. moving the chain; 12. a second drive motor; 13. a belt; 14. a first pulley; 15. a second pulley; 16. conveying the mesh sheet; 17. a fixed block; 18. a travel bar; 19. a conveyor chain; 20. a glove mount; 21. a material guide plate; 22. a discharge pipe; 23. a material suction cover; 24. filtering with a screen; 25. a connecting pipe; 26. a material suction fan; 27. a storage tank; 28. a baffle box; 29. and (4) discharging the pipe.

Detailed Description

Example 1

As shown in fig. 1 and 2, the cleaning device for producing the frosted gloves comprises a fixing frame, wherein a cleaning mechanism is arranged on the fixing frame, a product fixing mechanism and a product conveying mechanism are arranged below the cleaning mechanism, the product conveying mechanism drives the product fixing mechanism to move along the direction perpendicular to the axis of a cleaning roller 2, and a waste recovery groove 3 is arranged below the product fixing mechanism.

The cleaning mechanism comprises a cleaning mounting frame 1, and the cleaning mounting frame 1 can move up and down under the driving of a first driving mechanism. An upper supporting frame 4 and a lower supporting frame 5 are arranged on the fixing frame, a plurality of sliding rods 6 are connected between the upper supporting frame 4 and the lower supporting frame 5, the sliding rods 6 penetrate through the cleaning mounting frame 1, the cleaning mounting frame 1 moves up and down along the sliding rods 6, the first driving mechanism comprises two first driving motors 7, the two first driving motors 7 are fixed on two sides of the top of the upper supporting frame 4, output shafts of the first driving motors 7 are connected with first gears 8, one side of each first driving motor 7 is provided with a transition gear 9, the two transition gears 9 are connected through a transition shaft 10, the transition gear 9 is rotatably connected with the transition shaft 10 through a bearing, each first gear 8 is fixedly connected with one end of a moving chain 11, the moving chain 11 penetrates through the transition gear 9, the other end of the moving chain 11 is fixedly connected with one side of the cleaning mounting frame, wherein the first driving motors 7 are forward and reverse, the first driving motor 7 drives the moving chain 11 to wind or release on the first gear 8, so as to drive the cleaning installation frame 1 to move up and down along the sliding rod 6.

Be equipped with a plurality of cleaning roller 2 on the clean mounting bracket 1, be equipped with the brush hair on the lateral wall all around of cleaning roller 2, cleaning roller 2 can rotate under second actuating mechanism's drive, second actuating mechanism includes second driving motor 12, the quantity of second driving motor 12 is corresponding with cleaning roller 2's quantity, cleaning roller 2's one end is equipped with first belt pulley 14, second driving motor 12's output shaft has second belt pulley 15, first belt pulley 14 and second belt pulley 15 link to each other through belt 13, second driving motor 12 drives second belt pulley 15 through belt 13 and rotates, and then can drive cleaning roller 2's rotation, in order to improve cleaning effect of cleaning roller 2.

Product fixed establishment includes fixed block 17, product conveying mechanism includes carriage release lever 18 and conveying chain 19, the both ends of fixed block 17 are fixed respectively on the carriage release lever 18 that corresponds, the both ends of carriage release lever 18 are connected through

conveying chain

19, 19 positive reverse motors of conveying chain accessible drive removal, be equipped with a plurality of bolt holes to evenly distributed on the fixed block 17 top surface, pass through bolt and 20 fixed connection of gloves mounting on the fixed block 17, gloves mounting lower extreme is equipped with corresponding bolt hole.

The top of the waste recovery groove 3 is open, the bottom of the waste recovery groove 3 is provided with a guide plate 21 which is arranged obliquely, and one side of the guide plate 21 which is inclined downwards is provided with a discharge pipe 22.

After the frosted gloves are subjected to frosting treatment, after certain drying is carried out, and before the spraying or soaking process is carried out, the bristles on the cleaning roller 2 of the device can be utilized to brush out salt or mirabilite embedded in the coating, so that the water consumption of the subsequent spraying and soaking process is reduced, the cleaning roller 2 in the embodiment can be driven by the second driving mechanism to rotate, the cleaning roller 2 is fixed on the cleaning installation frame 1, and the cleaning installation frame 1 can move up and down under the driving of the first driving mechanism, so that the frosted glove coating can be cleaned more comprehensively by utilizing the cleaning roller 2, and the cleaning efficiency is improved; the frosted gloves in the embodiment can be fixed on a glove fixing piece 20, the glove fixing piece 20 is installed on a fixing block 17, the fixing block 17 can move along with a moving rod 18 and a transmission chain 19, and the cleaning time of the frosted gloves by the cleaning roller 2 can be controlled by controlling the running speed of the transmission chain 19; this embodiment still is equipped with waste recovery groove 3, can collect salt or glauber's salt that brushes down, and salt or glauber's salt can recycle, help reduce cost.

Example 2

As shown in fig. 3 and 4, a cleaning device for producing frosted gloves is different from embodiment 1 in that a product conveying mechanism comprises a conveying mesh 16, the conveying mesh 16 can also be driven by a forward and reverse motor to move, a product fixing mechanism comprises a fixing block 17, a plurality of fixing blocks 17 distributed in parallel are fixed on the outer surface of the conveying mesh 16, a plurality of pairs of bolt holes distributed uniformly are arranged on the top surface of the fixing block 17, the fixing block 17 is fixedly connected with a glove fixing member 20 through bolts, and corresponding bolt holes are arranged at the lower end of the glove fixing member 20.

In addition, the inside of waste recycling groove 3 is equipped with inhales material cover 23, inhales and is equipped with filter screen 24 in the material cover 23, inhales the material cover 23 bottom and is connected with connecting pipe 25, and connecting pipe 25 links to each other with inhaling material fan 26, inhales material fan 26 and links to each other with bin 27, inhales the material fan 26 outside and is equipped with baffle box 28, and the bottom of waste recycling groove 3 is equipped with the communicating discharging pipe 29 with bin 27.

The frosted gloves in the embodiment are also fixed on the glove fixing piece 20, the glove fixing piece 20 is installed on the fixing block 17, the fixing block 17 can move along with the conveying net piece 16, and the cleaning time of the frosted gloves by the cleaning roller 2 can be controlled by controlling the running speed of the conveying net piece 16; the waste recovery groove 3 of the embodiment is also internally provided with a material suction cover 23, a material suction fan 26, a storage box 27 and the like, so that the residual salt or mirabilite on the surface of the brush hair or the coating can be further recovered by suction, and the brush hair on the cleaning roller 2 and the residual salt or mirabilite on the surface of the coating also have certain cleaning functions.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A cleaning device for the production of abrasive gloves, characterized in that it comprises a fixing frame, a cleaning mechanism is arranged on the fixing frame, a product fixing mechanism and a product conveying mechanism are arranged below the cleaning mechanism, and the cleaning mechanism comprises A cleaning installation frame, the cleaning installation frame can move up and down under the driving of the first driving mechanism, a number of cleaning rollers are arranged on the cleaning installation frame, bristles are arranged on the surrounding side walls of the cleaning roller, and the cleaning roller It can be rotated under the driving of the second driving mechanism, the product conveying mechanism drives the product fixing mechanism to move along the direction perpendicular to the axis of the cleaning roller, and a waste recycling groove is arranged below the product fixing mechanism.

2 . The cleaning device for abrasive glove production according to claim 1 , wherein an upper support frame and a lower support frame are arranged on the fixed frame, and the upper support frame and the lower support frame are arranged between the upper support frame and the lower support frame. A number of sliding bars are connected between them, the sliding bars pass through the cleaning installation frame, and the cleaning installation frame moves up and down along the sliding bars.

3 . The cleaning device for abrasive glove production according to claim 2 , wherein the first driving mechanism comprises two first driving motors, and the two first driving motors are fixed on the upper support. 4 . On both sides of the top of the frame, the output shaft of the first drive motor is connected with the first gear, one side of each first drive motor is provided with a transition gear, and the two transition gears are connected by the transition shaft, so The transition gear is rotatably connected to the transition shaft through a bearing, each of the first gears is fixedly connected to one end of a moving chain, the moving chain passes through the transition gear, and the other end of the moving chain is connected to the moving chain. Clean one side of the mounting bracket to secure the connection.

4 . The cleaning device for abrasive glove production according to claim 1 , wherein the second driving mechanism comprises a second driving motor, and the number of the second driving motor is the same as the number of the cleaning rollers 4 . Correspondingly, one end of the cleaning roller is provided with a first pulley, the output shaft of the second driving motor is connected with a second pulley, and the first pulley and the second pulley are connected by a belt.

5 . The cleaning device for abrasive glove production according to claim 1 , wherein the product conveying mechanism comprises a conveying mesh, the product fixing mechanism comprises a fixing block, and the outer surface of the conveying mesh is fixed on the outer surface. 6 . There are several fixed blocks distributed in parallel.

6 . The cleaning device for abrasive glove production according to claim 1 , wherein the product fixing mechanism comprises a fixing block, the product conveying mechanism comprises a moving rod and a conveying chain, and the two ends of the fixing block are 6 . They are respectively fixed on the corresponding moving rods, and the two ends of the moving rods are connected by the transmission chain.

7. A cleaning device for abrasive glove production according to claim 5 or 6, wherein a plurality of pairs of evenly distributed bolt holes are provided on the top surface of the fixing block, and the fixing block is connected to the gloves through bolts. The fixing piece is fixedly connected, and the lower end of the glove fixing piece is provided with corresponding bolt holes.

8 . The cleaning device for abrasive glove production according to claim 1 , wherein the top of the waste recovery tank is provided with an open top, and the bottom of the waste recovery tank is provided with an inclined guide plate. 8 . A discharge pipe is provided on the inclined downward side of the guide plate.

9 . The cleaning device for abrasive glove production according to claim 1 , wherein a suction hood is arranged inside the waste recycling tank, and a filter screen is arranged inside the suction hood. 9 . The bottom of the cover is connected with a connecting pipe, the connecting pipe is connected with the suction fan, the suction fan is connected with the storage box, a baffle box is arranged on the outside of the suction fan, and the bottom of the waste recovery tank is connected with the storage box. The discharge pipe that communicates with the storage tank.
