Abstract
本发明公开了一种具有转向定位组件的电气柜装置及其工作方法，包括第一电气柜体，所述第一电气柜体的下端固定连接有第二电气柜体，所述第一电气柜体与第二电气柜体之间固定安装有隔离柱，本发明通过设置的连接柱、排线板和排线管的配合使用，可以提供电气柜体内更多设备的安装空间和合理分布，通过将电路板上的安装的设备连接线通过排线管和排线板的配合使用，可以有效将连接线防护起来，避免对柜门的频繁开关将暴露在柜门上的连接线造成损坏，提高了连接线的使用寿命和设备的使用效率，通过设置的防护块、防护板和连接板的配合使用，可以将电气柜的上端进行防护，既可以消除异物在电气柜上端的堆积污染，又可以提高电气柜内部的散热效果。
The invention discloses an electrical cabinet device with a steering positioning assembly and a working method thereof, comprising a first electrical cabinet body, the lower end of the first electrical cabinet body is fixedly connected with a second electrical cabinet body, the first electrical cabinet An isolation column is fixedly installed between the electrical cabinet and the second electrical cabinet. The present invention can provide installation space and reasonable distribution of more equipment in the electrical cabinet through the coordinated use of the connecting column, the wiring board and the wiring duct. The equipment connection cables installed on the circuit board are used in conjunction with the cable duct and the cable plate, which can effectively protect the connection cables, avoid frequent opening and closing of the cabinet door and cause damage to the connection cables exposed on the cabinet door. In order to ensure the service life of the connecting line and the use efficiency of the equipment, the upper end of the electrical cabinet can be protected by the combination of the set protective block, protective plate and connecting plate, which can not only eliminate the accumulation and pollution of foreign objects on the upper end of the electrical cabinet, but also improve the The cooling effect inside the electrical cabinet.
Description
Technical Field
The invention relates to the technical field of electrical cabinet devices, in particular to an electrical cabinet device with a steering positioning assembly and a working method thereof.
Background
The electrical cabinet is formed by assembling switching equipment, measuring instruments, protective electrical equipment and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirement, the arrangement of the electrical cabinet meets the requirement of normal operation of an electrical power system, the electrical cabinet is convenient to overhaul, the safety of people and surrounding equipment is not endangered, a circuit can be switched on or switched off by a manual or automatic switch in normal operation, and the circuit can be switched off or alarmed by the protective electrical equipment in fault or abnormal operation.
Patent publication No. CN201920723830 discloses a name regulator cubicle, including the cabinet body and set up at the internal heat dissipation dust keeper of cabinet, heat dissipation dust keeper includes: a drive motor; a piston; the piston cylinder, at least a part of piston stretches into the cavity of piston cylinder, and the cavity has the inlet channel with the internal portion of cabinet intercommunication and the exit channel with the louvre intercommunication of the cabinet body, and driving motor can drive the piston and move in the piston cylinder to change the space size of cavity, when the cavity space increases, the internal steam of cabinet is in the cavity by the inlet channel suction, when the cavity space reduces, steam is by the exit channel through the louvre discharge cabinet body. The utility model provides an among the prior art impurity such as dust particle enter into the problem in the regulator cubicle through the vent window easily. The disadvantages of this solution are: the problem that the ventilation window easily enters dust particles is solved through the cooperation of the driving motor, the piston and the piston cylinder, the power consumption of the electrical cabinet is increased, the space resource of the electrical cabinet is occupied, the practicability is not high, the installation distribution of the internal equipment of the electrical cabinet is not optimized, and the heat dissipation problem and the pollution problem of the electrical cabinet are not fundamentally solved.
Disclosure of Invention
The invention aims to provide an electrical cabinet device with a steering positioning assembly and a working method thereof, the electrical cabinet device can provide installation space and reasonable distribution of more devices in an electrical cabinet body by matching the connecting column, the wire arranging plate and the wire arranging pipe, the wire arranging plate, the wire arranging pipe and the isolating groove are arranged in the connecting column, the connecting wires of the devices installed on the circuit board can be effectively protected by matching the wire arranging pipe and the wire arranging plate, the damage of the connecting wires exposed on the cabinet door due to frequent opening and closing of the cabinet door can be avoided, the service life of the connecting wires and the use efficiency of the devices can be improved, the rationality of device installation in the electrical cabinet can be effectively improved by matching the first circuit board and the second circuit board which are embedded on the cabinet door, the influence of heat generated due to uneven distribution of the device installation on the working efficiency of the electrical cabinet can be avoided, the negative influence of heat generated by work among equipment is eliminated;
the upper end of the electrical cabinet can be protected by the protection block, the protection plate and the connecting plate which are arranged in a matched manner, so that not only can the accumulated pollution of foreign matters on the upper end of the electrical cabinet be eliminated, but also the heat dissipation effect in the electrical cabinet can be improved, the protective block is triangular through the matching use of the first connecting plate, the second connecting plate and the fixed clamping column, the third connecting column and the third rotating column are matched for use, so that the angle of the protection plate can be conveniently adjusted, the protection plate is adjusted to be at an included angle of forty-five degrees with the horizontal line, can effectively eliminate the accumulation of foreign matters on the protection plate and avoid the influence of the foreign matters on the work of the electrical cabinet, and by the matching use of the heat dissipation net arranged at the upper end of the electrical cabinet and the protection plate, the heat dissipation effect of the electrical cabinet can be effectively improved, the influence of heat on the work of fine equipment inside the electrical cabinet is avoided, and the problems of poor heat dissipation effect and dust prevention effect of the electrical cabinet in the existing scheme are solved.
The purpose of the invention can be realized by the following technical scheme:
an electrical cabinet device with a steering positioning assembly comprises a first electrical cabinet body, wherein the lower end of the first electrical cabinet body is fixedly connected with a second electrical cabinet body, an isolation column is fixedly arranged between the first electrical cabinet body and the second electrical cabinet body, a perspective frame is inlaid on the outer surface of the first electrical cabinet body, a first connecting column is movably connected to the outer surface of the first electrical cabinet body, perspective glass is fixedly arranged on the inner surface of the perspective frame, a protective block is movably connected to the upper end of the first electrical cabinet body, a plurality of protective plates are movably connected to the inner portion of the protective block, the included angle between the plurality of downward protective plates and the horizontal line is forty-five degrees, a cabinet door and a second connecting column are movably connected to the outer surface of the second electrical cabinet body, the second connecting column is positioned on one side of the cabinet door, and a handle is inlaid on the outer surface of the cabinet door, the lower fixed surface of the second electric cabinet body installs the locating piece, the surface movable mounting of locating piece has the location regulating block, the inside swing joint of locating piece has a diverting pulley, the cabinet door passes through the second spliced pole and is connected with the second electric cabinet body rotation, the upper end of the first electric cabinet body is provided with the radiator-grid.
Furthermore, a damping pad and a fixing plate are fixedly arranged on the inner surface of the cabinet door, the fixing plate is positioned in the middle of the damping pad, a first circuit board is fixedly arranged on the outer surface of the fixing plate, an instrument and a second circuit board are fixedly arranged on the outer surface of the first circuit board, the meter is positioned above the second circuit board, the outer surface of the second circuit board is fixedly provided with a breaker and a switch, the circuit breaker is positioned at one side of the switch, the connection mode of the first circuit board and the fixed board and the connection mode of the first circuit board and the second circuit board are both welded, the damping pad and the cabinet door are connected by glue joint, connecting wires are arranged inside the instrument, the breaker and the switch, the instrument passes through connecting wire and first circuit board electric connection, circuit breaker and switch are all through connecting wire and second circuit board electric connection.
Further, the inside of second spliced pole is inlayed and is had first rotary column and second rotary column, first rotary column is located the top of second rotary column, the surface swing joint of first rotary column has first connection piece, the surface swing joint of second rotary column has the second connection piece, the inside swing joint of first connection piece has the first gim peg of a plurality of, the inside swing joint of second connection piece has a plurality of second gim peg, the internal surface of second spliced pole is close to middle position fixed mounting and has the winding displacement board, the inside swing joint of winding displacement board has the first winding displacement pipe of a plurality of and second winding displacement pipe, first winding displacement pipe is located one side of second winding displacement pipe, a plurality of be provided with first isolation groove, a plurality of between the first winding displacement pipe be provided with the second isolation groove between the second winding displacement pipe.
Further, the inside swing joint of protection piece has the fixation clamp post, the internal fixed surface of protection piece installs first connecting plate and second connecting plate, first connecting plate is located one side of second connecting plate, the external fixed surface of first connecting plate installs first fixture block, the external fixed surface of second connecting plate installs the second fixture block, the connection shape between first connecting plate, second connecting plate and the fixation clamp post is triangle-shaped.
Further, the inside fixed mounting of first connecting plate has a plurality of protection regulating block, a plurality of the protection regulating block is equidistant range, the inside swing joint of protection regulating block has the third spliced pole, the internal surface swing joint of third spliced pole has the third to turn the post, the third spliced pole rotates through the third to be connected with first connecting plate.
Further, first winding displacement pipe and second winding displacement pipe all run through in the inside of winding displacement board, the radius of first winding displacement pipe is greater than the radius of second winding displacement pipe, the connected mode of first winding displacement pipe and second winding displacement pipe is connected, a plurality of all be equidistant range between first winding displacement pipe and a plurality of second winding displacement pipe.
The working steps of the electrical cabinet device are as follows:
the method comprises the following steps: after the first electric cabinet body and the second electric cabinet body are moved to designated positions through the turning pulleys, the positioning blocks are fixed through the positioning adjusting blocks, the plurality of protection plates are adjusted through the third connecting columns and the third turning columns, the plurality of protection plates are adjusted downwards until the included angles between the protection plates and the horizontal line are forty-five degrees, the protection plates on the first connecting plate and the second connecting plate are adjusted until the included angles between the protection plates and the horizontal line are forty-five degrees, the protection blocks are fixed at the upper end of the first electric cabinet body through the first clamping block and the second clamping block, and the grooves in the first clamping block and the second clamping block are clamped with the edge convex block at the upper end of the first electric cabinet body;
step two: welding a first circuit board on the cabinet door, fixedly mounting the instrument and a second circuit board on the first circuit board, fixedly mounting the circuit breaker and the switch on the second circuit board, electrically connecting a plurality of connecting wires with one ends of the first circuit board and the second circuit board, and then passing the plurality of connecting wires through the first wire arranging pipe and the second wire arranging pipe to be electrically connected with equipment in the first electric cabinet body;
step three: the equipment in the first electrical cabinet body and the second electrical cabinet body is debugged, the cabinet door and the second electrical cabinet body are closed through the handle, a power supply is connected, and the electrical cabinet is started to work.
The invention has the beneficial effects that:
the invention can provide more installation space and reasonable distribution of equipment in the electric cabinet body by matching the connecting column, the wire arranging plate and the wire arranging pipe, by arranging the wiring board, the wiring pipe and the isolation groove in the connecting column and using the equipment connecting wire arranged on the circuit board in a matching way through the wiring pipe and the wiring board, the connecting wires can be effectively protected, the connecting wires exposed on the cabinet door can be prevented from being damaged by frequent opening and closing of the cabinet door, the service life of the connecting wires and the use efficiency of equipment are improved, and through the matching use of the first circuit board and the second circuit board which are embedded on the cabinet door, the rationality of equipment installation in the electrical cabinet can be effectively improved, the influence of heat generated due to uneven equipment installation distribution on the working efficiency of the electrical cabinet is avoided, and the negative influence of heat generated during the working between equipment is eliminated;
the invention can protect the upper end of the electrical cabinet by matching the protection block, the protection plate and the connecting plate, not only can eliminate the accumulation pollution of foreign matters on the upper end of the electrical cabinet, but also can improve the heat dissipation effect in the electrical cabinet, the protective block is triangular through the matching use of the first connecting plate, the second connecting plate and the fixed clamping column, the third connecting column and the third rotating column are matched for use, so that the angle of the protection plate can be conveniently adjusted, the protection plate is adjusted to be at an included angle of forty-five degrees with the horizontal line, can effectively eliminate the accumulation of foreign matters on the protection plate and avoid the influence of the foreign matters on the work of the electrical cabinet, and by the matching use of the heat dissipation net arranged at the upper end of the electrical cabinet and the protection plate, the heat dissipation effect of the electrical cabinet can be effectively improved, the influence of heat on the work of fine equipment inside the electrical cabinet is avoided, and the problems of poor heat dissipation effect and dust prevention effect of the electrical cabinet in the existing scheme are solved.
Drawings
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.

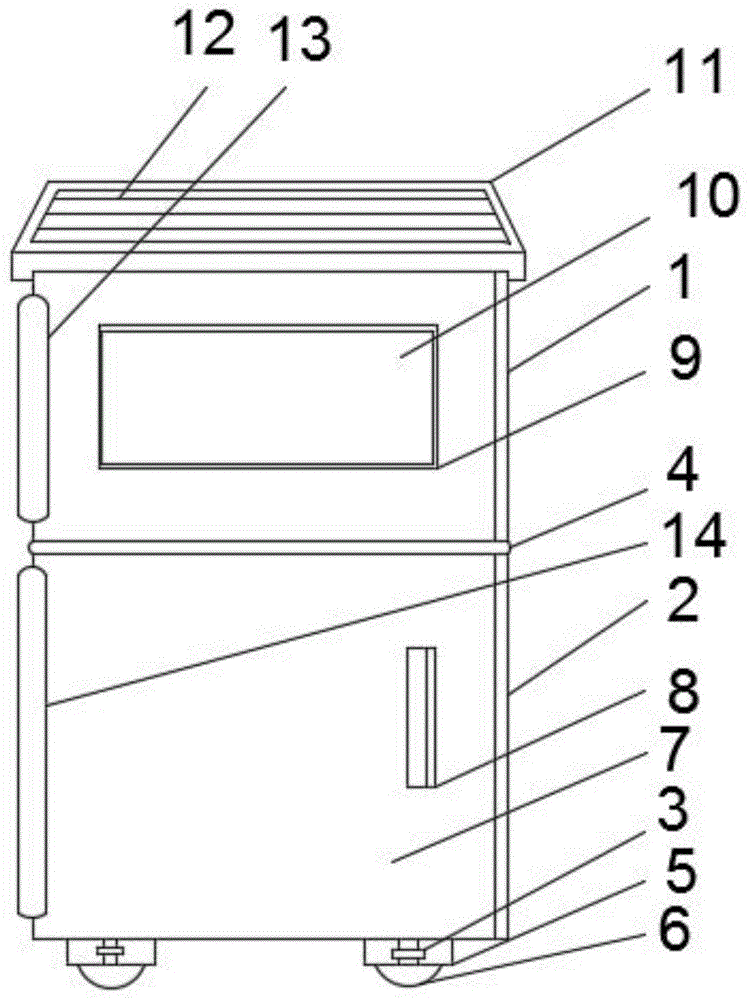

FIG. 1 is a block diagram of an electrical cabinet apparatus having a steering positioning assembly according to the present invention;
FIG. 2 is an internal structure view of the cabinet door of the present invention;
FIG. 3 is a view showing the construction of the second connecting column according to the present invention;
FIG. 4 is a view showing a connection structure of a first connection plate and a second connection plate according to the present invention;
fig. 5 is an internal structural view of a first connection plate in the present invention.
In the figure: 1. a first electrical cabinet; 2. a second electrical cabinet; 3. positioning an adjusting block; 4. an isolation column; 5. positioning blocks; 6. a diverting pulley; 7. a cabinet door; 8. a handle; 9. a see-through frame; 10. a see-through glass; 11. a protection block; 12. a protection plate; 13. a first connecting column; 14. a second connecting column; 15. a damping pad; 16. a fixing plate; 17. a first circuit board; 18. a meter; 19. a second circuit board; 20. a circuit breaker; 21. a switch; 22. a first rotating column; 23. a second rotary column; 24. a first connecting piece; 25. a second connecting sheet; 26. a first securing latch; 27. a second securing latch; 28. a wire arranging plate; 29. a first wire discharge pipe; 30. a second wire arranging pipe; 31. a first isolation trench; 32. a second isolation trench; 33. a first connecting plate; 34. a second connecting plate; 35. fixing the clamp column; 36. a first clamping block; 37. a second fixture block; 38. a protective regulating block; 39. a third connecting column; 40. and a third rotary column.
Detailed Description
The technical solutions of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 5, an electrical cabinet apparatus with a steering positioning assembly includes a first electrical cabinet 1, a second electrical cabinet 2 is fixedly connected to a lower end of the first electrical cabinet 1, an isolation column 4 is fixedly installed between the first electrical cabinet 1 and the second electrical cabinet 2, a see-through frame 9 is inlaid on an outer surface of the first electrical cabinet 1, a first connection column 13 is movably connected to an outer surface of the first electrical cabinet 1, a see-through glass 10 is fixedly installed on an inner surface of the see-through frame 9, a protection block 11 is movably connected to an upper end of the first electrical cabinet 1, a plurality of protection plates 12 are movably connected to an inner portion of the protection block 11, an included angle between each downward protection plate 12 and a horizontal line is forty-five degrees, a cabinet door 7 and a second connection column 14 are movably connected to an outer surface of the second electrical cabinet 2, second spliced pole 14 is located one side of cabinet door 7, the surface mosaic of cabinet door 7 has handle 8, the lower fixed surface of the second electric cabinet body 2 installs locating piece 5, the surface movable mounting of locating piece 5 has location regulating block 3, the inside swing joint of locating piece 5 has diverting pulley 6, cabinet door 7 rotates with the second electric cabinet body 2 through second spliced pole 14 to be connected, the upper end of the first electric cabinet body 1 is provided with the radiator-grid.
The internal fixed surface of cabinet door 7 installs damping pad 15 and fixed plate 16, fixed plate 16 is located damping pad 15's intermediate position, the external fixed surface of fixed plate 16 installs first circuit board 17, the external fixed surface of first circuit board 17 installs instrument 18 and second circuit board 19, instrument 18 is located second circuit board 19's top, second circuit board 19's external fixed surface installs circuit breaker 20 and switch 21, circuit breaker 20 is located one side of switch 21, the connected mode of first circuit board 17 and fixed plate 16 and the connected mode of first circuit board 17 and second circuit board 19 are the welding, damping pad 15 is for gluing with cabinet door 7's connected mode, instrument 18, circuit breaker 20 and switch 21's inside all is provided with the connecting wire, instrument 18 passes through connecting wire and first circuit board 17 electric connection, the breaker 20 and the switch 21 are electrically connected to the second circuit board 19 through connecting wires.
The second connecting pole 14 is embedded with a first rotating pole 22 and a second rotating pole 23, the first rotating pole 22 is positioned above the second rotating pole 23, the outer surface of the first rotary column 22 is movably connected with a first connecting piece 24, the outer surface of the second rotary column 23 is movably connected with a second connecting piece 25, a plurality of first fixing bolts 26 are movably connected inside the first connecting sheet 24, a plurality of second fixing bolts 27 are movably connected inside the second connecting sheet 25, a wire arranging plate 28 is fixedly arranged on the inner surface of the second connecting column 14 close to the middle, the interior of the wire arranging plate 28 is movably connected with a plurality of first wire arranging pipes 29 and second wire arranging pipes 30, first winding displacement pipe 29 is located one side of second winding displacement pipe 30, a plurality of be provided with first isolation groove 31 between the first winding displacement pipe 29, a plurality of be provided with second isolation groove 32 between the second winding displacement pipe 30.
The inside swing joint of protection piece 11 has fixation clamp post 35, the internal fixed surface of protection piece 11 installs first connecting plate 33 and second connecting plate 34, first connecting plate 33 is located one side of second connecting plate 34, the external fixed surface of first connecting plate 33 installs first fixture block 36, the external fixed surface of second connecting plate 34 installs second fixture block 37, the connection shape between first connecting plate 33, second connecting plate 34 and the fixation clamp post 35 is triangle-shaped.
The inside fixed mounting of first connecting plate 33 has a plurality of protection regulating block 38, a plurality of protection regulating block 38 is equidistant range, the inside swing joint of protection regulating block 38 has third spliced pole 39, the internal surface swing joint of third spliced pole 39 has third rotary column 40, third spliced pole 39 rotates with first connecting plate 33 through third rotary column 40 and is connected.
The working steps of the electrical cabinet device are as follows:
the method comprises the following steps: after the first electric cabinet body 1 and the second electric cabinet body 2 are moved to a designated position through the turning pulley 6, the positioning block 5 is fixed through the positioning adjusting block 3, the plurality of protection plates 12 are adjusted through the third connecting column 39 and the third turning column 40, the plurality of protection plates 12 are adjusted downwards to form a forty-five degree included angle with the horizontal line, the protection plates 12 on the first connecting plate 33 and the second connecting plate 34 are adjusted to form a forty-five degree included angle with the horizontal line, the protection block 11 is fixed at the upper end of the first electric cabinet body 1 through the first clamping block 36 and the second clamping block 37, and the grooves in the first clamping block 36 and the second clamping block 37 are clamped with the convex block at the edge of the upper end of the first electric cabinet body 1;
step two: welding a first circuit board 17 on the cabinet door 7, fixedly mounting the instrument 18 and a second circuit board 19 on the first circuit board 17, fixedly mounting the circuit breaker 20 and the switch 21 on the second circuit board 19, electrically connecting a plurality of connecting wires with one ends of the first circuit board 17 and the second circuit board 19, and then passing the plurality of connecting wires through a first wire arranging pipe 29 and a second wire arranging pipe 30 to be electrically connected with equipment inside the first electric cabinet body 1;
step three: debugging the equipment in the first electric cabinet body 1 and the second electric cabinet body 2, closing the cabinet door 7 and the second electric cabinet body 2 through the handle 8, connecting a power supply, and starting the electric cabinet to work.
The working principle of the invention is as follows:
according to the invention, the protection plates 12 on the first connecting plate 33 and the second connecting plate 34 are adjusted to form an included angle of forty-five degrees with the horizontal line, the connecting shapes between the first connecting plate 33, the second connecting plate 34 and the fixing clamp column 35 are set to be triangular, and the use of a heat dissipation net arranged at the upper end of the first electric cabinet body 1 is matched, so that the discharge of heat inside the electric cabinet is improved, the accumulation of foreign matters above the electric cabinet is avoided, the cleaning work on the electric cabinet is reduced, the influence of the foreign matters entering the electric cabinet to the work of equipment is avoided, the wire arranging plate 28 is fixedly arranged at the position, close to the middle, of the inner surface of the second connecting column 14, the wire arranging plate 28 is movably connected with a plurality of first wire arranging pipes 29 and second wire arranging pipes 30, the first wire arranging pipes 29 are positioned at one side of the second wire arranging pipes 30, and first isolation grooves, a second isolation groove 32 is arranged between the second wire arranging pipes 30, a plurality of connecting wires penetrate through the first wire arranging pipe 29 and the second wire arranging pipe 30, the equipment on the cabinet door 7 is electrically connected with the equipment inside the second electric cabinet body 2 through the connecting wires, the stability of equipment connection can be effectively improved, the loosening and damage of the connecting wires caused by the rotation of the cabinet door 7 are avoided, the influence of instability of the connecting wires on the work of the equipment is eliminated, a damping pad 15 is fixedly arranged on the inner surface of the cabinet door 7, the cabinet door 7 is connected with the damping pad 15 in a gluing mode, the influence of the rotation of the cabinet door 7 on the second electric cabinet body 2 can be effectively eliminated through the damping pad 15, the instrument 18 and the second circuit board 19 are fixedly arranged on the first circuit board 17, the circuit breaker 20 and the switch 21 are fixedly arranged on the second circuit board 19, and the equipment positions inside the electric cabinet can be, the influence of heat generated when the equipment works on devices in the electric cabinet is eliminated;
through the matching use of the connecting column, the wire arranging plate 28 and the wire arranging pipe, the installation space and the reasonable distribution of more devices in the electric cabinet body can be provided, by arranging the wire arranging plate 28, the wire arranging pipe and the isolation groove in the connecting column and matching the device connecting wire arranged on the circuit board with the wire arranging plate 28, the connecting wires can be effectively protected, the damage to the connecting wires exposed on the cabinet door 7 caused by frequent rotation of the cabinet door 7 is avoided, the service life of the connecting wires and the use efficiency of equipment are improved, through the cooperation of the first circuit board 17 and the second circuit board 19 embedded in the cabinet door 7, the rationality of equipment installation in the electrical cabinet can be effectively improved, the influence of heat generated due to uneven equipment installation distribution on the working efficiency of the electrical cabinet is avoided, and the negative influence of heat generated during the working between equipment is eliminated;
the upper end of the electrical cabinet can be protected by the protection block 11, the protection plate 12 and the connecting plate, which are arranged in a matching way, not only can the pollution caused by the accumulation of foreign matters on the upper end of the electrical cabinet be eliminated, but also the heat dissipation effect inside the electrical cabinet can be improved, the protection block 11 is triangular by the matching use of the first connecting plate 33, the second connecting plate 34 and the fixing clamp column 35, the angle of the protection plate 12 can be conveniently adjusted by the matching use of the third connecting column 39 and the third rotating column 40, the protection plate 12 is adjusted to a downward included angle with a horizontal line of forty-five degrees, the accumulation of the foreign matters on the protection plate 12 can be effectively eliminated, the working influence of the electrical cabinet by the foreign matters is avoided, the heat dissipation effect of the electrical cabinet can be effectively improved by the matching use of the heat dissipation net and the protection plate 12 arranged on the upper end of the, the problem of regulator cubicle radiating effect and dustproof effect not good among the current scheme is solved.
The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.
Claims (7)
