本发明公开了一种环保的电缆除湿干燥设备，涉及电缆设备技术领域，包括除湿箱，所述除湿箱外的一端固定设有输送装置，所述除湿箱内设有干燥除湿机构，所述干燥除湿机构包括设置于除湿箱内中部的热风套，热风套的两端分别固定连接进风罩和回风罩，进风罩和回风罩的顶端分别固定连接排风管和回风管，所述除湿箱的顶端固定连接干燥箱，干燥箱的一端固定连接鼓风机，鼓风机的输入端与回风管固定连接，本发明通过设置干燥除湿机构能够对电缆进行吸水和热风干燥，从而能够对电缆进行高效快速的干燥除湿，并且能够对干燥后的湿热空气进行干燥处理并循环利用，节能性强。

Figure 201911297031

The invention discloses an environmentally friendly cable dehumidification and drying equipment, which relates to the technical field of cable equipment, and includes a dehumidification box, one end outside the dehumidification box is fixedly provided with a conveying device, and a drying and dehumidification mechanism is arranged in the dehumidification box. The dehumidification mechanism includes a hot air jacket arranged in the middle of the dehumidification box. Both ends of the hot air jacket are fixedly connected to the air inlet hood and the return air hood, respectively. The top of the dehumidification box is fixedly connected to the drying box, one end of the drying box is fixedly connected to the blower, and the input end of the blower is fixedly connected to the return air duct. The invention can absorb water and dry the cable with hot air by setting a drying and dehumidifying mechanism, so that the cable can be dried. It can dry and dehumidify efficiently and quickly, and can dry and recycle the hot and humid air after drying, with strong energy saving.

Figure 201911297031

Description

Cable dehumidification drying equipment of environmental protection
Technical Field
The invention relates to the technical field of cable equipment, in particular to environment-friendly cable dehumidification drying equipment.
Background
Traditional cable dehumidification drying equipment is not convenient for remove on the horizontal plane in the existing market, and cable dehumidification drying equipment needs the manual work to carry than the atress when removing, can not practice thrift the labour, and traditional cable dehumidification drying equipment is not convenient for clear up the dust of accumulation on the flabellum, and the dust of accumulation on using the flabellum for a long time is more, influences the rotation of flabellum to work efficiency has been reduced.
The Chinese utility model patent document with the publication number of CN207651256U discloses an environment-friendly cable dehumidifying and drying device, which is characterized in that when the cable dehumidifying and drying device needs to be moved, a switch is turned on, a KS02Y controller controls a hydraulic pump to change the air pressure in a hydraulic cylinder to push a telescopic rod to extend downwards and push a push plate out, so as to lift the cable dehumidifying and drying device, then the cable dehumidifying and drying device can be pushed to move on a horizontal plane, after the cable dehumidifying and drying device moves to a proper position, a KS02Y controller controls the hydraulic pump to change the air pressure in the hydraulic cylinder to enable the telescopic rod to accommodate the push plate in a base, after the cable dehumidifying and drying device is used for a period of time, a top cover is opened, a rotary buckle arranged on a rotary connecting rod enables the rotary buckle to be separated from a mounting seat in a rotating mode, therefore fan blades fixed on one side of the connecting rod are detached from one end of a rotating, but the cable is dried by blowing completely by air, so that the speed is low, and the working efficiency is influenced.
Disclosure of Invention
The invention aims to provide an environment-friendly cable dehumidifying and drying device to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a cable dehumidification drying equipment of environmental protection, includes the dehumidification case, the fixed conveyor that is equipped with of the outer one end of dehumidification case, the dehumidification incasement is equipped with dry dehumidification mechanism, dry dehumidification mechanism is including setting up the hot-blast cover at dehumidification incasement middle part, and fixed connection air inlet cover and return air cover are distinguished at the both ends of hot-blast cover, and fixed connection exhaust pipe and return air pipe are distinguished on the top of air inlet cover and return air cover, the top fixed connection drying cabinet of dehumidification case, the one end fixed connection air-blower of drying cabinet, the input and the return air pipe fixed connection of air-blower, the exhaust pipe pass the dehumidification case and with drying cabinet fixed connection, fixed connection heating cabinet on the exhaust pipe is equipped with the heating wire in the heating cabinet, the both sides of hot-blast cover are equipped with first dewatering mechanism and second dewatering mechanism respectively.
As a further scheme of the invention: first dewatering mechanism includes first sponge cover, and the outside cover of first sponge cover is equipped with fixed cover, fixed connection mount between fixed cover and the dehumidification case, and the below of mount is equipped with electric telescopic handle, electric telescopic handle's one end and dehumidification case fixed connection, electric telescopic handle's flexible end fixed connection clamp plate, fixed covering is last to be seted up with the corresponding opening of clamp plate.
As a further scheme of the invention: and a water receiving box is arranged below the fixed cover and is placed at the bottom of the dehumidifying box.
As a further scheme of the invention: the second dewatering mechanism comprises a second sponge sleeve, and a fixing column is fixedly connected between the second sponge sleeve and the dehumidifying box.
As a further scheme of the invention: the conveying device comprises two fixing rods, two movable grooves are formed in two fixing plates of two fixing plates which are fixedly connected between the two fixing rods in a fixed mode, a movable block is connected in the movable grooves in a sliding mode, a spring is fixedly connected between the movable block and the fixing plates, one side of the movable block is fixedly connected with a movable plate, the middle of the movable plate is fixedly connected with a driving motor, two ends in the movable plate are rotatably connected with a driving wheel, an output shaft of the driving motor is in transmission connection with the driving wheel, the driving wheel is coaxially and fixedly connected with a rotating shaft, and the rotating shaft penetrates through the movable plate.
As a further scheme of the invention: the conveying pinch roller is provided with an annular pressure groove.
As a further scheme of the invention: the front side of the conveying drying box is fixedly provided with a display panel and a control button.
As a further scheme of the invention: and a drying agent is arranged in the drying box.
As a further scheme of the invention: the center of the two ends of the dehumidification box is fixedly connected with the first end pipe and the second end pipe respectively.
As a still further scheme of the invention: and four corners of the bottom end of the dehumidification box are fixedly provided with movable wheels.
Compared with the prior art, the invention has the beneficial effects that: according to the cable drying and dehumidifying device, the drying and dehumidifying mechanism is arranged to absorb water and dry hot air for the cable, so that the cable can be efficiently and quickly dried and dehumidified, the dried hot and humid air can be dried and recycled, and the energy-saving performance is high.
Drawings

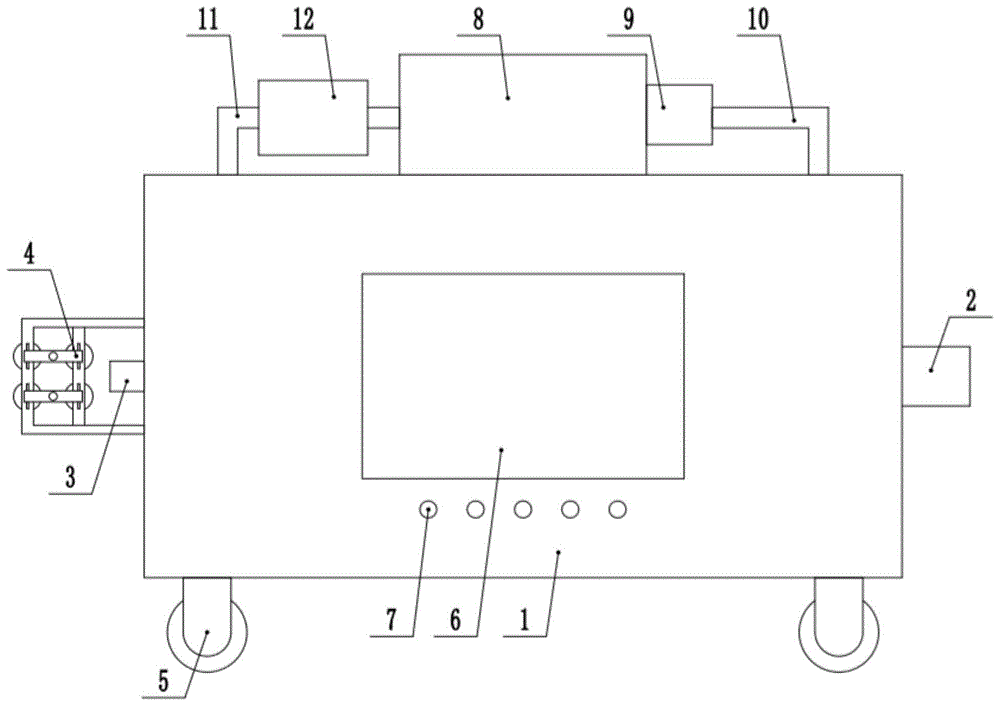

Fig. 1 is a schematic structural diagram of an environment-friendly cable dehumidifying and drying apparatus.
Fig. 2 is a schematic structural diagram of a drying and dehumidifying mechanism in the environment-friendly cable dehumidifying and drying device.
Fig. 3 is a schematic structural diagram of a conveying device in the environment-friendly cable dehumidification drying equipment.
In the figure: 1-drying box, 2-first end pipe, 3-second end pipe, 4-conveying device, 5-moving wheel, 6-display panel, 7-control button, 8-drying box, 9-blower, 10-return air pipe, 11-exhaust pipe, 12-heating cover, 13-fixing frame, 14-fixing cover, 15-first sponge sleeve, 16-electric telescopic rod, 17-pressing plate, 18-hot air sleeve, 19-air inlet cover, 20-air return cover, 21-fixing column, 22-second sponge sleeve, 23-fixing rod, 24-fixing plate, 25-movable plate, 26-driving motor, 27-driving wheel, 28-movable block, 29-loose pressing wheel and 30-spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the referred devices or elements must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Example 1
Referring to fig. 1-3, an environment-friendly cable dehumidifying and drying apparatus includes a dehumidifying box 1, a conveying device 4 is fixedly arranged at one end of the dehumidifying box 1, a drying and dehumidifying mechanism is arranged in the dehumidifying box 1, the drying and dehumidifying mechanism comprises a hot air jacket 18 arranged in the middle of the dehumidifying box 1, two ends of the hot air jacket 18 are respectively and fixedly connected with an air inlet cover 19 and a return air cover 20, the top ends of the air inlet cover 19 and the return air cover 20 are respectively and fixedly connected with an exhaust pipe 11 and a return air pipe 10, the top end of the dehumidification box 1 is fixedly connected with a drying box 8, one end of the drying box 8 is fixedly connected with a blower 9, the input end of the blower 9 is fixedly connected with an air return pipe 10, exhaust pipe 11 passes dehumidification case 1 and with 8 fixed connection of drying cabinet, fixed connection heating mantle 12 is gone up to exhaust pipe 11, is equipped with the heating wire in the heating mantle 12, the both sides of hot-blast cover 18 are equipped with first dewatering mechanism and second dewatering mechanism respectively.
First dewatering mechanism includes first sponge cover 15, and the outside cover of first sponge cover 15 is equipped with fixed cover 14, fixed connection mount 13 between fixed cover 14 and the dehumidification case 1, and the below of mount 13 is equipped with electric telescopic handle 16, electric telescopic handle 16's one end and dehumidification case 1 fixed connection, electric telescopic handle 16's flexible end fixed connection clamp plate 17, set up the opening corresponding with clamp plate 17 on the fixed cover 14. A water receiving box is arranged below the fixed cover 14 and is placed at the bottom of the dehumidification box 1. The second dewatering mechanism comprises a second sponge sleeve 22, and a fixing column 21 is fixedly connected between the second sponge sleeve 22 and the dehumidifying box 1.
The conveying device 4 comprises two fixing rods 23, two movable grooves are formed in two fixing plates 24 and two fixing plates 24 which are fixedly connected between the two fixing rods 23 in a fixed mode, a movable block 28 is connected in the movable grooves in a sliding mode, a spring 30 is fixedly connected between the movable block 28 and the fixing plates 24, one side of the movable block 28 is fixedly connected with a movable plate 25, the middle of the movable plate 25 is fixedly connected with a driving motor 26, two ends in the movable plate 25 are connected with a driving wheel 27 in a rotating mode, an output shaft of the driving motor 26 is in transmission connection with the driving wheel 27, the driving wheel 27 is coaxially and fixedly connected with a rotating shaft, and the rotating shaft penetrates through the movable plate 25. The conveying pinch roller 29 is provided with an annular pressure groove. Drying agents are arranged in the drying box 8, and the centers of two ends of the dehumidifying box 1 are fixedly connected with the first end pipe 2 and the second end pipe 3 respectively. Four corners of the bottom end of the dehumidification box 1 are fixedly provided with movable wheels 5.
Example 2
Referring to fig. 1-3, the dehumidifying device comprises a dehumidifying box 1, a conveying device 4 is fixedly arranged at one end of the dehumidifying box 1, a drying and dehumidifying mechanism is arranged in the dehumidifying box 1, the drying and dehumidifying mechanism comprises a hot air jacket 18 arranged in the middle of the dehumidifying box 1, two ends of the hot air jacket 18 are respectively and fixedly connected with an air inlet cover 19 and a return air cover 20, the top ends of the air inlet cover 19 and the return air cover 20 are respectively and fixedly connected with an exhaust pipe 11 and a return air pipe 10, the top end of the dehumidification box 1 is fixedly connected with a drying box 8, one end of the drying box 8 is fixedly connected with a blower 9, the input end of the blower 9 is fixedly connected with an air return pipe 10, exhaust pipe 11 passes dehumidification case 1 and with 8 fixed connection of drying cabinet, fixed connection heating mantle 12 is gone up to exhaust pipe 11, is equipped with the heating wire in the heating mantle 12, the both sides of hot-blast cover 18 are equipped with first dewatering mechanism and second dewatering mechanism respectively.
First dewatering mechanism includes first sponge cover 15, and the outside cover of first sponge cover 15 is equipped with fixed cover 14, fixed connection mount 13 between fixed cover 14 and the dehumidification case 1, and the below of mount 13 is equipped with electric telescopic handle 16, electric telescopic handle 16's one end and dehumidification case 1 fixed connection, electric telescopic handle 16's flexible end fixed connection clamp plate 17, set up the opening corresponding with clamp plate 17 on the fixed cover 14. A water receiving box is arranged below the fixed cover 14 and is placed at the bottom of the dehumidification box 1. The second dewatering mechanism comprises a second sponge sleeve 22, and a fixing column 21 is fixedly connected between the second sponge sleeve 22 and the dehumidifying box 1.
The conveying device 4 comprises two fixing rods 23, two movable grooves are formed in two fixing plates 24 and two fixing plates 24 which are fixedly connected between the two fixing rods 23 in a fixed mode, a movable block 28 is connected in the movable grooves in a sliding mode, a spring 30 is fixedly connected between the movable block 28 and the fixing plates 24, one side of the movable block 28 is fixedly connected with a movable plate 25, the middle of the movable plate 25 is fixedly connected with a driving motor 26, two ends in the movable plate 25 are connected with a driving wheel 27 in a rotating mode, an output shaft of the driving motor 26 is in transmission connection with the driving wheel 27, the driving wheel 27 is coaxially and fixedly connected with a rotating shaft, and the rotating shaft penetrates through the movable plate 25. The conveying pinch roller 29 is provided with an annular pressure groove. Drying agents are arranged in the drying box 8, and the centers of two ends of the dehumidifying box 1 are fixedly connected with the first end pipe 2 and the second end pipe 3 respectively. Four corners of the bottom end of the dehumidification box 1 are fixedly provided with movable wheels 5. The front side of the conveying drying box 8 is fixedly provided with a display panel 6 and a control button 7.
According to the cable drying and dehumidifying device, the drying and dehumidifying mechanism is arranged to absorb water and dry hot air for the cable, so that the cable can be efficiently and quickly dried and dehumidified, the dried hot and humid air can be dried and recycled, and the energy-saving performance is high.

Claims (6)

1.一种环保的电缆除湿干燥设备，包括除湿箱（1），其特征在于，所述除湿箱（1）外的一端固定设有输送装置（4），所述除湿箱（1）内设有干燥除湿机构，所述干燥除湿机构包括设置于除湿箱（1）内中部的热风套（18），热风套（18）的两端分别固定连接进风罩（19）和回风罩（20），进风罩（19）和回风罩（20）的顶端分别固定连接排风管（11）和回风管（10），所述除湿箱（1）的顶端固定连接干燥箱（8），干燥箱（8）的一端固定连接鼓风机（9），鼓风机（9）的输入端与回风管（10）固定连接，所述排风管（11）穿过除湿箱（1）并与干燥箱（8）固定连接，所述排风管（11）上固定连接加热罩（12），加热罩（12）内设有电热丝，所述热风套（18）的两侧分别设有第一除水机构和第二除水机构，所述第一除水机构包括第一海绵套（15），第一海绵套（15）的外部套设有固定罩（14），固定罩（14）与除湿箱（1）之间固定连接固定架（13），固定架（13）的下方设有电动伸缩杆（16），电动伸缩杆（16）的一端与除湿箱（1）固定连接，电动伸缩杆（16）的伸缩端固定连接压板（17），所述固定罩（14）上开设有与压板（17）相对应的开口，所述固定罩（14）的下方设有接水盒，接水盒放置于除湿箱（1）的底部，所述第二除水机构包括第二海绵套（22），第二海绵套（22）与除湿箱（1）之间固定连接固定柱（21），所述输送装置（4）包括两个固定杆（23），两个固定杆（23）之间固定套连接两个固定板（24）两个固定板（24）上均开设有两个活动槽，活动槽内滑动连接活动块（28），活动块（28）与固定板（24）之间固定连接弹簧（30），所述活动块（28）的一侧固定连接活动板（25），活动板（25）的中部固定连接驱动电机（26），活动板（25）内的两端转动连接传动轮（27），驱动电机（26）的输出轴与传动轮（27）传动连接，传动轮（27）同轴固定连接转动轴，转动轴穿过活动板（25）和活动块（28）并同轴固定连接输送压轮（29）。1. An environmentally friendly cable dehumidification and drying equipment, comprising a dehumidification box (1), characterized in that a conveying device (4) is fixedly provided at one end of the dehumidification box (1), and a transport device (4) is fixed inside the dehumidification box (1). There is a drying and dehumidifying mechanism, the drying and dehumidifying mechanism comprises a hot air jacket (18) arranged in the middle of the dehumidification box (1), and the two ends of the hot air jacket (18) are respectively fixedly connected to the air inlet hood (19) and the return air hood (20). ), the tops of the air inlet hood (19) and the return air hood (20) are fixedly connected to the exhaust duct (11) and the return air duct (10) respectively, and the top of the dehumidification box (1) is fixedly connected to the drying box (8) , one end of the drying box (8) is fixedly connected to the blower (9), the input end of the blower (9) is fixedly connected to the return air pipe (10), the exhaust pipe (11) passes through the dehumidification box (1) and is connected to the drying The box (8) is fixedly connected, the air exhaust pipe (11) is fixedly connected to the heating cover (12), the heating cover (12) is provided with electric heating wires, and the two sides of the hot air cover (18) are respectively provided with first A water removing mechanism and a second water removing mechanism, the first water removing mechanism includes a first sponge cover (15), the outer cover of the first sponge cover (15) is covered with a fixed cover (14), and the fixed cover (14) is connected with A fixing frame (13) is fixedly connected between the dehumidification boxes (1), an electric telescopic rod (16) is arranged below the fixing frame (13), and one end of the electric telescopic rod (16) is fixedly connected with the dehumidification box (1), and the electric telescopic The telescopic end of the rod (16) is fixedly connected to the pressure plate (17), an opening corresponding to the pressure plate (17) is opened on the fixed cover (14), and a water receiving box is arranged under the fixed cover (14) to connect to the pressure plate (17). The water box is placed at the bottom of the dehumidification box (1), the second water removal mechanism includes a second sponge cover (22), and the second sponge cover (22) and the dehumidification box (1) are fixedly connected with a fixing column (21) , the conveying device (4) comprises two fixing rods (23), and a fixing sleeve between the two fixing rods (23) connects the two fixing plates (24) and two movable plates (24) are provided with two movable A slot, a movable block (28) is slidably connected in the movable slot, a spring (30) is fixedly connected between the movable block (28) and the fixed plate (24), and one side of the movable block (28) is fixedly connected to the movable plate (25) , the middle of the movable plate (25) is fixedly connected to the drive motor (26), the two ends of the movable plate (25) are rotatably connected to the transmission wheel (27), and the output shaft of the drive motor (26) is connected to the transmission wheel (27) in a transmission connection, The transmission wheel (27) is coaxially and fixedly connected to the rotating shaft, and the rotating shaft passes through the movable plate (25) and the movable block (28) and is coaxially and fixedly connected to the conveying pressure wheel (29). 2.根据权利要求1所述的环保的电缆除湿干燥设备，其特征在于，所述输送压轮（29）上开设有环形设置的压槽。2 . The environmentally friendly cable dehumidification and drying equipment according to claim 1 , wherein a ring-shaped pressure groove is provided on the conveying pressure roller ( 29 ). 3 . 3.根据权利要求1所述的环保的电缆除湿干燥设备，其特征在于，输送干燥箱（8）的前侧固定设有显示面板（6）和控制按钮（7）。3. The environmental protection cable dehumidification and drying equipment according to claim 1, characterized in that a display panel (6) and a control button (7) are fixed on the front side of the conveying drying box (8). 4.根据权利要求1所述的环保的电缆除湿干燥设备，其特征在于，所述干燥箱（8）内设有干燥剂。4. The environmentally friendly cable dehumidification and drying equipment according to claim 1, wherein a desiccant is provided in the drying box (8). 5.根据权利要求1所述的环保的电缆除湿干燥设备，其特征在于，所述除湿箱（1）的两端中央分别固定连接第一端管（2）和第二端管（3）。5. The environmentally friendly cable dehumidification and drying equipment according to claim 1, characterized in that the center of both ends of the dehumidification box (1) is fixedly connected to the first end pipe (2) and the second end pipe (3) respectively. 6.根据权利要求4或5所述的环保的电缆除湿干燥设备，其特征在于，所述除湿箱（1）的底端四角均固定设有移动轮（5）。6. The environmental protection cable dehumidification and drying equipment according to claim 4 or 5, characterized in that, moving wheels (5) are fixed at the four corners of the bottom end of the dehumidification box (1).
