The invention discloses a composite vibration isolation table, which comprises two or more strip-shaped vibration isolation table seats and a rubber vibration attenuation adjuster, wherein each strip-shaped vibration isolation table seat comprises an outer steel plate square groove, an inner steel plate square groove, a particle damper, a steel spring ring and an elastic rubber strip; the particle damper is arranged in the square groove of the outer steel plate, the steel spring ring comprises a cylindrical spiral compression spring of a top plate and a bottom plate, and the top plate and the bottom plate of the steel spring ring are respectively and reliably connected with the bottom plate at the lower part of the square groove of the outer steel plate and the square groove of the inner steel plate; the rubber vibration reduction adjuster comprises an adjusting screw rod, an integrated cylindrical structure formed by vulcanizing a steel plate and rubber, and a circular friction groove is formed in the bottom of the integrated cylindrical structure. The sound insulation effect is good, the vibration reduction frequency band is wide, and the vibration isolation and noise reduction requirements of vibration source equipment can be met; the particle damper is arranged inside the particle filter, so that resonance can be well avoided; the installation and construction are simple, and the transformation cost is low.

Description

Composite vibration isolation table
Technical Field
The invention relates to a low-frequency vibration structure-borne noise vibration isolation and noise reduction control technology, in particular to a composite vibration isolation table of vibration source equipment.
Background
The vibration of the vibration source equipment is transmitted through solid structure sound generated by the contact of the vibration source equipment base and the ground building. The vibration of the vibration source equipment is widely transmitted along the building structure through foundations, walls, floors, pipeline systems, rigid supports/hangers and the like, the transmission speed of sound energy in building components is high, the energy loss of low-frequency sound waves transmitted in solids along with the distance is small, and the low-frequency sound waves can be transmitted to every corner connected with the building components along the building components. This is the main reason why "solid sound transmission" or "structural sound transmission" has a wide impact in the same building. If the low frequency sound wave excites the building element to resonance, the vibrational energy generated will be several times the vibrational energy of the apparatus.
WHO indicated in the report released in 2000 that: low-frequency low-level noise interferes with the rest and sleep of people; a, underestimating the influence of a weighting network on low-frequency noise; the standard limit for low frequency noise should be more stringent; evidence of the negative effects of low frequency noise is already sufficient and of interest.
Disclosure of Invention
The invention aims to provide a composite vibration isolation table, wherein each vibration source device is provided with two or more strip-shaped vibration isolation table bases, so that the weight of the vibration isolation table bases is reduced, the transportation and the installation are convenient, the installation and the construction are simple, and the reconstruction cost is low. The composite vibration isolation structure is integrated by using a secondary vibration isolation technology and a passively controlled particle damping energy dissipation technology. The vibration damping frequency band is wide, and the vibration isolation and noise reduction requirements of vibration source equipment can be met; the damping structure is arranged inside the damping structure, so that resonance can be well avoided.
The technical scheme adopted by the invention for solving the technical problems is as follows: a composite vibration isolation platform comprises two or more strip-shaped vibration isolation pedestal and a rubber vibration attenuation adjuster. The strip-shaped vibration isolation pedestal comprises an outer steel plate square groove, an inner steel plate square groove, a particle damper, a steel spring ring and an elastic rubber strip; the particle damper is arranged in the outer steel plate square groove, the steel spring ring comprises a cylindrical spiral compression spring of a top plate and a bottom plate, and the top plate and the bottom plate of the steel spring ring are respectively and reliably connected with the bottom plate at the lower part of the inner steel plate square channel steel and the inner steel plate square groove; the rubber vibration reduction adjuster comprises an adjusting screw rod, an integrated cylindrical structure formed by vulcanizing a steel plate and rubber, and a circular friction groove is formed in the bottom of the integrated cylindrical structure.
The steel spring ring uses cylindrical helical compression spring, and is formed by welding at cylindrical helical compression spring roof and bottom plate, has both reduced the shared total volume of steel spring ring, reduces natural frequency, improves low frequency vibration isolation effect, reduces the cost of setting effectively simultaneously improving installation quality. The steel wire specification of the selected steel spring is small because the steel spring vibration isolator is limited by the specification and the cost of a base and an outer upper cover at present, and in order to improve the spring stiffness and the working load, the outer diameter and the effective number of turns of the spring are reduced (according to the result of checking the steel springs in the steel spring vibration isolators of a plurality of manufacturers by a spring M Beijing of the sixth edition of mechanical design Manual of the patent of chemical industry, 2017.01, 12-2-19 of the chemical industry Press and a calculation table P12-21 of a cylindrical spiral compression spring), so that the load range of the vibration isolator is narrowed, and the inherent frequency of the steel spring vibration isolator is reduced. Use cylindrical helical compression spring to replace steel spring isolator, strictly according to I class load: the design specification improves the working limit load, ensures the specification of the steel wire, the outer diameter of the spring, the effective number of turns and the free height, widens the vibration isolation load width, reduces the natural frequency when in the best load, and effectively improves the vibration isolation efficiency of the composite vibration isolation platform.
The vibration source equipment base is arranged on the outer steel plate square groove, and the steel spring ring is used as an elastic element of the primary vibration isolation structure. The vibration source equipment, the outer steel plate square groove and the particle damper jointly form a mass block of a primary vibration isolation structure. The particle damper and the steel spring ring jointly form a vibration isolation damping structure of a primary vibration isolation structure, and the rubber vibration reduction regulator is used as a vibration isolation element of a secondary vibration isolation structure. Meanwhile, the rubber vibration reduction regulator has a certain height, and a certain space is reserved between the strip vibration isolation pedestal and the terrace, so that the rubber vibration reduction regulator is also favorable for movement in the transportation and installation processes. Because the vibration transmission of the vibration source equipment is low-frequency vibration waves during operation, the natural frequency of the cylindrical spiral compression spring is lower than that of the steel spring vibration isolator, and the transmission of the low-frequency vibration waves of the vibration source equipment is blocked more favorably. The rubber damper is made of a rubber member made of ethylene propylene rubber having excellent weather resistance and heat resistance.
The particle damper is composed of a plurality of metal boxes filled with high-density damping particles. The weight of the particle damper can be used as the rigid mass of the primary vibration isolation structure to reduce the amplitude of the strip-shaped vibration isolation pedestal, and meanwhile, the particle damper can be used for reducing the low-frequency vibration response of the strip-shaped vibration isolation pedestal through energy consumption, so that the defect that the damping of the cylindrical spiral compression spring is low is overcome, and the vibration isolation pedestal is guaranteed to have broadband and stable vibration isolation effects.
The rubber vibration reduction adjuster is arranged below the steel spring ring, and the height between the bottom of the strip vibration isolation pedestal and the terrace is adjusted through the rotary cylindrical structure between the bottom of the strip vibration isolation pedestal and the terrace. So as to ensure the horizontal precision of the strip-shaped vibration isolation pedestal. The steel spring ring and the rubber vibration reduction adjuster are arranged along the center of the central shaft of the strip-shaped vibration isolation pedestal or symmetrically. The strip-shaped vibration isolation pedestal is guaranteed to be stressed and directly transmitted to the terrace through the steel spring ring and the rubber vibration reduction regulator. According to the weight load of vibration source equipment, when strip vibration isolation pedestal width is narrower, inside, the bottom center pin setting of steel sheet square groove, bottom center pin in the steel spring circle, rubber damping regulator is followed, and when strip vibration isolation pedestal width broad, inside, the bottom center pin symmetry setting of steel sheet square groove, rubber damping regulator is followed to steel spring circle, rubber damping regulator to it is stable to guarantee strip vibration isolation pedestal.
According to the distribution condition of the gravity center of the load of the vibration source equipment, the strip-shaped vibration isolation pedestals under the base of the vibration source equipment are mutually unevenly distributed. The strip-shaped vibration isolation pedestal is ensured to be stable in load and in the optimal stress range.
The invention has the beneficial effects that: the vibration isolation and sound insulation effect is good, the vibration isolation rate is more than 90%, and the sound insulation quantity of a solid structure can reach 15-20 dB; the vibration damping frequency band is wide, and the vibration isolation and noise reduction requirements of vibration source equipment can be met; the particle damper is arranged inside the particle sensor, so that resonance can be well avoided. According to the different loads of vibration source equipment, can set up two and above strip vibration isolation pedestal, reduce the weight of vibration isolation pedestal, improve the adaptability, be convenient for transportation and installation, the installation and construction is simple, and the transformation expense is low.
Drawings
The invention is further illustrated with reference to the following figures and examples.
Fig. 1 is a top configuration view of a first embodiment of the present invention.

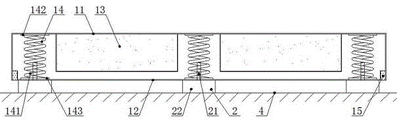

Fig. 2 is a front structural view of fig. 1.
Fig. 3 is a front view of the composite vibration isolation table.
Fig. 4 is a top configuration view of a second embodiment of the present invention.
Fig. 5 is an installation front structural view of a third embodiment of the present invention.
In the figure, 1, a strip-shaped vibration isolation pedestal, 11, an outer steel plate square groove, 12, an inner steel plate square groove, 13, a particle damper, 14, a steel spring ring, 141, a cylindrical spiral compression spring, 142, a top plate, 143, a bottom plate, 15, an elastic rubber strip, 2, a rubber vibration damping adjuster, 21, an adjusting screw, 22, a cylindrical structure, 3, vibration source equipment and 4, a terrace are arranged.
Detailed Description
In a first embodiment shown in fig. 1, 2 and 3, a composite vibration isolation platform comprises two or more strip-shaped vibration isolation platform bases (1) and a rubber vibration damping adjuster (2), wherein each strip-shaped vibration isolation platform base (1) comprises an outer steel plate square groove (11), an inner steel plate square groove (12), a particle damper (13), a steel spring ring (14) and an elastic rubber strip (15); the groove of the outer steel plate square groove (11) is downward, the groove of the inner steel plate square groove (12) is upward, an elastic rubber strip (15) is arranged in the gap between the outer steel plate square groove (11) and the inner steel plate square groove (12), the particle damper (13) is installed in the outer steel plate square groove (11), the steel spring ring (14) comprises cylindrical spiral compression springs (141) of a top plate (142) and a bottom plate (143), and the top plate (142) and the bottom plate (143) of the steel spring ring (14) are respectively and reliably connected with the bottom plates at the lower parts of the inner steel plate square groove (12) and the inner steel plate square groove (11); the rubber vibration reduction adjuster (2) comprises an adjusting screw rod (21) and an integrated cylindrical structure (22) formed by vulcanizing a steel plate and rubber, and the bottom of the integrated cylindrical structure is provided with a circular friction groove.
The particle damper (13) is composed of a plurality of metal boxes filled with high-density damping particles. Rubber damping regulator (2) install below steel spring ring (14), between strip vibration isolation pedestal (1) bottom and terrace (4), adjust through rotatory cylindrical structure (22) height between strip vibration isolation pedestal (1) bottom and terrace (4).
In the second embodiment shown in fig. 4, the steel spring ring (14) and the rubber damper adjuster (2) are arranged along the central axis of the strip-shaped vibration isolation mount (1).
In the third embodiment shown in fig. 5, the strip-shaped vibration isolation pedestals (1) under the base of the vibration source equipment (3) are unevenly distributed with each other according to the distribution of the center of gravity of the load of the vibration source equipment (3).
It will be appreciated that many variations may be made to the above-described embodiments without departing from the scope of the present invention. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
