Abstract
本发明公开了一种用于电线电缆生产的烘烤装置，包括底座，底座上方固定有两个立柱，立柱之间固定有烘烤箱，所述立柱之间转动连接有主轴，主轴通过皮带与底座上的电机的输出端固定连接，主轴远离电机一侧固定有摇把，所述主轴位于烘烤箱内部固定有固定组件，所述固定组件包括固定在主轴上的固定块，固定块两侧固定有连接杆，连接杆上滑动连接有限位板，每个连接杆上限位板的数量为两个，两个限位板之间通过固定轴固定连接，所述固定轴上设有多个交错固定的凸起；所述底座上还设有第一烘烤组件，烘烤箱上设有辅助烘烤箱和推动组件，提高了对电线电缆的烘烤效率。
The invention discloses a baking device for wire and cable production, which comprises a base, two uprights are fixed above the base, a baking box is fixed between the uprights, a main shaft is rotatably connected between the uprights, and the main shaft is connected to the main shaft through a belt. The output end of the motor on the base is fixedly connected, the side of the main shaft away from the motor is fixed with a shaking handle, the main shaft is located inside the baking box and a fixed component is fixed, and the fixed component includes a fixed block fixed on the main shaft, on both sides of the fixed block A connecting rod is fixed, and a limit plate is slidably connected to the connecting rod. The number of limit plates on each connecting rod is two, and the two limit plates are fixedly connected by a fixed shaft. The fixed shaft is provided with a plurality of staggered The base is also provided with a first baking component, and the baking box is provided with an auxiliary baking box and a pushing component, which improves the baking efficiency of the wires and cables.
Description
Technical Field
The invention relates to the field of wires and cables, in particular to a baking device for wire and cable production.
Background
The electric wire and cable are widely used in various industries, for example, household electrical appliances need to use electric wires to supply power to the electric wire and cable. In general, the wire is composed of two parts, a copper core or an aluminum core is wrapped inside by a plastic insulating wire sheath, and the outer wire sheath is used for avoiding the inner core from being mechanically damaged. The wire and cable are manufactured by three processes of drawing, stranding and coating, and the more complicated the model specification is, the higher the repeatability is. The coating is mainly to coat the molten plastic on the copper core or the aluminum core to form a plastic insulating layer, and then the plastic insulating layer is cooled by cooling water, so that water drops are remained on the surface of the cooled plastic insulating layer and need to be dried.
The authorization notice number CN208027814U discloses a baking device for electric wires and cables, which comprises a frame, wherein the middle part of the frame is provided with an air blower, and the right side of the air blower is communicated with a heating mechanism; the heating mechanism includes: the heating box comprises a heater arranged in the heating box and a controller which is arranged outside the heating box and is electrically connected with the heater; the right side of the heating box is communicated with a hose, the tail end of the hose is communicated with a U-shaped air supply pipeline, and the top of the rack is provided with a baking box; the left side wall of the baking box is provided with a left conveying wheel, and the right side wall of the baking box is provided with a right conveying wheel; the bottom internal surface left side of toasting the case, well survey and the right side is provided with left temperature sensor, middle temperature sensor and right temperature sensor respectively, and this kind of structure toasts through the temperature that improves in the heating cabinet in the use only for the efficiency of toasting is very low, and is not practical in the in-service use process.
Disclosure of Invention
The invention aims to provide a baking device for wire and cable production to solve the problems.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a baking equipment for wire and cable production, includes the base, and the base top is fixed with two stands, is fixed with the case of toasting between the stand, rotate between the stand and be connected with the main shaft, the main shaft passes through the belt and is fixed with the crank with the output of the motor on the base, and the main shaft is kept away from motor one side and is fixed with the crank, the main shaft is located toasts the incasement portion and is fixed with fixed subassembly, fixed subassembly includes the fixed block of fixing on the main shaft, and the fixed block both sides are fixed with the connecting rod, and sliding connection has the limiting plate on the connecting rod, and the quantity of limiting plate is two on each connecting rod, through fixed axle fixed connection; still be equipped with first toasting the subassembly on the base, be equipped with supplementary toasting case and promotion subassembly on toasting the case.
On the basis of the technical scheme, the invention also provides the following optional technical scheme:
in one alternative: two stand symmetry sets up in the base top.
In one alternative: an opening door is arranged on the front face of the baking box.
In one alternative: the first baking assembly comprises a fan, the fan is communicated with a heating box, the heating box is communicated with a heating pipe, and a plurality of hot air spray heads are arranged on the heating pipe.
In one alternative: the inside first cylinder that is equipped with of supplementary baking oven, the output and the fixed plate fixed connection of first cylinder, the fixed plate bottom is fixed with the heating plate.
In one alternative: the heating plate is electrically connected with an external power supply outside the baking oven.
In one alternative: the pushing assembly comprises a second air cylinder, and an output shaft of the second air cylinder is fixedly connected with the push plate.
In one alternative: one side of the push plate, which is far away from the second cylinder, is provided with a bearing plate, and the bearing plates are fixedly connected through a spring.
Compared with the prior art, the invention has the following beneficial effects:
the electric wire and cable can be stably fixed by arranging the fixing component, and the main shaft is driven by the motor to rotate, so that the electric wire and cable also rotate in the baking oven, and the baking efficiency is improved; simultaneously, can further toast wire and cable through the supplementary case of toasting on the case of toasting, and then improve the efficiency of toasting, can drive the limiting plate through promoting the subassembly and remove on the connecting rod, and then toast different positions, have very good practicality.
Drawings

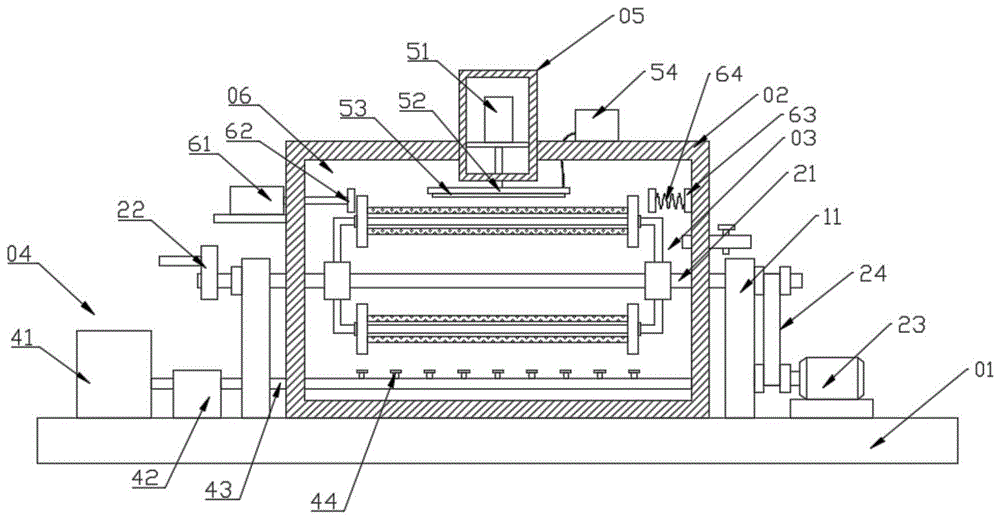

FIG. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic view of the connection between the fixing assembly and the spindle according to the present invention.
Fig. 3 is a perspective view of the limiting plate and the fixing shaft of the invention.
Fig. 4 is a perspective view of the base and the oven of the present invention.
Notations for reference numerals: 01-base, 02-baking box, 03-fixing component, 04-first baking component, 05-auxiliary baking box, 06-pushing component, 11-upright post, 21-main shaft, 22-crank, 23-motor, 24-belt, 25-opening door, 31-fixing block, 32-connecting rod, 33-limiting plate, 34-fixing shaft, 35-protrusion, 41-blower, 42-heating box, 43-heating pipe, 44-hot air nozzle, 51-first cylinder, 52-fixing plate, 53-heating plate, 54-external power supply, 61-second cylinder, 62-pushing plate, 63-bearing plate and 64-spring.
Detailed Description
The present invention will be described in detail with reference to the following embodiments, wherein like or similar elements are designated by like reference numerals throughout the several views, and wherein the shape, thickness or height of the various elements may be expanded or reduced in practice. The examples are given solely for the purpose of illustration and are not intended to limit the scope of the invention. Any obvious modifications or variations can be made to the present invention without departing from the spirit or scope of the present invention.
Example 1
Referring to fig. 1 to 4, in an embodiment of the present invention, a baking device for wire and cable production includes a base 01, two columns 11 are fixed above the base 01, the two columns 11 are symmetrically disposed above the base 01 to play a supporting role, a baking box 02 is fixed between the columns 11, the wire and cable is baked through the baking box 02, an opening door 25 is disposed on a front surface of the baking box 02, the baking box 02 can be opened through the opening door 25, so as to facilitate taking and placing of the wire and cable, the structure is very simple, and when baking is performed, only the opening door 25 needs to be closed.
Furthermore, the main shaft 21 is rotatably connected between the upright posts 11, that is, the main shaft 21 can rotate between the upright posts 11, and the upright posts 11 can play a supporting role and can not hinder the rotation of the main shaft 21, so that the baking oven is very simple and practical, and meanwhile, the main shaft 21 is fixedly connected with the output end of the motor 23 on the base 01 through the belt 24, and when the motor 23 works, the main shaft 21 can be driven to rotate, so that the wire and cable inside the baking oven 02 can be conveniently rotated, and the baking efficiency is improved; a crank 22 is fixed on one side of the main shaft 21, which is far away from the motor 23, the main shaft 21 can be driven to rotate through the crank 22, and then the main shaft 21 is manually driven to rotate, so that the position of an electric wire and a cable in the baking oven 02 can be conveniently adjusted; can all drive main shaft 21 through crank 22 and motor 23 and rotate, need adjust according to actual need in the use, when only the angle that needs adjust main shaft 21, through main shaft 21 can, when needs drive main shaft 21 and rotate always, need drive main shaft 21 through connecting rod 32 and rotate.
Furthermore, the fixing assembly 03 is fixed on the main shaft 21 inside the baking oven 02, and the wire and cable can be fixed by the fixing assembly 03 and stably fixed inside the baking oven 02, so that the wire and cable can be conveniently dried, and the baking efficiency is improved; the fixing assembly 03 comprises a fixing block 31 fixed on the main shaft 21, connecting rods 32 are fixed on two sides of the fixing block 31, limiting plates 33 are connected to the connecting rods 32 in a sliding mode, the number of the limiting plates 33 on each connecting rod 32 is two, the two limiting plates 33 are fixedly connected through a fixing shaft 34, and when the limiting plates 33 move on the connecting rods 32, the other limiting plates 33 and the fixing shaft 34 can be driven to move together; be equipped with a plurality of fixed archs 35 that crisscross on the fixed axle 34, can twine wire and cable in protruding 35 through setting up protruding 35, and then improve wire and cable's stability.
Furthermore, a first baking assembly 04 is arranged on the base 01, and wires and cables in the baking box 02 can be baked through the first baking assembly 04; the first baking assembly 04 comprises a fan 41, the fan 41 is communicated with a heating box 42 to heat generated wind, the heating box 42 is communicated with a heating pipe 43 to transfer the heated wind into the heating pipe 43, a plurality of hot air nozzles 44 are arranged on the heating pipe 43, hot air can be transferred into the baking box 02 through the hot air nozzles 44, and then the wire and cable can be baked conveniently; when toasting, drive main shaft 21 through motor 23 and rotate, and then drive fixed subassembly 03 and rotate, and then improved the drying efficiency to wire and cable, had very good practicality.
Furthermore, an auxiliary baking box 05 is arranged at the top of the baking box 02, the electric wire and cable wound on the fixed shaft 34 can be further heated through the auxiliary baking box 05, but it should be noted that when the auxiliary baking box 05 is used, the motor 23 needs to be turned off, so that the fixed component 03 is in a static state, and after the fixed component 03 is static, the electric wire and cable are baked through the auxiliary baking box 05, so that the baking efficiency is improved; the first air cylinder 51 is arranged in the auxiliary baking box 05, the output end of the first air cylinder 51 is fixedly connected with the fixing plate 52, the heating sheet 53 is fixed at the bottom of the fixing plate 52, the heating sheet 53 is electrically connected with the external power supply 54 outside the baking box 02, and then the electric wires and cables are baked through the heating sheet 53, so that the baking efficiency is improved; the fixing plate 52 can be driven to move in the vertical direction through the first air cylinder 51, so that the heating sheet 53 is fully contacted with the wire cable, and when the auxiliary baking box 05 is not needed, the fixing plate 52 is driven to be above through the first air cylinder 51, and the rotation of the fixing component 03 cannot be influenced; when the baking of one wire and cable is finished, the next wire and cable is installed, and the baking is continued.
Furthermore, a pushing assembly 06 is further arranged on the baking oven 02, and the limiting plate 33 can be driven to move on the connecting rod 32 through the pushing assembly 06, so that the heating sheet 53 can conveniently bake the wires and cables at different positions; the pushing assembly 06 comprises a second cylinder 61, an output shaft of the second cylinder 61 is fixedly connected with the push plate 62, when the second cylinder 61 works, the push plate 62 can be driven to move, the bearing plate 63 is driven to move on the push plate 62, and then different positions of the wire and cable are baked through the heating sheet 53; the push plate 62 is equipped with the bearing plate 63 on one side of keeping away from the second cylinder 61, through spring 64 fixed connection between the bearing plate 63, and then toasts the completion back, drives the limiting plate 33 and returns original position, and is very simple and practical.
Example 2
A baking device for wire and cable production can stably fix wires and cables by arranging a fixing component 03, and drives a main shaft 21 to rotate through a motor 23, so that the wires and cables also rotate in a baking box 02, and baking efficiency is improved; simultaneously, can further toast wire and cable through the supplementary case 05 that toasts on toasting case 02, and then improved the efficiency of toasting, can drive limiting plate 33 through promoting the subassembly 06 and remove on connecting rod 32, and then toast different positions, have very good practicality.
The working principle of the invention is as follows: winding the electric wire and the cable on the fixed shaft 34, turning on the motor 23, driving the main shaft 21 to rotate by the motor 23 through the belt 24, further driving the fixed component 03 to integrally rotate, and baking the electric wire and the cable in the baking box 02 through the first baking component 04; when needs improve and toast efficiency, close motor 23, place wire and cable in supplementary toasting case 05 below, toast through supplementary toasting case 05, rethread promotes subassembly 06 and drives limiting plate 33 and remove, can toast different positions.
The above description is only for the specific embodiments of the present disclosure, but the scope of the present disclosure is not limited thereto, and any person skilled in the art can easily conceive of the changes or substitutions within the technical scope of the present disclosure, and all the changes or substitutions should be covered within the scope of the present disclosure. Therefore, the protection scope of the present disclosure shall be subject to the protection scope of the claims.
Claims (8)
