本发明提供一种脊髓损伤儿童脊柱矫正及按摩座椅，利用第一侧板与第二侧板能够从侧面有效限制患者的身体，固定患者脊柱，达到恢复矫正的功能，利用固定带能够有效从前侧固定患者躯干，防止患儿躯干前倾，进一步固定患者身体；按摩单元的设置，能有效缓解患者背部肌肉疲劳紧张和肌肉痉挛，同时驱动轮顺时针旋转，最终带动按摩带顺时针旋转，达到从上向下按摩的效果，刺激躯干神经，有利于躯干肌肉的恢复；座位底部可拆卸的不倒翁底座的设计，能够起到平衡训练的效果，提高患者的躯干控制能力，促进功能改善和恢复；气囊的设置，能根据患者身材调整气囊充气量，保证固定患者身体的同时防止产生压疮。
The present invention provides a spinal correction and massage seat for children with spinal cord injury. The first side plate and the second side plate can effectively restrain the patient's body from the side, fix the patient's spine, and achieve the function of restoring and correcting. The patient’s trunk is fixed laterally to prevent the child’s trunk from leaning forward and further fix the patient’s body; the setting of the massage unit can effectively relieve the patient’s back muscle fatigue, tension and muscle spasm, and the driving wheel rotates clockwise, and finally drives the massage belt to rotate clockwise to achieve The effect of massage from top to bottom stimulates trunk nerves, which is conducive to the recovery of trunk muscles; the design of the detachable tumbler base at the bottom of the seat can play a balance training effect, improve the trunk control ability of patients, and promote functional improvement and recovery; The setting of the air bag can adjust the inflation volume of the air bag according to the patient's body, so as to ensure that the patient's body is fixed and pressure ulcers are prevented.
Description
Technical Field
The invention relates to the technical field of medical equipment, in particular to a spinal correction and massage seat for children with spinal cord injury.
Background
The spinal cord injury patients in children often have thoracic vertebra or thoracolumbar vertebral column lateral curvature and lordosis after the injury. The main reason is that the infant is in a vigorous bone growth period when being injured, and is abnormal in the development process: the spinal cord injury causes weakness of muscles or unbalanced strength on two sides of the spine of the child patient, the child is in a poor position for a long time after being injured, and the wheelchair is poor in fitness and the like, so that the spine is deformed. The incidence rate of spinal deformity of children with spinal cord injury is positively correlated with the level and degree of spinal cord injury. If the intervention is not timely and effective, the sick children are easy to have spinal deformity after being injured, and the degree of the deformity is gradually aggravated along with the growth and development process, thereby causing the illness state of the sick children to be further worsened. At present, no effective means for preventing the spinal column deformity after the spinal cord injury of the children in clinic exists, the posture of the children is kept when the children are in a sitting position and a wheelchair moves mainly through the education of patients and family members, and the effect is little.
Disclosure of Invention
Aiming at the defects in the prior art, the invention provides a spinal correction and massage chair for children with spinal cord injury.
In order to achieve the purpose, the invention adopts the following technical scheme:
a spine correction and massage chair for children with spinal cord injury comprises a chair back and a seat which are mutually vertical and integrally connected; the chair comprises a chair back, a chair seat and a chair back, wherein the chair back is provided with a first side plate and a second side plate, the first side plate and the second side plate are symmetrically arranged on two sides of the chair back, the second side plate and the first side plate are symmetrically arranged on two sides of the chair seat, the first side plate and the second side plate are spliced with each other, and the first side plate is positioned above; the first side plate is provided with a fixing belt, and the fixing belt is detachably clamped on the first side plates on two sides.
Preferably, the middle part of the chair back is provided with a massage unit, the massage unit is embedded in the chair back, and the massage part of the massage unit protrudes out of the chair back.
Preferably, the massage unit includes driven shaft, driving shaft and the closed massage area of annular, the massage area is around the dress the driving shaft and the driven shaft outside, driven shaft level sets up and both ends inlay and are in the back of the chair, the driving shaft with the driven shaft is parallel, the driving shaft includes first end and second end, first end inlays and is in the back of the chair, the second end is worn out the back of the chair exposes the side of seat, the second end is installed and is used for the drive the rotatory drive arrangement of driving shaft.
Preferably, a fixed rod is rotatably arranged in the driven shaft in a penetrating manner, and the fixed rod is fixedly embedded in the chair back; the first end of driving shaft is provided with the fixed slot, the fixed slot clamps in the back of the chair, first end rotationally cartridge is in the fixed slot, the back of the chair with one side that the fixed slot is relative is equipped with the clearing hole, the rotatable wearing and establishing of second end is in the passing hole.
Preferably, the outer side of the driving shaft is provided with first occlusion teeth, and the inner side of the massage belt is uniformly provided with second occlusion teeth matched with the first occlusion teeth.
Preferably, the driving device comprises a driving motor and a driving chain, the driving motor is fixedly mounted on the outer side of the second side plate, the driving chain is sleeved on the outer sides of the second end and the output end of the driving motor, and the driving chain is respectively meshed with the second end and the output end of the driving motor; a shell is covered on the outer side of the driving device and fixedly connected with the chair back and the second side plate; and a driving power supply is arranged in the shell and is electrically connected with the driving motor.
Preferably, fixed mounting has many interval arrangements's first massage strip and second massage strip on the massage belt, it is protruding to set up n first massages on the first massage strip, it is protruding to set up n +1 second massage on the second massage strip, every first massage is protruding to being adjacent two between the second massage is protruding, every the second massage is protruding to being adjacent two between the first massage is protruding.
Preferably, air bags are fixedly arranged on opposite sides of the two first side plates respectively.
Preferably, the lower surface of the seat is detachably provided with a tumbler base, and the tumbler bases are connected together through a magic tape.
Preferably, the silica gel cushion has been laid to the seat upper surface, silica gel cushion middle part an organic whole is connected with the protruding awl, the protruding awl is located the seat is kept away from one side of the back of the chair.
Compared with the prior art, the invention has the beneficial effects that: the first side plate and the second side plate can effectively limit the body of a patient from the side, fix the spine of the patient and achieve the function of recovery and correction, and the fixing belt can effectively fix the trunk of the patient from the front side, prevent the trunk of the infant from inclining forwards and further fix the body of the patient; the massage unit is arranged, so that fatigue and tension of muscles and muscle spasm on the back of a patient can be effectively relieved, meanwhile, the driving wheel rotates clockwise, the massage belt is finally driven to rotate clockwise, the effect of massage from top to bottom is achieved, and the nerve and the muscle of the trunk are stimulated through massage according to the rule that the development sequence of the nerves is from top to bottom, so that the recovery of the muscle strength of each muscle group of the trunk is facilitated; the bottom of the seat adopts the design of a detachable tumbler base, the design can be used during balance training, the effect of balance training is achieved through the swinging of the base, the trunk control capacity of a patient is improved, and the function improvement and recovery are promoted; the setting of gasbag can be according to patient's stature adjustment gasbag inflation volume, prevents to produce when guaranteeing fixed patient's health and presses the sore.
Drawings

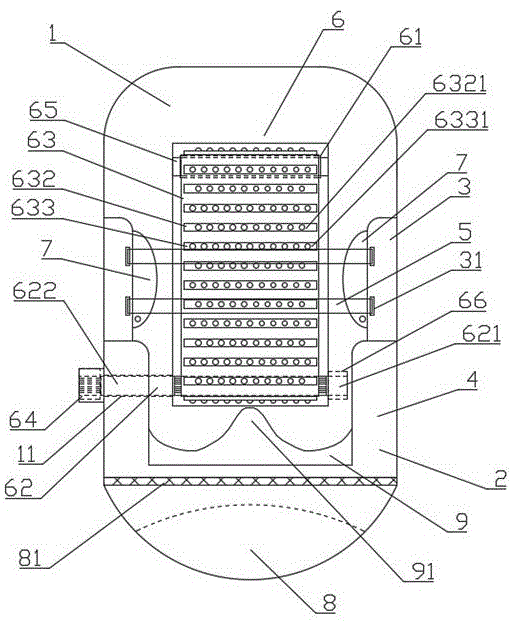

Fig. 1 is a schematic overall structure diagram of a spine correction and massage chair for children with spinal cord injury according to the invention.
Fig. 2 is a side view of a spinal correction and massage chair for children with spinal cord injury.
Fig. 3 is a schematic structural view of the occlusion between the driving shaft and the massage belt of the spinal correction and massage chair for children with spinal cord injury.
Fig. 4 is a schematic structural diagram of another embodiment of the spinal correction and massage seat driving device for children with spinal cord injury of the invention.
Detailed Description
In order to further understand the objects, structures, features and functions of the present invention, the following embodiments are described in detail.
Referring to fig. 1, fig. 2, fig. 3 and fig. 4 in combination, fig. 1 is a schematic view of an overall structure of a spinal correction and massage chair for children with spinal injuries according to the present invention, fig. 2 is a side view of the spinal correction and massage chair for children with spinal injuries according to the present invention, fig. 3 is a schematic view of a structure of a bite between a driving shaft and a massage belt of the spinal correction and massage chair for children with spinal injuries according to the present invention, and fig. 4 is a schematic view of a structure of another embodiment of a driving device of the spinal correction and massage chair for children with spinal injuries according to the present invention.
As shown in fig. 1, a spine correction and massage chair for children with spinal cord injury according to an embodiment of the present invention comprises a chair back 1 and a seat 2, which are perpendicular to each other and integrally connected; the chair comprises a chair back 1, a chair seat 2, a chair back 1, a chair back 2, a chair back 1 and a chair back 2, wherein the chair back 1 is provided with a first side plate 3, the first side plate 3 is perpendicular to the chair back 1 and is integrally connected with the chair back 1, the chair seat 2 is provided with a second side plate 4, the second side plate 4 is perpendicular to the chair seat 2 and is integrally connected with the chair seat 2, the first side plate 3 and the second side plate 4 are spliced with each other, and the first side plate; the first side plate 3 is provided with a fixing belt 5, and the fixing belt 5 is detachably clamped on the first side plate 3 at two sides.
In one embodiment, the first side plate 3 and the second side plate 4 are arranged to secure the trunk of the patient from both sides, so as to prevent the trunk of the patient from lateral bending due to spinal injuries. Set up draw-in groove 31 on the first curb plate 3, 5 both ends fixedly connected with buckles of fixed band, the fixed band is the elasticity band, clamps the buckle in draw-in groove 31, can realize fixed band 5 fixed to it is fixed with the patient trunk from patient health front side, prevents that the patient trunk from leaning forward and leads to the forward bend. The chair can be placed on positions required by daily life such as a wheelchair, a normal family sofa, an automobile seat, a dining seat and a working seat, and can enhance the daily self-supporting ability of a patient and assist the patient to better integrate with the daily life. The binding bands can be fixedly connected below the seat 2 and behind the chair back 1 to help the seat to be bound on the corresponding seat when the seat is placed on other seats such as a wheelchair and prevent a patient from overturning due to overlarge movement range.
As shown in fig. 1, it is preferable that the massage unit 6 is provided in the middle of the seat back 1, the massage unit 6 is embedded in the seat back 1, and the massage portion of the massage unit 6 protrudes outside the seat back 1. The massage unit 6 is arranged to massage the back muscles and nerves of the patient when the patient sits on the seat for a long time, so that the fatigue and tension of the muscles can be effectively relieved, and the nerves can be relieved.
As shown in fig. 1, preferably, the massage unit 6 includes a driven shaft 61, a driving shaft 62 and a massage belt 63 closed in a ring shape, the massage belt 63 is wound around the driving shaft 62 and the driven shaft 61, the driven shaft 61 is horizontally disposed and both ends of the driven shaft are embedded in the chair back 1, the driving shaft 62 is parallel to the driven shaft 61, the driving shaft 62 includes a first end 621 and a second end 622, the first end 621 is embedded in the chair back 1, the second end 622 penetrates through the chair back 1 and is exposed out of the side surface of the seat, and the second end 622 is provided with a driving device 64 for driving the driving shaft 62 to rotate. The driving device 64 drives the driving shaft 62 to rotate, the driving shaft 62 rotates to drive the massage belt 63 to rotate, and when the back of a patient leans against the chair back 1, the massage belt 63 is attached to the back of the patient, so that the back of the patient is massaged. It should be noted that, in the present invention, the driving device 64 is used to drive the driving shaft 62 to rotate clockwise, i.e. the front side of the driving shaft 62 always rotates downward along the tangential direction, and the massage belt 63 rotates from top to bottom, so that the massage belt 63 massages the back of the patient from top to bottom, and the recovery of the muscles and nerves of the trunk can be promoted. The massage belt 63 massages from top to bottom, circularly stimulates the back muscles and nerves of the patient from top to bottom, can effectively relieve the back muscles and nerves, and achieves the effects of relaxing and reducing muscle spasm. In addition, from the perspective of nerve control and development, the development of nerves is from top to bottom, such as first head and neck, then trunk, then lower limbs, and then from head and neck to trunk and limbs, so the massage stimulation from top to bottom is more beneficial to the development and recovery of nerves of patients.
As shown in fig. 1, preferably, a fixing rod 65 is rotatably inserted into the driven shaft 61, and the fixing rod 65 is fixedly embedded in the chair back 1; the fixing rod 65 can firmly fix the driven shaft 61 on the chair back 1, the driven shaft 61 is sleeved on the fixing rod 65 and rotates, abrasion of the driven shaft 61 to the chair back 1 can be effectively reduced, the chair back 1 is effectively protected, and the service life is prolonged. The first end 621 of the driving shaft 62 is provided with a fixing groove 66, the fixing groove 66 is clamped in the seat back 1, the first end 621 is rotatably inserted in the fixing groove 66, a through hole 11 is arranged on the opposite side of the seat back 1 to the fixing groove 66, and the second end 622 is rotatably inserted in the through hole 11. The setting of fixed slot 66 for prevent that driving shaft 62 from wearing and tearing to back of the chair 1 when continuing to rotate, can effectively protect back of the chair 1, improve the stability that driving shaft 62 and back of the chair 1 are connected. The wear-resistant sleeve can be embedded in the through hole 11, and the second end 622 of the driving shaft 62 penetrates through the wear-resistant sleeve, so that the driving shaft 62 is prevented from being in direct contact with the chair back 1, and the chair back 1 is effectively protected.
As shown in FIG. 3, preferably, the driving shaft 62 is provided at the outer side thereof with first engaging teeth 623, and the massage belt 63 is provided at the inner side thereof with second engaging teeth 631 which are engaged with the first engaging teeth 623. The first occluding teeth 623 and the second occluding teeth 631 are occluded with each other, and when the driving shaft 62 rotates clockwise, the first occluding teeth 623 occlude the second occluding teeth 631, so that the massage belt 63 is driven to rotate along with the driving shaft 62, the rotation of the massage belt 63 is realized, and the cyclic continuous top-down massage on the back of a patient is realized.
As shown in fig. 2, preferably, the driving device 64 includes a driving motor 641 and a driving chain 642, the driving motor 641 is fixedly mounted on the outer side of the second side plate 4, the driving chain 642 is sleeved on the outer sides of the second end 622 and the output end of the driving motor 641, and the driving chain 642 is engaged with the second end 622 and the output end of the driving motor 641 respectively; the gear is connected to the output of driving motor 641, and the gear mutually supports with drive chain 642, can drive chain 642 and rotate when driving motor 641 rotates, and drive chain 642 and second end 622 interlock, consequently drive second end 622 and rotate when drive chain 642 rotates to drive driving shaft 62 and rotate, driving shaft 62 rotates and drives massage belt 63 and rotate, realizes the massage to patient's back nerve and muscle. A shell 643 covers the outer side of the driving device 64, and the shell 643 is fixedly connected with the chair back 1 and the second side plate 4; a driving power source 644 is disposed in the housing 643, and the driving power source 644 is electrically connected to the driving motor 641. The housing 643 is configured to protect the second end 622, the driving motor 641, and the driving chain 642 from being exposed to the outside, thereby preventing accidental injury to the patient or other caretaker when the driving device 64 is activated. The driving power supply 644 is electrically connected with a switch button, the switch button is fixedly arranged on the upper surface of the outer shell 643, when the massage needs to be started, the switch is pressed to connect the driving power supply 644, the driving power supply 644 supplies power to the driving motor 641, the driving motor 641 rotates to drive the driving shaft 62 to rotate, and the driving shaft 62 drives the massage belt 63 to rotate, so that the massage on the back of the patient is realized. The driving device 64 is electrically driven, when the back of the patient is in fatigue and tension or muscle spasm, only the power supply 644 needs to be driven, and then the back of the patient leans against the chair back 1 to massage, so that the operation is simple and convenient, and the mind and the body of the patient can be relaxed and relaxed.
As shown in fig. 4, in another embodiment, the driving device 64 includes a driving wheel 645 and a driving chain 642, the driving wheel 645 is fixedly installed outside the second side plate 4, the driving chain 642 is sleeved outside the second end 622 and the driving wheel 645, and the driving chain 642 is engaged with the second end 622 and the driving wheel 645 respectively; a rotating handle 646 is arranged on the side of the driving wheel 645, and the rotating handle 646 is integrally connected with the driving wheel 645. The drive device 64 is covered with a housing 643 at the outer side, the housing 643 is fixed at the outer side of the seat back 1 and the second side plate 4, and the turning handle 646 and the drive wheel 645 protrude at the outer side of the housing 643. At this time, the driving device 64 is driven manually, when the patient feels the back fatigue, the rotating handle 646 is rotated clockwise, the rotating handle 646 drives the driving wheel 645 to rotate clockwise, the driving wheel 645 drives the driving chain 642 to rotate clockwise, and the driving chain 642 is engaged with the second end 622 of the driving shaft 62, so that the driving chain 642 rotates to drive the driving shaft 62 to rotate, and the driving shaft 62 rotates to drive the massage belt 63 to rotate, thereby realizing the massage to the back of the patient. The advantage of manual drive is to exercise the coordination ability of the upper limbs of the spinal cord injury patient, and further exercise and recover the body of the patient while massaging the back of the patient.
As shown in fig. 1, preferably, a plurality of first massage strips 632 and second massage strips 633 which are arranged at intervals are fixedly mounted on the massage belt 63, the first massage strips 632 and the second massage strips 633 are the same in length and are arranged in parallel to each other, n first massage protrusions 6321 are arranged on the first massage strips 632, n +1 second massage protrusions 6331 are arranged on the second massage strips 633, each first massage protrusion 6321 is positioned between two adjacent second massage protrusions 6331, each second massage protrusion 6331 is positioned between two adjacent first massage protrusions 6321, that is, the foot of the second massage protrusion 6331 on the first massage strip 632 is positioned on the midpoint of the connecting line between the two first massage protrusions 6321 on both sides. The first massage strip 632 and the second massage strip 633 are provided to massage the patient's body in all directions, and at the same level, the positions of the first massage strip 632 and the second massage strip 633 are not overlapped. Because the first massage strip 632 and the second massage strip 633 are arranged at intervals, the first massage strip 632 massages at the same position first, and then the second massage strip 633 massages, and the steps are repeated and alternated. The first massage protrusions 6321 and the second massage protrusions 6331 sequentially massage the corresponding parts along with the downward movement of the first massage strip 632 and the second massage strip 633. This kind of setting can guarantee that the actual massage area that massage area 63 covered is enough big, can avoid lasting again to massage the same point, and the point location of giving the massage of patient back is relaxed time of relaxing, avoids causing pain or damage because of lasting amazing to back muscle and nerve, improves patient's travelling comfort.
As shown in fig. 1, air bags 7 are preferably fixedly arranged on opposite sides of the two first side plates 3. The air bag 7 can be filled with different air quantities according to the requirements of different patient statures, so that the trunk of the patient can be fixed from two sides of the body of the patient, and the patient can not be crushed.
As shown in fig. 1, 2 and 4, preferably, the lower surface of the seat 2 is detachably provided with a tumbler base 8, and the tumbler bases 8 are connected together by a magic tape 81. The area of the tumbler base 8 is equal to the area of the seat 2, and the magic tape 81 is completely covered on the upper surface of the tumbler base 8 and the bottom of the seat 2, so that the tumbler base 8 is completely contacted and stuck with the seat 2, and the connection stability is ensured. Furthermore, fixing buckles can be arranged at the edge of the tumbler base 8 and the edge of the seat, so that the seat 2 and the tumbler base 8 are further connected and fixed. Due to the arrangement of the tumbler, the patient can be subjected to balance training through the inclined reset function of the tumbler, the control capability of the trunk of the patient is improved, and accordingly exercise and recovery of the spine of the patient are promoted.
As shown in fig. 1, preferably, a silica gel cushion 9 is laid on the upper surface of the seat 2, a convex cone 91 is integrally connected to the middle of the silica gel cushion 9, and the convex cone 91 is located on one side of the seat 2 away from the chair back 1. The setting of silica gel cushion 9 can play the cushioning effect when the patient sits on the seat for a long time, prevents that patient's buttock from producing and presses the sore. The convex cone 91 at the middle part protrudes between two legs of the patient when the patient sits on the chair, so that the function of separating the two legs is achieved, and the patient is prevented from slipping off the chair due to the fact that the spine is damaged and cannot support the patient. And the convex cone 91 is also made of silica gel, so that damage to the inner side of the thigh of the patient is avoided.
According to the spine correction and massage chair for children with spinal cord injury, the first side plate and the second side plate can be used for effectively limiting the body of a patient from the side surface and fixing the spine of the patient to achieve the function of recovery and correction, the fixing belt can be used for effectively fixing the trunk of the patient from the front side to prevent the trunk of an infant from inclining forwards, and the body of the patient is further fixed; the massage unit is arranged, so that fatigue and tension of muscles and muscle spasm on the back of a patient can be effectively relieved, meanwhile, the driving wheel rotates clockwise, the massage belt is finally driven to rotate clockwise, the effect of massage from top to bottom is achieved, and the nerve and the muscle of the trunk are stimulated through massage according to the rule that the development sequence of the nerves is from top to bottom, so that the recovery of the muscle strength of each muscle group of the trunk is facilitated; the bottom of the seat adopts the design of a detachable tumbler base, the design can be used during balance training, the effect of balance training is achieved through the swinging of the base, the trunk control capacity of a patient is improved, and the function improvement and recovery are promoted; the setting of gasbag can be according to patient's stature adjustment gasbag inflation volume, prevents to produce when guaranteeing fixed patient's health and presses the sore.
The present invention has been described in relation to the above embodiments, which are only exemplary of the implementation of the present invention. It should be noted that the disclosed embodiments do not limit the scope of the invention. Rather, it is intended that all such modifications and variations be included within the spirit and scope of this invention.
Claims (10)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201911400620.3A CN110974512A (en) | 2019-12-30 | 2019-12-30 | Spinal Correction and Massage Chair for Children with Spinal Cord Injury |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201911400620.3A CN110974512A (en) | 2019-12-30 | 2019-12-30 | Spinal Correction and Massage Chair for Children with Spinal Cord Injury |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN110974512A true CN110974512A (en) | 2020-04-10 |
Family
ID=70079271
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201911400620.3A Pending CN110974512A (en) | 2019-12-30 | 2019-12-30 | Spinal Correction and Massage Chair for Children with Spinal Cord Injury |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN110974512A (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113303957A (en) * | 2021-06-02 | 2021-08-27 | 青岛大学附属医院 | Leg shape correcting device |
Citations (17)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2273183Y (en) * | 1996-07-30 | 1998-01-28 | 罗秋香 | Electric Health Walker |
| CN2353402Y (en) * | 1998-10-31 | 1999-12-15 | 叶东龙 | Dynamic massage running machine |
| CN2660997Y (en) * | 2003-11-03 | 2004-12-08 | 杨楠 | Vertebral column caring chair |
| TWM256168U (en) * | 2004-03-05 | 2005-02-01 | Lung-Shu Shiu | Human body massage device of trampling type |
| CN203001191U (en) * | 2012-12-28 | 2013-06-19 | 曾进 | Rehabilitation orthotic device |
| CN103610339A (en) * | 2013-12-05 | 2014-03-05 | 王子越 | Chair capable of preventing spinal curvature |
| CN104042385A (en) * | 2014-07-11 | 2014-09-17 | 湖南中医药大学 | Spine malformation correcting chair |
| CN203915388U (en) * | 2014-06-20 | 2014-11-05 | 杭州群慧家具有限公司 | Massage armchair |
| CN104606037A (en) * | 2014-12-04 | 2015-05-13 | 刘娟 | Novel multifunctional foot-stepping-type massaging chair |
| CN205339460U (en) * | 2016-01-04 | 2016-06-29 | 郝建明 | Recovered chair of taking exercise of department of neurology |
| CN106074075A (en) * | 2016-06-03 | 2016-11-09 | 重庆嵘安医疗器材有限公司 | A kind of postoperative brace of spinal column |
| CN206182777U (en) * | 2016-06-24 | 2017-05-24 | 上海瑞宇健身休闲用品有限公司 | Massage chair |
| CN206463427U (en) * | 2017-01-06 | 2017-09-05 | 王传德 | Massage treadlemill |
| CN207084573U (en) * | 2017-02-21 | 2018-03-13 | 河北科技大学 | A kind of multifunctional body-building chair |
| CN207370861U (en) * | 2017-04-19 | 2018-05-18 | 慎美花 | A kind of spinal surgery backbone adjuvant therapy device |
| CN108452439A (en) * | 2017-12-13 | 2018-08-28 | 武汉市海沁医疗科技有限公司 | A kind of physical treatment apparatus |
| CN209713625U (en) * | 2019-01-31 | 2019-12-03 | 天津怡安康健科技有限公司 | A kind of recovery massage chair |
-
2019
- 2019-12-30 CN CN201911400620.3A patent/CN110974512A/en active Pending
Patent Citations (17)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2273183Y (en) * | 1996-07-30 | 1998-01-28 | 罗秋香 | Electric Health Walker |
| CN2353402Y (en) * | 1998-10-31 | 1999-12-15 | 叶东龙 | Dynamic massage running machine |
| CN2660997Y (en) * | 2003-11-03 | 2004-12-08 | 杨楠 | Vertebral column caring chair |
| TWM256168U (en) * | 2004-03-05 | 2005-02-01 | Lung-Shu Shiu | Human body massage device of trampling type |
| CN203001191U (en) * | 2012-12-28 | 2013-06-19 | 曾进 | Rehabilitation orthotic device |
| CN103610339A (en) * | 2013-12-05 | 2014-03-05 | 王子越 | Chair capable of preventing spinal curvature |
| CN203915388U (en) * | 2014-06-20 | 2014-11-05 | 杭州群慧家具有限公司 | Massage armchair |
| CN104042385A (en) * | 2014-07-11 | 2014-09-17 | 湖南中医药大学 | Spine malformation correcting chair |
| CN104606037A (en) * | 2014-12-04 | 2015-05-13 | 刘娟 | Novel multifunctional foot-stepping-type massaging chair |
| CN205339460U (en) * | 2016-01-04 | 2016-06-29 | 郝建明 | Recovered chair of taking exercise of department of neurology |
| CN106074075A (en) * | 2016-06-03 | 2016-11-09 | 重庆嵘安医疗器材有限公司 | A kind of postoperative brace of spinal column |
| CN206182777U (en) * | 2016-06-24 | 2017-05-24 | 上海瑞宇健身休闲用品有限公司 | Massage chair |
| CN206463427U (en) * | 2017-01-06 | 2017-09-05 | 王传德 | Massage treadlemill |
| CN207084573U (en) * | 2017-02-21 | 2018-03-13 | 河北科技大学 | A kind of multifunctional body-building chair |
| CN207370861U (en) * | 2017-04-19 | 2018-05-18 | 慎美花 | A kind of spinal surgery backbone adjuvant therapy device |
| CN108452439A (en) * | 2017-12-13 | 2018-08-28 | 武汉市海沁医疗科技有限公司 | A kind of physical treatment apparatus |
| CN209713625U (en) * | 2019-01-31 | 2019-12-03 | 天津怡安康健科技有限公司 | A kind of recovery massage chair |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113303957A (en) * | 2021-06-02 | 2021-08-27 | 青岛大学附属医院 | Leg shape correcting device |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| KR101561005B1 (en) | Apparatus for air-press massage | |
| KR101272196B1 (en) | Spine care system | |
| KR102685446B1 (en) | Method and device for spinal disc decompression | |
| CN107224389A (en) | Patients with cerebral apoplexy device for healing and training with anti-spasm, preventing thrombosis function | |
| CN107374880A (en) | Patients with cerebral apoplexy convalescence training bed | |
| KR20170137349A (en) | spondylopathy treatment apparatus using three-level spine retracting technique and having foot bath function and thermotherapy function, method, recording medium | |
| JP5500623B2 (en) | Lumbar traction device | |
| KR101203367B1 (en) | Rehabilitation machine device for knee joint | |
| CN103598961B (en) | A kind of spine health-care, treatment artificial intelligence electric massage chair | |
| KR20210088129A (en) | correcting belt for spine fixing | |
| KR20200136285A (en) | Massage Device Of Posterior Cervical muscle | |
| KR100955202B1 (en) | Posture correction device with shoulder correction device and shoulder correction device | |
| KR20200136286A (en) | Apparatus for air-press massage | |
| CN201211305Y (en) | Intelligent health backbone massaging chair | |
| CN104107102A (en) | Device for preventing and treating lumbar and cervical disc herniation | |
| US20210236367A1 (en) | Cervical traction orthotic chiropractic neck alignment device for spi-nal curve tension stretching forward head posture pain relief and phys-ical therapy | |
| CN110974512A (en) | Spinal Correction and Massage Chair for Children with Spinal Cord Injury | |
| CN205434029U (en) | Prevention treatment chair to backbone surgery disease | |
| JP7491859B2 (en) | Cervical Traction Device | |
| JP2006345882A (en) | Traction device | |
| KR200323761Y1 (en) | The Cervical Vertebral Correct Chair. | |
| CN205432225U (en) | Multifunctional waist support band | |
| ES2310594T3 (en) | EXERCISE AND SUBJECT DEVICE. | |
| WO2019177447A1 (en) | Apparatus for rehabilitation of the neck | |
| CN211512226U (en) | Physiotherapy supporting device of cervical vertebra traction chair |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
