Abstract
The invention relates to a cervical spondylosis rehabilitation device and method. The technical scheme is as follows: the cervical vertebra curvature adjusting cushion is formed by combining two independent structures of a supine cushion core and a side lying cushion core and adding a cervical vertebra curvature adjusting cushion, wherein the supine cushion core is formed by weaving cattail and is provided with a plurality of upper neck supports and lower neck supports which are different in thickness and arranged in the width direction of the supine cushion core; the side lying cushion core is made of kapok and bamboo fiber which are used as buffer materials and are provided with a plurality of different thicknesses to form a plurality of different heights, and a supine low concave part is arranged in the middle of the side lying cushion core; the cervical curvature adjusting pad is made of kapok and bamboo fiber which are used as buffer materials, a plurality of cervical curvature adjusting pads with different thicknesses are formed, and the cervical curvature adjusting pad is added or reduced according to the cervical curvature. The beneficial effects are that: the matching of the supine cushion core, the side-lying cushion core and the cervical vertebra curvature adjusting cushion conforms to the correct physiological curve of the neck and shoulder parts of the human body during supine and side-lying sleeping, has the effects of physical therapy, correction and rehabilitation for patients with cervical spondylosis, improves the sleeping comfort level and the sleeping quality of the patients with cervical spondylosis.
Description
Technical Field
The invention relates to a physical therapy rehabilitation device and a physical therapy rehabilitation method, in particular to a cervical spondylosis rehabilitation device and a cervical spondylosis rehabilitation method.
Background
As for cervical spondylosis, the cervical spondylosis is rarely congenital and is rarely caused by acquired accidents, and most of the cervical spondylosis is caused by bad learning habits, working habits, living habits and sleeping habits. In reality, the treatment of cervical spondylosis is not limited to massage, acupuncture, cupping, medicine, operation and other modes, and all cervical spondylosis treated by the above modes can have the same sense, namely, the cervical spondylosis is treated at the time or in a short time after treatment, but the cervical spondylosis still returns after a long time. This is true. Trying to think that the cervical spondylosis is caused by bad habits under the condition that the cervical spondylosis is healthy, how to treat the cervical spondylosis without changing the habits can be better, and the state after the treatment is difficult to be treated is still more resistant than the state in the healthy state! Obviously, it is impossible! Therefore, changing habits is the most effective method for treating cervical spondylosis. However, in real life, due to the limitation of different conditions and requirements, our habits are difficult to change, and thus, cervical spondylosis becomes a stubborn disease in life.
The symptoms of cervical spondylosis are not only two manifestations: 1. cervical curvature deformation; 2. Stiffness of neck muscles. Wherein, the cervical curvature deformation can cause cervical pain and oppress vertebral artery blood supply insufficiency; stiffness of neck muscles causes cold and numb neck, unsmooth vein blood return; therefore, the problem of cervical spondylosis is solved, namely cervical curvature deformation and stiff neck muscles are solved.
Disclosure of Invention
The invention aims to provide a cervical spondylosis rehabilitation device and method for performing physical therapy on cervical spondylosis in a sleeping process, aiming at overcoming the defects in the prior art, and the habit of a user is changed by using the sleeping time of the user, so that the cervical spondylosis of the user is promoted to be rehabilitated.
The invention provides a cervical spondylosis rehabilitation device, which adopts the technical scheme that: the cervical vertebra curvature adjusting cushion is composed of two independent structures, namely a supine cushion core (a) and a side lying cushion core (b), wherein the upper part and the lower part are combined, and a cervical vertebra curvature adjusting cushion (c) is additionally arranged, wherein the supine cushion core (a) is formed by weaving cattail and is provided with a plurality of different thicknesses to form a plurality of different heights, and an upper neck support (a 2) and a lower neck support (a 3) are arranged in the width direction of the supine cushion core (a); the side lying cushion core (b) is made of kapok and bamboo fiber which are used as buffer materials, has a plurality of different thicknesses and different heights, and is provided with a supine low concave part (b 2) in the middle; the cervical curvature adjusting pad (c) is made of kapok and bamboo fiber which are used as buffer materials, a plurality of cervical curvature adjusting pads (c) with different thicknesses are formed, and the cervical curvature adjusting pads (c) are added or subtracted according to the cervical curvature; the supine cushion core (a), the side-lying cushion core (b) and the cervical curvature adjusting cushion (c), and the supine cushion core (a) are arranged and combined to provide a plurality of choices of different heights for users.
Preferably, the supine cushion core (a) comprises a cushion core main body (a 1), an upper neck support (a 2) and a lower neck support (a 3), wherein the upper neck support (a 2) and the lower neck support (a 3) are respectively arranged at the upper part and the lower part of the middle position of the supine cushion core (a) in the length direction, a cervical vertebra curvature adjusting region is formed between the upper neck support (a 2) and the lower neck support (a 3), and a cervical vertebra curvature adjusting cushion (c) is arranged in the cervical vertebra curvature adjusting region.
Preferably, the upper neck brace (a 2) and the lower neck brace (a 3) are semi-circular arc structures, and the diameter of the upper neck brace (a 2) is larger than that of the lower neck brace (a 3).
Preferably, the side cushion core (b) comprises a side lying area (b 1) and a supine low concave area (b 2), and the supine low concave area (b 2) is arranged in the middle of the side lying area (b 1).
Preferably, the cervical curvature adjusting pad (c) is of a cuboid structure, and is internally provided with a plurality of layers of buffer cotton pads (c 1), and the number of layers can be increased or decreased according to the cervical curvature.
Preferably, the outsides of the supine cushion core (a), the side-lying cushion core (b) and the cervical curvature adjusting cushion (c) are sleeved with an integral conformal outer sleeve.
Preferably, the supine cushion core (a) is woven from cattail in 1.0/1.5/2.0/2.5/3.0 cm of different thickness to form 5 different heights.
Preferably, the side lying mattress core (b) is formed into 9 different heights with different thicknesses of 4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0 cm.
Preferably, the cervical curvature adjusting pad (c) is provided with three layers, each layer is 0.5 cm, the total height is 1.5cm, and the number of layers can be increased or decreased according to the cervical curvature.
The invention provides a use method of a cervical spondylosis rehabilitation device, which comprises the following steps:
combining a supine cushion core (a) and a side-lying cushion core (b), adding a cervical curvature adjusting cushion (c) according to a user, and then sleeving an integral conformal outer sleeve on the outer side;
when the cervical vertebra rehabilitation physiotherapy is needed, a user lies on the back to enable the head to be positioned in the middle of the supine cushion core (a), the neck is supported by the lower neck support (a 3) of the supine cushion core (a), and the thickness of the cervical vertebra curvature adjusting cushion (c) is increased or decreased, so that the height of the part c adapts to the curvature of the cervical vertebra of the user, the part c of the supine cushion core (a) completely supports the weight of the head of the user when lying on the back, the purposes that the curvature of the cervical vertebra of the user when lying on the back is correct and the muscles of the neck are completely relaxed are achieved, and the cervical vertebra rehabilitation is achieved when the user lies on the back in; when a user lies on the side, the head is placed on the two sides of the side lying cushion core (b) laterally, so that the shoulders and the head keep a correct angle, the height of the side lying area (b 1) and the supine low concave area (b 2) is adapted to the cervical vertebra curvature of the user, the side lying area (b 1) and the supine low concave area (b 2) of the side lying cushion core completely support the weight of the head of the user when lying on the side, the purposes of correct cervical vertebra curvature and complete relaxation of neck muscles when the user lies on the side are achieved, and the cervical vertebra is recovered when the user lies on the side in sleep; in addition, the using method of the cervical curvature adjusting pad (c) is as follows: the cervical vertebra curvature adjusting cushion (c) is placed on the side lying cushion core at the position of the supine cushion core (c), the number of layers in the cervical vertebra curvature adjusting cushion (c) is increased or decreased according to the cervical vertebra curvature of a user when the user is supine, so that the cervical vertebra curvature is correct when the user is supine, the weight of the head is completely supported by the supine cushion core, the neck is supported by a lower neck support (a 3) of the supine cushion core, but no pressing feeling is correct;
and thirdly, when traction physiotherapy is needed, the cervical spondylosis rehabilitation device is rotated by 180 degrees, a user lies on the back, the head is positioned in the middle of the side lying cushion core (b), the neck is positioned at the upper neck support (a 2), and the traction physiotherapy is realized within 1 hour.
The invention has the beneficial effects that: the matching of the supine cushion core, the side-lying cushion core and the cervical curvature adjusting cushion conforms to the correct physiological curve of the neck and shoulder parts of the human body during supine and side-lying sleeping, has the effects of physical therapy, correction and rehabilitation for patients with cervical spondylosis, and has the effects of protecting cervical vertebra and relieving discomfort for users without cervical spondylosis; the sleeping comfort level is improved, and the sleeping quality of a cervical vertebra patient is improved; the product is natural and environment-friendly, and helps to keep the body healthy;
after the cervical vertebra physiotherapy rehabilitation device is used, the cervical vertebra curvature deformation of a user can be corrected and physiotherapy can be performed after the cervical vertebra physiotherapy rehabilitation device is used for a long time, and the user can be enabled to be in supine position or lying on side, so that the cervical vertebra physiological curve is correct, the vertebral artery blood supply is smooth; three different softness degrees ensure the comfort of lying on back and lying on side, and simultaneously, the proper support property ensures that when people sleep deeply, the weight of the head is completely on the pillow and is supported by the pillow completely, the neck is not stressed, the skeletal muscle at the neck is completely relaxed, the vein blood vessels are not pressed by the muscle, and the good venous return is ensured; after long-term use, the problem of stiff neck muscles can be solved, veins are unblocked, and the problems of cold and numb neck and unsmooth vein blood return are solved.
Drawings
FIG. 1 is a schematic structural view of a supine cushion core of the present invention;
FIG. 2 is a schematic view of the structure A-A of the supine mattress core;
FIG. 3 is a schematic view of the structure B-B of the supine mattress core;
FIG. 4 is a schematic structural view of the supine cushion core of the present invention;
FIG. 5 is a schematic view of the C-C structure of the supine cushion core;
FIG. 6 is a schematic structural view of a cervical curvature adjusting pad;
FIG. 7 is a schematic view of the D-D structure of the cervical curvature adjusting pad;
FIG. 8 is a schematic structural view of a second embodiment of a supine cushion core of the present invention;

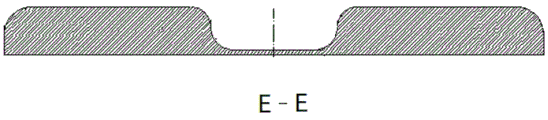

FIG. 9 is a schematic view of the structure E-E of FIG. 8;
FIG. 10 is a schematic view of the F-F structure of FIG. 8;
FIG. 11 is a schematic structural view of a third embodiment of a supine cushion core of the present invention;

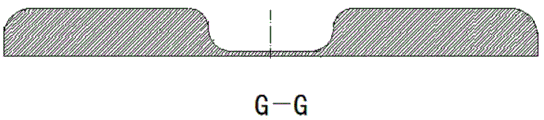

FIG. 12 is a schematic view of the structure G-G of FIG. 11;
FIG. 13 is a schematic view of the H-H structure of FIG. 11;
in the upper diagram: a supine cushion core (a), a side cushion core (b), a cervical curvature adjusting cushion (c), a cushion core main body (a 1), an upper neck support (a 2), a lower neck support (a 3), a side lying area (b 1), a supine low concave area (b 2) and a buffer cotton cushion (c 1).
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.
Embodiment 1, referring to fig. 1 to 7, the invention provides a cervical spondylosis rehabilitation device, which adopts the following technical scheme: the cervical vertebra curvature adjusting cushion is composed of two independent structures, namely a supine cushion core (a) and a side lying cushion core (b), wherein the upper part and the lower part are combined, and a cervical vertebra curvature adjusting cushion (c) is additionally arranged, wherein the supine cushion core (a) is formed by weaving cattail and is provided with a plurality of different thicknesses to form a plurality of different heights, and an upper neck support (a 2) and a lower neck support (a 3) are arranged in the width direction of the supine cushion core (a); the side lying cushion core (b) is made of kapok and bamboo fiber which are used as buffer materials, has a plurality of different thicknesses and different heights, and is provided with a supine low concave part (b 2) in the middle; the cervical curvature adjusting pad (c) is made of kapok and bamboo fiber which are used as buffer materials, a plurality of cervical curvature adjusting pads (c) with different thicknesses are formed, and the cervical curvature adjusting pads (c) are added or subtracted according to the cervical curvature; the supine cushion core (a), the side-lying cushion core (b) and the cervical curvature adjusting cushion (c), and the supine cushion core (a) are arranged and combined to provide a plurality of choices of different heights for users.
Referring to fig. 1 to 3, the supine cushion core (a) includes a cushion core main body (a 1), an upper neck support (a 2), and a lower neck support (a 3), the upper neck support (a 2) and the lower neck support (a 3) are respectively disposed at the center of the supine cushion core (a), and a cervical curvature adjusting region is formed therebetween, and a cervical curvature adjusting cushion (c) is disposed in the cervical curvature adjusting region.
Preferably, the upper neck brace (a 2) and the lower neck brace (a 3) are semi-circular arc structures, and the diameter of the upper neck brace (a 2) is larger than that of the lower neck brace (a 3).
Preferably, the supine cushion core (a) is woven from cattail in 1.0/1.5/2.0/2.5/3.0 cm of different thickness to form 5 different heights.
Referring to fig. 4 to 5, the side cushion core (b) includes a side region (b 1) and a supine low concave region (b 2), and the supine low concave region (b 2) is disposed at a middle portion of the side region (b 1). Preferably, the side lying mattress core (b) is formed into 9 different heights with different thicknesses of 4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0 cm.
Referring to fig. 6-7, the cervical curvature adjusting pad (c) has a rectangular parallelepiped structure and is internally provided with three layers of buffer cotton pads (c 1), each layer has a height of 5cm and a total height of 15cm, and the number of layers can be increased or decreased according to the cervical curvature of a user.
In addition, the outsides of the supine cushion core (a), the side-lying cushion core (b) and the cervical curvature adjusting cushion (c) are sleeved with an integral conformal outer sleeve.
The use method of the cervical spondylosis rehabilitation device comprises the following steps:
combining a supine cushion core (a) and a side-lying cushion core (b), adding a cervical curvature adjusting cushion (c) according to a user, and then sleeving an integral conformal outer sleeve on the outer side;
when the cervical vertebra rehabilitation physiotherapy is needed, a user lies on the back to enable the head to be positioned in the middle of the supine cushion core (a), the neck is supported by the lower neck support (a 3) of the supine cushion core (a), and the thickness of the cervical vertebra curvature adjusting cushion (c) is increased or decreased, so that the height of the part c adapts to the curvature of the cervical vertebra of the user, the part c of the supine cushion core (a) completely supports the weight of the head of the user when lying on the back, the purposes that the curvature of the cervical vertebra of the user when lying on the back is correct and the muscles of the neck are completely relaxed are achieved, and the cervical vertebra rehabilitation is achieved when the user lies on the back in; when a user lies on the side, the head is placed on the two sides of the side lying cushion core (b) laterally, so that the shoulders and the head keep a correct angle, the height of the side lying area (b 1) and the supine low concave area (b 2) is adapted to the cervical vertebra curvature of the user, the side lying area (b 1) and the supine low concave area (b 2) of the side lying cushion core completely support the weight of the head of the user when lying on the side, the purposes of correct cervical vertebra curvature and complete relaxation of neck muscles when the user lies on the side are achieved, and the cervical vertebra is recovered when the user lies on the side in sleep; in addition, the using method of the cervical curvature adjusting pad (c) is as follows: the cervical vertebra curvature adjusting cushion (c) is placed on the side lying cushion core at the position of the supine cushion core (c), the number of layers in the cervical vertebra curvature adjusting cushion (c) is increased or decreased according to the cervical vertebra curvature of a user when the user is supine, so that the cervical vertebra curvature is correct when the user is supine, the weight of the head is completely supported by the supine cushion core, the neck is supported by a lower neck support (a 3) of the supine cushion core, but no pressing feeling is correct;
and thirdly, when traction physiotherapy is needed, the cervical spondylosis rehabilitation device is rotated by 180 degrees, a user lies on the back, the head is positioned in the middle of the side lying cushion core (b), the neck is positioned at the upper neck support (a 2), and the traction physiotherapy is realized within 1 hour.
The invention provides a manufacturing method of a cervical spondylosis rehabilitation device, which comprises the following steps:
1. manufacturing a supine cushion core: the supine cushion core is provided with a machine-made straw board and a hand-woven straw board
1.1.1 check if the cattail panel size (cm, same not labeled below) and appearance meet the requirements:
A. size: length: 67 cm; width: 32 cm; the thickness of the machine-made board is 2.5cm, and the 2.0 soft board is a 3-layer woven grass board;
B. appearance: mechanically pressing the grass board: the surface is smooth without broken line, serious material shortage, bulge and pit, and the cattail is even and smooth without sundries. Weaving the straw board by hand: the weaving is tight, the thickness of the cattail is uniform, and the cattail is free from mildew and stains.
1.1.2 one-time edge-sewing wrap angle
A. Firstly, supplementing cattail on a place with material shortage from one corner, sewing, and then sewing wrap corners;
B. and sewing the edge wrap with the right side upward, inserting a needle from the side surface of one side for fixing, sewing the bevel edge, sewing the edge with the needle hole distance of about 4cm from the edge and the needle distance of about 4cm, and sewing the edge with a rough sewing thread to wrap the edge once.
1.1.3 high-temperature fumigation: loading into high temperature fumigation box, and fumigating at high temperature for more than 10 hr.
1.1.4 dust-proof cover
After the high-temperature fumigation is finished and the rice is taken out of the pot, a dustproof sleeve is arranged.
1.1.5 double hemming
The secondary edge sewing is marked by a ruler with nails, and the distance between the needle holes and the distance between the needles are both 4 cm.
1.1.6 making of Upper and lower neck brace
1.1.6.1 preparation
A. Packing cattail sections of 15cm into the cattail bag, and ensuring the thickness of the cattail bag to be about 0.5-1 cm; 7 x 15cm cotton pad (lining); 15 x 16cm cotton pad;
B. lining material: a cattail bag and a cotton pad are sewn together, and the thickness is about 1 cm; another herba Typhae bag and three layers of cotton pad are sewed together, and the thickness is about 2.5 cm;
1.1.6.2 Sewing of Upper and lower neck brace
A. Symmetrically drawing a neck arc position line in the middle of the pillow plate;
B. fixing a neck brace cotton pad by using a suture;
C. placing 2.5cm lining material on one side to make the arc top 3cm high, covering with cotton pad, and fixing by pulling to side surface suture; putting 1cm lining material on the other side to make the arc top 1.5cm high, covering with cotton pad, and pulling to side surface suture for fixation.
1.1.6.3 Cotton-padded mattress
Covering with cotton pad, adjusting position, fixing the root of two occipital arcs with needle and thread (about 4 needles), and pulling up zipper.
2. Manufacturing a side lying cushion core:
1.2.1 Blanking Cotton Mat
A. Core material of the lateral lying cushion: the length is 33.3-33.5, the width is 25.8-25.8, and the dosage is adjusted according to the model height;
B. connecting a cotton pad: length 68, width 33.5, one piece (used after overlocking).
1.2.2 quilted mattress core for side lying
The cut cotton pads of the side lying pads are overlapped and aligned, and a square tube or a ruler is used for pressing to measure the thickness, and the thickness of the type 5.5 is 5.5 cm. Other pillow shoulders with different sizes have the height of a centimeter, and are sewn together by large-stitch stitches after the thickness is adjusted.
1.2.3 side lying mattress core connection
Laying the connecting cotton pad flat, sewing the pillow shoulder cotton
The pads were placed at both ends with a spacing of 17cm between the middle and then sewn together with large stitch stitches.
1.2.4 side lying pad core inner sleeve
And (4) mounting the sewn shoulder pillow cotton pad from the sewing reserved opening, and then sewing the reserved opening by using a sewing machine.
1.3 Sewing production
1.3.1 cushion core corner protector
A. Blanking (white cotton cloth)
B. Sewing: performing one-step forming by using a serging machine;
1.3.2 dust-proof cover for supine cushion core
A. Blanking (white cotton cloth):
rectangle: 69 x 34 x 2 blocks; the width of the side surface is 5cm (adjusted according to the thickness of the grass board) and the strip is cut along with the size of the upper surface and the lower surface;
the chain length is 80 cm; the width of cloth strips embedded at two side edges of the zipper is 3cm (adjusted according to the thickness of the straw board), and the length of the cloth strips is cut at any time.
B. Sewing:
(1) installing a lock head oppositely from the pull-close direction of one end of the zipper, and sewing 3cm cloth strips on two sides of the zipper respectively, wherein the width reaches (5 cm);
(2) one end of the zipper is connected with a section of side cloth strip, the side cloth strip and the surface cloth are sewn from the end of the zipper, the sewing is started from the rectangular cloth to about 6cm away from one corner of the short edge at the starting point, and the zipper and the side cloth strip are connected by turning; and sewing another side of the fabric. A small opening of about 1cm is cut at the corner of the side cloth strip to prevent wrinkling;
(3) turning over the sewn cloth cover to complete the manufacture;
note that: and (4) performing spot check on the ready cloth cover to determine whether the cloth cover is suitable or not at the beginning and in the process of each batch of production.
1.3.3 cushion core buffering cotton cushion cover of lying on back
A. Blanking: cotton pad wool: 1, block by block; 2 neck arc ears are cut by using a sample plate;
white cloth: the bottom cloth 69 x 34 and the side cloth strips 5cm (adjusted according to the thickness of the straw board) are cut at any time.
B. Sewing:
(1) the cotton pad wool is subjected to edge locking according to the sample plate line and the neck arc ear for later use;
(2) sewing two neck arc ears on a cotton pad, starting from a straight edge, and sewing heads by using a lock seaming line as a standard;
(3) sewing the side cloth strips and the cotton pad, and making upper cut openings on the side cloth strips at the corners of the four corners;
(4) sewing the bottom cloth; sewing the side cloth strips and the bottom surface from one end of the zipper, sewing one side of the zipper at the zipper position at the other end, sewing the other side of the zipper, and locking two ends of the zipper;
(5) turning over the cotton sleeve, checking and finishing the manufacture;
note that: and (4) performing spot check on the ready cloth cover to determine whether the cloth cover is suitable or not at the beginning and in the process of each batch of production.
1.3.4 supine cushion core cotton cloth coat
A. Blanking: cutting cloth strips on one side of the neck arc according to a sample plate;
and (3) feeding and discharging: 69 x 34; side cloth strips: the width is 5cm, and the length is cut at any time.
B. Sewing:
(1) firstly sewing one side with an arc and one side of cloth;
(2) connecting cloth strips and continuously sewing the surface;
(3) the zipper is arranged at the position where any long edge of the seam of the cloth on the other surface and the side cloth strips is added with two corners of 10cm, and the sewing method is the same as that of the cotton cloth sleeve.
4.3.5 side-lying cushion core cotton cloth inner sleeve
A. Blanking: bottom surface 70 x 35.5, two ends pillow shoulder 34.5 x 35.5, middle 20 x 35.5, 7.5cm cloth strip is cut at any time;
B. sewing:
(1) 1cm of cut is made on the bed charge and the pillow shoulder cloth;
(2) and sewing according to the marked sequence.
4.3.6 side-lying cushion core cotton cloth coat
A. Blanking: bottom 55 x 35.5 x 1 block, 20 x 35.5 x 1 block, zipper length 35.5cm, other and inner sleeve the same.
B. Sewing:
(1) and (3) zipper mounting on the bottom cloth: the first step is as follows: sewing a zipper on the edge of the 20 × 35.5 cloth 35.5; the second step is that: folding and sewing one more time; the third step: and sewing 55cm long cloth.
(2) The zipper head is installed, and the bottom cloth is unfolded to sew the two ends of the zipper.
(3) And then the whole body is sewed up in the same way as the inner sleeve without a back sewing opening.
3. Manufacturing a cervical curvature adjusting pad:
A. blanking: cotton pad 15 x 14;
customizing the fabric: fabric 17 x 16, side cloth strips are 4cm wide and are cut at any time;
B. sewing:
(1) the cotton pad is serged, 3 pieces; the cloth is overlooked for standby;
(2) one side of the zipper is sewed first, and then the sewing is completed.
Example 2, referring to fig. 8 to 10, the side cushion core (b) of the present invention includes a side region (b 1) and a supine low concave region (b 2), the supine low concave region (b 2) is disposed in the middle of the side region (b 1), and the side region (b 1) and the supine low concave region (b 2) are transited in an arc structure, so that the comfort is better; also, referring to fig. 10, the supine foveal region (b 2) is formed with a curvature, one side being lower than the other.
Example 3, referring to fig. 11 to 13, the side cushion core (b) of the present invention includes a side region (b 1) and a supine low concave region (b 2), the supine low concave region (b 2) is disposed in the middle of the side region (b 1), and the side region (b 1) and the supine low concave region (b 2) are transited in an arc structure, so that the comfort is better; referring to fig. 13, the height of the supine depression area (b 2) is the same from front to back, and may be adapted to the needs of the customer.
The structure, the appearance, the material and the process manufacturing effect of the embodiment 1 are optimal, and other materials can be replaced by the same structure; the core part for lateral decubitus was manufactured in the same shape as in examples 2 and 3, but the effect was slightly weaker than that in example 1.
The above description is only a few of the preferred embodiments of the present invention, and any person skilled in the art may modify the above-described embodiments or modify them into equivalent ones. Therefore, any simple modifications or equivalent substitutions made in accordance with the technical solution of the present invention are within the scope of the claims of the present invention.
Claims (10)
1. A cervical spondylosis rehabilitation device is characterized in that: the cervical vertebra curvature adjusting cushion is composed of two independent structures, namely a supine cushion core (a) and a side lying cushion core (b), wherein the upper part and the lower part are combined, and a cervical vertebra curvature adjusting cushion (c) is additionally arranged, wherein the supine cushion core (a) is formed by weaving cattail and is provided with a plurality of different thicknesses to form a plurality of different heights, and an upper neck support (a 2) and a lower neck support (a 3) are arranged in the width direction of the supine cushion core (a); the side lying cushion core (b) is made of kapok and bamboo fiber which are used as buffer materials, has a plurality of different thicknesses and different heights, and is provided with a supine low concave part (b 2) in the middle; the cervical curvature adjusting pad (c) is made of kapok and bamboo fiber which are used as buffer materials, a plurality of cervical curvature adjusting pads (c) with different thicknesses are formed, and the cervical curvature adjusting pads (c) are added or subtracted according to the cervical curvature; the supine cushion core (a), the side-lying cushion core (b) and the cervical curvature adjusting cushion (c), and the supine cushion core (a) are arranged and combined to provide a plurality of choices of different heights for users.
2. The cervical spondylosis rehabilitation apparatus of claim 1, wherein: the supine cushion core (a) comprises a cushion core main body (a 1), an upper neck support (a 2) and a lower neck support (a 3), wherein the upper neck support (a 2) and the lower neck support (a 3) are respectively arranged at the central position of the supine cushion core (a), a cervical vertebra curvature adjusting region is formed between the upper neck support (a 2) and the lower neck support (a 3), and a cervical vertebra curvature adjusting cushion (c) is arranged in the cervical vertebra curvature adjusting region.
3. The cervical spondylosis rehabilitation apparatus of claim 2, wherein: the upper neck support (a 2) and the lower neck support (a 3) are of semi-circular arc structures, and the diameter of the upper neck support (a 2) is larger than that of the lower neck support (a 3).
4. The cervical spondylosis rehabilitation apparatus of claim 1, wherein: the side lying cushion core (b) comprises a side lying area (b 1) and a supine low concave area (b 2), and the supine low concave area (b 2) is arranged in the middle of the side lying area (b 1).
5. The cervical spondylosis rehabilitation apparatus of claim 1, wherein: cervical vertebra curvature adjusting pad (c) be the cuboid structure, and interior multilayer buffering cotton pad (c 1) of joining in marriage, can add the subtract according to cervical vertebra curvature size and subtract the number of piles.
6. The cervical spondylosis rehabilitation apparatus of claim 1, wherein: the outsides of the supine cushion core (a), the side lying cushion core (b) and the cervical curvature adjusting cushion (c) are sleeved with an integral conformal outer sleeve.
7. The cervical spondylosis rehabilitation apparatus of claim 2, wherein: the supine cushion core (a) is woven by cattail and has 5 different heights formed by different thicknesses of 1.0/1.5/2.0/2.5/3.0 cm.
8. The cervical spondylosis rehabilitation apparatus of claim 4, wherein: the side lying cushion core (b) has different thicknesses of 4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0 cm, and 9 different heights are formed.
9. The cervical spondylosis rehabilitation apparatus of claim 5, wherein: the cervical curvature adjusting pad (c) is provided with a three-layer structure, each layer is 0.5 cm, the total height is 1.5cm, and the number of layers can be increased or decreased according to the cervical curvature.
10. A method for using the cervical spondylosis rehabilitation apparatus of any one of claims 1 to 9, comprising the steps of:
combining a supine cushion core (a) and a side-lying cushion core (b), adding a cervical curvature adjusting cushion (c) according to a user, and then sleeving an integral conformal outer sleeve on the outer side;
when the cervical vertebra rehabilitation physiotherapy is needed, a user lies on the back to enable the head to be positioned in the middle of the supine cushion core (a), the neck is supported by the lower neck support (a 3) of the supine cushion core (a), and the thickness of the cervical vertebra curvature adjusting cushion (c) is increased or decreased, so that the height of the part c adapts to the curvature of the cervical vertebra of the user, the part c of the supine cushion core (a) completely supports the weight of the head of the user when lying on the back, the purposes that the curvature of the cervical vertebra of the user when lying on the back is correct and the muscles of the neck are completely relaxed are achieved, and the cervical vertebra rehabilitation is achieved when the user lies on the back in; when a user lies on the side, the head is placed on the two sides of the side lying cushion core (b) laterally, so that the shoulders and the head keep a correct angle, the height of the side lying area (b 1) and the supine low concave area (b 2) is adapted to the cervical vertebra curvature of the user, the side lying area (b 1) and the supine low concave area (b 2) of the side lying cushion core completely support the weight of the head of the user when lying on the side, the purposes of correct cervical vertebra curvature and complete relaxation of neck muscles when the user lies on the side are achieved, and the cervical vertebra is recovered when the user lies on the side in sleep; in addition, the using method of the cervical curvature adjusting pad (c) is as follows: the cervical vertebra curvature adjusting cushion (c) is placed on the side lying cushion core at the position of the supine cushion core (c), the number of layers in the cervical vertebra curvature adjusting cushion (c) is increased or decreased according to the cervical vertebra curvature of a user when the user is supine, so that the cervical vertebra curvature is correct when the user is supine, the weight of the head is completely supported by the supine cushion core, the neck is supported by a lower neck support (a 3) of the supine cushion core, but no pressing feeling is correct;
and thirdly, when traction physiotherapy is needed, the cervical spondylosis rehabilitation device is rotated by 180 degrees, a user lies on the back, the head is positioned in the middle of the side lying cushion core (b), the neck is positioned at the upper neck support (a 2), and the traction physiotherapy is realized within 1 hour.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201911294342.8A CN110934719A (en) | 2019-12-16 | 2019-12-16 | Cervical spondylosis rehabilitation device and method |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201911294342.8A CN110934719A (en) | 2019-12-16 | 2019-12-16 | Cervical spondylosis rehabilitation device and method |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN110934719A true CN110934719A (en) | 2020-03-31 |
Family
ID=69911743
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201911294342.8A Pending CN110934719A (en) | 2019-12-16 | 2019-12-16 | Cervical spondylosis rehabilitation device and method |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN110934719A (en) |
Citations (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2524607Y (en) * | 2002-02-07 | 2002-12-11 | 卢飞献 | Health pillow |
| CN1951261A (en) * | 2006-08-21 | 2007-04-25 | 孙岩 | Method for producing curved pillow |
| US20080134438A1 (en) * | 2005-08-31 | 2008-06-12 | Jong-Hwa Park | Washable And Height-Adjustable Pillow |
| CN102429800A (en) * | 2011-12-10 | 2012-05-02 | 高琴 | Drug pillow for cervical vertebra autotraction |
| DE202013005809U1 (en) * | 2013-06-28 | 2013-08-07 | Sebastian Englert | orthopedic pillow |
| CN104856523A (en) * | 2015-05-26 | 2015-08-26 | 山东祥峰蒲草制品有限公司 | Cattail traditional Chinese medicine physical therapy health-care pillow and manufacturing method |
| CN204722702U (en) * | 2015-06-26 | 2015-10-28 | 杨青 | Combined type pillow |
| KR20160133330A (en) * | 2015-05-12 | 2016-11-22 | 곽태영 | Bedding package for posture correction |
| CN207784868U (en) * | 2017-07-13 | 2018-08-31 | 王丕新 | Neck can nurse pillow |
| CN208676878U (en) * | 2018-06-22 | 2019-04-02 | 曹建华 | A kind of combined pillow core and its pillow |
| CN212651060U (en) * | 2019-12-16 | 2021-03-05 | 孙峰 | Cervical spondylosis rehabilitation device |
-
2019
- 2019-12-16 CN CN201911294342.8A patent/CN110934719A/en active Pending
Patent Citations (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2524607Y (en) * | 2002-02-07 | 2002-12-11 | 卢飞献 | Health pillow |
| US20080134438A1 (en) * | 2005-08-31 | 2008-06-12 | Jong-Hwa Park | Washable And Height-Adjustable Pillow |
| CN1951261A (en) * | 2006-08-21 | 2007-04-25 | 孙岩 | Method for producing curved pillow |
| CN102429800A (en) * | 2011-12-10 | 2012-05-02 | 高琴 | Drug pillow for cervical vertebra autotraction |
| DE202013005809U1 (en) * | 2013-06-28 | 2013-08-07 | Sebastian Englert | orthopedic pillow |
| KR20160133330A (en) * | 2015-05-12 | 2016-11-22 | 곽태영 | Bedding package for posture correction |
| CN104856523A (en) * | 2015-05-26 | 2015-08-26 | 山东祥峰蒲草制品有限公司 | Cattail traditional Chinese medicine physical therapy health-care pillow and manufacturing method |
| CN204722702U (en) * | 2015-06-26 | 2015-10-28 | 杨青 | Combined type pillow |
| CN207784868U (en) * | 2017-07-13 | 2018-08-31 | 王丕新 | Neck can nurse pillow |
| CN208676878U (en) * | 2018-06-22 | 2019-04-02 | 曹建华 | A kind of combined pillow core and its pillow |
| CN212651060U (en) * | 2019-12-16 | 2021-03-05 | 孙峰 | Cervical spondylosis rehabilitation device |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| US8732877B2 (en) | Systems and methods for body support | |
| EP2946697B1 (en) | Ergonomic mattress pad with polyester fill | |
| US20160128500A1 (en) | Attachable and detachable pillows for prone sleeping | |
| CN105193181B (en) | Pillowcase that beadlet health care pad and manufacture method and this beadlet health care pad make and medicated pillow | |
| CN110934719A (en) | Cervical spondylosis rehabilitation device and method | |
| CN205285783U (en) | Adjustable messenger's body pressure is than balanced pillow of sleeping | |
| CN104873052B (en) | Combined deformation is rested the head on | |
| CN212651060U (en) | Cervical spondylosis rehabilitation device | |
| CN214433419U (en) | Cervical vertebra pillow | |
| CN214433417U (en) | Three-dimensional cervical vertebra pillow | |
| CN214341474U (en) | A health-care mattress including a health-care pillow | |
| CN204889428U (en) | Combined deformation pillow | |
| CN106618039B (en) | Combined type pillow with neck | |
| KR200451415Y1 (en) | Adjustable height pillow | |
| KR101913999B1 (en) | Latex quilted mat | |
| CN112690624A (en) | Cervical vertebra pillow | |
| CN201115568Y (en) | Cervical health treatment pillow | |
| CN214104023U (en) | Pillow with neck protecting structure | |
| CN217310959U (en) | Spine-adjusting physiotherapy bed | |
| CN220632498U (en) | Multifunctional leg fixing device for lithotomy position operation | |
| JP7197850B2 (en) | cervical spine therapy pillow | |
| CN112773156B (en) | Three-dimensional cervical vertebra pillow | |
| CN107692656A (en) | Suitable for teen-age Chinese medicine mattress | |
| CN206137758U (en) | Pillow | |
| CN201070178Y (en) | Decubitus waist pillow |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
