CN110917031B

CN110917031B - A traditional Chinese medicine decoction brewing device

Info

Publication number: CN110917031B
Application number: CN201911247558.9A
Authority: CN
Inventors: 汪冶; 郑钦方
Original assignee: Huaihua Wulingsan Dong Pharmaceutical Technology Development Co ltd
Current assignee: Hunan University
Priority date: 2019-12-09
Filing date: 2019-12-09
Publication date: 2022-02-11
Anticipated expiration: 2039-12-09
Also published as: CN110917031A

Abstract

The invention discloses a traditional Chinese medicine decoction brewing device, comprising a box body, a box cover is arranged on the top of the box body, a heating inner pot is arranged inside the box body, and a medicinal material stirring is arranged inside the heating inner pot mechanism; the medicinal material stirring mechanism includes a filter box. The present invention is provided with a medicinal material stirring mechanism. During the brewing process, the stirring plate can be rotated to drive the stirring shaft to rotate, and the stirring shaft can rotate to drive the stirring rod inside the filter box to rotate. The medicinal materials are stirred and turned over, so as to improve the mixing efficiency with the water inside the heated inner tank. When the decoction is finished, the lid can be removed, the filter box can be taken out, and the medicinal residues are also taken out by the filter box, which is easy to clean. Compared with the prior art, the medicinal materials can be stored without being piled together, which affects the quality of the boiled decoction.

Description

A Chinese medicinal decoction decocting device

Technical Field

The embodiment of the invention relates to the technical field of traditional Chinese medicine decoction, in particular to a traditional Chinese medicine decoction decocting device.

Background

The traditional Chinese medicine decoction is a liquid preparation obtained by decocting decoction pieces or coarse granules of medicinal materials in water or soaking the decoction pieces or the coarse granules in boiling water and removing residues to obtain juice, is one of the oldest formulations of traditional Chinese medicines, and is also most widely applied in clinical application of traditional Chinese medicines. The decoction can fully meet the requirements of syndrome differentiation treatment of the traditional Chinese medicine and has the characteristics of quick curative effect, easy absorption, strong effect and the like. If the decoction is directly decocted in hot water, the components such as starch and protein on the surface layer of the traditional Chinese medicinal materials can be heated suddenly and gelatinized or solidified, thereby preventing the extraction of the starch and protein and the extraction of other effective components in the traditional Chinese medicinal materials. The right method is that the medicine is soaked in cold boiled water for a period of time (about 30 minutes) and then decocted, thus being beneficial to the infiltration, dissolution and leaching of the active ingredients contained in the traditional Chinese medicine, and the domestic water of the present urban residents is mostly tap water which is not natural water (rain, fog and snow water) or ground water (river, lake and river water) but water subjected to chemical treatment. In order to ensure the disinfection of water, a certain amount of residual chlorine must be left in tap water, and the residual chlorine content is higher in areas with poor water quality.

The prior art has the following defects: the traditional Chinese medicine decoction is generally decocted by placing a medicine pot on a gas stove and the like, and in the decocting process, medicinal materials in the medicine pot can be stacked together, medicinal components cannot be better fused with water, and when the medicine liquid is poured, the medicinal materials can flow out along with the medicine liquid, so that the traditional Chinese medicine decoction is used and is inconvenient.

Disclosure of Invention

Therefore, the embodiment of the invention provides a traditional Chinese medicine decoction decocting device, and the traditional Chinese medicine decoction decocting device is provided with a medicinal material stirring mechanism, wherein in the decocting process, a stirring disc can be rotated, so that a stirring shaft is driven to rotate, the stirring shaft rotates, a stirring rod in a filter box can be driven to rotate, and the medicinal material in the filter box can be stirred and overturned through the stirring rod, so that the mixing efficiency of clear water in a heating inner container is improved, after decoction is decocted, a box cover can be taken out, the filter box is taken out, medicine residues are also taken out by the filter box, the cleaning is convenient, compared with the prior art, the medicinal material can be stored, the medicinal material cannot be piled together, the quality of decoction is influenced, and the problem that the quality of the decoction is low due to the fact that the medicinal material in a medicine pot can be piled together in the prior art is solved.

In order to achieve the above object, the embodiments of the present invention provide the following technical solutions: a traditional Chinese medicine decoction boiling device comprises a box body, wherein a box cover is arranged at the top of the box body, a heating inner container is arranged inside the box body, and a medicinal material stirring mechanism is arranged inside the heating inner container;

the medicinal material stirring mechanism comprises a filtering box, wherein a plurality of filtering holes are uniformly formed in the surface of the filtering box in a penetrating manner, stirring holes are formed in the top of the filtering box in a penetrating manner, a fixing pipe is fixedly arranged in the stirring holes, a stirring shaft is arranged in the fixing pipe and movably connected with the fixing pipe through a bearing, the bottom of the stirring shaft extends into the filtering box, a plurality of stirring rods are uniformly arranged at the bottom of the stirring shaft, a through hole is formed in one side, facing the stirring shaft, of the box cover, the top end of the stirring shaft penetrates through the through hole and extends to the outer side of the box cover, a stirring disc is fixedly arranged at the top of the stirring shaft, an opening is formed in one side of the top of the filtering box, a cover plate is arranged at the top of the opening, one side of the cover plate is hinged with the filtering box, a buckle is arranged between the other side of the cover plate and the filtering box, and a positioning rod is arranged at the bottom of the filtering box, the locating lever and the filtration pore phase-match, locating lever bottom and the inner bag fixed connection that heats.

Furthermore, an anti-leakage plate is arranged on one side of the inner wall of the heating inner container, an extension tube is arranged at the top of the anti-leakage plate, and the extension tube is communicated with the anti-leakage plate.

Further, the cross-sectional shape of the leakage-proof plate is set to be arc-shaped.

Furthermore, an air outlet pipe is arranged on one side of the top of the box cover, the cross section of the air outlet pipe is L-shaped, and an air outlet hole is formed in one side, in contact with the air outlet pipe, of the box cover in a penetrating mode and communicated with the air outlet pipe.

Further, a handle is arranged on one side of the box body, a heat insulation sleeve is arranged on the handle, and the heat insulation sleeve is made of asbestos materials.

Further, a placing groove is formed in the bottom of the inner cavity of the box body, and a heater is arranged inside the placing groove.

Further, the box body bottom is provided with the retainer plate, the inner bag bottom of heating is provided with the fixed slot, retainer plate and fixed slot phase-match.

Furthermore, a limiting ring is arranged at the joint of the box cover and the stirring shaft, and the stirring shaft is movably connected with the limiting ring through a bearing.

The embodiment of the invention has the following advantages:

1. through being provided with medicinal material rabbling mechanism, in the system of stewing, can rotate the agitator disk, thereby drive the (mixing) shaft and rotate, and the (mixing) shaft rotates, can drive the puddler that is in the filter cartridge inside and rotate, can stir the upset through the puddler to the medicinal material in the filter cartridge, thereby improve and heat the mixing efficiency of the interior clear water of inner bag, when the decoction system is finished, can take out the lid, the filter cartridge is taken out thereupon, the dregs of a decoction also are taken out by the filter cartridge, it is convenient to clear up, compare prior art, both can accomodate the medicinal material, can not make it pile up together again, influence the quality of stewing the decoction;

2. through being provided with and preventing leaking board and flexible pipe, when the decoction was poured out to needs, take off the back with the lid, elongate flexible pipe, grasp the handle again, the slope box body, the liquid medicine can flow through flexible pipe, very big has made things convenient for the user to empty the liquid medicine.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below. It should be apparent that the drawings in the following description are merely exemplary, and that other embodiments can be derived from the drawings provided by those of ordinary skill in the art without inventive effort.

The structures, ratios, sizes, and the like shown in the present specification are only used for matching with the contents disclosed in the specification, so as to be understood and read by those skilled in the art, and are not used to limit the conditions that the present invention can be implemented, so that the present invention has no technical significance, and any structural modifications, changes in the ratio relationship, or adjustments of the sizes, without affecting the effects and the achievable by the present invention, should still fall within the range that the technical contents disclosed in the present invention can cover.

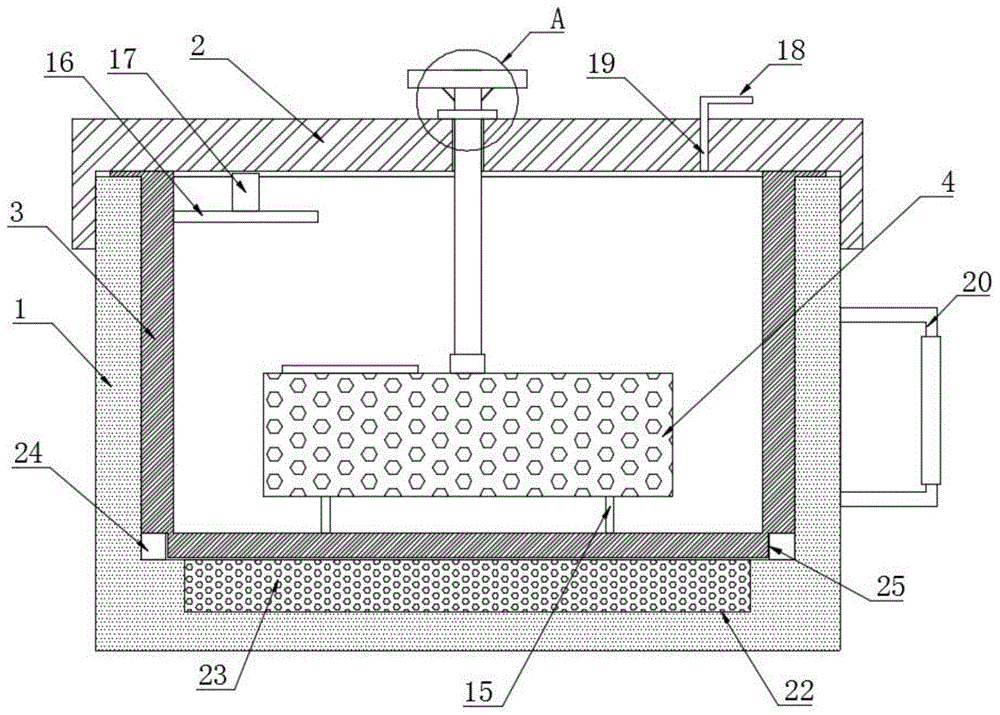

FIG. 1 is a cross-sectional view of the overall structure provided by the present invention;

FIG. 2 is a schematic view of a portion of the structure at A in FIG. 1 according to the present invention;

FIG. 3 is a cross-sectional view of a filter cassette configuration provided by the present invention;

FIG. 4 is a top view of the heating liner structure provided by the present invention;

FIG. 5 is a sectional view of the case of pouring out the liquid medicine;

FIG. 6 is a schematic view of a fixed tube structure provided by the present invention;

FIG. 7 is a schematic view of the overall structure of the apparatus according to the present invention;

in the figure: the heating box comprises a box body 1, a box cover 2, a heating inner container 3, a filtering box 4, a filtering hole 5, a stirring hole 6, a fixing pipe 7, a stirring shaft 8, a stirring rod 9, a perforation 10, a stirring disc 11, an opening 12, a cover plate 13, a buckle 14, a positioning rod 15, a leakage-proof plate 16, a telescopic pipe 17, an air outlet pipe 18, an air outlet hole 19, a handle 20, a heat-insulating sleeve 21, a placing groove 22, a heater 23, a fixing ring 24, a fixing groove 25 and a limiting ring 26.

Detailed Description

The present invention is described in terms of particular embodiments, other advantages and features of the invention will become apparent to those skilled in the art from the following disclosure, and it is to be understood that the described embodiments are merely exemplary of the invention and that it is not intended to limit the invention to the particular embodiments disclosed. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to the attached figures 1-7 of the specification, the traditional Chinese medicine decoction decocting device of the embodiment comprises a box body 1, wherein a box cover 2 is arranged at the top of the box body 1, a heating inner container 3 is arranged inside the box body 1, and a medicinal material stirring mechanism is arranged inside the heating inner container 3;

the medicinal material stirring mechanism comprises a filtering box 4, a plurality of filtering holes 5 are uniformly arranged on the surface of the filtering box 4 in a penetrating manner, stirring holes 6 are arranged on the top of the filtering box 4 in a penetrating manner, a fixed pipe 7 is fixedly arranged in the stirring holes 6, a stirring shaft 8 is arranged in the fixed pipe 7, the stirring shaft 8 is movably connected with the fixed pipe 7 through a bearing, the bottom of the stirring shaft 8 extends into the filtering box 4, a plurality of stirring rods 9 are uniformly arranged at the bottom of the stirring shaft 8, a through hole 10 is arranged at one side of the box cover 2 facing the stirring shaft 8, the top end of the stirring shaft 8 penetrates through the through hole 10 and extends to the outer side of the box cover 2, a stirring disc 11 is fixedly arranged at the top of the stirring shaft 8, an opening 12 is arranged at one side of the top of the filtering box 4, a cover plate 13 is arranged at the top of the opening 12, one side of the cover plate 13 is hinged with the filtering box 4, and a buckle 14 is arranged between the other side of the cover plate 13 and the filtering box 4, the bottom of the filter box 4 is provided with a positioning rod 15, the positioning rod 15 is matched with the filter hole 5, and the bottom of the positioning rod 15 is fixedly connected with the heating inner container 3.

The implementation scenario is specifically as follows: when the traditional Chinese medicine decoction pot is used, when traditional Chinese medicine decoction needs to be decocted, the cover plate 13 is opened, traditional Chinese medicine materials are poured into the filter box 4, the cover plate 13 is covered and fixed through the buckle 14, clear water is poured into the heating inner container 3, the box cover 2 is covered, the filter box 4 can stay in the heating inner container 3, the filter holes 5 in the filter box 4 can enable the clear water to be in contact with the traditional Chinese medicine materials, the positioning rods 15 in the heating inner container 3 can be inserted into the filter holes 5 in the filter box 4 to fix the filter box 4, the heating inner container 3 is heated through the heater 23, so that decoction is decocted, the stirring shaft 11 can be rotated in the decocting process, so that the stirring shaft 8 is driven to rotate, the reinforcing pipe 7 is arranged, the firmness between the stirring shaft 8 and the filter box 4 can be improved, the stirring shaft 8 rotates, the stirring shaft 9 in the filter box 4 can be driven to rotate, can stir the upset to the inside medicinal material of filter cartridge 4 through puddler 9 to improve and heat the mixing efficiency of the inside clear water of inner bag 3, when the decoction system accomplish the back, can take out lid 2, filter cartridge 4 is taken out thereupon, and the dregs of a decoction also is taken out by filter cartridge 4, the clearance of being convenient for, this embodiment has specifically solved exist among the prior art when system traditional chinese medicine decoction, and the medicinal material is piled up together, and neither convenient handling stews the not good problem of effect yet.

Referring to the attached drawings 4-7 of the specification, in the device for decocting the traditional Chinese medicine decoction according to the embodiment, a leakage-proof plate 16 is arranged on one side of the inner wall of the heating inner container 3, an extension tube 17 is arranged at the top of the leakage-proof plate 16, the extension tube 17 is communicated with the leakage-proof plate 16, and the leakage-proof plate 16 can prevent the liquid medicine from directly flowing out from the side edge of the heating inner container 3, so that a user can pour the liquid medicine conveniently.

Further, the cross-sectional shape of the leakage preventing plate 16 is set to be arc-shaped.

Furthermore, an air outlet pipe 18 is arranged on one side of the top of the box cover 2, the cross section of the air outlet pipe 18 is L-shaped, an air outlet hole 19 penetrates through one side of the box cover 2, which is in contact with the air outlet pipe 18, and the air outlet hole 19 is communicated with the air outlet pipe 18.

Further, a handle 20 is arranged on one side of the box body 1, a heat insulation sleeve 21 is arranged on the handle 20, the heat insulation sleeve 21 is made of asbestos materials, and the arrangement of the heat insulation sleeve 21 can prevent a user from touching the box body 1 and being scalded when the user pours the liquid medicine, so that the practicability of the device is effectively improved.

Further, a placing groove 22 is arranged at the bottom of the inner cavity of the box body 1, and a heater 23 is arranged inside the placing groove 22.

Further, 1 bottom of box body is provided with

retainer plate

24, 3 bottoms of inner bag of heating are provided with fixed slot 25, retainer plate 24 and fixed slot 25 phase-match through the cooperation of retainer plate 24 with fixed slot 25, can improve the stability of inner bag 3 in 1 inside of box body of heating.

Furthermore, a limiting ring 26 is arranged at the joint of the box cover 2 and the stirring shaft 8, and the stirring shaft 8 is movably connected with the limiting ring 26 through a bearing.

The implementation scenario is specifically as follows: when the steam box is used, when liquid in the box body 1 is boiled, steam can be generated and flows out through the air outlet pipe 18, the section of the air outlet pipe 18 is L-shaped, the flowing track of the steam can be changed, the steam can be prevented from flowing out to scald a user, when decoction needs to be poured out, the box cover 2 is taken down, the telescopic pipe 17 is lengthened, the handle 20 is grasped, the box body 1 is inclined, the leakage-proof plate 16 can prevent the liquid medicine from flowing out from the side edge of the heating inner container 3 directly, the liquid medicine can flow out through the telescopic pipe 17, great convenience is brought to the user to pour the liquid medicine, the heat insulation sleeve 21 on the handle 20 can prevent the user from touching the box body 1 to be scalded when the liquid medicine is poured out, and the practicability of the steam box is effectively improved.

The working principle is as follows:

referring to the attached drawings 1-7 of the specification, when the traditional Chinese medicine decoction is required to be decocted, the cover plate 13 is opened, the traditional Chinese medicine materials are poured into the filter box 4, the cover plate 13 is covered and fixed through the buckle 14, clear water is poured into the heating inner container 3, the box cover 2 is covered, the filter box 4 can stay in the heating inner container 3, the positioning rod 15 in the heating inner container 3 can be inserted into the filter hole 5 in the filter box 4 to fix the filter box 4, the heating inner container 3 is heated through the heater 23, so that the decoction is decocted, in the decocting process, the stirring disc 11 can be rotated to drive the stirring shaft 8 to rotate, the stirring shaft 8 can rotate to drive the stirring rod 9 in the filter box 4 to rotate, the medicinal materials in the filter box 4 can be stirred and overturned through the stirring rod 9, so that the mixing efficiency of the clear water in the heating inner container 3 is improved, after decoction is finished, the box cover 2 can be taken out, the filter box 4 is taken out, and medicine dregs are also taken out by the filter box 4.

Referring to the attached drawings 4-7 in the specification, when the soup pouring box is used, when liquid in the box body 1 is boiled, steam can be generated and flows out through the air outlet pipe 18, the cross section of the air outlet pipe 18 is L-shaped, the flowing track of the steam can be changed, scalding of a user due to the flowing of the steam is prevented, when the soup needs to be poured out, the box cover 2 is taken down, the telescopic pipe 17 is lengthened, the handle 20 is grasped, the box body 1 is inclined, and the soup can flow out through the telescopic pipe 17.

Although the invention has been described in detail above with reference to a general description and specific examples, it will be apparent to one skilled in the art that modifications or improvements may be made thereto based on the invention. Accordingly, such modifications and improvements are intended to be within the scope of the invention as claimed.

Claims

1. A traditional Chinese medicine decoction brewing device, comprising a box body (1), characterized in that: the top of the box body (1) is provided with a box cover (2), and the box body (1) is internally provided with a heating An inner container (3), wherein a medicinal material stirring mechanism is arranged inside the heating inner container (3);

The medicinal material stirring mechanism comprises a filter box (4), a plurality of filter holes (5) are evenly arranged on the surface of the filter box (4), and stirring holes (6) are arranged through the top of the filter box (4), so the A fixing tube (7) is fixedly arranged inside the stirring hole (6), a stirring shaft (8) is arranged inside the fixing tube (7), and the stirring shaft (8) is movably connected with the fixing tube (7) through a bearing, The bottom of the stirring shaft (8) extends to the inside of the filter box (4), a plurality of stirring rods (9) are evenly arranged at the bottom of the stirring shaft (8), and the box cover (2) faces the side of the stirring shaft (8). A perforation (10) is provided on one side, the top of the stirring shaft (8) penetrates the perforation (10) and extends to the outside of the box cover (2), and a stirring plate (11) is fixed on the top of the stirring shaft (8). One side of the top of the filter box (4) is provided with an opening (12), the top of the opening (12) is provided with a cover plate (13), and one side of the cover plate (13) is hinged to the filter box (4), the A buckle (14) is arranged between the other side of the cover plate (13) and the filter box (4), a positioning rod (15) is arranged at the bottom of the filter box (4), and the positioning rod (15) is connected to the filter hole (5) Matching, the bottom of the positioning rod (15) is fixedly connected with the heating inner pot (3); an anti-leakage plate (16) is provided on one side of the inner wall of the heating inner pot (3). A telescopic tube (17) is arranged on the top of the plate (16), and the telescopic tube (17) communicates with the anti-leakage plate (16).

2 . The device for brewing traditional Chinese medicine decoction according to claim 1 , wherein the cross-sectional shape of the anti-leakage plate ( 16 ) is set as an arc. 3 .

3. A device for brewing traditional Chinese medicine decoction according to claim 1, characterized in that: an air outlet pipe (18) is provided on one side of the top of the box cover (2), and the cross-sectional shape of the air outlet pipe (18) is set It is L-shaped, and the side of the box cover (2) in contact with the air outlet pipe (18) is provided with an air outlet hole (19), and the air outlet hole (19) communicates with the air outlet pipe (18).

4. A traditional Chinese medicine decoction brewing device according to claim 1, characterized in that: a handle (20) is provided on one side of the box body (1), and a heat insulating cover is provided on the handle (20). (21), the heat insulating cover (21) is made of asbestos material.

5. A traditional Chinese medicine decoction brewing device according to claim 1, characterized in that: a placement groove (22) is provided at the bottom of the inner cavity of the box body (1), and a placement groove (22) is provided inside the placement groove (22). heater (23).

6. A traditional Chinese medicine decoction brewing device according to claim 1, characterized in that: the bottom of the box body (1) is provided with a fixing ring (24), and the bottom of the heating inner pot (3) is provided with a A fixing groove (25), the fixing ring (24) is matched with the fixing groove (25).

7. A traditional Chinese medicine decoction brewing device according to claim 1, characterized in that: a limit ring (26) is provided at the connection of the box cover (2) and the stirring shaft (8), and the stirring shaft (8) It is movably connected with the limit ring (26) through the bearing.
