Abstract

The invention discloses a small rainwater cleaning vehicle, comprising a vehicle body, a transmission system, a universal wheel system and a water pumping system. The vehicle body includes a cab and a vehicle body platform; the vehicle body platform is provided with a transmission system, and the The above-mentioned transmission system is provided with a water pumping system; the application is flexible and maneuverable, can operate in a small area, skillfully exerts the advantage of the universal wheel that can move in any direction, greatly saves limited manpower and material resources, and provides convenience for people's lives.

Description

Small rainwater cleaning vehicle

technical field

The invention relates to the technical field of rainwater cleaning equipment, in particular to a small rainwater cleaning vehicle.

Background technique

As the global climate shows an unstable trend, the frequency of extreme weather is getting higher and higher. Heavy rainfall caused by strong convective weather often leads to excessive precipitation in local areas. In cities, this phenomenon usually causes urban waterlogging. The objective reasons for urban waterlogging are high rainfall intensity, concentrated rainfall areas, and low terrain within the city limits.

The solution to urban waterlogging today is mainly from the following two perspectives: one is to drain rainwater around through drainage facilities; the other is to collect rainwater through water storage facilities. The former requires a large number of underground drainage lines as a network for dredging and guiding, and scatters around the city with the city as the center, but it is necessary to ensure the smoothness of each key drainage node pipeline to ensure the smooth drainage of rainwater. If a blockage occurs in one place It is easy to cause poor excretion of local or even the whole system. The latter is mainly based on the construction of reservoirs, storage lakes and green spaces that are conducive to rainwater infiltration. The water balance is maintained by collecting and reusing rainwater, but it will occupy too much urban construction land, affecting the Economic construction, and even for some old cities, there is no reusable construction space. The common problem of the two is that the drainage facilities are too fixed, limited by the spatial distribution, and cannot be flexible.

In order to better, more efficiently and more reasonably relieve the pressure on the urban drainage system caused by urban waterlogging, and make up for the insufficiency of the original infrastructure, combined with today's advanced development concepts, this application proposes to design a high mobility The small rainwater cleaning vehicle is specially designed for the problem of water accumulation in old communities with dense buildings, limited road width and poor drainage. This highly maneuverable small rainwater cleaning vehicle has the characteristics of flexibility, convenient loading and unloading, and high drainage efficiency. It can effectively solve the problem of water accumulation in old communities, and provide new thinking and new perspectives for urban waterlogging problems.

SUMMARY OF THE INVENTION

Based on the above purpose, the present invention provides a small rainwater cleaning vehicle.

In order to achieve the purpose of the present invention, a small rainwater cleaning vehicle provided by the present invention includes a vehicle body, a transmission system, a universal wheel system and a water pumping system, and the vehicle body includes a cab and a vehicle body platform; the vehicle body platform A transmission system is arranged on the transmission system, and a water pumping system is arranged on the transmission system;

The transmission system includes two parts: a conveying crawler roller and a telescopic hydraulic rotating control shaft, wherein the conveying crawler roller includes a row of rollers with the same diameter arranged along the longitudinal direction of the vehicle body platform on the vehicle body platform. A layer of steel conveying crawler is used to drive the steel conveying crawler to rotate through the rotation of the roller; the telescopic hydraulic rotating control shaft is longitudinally fixed on the steel conveying crawler; the top of the telescopic hydraulic rotating control shaft is connected with a water storage tank platform,

The universal wheel system includes a car body system and a water storage tank platform system. The car body system includes eight wheels arranged at the bottom end of the car body, and the eight wheels all use Mecanum wheels with the same diameter, which can realize in situ The turning and changing direction of the water storage tank can move both longitudinally and laterally; a water storage tank platform system is arranged under the water storage tank platform, and the water storage tank platform system includes four nylon material ten thousand to the wheel;

The water pumping system includes a cylindrical water storage tank and a pumping pump, the cylindrical water storage tank is placed on the platform of the water storage tank, and the pumping pump communicates with the bottom of the water storage tank.

Compared with the prior art, the beneficial effect of the present invention is that the application is flexible and maneuverable, can operate in a small area, skillfully exerts the advantage of the universal wheel that can move in any direction, greatly saves limited manpower and material resources, and provides Provide convenience for people's life;

The present application has the advantages of outstanding land saving, small footprint, intensive functions, wide coverage of the working surface when unfolded in the working state; small occupied space in the folded state, and compact coordination of each device;

The application can reflect the new concept of green environmental protection, energy saving and high efficiency in today's society. All structural devices of the car can be easily obtained from daily life, and the replaceability is strong. The design of the car body is simple in structure and strong in operability. , convenient loading and unloading, which can greatly save design costs.

The application can reuse the collected rainwater to irrigate and irrigate water-deficient land, realize water rebalance, and reflect the concept of sustainable development.

The vehicle body of the application has strong bearing capacity, high safety, low construction cost, large rainwater collection, high work efficiency, wide work coverage and good cost performance.

Description of drawings

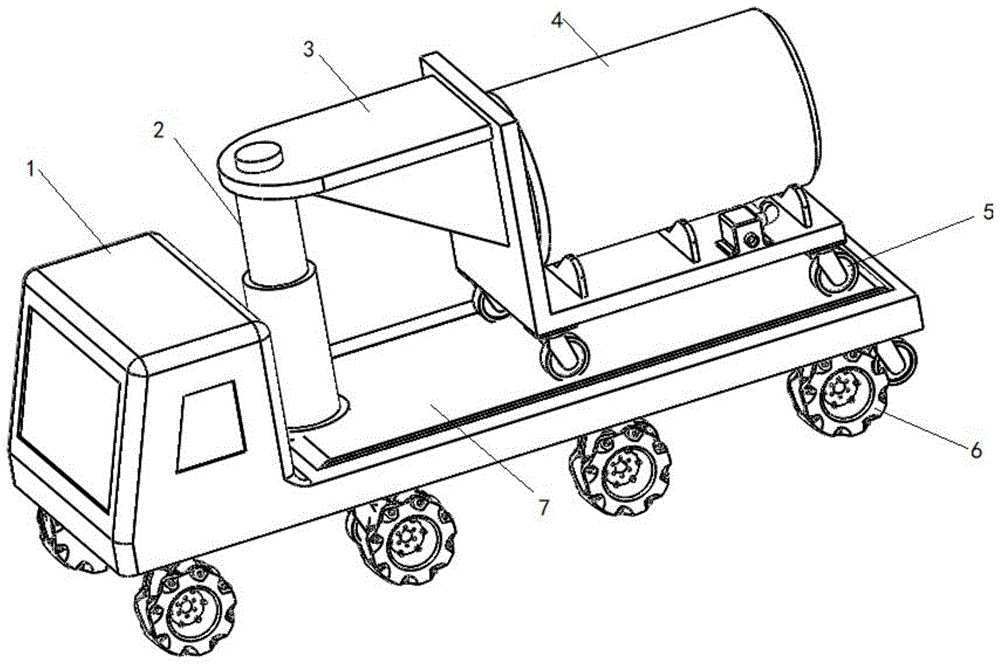

Fig. 1 shows the overall structure schematic diagram of this application;

Fig. 2 shows the structural representation of the retracted state of the present application;

FIG. 3 shows a schematic diagram of the vehicle body structure of the present application;

FIG. 4 is a schematic structural diagram of the conveying track roller of the present application;

5 is a schematic structural diagram of a telescopic hydraulic rotary control shaft of the present application;

FIG. 6 is a schematic structural diagram of a water storage tank and a water storage tank platform of the application;

Fig. 7 shows the structural representation of the Mecanum wheel of the present application;

Fig. 8 shows the structural representation of the nylon material universal wheel of the application;

In the figure, 1- cab, 2- telescopic hydraulic rotary control shaft, 3- water storage tank platform, 4- water storage tank, 5- universal wheel, 6- Mecanum wheel, 7- transmission track roller.

Detailed ways

The present invention will be further described in detail below with reference to the accompanying drawings and specific embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, but not to limit the present invention.

It should be noted that the embodiments in the present application and the features of the embodiments may be combined with each other in the case of no conflict.

The function of the small rainwater cleaning vehicle in the old community is to collect and process the rainwater on the road surface and assist the underground drainage facilities to achieve the purpose of quickly cleaning the road surface. It is mainly used in old residential areas with imperfect underground drainage facilities, as well as in areas with limited space and regular water accumulation.

The small rainwater cleaning vehicle in the old community has high mobility, can work in a narrow area, and has good flexibility. The structure of the car is simple and practical, the operation is convenient, the loading and unloading is fast, and it can handle a large amount of accumulated water. The car is specially designed for use in small spaces, with compact structure, intensive functions, and minimized floor space; eight wheels are set at the bottom of the car body using universal wheel technology, which can realize turning and changing directions on the spot, both laterally and horizontally. It can also move longitudinally, which solves the problem of difficult turning in a small space and realizes fast and efficient continuous operation; the car body platform is laid with a roller drive crawler device, which is simple and convenient, and can quickly haul and unload the water storage tank, and cooperate with the crawler. The rotary control shaft on the upper part can complete the maximum range of road rainwater collection around the car body; the hydraulic rotary control shaft is fixed on the conveyor track and connected with the platform where the water tank is placed, which can realize the horizontal movement of the platform along the direction of the track. , the platform can also rotate within a range of 180° around the rotation control axis; a water storage tank is placed on the platform, which can collect and store a large amount of water, and at the same time facilitate the loading and unloading tools to quickly load and unload the water tank; the water tank is connected to the pump, Continue to collect ground water and save working time.

In the specific implementation, as shown in Figure 1-Figure 8, the vehicle adopts the traditional trolley mechanism, the body shape is compact, the function is intensive, the load is limited to one person, and the floor area is small. It consists of the following four parts.

(1) Cab. Including powertrain and operating system. The power system adopts the 1.0L displacement engine widely used in mini cars on the market, with sufficient power (power is 45KW) and low fuel consumption (fuel consumption is 7.4L/100km). control.

(2) Transmission system. It is mainly composed of two parts: conveyor track roller and hydraulic rotation control shaft. A row of rollers with a diameter of 100mm is placed on the body plate along the longitudinal direction of the vehicle, and a layer of steel conveyor tracks is laid on it. The entire conveyor device is simple and convenient, and can quickly haul and load and unload the water storage tank, and the steel transmission is realized by the rotation of the rollers. The crawler is rotated, in which the rotation of the roller adopts a well-known technology, which will not be described in detail here; the hydraulic rotation control shaft is fixed on the conveying crawler and is connected with the platform on which the water storage tank is placed. The shaft itself can rotate and can be extended up and down, It can also move with the crawler, which can realize the horizontal and longitudinal movement of the platform with the crawler, and can also realize the rotating movement of the platform within a range of 180° around the rotation control axis. The hydraulic rotation control axis adopts a well-known technology, and the upper end of the secondary hydraulic cylinder can be used for fixing. It is realized by connecting the rotating motor, which will not be described in detail here; the steel conveying crawler and the rotating shaft cooperate with each other to complete the maximum range of road rainwater collection around the car body.

(3) Universal wheel system. Including the eight wheels set at the bottom of the car body, Mecanum wheels with a diameter of 150mm are used, which can realize turning and changing directions in place, and can move both longitudinally and laterally, thus solving the problem of difficult turning in small spaces and realizing fast turning. Efficient and continuous operation; the Mecanum wheel is connected to the control system of the cab through the linkage lever device to ensure the braking performance of the car. The specific setting structure adopts well-known technology, which will not be described in detail here; the water storage tank where the water storage tank is placed The bottom of the platform is equipped with four ordinary nylon casters with a diameter of 100mm. The raw materials are easy to obtain and the cost is low.

(4) Pumping system. A cylindrical water tank with a capacity of 282.6L is placed on the platform, which can maximize the collection and storage of accumulated water, and at the same time, it is convenient for loading and unloading tools to quickly load and unload the water storage tank. When moving below the water surface, turn on the switch of the water pump, and then continuously pump the water from the ground, saving operation time.

The driver can control the direction of the vehicle through the steering wheel in the car. It is equipped with a 1.0L displacement engine, and is equipped with manual gear control. The clutch, brake and accelerator pedals are installed under the feet. These devices are connected with the Mecanum wheel of the base through the linkage rod. In this way, the movement and stationary, forward and reverse of the vehicle are realized. This omnidirectional movement method is based on the principle of a central wheel with many axles located around the wheel. These angled peripheral axles turn a part of the wheel. The force is converted to a wheel normal force. Depending on the direction and speed of the respective wheels, the final combination of these forces produces a resultant force vector in any desired direction thereby ensuring that the platform can move freely in the direction of the final resultant force vector without changing the direction of the wheels themselves. . There are many small rollers obliquely distributed on its rim, so the wheel can slide laterally. The busbar of the small roller is very special. When the wheel rotates around the fixed wheel spindle, the envelope of each small roller is a cylindrical surface, so the wheel can roll forward continuously. The Mecanum wheel is compact in structure and flexible in movement, and is a very successful all-round wheel.

The omnidirectional motion equipment based on the Mecanum wheel technology can realize the motion modes such as forward movement, lateral movement, oblique movement, rotation and combinations thereof. The omnidirectional transportation platform developed on this basis is very suitable for the environment with limited transshipment space and narrow working channel, and can realize omnidirectional mobile function more flexibly and conveniently. In this way, the free movement of the vehicle within the space is guaranteed.

When the vehicle is in working state, the driver can operate the operating system. The system is equipped with switches that control the conveying roller, the rotating shaft and the water pump respectively, and is connected to the battery through the power distribution system, which can ensure that the three devices work independently without affecting each other. When the button that controls the "transmission roller" is toggled, the transmission roller drives the hydraulic rotation control shaft on the crawler to move, that is, it stops immediately after closing. When the rotation axis moves to the end of the car, the transmission roller stops automatically. The "rotation axis" is controlled by two buttons, one button is used to control the rotation, which can be rotated clockwise or counterclockwise. Rotation in the range of °; another button is used to control the expansion and contraction of the height of the rotating shaft, and the rotating shaft can be raised and lowered. When the button that controls the "water pump" is toggled to start pumping water into the water tank, when the water tank is full, the water pump will automatically stop working.

This application has multiple working statuses,

(1) retracted state

Each structure of the car body is in a gathered state, the wheels are back to positive, the telescopic two-stage hydraulic rotation control shaft is adjusted to the front end of the conveying track along with the conveying roller, and the platform for placing the water tank connected to the shaft is also retracted to the bottom of the car. . At this time, the buttons of the water pump, the transmission roller and the rotation control shaft are all closed and not working.

(2) Working state 1

When the car moves along the longitudinal direction of the body, the conveyor track can move backwards under the action of the rollers, and the rotary control shaft moves to the rear of the car accordingly. The working height of the platform on which the water tank is placed is controlled by the telescopic situation, and the water pump connected to the water tank is turned on, so as to realize the longitudinal collection of rainwater.

(3) Working state 2

When the car moves in the width direction of the car, the rotary control shaft can control the rotation of the platform on which the water tank is placed around the two sides of the car body clockwise or counterclockwise within a range of 90° by its own rotation. Drive the platform to achieve translation along the side of the body, and the rotating control shaft controls the working height of the platform on which the water tank is placed by adjusting the upper and lower telescopic heights, and turns on the water pump connected to the water tank, thereby realizing the horizontal collection of rainwater.

The above are only the preferred embodiments of the present invention. It should be noted that, for those skilled in the art, without departing from the principles of the present invention, several improvements and modifications can be made. These improvements and Retouching should also be considered within the scope of protection of the present invention.

Claims (1)

1. A small rainwater cleaning vehicle is characterized in that it comprises a vehicle body, a transmission system, a universal wheel system and a water pumping system, and the vehicle body comprises a cab and a vehicle body platform; The transmission system is provided with a pumping system; The transmission system includes two parts: a conveying crawler roller and a telescopic hydraulic rotating control shaft, wherein the conveying crawler roller includes a row of rollers with the same diameter arranged along the longitudinal direction of the vehicle body platform on the vehicle body platform. A layer of steel conveying crawler is used to drive the steel conveying crawler to rotate through the rotation of the roller; the telescopic hydraulic rotating control shaft is longitudinally fixed on the steel conveying crawler; the top of the telescopic hydraulic rotating control shaft is connected with a water storage tank platform, The universal wheel system includes a car body system and a water storage tank platform system. The car body system includes eight wheels, and the eight wheels are all Mecanum wheels with the same diameter, which can realize turning and changing directions on the spot. It can move longitudinally or laterally; a water storage tank platform system is arranged below the water storage tank platform, and the water storage tank platform system includes four nylon material universal wheels arranged at the bottom of the water storage tank platform; The water pumping system includes a cylindrical water storage tank and a pumping pump, and the pumping pump communicates with the bottom of the water storage tank.
