CN110862025B - A lifting device for lifting a transport vehicle - Google Patents

Abstract

The invention discloses a lifting device for hoisting and transporting vehicles, which comprises a boom, the outer end of the boom is rotatably connected with a support seat, the upper end of the support seat is fixed with a transmission box, the upper part of the transmission box is provided with a transmission mechanism, The lower end of the rope is jointly fixed with a mounting seat which is convenient for installing the sling, the two sides of the suspending rope are symmetrically fixed with rigid guide columns, and a protective box is fixed between the rigid guide columns through the support beam plate; the protective box includes a box body, and the box body cavity It is divided into four working chambers, and each working chamber is fixed with a first cylindrical disk and a second cylindrical disk. The rod body in the body is fixed with a spiral metal belt. The present invention uses rigid guide columns as the base to support the protective box, and when the sling is broken at the winding place, it will fall rapidly, and the rotational speed of the rotating rod is greater than the adjustment speed of the spiral metal belt itself, which causes the spiral metal belt to deform, so that the sling is stuck. Dead fixed to ensure safe production.

Description

A lifting device for lifting a transport vehicle

technical field

The present invention relates to the technical field of hoisting vehicles, in particular to a lifting device used for hoisting vehicles.

Background technique

The truck-mounted lifting truck can also be called a self-loading and unloading truck. It integrates hoisting and transportation, and is mostly used in stations, warehouses, docks, construction sites, field rescue and other places. Can be equipped with different lengths of cargo boxes and cranes of different tonnages.

The steel pipe transportation of the traditional steel pipe pickling unit is generally carried out by a manually driven ordinary double trolley crane. Since the hoisting wire rope of this manually driven ordinary double trolley crane is a flexible material, the steel pipe shakes very much during the transportation process. It is easy to damage the acid tank or other production equipment, and the accident rate is high.

To this end, the patent specification with publication number CN103350953B discloses a lifting device for a hoisting and transporting vehicle. The lifting and transporting vehicle includes a cart and two rails. Both ends of the cart are arranged on the two rails. The cart can move on two tracks, and the lifting device includes at least two sets of lifting equipment, and at least two sets of lifting equipment are arranged in the cart at equal intervals in a row. Each set of lifting equipment includes a transmission mechanism and two rigid guide columns. , wire rope and lifting mechanism. However, this kind of lifting device used for hoisting and transporting vehicles has shortcomings. The hanging rope often suffers rigid friction during winding, which is easy to cause the hanging rope to break, thereby causing the hanging object to fall, which is not only easy to damage the hanging object, but also There is a big security risk.

SUMMARY OF THE INVENTION

The purpose of the present invention is to overcome the above-mentioned problems existing in the conventional technology, and to provide a lifting device for a hoisting and transport vehicle.

In order to realize the above-mentioned technical purpose and achieve the above-mentioned technical effect, the present invention is realized through the following technical solutions:

A lifting device for hoisting and transporting vehicles, comprising a boom, the outer end of the boom is rotatably connected with a support seat, the upper end of the support seat is fixed with a transmission box, and the upper part of the transmission box is provided with a roller capable of rolling A transmission mechanism that winds two suspending ropes, the lower ends of the two suspending ropes are jointly fixed with a mounting seat that is convenient for installing the sling, and the lower ends of the supporting seat are located on both sides of the suspending rope and are symmetrically fixed with rigid guide columns. A protective box for clamping the suspending rope after the suspending rope is broken is fixed between the two rigid guiding columns through the supporting beam plate. The cross-shaped partition is divided into four working chambers, and the front and rear walls of each working chamber are respectively fixed with a first cylindrical disk and a second cylindrical disk. The front and rear walls are rotatably supported by the supporting blocks, and the two said rotating rods are located in the middle of the rod body outside the disk body with a rope winding groove corresponding to the position. The upper and lower side plates of the box body and the transverse plate portion of the cross-shaped partition plate are provided with perforations that are convenient for the hanging rope to pass through.

Further, in the above-mentioned lifting device for hoisting and transporting vehicles, the protective box is supported by a stainless steel material, and the wall thickness of the box body is 1-2 cm.

Further, in the above-mentioned lifting device for a hoisting and transporting vehicle, the support beam plate is welded with a reinforcing rib at the connection with the rigid guide column and the protective box.

Further, in the above-mentioned lifting device for a lift truck, the axes of the first cylindrical disk and the second cylindrical disk are offset from each other.

Further, in the above-mentioned lifting device for hoisting and transporting vehicles, the inner end of the belt of the spiral metal belt is clamped and fixed with the rotating rod, and the outer diameter of the belt is equal to the inner cavity of the first cylindrical disk or the second cylindrical disk. diameter.

Further, in the above-mentioned lifting device for hoisting and transporting vehicles, the spiral metal strip is a spiral aluminum strip.

The beneficial effects of the present invention are:

The structure of the invention is reasonable in design. The rigid guide column is used as the base to support the protective box, and the suspending rope passes through the protective box. When the suspending rope rises and falls normally and slowly, the rotating rod drives the spiral metal belt on it to rotate slowly along with it; When the rope breaks at the winding place, the sling will quickly fall due to the action of gravity, and the rotation speed of the rotating rod is greater than the adjustment speed of the spiral metal belt itself, which will cause the spiral metal belt to deform, and then the rotating rod will be stuck, and finally the sling will be stuck. Fixed to prevent the hanging objects from falling further and ensure safe production.

Of course, it is not necessary for any product implementing the present invention to achieve all of the above advantages simultaneously.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

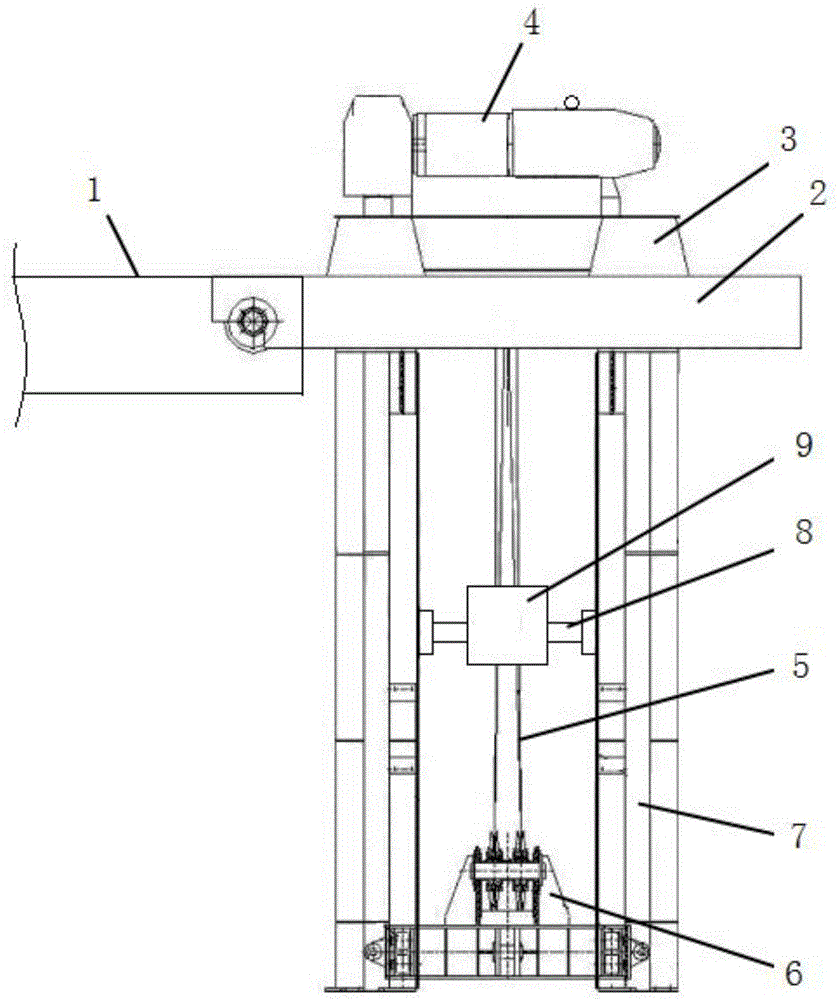

Fig. 1 is the schematic diagram of the use state of the present invention;

Fig. 2 is the top view structure schematic diagram of the protective box in the present invention;

Fig. 3 is the front view structure schematic diagram of the protective box in the present invention;

Fig. 4 is the threading schematic diagram of the hanging rope in the protective box in the present invention;

In the accompanying drawings, the reference numbers of each component are as follows:

1- boom, 2- support base, 3- transmission box, 4- transmission mechanism, 5- hanging rope, 6- mounting base, 7- rigid guide column, 8- supporting beam plate, 9- protective box, 901- box Body, 901-box body, 902-cross-shaped partition, 903-working cavity, 904-first cylindrical disk, 905-second cylindrical disk, 906-support block, 907-rotating rod, 908-rope groove , 909 - Spiral Metal Strip.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1-4. This embodiment is a lifting device for a hoisting and transporting vehicle, including a boom 1. A support base 2 is rotatably connected to the outer end of the boom 1, and a support base 2 is fixed at the upper end of the support base 2. The transmission box 3, the upper part of the transmission box 3 is provided with a transmission mechanism 4 capable of winding two suspending ropes 5, and the lower ends of the two suspending ropes 5 are jointly fixed with a mounting seat 6 which is convenient for installing the hanger, and the lower end of the supporting seat 2 is located at the Rigid guide columns 7 are fixed symmetrically on both sides of the hanging rope 5 . The main improvement point of this embodiment is that a protective box 9 for clamping the suspending rope 5 after the suspending rope 5 is broken is fixed between the two opposite rigid guide columns 7 through the supporting beam plate 8 .

In this embodiment, the protective box 9 includes a cuboid-shaped box body 901 , and the inner cavity of the box body 901 is divided into four working chambers 903 by a cross-shaped partition plate 902 . The front and rear walls of each working chamber 903 are respectively fixed with a first cylindrical disk 904 and a second cylindrical disk 905 . There are rotating rods 907. The two rotating rods 907 are located in the middle of the rod body outside the disk body with a rope winding groove 908 corresponding to the position. The side plate and the transverse plate portion of the cross-shaped partition plate 902 are provided with perforations 910 which are convenient for the suspending rope 5 to pass through.

In this embodiment, the protective box 9 is supported by stainless steel material, the wall thickness of the box body 901 is 1-2 cm, and the support beam plate 8 is located at the connection with the rigid guide column 7 and the protective box 9 with reinforcing ribs welded. The strength of the connection is relatively high, which meets the subsequent support requirements for the suspending rope 5 and the hanging objects. .

In this embodiment, the axes of the first cylindrical disk 904 and the second cylindrical disk 905 are offset from each other.

In this embodiment, the inner end of the spiral metal belt 909 is clamped and fixed with the rotating rod 907 , and the outer diameter of the belt is equal to the inner cavity diameter of the first cylindrical disk 904 or the second cylindrical disk 905 . The spiral metal strip 909 is a spiral aluminum strip.

A specific application of this embodiment is: the structural design of this embodiment is reasonable, the rigid guide column 7 is used as the base to support the protective box 9, the suspending rope 5 passes through the protective box 9, and when the suspending rope 5 is normally raised and lowered slowly, the The rod 907 drives the spiral metal belt 909 on it to rotate slowly; when the suspending rope 5 breaks at the winding place, the suspending rope 5 will fall rapidly due to the effect of gravity, and the rotating speed of the rotating rod 907 is greater than the adjustment speed of the spiral metal belt 909 itself. , resulting in the deformation of the spiral metal belt 909, and then the rotating rod 907 is stuck, and finally the suspending rope 5 is stuck and fixed by the two fixed rotating rods 907, so as to prevent the hanging object from falling further and ensure safe production.

The above-disclosed preferred embodiments of the present invention are provided only to help illustrate the present invention. The preferred embodiments do not exhaust all the details, nor do they limit the invention to specific embodiments only. Obviously, many modifications and variations are possible in light of the contents of this specification. These embodiments are selected and described in this specification in order to better explain the principles and practical applications of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is to be limited only by the claims and their full scope and equivalents.

Claims (5)

1. A lifting device for hoisting and transporting vehicles, comprising a boom, the outer end of the boom is rotatably connected with a support seat, the upper end of the support seat is fixed with a transmission box, and the upper part of the transmission box is provided with A transmission mechanism capable of winding two suspending ropes, the lower ends of the two suspending ropes are jointly fixed with a mounting seat that facilitates the installation of a sling, and the lower ends of the supporting seat are located on both sides of the suspending rope and are symmetrically fixed with rigid guide columns, It is characterized in that: between the two opposite rigid guide columns, a protective box for clamping the suspending rope after the suspending rope is broken is fixed through a supporting beam plate, and the protective box includes a cuboid box body, The inner cavity of the box is divided into four working cavities by a cross-shaped partition, and the front and rear walls of each working cavity are respectively fixed with a first cylindrical disk and a second cylindrical disk. The front and rear walls of the respective inner cavities of the discs are rotatably supported by the support blocks, and the two said rotary rods are located in the middle of the rod body outside the disc body. There is a spiral metal belt, the upper and lower side plates of the box body and the transverse plate of the cross-shaped partition are provided with perforations for the hanging rope to pass through. The diameter is equal to the diameter of the inner cavity of the first cylindrical disk or the second cylindrical disk. 2 . The lifting device for a hoisting and transporting vehicle according to claim 1 , wherein the protective box is supported by a stainless steel material, and the wall thickness of the box body is 1-2 cm. 3 . 3 . The lifting device for a hoisting and transporting vehicle according to claim 1 , wherein the support beam plate is welded with a reinforcing rib at the connection with the rigid guide column and the protective box. 4 . 4. The lifting device for a lift truck according to claim 1, wherein the axes of the first cylindrical disk and the second cylindrical disk are offset from each other. 5 . The lifting device for hoisting and transporting vehicles according to claim 1 , wherein the spiral metal strip is a spiral aluminum strip. 6 .
