Intelligent garbage classification recycling system

Technical Field

The invention relates to the technical field of garbage recovery, in particular to an intelligent garbage classification recovery system.

Background

Garbage classification generally refers to a general term of a series of activities for storing, delivering and transporting garbage according to a certain rule or standard, and converting the garbage into public resources. The purpose of classification is to improve the resource value and the economic value of rubbish, the best use of object, current rubbish is retrieved the back, rubbish is usually collected together, carry out waste classification through the manpower, contain ironwork in the rubbish, see when the manpower screening is categorised, ironwork rubbish can rip labour personnel's skin, rubbish also has multiple rubbish, rip labour personnel's skin when ironwork rubbish, the bacterium gets into the human body, make labour personnel receive bacterial infection, cause the injured problem of labour personnel, and there is rubbish to contain rubbish juice, when carrying out waste classification and retrieving, the problem that the work efficiency is influenced to waste time and energy.

Disclosure of Invention

The invention aims to provide an intelligent garbage classification recycling system, which aims to solve the problems that after the existing garbage is recycled in the background art, the garbage is usually collected together and is classified by manpower, the garbage contains ironwork, the ironwork garbage can scratch the skin of workers when the garbage is screened and classified by manpower, the garbage also contains various types of garbage, when the ironwork garbage scratches the skin of the workers, bacteria enter the human body, so that the workers are infected by the bacteria and injured, and the garbage contains garbage juice, so that the work efficiency is influenced by time and labor when the garbage is classified and recycled.

In order to achieve the purpose, the invention provides the following technical scheme: including the box, the processing of the top right side of box has the feed inlet, first box mouth has been seted up on the right side of box, the inner wall of first box mouth is equipped with stoving mechanism, the left side of box is equipped with adsorption apparatus and constructs, the inner wall right side of box is equipped with slide mechanism, the inner wall bottom rigid coupling of box has the riser, the right side rigid coupling of riser has the slide, the equal rigid coupling in bottom four corners of box has the base, the inner wall rear end face left side rigid coupling of box has the bent plate, the inner wall left side rigid coupling of box has the opening board, the top of opening board is equipped with compressing mechanism, the inner wall right side rigid coupling of box has the third box, the inner wall of third box is equipped with rubbing crusher and constructs, the second box mouth has all been seted up to the left and right sides of box, the inner wall clearance fit of second box mouth has the drawing case.

Preferably, the slide plate corresponds to a position of the third casing.

Preferably, adsorption apparatus constructs including first motor, bearing, magnetic wheel and L type peg, first motor rigid coupling in the top left side of box, the output shaft of first motor passes through the bearing and rotates the left side that links to each other in the box, the outer wall rigid coupling of the output shaft of first motor has the magnetic wheel, the outer wall laminating of magnetic wheel has the L type to scrape the pole, the left side rigid coupling of L type scraper blade is in the inner wall left side of box.

Preferably, slide mechanism includes round pin axle, diaphragm, round bar, second round bar and spring, the diaphragm rotates through the round pin axle and links to each other in the inner wall right side of box, the bottom of diaphragm rotates through the round pin axle and links to each other there is the round bar, the outer wall clearance fit of round bar has the second round bar, the inner wall clearance fit of second round bar has the spring, the right side of second round bar rotates through the inner wall right side of round pin axle with the box and links to each other.

Preferably, stoving mechanism includes second box, fan, heating pipe, second round pin axle, kelly, second spring and draw-in groove board, the second box rotates the inner wall that links to each other in first box mouth through second round pin axle, the fan has been cup jointed to the inner wall of first box, the heating pipe has been cup jointed on the inner wall left side of first box, the right side clearance fit of first box has the kelly, the inner wall clearance fit of kelly has the second spring, the right side of second spring is in the right side looks joint of second box, the right side joint of kelly has the draw-in groove board, the left side rigid coupling of draw-in groove board has the right side of box.

Preferably, the grooves of the slot plates form 30 degrees between every two grooves.

Preferably, rubbing crusher constructs including second motor, sheave, third pole, gear, belt, fourth pole and second gear, second motor rigid coupling in the left side of third box, the output shaft outer wall rigid coupling of second motor has the sheave, the inner wall rear end face left side of third box rotates and links to each other there is the third pole, the outer wall rigid coupling of third pole has gear and sheave, two the sheave passes through the belt and rotates and link to each other, the outer wall clearance fit of belt is in the left side of third box, the inner wall rear end face right side of third box rotates and links to each other there is the fourth pole, the outer wall rigid coupling of fourth pole has the second gear, and the left side of second gear links to each other with the right side meshing of gear.

Preferably, compressing mechanism includes slide bar, riser, third round pin axle, diamond plate, horizontal pole, second slide and push rod, the slide bar rigid coupling is in the inner wall left side of box, the outer wall rigid coupling of slide bar has the riser, the top of riser rotates through third round pin axle and links to each other there is the diamond plate, the left and right sides of diamond plate all rotates through third round pin axle and links to each other there is the horizontal pole, the outside of horizontal pole rotates through third round pin axle and links to each other there is the second slide, the inner wall of second slide slides and the outer wall of second slide link to each other, the left side the push rod is installed on the right side of second slide, the left side in the riser is installed to the output of push rod.

Compared with the prior art, the invention has the beneficial effects that: this intelligent recovery system of waste classification, through first motor, the cooperation of pole is scraped to magnetism wheel and L type, make unable manual work carry out waste classification, the back has been avoided current rubbish to retrieve, rubbish is generally collected together, carry out waste classification through the manpower, contain ironwork in the rubbish, see when manpower screening classification, ironwork rubbish can rip labour personnel's skin, rubbish also has multiple rubbish, tear labour personnel's skin when ironwork rubbish, the bacterium gets into the human body, make labour personnel receive the bacterial infection, cause labour personnel to be injured, through the fan, the cooperation of heating pipe and slide, make the juice of rubbish can get rid of, it contains rubbish juice to have avoided having rubbish, when carrying out waste classification and retrieving, waste time and energy influences work efficiency.

Drawings

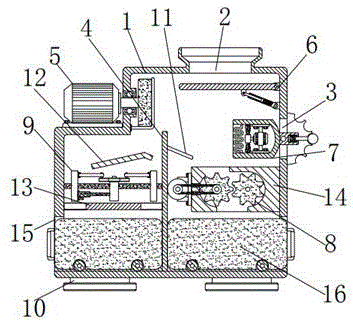

FIG. 1 is a schematic diagram of the connection relationship of the present invention;

FIG. 2 is a schematic view showing the connection among the box body, the vertical plates and the curved plates in FIG. 1;

FIG. 3 is a schematic view showing the connection between the box body, the feed inlet and the sliding mechanism in FIG. 1;

FIG. 4 is a schematic view showing a connection relationship between the case, the first case opening, and the third case of FIG. 1;

FIG. 5 is a schematic view showing a connection relationship between the slide plate, the third box body and the pull box in FIG. 1;

FIG. 6 is a schematic view showing the connection relationship between the curved plate, the through-hole plate and the pull box in FIG. 1;

fig. 7 is a schematic top view of the connection relationship designated by reference numeral 9 in fig. 1.

In the figure: 1. a box body, 2, a feed inlet, 3, a first box body opening, 4, a vertical plate, 5, an adsorption mechanism, 501, a first motor, 502, a bearing, 503, a magnetic wheel, 504, an L-shaped scraping rod, 6, a sliding mechanism, 601, a pin shaft, 602, a transverse plate, 603, a round rod, 604, a second round rod, 605, a spring, 7, a drying mechanism, 701, a second box body, 702, a fan, 703, a heating pipe, 704, a second pin shaft, 705, a clamping rod, 706, a second spring, 707, a clamping groove plate, 8, a crushing mechanism, 801, a second motor, 802, a grooved wheel, 803, a third round rod, 804, a gear, 805, a belt, 806, a fourth round rod, 807, a second gear, 9, a compression mechanism, 901, a sliding rod, a vertical block, 903, a third pin shaft, 904, a diamond plate, 905, a transverse rod, 906, a second sliding plate, 907, a push rod, 10, a base, 11, a sliding plate, 12, a curved plate, 13, a through-opening plate, 14. a third box body 15, a second box body opening 16 and a pull box.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-7, the present invention provides a technical solution: comprises a box body 1, a feed inlet 2 is processed at the right side of the top of the box body 1, the feed inlet 2 is used for garbage to enter the box body 1, a first box body opening 3 is arranged at the right side of the box body 1, a drying mechanism 7 is arranged on the inner wall of the first box body opening 3, an adsorption mechanism 5 is arranged at the left side of the box body 1, a sliding mechanism 6 is arranged at the right side of the inner wall of the box body 1, a vertical plate 4 is fixedly connected to the bottom of the inner wall of the box body 1, the vertical plate 4 is fixed to the bottom of the inner wall of the box body 1, a sliding plate 11 is fixedly connected to the right side of the vertical plate 4, the sliding plate 11 is used for garbage transportation, a base 10 is fixedly connected to four corners of the bottom of the box body 1, the base 10 is used for supporting the box body 1, a curved plate 12 is fixedly connected to the left side of the rear end surface of the inner wall of the box body 1, the curved plate 12 is used for transporting iron garbage, a through plate 13 is fixedly connected to the left side of the inner wall of the box body 1, a compression mechanism 9 is arranged at the top of the through plate 13, a third box body 14 is fixedly connected to the right side of the inner wall of the box body 1, the third box body 14 is fixed on the right side of the inner wall of the box body 1, the inner wall of the third box body 14 is provided with the crushing mechanism 8, the left side and the right side of the box body 1 are provided with the second box body openings 15, the inner wall of the second box body openings 15 is in clearance fit with the pull box 16, the pull box 16 is used for collecting garbage, and the slide plate 11 corresponds to the third box body 14 in position, so that the garbage slides into the third box body 14 through the slide plate 11.

The adsorption mechanism 5 comprises a first motor 501, a bearing 502, a magnetic wheel 503 and an L-shaped hanging rod 504, the first motor 501 is fixedly connected to the left side of the top of the box body 1, the type of the first motor 501 is KI1, an output shaft of the first motor 501 is rotatably connected to the left side of the box body 1 through the bearing 502, so that the output shaft of the first motor 501 can rotate on the left side of the box body 1, the magnetic wheel 503 is fixedly connected to the outer wall of the output shaft of the first motor 501, the magnetic wheel 503 is used for adsorbing ironwork garbage, the magnetic wheel 503 is a high-strength magnetic wheel, the L-shaped scraping rod 504 is attached to the outer wall of the magnetic wheel 503, the L-shaped scraping rod 504 is used for hanging the ironwork garbage adsorbed by the magnetic wheel 503, the left side of the L-shaped scraping plate 504 is fixedly connected to the left side of the inner wall of the box body 1, and the L-shaped scraping plate 504 is fixed to the left side of the inner wall of the box body 1.

The sliding mechanism 6 comprises a pin 601, a horizontal plate 602, a round bar 603, a second round bar 604 and a spring 605, the horizontal plate 602 is rotatably connected to the right side of the inner wall of the box 1 through the pin 601, so that the transverse plate 602 can rotate on the right side of the inner wall of the box body 1, the transverse plate 602 is used for conveying the garbage falling from the feeding port 2, the bottom of the transverse plate 602 is connected with the round rod 603 through the pin shaft 601 in a rotating way, so that the round rod 603 can rotate at the bottom of the transverse plate 602, the outer wall of the round rod 603 is in clearance fit with the second round rod 604, the second round bar 604 can slide on the outer wall of the round bar 603, the spring 605 is in clearance fit with the inner wall of the second round bar 604, the spring 605 gives a leftward force to the round bar 603, the elastic coefficient of the spring 605 is 2000-2500N \ M, and the right side of the second round bar 604 is rotatably connected with the right side of the inner wall of the box body 1 through the pin 601, so that the second round bar 604 can rotate on the right side of the inner wall of the box body 1.

The drying mechanism 7 comprises a second box body 701, a fan 702, a heating pipe 703, a second pin shaft 704, a clamping rod 705, a second spring 706 and a clamping groove plate 707, the second box body 701 is rotatably connected to the inner wall of the first box body port 3 through the second pin shaft 704, so that the second box body 701 can rotate on the inner wall of the first box body port 3, the fan 702 is sleeved on the inner wall of the first box body 3, the model of the fan 702 is HF-150P, the heating pipe 703 is sleeved on the left side of the inner wall of the first box body 3, the heating pipe 703 is contacted with wind generated by the fan 702 after being heated to form high-temperature airflow to dry garbage in the box body 1, the clamping rod is in clearance fit on the right side of the second box body 3, so that the clamping rod 705 can slide left and right on the inner wall of the second box body 3, the second spring 706 is in clearance fit on the inner wall of the clamping rod 705, the right side of the second spring 706 is clamped on the right side of the second box body 701, and the clamping rod, the elastic coefficient of the second spring 706 is 700-1500N/M, the right side of the clamping rod 705 is clamped with the clamping groove plate 707, so that the clamping rod 705 can be fixed on the clamping groove plate 707, the left side of the clamping groove plate 707 is fixedly connected with the right side of the box body 1, the clamping groove plate 707 is fixed on the right side of the box body 1, the grooves of the clamping groove plate 707 are in 30 degrees, the clamping rod 705 transfers the second box body 701 to rotate, and further angle adjustment is carried out on high-temperature airflow in the box body 1.

The crushing mechanism 8 comprises a second motor 801, a grooved pulley 802, a third round bar 803, a gear 804, a belt 805, a fourth round bar 806 and a second gear 807, the second motor 801 is fixedly connected to the left side of the third box 14, the second motor 801 is KI2 in model, the grooved pulley 802 is fixedly connected to the outer wall of the output shaft of the second motor 801, the grooved pulley 802 can be fixed to the outer wall of the output shaft of the second motor 801, the third round bar 803 is rotatably connected to the left side of the rear end face of the inner wall of the third box 14, the third round bar 803 can rotate on the rear end face of the inner wall of the third box 14, the gear 804 and the grooved pulley 802 are fixedly connected to the outer wall of the third round bar 803, the gear 804 and the grooved pulley 802 are fixed to the outer wall of the third round bar 803, the two grooved pulleys 802 are rotatably connected through the belt 805, the second motor 801 is used for rotating the gear 804, the outer wall of the belt 805 is in clearance fit with the left side of the third box 14, so that, the inner wall rear end face right side of the third box 14 rotates and is connected with a fourth round rod 806, so that the fourth round rod 806 can rotate on the inner wall rear end face right side of the third box 14, the outer wall of the fourth round rod 806 is fixedly connected with a second gear 807, the second gear 807 is fixed on the outer wall of the fourth round rod 806, the left side of the second gear 807 is meshed with the right side of the gear 804 to be connected, the gear 804 drives the second gear 807 to rotate, and the gear 804 drives the second gear 807 to crush garbage.

The compressing mechanism 9 comprises a sliding bar 901, a vertical block 902, a third pin 903, a diamond plate 904, a cross bar 905, a second sliding plate 906 and a push rod 907, the sliding bar 901 is fixedly connected to the left side of the inner wall of the box 1, so that the sliding bar 901 is fixed to the left side of the inner wall of the box 1, the vertical block 902 is fixedly connected to the outer wall of the sliding bar 901, the top of the vertical block 902 is rotatably connected to the diamond plate 904 through the third pin 903, so that the diamond plate 904 can rotate on the top of the vertical block 902, the left side and the right side of the diamond plate 904 are rotatably connected to the cross bar 905 through the third pin 903, so that the cross bar 905 can rotate on the left side and the right side of the diamond plate 904, the outer side of the cross bar 905 is rotatably connected to the second sliding plate 906 through the third pin 903, so that the sliding plate 906 can rotate on the outer side of the cross bar 905, the inner wall of the sliding plate 906 is slidably connected to the outer wall of the sliding bar 901, so that the second sliding plate 906 can perform phase motion on the outer wall of the sliding bar 901, the push rod 907 is installed on the right side of the left second sliding plate 906, the type of the push rod 907 is YH-Axxyyy-z, and the output end of the push rod 907 is installed on the left side of the vertical block 902, so that the push rod 907 drives the left second sliding plate 906 to slide left and right, and the left second sliding plate 906 moves the right second sliding plate 906 to perform synchronous phase motion, so that the sliding plate 906 compresses the iron product garbage.

When the intelligent garbage classification recycling system is used, a user connects and breaks down a power supply to the first motor 501, the fan 702, the heating pipe 703, the push rod 907 and the second motor 801, so that high-temperature airflow formed by the fan 702 and the heating pipe 703 circulates in the box body 1, the intelligent garbage classification recycling system operates, after the operation, the user pours garbage into the feeding port 2, after the garbage is poured, the garbage is contacted with the transverse plate 602, the transverse plate 602 rotates, the garbage is moved to slide into the sliding plate 11, when the garbage slides into the sliding plate 11, ferrous products in the garbage are adsorbed to the outer wall of the magnetic wheel 803, through the rotation of the first motor 501, the magnetic wheel 803 slides the ferrous products garbage into the top of the curved plate 12 through the L-shaped scraping rod 804, slides to the through plate 13 through the curved plate 12, so that the push rod 907 drives the two second sliding plates 906 to move in opposite directions to compress the ferrous products on the through plate 13, and pushed into the left drawer 16 for collection, other garbage falls into the third drawer 11 through the slide plate 11, so that the second motor 801 drives the gear 804 to rotate, the gear 804 drives the second gear 807 to rotate, further the garbage falling into the third drawer 1 is crushed through the rotation of the gear 804 and the second gear 807, the crushed garbage falls into the right drawer 16 for storage, when a user wants to adjust the wind direction of the high-temperature airflow, the user pulls the clamping rod 705 to enable the clamping rod 705 to be clamped with the clamping groove plate 707, after the clamping is cancelled, the user rotates the clamping rod 705 to enable the clamping rod 705 to drive the second drawer 701 to rotate, so that the wind direction of the high-temperature airflow is changed, after the change, the user re-clamps the clamping rod with the clamping groove plate 707 to fix the second drawer 701, after the garbage is classified, the user pulls out the left and right drawer 16, and performing garbage collection so as to finish the garbage collection.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.

In the present invention, unless otherwise expressly specified or limited, the terms "mounted," "disposed," "connected," "secured," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; the terms may be directly connected or indirectly connected through an intermediate, and may be communication between two elements or interaction relationship between two elements, unless otherwise specifically limited, and the specific meaning of the terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An intelligent recycling system for garbage classification, comprising a box body (1), characterized in that: a feeding port (2) is processed on the right side of the top of the box body (1), and a right side of the box body (1) is opened There is a first box body port (3), the inner wall of the first box body port (3) is provided with a drying mechanism (7), and the drying mechanism (7) includes a first box body, a second box body ( 701), fan (702), heating pipe (703), second pin (704), clamping rod (705), second spring (706) and clamping slot plate (707), the second box (701) ) is rotatably connected to the inner wall of the first box body port (3) through the second pin shaft (704), the inner wall of the first box body is sleeved with a fan (702), and the left side of the inner wall of the first box body is sleeved A heating tube (703) is connected, a clamping rod (705) is gap-fitted on the right side of the second box (701), and a second spring (706) is gap-fitted on the inner wall of the clamping rod (705). The right side of the second spring (706) is engaged with the right side of the second box (701), and the right side of the clamping rod (705) is clamped with a card slot plate (707), the card slot plate ( The left side of 707) is fixed to the right side of the box body (1), and the grooves of the card slot plates (707) are 30 degrees between each other;

An adsorption mechanism (5) is provided on the left side of the box body (1), a sliding mechanism (6) is provided on the right side of the inner wall of the box body (1), and the sliding mechanism (6) includes a pin shaft (601). , a horizontal plate (602), a round rod (603), a second round rod (604) and a spring (605), the horizontal plate (602) is rotatably connected to the inner wall right of the box (1) through a pin (601) On the side, the bottom of the horizontal plate (602) is rotatably connected with a round rod (603) through a pin shaft (601). The outer wall of the round rod (603) is clearance-fitted with a second round rod (604), The inner wall of the round rod (604) is gap-fitted with a spring (605), and the right side of the second round rod (604) is rotatably connected to the right side of the inner wall of the box body (1) through a pin shaft (601);

A vertical plate (4) is fixedly connected to the bottom of the inner wall of the box body (1), a slide plate (11) is fixed to the right side of the vertical plate (4), and the bottom four corners of the box body (1) are fixed to each other. There is a base (10), a curved plate (12) is fixedly connected to the left side of the rear end surface of the inner wall of the box body (1), and a port plate (13) is fixedly connected to the left side of the inner wall of the box body (1). A compression mechanism (9) is provided on the top of the port plate (13), and the compression mechanism (9) includes a sliding rod (901), a vertical block (902), a third pin (903), and a diamond-shaped plate (904) , a cross bar (905), a second sliding plate (906) and a push rod (907), the sliding rod (901) is fixed on the left side of the inner wall of the box (1), and the outer wall of the sliding rod (901) is fixed A vertical block (902) is connected, and the top of the vertical block (902) is connected with a diamond-shaped plate (904) through a third pin shaft (903) in rotation, and the left and right sides of the diamond-shaped plate (904) are connected by a third pin. The shaft (903) is rotatably connected to a crossbar (905), and the outer side of the crossbar (905) is connected to a second slide plate (906) through a third pin shaft (903) in rotation. The inner wall of the second slide plate (906) It is slidably connected to the outer wall of the sliding rod (901), a push rod (907) is installed on the right side of the second sliding plate (906) on the left side, and the output end of the push rod (907) is installed on the vertical block (902). left side;

A third box body (14) is fixedly connected to the right side of the inner wall of the box body (1), the inner wall of the third box body (14) is provided with a pulverizing mechanism (8), and the pulverizing mechanism (8) includes a third box body (14). Second motor (801), sheave (802), third round rod (803), gear (804), belt (805), fourth round rod (806) and second gear (807), the second motor (801) is fixed to the left side of the third box (14), the outer wall of the output shaft of the second motor (801) is fixed with a sheave (802), and the inner wall of the third box (14) is A third round rod (803) is rotatably connected to the left side of the end face, the outer wall of the third round rod (803) is fixed with a gear (804) and a sheave (802), and the two sheaves (802) pass through the belt (805) are rotatably connected, the outer wall of the belt (805) is gap-fitted with the left side of the third box body (14), and the right side of the rear end surface of the inner wall of the third box body (14) is rotatably connected with a fourth round rod (806), a second gear (807) is fixedly connected to the outer wall of the fourth round rod (806), and the left side of the second gear (807) is meshed and connected with the right side of the gear (804);

The left and right sides of the box body (1) are provided with a second box body port (15), and a pull box (16) is gap-fitted with the inner wall of the second box body port (15).

2 . The intelligent recycling system for garbage sorting according to claim 1 , wherein the sliding plate ( 11 ) corresponds to the position of the third box ( 14 ). 3 .

3 . The intelligent recycling system for garbage sorting according to claim 1 , wherein the adsorption mechanism ( 5 ) comprises a first motor ( 501 ), a bearing ( 502 ), a magnetic wheel ( 503 ) and an L-shaped scraper. 4 . A rod (504), the first motor (501) is fixedly connected to the top left side of the box (1), and the output shaft of the first motor (501) is rotatably connected to the box (1) through a bearing (502) On the left side of the first motor (501), a magnetic wheel (503) is fixed on the outer wall of the output shaft of the first motor (501), and an L-shaped scraper (504) is attached to the outer wall of the magnetic wheel (503). The left side of the scraper rod (504) is fixedly connected to the left side of the inner wall of the box body (1).
