Abstract

The invention relates to a multifunctional display device.A bottom plate of a cabinet body is provided with a plurality of support frames, the top end of each support frame is provided with a rigid sphere, and a box body is arranged on each support frame; a vertical sliding groove is formed in the inner side wall of the box body, and the supporting plate is arranged in the vertical sliding groove; the screw is supported on a bearing seat on the supporting plate, a threaded sleeve is screwed on the screw, a hinge seat is arranged on the threaded sleeve, and a first driving motor is in driving connection with the screw; one end of the bottom of the display table is hinged with the upper support of the supporting plate, one end of the connecting rod is hinged with the hinge seat, and the other end of the connecting rod is hinged with the other end of the bottom of the display table; the bottom of the supporting plate is provided with a first supporting block, a jacking worm is arranged below the first supporting block, the jacking worm is meshed with a worm wheel, the worm wheel is meshed with a driving worm, and a second motor is in driving connection with the driving worm; a second supporting block is arranged below the box body, a rotating shaft is arranged below the second supporting block, a driven bevel gear is arranged at the lower end of the rotating shaft and meshed with the driving bevel gear, and a third driving motor is in driving connection with the driving bevel gear. The adjustment of the inclination, the lifting and the rotation of the display platform is realized.

Description

Multifunctional display device
Technical Field
The invention relates to a multifunctional display device.
Background
The theme center, museum and exhibition center are important places for displaying art, historical relics and culture, and people can learn and educate from the places. The prior display cabinet in the museum has single function, is mostly fixed, and has the problems of incapability of height adjustment, rotation and inclination. The visitor can't watch the exhibit, has certain dead angle, can't watch the full situation, places owing to the level to some exhibits moreover and can't see inner structure, has greatly reduced ornamental effect.
Disclosure of Invention
The invention aims to overcome the defects in the prior art and provide a multifunctional display device.
The purpose of the invention is realized by the following technical scheme:
multifunctional display device, the characteristics are: the multifunctional cabinet comprises a cabinet body and a box body arranged in the cabinet body, wherein a plurality of supporting frames are vertically arranged on a bottom plate of the cabinet body, an accommodating box at the top end of each supporting frame is provided with a rigid sphere, and the box body is supported on the rigid sphere;
the inner side wall of the box body is provided with a vertical sliding groove, and the end part of the supporting plate is arranged in the vertical sliding groove and can move up and down along the vertical sliding groove;
the support plate is provided with two bearing seats, the screw rod is rotatably supported on the two bearing seats, the screw rod is rotatably matched with a threaded sleeve, the threaded sleeve is provided with a hinge seat, and the first driving motor is in driving connection with the screw rod and can drive the screw rod to rotate; the display table is positioned on the box body, one end of the bottom of the display table is hinged with the support on the supporting plate, one end of the connecting rod is hinged with the hinge base, the other end of the connecting rod is hinged with the other end of the bottom of the display table, the first driving motor drives the screw rod to rotate, the screw sleeve moves linearly, and the connecting rod drives the display table to rotate obliquely;
the bottom of the supporting plate is provided with a first supporting block, a jacking worm is arranged below the first supporting block, the jacking worm is meshed with a worm wheel, the worm wheel is meshed with a driving worm, a second motor is in driving connection with the driving worm, the second motor drives the driving worm to rotate, the driving worm drives the worm wheel to rotate, and the worm wheel drives the jacking worm to lift so that the first supporting block and the supporting plate move up and down;
the second supporting block is installed below the box body, the rotating shaft is installed below the second supporting block, the driven bevel gear is installed at the lower end of the rotating shaft and meshed with the driving bevel gear, the third driving motor is in driving connection with the driving bevel gear, the third driving motor drives the driving bevel gear to rotate and drives the driven bevel gear to rotate, the rotating shaft is made to rotate, the second supporting block drives the box body to rotate, and rotary motion of the display table is achieved.
Further, in the multifunctional display device, the display table is provided with a plurality of T-shaped dovetail grooves, and the T-shaped dovetail grooves are internally provided with fixing frames for fixing the display articles.
Further, in the multifunctional display device, the first driving motor is a stepping servo motor and is fixed on the supporting plate.
Further, in the multifunctional display device, the second motor is mounted on the first supporting table, and the first supporting table is fixed on the box body.
Further, in the multifunctional display device, the second motor is a stepping servo motor.
Further, in the multifunctional display device, the third driving motor is mounted on the second supporting platform, and the second supporting platform is fixed on the cabinet body.
Further, in the multifunctional display device, the third driving motor is a stepping servo motor.
Furthermore, in the multifunctional display device, the upper part of the cabinet body is provided with the glass cover, the inner wall of the glass cover is symmetrically provided with the lamp holder, and the lamp holder is provided with the LED bulb.
Furthermore, in the multifunctional display device, the four corners of the bottom surface of the cabinet body are fixedly provided with the support for mounting the rotating wheels, the rotating wheels are mounted on the support, and the support is further provided with the brake pad.
Compared with the prior art, the invention has obvious advantages and beneficial effects, and is embodied in the following aspects:
the invention has unique design and compact structure, integrates the functions of inclination, lifting, rotation and the like of the display platform, drives the screw rod to rotate through the first driving motor, enables the screw sleeve to move linearly, enables the connecting rod to drive the display platform to rotate in an inclined way, and realizes the inclination adjusting function of the display platform; the driving worm is driven to operate by the second motor, the driving worm drives the worm wheel to rotate, and the worm wheel drives the jacking worm to lift, so that the supporting plate moves up and down along the vertical sliding groove, and the lifting adjusting function of the display stand is realized; the third driving motor drives the driving bevel gear to rotate to drive the driven bevel gear to rotate, so that the rotating shaft rotates, the box body rotates, and the rotary adjusting function of the display stand is realized; the operation is swift convenient, and the function is abundant, realizes the regulation of height, rotation and slope, and the exhibit can all-round show, is showing and has increased ornamental effect.
Additional features and advantages of the invention will be set forth in the description which follows, and in part will be obvious from the description, or may be learned by the practice of the invention. The objectives and other advantages of the invention will be realized and attained by the structure particularly pointed out in the written description and claims hereof as well as the appended drawings.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings needed to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

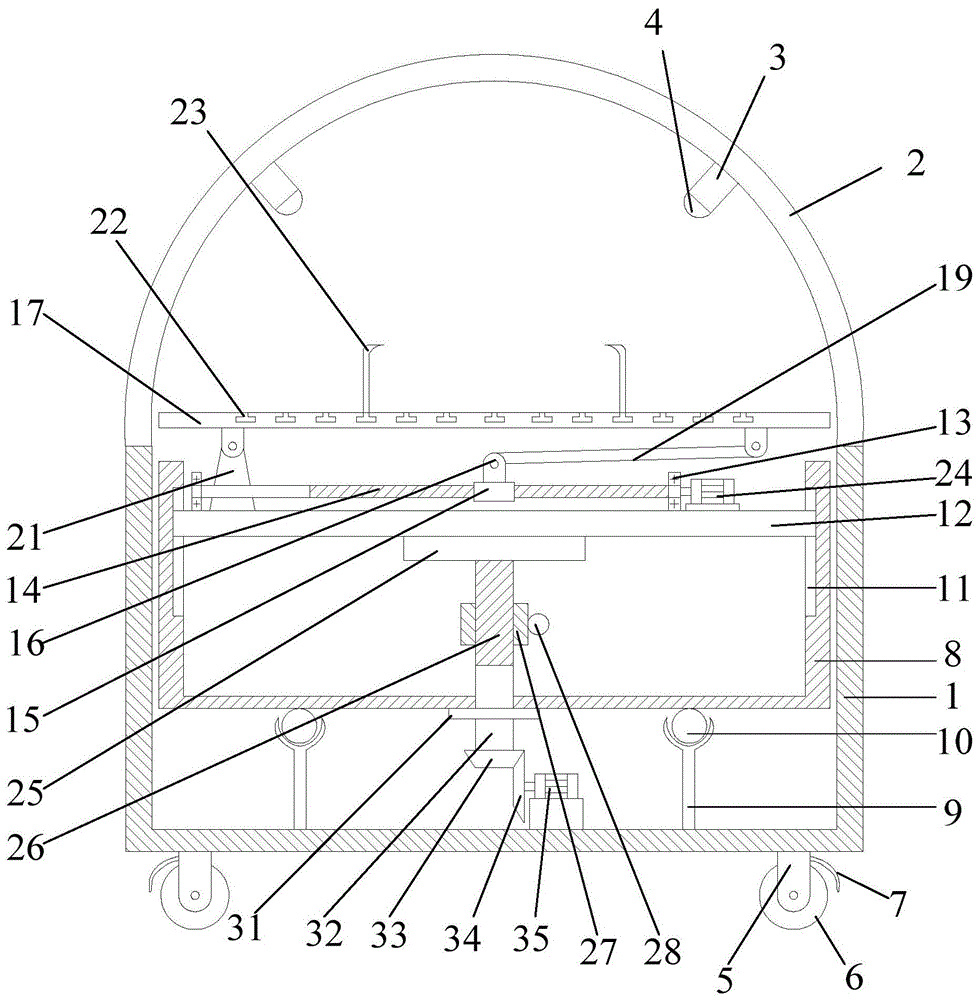

FIG. 1: the invention has a structure schematic diagram;
FIG. 2: the connection between the second motor and the driving worm gear is shown schematically.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. The components of embodiments of the present invention generally described and illustrated in the figures herein may be arranged and designed in a wide variety of different configurations. Thus, the following detailed description of the embodiments of the present invention, presented in the figures, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments of the present invention without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures. Meanwhile, in the description of the present invention, the directional terms and the sequence terms, etc. are used only for distinguishing the description, and are not to be construed as indicating or implying relative importance.
The jacking worm is driven to rise by the worm wheel, and the height of one circle of rotation of the worm wheel is the height of the pitch of the jacking worm.
As shown in fig. 1, the multifunctional display device comprises a cabinet body 1 and a box body 8 arranged in the cabinet body 1, wherein a plurality of supporting frames 9 are vertically arranged on the bottom plate of the cabinet body 1, an accommodating box at the top end of each supporting frame 9 is provided with a rigid sphere 10, and the box body 8 is supported on the rigid sphere 10;
the inner side wall of the box body 8 is provided with a vertical sliding chute 11, and the end part of the supporting plate 12 is arranged in the vertical sliding chute 11 and can move up and down along the vertical sliding chute;
two bearing seats 13 are arranged on the support plate 12, the screw 14 is rotatably supported on the two bearing seats 13, the screw 14 is rotatably matched with a threaded sleeve 15, a hinge seat 16 is arranged on the threaded sleeve 15, a first driving motor 24 is in driving connection with the screw 14 and can drive the screw to rotate, and the first driving motor 24 is a stepping servo motor and is fixed on the support plate 12; the display platform 17 is positioned on the box body 8, one end of the bottom of the display platform 17 is hinged with the support 21 on the support plate, one end of the connecting rod 19 is hinged with the hinge base 16, the other end of the connecting rod is hinged with the other end of the bottom of the display platform 17, the first driving motor 24 drives the screw rod 14 to rotate, the threaded sleeve 15 is made to move linearly, and the connecting rod 19 drives the display platform 17 to rotate obliquely;
a first supporting block 25 is installed at the bottom of the supporting plate 12, a jacking worm 26 is installed below the first supporting block 25, the jacking worm 26 is meshed with a worm wheel 27, the worm wheel 27 is meshed with a driving worm 28, and a second motor 29 is in driving connection with the driving worm 28, as shown in fig. 2, the second motor 29 is a stepping servo motor, the second motor 29 is installed on a first supporting table, the first supporting table is fixed on the box body 8, the second motor 29 drives the driving worm 28 to operate, the driving worm 28 drives the worm wheel 27 to rotate, and the worm wheel 27 drives the jacking worm 26 to lift, so that the first supporting block 25 and the supporting plate 12 move up and down;
a second supporting block 31 is installed below the box body 8, a rotating shaft 32 is installed below the second supporting block 31, a driven bevel gear 33 is installed at the lower end of the rotating shaft 32, the driven bevel gear 33 is meshed with a driving bevel gear 34, a third driving motor 35 is in driving connection with the driving bevel gear 34, the third driving motor 35 is a stepping servo motor, the third driving motor 35 is installed on a second supporting table, the second supporting table is fixed on the cabinet body 1, the third driving motor 35 drives the driving bevel gear 34 to rotate to drive the driven bevel gear 33 to rotate, the rotating shaft 32 is made to rotate, the second supporting block 31 drives the box body 8 to rotate, and accordingly rotary motion of the display table 17 is achieved. The exhibition platform 17 is provided with a plurality of T-shaped dovetail grooves 22, and a fixing frame 23 for fixing the exhibition article is assembled in the T-shaped dovetail grooves 22 for fixing the exhibition article and preventing the exhibition article from sliding.
A glass cover 2 is installed on the upper portion of the cabinet body 1, lamp holders 3 are symmetrically installed on the inner wall of the glass cover 2, and LED bulbs 4 are installed on the lamp holders 3.
The four corners position of the cabinet body 1 bottom surface is fixed with and is used for installing the support 5 that rotates the wheel, rotates wheel 6 and installs on support 5, still installs brake block 7 on the support 5.
In conclusion, the invention has unique design and compact structure, integrates the functions of inclination, lifting, rotation and the like of the display platform, drives the screw rod to rotate through the first driving motor, enables the screw sleeve to move linearly, enables the connecting rod to drive the display platform to rotate in an inclined manner, and realizes the inclination adjusting function of the display platform; the driving worm is driven to operate by the second motor, the driving worm drives the worm wheel to rotate, and the worm wheel drives the jacking worm to lift, so that the supporting plate moves up and down along the vertical sliding groove, and the lifting adjusting function of the display stand is realized; the third driving motor drives the driving bevel gear to rotate to drive the driven bevel gear to rotate, so that the rotating shaft rotates, the box body rotates, and the rotary adjusting function of the display stand is realized; the operation is swift convenient, and the function is abundant, realizes the regulation of height, rotation and slope, and the exhibit can all-round show, is showing and has increased ornamental effect.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention. It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
The above description is only for the specific embodiments of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art can easily conceive of the changes or substitutions within the technical scope of the present invention, and shall be covered by the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Claims (9)

1. Multi-functional display device, its characterized in that: the multifunctional wardrobe comprises a wardrobe body (1) and a wardrobe body (8) arranged in the wardrobe body, wherein a plurality of supporting frames (9) are vertically arranged on a bottom plate of the wardrobe body (1), an accommodating box at the top end of each supporting frame (9) is provided with a rigid sphere (10), and the wardrobe body (8) is supported on the rigid sphere (10);
a vertical sliding groove (11) is formed in the inner side wall of the box body (8), and the end part of the supporting plate (12) is arranged in the vertical sliding groove (11) and can move up and down along the vertical sliding groove;
two bearing seats (13) are installed on the support plate (12), the screw (14) is rotatably supported on the two bearing seats (13), the screw (14) is rotatably matched with a threaded sleeve (15), a hinge seat (16) is installed on the threaded sleeve (15), and a first driving motor (24) is in driving connection with the screw (14) and can drive the screw to rotate; the display platform (17) is positioned on the box body (8), one end of the bottom of the display platform (17) is hinged with the support (21) on the support plate, one end of the connecting rod (19) is hinged with the hinge seat (16), the other end of the connecting rod is hinged with the other end of the bottom of the display platform (17), and the first driving motor (24) drives the screw rod (14) to rotate, so that the threaded sleeve (15) moves linearly, and the connecting rod (19) drives the display platform (17) to rotate obliquely;
the bottom of the supporting plate (12) is provided with a first supporting block (25), a jacking worm (26) is arranged below the first supporting block (25), the jacking worm (26) is meshed with a worm wheel (27), the worm wheel (27) is meshed with a driving worm (28), a second motor (29) is in driving connection with the driving worm (28), the second motor (29) drives the driving worm (28) to run, the driving worm (28) drives the worm wheel (27) to rotate, and the worm wheel (27) drives the jacking worm (26) to lift, so that the first supporting block (25) and the supporting plate (12) move up and down;
second supporting block (31) is installed to box (8) below, a pivot (32) is installed to second supporting block (31) below, driven bevel gear (33) is installed to the lower extreme of pivot (32), driven bevel gear (33) and drive bevel gear (34) meshing, third driving motor (35) and drive bevel gear (34) drive connection, third driving motor (35) drive bevel gear (34) rotate, drive driven bevel gear (33) and rotate, make pivot (32) rotatory, and then make second supporting block (31) drive box (8) rotatory, realize show stand (17) rotary motion.
2. A multi-functional display device as claimed in claim 1, wherein: the exhibition platform (17) is provided with a plurality of T-shaped dovetail grooves (22), and the T-shaped dovetail grooves (22) are internally provided with a fixing frame (23) for fixing the exhibited articles.
3. A multi-functional display device as claimed in claim 1, wherein: the first driving motor (24) is a stepping servo motor and is fixed on the support plate (12).
4. A multi-functional display device as claimed in claim 1, wherein: the second motor (29) is arranged on the first supporting platform which is fixed on the box body (8).
5. Multifunctional display device according to claim 1 or 4, characterized in that: the second motor (29) is a stepping servo motor.
6. A multi-functional display device as claimed in claim 1, wherein: the third driving motor (35) is arranged on the second supporting platform, and the second supporting platform is fixed on the cabinet body (1).
7. A multi-functional display device as claimed in claim 1 or 6, wherein: the third drive motor (35) is a stepping servo motor.
8. A multi-functional display device as claimed in claim 1, wherein: a glass cover (2) is installed on the upper portion of the cabinet body (1), lamp holders (3) are symmetrically installed on the inner wall of the glass cover (2), and LED bulbs (4) are installed on the lamp holders (3).
9. A multi-functional display device as claimed in claim 1, wherein: the four corners position of the cabinet body (1) bottom surface is fixed with a support (5) used for installing a rotating wheel, the rotating wheel (6) is installed on the support (5), and a brake block (7) is further installed on the support (5).
