Abstract

The invention relates to a kitchen cooking appliance, in particular to a food processing machine, comprising: a container, which has a cavity for accommodating materials; a crushing device, which is arranged in the cavity and crushes the materials; a cover, which is covered above the container, It is sealed and connected with the container; it is characterized in that: the container comprises: a lower shell; an upper shell, which is sealed integrally with the upper end of the lower shell, and is enclosed with the lower shell to form a cavity of the container; a nozzle is located in the upper shell The nozzle penetrates the wall of the upper casing and extends into the cavity of the container; the upper nozzle is located at one end of the nozzle in the cavity, and is used for spraying cleaning liquid toward the cover body. The food processing machine of the present invention can automatically clean the cover body and the inner surface of the container without manual cleaning, and the nozzle is installed on the upper casing with simple structure and reliable sealing.

Description

a food processor

technical field

The present invention relates to kitchen cooking appliances, in particular to a food processing machine.

Background technique

Existing cooking utensils with lids in home kitchens, such as electric rice cookers, electric pressure cookers, soymilk machines with a motor-mounted structure, food processors, etc., require users to manually clean the food after making the food, which is troublesome.

In addition, in the process of cooking food with the cooking utensil, the heated soup will generate foam and continuously impact the cover of the cooking utensil, resulting in a lot of residues and stains on the cover. Especially for a food processor with a pulverizing device, the pulverizing device will drive the slurry to rotate at a high speed during the whipping process, and the whipped material and slurry will also splash on the cover, which is also easy to cause The cover body retains pulp residue or pulp stains. Therefore, users often need to wash the cover with water separately. However, for a cooking utensil whose cover and body are non-removable, cleaning of the cover becomes a more difficult problem.

Based on this, the applicant previously applied for a utility model patent application with the patent application number "CN201720940267.8". In this patent application, it is disclosed that a pipeline is hidden on the top of the lid, and the inner surface of the lid is sprayed by setting a spray device at one end of the pipeline extending from the top of the lid into the cooking cavity . Although this solution can clean the inner surface of the lid well, the lid as a whole will be relatively bulky, and for cooking appliances that need to be provided with a feeding port or a pressure relief valve on the lid, it is difficult to achieve a limited space. structural integration. At the same time, the cup lid of this solution cannot achieve a see-through structure, and it is difficult to meet the needs of general consumers.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a food processing machine that can automatically clean the cover body and the inner surface of the container without manual cleaning, and the nozzle is installed on the upper casing with a simple structure and reliable sealing.

In order to achieve the above object, the present invention adopts the following technical solutions: a food processing machine, comprising:

a container, having a cavity to hold the material;

The crushing device is arranged in the cavity and crushes the material;

The cover body is closed on the top of the container, and is sealed with the container;

It is characterized in that: the container includes:

lower shell;

The upper shell is integrally sealed with the upper end of the lower shell, and is enclosed with the lower shell to form a cavity of the container;

a nozzle, located on the wall of the upper shell, the nozzle penetrates the wall of the upper shell and extends into the cavity of the container;

The upper nozzle, located at one end of the nozzle in the cavity, is used to spray the cleaning liquid toward the cover.

Further, the vertical maximum distance between the upper spout and the inner surface of the top wall of the cover body is H, where 4mm≤H≤29mm;

Alternatively, the cleaning liquid sprayed from the upper nozzle is sprayed obliquely toward the top wall of the cover body, and the spraying inclination angle formed by the sprayed cleaning liquid and the vertical plane is α, where α≤15º.

Further, the materials of the upper casing and the lower casing are different.

Further, the lower shell is a glass part, and the upper shell is a plastic part.

Further, the lower casing and the upper casing are integrally formed;

Alternatively, a sealing ring is provided between the upper casing and the lower casing;

Alternatively, the connecting surface between the upper shell and the lower shell is a curved surface;

Or, the upper casing is a barrel-shaped structure that penetrates up and down and is closed in the circumferential direction;

Alternatively, the upper casing is a curved panel with an opening on one side in the circumferential direction.

Further, a sealing sleeve sleeved on the outside of the nozzle is provided between the nozzle and the upper casing;

Or, the upper spout is arranged lower than the upper end face of the upper casing;

Alternatively, a through hole is provided on the wall of the upper casing, the upper spout is communicated with one end of the through hole, and the upper spout and the through hole form a nozzle.

Further, the food processing machine includes a body and a cup body disposed in the body, the body has a transition portion extending to the top of the cup body and sealingly connected with the top of the cup body, the transition portion is formed as an upper shell, so The cup body is a lower shell, the transition part and the cup body are enclosed to form a cavity of the container, the nozzle is arranged on the side wall of the transition part, the cover body is covered on the top end of the transition part, and the The vertical height is not more than 50mm.

Further, it also includes a water supply system, and the water supply system is communicated with the nozzle through a connecting pipeline;

Alternatively, the upper spout is provided with a dust cover that can open and close the upper spout, and the dust cover is a silicone piece.

Further, the bottom of the container is provided with a slurry outlet, and the slurry outlet is communicated with the nozzle through a circulation pipeline.

Further, the circulation pipeline is provided with a control valve for controlling the on-off of the circulation pipeline.

After the above technical solution is adopted, since a nozzle is arranged on the wall of the upper casing, and one end of the nozzle has an upper nozzle for spraying cleaning liquid toward the inner surface of the top wall of the cover body, when cleaning water or other cleaning liquid flows through the nozzle, The cleaning water will be sprayed onto the cover body through the upper nozzle to wash and clean the inner surface of the top wall of the cover body, which solves the problem that the cover body of the cooking utensil in the prior art needs to be cleaned manually or the cover body cannot be removed for cleaning. Moreover, in the process of washing the top wall of the cover body with the cleaning water, the cleaning water will spread out along the top wall of the cover body to the edge of the cover body, and under the action of gravity, the cleaning water will follow the The cover body flows into the container, and forms a water curtain effect on the inner wall surface of the container, so as to flush and clean the inner surface of the container. Compared with the prior art, the food processing machine of the present invention can realize the automatic cleaning of the food processing machine, completely solve the problem that the cover body is not easy to clean, and at the same time, it also realizes the automatic cleaning of the container, which greatly improves the intelligence of the food processing machine. level.

At the same time, in the prior art, when the container is made of fragile materials such as glass, if the nozzle is arranged on the peripheral wall of the container, it is necessary to open a hole on the peripheral wall of the container and carry out sealing treatment, which is difficult to manufacture and is prone to container damage. Or the problem of seal failure, there is a large rejection rate. For the food processor of the present invention, the materials of the upper casing and the lower casing are different, and the cavity formed by the container is formed by the lower casing and the upper casing. Therefore, the lower casing is fragile such as glass. In terms of material, the nozzle can be arranged on the non-fragile upper casing, which not only ensures the overall aesthetic effect of the container, but also realizes the installation and sealing of the nozzle.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings:

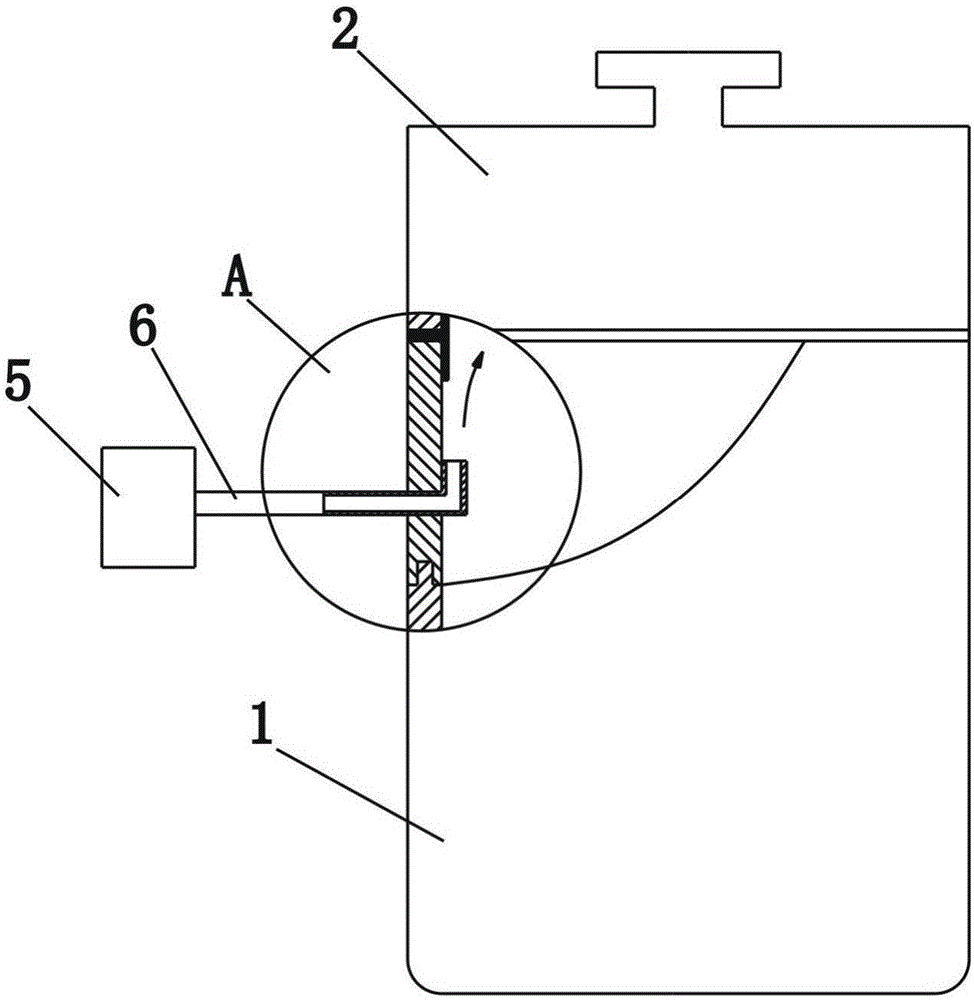

1 is a schematic structural diagram of Embodiment 1 of the present invention;

Fig. 2 is the enlarged structure schematic diagram of A place in Fig. 1;

3 is a schematic structural diagram of Embodiment 2 of the present invention;

Fig. 4 is the enlarged structure schematic diagram at B in Fig. 3;

5 is a schematic structural diagram of Embodiment 3 of the present invention;

6 is a schematic structural diagram of Embodiment 4 of the present invention;

FIG. 7 is an enlarged schematic view of the structure at C in FIG. 6 .

Detailed ways

Example 1:

As shown in FIG. 1 and FIG. 2 , it is a schematic structural diagram of the first embodiment of the present invention. A food processor comprising:

The container 1 has a cavity for accommodating materials, and a pulverizing device for pulverizing the materials is arranged in the cavity (not shown in the figure);

The cover body 2 is closed on the top of the container 1, and a sealing member 3 is provided between the container 2 for sealing connection;

Among them, container 1 includes:

The lower shell 12 is located at the bottom of the container 1;

The upper casing 11 is integrally sealed with the upper end of the lower casing 12, and is enclosed with the lower casing 12 to form a cavity of the container;

The nozzle 4 is arranged on the wall of the upper casing, the nozzle 4 penetrates the wall of the upper casing 12 and extends into the cavity of the container 1;

The upper nozzle 41 is located at one end of the nozzle 4 in the cavity, and is used for spraying cleaning liquid toward the inner surface of the top wall of the cover body 2 to clean the cover body 2 and the container 1 .

In this embodiment, the materials of the upper casing 11 and the lower casing 12 are different, the lower casing 12 is a barrel-shaped glass piece, the upper casing 11 is a plastic piece, and the lower casing 12 and the upper casing 11 are made of injection molding It is integrally formed in a way of realizing the sealing connection between the upper casing 11 and the lower casing 12 . In addition, in this embodiment, the upper casing 11 is a curved panel with an opening on one side in the circumferential direction, and the connecting surface of the upper casing 11 and the lower casing 12 is a curved surface, so that the entire container is formed as a large translucent and a small semi-opaque. Appearance. The nozzle 4 is directly embedded on the wall of the upper casing 11 and has an interference seal with the upper casing 11 . In this embodiment, the upper nozzle 41 is lower than the upper end face of the upper casing 11 to facilitate the cover body 2 When picking and placing, it will not collide with the nozzle 4 .

In addition, a water supply system 5 is also provided outside the container 1, and the water supply system 5 communicates with the other end of the nozzle 4 through the connecting pipeline 6, so as to realize water feeding into the container 1 for cleaning or adding water to make pulp.

For this embodiment, since a nozzle is provided on the wall of the upper casing, and one end of the nozzle has an upper nozzle for spraying cleaning liquid toward the inner surface of the top wall of the cover, when cleaning water or other cleaning liquid flows through the nozzle , the cleaning water will be sprayed onto the top wall of the cover body through the upper nozzle, and the inner surface of the top wall of the cover body will be washed and cleaned, which solves the problem that the cover body of the cooking utensil in the prior art needs to be cleaned manually or the cover body cannot be removed for cleaning. . Moreover, in the process of washing the top wall of the cover body with the cleaning water, the cleaning water will spread out along the top wall of the cover body to the edge of the cover body, and under the action of gravity, the cleaning water will follow the The cover body flows into the container, and forms a water curtain effect on the inner wall surface of the container, so as to flush and clean the inner surface of the container. Compared with the prior art, the food processing machine of this embodiment can realize the automatic cleaning of the food processing machine, completely solve the problem that the cover body is not easy to clean, and at the same time, it also realizes the automatic cleaning of the container, which greatly improves the food processing machine. level of intelligence.

At the same time, in the prior art, when the container is made of fragile materials such as glass, if the nozzle is arranged on the peripheral wall of the container, it is necessary to open a hole on the peripheral wall of the container and carry out sealing treatment, which is difficult to manufacture and is prone to container damage. Or the problem of seal failure, there is a large rejection rate. For the food processor of the present invention, the cavity formed by the container is formed by the lower casing and the upper casing. Therefore, when the lower casing is made of fragile materials such as glass, the nozzle can be arranged in a non-contact area. The fragile upper shell not only ensures the overall aesthetic effect of the container, but also realizes the installation and sealing of the nozzle.

In addition, in this embodiment, the lower casing is made of glass, which is more convenient for consumers to observe the process of making food inside, and improves the consumer's enjoyment of use. Moreover, since the upper casing is not a circumferentially closed structure, the upper casing and the The connecting surface of the lower shell is a curved surface, and the curved surface is a curve when projected to a vertical plane. Therefore, the upper shell is also used as a decorative piece, which improves the aesthetics of the whole machine. Of course, for this embodiment, the cover body may also be a transparent cover body. Of course, the materials of the upper and lower casings are not limited to the plastic and glass of this embodiment.

It should be noted that the above-mentioned structural changes of this embodiment can also be applied to other embodiments of the present invention.

Embodiment 2:

As shown in FIG. 3 and FIG. 4 , it is a schematic structural diagram of the second embodiment of the present invention. The difference between this embodiment and the first embodiment is that in this embodiment, the upper casing 11 is a barrel-shaped structure that penetrates up and down and is closed in the circumferential direction, and a sealing ring is arranged between the upper casing 11 and the lower casing 12 13, to seal the gap between the upper casing 11 and the lower casing 12. At the same time, the cleaning liquid sprayed from the upper nozzle 41 is sprayed obliquely toward the top wall of the cover body.

For this embodiment, the vertical maximum distance between the upper spout and the inner surface of the top wall of the cover is H, where H=4mm~29mm is required, because if H is less than 4mm, the spray from the upper spout to the top wall of the cover is H. The cleaning water may bounce directly to the bottom of the container because the impact speed is too large, so that it will not wash along the top wall of the cover to the edge of the top wall of the cover, and lose the function of flushing the edge of the top wall of the cover and part of the peripheral wall of the cover. Complete cleaning of the cover is achieved. Similarly, if H is greater than 29mm, not only the overall height of the cover body is larger, but also the cleaning water sprayed from the upper nozzle needs a larger impact force to reach the top wall of the cover body, which not only increases the performance requirements of the water supply system , increase the design cost, and the cover itself will appear too bloated and affect the appearance. For this embodiment, the overall height of the cover body is preferably 6 mm˜30 mm, and H is preferably 5 mm˜25 mm.

At the same time, for this embodiment, the cleaning water sprayed from the upper nozzle is inclined to the top wall of the cover body relative to the vertical plane, which is more conducive to the cleaning water hitting the top wall of the cover body. The inertia component of scouring enables the cleaning water to spread out and wash to the edge of the top wall of the cover body and flow down along the peripheral wall of the cover body. Among them, the required injection inclination α≤15º. In the structure of this embodiment, if α is greater than 15°, the sprayed cleaning water may not be able to clean the top wall of the cover body, or may not completely clean the top wall of the cover body, resulting in the possibility of unclean cleaning. Therefore, for this embodiment, the injection inclination angle α is preferably 5º~12º.

It should be noted that the above-mentioned structural changes of this embodiment can also be applied to other embodiments of the present invention.

Embodiment three:

As shown in FIG. 5 , it is a schematic structural diagram of a third embodiment of the present invention. The difference between this embodiment and the first embodiment is that in this embodiment, a through hole 110 is provided on the wall of the upper casing 11 , the upper spout 41 is communicated with one end of the through hole 110 , and the upper spout 41 is connected with the through hole 110 forms a nozzle, and the other end of the through hole 110 is communicated with a water supply system (not shown in the figure) through the connecting pipe 6 .

In this embodiment, the wall thickness of the upper casing is relatively thick, and the through hole and the upper nozzle are combined to form a nozzle. Leakage of cleaning water occurs. At the same time, for this embodiment, the nozzle can also only be provided with a through hole on the upper casing. In this case, the outlet end of the through hole needs to be inclined toward the cover body, so as to spray cleaning water toward the cover body to wash the cover body. Moreover, the wall of the upper casing may be provided with a plurality of through-holes sprayed toward the cover, for example, a circle may be arranged around the circumference of the upper casing, so as to achieve flushing and cleaning of the top wall of the entire cover. It should be noted that the above-mentioned structural changes of this embodiment can also be applied to other embodiments of the present invention.

Embodiment 4:

As shown in FIG. 6 and FIG. 7 , it is a schematic structural diagram of a fourth embodiment of the present invention. The present embodiment is a food processing machine with a motor below, including a body 7 and a cup body 8 arranged in the body 7, and the motor shaft of the motor (not marked in the figure) penetrates the bottom of the cup body 8 and extends into the cup body 8, and a crushing blade is installed at the end of the motor shaft.

In this embodiment, the body 7 has a transition portion 71 extending to the top of the cup body 8 and sealingly connected to the top of the cup body 8 . The transition portion 71 is barrel-shaped and formed as an upper shell, and the cup body 8 is a lower shell. The transition part 71 and the cup body 8 are enclosed to form a cavity of the container, the nozzle 4 is arranged on the side wall of the transition part 71 , and the cover body 2 covers the top of the transition part 71 . A sealing sleeve 9 sleeved on the outside of the nozzle 4 is provided between the nozzle 4 and the transition portion 71 , and the sealing sleeve 9 can seal the gap between the nozzle 4 and the transition portion 71 to prevent leakage. At the same time, the bottom of the cup body 8 has a pulverizing cavity 80 that shrinks inward, and a slurry outlet 81 is provided on the side wall or bottom wall of the pulverizing cavity 80, which is located outside the cup body 8, and the slurry outlet 81 is connected to the nozzle 4. It communicates through the circulation line 82 , and the circulation line 82 is provided with a control valve 83 for controlling the on-off of the circulation line 82 .

In addition, in this embodiment, the cup body 8 is a glass cup body, and the cover body 2 is also a transparent glass cover body, a vent hole 20 is provided in the center of the glass cover body, and a soft plug 21 is installed at the vent hole 20 . Meanwhile, the upper spout 41 is provided with a dust cover 42 that can open and close the upper spout 41 .

In this embodiment, one end of the dust cover can be hinged to the upper spout, and the other end can be turned over and opened relative to the upper spout. At the same time, the dust cover can also be a silicone piece fixed at the upper spout, and the central area of the dust cover is provided with a water outlet that can be opened and closed. Since the dust cover is a silicone piece, the water outlet has elasticity, when When there is cleaning water in the nozzle, under the action of the cleaning water pressure, the outlet seam opens and sprays the cover to clean and scour. Dust-proof and slag-proof of the upper spout.

For this embodiment, the outside of the cup body is provided with a circulation pipeline that connects the nozzle with the pulp outlet at the bottom of the cup body, and since the bottom of the cup body shrinks to form a crushing cavity, during cleaning, when the crushing blade rotates at a high speed, It will push the cleaning water to be sprayed out from the upper nozzle of the nozzle through the circulating pipeline to flush the cover body. The inner surface of the crusher is washed to form a water curtain effect for cleaning. The food processor of this embodiment can use the rotating power of its own crushing blade to perform cyclic cleaning, and the amount of cleaning water is less, which effectively reduces the waste of water resources. Of course, in order to ensure that the slurry will not be ejected through the nozzle during the pulping process of the food processor, a control valve will be set on the circulation pipeline to close the circulation pipeline. The control valve in this embodiment can be a three-way valve, and the three-way valve can also be connected to the water tank, so that the food processor can communicate with the nozzle through the water tank during the pulping process, so as to feed water into the cup.

In this embodiment, the transition part is a part of the body, and the cup body is a glass cup body. Due to the material characteristics of the glass cup body, the nozzle is arranged on the glass cup body, which is easy to avoid the possibility of the glass body being scrapped or damaged. If the nozzle is arranged on the transition part of the body, there is no such problem, which effectively solves the problem of nozzle installation and realizes automatic cleaning of the entire food processing machine. It should be noted that, in this embodiment, the vertical height H1 of the transition portion is not greater than 50mm, because if the transition portion is too high, the height of the corresponding glass body will be reduced, which is not conducive for consumers to observe food processing through the glass Therefore, the transition part generally only needs to be able to install the nozzle. For this embodiment, the transition part is 5mm~20mm. In addition, in this embodiment, the ventilation holes on the cover body can also have the function of feeding into the cup in addition to the function of making pulp and ventilation. It should be noted that the above-mentioned structural changes in this embodiment can also be applied to other embodiments of the present invention.

Those skilled in the art should understand that the present invention includes but is not limited to the content described in the accompanying drawings and the above detailed description. Any modifications that do not depart from the functional and structural principles of the present invention are intended to be included within the scope of the claims.

Claims (10)

1. A food processor comprising: a container, having a cavity to hold the material; The crushing device is arranged in the cavity and crushes the material; The cover body is closed on the top of the container, and is sealed with the container; It is characterized in that: the container includes: lower shell; The upper shell is integrally sealed with the upper end of the lower shell, and is enclosed with the lower shell to form a cavity of the container; a nozzle, located on the wall of the upper shell, the nozzle penetrates the wall of the upper shell and extends into the cavity of the container; The upper nozzle, located at one end of the nozzle in the cavity, is used to spray the cleaning liquid toward the cover. 2. The food processor according to claim 1, wherein the vertical maximum distance between the upper spout and the inner surface of the top wall of the cover body is H, wherein 4mm≤H≤29mm; Alternatively, the cleaning liquid sprayed from the upper nozzle is sprayed obliquely toward the top wall of the cover body, and the spraying inclination angle formed by the sprayed cleaning liquid and the vertical plane is α, where α≤15º. 3 . The food processor according to claim 1 , wherein the materials of the upper casing and the lower casing are different. 4 . 4 . The food processor according to claim 3 , wherein the lower casing is a glass piece, and the upper casing is a plastic piece. 5 . 5. The food processor according to any one of claims 1 to 2, wherein the lower casing and the upper casing are integrally formed; Alternatively, a sealing ring is provided between the upper casing and the lower casing; Alternatively, the connecting surface between the upper shell and the lower shell is a curved surface; Or, the upper casing is a barrel-shaped structure that penetrates up and down and is closed in the circumferential direction; Alternatively, the upper casing is a curved panel with an opening on one side in the circumferential direction. 6. The food processor according to any one of claims 1 to 2, wherein a sealing sleeve is provided between the nozzle and the upper casing, which is sleeved on the outside of the nozzle; Or, the upper spout is arranged lower than the upper end face of the upper casing; Alternatively, a through hole is provided on the wall of the upper casing, the upper spout is communicated with one end of the through hole, and the upper spout and the through hole form a nozzle. 7. The food processing machine according to any one of claims 1 to 2, wherein the food processing machine comprises a body and a cup body arranged in the body, and the body has an extension to the top of the cup body and is connected with the cup body The transition part of the top sealing connection, the transition part is formed as an upper shell, the cup body is a lower shell, the transition part and the cup body are enclosed to form a cavity of the container, and the nozzle is arranged on the side wall of the transition part , the cover body is covered on the top end of the transition part, and the vertical height of the transition part is not more than 50mm. 8. The food processor according to any one of claims 1 to 3, characterized in that: further comprising a water supply system, and the water supply system and the nozzle are communicated through a connecting pipeline; Alternatively, the upper spout is provided with a dust cover that can open and close the upper spout, and the dust cover is a silicone piece. 9. The food processor according to any one of claims 1 to 2, wherein a slurry outlet is provided at the bottom of the container, and the slurry outlet is communicated with the nozzle through a circulation pipeline. 10 . The food processor according to claim 9 , wherein a control valve for controlling the on-off of the circulating pipeline is provided on the circulating pipeline. 11 .
