Abstract

The invention discloses a portable shoulder and neck nursing massager, which belongs to the technical field of massage devices. A portable massager for shoulder and neck care, comprising a mounting shell and a fixing seat, two ends of the mounting shell are fixedly connected with connecting ears, a connecting rod is connected between the connecting ears, the connecting rod is matched with an external wearing mechanism, and the mounting shell The bottom surface of the body is also fixedly connected with a holding handle; the interior of the installation casing is also provided with an installation groove, the fixing seat is connected inside the installation groove, and the side wall of the installation groove is provided with a first connection groove and a second connection groove. A connecting mechanism is connected to the side wall of the seat, the connecting mechanism is matched with the first connecting groove and the second connecting groove, the upper surface of the fixed seat is connected with a massage mechanism, and a driving device is installed inside the fixed seat, and the driving device is connected with the massage mechanism. Matching; the present invention effectively solves the problems that the existing design massage mode is relatively simple, the massage relaxation effect is not good, the structure is relatively complicated, and the fault is prone to occur.

Description

A portable massager for shoulder and neck care

technical field

The invention relates to the technical field of massage devices, in particular to a portable massager for shoulder and neck care.

Background technique

In recent years, with the development of society, people's life rhythm is getting faster and faster, and there is less time to relax and rest. Coupled with the reasons of bad living habits, such as long-term cervical spine in a specific state for a long time, neck muscles In a state of uncoordinated acceptance for a long time, neck muscles and ligaments are prone to strain and strain, coupled with torsion, excessive lateral flexion, etc., which can easily lead to cervical spondylosis. Therefore, it is necessary to design a massager for shoulder and neck care. .

At present, the existing shoulder and neck massagers on the market often use simple rotation or vibration to achieve the shoulder and neck massage function. Although this method can play a certain massage and relaxation effect, the effect is not good, and at the same time It is easy to cause discomfort to the user. In addition, the existing design is relatively precise, and it is prone to failure during use, and the maintenance cost is high.

SUMMARY OF THE INVENTION

The purpose of the present invention is to solve the problems that the existing design massage method is relatively simple, the massage relaxation effect is not good, the structure is relatively complicated, and the problem is prone to failure, and a portable shoulder and neck care massager is proposed. Simple, easy to use, less prone to failure, and better massage effect.

In order to achieve the above object, the present invention adopts the following technical solutions:

A portable massager for shoulder and neck care, comprising a mounting shell and a fixing seat, two ends of the mounting shell are fixedly connected with connecting ears, a connecting rod is connected between the connecting ears, and the connecting rod is connected to an external wearer. The bottom surface of the mounting shell is also fixedly connected with a grip handle; the interior of the mounting shell is also provided with a mounting groove, the fixing seat is connected inside the mounting groove, and the side wall of the mounting groove is A first connecting groove and a second connecting groove are arranged on the upper surface of the fixing seat, and a connecting mechanism is connected to the side wall of the fixing seat, and the connecting mechanism is matched with the first connecting groove and the second connecting groove, and the upper surface of the fixing seat is A massage mechanism is connected, and a drive device is installed inside the fixing base, and the drive device matches the massage mechanism.

Preferably, the massage mechanism includes a mounting seat, the mounting seat is fixedly connected to the upper surface of the mounting seat, one side of the mounting seat is fixedly connected to a limit housing, and a rotating seat is rotatably connected to the mounting seat, so An inclined circular surface is fixedly connected to the rotating seat, a connecting frame is movably connected to the inclined circular surface, a rubber massage head is fixedly connected to the connecting frame, and a limit rod is also fixedly connected to one side of the connecting frame. The limit rod is matched with the limit housing.

Preferably, the connecting mechanism includes a first connecting block and a second connecting block, the first connecting block is fixedly connected to the middle position of the side wall of the fixing seat, and the first connecting block is matched with the first connecting groove, The second connecting block is arranged on both sides of the first connecting block, the second connecting block is also fixedly connected to the side wall of the fixing seat, the bottom end of the second connecting block is fixedly connected with a spring, and the bottom end of the spring is It is fixedly connected with the inner bottom surface of the second connecting groove.

Preferably, the drive device includes a drive mechanism, the drive mechanism includes a drive motor, the drive motor is fixedly installed inside the fixed seat, and the output shaft of the drive motor is fixedly connected with a first connecting shaft, so The first connecting shaft is fixedly connected with a first bevel gear, the first bevel gear is meshed with the second bevel gear and the third bevel gear, and the second bevel gear and the third bevel gear are arranged on the first bevel gear. The second and third bevel gears are fixedly connected to the second connecting shaft and the third connecting shaft respectively, and the second connecting shaft and the third connecting shaft are rotatably connected inside the fixed seat.

Preferably, a worm is fixedly connected to one end of the second connecting shaft and the third connecting shaft away from the driving motor, the worm is engaged with the worm wheel, the worm wheel is fixedly connected to the fourth connecting shaft, and the fourth connecting shaft It is rotatably connected inside the fixed seat, and the top end of the fourth connecting shaft penetrates through the fixed seat and the mounting seat and is fixedly connected with the rotating seat.

Preferably, the driving device further includes a linkage mechanism, the linkage mechanism includes a first belt pulley and a second belt pulley, the first belt pulley is fixedly connected to the first connecting shaft, and the second belt pulley It is fixedly connected to the fifth connecting shaft, a linkage belt is connected around the first belt pulley and the second belt pulley, the fifth connecting shaft is rotatably installed inside the fixed seat, and two parts of the fifth connecting shaft are connected. A cam is fixedly connected to the end, and the cam is matched with the first connecting block.

Compared with the prior art, the present invention provides a portable massager for shoulder and neck care, which has the following beneficial effects:

(1) In the present invention, connecting ears and connecting rods are fixedly connected on both sides of the installation shell, and the user can use this structure to conveniently use the connecting belt or other connecting devices to fix the device body on the user's shoulder or neck. For other parts that need to be massaged, a grip handle is also fixedly connected to the bottom surface of the installation shell, so that the user can simply and conveniently hold the device body to perform massage work. Compared with the existing design, it is easier and more convenient to use, and the present Compared with the existing products on the market, the invention has a simpler structure, is less prone to failure, and has a low use cost.

(2) The present invention is connected with a massage mechanism on the body of the device. Compared with the commonly designed massage mechanisms on the market, the massage mechanism of the present invention has better massage effect. When in use, the rotating seat of the massage mechanism is driven by the driving device. Rotation, when the rotating seat rotates, the inclined high point of the inclined circular surface will change with the rotation, which can drive the connecting frame connected on the inclined circular surface to perform regular undulating movement. The limit rod is connected, and the limit shell is fixedly connected to the mounting seat. During the undulating movement of the connecting frame, the limit effect of the limit rod and the limit shell ensures that the connecting frame will not rotate with the rotating seat. The connecting frame is also fixedly connected with a rubber massage head, and the rubber massage head moves up and down together with the connecting frame, so that a better massage effect can be achieved.

(3) The massage mechanism of the present invention is matched with the driving device. When in use, the driving motor works to drive the first connecting shaft and the first bevel gear fixedly connected on the first connecting shaft to rotate, and the first bevel gear and the second bevel gear rotate. The gear and the third bevel gear are meshed and connected, and the second bevel gear and the third bevel gear are fixedly connected to the second connecting shaft and the third connecting shaft, so that the second connecting shaft and the third connecting shaft also rotate together, and the second connecting shaft and the third connecting shaft also rotate together. The two ends of the connecting shaft and the third connecting shaft are fixedly connected with a worm, and the worm is meshed and connected with the worm wheel, so that the rotation of the worm can drive the worm wheel to rotate, and the worm wheel is fixedly connected to the fourth connecting shaft, and the top of the fourth connecting shaft is connected with a massager. Mechanism, using the above design, when the driving motor works, it can drive the massage mechanisms at both ends to perform massage work, and at the same time, a first belt pulley is also fixedly connected to the first connecting shaft, and the first belt pulley drives the second belt pulley to rotate through the linkage belt , the second belt pulley is fixedly connected to the fifth connecting shaft, so that the fifth connecting shaft will also rotate along with it, and the two ends of the fifth connecting shaft are fixedly connected with cams, and the cams are fixedly connected to the first connecting shaft on the side wall of the fixed seat. A connecting block is matched, and a spring is fixedly connected to the bottom end of the second connecting block, so that when the cam rotates, it can drive the fixed seat to vibrate regularly on the installation shell. This design is combined with the massage mechanism to ensure that The device body can play a better massage effect.

Description of drawings

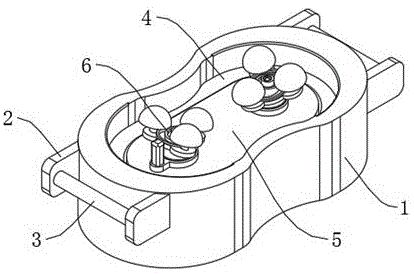

Fig. 1 is the structural representation of a kind of portable shoulder and neck nursing massager proposed by the present invention;

Fig. 2 is the exploded structure schematic diagram of a kind of portable shoulder and neck nursing massager proposed by the present invention;

3 is a schematic structural diagram of a massage mechanism and a pulling mechanism of a portable shoulder and neck care massager proposed by the present invention;

4 is a schematic structural diagram of a massage mechanism of a portable shoulder and neck care massager proposed by the present invention;

5 is a schematic structural diagram of a fixed seat and a driving device of a portable shoulder and neck care massager proposed by the present invention;

6 is a schematic diagram of an exploded structure of a driving device of a portable shoulder and neck care massager proposed by the present invention.

Description of drawing numbers:

1. Mounting shell; 2. Connecting ear; 3. Connecting rod; 4. Mounting slot; 5. Fixing seat; 6. Massage mechanism; 601, Mounting seat; 602, Limiting shell; Inclined circular surface; 605, connecting frame; 606, rubber massage head; 607, limit rod; 7, connecting mechanism; 701, first connecting block; 702, second connecting block; 703, spring; 8, first connecting groove 9, the second connection groove; 10, the drive device; 1001, the drive motor; 1002, the first connection shaft; 1003, the first bevel gear; 1004, the second bevel gear; 1005, the third bevel gear; connecting shaft; 1007, the third connecting shaft; 1008, worm; 1009, worm gear; 1010, the fourth connecting shaft; 1011, the first belt pulley; 1012, the second belt pulley; 1013, the linkage belt; 1014, the fifth connecting shaft ; 1015, Cam.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", " The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation are therefore not to be construed as limitations of the present invention.

Example 1:

Please refer to Figure 1-2, a portable massager for shoulder and neck care, including a mounting shell 1 and a fixing base 5, two ends of the mounting shell 1 are fixedly connected with connecting ears 2, and connecting rods are connected between the connecting ears 2 3. The connecting rod 3 is matched with the external wearing mechanism, and the bottom surface of the mounting shell 1 is also fixedly connected with a grip handle; the interior of the mounting shell 1 is also provided with a mounting groove 4, and the fixing seat 5 is connected in the interior of the mounting groove 4, A first connection slot 8 and a second connection slot 9 are arranged on the side wall of the installation slot 4 , and a connection mechanism 7 is connected to the side wall of the fixing seat 5 , and the connection mechanism 7 is connected with the first connection slot 8 and the second connection slot 9 . Matching, the upper surface of the fixed seat 5 is connected with the massage mechanism 6 , the inside of the fixed seat 5 is installed with a driving device 10 , and the driving device 10 is matched with the massage mechanism 6 .

In the present invention, connecting ears 2 and connecting rods 3 are fixedly connected on both sides of the mounting shell 1, and the user can use this structure to conveniently cooperate with the connecting belt or other connecting devices to fix the device body on the user's shoulder or neck or For other parts that need to be massaged, a grip handle is also fixedly connected to the bottom surface of the mounting shell 1, so that the user can simply and conveniently hold the body of the device to perform massage work. Compared with the existing design, it is easier and more convenient to use, and Compared with the existing products on the market, the present invention has a simpler structure, is less prone to failure, and has a low use cost.

Example 2:

Please refer to Fig. 3-4, the difference based on Embodiment 1 is:

The massage mechanism 6 includes a mounting seat 601 , the mounting seat 601 is fixedly connected with the upper surface of the fixing seat 5 , one side of the mounting seat 601 is fixedly connected with a limiting housing 602 , a rotating seat 603 is rotatably connected to the mounting seat 601 , and the rotating seat 603 is An inclined circular surface 604 is fixedly connected, a connecting frame 605 is movably connected to the inclined circular surface 604, a rubber massage head 606 is fixedly connected to the connecting frame 605, and a limit rod 607 is also fixedly connected to one side of the connecting frame 605, and the limit rod 607 Match with the limit housing 602.

The connecting mechanism 7 includes a first connecting block 701 and a second connecting block 702. The first connecting block 701 is fixedly connected to the middle position of the side wall of the fixing seat 5. The first connecting block 701 matches the first connecting groove 8, and the second connecting block 701 The connecting blocks 702 are arranged on both sides of the first connecting block 701, the second connecting block 702 is also fixedly connected to the side wall of the fixing seat 5, the bottom end of the second connecting block 702 is fixedly connected with a spring 703, and the bottom end of the spring 703 is connected with the second connecting block 702. The inner bottom surface of the connecting groove 9 is fixedly connected.

In the present invention, a massage mechanism 6 is connected to the body of the device. The massage mechanism 6 of the present invention has better massage effect compared with the conventionally designed massage mechanisms 6 on the market. Driven to rotate, when the rotating base 603 rotates, the inclination high point of the inclined circular surface 604 will change with the rotation, so that the connecting frame 605 connected on the inclined circular surface 604 can be driven to perform regular undulating movement, and at the same time Since one side of the connecting frame 605 is fixedly connected to the limiting rod 607, and the mounting seat 601 is fixedly connected to the limiting housing 602, during the undulating movement of the connecting frame 605, due to the limiting effect of the limiting rod 607 and the limiting housing 602 , to ensure that the connecting frame 605 will not rotate with the rotating base 603, and the connecting frame 605 is also fixedly connected with a rubber massage head 606, and the rubber massage head 606 undulates with the connecting frame 605, so that it can play a better role. massage effect.

Example 3:

Referring to Figure 5-6; the difference is based on Embodiment 1 or 2;

The drive device 10 includes a drive mechanism, the drive mechanism includes a drive motor 1001, the drive motor 1001 is fixedly installed inside the fixing seat 5, and the output shaft of the drive motor 1001 is fixedly connected with a first connection shaft 1002, on the first connection shaft 1002 A first bevel gear 1003 is fixedly connected, the first bevel gear 1003 is meshed with the second bevel gear 1004 and the third bevel gear 1005 , and the second bevel gear 1004 and the third bevel gear 1005 are arranged on both sides of the first bevel gear 1003 , and the second bevel gear 1004 and the third bevel gear 1005 are fixedly connected to the second connecting shaft 1006 and the third connecting shaft 1007 respectively, and the second connecting shaft 1006 and the third connecting shaft 1007 are rotatably connected to the interior of the fixed seat 5 .

A worm 1008 is fixedly connected to one end of the second connecting shaft 1006 and the third connecting shaft 1007 away from the driving motor 1001. The worm 1008 is engaged with the worm wheel 1009, the worm wheel 1009 is fixedly connected to the fourth connecting shaft 1010, and the fourth connecting shaft 1010 is rotatably connected Inside the fixing base 5 , the top end of the fourth connecting shaft 1010 penetrates through the fixing base 5 and the mounting base 601 and is fixedly connected with the rotating base 603 .

The driving device 10 also includes a linkage mechanism, the linkage mechanism includes a first belt pulley 1011 and a second belt pulley 1012, the first belt pulley 1011 is fixedly connected to the first connecting shaft 1002, and the second belt pulley 1012 is fixedly connected to the fifth belt pulley 1012. On the connecting shaft 1014, a linkage belt 1013 is connected around the first belt pulley 1011 and the second belt pulley 1012, the fifth connecting shaft 1014 is rotatably installed inside the fixing seat 5, and both ends of the fifth connecting shaft 1014 are fixedly connected with Cam 1015, the cam 1015 is matched with the first connecting block 701.

The massage mechanism 6 of the present invention is matched with the driving device 10. When in use, the driving motor 1001 works to drive the first connecting shaft 1002 and the first bevel gear 1003 fixedly connected to the first connecting shaft 1002 to rotate, and the first bevel gear 1003 rotates. Meshing connection with the second bevel gear 1004 and the third bevel gear 1005, the second bevel gear 1004 and the third bevel gear 1005 are fixedly connected on the second connecting shaft 1006 and the third connecting shaft 1007, so that the second connecting shaft 1006 and the The three connecting shafts 1007 also rotate together, and the two ends of the second connecting shaft 1006 and the third connecting shaft 1007 are fixedly connected with a worm 1008. The worm 1008 is meshed and connected with the worm wheel 1009, so that the rotation of the worm 1008 can drive the worm wheel 1009 to rotate, while The worm wheel 1009 is fixedly connected to the fourth connecting shaft 1010, and the top end of the fourth connecting shaft 1010 is connected with the massage mechanism 6. Using the above design, when the driving motor 1001 works, the massage mechanisms 6 at both ends can be driven to perform massage work. The connecting shaft 1002 is also fixedly connected with a first belt pulley 1011, the first belt pulley 1011 drives the second belt pulley 1012 to rotate through the linkage belt 1013, and the second belt pulley 1012 is fixedly connected to the fifth connecting shaft 1014, so that the fifth connection The shaft 1014 will also rotate along with it, and the two ends of the fifth connecting shaft 1014 are fixedly connected with cams 1015. The cams 1015 are matched with the first connecting block 702 fixedly connected to the side wall of the fixing seat 5, and at the same time, the second connecting block is connected to the second connecting block. The bottom end of 702 is fixedly connected with a spring 703, so that when the cam 1015 rotates, it can drive the fixed seat 5 to vibrate regularly on the installation shell 1. This design is combined with the massage mechanism to ensure that the device body can play a better role. massage effect.

The above are only preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto. Equivalent replacements or changes to the inventive concept shall all fall within the protection scope of the present invention.

Claims (6)

1. A portable massager for shoulder and neck care, comprising a mounting shell (1) and a fixing seat (5), characterized in that: both ends of the mounting shell (1) are fixedly connected with connecting ears (2), A connecting rod (3) is connected between the connecting ears (2), the connecting rod (3) is matched with an external wearing mechanism, and a holding handle is also fixedly connected on the bottom surface of the mounting shell (1); An installation groove (4) is also provided inside the installation housing (1), the fixing seat (5) is connected inside the installation groove (4), and a first side wall of the installation groove (4) is provided with a first A connecting groove (8) and a second connecting groove (9), a connecting mechanism (7) is connected to the side wall of the fixing seat (5), and the connecting mechanism (7) is connected to the first connecting groove (8) and the first connecting groove (8) and the second connecting groove (9). The two connecting grooves (9) are matched, the upper surface of the fixing seat (5) is connected with a massage mechanism (6), and a driving device (10) is installed inside the fixing seat (5), and the driving device (10) ) to match the massage mechanism (6). 2. A portable shoulder and neck care massager according to claim 1, characterized in that: the massage mechanism (6) comprises a mounting seat (601), the mounting seat (601) and the fixing seat (5) ) is fixedly connected to the upper surface, one side of the mounting seat (601) is fixedly connected to the limit housing (602), and a rotating seat (603) is rotatably connected to the mounting seat (601), and the rotating seat (603) An inclined circular surface (604) is fixedly connected to the upper surface, a connecting frame (605) is movably connected to the inclined circular surface (604), and a rubber massage head (606) is fixedly connected to the connecting frame (605). A limit rod (607) is also fixedly connected to one side of the frame (605), and the limit rod (607) is matched with the limit housing (602). 3 . The portable massager for shoulder and neck care according to claim 1 , wherein the connecting mechanism ( 7 ) comprises a first connecting block ( 701 ) and a second connecting block ( 702 ). The first connecting block (701) is fixedly connected to the middle position of the side wall of the fixing seat (5), the first connecting block (701) is matched with the first connecting groove (8), and the second connecting block (702) are arranged on both sides of the first connecting block (701), the second connecting block (702) is also fixedly connected to the side wall of the fixing seat (5), and the bottom end of the second connecting block (702) is fixedly connected with a spring (703), the bottom end of the spring (703) is fixedly connected to the inner bottom surface of the second connection groove (9). 4. A portable massager for shoulder and neck care according to claim 1, characterized in that: the driving device (10) comprises a driving mechanism, and the driving mechanism comprises a driving motor (1001), the driving The motor (1001) is fixedly installed inside the fixing seat (5), the output shaft of the driving motor (1001) is fixedly connected with a first connecting shaft (1002), and the first connecting shaft (1002) is fixedly connected with A first bevel gear (1003), the first bevel gear (1003) is meshed with the second bevel gear (1004) and the third bevel gear (1005), the second bevel gear (1004) and the third bevel gear (1005) are arranged on both sides of the first bevel gear (1003), and the second bevel gear (1004) and the third bevel gear (1005) are fixedly connected to the second connecting shaft (1006) and the third connecting shaft respectively (1007), the second connecting shaft (1006) and the third connecting shaft (1007) are rotatably connected inside the fixing seat (5). 5. A portable massager for shoulder and neck care according to claim 4, characterized in that: one end of the second connecting shaft (1006) and the third connecting shaft (1007) away from the driving motor (1001) are fixedly connected There is a worm (1008), the worm (1008) is engaged with the worm wheel (1009), the worm wheel (1009) is fixedly connected to the fourth connecting shaft (1010), and the fourth connecting shaft (1010) is rotatably connected to the Inside the fixing seat (5), the top end of the fourth connecting shaft (1010) penetrates the fixing seat (5) and the mounting seat (601) and is fixedly connected with the rotating seat (603). 6. A portable massager for shoulder and neck care according to claim 1, characterized in that: the driving device (10) further comprises a linkage mechanism, and the linkage mechanism comprises a first belt pulley (1011) and a The second belt pulley (1012), the first belt pulley (1011) is fixedly connected to the first connecting shaft (1002), the second belt pulley (1012) is fixedly connected to the fifth connecting shaft (1014), A linkage belt (1013) is connected around the first belt pulley (1011) and the second belt pulley (1012), and the fifth connecting shaft (1014) is rotatably installed inside the fixed seat (5). A cam (1015) is fixedly connected to both ends of the fifth connecting shaft (1014), and the cam (1015) is matched with the first connecting block (701).
