Abstract

The invention provides an excrement and urine diversity treatment system and an ecological treatment system, and relates to the technical field of excrement treatment. The feces and urine diversification treatment system includes a feces and urine separator, a feces treatment system and a urine treatment system. The feces and urine are respectively collected and stored from the source through the feces and urine separator, and the stored feces pass through the anaerobic system in the feces treatment system. The stored urine can be processed by the urine treatment system; the feces and urine diversity treatment system can not only make full use of the urine, but also can make the feces through anaerobic fermentation and aeration sedimentation. The organic fertilizer realizes the effective utilization of excrement and urine. At the same time, the excrement and urine diversification treatment system can save a lot of water resources, and is especially suitable for some arid and water-deficient areas or areas with imperfect sewage purification facilities. The present invention also provides an ecological treatment system, including the above-mentioned excrement and urine diversity treatment system.

Description

Excrement and urine diversification treatment system and ecological treatment system

technical field

The invention relates to the technical field of feces treatment, in particular to a feces and urine diversity treatment system and an ecological treatment system.

Background technique

According to statistics, the annual excretion of feces per person is about 25-50L, which contains about 0.55kg of nitrogen, about 0.37kg of potassium, about 0.18kg of phosphorus, and high content of macromolecular substances such as cellulose, which cannot be directly used by crops; The annual urinary excretion is about 400-500L, including about 4kg of nitrogen, about 0.4kg of phosphorus, and about 0.9kg of potassium, and urine is easily absorbed by plants, and the amount of urine is much larger than that of feces.

According to the existing treatment methods of feces and urine, it is generally divided into dry toilets and water toilets. As we all know, the feces and urine in the dry toilet are stored together. Because the ammonia in the urine and the hydrogen sulfide in the feces will be mixed and fermented, the malodorous gas produced by the fermentation will make the dry toilet filled with irritating odors, which will attract mosquitoes and flies. Maggots breed and the sanitary conditions are poor, so dry toilets are increasingly being replaced. Water closets, also known as flush toilets, are flushed with water and discharged together with urine. Compared with dry toilets, water closets are more hygienic. However, the mixed discharge of manure, urine and water increases the amount of manure that needs to be treated. Even if it is sent to a sewage treatment plant for treatment, the treatment cost is staggering and a lot of water resources are wasted. Especially in some arid and water-deficient areas or areas with imperfect sewage purification facilities, it becomes even more impractical to use water to flush feces and urine. Therefore, how to effectively utilize feces and urine according to their characteristics has become an urgent problem to be solved.

In view of this, the present invention is proposed to solve at least one of the above technical problems.

SUMMARY OF THE INVENTION

The first object of the present invention is to provide a feces and urine diversity treatment system, which can realize the effective utilization of feces and urine, and can save a lot of water resources at the same time.

The second object of the present invention is to provide an ecological treatment system, including the above-mentioned excrement and urine diversity treatment system.

In order to achieve the above object, technical scheme of the present invention is as follows:

The invention provides a feces and urine diversity treatment system, comprising a feces and urine separator, a feces treatment system and a urine treatment system;

The excrement separator includes a urine storage tank and a stool storage tank, the urine storage tank is connected with the urine treatment system, and the stool storage tank is connected with the stool treatment system;

The urine treatment system includes an ecological liquid storage tank, and the urine storage tank is connected with the ecological liquid storage tank;

The excrement treatment system includes an anaerobic tank and an aeration sedimentation tank, the excrement storage tank is connected with the anaerobic tank, the anaerobic tank is connected with the aeration sedimentation tank, and the aeration sedimentation tank is connected with the aeration sedimentation tank. The ecological reservoir connection described above.

Further, on the basis of the above technical solutions of the present invention, the anaerobic pond includes a first-level corrosion chamber, a second-level corrosion chamber and a third-level treatment chamber, and the first-level corrosion chamber, the second-level corrosion chamber and the third-level treatment chamber. Connect sequentially.

Further, on the basis of the above technical solutions of the present invention, the manure storage tank is connected to the primary corrosion chamber of the anaerobic tank, and the tertiary treatment chamber of the anaerobic tank is connected to the aeration sedimentation tank.

Further, on the basis of the above technical solutions of the present invention, the aeration sedimentation tank is connected to an aeration device.

Further, on the basis of the above technical solutions of the present invention, the aeration device includes an aeration fan and an aerator, the aeration fan is located outside the aeration sedimentation tank, and the aerator is located in the Inside the aeration sedimentation tank, the aeration fan is connected to the aerator.

Further, on the basis of the above technical solutions of the present invention, a drainage pipeline and a liquid return pipeline are arranged between the urine storage tank and the ecological liquid storage tank, and the urine storage tank passes through the drainage pipeline and the liquid return pipeline respectively. communicated with the ecological reservoir.

Further, on the basis of the above technical solutions of the present invention, a liquid discharge port is provided on the ecological liquid storage tank, and the liquid discharge port is communicated with the wetland purification tank.

Further, on the basis of the above technical solutions of the present invention, a water replenishing inlet is provided on the ecological liquid storage tank.

Further, on the basis of the above technical solutions of the present invention, a toilet cover is provided on the excrement storage tank.

The present invention also provides an ecological treatment system, including the above-mentioned excrement and urine diversity treatment system.

Compared with the prior art, the excrement and urine diversity treatment system and the ecological treatment system provided by the present invention have the following technical effects:

(1) The present invention provides a feces and urine diversity treatment system, including a feces and urine separator, a feces treatment system and a urine treatment system, wherein the feces and urine separator includes a urine storage tank and a feces storage tank, and the urine storage tank The tank is connected with the urine treatment system, and the excrement storage tank is connected with the excrement treatment system; the urine treatment system includes an ecological liquid storage tank, and the urine storage tank is connected with the ecological liquid storage tank; the excrement treatment system includes an anaerobic tank and an aeration sedimentation tank , the manure storage tank is connected with the anaerobic tank, the anaerobic tank is connected with the aeration sedimentation tank, and the aeration sedimentation tank is connected with the ecological liquid storage tank.

The excrement and urine diversification treatment system collects and stores excrement and urine from the source respectively through the excrement and urine separator. The stored excrement is processed through the anaerobic tank and aeration sedimentation tank in the excrement treatment system. Urine treatment system for treatment; the excrement and urine diversity treatment system can not only make full use of urine, but also make organic fertilizer by anaerobic fermentation and aeration precipitation, realizing the effective utilization of excrement and urine, and at the same time, The manure and urine diversity treatment system can reduce the malodorous gas produced by the mixed fermentation of ammonia in urine and hydrogen sulfide in manure, reduce visual pollution caused by mosquitoes, flies and maggots, and prevent the occurrence of infectious diseases; The urine diversity treatment system can save a lot of water resources, especially suitable for some arid and water-deficient areas or areas with imperfect sewage purification facilities, preventing ecological pollution caused by feces, urine and water discharge, and protecting the ecological environment.

The excrement and urine diversification treatment system provides a scientific and reasonable solution for the harmless, reduction and resource treatment of excrement and urine.

(2) The present invention provides an ecological treatment system, including the above-mentioned excrement and urine diversity treatment system. In view of the advantages of the excrement and urine diversity treatment system, the ecological treatment system also has the same advantages.

Description of drawings

In order to illustrate the specific embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the specific embodiments or the prior art. Obviously, the accompanying drawings in the following description The drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained based on these drawings without creative efforts.

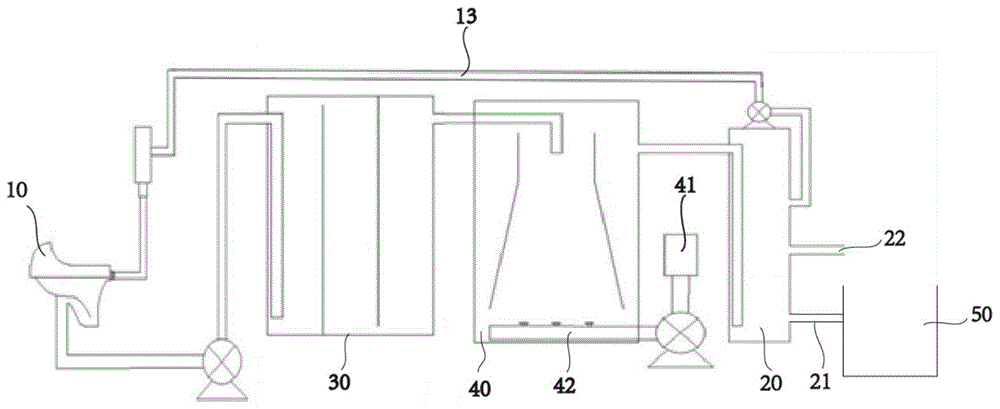

1 is a schematic structural diagram of a fecal and urine diversity treatment system under an embodiment provided by the present invention;

FIG. 2 is a schematic structural diagram of a manure and urine separator under an embodiment provided by the present invention;

3 is a schematic structural diagram of an anaerobic tank under an embodiment provided by the present invention;

FIG. 4 is a schematic structural diagram of a wetland system according to an embodiment provided by the present invention.

Icon: 10-fecal and urine separator; 11-urine storage tank; 12-fecal storage tank; 13-drainage pipeline; 20-ecological storage tank; 21-drainage outlet; 22-water supply inlet; 30-anaerobic pond; 31-first-level corrosion room; 32-second-level corrosion room; 33-third-level treatment room; 40-aeration sedimentation tank; 41-aeration fan; 42-aerator; 50-wetland purification tank; 51- Wetland system; 52 - first material layer; 53 - second material layer; 54 - third material layer; 55 - fourth material layer; 56 - plant.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to the embodiments. Obviously, the described embodiments are part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "connected", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; can be mechanical connection, can also be electrical connection; can be directly connected, can also be indirectly connected through an intermediate medium, can be internal communication between two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations. Additionally, the terms "first," "second," "third," and "fourth" are used for descriptive purposes only and should not be construed to indicate or imply relative importance. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example 1

According to the first aspect of the present invention, this embodiment provides a waste and urine diversity treatment system, as shown in FIG. 1 , FIG. 2 , FIG. 3 and FIG. 4 . The feces and urine diversity treatment system includes a feces and urine separator 10, a feces treatment system and a urine treatment system;

The feces and urine separator 10 includes a urine storage tank 11 and a stool storage tank 12, the urine storage tank 11 is connected with the urine processing system, and the stool storage tank 12 is connected with the stool processing system;

The urine treatment system includes an ecological liquid storage tank 20, and the urine storage tank 11 is connected to the ecological liquid storage tank 20;

The excrement treatment system includes an anaerobic tank 30 and an aeration sedimentation tank 40. The excrement storage tank 12 is connected to the anaerobic tank 30, the anaerobic tank 30 is connected to the aeration sedimentation tank 40, and the aeration sedimentation tank 40 is connected to the ecological liquid storage tank 20. .

Specifically, the feces and urine separator 10 is mainly used as a device for separating feces (feces) from urine (urine), and includes a urine storage tank 11 and a stool storage tank 12 . The specific structure of the feces and urine separator 10 is not limited. For example, a fecal and urine separator 10 is provided with a fecal hole and a urination hole, respectively. The feces can enter the feces storage tank 12 through the fecal hole, and the urine can enter the feces through the urination hole. to the urine storage tank 11.

Since urine contains a large amount of elements such as nitrogen, phosphorus and potassium, which are easily absorbed by plants, in order to realize the reuse of urine, the urine storage tank 11 and the ecological liquid storage tank 20 are connected. The ecological liquid storage tank 20 is mainly used for physical filtration and biological purification treatment of urine, so as to realize ecological treatment of urine, which is beneficial to subsequent utilization.

Since the vast majority of enteroviruses, enteropathogens, enteroparasites, and eggs are excreted from the intestines together with feces, in order to inhibit the survival of the above-mentioned enteroparasites and bacteria, reduce the risk of causing infection requires reprocessing of the feces. Therefore, the excrement storage tank 12 is connected to the excrement treatment system.

The manure treatment system includes an anaerobic tank 30 and an aeration sedimentation tank 40 . The fecal storage tank 12 is connected to the anaerobic tank 30 . The anaerobic tank 30 is mainly used for sedimentation and decay of the feces and anaerobic fermentation. After the treatment in the anaerobic tank 30, the germs and parasite eggs in the feces are basically killed. After being processed by the anaerobic tank 30, the feces are mostly deposited at the bottom of the anaerobic tank 30, and there will be some black liquid (fecal liquid) in the middle part of the anaerobic tank. The fecal liquid is transferred into the aeration sedimentation tank 40 for preliminary precipitation and aeration, and the purpose is mainly to decompose the organic matter in the fecal liquid and further reduce the BOD and COD in the fecal liquid.

The liquid treated by the aeration sedimentation tank 40 can be transferred to the ecological liquid storage tank 20, and the ecological liquid storage tank 20 is used to perform ecological treatment on the liquid transferred from the aeration sedimentation tank 40 together with the urine.

The feces and urine diversification treatment system provided by the present invention includes a feces and urine separator 10, a feces treatment system and a urine treatment system. The feces and urine are respectively collected and stored from the source through the feces and urine separator 10, and the stored feces pass through the feces. The anaerobic tank 30 and the aeration sedimentation tank 40 in the treatment system are used for treatment, and the stored urine can be treated by the urine treatment system; The organic fertilizer is obtained by oxygen fermentation and aeration precipitation, which realizes the effective utilization of feces and urine. At the same time, the feces and urine diversity treatment system can reduce the malodorous gas produced by the mixed fermentation of ammonia in urine and hydrogen sulfide in feces, etc. It reduces visual pollution caused by mosquitoes, flies and maggots, and prevents the occurrence of infectious diseases; in addition, the feces and urine diversity treatment system can save a lot of water resources, especially suitable for some arid and water-deficient areas or areas with imperfect sewage purification facilities , to prevent ecological pollution caused by discharge of feces, urine and water, and protect the ecological environment.

As an optional embodiment of the present invention, the anaerobic tank 30 includes a primary corrosive chamber 31, a secondary corrosive chamber 32 and a tertiary treatment chamber 33, a primary corrosive chamber 31, a secondary corrosive chamber 32 and a tertiary treatment chamber 33 are connected in turn.

The first-level rot chamber 31 is mainly used for receiving fresh feces, anaerobic fermentation and decomposing layering (the middle fecal liquid of the upper layer of fecal skin and the bottom fecal residue, and the sedimentary parasite eggs are retained). The sealing is tight, and the feces are relatively static or flow slowly in the first-stage septic chamber 31, so as to ensure an appropriately long hydraulic retention time.

The fecal liquid or slurry except the upper layer of fecal skin and the bottom layer of fecal residue in the primary rot chamber 31 flows into the secondary rot chamber 32, and the secondary rot chamber 32 is mainly used to continue processing fecal liquid or fecal slurry to prevent sedimentation. Parasite eggs. The fecal liquid in the secondary rot chamber 32 continues to undergo deep anaerobic fermentation, the concentration of free ammonia increases, and sterilization kills eggs. It should be noted that, in the process of transferring the fecal liquid or slurry in the primary rot chamber 31 to the secondary rot chamber 32, it is necessary to prevent the fecal block, fecal skin or fecal residue from flowing into the secondary rot chamber 31 in the primary rot chamber 31. within 32.

The tertiary treatment chamber 33 is mainly used for storage. The manure liquid flowing into the tertiary treatment chamber 33 from the secondary decay chamber 32 is generally decomposed, and the germs and eggs in it have been basically killed and removed, and can be used for fertilization. Alternatively, the fecal liquid in the tertiary treatment chamber 33 can be transferred to the next treatment system-aeration sedimentation tank 40 for further treatment.

Through the treatment of the primary rot chamber 31 , the secondary rot chamber 32 and the tertiary treatment chamber 33 in the anaerobic tank 30 , the germs and parasite eggs in the feces are basically killed, thereby facilitating the subsequent utilization of the feces. The dung mass, dung skin or dung residue in the feces can be converted into organic fertilizer, or the dung liquid or dung slurry in the dung can be used as liquid fertilizer, and the nutrients in the dung can be returned to the crops and soil, so as to enhance the soil fertility and improve the soil quality. The water holding capacity reduces the dependence of crops on chemical fertilizers, maximizes the fertilizer efficiency of organic fertilizers, and improves the utilization rate of various nutrients.

As an optional embodiment of the present invention, the tertiary treatment chamber 33 of the anaerobic tank 30 is connected to the aeration sedimentation tank 40 , and the aeration sedimentation tank 40 is connected to the ecological liquid storage tank 20 .

The manure liquid in the tertiary treatment chamber 33 of the anaerobic tank 30 can be transferred to the aeration sedimentation tank 40 for aeration sedimentation treatment, and the liquid treated by the aeration sedimentation tank 40 can be transferred to the ecological liquid storage tank 20 for ecological treatment. deal with.

As an optional embodiment of the present invention, the aeration sedimentation tank 40 is connected to the aeration device. The aeration device is mainly used to supply gas to the aeration sedimentation tank 40 to aerate and sediment the manure liquid entering the aeration sedimentation tank 40 .

The specific structure of the aeration device is not particularly limited. As an optional embodiment of the present invention, the aeration device includes an aeration fan 41 and an aerator 42 , the aeration fan 41 is located outside the aeration sedimentation tank 40 , and the aerator 42 is located inside the aeration sedimentation tank 40 , the aeration fan 41 and the aerator 42 are connected by pipes.

The aeration fan 41 can compress the external air and send it into the aerator 42 at the bottom of the aeration sedimentation tank 40 through a pipeline, and the air escapes through the aerator 42 to realize the aeration sedimentation of the aeration sedimentation tank 40 .

As an optional embodiment of the present invention, a drainage pipeline 13 and a liquid return pipeline (not shown in the figure) are arranged between the urine storage tank 11 and the ecological liquid storage tank 20, and the urine storage tank 11 passes through the The drain pipe 13 and the return pipe communicate with the ecological liquid storage tank 20 .

The urine in the urine storage tank 11 can enter the ecological liquid storage tank 20 through the drainage pipeline 13. After the ecological treatment of the ecological liquid storage tank 20, the urine can be converted into a relatively clean treatment liquid, and returned through the liquid return pipeline. to the urine storage tank 11 to achieve flushing of the urine storage tank 11 . That is, the drainage pipeline 13 and the liquid return pipeline form a circulation loop, so that the urine is converted into the treatment liquid to realize the secondary utilization of the urine, and at the same time, it also saves a lot of water resources, especially suitable for arid areas with little water. use.

As an optional embodiment of the present invention, the ecological liquid storage tank 20 is provided with a liquid discharge port 21, and the liquid discharge port 21 is communicated with the wetland purification tank 50 through a pipeline.

As an optional embodiment of the present invention, the wetland purification tank 50 is connected to the wetland system 51 .

The wetland purification tank 50 mainly provides liquid fertilizer for the wetland system 51 . After the urine and the upper layer liquid of the aeration sedimentation tank 40 are processed by the ecological liquid storage tank 20, they can directly enter the wetland purification tank 50 to remove COD, total nitrogen, total phosphorus and other pollution by plant-soil absorption, decomposition and infiltration. The urine is further purified, and the urine treated in the wetland purification tank 50 can directly enter the wetland system 51 as the liquid fertilizer for the plants 56, thereby realizing the effective utilization of the liquid in the ecological liquid storage tank 20.

As an optional embodiment of the present invention, the wetland system 51 includes a material layer and plants 56 planted on the material layer.

The material layers sequentially include a first material layer 52 , a second material layer 53 , a third material layer 54 and a fourth material layer 55 from top to bottom. The first material layer 52 is mainly composed of pebbles with a diameter of 30-50 mm, the second material layer 53 is mainly composed of crushed stones with a diameter of 10-30 mm, the second material layer 53 is mainly composed of coarse sand, and the fourth material layer 55 is mainly composed of fine sand or coal slag.

Through the material limitation of the first material layer 52 , the second material layer 53 , the third material layer 54 and the fourth material layer 55 , the water or liquid fertilizer entering the wetland system 51 is not easily lost, and the growth of the plants 56 on the wetland is satisfied. required.

The specific type of plants 56 planted on the material layer is not limited, for example, it can be calamus and/or canna.

As an optional embodiment of the present invention, a water replenishing inlet 22 is provided on the ecological liquid storage tank 20 . The external secondary cleaning water can also enter the ecological liquid storage tank 20 through the water replenishment inlet 22 to meet the water demand of the urine storage tank 11 or the wetland purification tank 50 .

As an optional embodiment of the present invention, a toilet cover is provided on the feces storage tank 12 . The toilet cover can isolate the urine storage tank 11 and the feces storage tank 12 from the outside world, so as to prevent the leakage of odor and the visual pollution of feces.

In order to verify the effect of the excrement and urine diversity treatment system, the experiment was carried out in Guangtiao Village, Jianhe County, Guizhou Province.

The old toilets of 20 households in Guangtiao Village, Jianhe County, Guizhou Province were reconstructed, and all of them were transformed into the excrement and urine diversity treatment system provided by the present invention. After the renovation, users gave unanimous praise.

The manure and urine diversity treatment system is suitable for various laying requirements, especially for the complex and changeable situation in rural areas. The installation can be buried in the ground according to the actual situation of the site, which basically does not occupy the land surface area, greatly reduces the area of rural land, and alleviates the current contradiction of land shortage. At the same time, the excrement and urine diversity treatment system has strong impact load resistance, high treatment efficiency, and no harm to the environment.

Since the population of each family is different, the amount of manure discharged every day is also different. If the sewage treatment equipment with the same treatment capacity is used, it will inevitably lead to waste of resources or substandard treatment. The different numbers determine the size, which is convenient and flexible.

The toilet of the manure and urine diversification treatment system is clean and hygienic, without any odor and mosquitoes, and the urine can be completely recycled, which not only saves a lot of water resources, but also effectively prevents the local water caused by sewage discharge or infiltration into the groundwater source. Pollution, without any side effects on the environment.

Embodiment 2

The second embodiment of the present invention also provides an ecological processing system. This embodiment is an improvement on the basis of the first embodiment. The technical solution described in the first embodiment also belongs to this embodiment, and will not be repeated here.

This embodiment provides an ecological treatment system, including the above-mentioned excrement and urine diversity treatment system. In view of the advantages of the excrement and urine diversity treatment system, the ecological treatment system also has the same advantages.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present invention, but not to limit them; although the present invention has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: The technical solutions described in the foregoing embodiments can still be modified, or some or all of the technical features thereof can be equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the technical solutions of the embodiments of the present invention. scope.

Claims (10)

1. a feces and urine diversity treatment system, is characterized in that, comprises feces and urine separator, feces treatment system and urine treatment system; The excrement separator includes a urine storage tank and a stool storage tank, the urine storage tank is connected with the urine treatment system, and the stool storage tank is connected with the stool treatment system; The urine treatment system includes an ecological liquid storage tank, and the urine storage tank is connected with the ecological liquid storage tank; The excrement treatment system includes an anaerobic tank and an aeration sedimentation tank, the excrement storage tank is connected with the anaerobic tank, the anaerobic tank is connected with the aeration sedimentation tank, and the aeration sedimentation tank is connected with the aeration sedimentation tank. The ecological reservoir connection described above. 2 . The excrement and urine diversity treatment system according to claim 1 , wherein the anaerobic tank comprises a first-level corrosion chamber, a second-level corrosion chamber and a third-level treatment chamber, and the first-level corrosion chamber, the second-level corrosion chamber The corrosion chamber and the tertiary treatment chamber are connected in turn. 3. The excrement and urine diversity treatment system according to claim 2, wherein the excrement storage tank is connected with the first-level corrosion chamber of the anaerobic tank, and the third-level treatment chamber of the anaerobic tank is connected to the The aeration sedimentation tank is connected. 4 . The excrement and urine diversity treatment system according to claim 1 , wherein the aeration sedimentation tank is connected to an aeration device. 5 . 5. The excrement and urine diversity treatment system according to claim 4, wherein the aeration device comprises an aeration fan and an aerator, and the aeration fan is located outside the aeration sedimentation tank, so The aerator is located inside the aeration sedimentation tank, and the aeration fan is connected to the aerator. 6. The excrement and urine diversity treatment system according to any one of claims 1-5, wherein a drainage pipeline and a liquid return pipeline are arranged between the urine storage tank and the ecological liquid storage tank, and the urine The liquid storage tank is communicated with the ecological liquid storage tank through a liquid discharge pipeline and a liquid return pipeline respectively. 7. The excrement and urine diversity treatment system according to any one of claims 1-5, characterized in that, a liquid discharge port is provided on the ecological liquid storage tank, and the liquid discharge port is communicated with the wetland purification tank. 8. The excrement and urine diversity treatment system according to any one of claims 1-5, wherein a water replenishing inlet is provided on the ecological liquid storage tank. 9 . The excrement and urine diversity treatment system according to claim 1 , wherein a toilet cover is provided on the excrement storage tank. 10 . 10. An ecological treatment system, characterized in that it comprises the excrement and urine diversity treatment system according to any one of claims 1-9.
