Abstract

The invention provides a flexible rubber sheet cutting machine and an operation method. A cutting frame is fixedly installed on the top of the frame structure, and a cutting hob device for cutting is fitted on the cutting frame, and the cutting hob device includes a bottom The hob assembly and the top hob assembly, the top hob assembly is installed on the lifting adjustment mechanism, and the lifting adjustment structure is installed in the top middle part of the cutting frame; A rotating power device; the bottom hob assembly and the top hob assembly are cooperatively driven by a synchronous transmission mechanism; a feeding device is provided on the cutting frame and located between the bottom hob assembly and the top hob assembly .

Description

Flexible rubber sheet cutting machine and operation method

technical field

The invention belongs to the field of rubber cutting devices, in particular to a flexible rubber sheet cutting machine and an operation method.

Background technique

During the processing and production of rubber products on automobiles, it is necessary to cut the rolled or plate-mounted rubber sheets into required sizes for subsequent production and use.

For example, in CN 102211336 A, an automatic rubber cutting machine is disclosed, which adopts an adsorption worktable for adsorption and fixation of a rubber plate, and then adopts a cylinder to drive a tool rest and a cutter to move longitudinally to realize the cutting action, and the screw drive mechanism is used to realize the cutting action. The lateral movement of the tool holder is realized to realize the lateral feeding action, cut the strip, realize the pressing through the jacking of the bottom cylinder, and finally realize the cutting, but the above-mentioned cutting machine adopts the structural form of the cutting blade, which cannot completely The rubber sheet is completely cut off, especially for flexible rubber sheets, and its adaptability is poor. Moreover, the work efficiency in the continuous cutting process of such automatic cutting is low, and it cannot be applied to a large-scale cutting process.

In CN 203357534 U, a high-precision CNC rubber sheet cutting machine with waste recycling is disclosed, which adopts a cylinder to press a hob, and realizes cutting by driving the hob to rotate through a belt drive, but the above-mentioned cutting machine is in In the process of use, because it adopts the method of pneumatic pressing and realizes cutting through a separate circular cutter head, the pressing force is not easy to control, resulting in poor stability, and the success rate of one-time cutting cannot be guaranteed.

In CN 105946019 A, a cutting machine for rubber sheets is disclosed, which adopts a two-dimensional plane cutting table, and in the cutting process, the rubber is cut through the movement of the cutting tool in the two-dimensional plane, thereby making It meets the needs of use, but the cutting machine with the above structure needs to manually push the pusher and realize its feeding during the use process, so that the cutting accuracy cannot be well guaranteed.

In CN 107662838 A, a rubber sheet cutting machine is disclosed, but in the specific use process of this cutting machine, the rubber coil is pulled by a squeezing roller, and the cutting is realized by a cutter, but it mainly provides cutting by pulling Power, the above cutting method is easy to produce traction and tensile stress on the rubber, and has a certain damage to the rubber itself.

SUMMARY OF THE INVENTION

In order to solve the above technical problems, the present invention provides a flexible rubber sheet cutting machine and an operation method. The cutting machine adopts automatic feeding, and realizes the cutting of the rubber sheet through the symmetrically arranged hob cutting method, which ensures the cutting quality and cutting efficiency. At the same time, the feeding and cutting are driven by the same power source, and the synchronous transmission is realized through multiple transmission mechanisms, which improves the transmission efficiency and the stability of the cutting machine is high; and it can realize the complete shearing of the rubber sheet, which is not conducive to the rubber itself. damage is small.

In order to achieve the above technical features, the purpose of the present invention is to achieve: a flexible rubber sheet cutting machine, which includes a frame structure, a cutting frame is fixedly installed on the top of the frame structure, and a cutting frame is fitted on the cutting frame. There is a cutting hob device for cutting, the cutting hob device includes a bottom hob assembly and a top hob assembly, the top hob assembly is installed on the lifting adjustment mechanism, and the lifting adjustment structure is installed on the cutting frame. The middle part of the top; the main shaft where the bottom hob assembly is located is installed with a power device for driving its rotation; the bottom hob assembly and the top rolling assembly are cooperatively driven by a synchronous transmission mechanism; the cutting frame is located at the bottom A feeding device is provided at a position between the hob assembly and the top hob assembly, and the feeding device is connected with the main shaft of the bottom hob assembly through a chain transmission mechanism and drives it to feed synchronously.

The frame structure includes a frame, the bottom four corners of the frame are fixed with support feet, the middle part of the frame is fixed with a middle beam, the middle beam is supported on the middle plate, and the top of the frame is fixed with a top frame.

The cutting frame includes a support vertical plate, the bottom of the support vertical plate is fixed on the top frame of the frame structure through the vertical plate base, and a lift chute for installing the top hob assembly is processed on the support vertical plate.

The bottom hob assembly and the top hob assembly have the same structure, the top hob assembly includes a hob shaft, and the middle part of the hob shaft is positioned and installed with a first hob and a second hob through a spacer sleeve. The outer end surfaces of the first hob and the second hob are respectively equipped with positioning sleeves, the positioning sleeves are locked and positioned on the hob shaft by a locking nut, the positioning sleeves, the first hob The knife, the spacer sleeve and the second hob are all connected to the hob shaft through a flat key, and the flat key is fixed on the keyway of the hob shaft through a locking screw, and transmits torque.

The power device includes a motor, the motor is fixedly installed on the middle plate of the frame structure, and a first sprocket is installed on the motor main shaft of the motor, and the first sprocket passes through the first chain and the second sprocket. For meshing transmission, the second sprocket is installed on the hob shaft of the bottom hob assembly; the first chain is matched with the chain tensioning mechanism, and its tensioning degree is adjusted.

The chain tensioning mechanism includes a fixing block, the fixing block is fixed on the frame, and a connecting rod is fixedly installed on the fixing block, and a support rod is fixed on the overhanging end of the connecting rod through fastening bolts. The other end of the rod is installed with a tensioning wheel installation shaft, and a tensioning sprocket is installed on the tensioning wheel installation shaft, and the tensioning sprocket is engaged with the first chain for transmission.

The synchronous transmission mechanism includes a first gear mounted on the hob shaft of the bottom hob assembly, the first gear is engaged with the second gear for transmission, and the second gear is fixedly installed on the hob shaft of the top hob assembly superior.

The lifting adjustment structure includes an adjustment screw, which forms a threaded drive fit with the adjustment nut arranged on the top of the top beam, and the bottom end of the adjustment screw is fixedly installed with a main shaft installation sleeve through a connecting block, and the top hob assembly is installed. The hob shaft support is mounted on the spindle mounting sleeve.

The feeding device includes a roller supporting plate fixed on the inner side wall of the supporting vertical plate of the cutting frame, a feeding roller is installed between the roller supporting plates, and the end of the feeding roller is located between the supporting vertical plates A feeding friction grooved roller is installed, the feeding friction grooved roller cooperates with the top pressing roller arranged on the top thereof and realizes feeding, and the top pressing roller supports the end of the installed pressing roller connecting plate, and the pressing roller is connected to the end of the connecting plate. The other end of the plate is fixed on the cross bar, and the cross bar is fixedly installed between the supporting vertical plates;

The chain transmission mechanism includes a third sprocket mounted on the hob shaft of the bottom hob assembly, the third sprocket engages and drives with the fourth sprocket through the second chain, and the fourth sprocket is fixedly installed on the The feed rubs the shaft end of the grooved roller and drives it to rotate synchronously to realize feeding.

The operation method of the flexible rubber sheet cutting machine includes the following steps:

Step1: Start the power unit, drive the first sprocket through the motor, then drive the second sprocket by the first sprocket and the first chain, and drive the first gear of the synchronous transmission mechanism and the third chain transmission mechanism through the second sprocket. sprocket;

Step2: Place the flexible rubber sheet to be cut on the feeding roller of the feeding device, and push it into between the top pressing roller and the feeding friction groove roller through the feeding roller;

Step3: Drive the fourth sprocket synchronously through the third sprocket and the second chain, and then drive the feed friction groove roller by the fourth sprocket, and then press the flexible rubber through the cooperation between the feed friction groove roller and the top pressing roller. The plate is pushed into between the bottom reel assembly and the top reel assembly;

Step4: The second gear will be driven by the first gear, and then the top hob assembly will be driven by the second gear; and then the two sets of first and second hob will be matched up and down between the top hob assembly and the bottom hob assembly. The knife is used for cutting and matching, and then the rubber sheet is cut;

Step5: During the cutting process, according to the thickness of the rubber plate, adjust the height position of the spindle mounting sleeve by adjusting the lifting adjustment structure to adjust the distance between the matching hob between the bottom hob assembly and the top hob assembly, This ensures the best cutting results.

The present invention has the following beneficial effects:

1. The above-mentioned cutting machine can be used for automatic cutting of flexible rubber sheets. It adopts the integrated structure of automatic feeding and automatic cutting, which greatly improves the cutting efficiency and cutting quality of rubber sheets, and effectively reduces the The labor intensity of the operators is improved, and the work efficiency is improved. In addition, this cutting machine adopts automatic feeding, and realizes the cutting of rubber sheets through the symmetrically arranged hob cutting method, which ensures the cutting quality and cutting efficiency. At the same time, feeding and cutting are driven by the same power source. Multiple transmission mechanisms realize its synchronous transmission, improve the transmission efficiency, and the cutting machine has high stability; and it can realize the complete shearing of the rubber plate, and the damage to the rubber itself is small.

2. The above structure can provide cutting power and feeding power for the cutting hob device and the feeding device synchronously through the power device, thereby avoiding the use of multiple sets of power devices and improving the transmission efficiency.

3. The above-mentioned cutting frame is mainly used to support and install the cutting device, and the lifting chute ensures that the bottom hob assembly can be lifted and lowered within a certain range, thereby being able to adapt to the cutting of rubber sheets of different thicknesses.

4. Through the above-mentioned cooperation between the bottom hob assembly and the top hob assembly, the cooperation between the two sets of hob can be realized, and then the rubber plate passing through the hob can be effectively cut in half. The cutter shaft drives the first hob and the second hob at the same time, and then cooperates with the corresponding hob on the bottom hob assembly to realize cutting.

5. The above-mentioned power device is mainly used to provide cutting power.

6. The rotation of the main shafts of the bottom hob assembly and the top hob assembly can be simultaneously realized through the above-mentioned synchronous transmission mechanism, thereby ensuring the normal cutting process.

7. The height position of the top hob assembly can be adjusted through the above-mentioned lifting adjustment structure, thereby ensuring that it can adapt to the cutting and use of rubber sheets of different thicknesses, thereby ensuring its cutting quality.

8. The above-mentioned feeding device is mainly used for feeding operation. Then the automatic feeding of the rubber sheet is realized.

9. The above chain transmission mechanism can be used to drive the feeding device, and at the same time transmit the power of the power device to the feeding device, and finally realize its automatic feeding.

Description of drawings

The present invention will be further described below with reference to the accompanying drawings and embodiments.

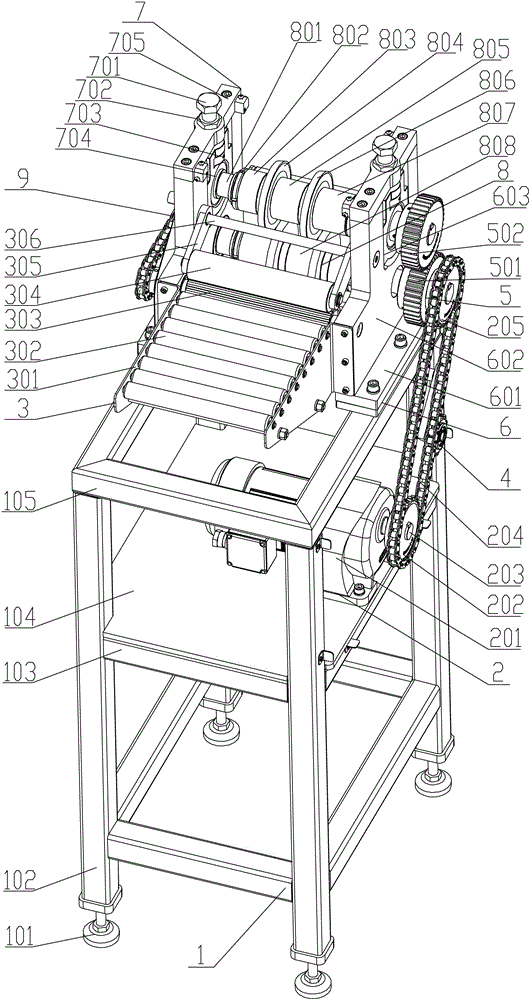

FIG. 1 is a three-dimensional view of the present invention from a first perspective.

FIG. 2 is a three-dimensional view of the present invention from a second perspective.

FIG. 3 is a three-dimensional view of the present invention from a third perspective.

FIG. 4 is a three-dimensional view of the present invention from a fourth perspective.

Figure 5 is a front view of the present invention.

Figure 6 is a side view of the present invention.

FIG. 7 is the A-A view in FIG. 5 of the present invention.

In the figure: frame structure 1, power device 2, feeding device 3, chain tensioning mechanism 4, synchronous transmission mechanism 5, cutting frame 6, lifting adjustment structure 7, cutting hob device 8, chain transmission mechanism 9;

Supporting feet 101, frame 102, middle beam 103, middle plate 104, top frame 105;

Motor 201, first sprocket 202, motor spindle 203, first chain 204, second sprocket 205;

Roller support plate 301, feeding roller 302, feeding friction groove roller 303, top pressing roller 304, pressing roller connecting plate 305, cross bar 306;

Fixed block 401, connecting rod 402, fastening bolt 403, support rod 404, tensioning wheel mounting shaft 405, tensioning sprocket 406;

a first gear 501, a second gear 502;

Vertical plate base 601, support vertical plate 602, lift chute 603;

Adjusting screw 701, adjusting nut 702, connecting block 703, main shaft mounting sleeve 704, top beam 705;

Hob shaft 801, lock nut 802, positioning sleeve 803, first hob 804, spacer sleeve 805 and second hob 806, top hob assembly 807, bottom hob assembly 808, locking screw 809;

The third sprocket 901 , the second chain 902 , and the fourth sprocket 903 .

Detailed ways

The embodiments of the present invention will be further described below with reference to the accompanying drawings.

Example 1:

1-7, a flexible rubber sheet cutting machine, which includes a frame structure 1, a cutting frame 6 is fixedly mounted on the top of the frame structure 1, and a cutting roller for cutting is fitted on the cutting frame 6. Knife device 8, the cutting hob device 8 includes a bottom hob assembly 808 and a top hob assembly 807, the top hob assembly 807 is installed on the lift adjustment mechanism 7, and the lift adjustment structure 7 is installed on the cutting frame 6; the main shaft where the bottom hob assembly 808 is located is installed with a power device 2 for driving its rotation; the bottom hob assembly 808 and the top rolling assembly 807 are cooperatively driven by the synchronous transmission mechanism 5; the A feeding device 3 is provided on the cutting frame 6 and located between the bottom hob assembly 808 and the top hob assembly 807, and the feeding device 3 is connected with the main shaft of the bottom hob assembly 808 through a chain transmission mechanism 9, And drive its synchronous feeding. The above-mentioned cutting machine can be used for automatic cutting of flexible rubber sheets. It adopts the integrated structure of automatic feeding and automatic cutting, which greatly improves the cutting efficiency and cutting quality of rubber sheets, and effectively reduces the operation. The labor intensity of personnel has been improved, and the work efficiency has been improved.

In addition, the above structure can provide cutting power and feeding power to the cutting hob device 8 and the feeding device 3 synchronously through the power device 2, thereby avoiding the use of multiple sets of power devices and improving the transmission efficiency.

Further, the rack structure 1 includes a rack 102 , the bottom four corners of the rack 102 are fixed with supporting feet 101 , the middle part of the rack 102 is fixed with a middle beam 103 , and a middle beam 103 is supported on the middle beam 103 The board 104 has a top frame 105 fixed on the top of the rack 102 . The above rack structure 1 can effectively support the entire device, thereby ensuring the stability and reliability of the support.

Further, the cutting frame 6 includes a supporting vertical plate 602, the bottom of the supporting vertical plate 602 is fixed on the top frame 105 of the frame structure 1 through the vertical plate base 601, and the supporting vertical plate 602 is processed with Install the lift chute 603 of the top reel assembly 807. The above-mentioned cutting frame 6 is mainly used to support and install the cutting device 8, and the lifting chute 603 ensures that the bottom hob assembly 808 can be lifted and lowered within a certain range, thereby being able to adapt to the cutting of rubber sheets of different thicknesses.

Further, the bottom hob assembly 808 and the top hob assembly 807 have the same structure, the top hob assembly 807 includes a hob shaft 801 , and the middle part of the hob shaft 801 is positioned and installed by a spacer sleeve 805 There are a first hob 804 and a second hob 806 , the outer end surfaces of the first hob 804 and the second hob 806 are respectively installed with positioning sleeves 803 , and the positioning sleeves 803 are locked by the locking nut 802 Positioned on the hob shaft 801, the positioning sleeve 803, the first hob 804, the spacer sleeve 805 and the second hob 806 are all connected to the hob shaft 801 through a flat key 808, and transmit torque, the said The flat key 808 is fixed on the keyway of the hob shaft 801 by a locking screw 809 . Through the above-mentioned cooperation between the bottom hob assembly 808 and the top hob assembly 807, the cooperation between the two sets of hob can be realized, and then the rubber plate passing through the hob can be effectively cut in half. The cutter shaft 801 drives the first hob and the second hob at the same time, and then cooperates with the corresponding hob on the bottom hob assembly to realize cutting.

Further, the power unit 2 includes a motor 201, the motor 201 is fixedly installed on the middle plate 104 of the frame structure 1, and a first sprocket 202 is installed on the motor shaft 203 of the motor 201, and the first sprocket 202 is installed on the main shaft 203 of the motor 201. The sprocket 202 engages and drives through the first chain 204 and the second sprocket 205, and the second sprocket 205 is mounted on the hob shaft 801 of the bottom hob assembly 808; the first chain 204 and the chain tensioning mechanism 4 match and adjust its tension. The above-mentioned power device 2 is mainly used to provide cutting power. During the working process, the motor spindle 203 is driven by the motor 201, and then the first chain 204 is driven by the motor spindle 203, and then the first chain 204 and the first chain 204 drive the first chain 204. The second sprocket 205 drives the main shaft of the bottom hob assembly 808 through the first sprocket 205 to provide cutting power.

Further, the chain tensioning mechanism 4 includes a fixing block 401, the fixing block 401 is fixed on the frame 102, and a connecting rod 402 is fixedly installed on the fixing block 401, and the overhanging end of the connecting rod 402 is tightened. The fixing bolt 403 is fixed with a support rod 404, the other end of the support rod 404 is installed with a tensioning wheel installation shaft 405, and a tensioning sprocket 406 is installed on the tensioning wheel installation shaft 405. The tensioning sprocket 406 is engaged with the first chain 204 for transmission. The chain tensioning mechanism 4 is mainly used to adjust the tension of the first chain 204 to achieve the most joint transmission effect. During the adjustment process, by rotating the support rod 404, the support position of the tensioning sprocket 406 is changed, and the first chain 204 is tensioned.

Further, the synchronous transmission mechanism 5 includes a first gear 501 installed on the hob shaft of the bottom hob assembly 808 , the first gear 501 is engaged with the second gear 502 for transmission, and the second gear 502 is fixedly installed On the hob shaft 801 of the top hob assembly 807. The rotation of the main shafts of the bottom hob assembly 808 and the top hob assembly 807 can be simultaneously achieved through the above-mentioned synchronous transmission mechanism 5, thereby ensuring a normal cutting process.

Further, the lifting adjusting structure 7 includes an adjusting screw 701 , the adjusting screw 701 and the adjusting nut 702 arranged on the top of the top beam 705 form a threaded drive fit, and the bottom end of the adjusting screw 701 is fixedly installed with a connecting block 703 . The spindle mounting sleeve 704, the hob shaft 801 of the top hob assembly 807 is supported and mounted on the spindle mounting sleeve 704. The height position of the top hob assembly 807 can be adjusted through the above-mentioned lifting adjustment structure 7, thereby ensuring that it can be used for cutting rubber sheets of different thicknesses, thereby ensuring its cutting quality. During the adjustment process, by rotating the adjusting screw 701, the adjusting screw 701 cooperates with the adjusting nut 702, and then the main shaft mounting sleeve 704 is adjusted up and down so that it slides inside the lift chute 603, thereby adjusting the spacing.

Further, the feeding device 3 includes a roller supporting plate 301 fixed on the inner side wall of the supporting vertical plate 602 of the cutting frame 6, and a feeding roller 302 is installed between the roller supporting plates 301. The feeding roller At the end of 302 and between the supporting vertical plates 602, a feed friction grooved roller 303 is installed, and the feed friction grooved roller 303 cooperates with the top pressing roller 304 arranged on the top thereof and realizes feeding, and the top pressing roller 304 The end of the pressure roller connecting plate 305 is supported and installed, and the other end of the pressure roller connecting plate 305 is fixed on the cross bar 306, and the cross bar 306 is fixedly installed between the supporting vertical plates 602; through the above-mentioned feeding device 3 Mainly used for feeding operations. Then the automatic feeding of the rubber sheet is realized.

Further, the chain transmission mechanism 9 includes a third sprocket 901 mounted on the hob shaft 801 of the bottom hob assembly 808 , and the third sprocket 901 engages with the fourth sprocket 903 through the second chain 902 for transmission , the fourth sprocket 903 is fixedly installed on the shaft end of the feeding friction groove roller 303, and drives it to rotate synchronously to realize feeding. The above-mentioned chain transmission mechanism 9 can be used to drive the feeding device 3, and at the same time transmit the power of the power device to the feeding device 3, and finally realize its automatic feeding.

Example 2:

The operation method of the flexible rubber sheet cutting machine includes the following steps:

Step1: Start the power unit 2, drive the first sprocket 202 through the motor 201, then drive the second sprocket 205 by the first sprocket 202 and the first chain 204, and drive the first sprocket 5 of the synchronous transmission mechanism 5 through the second sprocket 205. the gear 501 and the third sprocket 901 of the chain drive 9;

Step2: Place the flexible rubber sheet to be cut on the feeding roller 302 of the feeding device 3, and push it into between the top pressing roller 304 and the feeding friction groove roller 303 through the feeding roller 302;

Step3: Drive the fourth sprocket 903 synchronously through the third sprocket 901 and the second chain 902, and then drive the feed friction groove roller 303 by the fourth sprocket 903, and then pass the feed friction groove roller 303 and the top pressing roller 304 The cooperation between pushes the flexible rubber plate into between the bottom hob assembly 808 and the top hob assembly 807;

Step4: The second gear 502 will be driven by the first gear 501, and then the top hob assembly 807 will be driven by the second gear 502; and then through the two sets of first hob assemblies 807 and the bottom hob assembly 808 that are matched up and down The hob 804 and the second hob 806 are used for cutting and matching, so as to cut the rubber sheet;

Step5: During the cutting process, according to the thickness of the rubber plate, adjust the height position of the spindle mounting sleeve 704 by adjusting the lifting adjustment structure 7 to adjust the matching between the bottom hob assembly 808 and the top hob assembly 807. The distance between them ensures the best cutting effect.

Claims (10)

1. A flexible rubber sheet cutting machine, characterized in that it comprises a frame structure (1), a cutting frame (6) is fixedly mounted on the top of the frame structure (1), and a cutting frame (6) is mounted on the top of the frame structure (1). A cutting hob device (8) for cutting is installed in cooperation, the cutting hob device (8) includes a bottom hob assembly (808) and a top hob assembly (807), and the top hob assembly (807) is installed On the lifting adjustment mechanism (7), the lifting adjustment structure (7) is installed at the top middle part of the cutting frame (6); the main shaft where the bottom hob assembly (808) is located is installed with a power device for driving it to rotate (2); the bottom hob assembly (808) and the top roll assembly (807) are cooperatively driven by a synchronous transmission mechanism (5); the cutting frame (6) is located on the bottom hob assembly (808) A feeding device (3) is provided at a position between the top hob assembly (807), and the feeding device (3) is connected with the main shaft of the bottom hob assembly (808) through a chain transmission mechanism (9), and drives Its synchronous feeding. 2. The flexible rubber sheet cutting machine according to claim 1, characterized in that: the frame structure (1) comprises a frame (102), and support feet (101) are fixed at the bottom four corners of the frame (102). The middle part of the frame (102) is fixed with a middle beam (103), a middle plate (104) is supported on the middle beam (103), and a top frame (105) is fixed on the top of the frame (102). 3. The flexible rubber sheet cutting machine according to claim 1, characterized in that: the cutting frame (6) comprises a supporting vertical plate (602), and the bottom of the supporting vertical plate (602) passes through the vertical plate base (601). ) is fixed on the top frame (105) of the rack structure (1), and a lift chute (603) for installing the top hob assembly (807) is processed on the support vertical plate (602). The flexible rubber sheet cutting machine according to claim 1, characterized in that: the bottom hob assembly (808) and the top hob assembly (807) adopt the same structure, and the top hob assembly (807) comprises A hob shaft (801), a first hob (804) and a second hob (806) are positioned and installed in the middle part of the hob shaft (801) through a spacer sleeve (805), the first hob (804) and the outer end surfaces of the second hob (806) are respectively installed with positioning sleeves (803), the positioning sleeves (803) are locked and positioned on the hob shaft (801) through the locking nut (802) , the positioning sleeve (803), the first hob (804), the spacer sleeve (805) and the second hob (806) are all connected with the hob shaft (801) through a flat key (808), and To transmit torque, the flat key (808) is fixed on the keyway of the hob shaft (801) by a locking screw (809). 5 . The flexible rubber sheet cutting machine according to claim 1 , wherein the power device ( 2 ) comprises a motor ( 201 ), and the motor ( 201 ) is fixedly installed on the middle plate ( 104), a first sprocket (202) is mounted on the motor main shaft (203) of the motor (201), and the first sprocket (202) connects with the second sprocket (205) through the first chain (204) ) meshing transmission, the second sprocket (205) is mounted on the hob shaft (801) of the bottom hob assembly (808); the first chain (204) cooperates with the chain tensioning mechanism (4), and adjust its tension. 6 . The flexible rubber sheet cutting machine according to claim 5 , wherein the chain tensioning mechanism ( 4 ) comprises a fixing block ( 401 ), and the fixing block ( 401 ) is fixed on the frame ( 102 ). 7 . A connecting rod (402) is fixedly installed on the fixing block (401), and a support rod (404) is fixed on the outgoing end of the connecting rod (402) through a fastening bolt (403). A tensioning wheel mounting shaft (405) is installed at the other end, a tensioning sprocket (406) is installed on the tensioning wheel mounting shaft (405), and the tensioning sprocket (406) is connected to the first chain (204). ) to engage the drive. 7. The flexible rubber sheet cutting machine according to claim 1, characterized in that: the synchronous transmission mechanism (5) comprises a first gear (501) mounted on the hob shaft of the bottom hob assembly (808), so The first gear (501) meshes with the second gear (502) for transmission, and the second gear (502) is fixedly mounted on the hob shaft (801) of the top hob assembly (807). 8. The flexible rubber sheet cutting machine according to claim 1, characterized in that: the lifting adjustment structure (7) comprises an adjustment screw (701), and the adjustment screw (701) is connected to a screw disposed on the top of the top beam (705). The adjusting nut (702) constitutes a threaded drive fit, the bottom end of the adjusting screw (701) is fixedly installed with a spindle mounting sleeve (704) through a connecting block (703), and the hob shaft ( 801) is supported on the spindle mounting sleeve (704). 9. The flexible rubber sheet cutting machine according to claim 1, characterized in that: the feeding device (3) comprises a roller support plate ( 301), a feed roller (302) is installed between the roller support plates (301), and a feed friction groove roller ( 303), the feeding friction grooved roller (303) cooperates with the top pressing roller (304) arranged on the top thereof and realizes feeding, and the top pressing roller (304) supports the mounting of the pressing roller connecting plate (305). At the end, the other end of the pressure roller connecting plate (305) is fixed on a cross bar (306), and the cross bar (306) is fixedly installed between the supporting vertical plates (602); The chain drive (9) includes a third sprocket (901) mounted on the reel shaft (801) of the bottom reel assembly (808), the third sprocket (901) passing through the second chain (902) ) meshes with the fourth sprocket (903), the fourth sprocket (903) is fixedly installed on the shaft end of the feed friction groove roller (303), and drives it to rotate synchronously to realize feeding. 10. The operation method of the flexible rubber sheet cutting machine according to any one of claims 1-9, characterized in that, it comprises the following steps: Step1: Start the power unit (2), drive the first sprocket (202) through the motor (201), and then drive the second sprocket (205) by the first sprocket (202) and the first chain (204), and pass the first sprocket (202) and the first chain (204). The second sprocket (205) drives the first gear (501) of the synchronous transmission mechanism (5) and the third sprocket (901) of the chain transmission mechanism (9); Step2: Place the flexible rubber sheet to be cut on the feeding roller (302) of the feeding device (3), and push it into the top pressing roller (304) and the feeding friction groove roller ( 303) between; Step3: Drive the fourth sprocket (903) synchronously through the third sprocket (901) and the second chain (902), and then drive the feed friction groove roller (303) by the fourth sprocket (903), and then pass the feed The cooperation between the material friction groove roller (303) and the top pressing roller (304) pushes the flexible rubber plate into between the bottom hob assembly (808) and the top hob assembly (807); Step4: The second gear (502) will be driven by the first gear (501), and then the top hob assembly (807) will be driven by the second gear (502); then the top hob assembly (807) and the bottom hob assembly ( 808) two sets of the first hob (804) and the second hob (806), which are matched up and down, perform cutting and matching, and then cut the rubber sheet; Step5: During the cutting process, according to the thickness of the rubber sheet, adjust the height position of the spindle mounting sleeve (704) by adjusting the lifting adjustment structure (7) to adjust the bottom hob assembly (808) and the top hob assembly (807) The distance between the matching hob, thus ensuring the best cutting effect.
