The invention discloses a foldable word auxiliary memory device, belonging to the technical field of English learning devices. A foldable word auxiliary memory device comprises an upper box body and a lower box body. The surface of the upper box body is provided with a display screen, and the upper The bottom of the box body is provided with a rotating shaft, and the upper box body and the lower box body are rotatably connected by the rotating shaft. The auxiliary memory system includes a user login module, and the output end of the user login module is electrically connected with a data transceiver module, and the output of the data transceiver module is The terminal is electrically connected with a punching module, which can realize the opening and closing of the upper box and the lower box, which is convenient to carry, and can remind the learners to repeat the words through vibration in time, which ensures the learning effect of the words and realizes the learning effect of the learners. The number of logins and login time are required, which restricts and regulates learners, reduces learners' slack and slack in the memory process, and enables learners to better memorize English.

Description

A foldable word auxiliary memory device

technical field

The present invention relates to the technical field of English learning devices, and more particularly, to a foldable word auxiliary memory device.

Background technique

English is a language under the Indo-European language family-Germanic language family. It is composed of 26 letters. The English alphabet is derived from the Latin alphabet, the Latin alphabet is derived from the Greek alphabet, and the Greek alphabet is evolved from the Phoenician alphabet. English It is an international designated official language (as a mother tongue) and the most widely used first language in the world. English contains about 490,000 words, plus about 300,000 technical nouns. The official language of the federal state, has the third largest number of native speakers in the world, after the number of native speakers of Chinese and Spanish.

The informatization of social life and the globalization of the economy have made the importance of English increasingly prominent. As one of the most important information carriers, English has become the most widely used language in all fields of human life, and English ability has become a must-have If a student can learn a foreign language ability, it can help him open the door of learning into another world, and finally achieve the goal of multiple learning and value, and the memory of words is very important in the process of English learning. , When learning and memorizing words, repeating memory is a good learning method, while traditional word memory aids can only learn and memorize when the learner is turned on, and cannot remind learners to memorize words regularly, and cannot achieve repeatability. The effect of memory affects the quality of word memory.

The existing English memory aids do not have the function of self-management for students or learners. Many learners may use it once and never use it again. It is easy to happen that learners give up halfway in memorizing English. When learners do not have self-supervision There is no manager to supervise and teach them when they have the ability, which makes the learners easily lead to confusion, slackness and other emotions in the memory process.

Therefore, there is a need for a foldable word-assisted memory device.

SUMMARY OF THE INVENTION

1. Technical problems to be solved

In view of the problems existing in the prior art, the purpose of the present invention is to provide a foldable word auxiliary memory device, which can realize the opening and closing of the upper box body and the lower box body, is convenient to carry, and can remind the learner to carry out the correction in time through vibration. The repeated memory of words ensures the learning effect of words, realizes the requirements for the number of logins and login time of the learners, restrains and regulates the learners, and reduces the slackness and slackness of the learners in the memory process. Emotions, so that learners can better memorize English.

2. Technical solutions

In order to solve the above problems, the present invention adopts the following technical solutions.

A foldable word auxiliary memory device, comprising an upper box body, a lower box body and an auxiliary memory system, a display screen is arranged on the surface of the upper box body, a rotating shaft is arranged at the bottom of the upper box body, and the upper box body is A power switch is provided on the surface of the lower case, a control button is provided on the left side of the power switch, and a speaker protective cover is provided on the right side of the control button. A vibrating plate is arranged inside the upper box body, the vibration plate is fixed in the upper box body through a card slot, an earphone insertion hole is arranged on the inner side of the lower box body, and a USB connector is arranged on the lower side of the earphone insertion hole, The inner middle of the lower box is provided with a control host, and the control host is provided with a storage, a power amplifier and a timer, a battery is arranged at the bottom of the lower box, and a speaker is arranged on the right side of the battery, so The auxiliary memory system includes a user login module, an output end of the user login module is electrically connected with a data transceiver module, and an output end of the data transceiver module is electrically connected with a punch card module.

Further, the rotating shaft is fixed on the upper box body by threads, and the lower box body is fixed on the rotating shaft by threads.

Further, the control host is fixed on the lower box through the card slot, the storage is fixed on the control host through the card slot, the timer is fixed on the control host through the card slot, the power amplifier is fixed on the control host through the card slot, and the The speaker is fixed in the lower case through the card slot, and the timer adopts CMOS digital integrated circuit.

Further, the control host is connected with a storage, a timer, a power amplifier, a speaker, a battery, a USB connector, an earphone insertion hole, a vibration plate, a display screen, a power switch and a control button through wires.

Further, the output end of the data transceiver module is electrically connected with an output module, and the output end of the data transceiver module is electrically connected with a confirmation module.

Further, the output end of the data transceiver module is electrically connected with an output module, and the output end of the data transceiver module is electrically connected with a confirmation module.

Further, the output end of the punch card module is electrically connected with a word module, a word sentence module and a grammar module, and the output end of the word module, the word sentence module and the grammar module is electrically connected with an initial recognition module, and the output of the initial recognition module is electrically connected. The terminal is electrically connected with the test library module, and the output terminal of the test library module is electrically connected with the review library module, the output terminal of the review library module is electrically connected with the detection library module, and the output terminal of the test library module is electrically connected with There is a depth detection library module, the input end of the punch card module is electrically connected with a management module, and the input end of the management module is electrically connected with a central server, the input end of the management module is electrically connected with a data transceiver module, and the data The input end of the transceiver module is electrically connected with the administrator login module.

Further, the output end of the test library module is electrically connected with associative memory, and the output end of the associative memory is electrically connected with the object associative memory, and the output end of the associative memory is electrically connected with the word associative memory;

The output end of the test library module is electrically connected with the fun memory, the output end of the fun memory is electrically connected with the object video fun memory, and the output end of the fun memory is electrically connected with the song fun memory.

Further, the output end of the detection library module is electrically connected with a wrong question module, and the output end of the detection library module is electrically connected with a remember module, and the output end of the depth detection library module is electrically connected with a wrong question repeated training. module.

Further, the central server and the management module are electrically connected in both directions, the management module and the punching module are electrically connected in both directions, and the output end of the management module is electrically connected with the test library module.

3. Beneficial effects

Compared with the prior art, the advantages of the present invention are:

(1) The word auxiliary memory device is provided with an upper box body and a lower box body, and the upper box body and the lower box body can be integrated by a rotating shaft, which is convenient to carry.

(2) The word auxiliary memory device is provided with a vibrating plate and a timer. By presetting the repetition memory interval, the learner can be reminded to repeat the word memory in time through vibration, and the learning effect of the word is guaranteed.

(3) The auxiliary memory system in the word auxiliary memory device, through the set punch-in module, realizes the requirements for the number of times and the login time of the learners, so as to restrict and manage the learners to log in and memorize English word modules on time , word module and grammar module, to avoid the occurrence of few learners logging in, resulting in slow English memory.

(4) The auxiliary memory system in this word auxiliary memory device, through the set administrator login module and management module, realizes that the administrator can directly log in and check the test results of the learners, and cooperate with the punch-in module to restrain the learners. And the purpose of norm, reduce the dazed and slack emotions of learners in the memory process, so that learners can better memorize English.

(5) The auxiliary memory system in this word auxiliary memory device realizes the use of various methods and methods to memorize English through the set test library module, associative memory and interesting memory, so that the learner's learning interest is higher and the memory effect is better. it is good.

Description of drawings

Fig. 1 is the front view of the present invention;

Fig. 2 is the internal structure schematic diagram of the present invention;

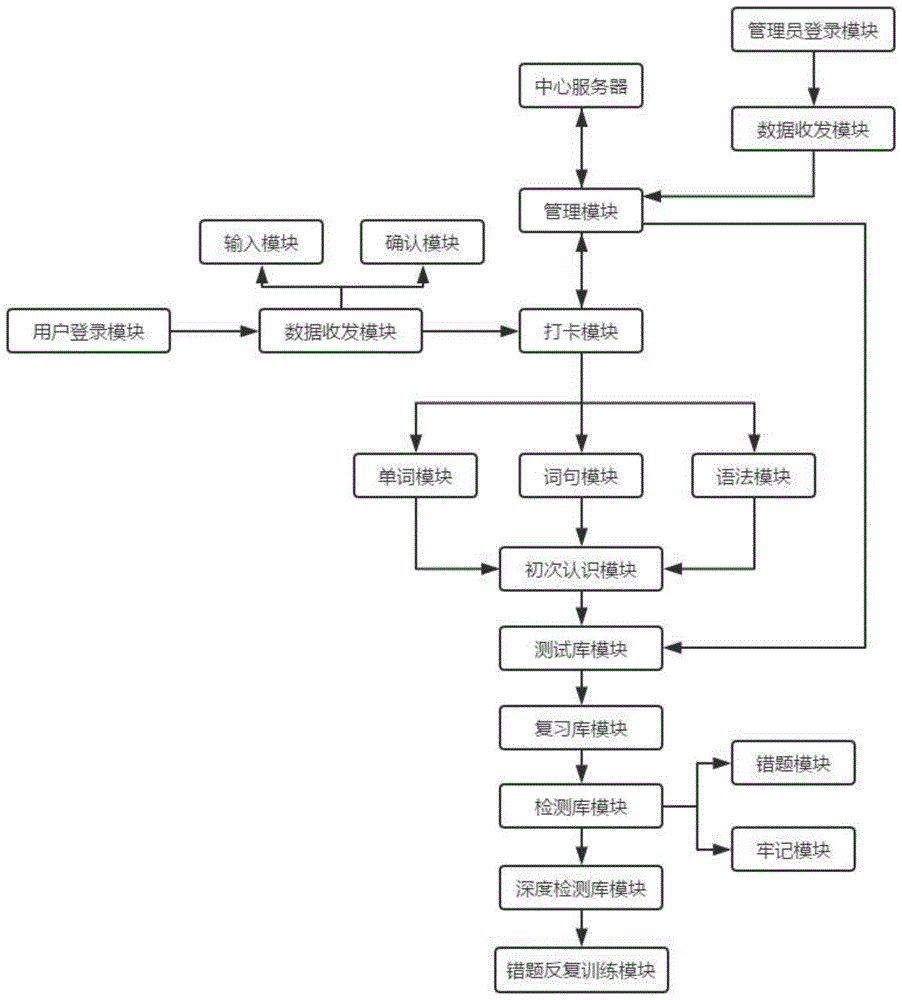

Fig. 3 is the module structure schematic diagram of the auxiliary memory system in the present invention;

FIG. 4 is a schematic diagram of the module structure of the initial recognition module in the auxiliary memory system.

Description of the labels in the figure:

1 upper box, 2 display screen, 3 rotating shaft, 4 lower box, 5 control button, 6 power switch, 7 speaker shield, 8 earphone insertion hole, 9 USB connector, 10 control host, 11 battery, 12 vibration plate, 13 Storage, 14 power amplifiers, 15 timers, 16 speakers.

Detailed ways

The following will combine the drawings in the embodiments of the present invention; the technical solutions in the embodiments of the present invention will be described clearly and completely; obviously; the described embodiments are only a part of the embodiments of the present invention; rather than all the embodiments, based on The embodiments of the present invention; all other embodiments obtained by those of ordinary skill in the art without creative work; all belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientations or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. are based on the orientations shown in the accompanying drawings Or the positional relationship is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "provided with", "sleeve/connection", "connection", etc., should be understood in a broad sense, such as " Connection", which can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be an internal connection between two components. of connectivity. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example 1:

Please refer to Fig. 1-2, a foldable word auxiliary memory device, comprising an upper box body 1, a lower box body 4, a display screen 2 is arranged on the surface of the upper box body 1, and a rotating shaft 3 is arranged at the bottom of the upper box body 1, The upper box body 1 and the lower box body 4 are connected by rotation through the rotating shaft 3, the rotating shaft 3 is fixed on the upper box body 1 through the thread, the lower box body 4 is fixed on the rotating shaft 3 through the thread, and the surface of the lower box body 4 is provided with a power supply. Switch 6, the left side of the power switch 6 is provided with a control button 5, the right side of the control button 5 is provided with a speaker shield 7, the interior of the upper box body 1 is provided with a vibration plate 12, and the vibration plate 12 is fixed on the upper box through the card slot In the body 1, the inner side of the lower box body 4 is provided with an earphone insertion hole 8, the lower side of the earphone insertion hole 8 is provided with a USB connector 9, the inner middle of the lower box body 4 is provided with a control host 10, and the control host 10 is provided with a The storage 13, the power amplifier 14 and the timer 15, the bottom of the lower case 4 is provided with a battery 11, and the right side of the battery 11 is provided with a speaker 16; The card slot is fixed in the lower box 4, the storage 13 is fixed on the control host 10 through the card slot, the timer 15 is fixed on the control host 10 through the card slot, the power amplifier 14 is fixed on the control host 10 through the card slot, and the speaker 16 It is fixed in the lower case body 4 through the card slot, and the timer 15 adopts a CMOS digital integrated circuit.

Among them, the control host 10 communicates with the storage 13, the timer 15, the power amplifier 14, the speaker 16, the battery 11, the USB connector 9, the earphone insertion hole 8, the vibration plate 12, the display screen 2, the power switch 6 and the control button 5 through wires. connect.

When the device needs to be used, data is exchanged between the USB connector 9 of the device and the external multimedia device through the data cable, the words to be memorized are transmitted into the device, and the words are transmitted to the control host 10 in the form of electrical signals through wires, and the control host 10 The electrical signal is converted into a digital signal and transmitted to the memory 13 for storage through a wire. When it is necessary to repeat the memorized word, the user turns on the device by pressing the power switch 6, and sends the timing command through the control button 5. The timer 15 adopts CMOS digital Integrated circuit, the timing command is transmitted to the control host 10 in the form of an electrical signal through the wire, and the control host 10 transmits the timing command in the form of an electrical signal to the timer 15 through the wire, and the work starts to time. The control host 10 sends work instructions, and the work instructions are transmitted to the vibration plate 12 in the form of electrical signals through wires. The vibration plate 12 starts to vibrate to remind the learner to repeat the memory. The learner sends work instructions through the control button 5, and the work instructions are in the form of electrical signals. The control host 10 transmits the work instructions to the storage 13 in the form of electrical signals through the wires, and the storage 13 transmits the words in the form of digital signals to the control host 10 through the wires, and the control host 10 transmits the digital The signal is converted into an electrical signal and transmitted to the display screen 2 through the wire and displayed on it in real time. At the same time, the sound information of the word is transmitted to the power amplifier 14 through the wire in the form of an electrical signal. The power amplifier 14 amplifies the electrical signal and transmits it to the speaker through the wire. 16. The speaker 16 plays the sound of the word for the learner to repeat and memorize.

Please refer to FIG. 3 and FIG. 4 , a foldable word auxiliary memory device further includes an auxiliary memory system. The auxiliary memory system includes a user login module, and an output end of the user login module is electrically connected with a data transceiver module, and the data transceiver module is The output end of the module is electrically connected with the punching module, the output end of the data transceiver module is electrically connected with the output module, and the output end of the data transceiver module is electrically connected with the confirmation module; the output end of the punching module is electrically connected with the word module, The word module and the grammar module, and the output terminals of the word module, the word module and the grammar module are electrically connected with the initial recognition module, the output terminal of the initial recognition module is electrically connected with the test library module, and the output terminal of the test library module is electrically connected There is a review library module, an output end of the review library module is electrically connected with a detection library module, and an output end of the detection library module is electrically connected with a depth detection library module, an input end of the punch card module is electrically connected with a management module, and the management module The input end of the management module is electrically connected with the central server, the input end of the management module is electrically connected with the data transceiver module, and the input end of the data transceiver module is electrically connected with the administrator login module.

Among them, the output end of the test library module is electrically connected with associative memory, and the output end of the associative memory is electrically connected with the object associative memory, and the output end of the associative memory is electrically connected with the word associative memory; the output end of the test library module is electrically connected with the associative memory. Interesting memory is connected, and the output end of the interesting memory is electrically connected with the interesting memory of objects, film and television, and the output end of the interesting memory is electrically connected with the interesting memory of songs.

Among them, the output end of the detection library module is electrically connected with the wrong question module, and the output end of the detection library module is electrically connected with the remember module, and the output end of the deep detection library module is electrically connected with the wrong question repeated training module; the central server and the The management module is electrically connected in both directions, and the management module and the punching module are electrically connected in both directions, and the output end of the management module is electrically connected with the test library module.

Working principle: When the user uses the auxiliary memory device, the user exchanges data between the USB connector 9 of the device and the external multimedia device through the data cable, and transmits the words to be memorized into the device, and the words are transmitted to the control device in the form of electrical signals through wires. The host 10, the control host 10 converts the electrical signal into a digital signal and transmits it to the storage 13 for storage through a wire. When it is necessary to repeat the memorized word, the user turns on the device by pressing the power switch 6, and sends the timing command through the control button 5. The timing command is transmitted to the control host 10 in the form of an electrical signal through the wire, and the control host 10 transmits the timing command to the timer 15 in the form of an electrical signal through the wire, and the work starts to time. When the timing is completed, the timer 15 to the control host 10 Send work instructions, the work instructions are transmitted to the vibration plate 12 in the form of electrical signals through the wires, the vibration plate 12 starts vibrating to remind the learner to repeat the memory, the learner sends the work instructions through the control button 5, and the work instructions are transmitted in the form of electrical signals through the wires To the control host 10, the control host 10 transmits the work instructions in the form of electrical signals to the storage 13 through wires, and the storage 13 transmits the words in the form of digital signals to the control host 10 through the wires, and the control host 10 converts the digital signals into The electrical signal is transmitted to the display screen 2 through the wire and displayed in real time on it. At the same time, the sound information of the word is transmitted to the power amplifier 14 through the wire in the form of an electrical signal. The power amplifier 14 amplifies the electrical signal and transmits it to the speaker 16 through the wire. 16 Play word sounds for learners to repeat and memorize.

When using the auxiliary memory system, the learner first needs to log in to the system through the user login module and the data transceiver module, and then punch in the system. Entering the module, each module is equipped with an initial recognition module. The initial recognition module is a relatively simple and easy-to-use module, which is convenient for learners with a low level of English to learn and memorize. In the initial recognition module, you can learn from associative memory and memory. The two types of fun memory are convenient for learning and memory. The associative memory is provided with object associative memory and word associative memory respectively. The fun memory is set with video memory and song memory respectively. Learning and memory are carried out from the aspects that the learner is interested in, so that words can be memorized. More simple, from the end of the initial understanding module, you can come to the test library module, and test in the test library module. After the test, you can go through the review module to make the learner's memory more perfect, and after a round of review, you can go through the test again. Find the memory points that you are prone to make mistakes, and ensure that no mistakes will occur, and then repeat the training for your own mistakes through the deep detection library module to achieve better memory effects. Managers can also log in to the same system, enter the management module and directly watch the test library module.

The above is only a preferred embodiment of the present invention; but the protection scope of the present invention is not limited to this; any person skilled in the art is within the technical scope disclosed by the present invention; according to the technical solution of the present invention equivalent replacements or changes to its improved ideas; all should be covered within the protection scope of the present invention.

Claims (10)

1. The utility model provides a foldable word auxiliary memory device, includes last box body (1), lower box body (4) and auxiliary memory system, its characterized in that: go up box body (1) surface and be provided with display screen (2), the bottom of going up box body (1) is equipped with pivot (3), go up box body (1) and rotate through pivot (3) between box body (4) down and connect, the surface of box body (4) is provided with switch (6) down, the left side of switch (6) is provided with control button (5), the right side of control button (5) is provided with speaker protection casing (7), the inside of going up box body (1) is provided with vibration board (12), vibration board (12) are fixed in last box body (1) through the draw-in groove, the inside side of box body (4) is provided with earphone patchhole (8) down, the downside of earphone patchhole (8) is provided with USB and connects (9), the inside middle part of box body (4) is provided with control host computer (10) down, be provided with accumulator (13) on control host computer (10), Power amplifier (14) and time-recorder (15), bottom is equipped with battery (11) in lower box body (4), the right side of battery (11) is equipped with speaker (16), supplementary memory system includes user login module, user login module's output electric connection has data transceiver module, and data transceiver module's output electric connection has the module of checking the card.

2. The foldable word assist memory device of claim 1, wherein: the rotating shaft (3) is fixed on the upper box body (1) through threads, and the lower box body (4) is fixed on the rotating shaft (3) through threads.

3. The foldable word assist memory device of claim 1, wherein: the control host (10) is fixed in the lower box body (4) through a clamping groove, the storage device (13) is fixed on the control host (10) through the clamping groove, the timer (15) is fixed on the control host (10) through the clamping groove, the power amplifier (14) is fixed on the control host (10) through the clamping groove, the loudspeaker (16) is fixed in the lower box body (4) through the clamping groove, and the timer (15) is a CMOS digital integrated circuit.

4. The foldable word assist memory device of claim 1, wherein: the control host (10) is connected with the storage (13), the timer (15), the power amplifier (14), the loudspeaker (16), the storage battery (11), the USB connector (9), the earphone insertion hole (8), the vibration plate (12), the display screen (2), the power switch (6) and the control button (5) through wires.

5. The foldable word assist memory device of claim 1, wherein: the output end of the data transceiver module is electrically connected with the output module, and the output end of the data transceiver module is electrically connected with the confirmation module.

6. The foldable word assist memory device of claim 1, wherein: the output end of the data transceiver module is electrically connected with the output module, and the output end of the data transceiver module is electrically connected with the confirmation module.

7. The foldable word assist memory device of claim 1, wherein: the utility model discloses a system for checking card, including a checking card module, a central server, a data transceiver module and a manager login module, wherein the checking card module is connected with the output end of the checking card module electrically, the checking card module is connected with the word module, the word sentence module and the grammar module, the output end of the first understanding module is connected with the testing library module, and the output end of the testing library module is connected with the reviewing library module electrically, the output end of the reviewing library module is connected with the detecting library module, and the output end of the detecting library module is connected with the depth detecting library module electrically, the input end of the checking card module is connected with the management module, and.

8. The foldable word assist memory device of claim 7, wherein: the output end of the test library module is electrically connected with associative memory, the output end of the associative memory is electrically connected with object associative memory, and the output end of the associative memory is electrically connected with word associative memory;

the output end of the test library module is electrically connected with interest memory, the output end of the interest memory is electrically connected with object movie interest memory, and the output end of the interest memory is electrically connected with song interest memory.

9. The foldable word assist memory device of claim 7, wherein: the output electric connection of detecting the library module has wrong problem module, and detects the output electric connection of library module and remember the module firmly, the output electric connection of degree of depth detection library module has wrong problem and trains the module repeatedly.

10. The foldable word assist memory device of claim 7, wherein: the central server is in bidirectional electric connection with the management module, the management module is in bidirectional electric connection with the card punching module, and the output end of the management module is electrically connected with the test library module.
