Abstract
本发明公开了一种室内设计用多功能工作装置，包括连接座、位于连接座中间的触控显示屏和位于连接座底部的两个支撑柱，两个所述支撑柱的中间固定连接有两个固定横柱，两个所述固定横柱均固定连接有多个支柱，所述固定横柱的两侧通过位于支撑柱内部的轴承与支撑柱连接固定，两个所述固定横柱的中部均通过固定轴承可转动连接，所述固定轴承的底部中间活动连接有定位螺栓；通过第一连接块、第二连接块、调节轴承的设置，极大的增加了触控显示桌的功能性，通过第一连接块、第二连接块、调节轴承的配合使用，可将触控显示桌进行折叠收放，将第一连接块、第二连接块滑动至调节轴承的内部，使得连接座底部的支撑柱可有效的折叠。
The invention discloses a multifunctional working device for interior design, which comprises a connection seat, a touch display screen located in the middle of the connection seat, and two support columns located at the bottom of the connection seat. There are two fixed horizontal columns, two fixed horizontal columns are fixedly connected with a plurality of pillars, both sides of the fixed horizontal columns are connected and fixed with the supporting columns through bearings located inside the supporting columns, and the middle part of the two fixed horizontal columns is fixed. They are all rotatably connected by a fixed bearing, and the bottom of the fixed bearing is movably connected with a positioning bolt; through the arrangement of the first connecting block, the second connecting block and the adjusting bearing, the functionality of the touch display table is greatly increased, Through the cooperation of the first connecting block, the second connecting block and the adjusting bearing, the touch display table can be folded and stored, and the first connecting block and the second connecting block can be slid to the inside of the adjusting bearing, so that the bottom of the connecting seat is The support column can be effectively folded.
Description
Technical Field
The invention belongs to the technical field of indoor design, and particularly relates to a multifunctional working device for indoor design.
Background
Along with the development of science and technology, indoor design is not being restricted to the design of paper, also can draw or computer software drawing through smart screen, but the designer needs comparatively steady operational environment all the time, and touch-control display table can make the designer comparatively comprehensive work of going on, possesses the demonstration function simultaneously for the progress of work is comparatively smooth.
The existing touch display table is difficult to move, and because the touch display table is relatively large in size and cannot be folded and unfolded, workers can only work in a studio, cannot carry the touch display table for work or display, and can only copy data and data through a small tablet or a computer, and the devices often do not have the functions of modification and design, are relatively large in limitation, relatively small in screen and relatively poor in display effect, and are difficult to provide better design experience for customers; when a client has modification and suggestion, the client cannot modify the work in time, so that designers need to take the work back to modify the work, and the idea is lost possibly, or the work difficulty is increased due to the fact that the designer needs to communicate with the client repeatedly, and therefore the multifunctional working device for indoor design is provided.
Disclosure of Invention
The invention aims to provide a multifunctional working device for indoor design, which solves the problems that a touch display table is relatively large in size and cannot be folded and unfolded, so that a worker can only work in a working room and cannot carry the touch display table to work or show the touch display table.
In order to achieve the purpose, the invention provides the following technical scheme: a multifunctional working device for indoor design comprises a connecting seat, a touch display screen positioned in the middle of the connecting seat and two supporting columns positioned at the bottom of the connecting seat, wherein two fixed transverse columns are fixedly connected in the middle of the two supporting columns, a plurality of supporting columns are fixedly connected to the two fixed transverse columns, two sides of each fixed transverse column are fixedly connected with the supporting columns through bearings positioned in the supporting columns, the middle parts of the two fixed transverse columns are rotatably connected through fixed bearings, and a positioning bolt is movably connected in the middle of the bottom of each fixed bearing;
connecting columns positioned in the connecting seats are fixed in the middle of the tops of the supporting columns, a first connecting block positioned in the connecting seats is fixedly connected to the top end of one connecting column, a second connecting block matched with the first connecting block is fixedly connected to the top end of the other connecting column, and an adjusting bearing is fixedly connected to the middle of the inside of the connecting seats;
the bottom surface of the connecting seat is provided with an adjusting sliding groove matched with the connecting column for use, an adjusting groove matched with the first connecting block and the second connecting block for use is formed in the middle of the inside of the connecting seat, the bottom surface of the connecting seat is provided with an adjusting rotating groove matched with the adjusting bearing for use, and the bottom surface of the connecting seat is fixedly connected with a handle.
Further, the bottom of connecting seat is equipped with buffer gear, buffer gear includes the buffer board, the fixed surface of buffer board is connected with the buffer layer, the buffer board is connected fixedly through a plurality of bradyseism springs and connecting seat, the groove of accomodating of using with a plurality of bradyseism spring cooperation is seted up on the surface of connecting seat.
Further, the top of spliced pole is equipped with positioning mechanism, positioning mechanism includes the magnetite, the magnetite is located the top one side of spliced pole, the locating hole that uses with the magnetite cooperation is seted up to the inside of connecting seat.
Furthermore, the bottom of support column all fixedly connected with sill pillar, the bottom symmetric distribution of sill pillar has a plurality of pulleys.
Furthermore, the width of the adjusting groove is smaller than that of the connecting seat, the width of the first connecting block is consistent with that of the adjusting groove, and the first connecting block and the adjusting groove are in clearance fit.
Furthermore, through holes are formed in two sides of the adjusting groove, and the length of each through hole is consistent with that of the first connecting block.
Furthermore, a rectangular groove is formed in the first connecting block, the size of the rectangular groove is consistent with that of the second connecting block, and the first connecting block and the second connecting block are in clearance fit.
Furthermore, the cross section of the connecting column is rectangular, and the width of the adjusting sliding groove is larger than that of the connecting column.
Further, the cross section of accomodating the groove is circular, and the diameter of accomodating the groove is greater than the diameter of bradyseism spring, the bradyseism spring is located and accomodates the inslot, the material of buffer layer is one of them of rubber, sponge, leather material.
Furthermore, the cross section of the magnet is rectangular, the shape and size of the magnet are consistent with those of the positioning hole, and the magnet and the positioning hole are in clearance fit for use.
Compared with the prior art, the invention has the beneficial effects that:
1. through first connecting block, the second connecting block, adjust the setting of bearing, very big increase the functionality of touch-control display table, through first connecting block, the second connecting block, adjust the cooperation of bearing and use, can fold the touch-control display table and receive and release, with first connecting block, the second connecting block slides to adjust the inside of bearing, make the support column of connecting seat bottom can effectual folding, make touch-control display table accessible pulley remove and carry, make the designer can bring touch-control display table to the customer, make the customer immediately watch, not only the bandwagon effect is better, make the expression of works more popular shake, the transport of data has been reduced simultaneously, the loaded down with trivial details complicacy of work has been reduced.
2. Meanwhile, when the client has modification and suggestion, the user can modify the idea through the touch display screen instantly, so that the loss of the idea of the designer is reduced, the complexity of repeated communication with the client is reduced, the working difficulty is reduced, the client can more satisfactorily work, and the working progress of the designer is smooth.
3. Through buffer gear's setting, very big reduction the effort of connecting seat, use through buffer gear's cooperation, can be so that connecting seat, touch-control display screen receive the effort when, buffer layer, bradyseism spring absorb partial effort to reduce the effort that connecting seat, touch-control display screen received, reduced the condition of connecting seat, touch-control display screen fish tail, damage, increased life.
4. Through positioning mechanism's setting for touch-control display table stability is higher, uses through this positioning mechanism's cooperation, can make touch-control display table pass through positioning bolt, adjust the fixed back of bearing, increases fixed knot structure, makes touch-control display table comparatively steady, and the designer's of being convenient for work and creation use simultaneously is simple convenient, and degree of automation is higher, has increased the practicality.
Drawings

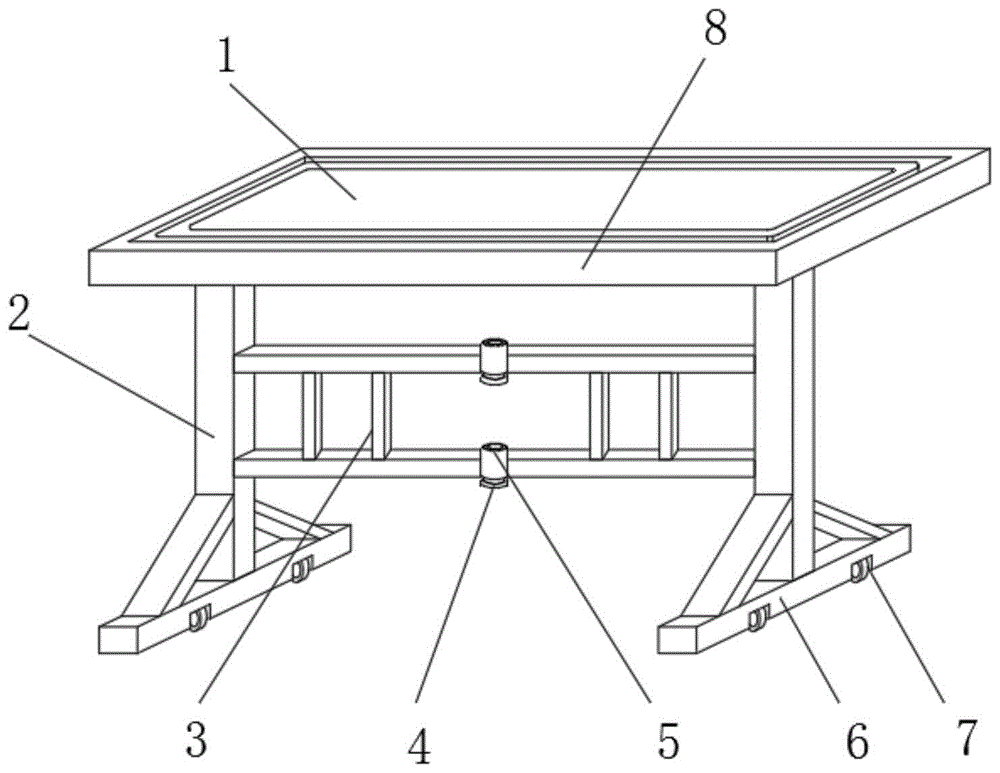

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a side sectional view of the support post, the connecting seat, the first connecting block, the adjusting groove, the adjusting bearing, the second connecting block, the positioning hole and the magnet of the present invention;
FIG. 3 is a schematic view of the connection of the support column, the first connecting block and the second connecting block according to the present invention;
FIG. 4 is a bottom view of the support column, the connecting seat, the adjusting groove, the connecting column, the buffer plate, the adjusting chute, the adjusting rotary groove and the handle of the present invention;
FIG. 5 is a bottom sectional view of the connecting seat, the first connecting block, the adjusting groove, the second connecting block, the connecting column and the buffer plate of the present invention;
FIG. 6 is a side sectional view of the support post, the connecting seat, the adjusting groove, the connecting post, the buffer plate, the cushioning spring, the accommodating groove and the buffer layer of the present invention.
In the figure: 1. a touch display screen; 2. a support pillar; 3. fixing the transverse column; 4. positioning the bolt; 5. fixing the bearing; 6. a bottom pillar; 7. a pulley; 8. a connecting seat; 9. a first connection block; 10. an adjustment groove; 11. adjusting the bearing; 12. a second connecting block; 13. connecting columns; 14. a buffer plate; 15. adjusting the sliding chute; 16. adjusting the rotary groove; 17. a cushioning spring; 18. a receiving groove; 19. a buffer layer; 20. a handle; 21. positioning holes; 22. a magnet is provided.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1
Referring to fig. 1 to 5, the present invention provides a technical solution: the utility model provides a multi-functional equipment is used in indoor decoration, including connecting seat 8, be located the touch-control display screen 1 in the middle of connecting seat 8 and be located two support columns 2 of connecting seat 8 bottom, only need as required, operate and design works through touch-control display screen 1, and accessible touch-control display screen 1 demonstrates, touch-control display screen 1 accessible bearing stirs, make contained angle between touch-control display screen 1 and the connecting seat 8 adjust, thereby make touch-control display screen 1 bandwagon effect better, touch-control display screen 1's use and angle regulation are technical staff's in the field common general knowledge.
Two fixed transverse columns 3 are fixedly connected to the middle of the two support columns 2, a plurality of support columns are fixedly connected to the two fixed transverse columns 3, two sides of each fixed transverse column 3 are fixedly connected with the support columns 2 through bearings located inside the support columns 2, so that the fixed transverse columns 3 can rotate with the support columns 2 through the bearings, the middle parts of the two fixed transverse columns 3 are rotatably connected through fixed bearings 5, so that the fixed transverse columns 3 can rotate through the bearings located inside the support columns 2 and the fixed bearings 5, positioning bolts 4 are movably connected to the middle of the bottoms of the fixed bearings 5, and the positioning bolts 4 are fixed to the fixed bearings 5 through threaded rotation by rotating the positioning bolts 4, so that the fixed bearings 5 are positioned through the positioning bolts 4;
a connecting column 13 positioned inside the connecting seat 8 is fixed in the middle of the top of the supporting column 2, a first connecting block 9 positioned inside the connecting seat 8 is fixedly connected to the top end of one connecting column 13, a second connecting block 12 matched with the first connecting block 9 for use is fixedly connected to the top end of the other connecting column 13, an adjusting bearing 11 is fixedly connected in the middle of the inside of the connecting seat 8, a rectangular groove is formed in the first connecting block 9, the size of the rectangular groove is consistent with that of the second connecting block 12, the two connecting blocks are in clearance fit for use, the second connecting block 12 can go deep into the rectangular groove in the first connecting block 9, and the second connecting block 12 can be tightly attached to the first connecting block 9, as shown in fig. 3;
an adjusting chute 15 matched with a connecting column 13 for use is formed in the bottom surface of the connecting seat 8, an adjusting groove 10 matched with a first connecting block 9 and a second connecting block 12 for use is formed in the middle of the inside of the connecting seat 8, an adjusting rotating groove 16 matched with an adjusting bearing 11 for use is formed in the bottom surface of the connecting seat 8, the supporting column 2 can slide, when the supporting column 2 slides, the connecting column 13 at the top end of the supporting column 2 slides in the adjusting chute 15, the first connecting block 9 at the top end of the connecting column 13 and the connecting column 13 slide in the adjusting groove 10, through holes are formed in two sides of the adjusting groove 10, the length of each through hole is consistent with that of the first connecting block 9, the first connecting block 9 and the second connecting block 12 are tightly attached and then are positioned in the inside, entering the adjusting bearing 11 through the through holes, the adjusting rotating groove 16 is used for rotation, and when the two supporting columns 2 slide together, the first connecting block 9, After the second connecting block 12 is tightly attached, the connecting seat 8 and the two attached supporting columns 2 can rotate through the adjusting bearings 11, the rotating grooves 16 are adjusted to increase the rotating angle, and the bottom surface of the connecting seat 8 is fixedly connected with a handle 20.
The equal fixedly connected with base pillar 6 in bottom of support column 2, the bottom symmetric distribution of base pillar 6 has a plurality of pulleys 7 for it is more convenient that the touch-control display table removes.
The width of adjustment tank 10 is less than the width of connecting seat 8, and the width of first link block 9 is unanimous with the width of adjustment tank 10, and the two clearance fit uses for the slip of first link block 9 in adjustment tank 10 is convenient smooth and easy more.
The cross section of the connecting column 13 is rectangular, and the width of the adjusting sliding chute 15 is larger than that of the connecting column 13, so that the connecting column 13 can slide in the adjusting sliding chute 15 conveniently.
Example 2
Referring to fig. 1 to 6, a buffering mechanism is disposed at the bottom end of the connecting seat 8, the buffering mechanism includes a buffering plate 14, a buffering layer 19 is fixedly connected to the surface of the buffering plate 14, the buffering plate 14 is fixedly connected to the connecting seat 8 through a plurality of cushioning springs 17, the cushioning springs 17 are made of elastic materials, deform under an action force, and recover to an original state after losing the action force, a receiving groove 18 used in cooperation with the plurality of cushioning springs 17 is formed in the surface of the connecting seat 8, the cross section of the receiving groove 18 is circular, the diameter of the receiving groove 18 is larger than that of the cushioning springs 17, the cushioning springs 17 are located in the receiving groove 18, so that the cushioning springs 17 can be received in the receiving groove 18, occupation of space is reduced, the buffering layer 19 is made of one of rubber, sponge, and leather materials, and the protection effect is increased, when the touch display table is in a folded and retracted state, the buffering layer 19 contacts the surface of the supporting column 2, when the touch display table is moved through the pulley 7 and is vibrated and slid, the acting force is transmitted to the connecting seat 8, the buffering spring 17 and the buffering layer 19 can absorb the acting force in a large amount, so that the acting force applied to the connecting seat 8 and the touch display screen 1 is small, the scratch and the damage of the connecting seat 8 and the touch display screen 1 are reduced, and the service life of the touch display screen 1 and the connecting seat 8 is prolonged.
Example 3
Referring to fig. 1 to 6, a positioning mechanism is disposed at the top of the connecting column 13, the positioning mechanism includes a magnet 22, the magnet 22 is located on one side of the top end of the connecting column 13, a positioning hole 21 matched with the magnet 22 is formed in the connecting seat 8, the cross section of the magnet 22 is rectangular, the shape and size of the magnet 22 are consistent with those of the positioning hole 21, the magnet 22 and the positioning hole 21 are in a close fit state when the touch display table is in a normal working state, so that the stability of the touch display table is improved, and the shaking of the touch display table is reduced.
In the invention, when the touch display table is in a working state shown in fig. 1, the positioning bolt 4 and the fixed bearing 5 are in a fixed state, the fixed cross column 3 is in a fixed state through the fixed bearing 5, and the positioning hole 21 and the magnet 22 are in a close fit state; when the touch display table needs to be moved, the positioning bolt 4 is rotated, so that the positioning bolt 4 is loosened from the fixed bearing 5 through threaded rotation, the fixed bearing 5 can be rotated, then the supporting columns 2 are pushed, the two supporting columns 2 are pushed inwards, the fixed cross column 3 is folded by taking the fixed bearing 5 as a center, when the supporting columns 2 are pushed, the connecting columns 13 at the tops of the supporting columns 2 slide in the adjusting chutes 15, the first connecting blocks 9 and the second connecting blocks 12 at the tops of the connecting columns 13 slide in the adjusting grooves 10, when the two supporting columns 2 are tightly attached, the second connecting blocks 12 go deep into the rectangular grooves in the first connecting blocks 9, the first connecting blocks 9 and the second connecting blocks 12 are tightly attached, the first connecting blocks 9 and the second connecting blocks 12 are positioned in the adjusting bearings 11 through the through holes of the adjusting bearings 11, then the connecting seats 8 and the supporting columns 2 are rotated through the adjusting bearings 11, make buffer layer 19 and the support column 2 of connecting seat 8 bottom contact, when the touch-control display table received vibrations, slip through pulley 7 removal, the effort is when transmitting to connecting seat 8, and bradyseism spring 17, buffer layer 19 can absorb the effort in a large number for connecting seat 8, the effort that touch-control display screen 1 received is less, has reduced connecting seat 8, touch-control display screen 1's fish tail and damage, has increased touch-control display screen 1, connecting seat 8's life.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (9)
1. The utility model provides a multi-functional equipment is used in indoor decoration, includes connecting seat (8), is located touch-control display screen (1) in the middle of connecting seat (8) and is located two support columns (2) of connecting seat (8) bottom, its characterized in that: the middle of each of the two support columns (2) is fixedly connected with two fixed transverse columns (3), each of the two fixed transverse columns (3) is fixedly connected with a plurality of support columns, two sides of each fixed transverse column (3) are fixedly connected with the support columns (2) through bearings located inside the support columns (2), the middle parts of the two fixed transverse columns (3) are rotatably connected through fixed bearings (5), and the middle of the bottom of each fixed bearing (5) is movably connected with a positioning bolt (4); the bottom of each supporting column (2) is fixedly connected with a bottom column (6), and a plurality of pulleys (7) are symmetrically distributed at the bottom of each bottom column (6);
connecting columns (13) located inside the connecting seats (8) are fixed in the middle of the top of the supporting column (2), a first connecting block (9) located inside the connecting seats (8) is fixedly connected to the top end of one connecting column (13), a second connecting block (12) matched with the first connecting block (9) in use is fixedly connected to the top end of the other connecting column (13), and an adjusting bearing (11) is fixedly connected to the middle inside the connecting seats (8);
the bottom surface of connecting seat (8) is seted up and is used with spliced pole (13) cooperation regulation spout (15), offer in the middle of the inside of connecting seat (8) with first connecting block (9), second connecting block (12) cooperation adjustment tank (10) that use, the regulation rotary trough (16) that uses with adjusting bearing (11) cooperation are seted up to the bottom surface of connecting seat (8), the basal surface fixedly connected with handle (20) of connecting seat (8).
2. The multifunctional working apparatus for indoor design according to claim 1, wherein: the bottom of connecting seat (8) is equipped with buffer gear, buffer gear includes buffer board (14), the fixed surface of buffer board (14) is connected with buffer layer (19), buffer board (14) are connected fixedly with connecting seat (8) through a plurality of bradyseism spring (17), the groove (18) are accomodate to the cooperation use with a plurality of bradyseism spring (17) has been seted up on the surface of connecting seat (8).
3. The multifunctional working apparatus for indoor design according to claim 1, wherein: the top of spliced pole (13) is equipped with positioning mechanism, positioning mechanism includes magnetite (22), magnetite (22) are located the top one side of spliced pole (13), locating hole (21) that use with magnetite (22) cooperation are seted up to the inside of connecting seat (8).
4. The multifunctional working apparatus for indoor design according to any one of claims 1, 2, and 3, wherein: the width of the adjusting groove (10) is smaller than that of the connecting seat (8), the width of the first connecting block (9) is consistent with that of the adjusting groove (10), and the first connecting block and the adjusting groove are in clearance fit.
5. The multifunctional working apparatus for indoor design according to claim 1, wherein: through holes are formed in two sides of the adjusting groove (10), and the length of each through hole is consistent with that of the first connecting block (9).
6. The multifunctional working apparatus for indoor design according to claim 1, wherein: a rectangular groove is formed in the first connecting block (9), the size of the rectangular groove is consistent with that of the second connecting block (12), and the first connecting block and the second connecting block are in clearance fit.
7. The multifunctional working apparatus for indoor design according to claim 1, wherein: the cross section of the connecting column (13) is rectangular, and the width of the adjusting sliding groove (15) is larger than that of the connecting column (13).
8. The multifunctional working apparatus for indoor design according to claim 2, wherein: the cross section of accomodating groove (18) is circular, and the diameter of accomodating groove (18) is greater than the diameter of bradyseism spring (17), bradyseism spring (17) are located and accomodate groove (18), the material of buffer layer (19) is one of them of rubber, sponge, leather material.
9. The multifunctional working apparatus for indoor design according to claim 3, wherein: the cross section of the magnet (22) is rectangular, the shape and the size of the magnet (22) are consistent with those of the positioning hole (21), and the magnet and the positioning hole are in clearance fit for use.
