Abstract
本发明提供了一种新风装置及其换新风空调室内机，其中新风装置内包括：进风模块和与进风模块连通的风机模块，且进风模块位于风机模块的下方；其中进风模块，其内限定有进风腔，进风腔连通有连接室外的新风进风管，室外新风通过新风进风管进入进风腔；进风腔内设置有加湿组件，用于对室外新风进行加湿；加湿组件包括横向设置于进风腔的回形水槽，回形水槽内注入水用于对室外新风进行加湿；回形水槽外边缘与进风腔固定连接。利用本发明提供的技术方案，特别是在冬季使用新风装置或空调时，增加室内空气的湿度，提高用户舒适度。
The invention provides a fresh air device and an indoor unit of an air conditioner for replacing fresh air, wherein the fresh air device includes: an air intake module and a fan module communicated with the air intake module, and the air intake module is located below the fan module; wherein the air intake module, An air inlet cavity is defined in the air inlet cavity, and the air inlet cavity is connected with a fresh air inlet duct connected to the outdoor, and the outdoor fresh air enters the air inlet cavity through the fresh air inlet duct; a humidification component is arranged in the air inlet cavity for humidifying the outdoor fresh air; The humidification assembly includes a loop-shaped water trough laterally arranged in the air inlet cavity, and water is injected into the loop-shaped water trough for humidifying the outdoor fresh air; the outer edge of the loop-shaped water trough is fixedly connected with the air inlet cavity. Using the technical solution provided by the present invention, especially when using a fresh air device or an air conditioner in winter, the humidity of the indoor air is increased, and the user comfort is improved.
Description
Technical Field
The invention relates to the technical field of fresh air conditioners, in particular to a fresh air device and a fresh air exchange air conditioner indoor unit thereof.
Background
The air conditioner is a household appliance which is widely applied, generally has heating and refrigerating functions, adjusts the temperature of indoor air when the ambient temperature is too low or too high, provides a proper indoor environment for users, and effectively improves the life quality of the users.
However, since the conventional air conditioner only circularly heats or cools indoor air during heating or cooling, and a user simultaneously closes a door of a living room to maintain the indoor temperature, the indoor air quality is gradually deteriorated, thereby adversely affecting the physical health of the user. Particularly, in recent years, the air pollution is increasingly serious, and people are reluctant to open windows for ventilation particularly in winter heating seasons, so that the indoor air quality is increasingly poor, the oxygen content is increasingly low, and the physical health is affected.
After the new trend device is introduced to present air conditioning indoor set, when using the new trend function, especially in winter, the user often feels indoor air dry at the indoor, and the outdoor new trend that the new trend device introduced is also drier, can't provide the better experience of user.
Disclosure of Invention
The invention aims to provide a fresh air device and a fresh air exchange air conditioner indoor unit thereof, which at least solve part of defects in the prior art.
A further object of the present invention is to improve the indoor air quality.
It is another further object of the invention to enhance the user experience. .
In particular, the present invention provides a fresh air device comprising: the air inlet module is positioned below the fan module; wherein
The air inlet module is internally limited with an air inlet cavity which is communicated with a fresh air inlet pipe connected with the outside, and outdoor fresh air enters the air inlet cavity through the fresh air inlet pipe; a humidifying component is arranged in the air inlet cavity and is used for humidifying outdoor fresh air; and
a fan module, comprising:
the fresh air fan is configured to introduce outdoor fresh air into the fan module from the air inlet module and then send the fresh air to the indoor; and
the volute is arranged outside the fresh air fan, an air inlet of the volute is communicated with the air inlet cavity, and an air outlet of the volute faces to the upper part of the fresh air device; wherein
The humidifying assembly comprises a clip-shaped water tank transversely arranged in the air inlet cavity, and water is injected into the clip-shaped water tank and is used for humidifying outdoor fresh air;
the outer edge of the clip-shaped water tank is fixedly connected with the air inlet cavity.
Preferably, the humidifying assembly further comprises a ventilation fence connected to the inner edge of the clip-shaped water tank
And water-absorbing and water-retaining materials communicated with the square-shaped water tank are distributed on the ventilation grating.
Preferably, the aperture of the water-absorbing and water-retaining material is 1-2 mm, and the water-absorbing and water-retaining material is used for absorbing water in the square water tank to the ventilation grid to humidify outdoor fresh air.
Preferably, the fresh air device further comprises:
the filtering component is positioned below the humidifying component and is used for filtering the outdoor fresh air;
the purification component is positioned above the humidification component and used for purifying outdoor fresh air.
Preferably, the filter assembly comprises a filter screen and a filter support for supporting the filter screen;
the filtering bracket can be assembled and disassembled and is transversely fixed below the square-shaped water tank.
Preferably, the purification assembly comprises a purification module and a handle connected with the purification module;
the purification module is transversely arranged above the square-shaped water tank;
the handle is used for pushing and pulling the purification module to move relative to the humidification assembly.
Preferably, there is a gap between the purification module and the ventilation grate.
Preferably, the fresh air device further comprises,
the air deflector is arranged opposite to the air inlet of the air inlet cavity, and the air inlet cavity is longitudinally divided into a first air inlet cavity and a second air inlet cavity;
a gap is reserved between the bottom end of the air deflector and the bottom of the air inlet cavity; outdoor fresh air enters the first air inlet cavity, changes the flow direction through the air deflector, and enters the second air inlet cavity through the gap.
Preferably, the humidifying assembly is positioned in the second air inlet chamber, and one end of the humidifying assembly is fixed with the air deflector;
the bottom end of the filtering component is arranged at the upper side of the bottom end of the air deflector.
The invention also provides a fresh air exchange indoor unit of an air conditioner, which comprises:
the rear part of the shell is provided with a shell air inlet, and the front part of the shell is provided with at least one shell air outlet; and the fresh air device is positioned inside the shell and used for sending outdoor fresh air into the shell and exhausting the fresh air to the indoor space from the air outlet of the shell.
According to the fresh air device provided by the invention, the humidifying component is arranged in the air inlet cavity, so that outdoor fresh air passes through the air inlet cavity and enters the air supply cavity, the outdoor fresh air is humidified by the humidifying component, and the humidity of the outdoor fresh air entering the room is improved. Especially when using new trend device winter, increase the humidity of indoor air, improve user's comfort level.
Furthermore, the fresh air device is internally provided with the filtering component and the purifying component, so that fresh air entering a room can be purified, especially, the air pollution is increasingly aggravated at present, the purified air is sent into the room, the quality of the indoor air is improved, and the harm of the polluted air to the body is reduced.
Furthermore, because the fresh air device is additionally arranged on the traditional air-conditioning indoor unit, the fresh air device can introduce outdoor air into the room to provide continuous and fresh air for a closed indoor space even if a window is closed in the air-conditioning refrigeration or heating process, so that the oxygen content of the indoor air is increased, and air-conditioning diseases are avoided.
The above and other objects, advantages and features of the present invention will become more apparent to those skilled in the art from the following detailed description of specific embodiments thereof, taken in conjunction with the accompanying drawings.
Drawings
Some specific embodiments of the invention will be described in detail hereinafter, by way of illustration and not limitation, with reference to the accompanying drawings. The same reference numbers in the drawings identify the same or similar elements or components. Those skilled in the art will appreciate that the drawings are not necessarily drawn to scale. In the drawings:
fig. 1 is an overall schematic structural view of a fresh air exchange indoor unit of an air conditioner according to an embodiment of the present invention;
fig. 2 is a longitudinal sectional view of the fresh air exchange indoor unit of the air conditioner shown in fig. 1;
FIG. 3 is a schematic view of the air flow of the fresh air change air conditioning indoor unit of FIG. 2;
FIG. 4 is a schematic block diagram of a fresh air device of the embodiment shown in FIG. 2;
FIG. 5 is an enlarged view of a portion of the fresh air device of FIG. 4;
FIG. 6 is a schematic block diagram of the humidification module and the purification module;
FIG. 7 is a schematic block diagram of the humidifying component of the fresh air device shown in FIG. 4;
fig. 8 is a schematic structural view of a clip-shaped water tank of the humidifying assembly shown in fig. 6.
Detailed Description
Fig. 1 is an overall schematic structural view of a fresh air exchange air conditioning indoor unit 10 according to one embodiment of the present invention; fig. 2 is a longitudinal sectional view of the fresh air exchange indoor unit 10 shown in fig. 1; fig. 3 is a schematic view showing the air flow of the fresh air exchange indoor unit 10 shown in fig. 2. As shown in fig. 1, the indoor unit 10 of the fresh air exchanging air conditioner of the present invention includes a fresh air device 200 at the bottom end thereof, in addition to the indoor unit having the same appearance and performance as those of the prior art. Specifically, as will be understood from fig. 1 to 3, the indoor unit 10 includes a casing 100, at least one air supply assembly and a heat exchanger 130 are disposed inside the casing 100, and a casing air inlet 101 and at least one casing air outlet (102 or 103) are disposed on the casing 100. Indoor air is introduced into the indoor unit 10 from the casing air inlet 101 through any air supply assembly, and is subjected to heat exchange (refrigeration or heating) through the heat exchanger 130, and then the air subjected to heat exchange is introduced into the room from the casing air outlet (102 or 103), and the circulation is performed, so that the temperature of the indoor air is adjusted when the ambient temperature is too low or too high, the preset temperature of a user is reached, a suitable indoor environment is provided for the user, and the life quality of the user is effectively improved.
Furthermore, at least one air supply assembly is configured to suck outdoor fresh air exhausted by the fresh air device 200 from the casing 100 and then exhaust the fresh air from the casing air outlet (102 or 103), so as to complete the transportation of the outdoor fresh air from the outdoor to the indoor.
Specifically, at least one air supply assembly is disposed in the cabinet 100, wherein preferably, the at least one air supply assembly includes a first air supply assembly 110 and a second air supply assembly 120, and the second air supply assembly 120 is disposed below the first air supply assembly 110. Each of the first and second air supply assemblies 110 and 120 includes a centrifugal fan (111, 121) and a volute (112, 122) disposed outside the centrifugal fan, and the centrifugal fan (111, 121) is configured to suck indoor air from the cabinet air inlet 101 and cause the air to be re-supplied to the indoor environment through the cabinet air outlet (102 or 103).
The heat exchanger 130 is disposed on the main air intake duct between the volutes (112, 122) of the centrifugal fan and the housing air intake 101, so that the indoor air entering through the housing air intake 101 exchanges heat with the heat exchanger 130.
The at least one housing outlet (102 or 103) includes a top outlet 102 and a lower outlet 103, wherein the top outlet 102 corresponds to the outlet of the volute 112 of the first air supply assembly 110, and the lower outlet 103 corresponds to the outlet of the volute 122 of the second air supply assembly 120. The first and second air supply assemblies 110 and 120 are configured to promote the air to be conveyed from the main air duct after being heat exchanged by the heat exchanger 130, and finally to flow to the indoor environment through the top air outlet 102 and the lower air outlet 103, respectively.
In an exemplary embodiment, fig. 3 is a schematic view of the air flow of the fresh air exchange indoor unit of the air conditioner shown in fig. 2; in fig. 3, arrows indicate the schematic flow of air in the indoor unit 10 of the fresh air-conditioning system (thick arrows indicate the flow direction of indoor air, thin arrows indicate the flow direction of outdoor fresh air), and the first air supply assembly 110 and the second air supply assembly 120 may be operated simultaneously or independently.
When the first air supply assembly 110 or the second air supply assembly 120 operates alone, indoor air is sucked into the indoor unit 10 from the casing air inlet 101, and after outdoor fresh air is sucked into the indoor unit 10 from the fresh air device 200, the first air supply assembly 110 or the second air supply assembly 120 sends the indoor air and the outdoor fresh air to the indoor space through the top air outlet 102 or the lower air outlet 103, so that air circulation flow is completed. In this case, the fresh air exchange indoor unit 10 of the present invention has a small difference in air exchange volume and a small change in operation capacity compared to the cabinet air conditioner of the related art, but can deliver outdoor fresh air to the room to update the room air in real time and keep the room air fresh.
When the first air supply assembly 110 and the second air supply assembly 120 operate simultaneously, the centrifugal fans (111, 121) work together to respectively supply indoor air and outdoor air to the indoor space through the top air outlet 102 or the lower air outlet 103, thereby completing air circulation. Under the condition that the first air supply assembly 110 and the second air supply assembly 120 operate simultaneously, compared with a cabinet air conditioner in the prior art, the fresh air exchange air-conditioning indoor unit 10 provided by the invention can realize up-and-down air supply, the air supply quantity is large, the air exchange capacity of the indoor unit 10 is increased, on the basis of increasing the air exchange quantity, outdoor fresh air is sent into the indoor unit 10 by the fresh air device 200, further the indoor unit 10 has enough power to send the fresh air into the room, more outdoor fresh air is sent into the room, indoor air can be updated quickly, and the quality of the indoor air is improved more effectively and timely.
In the above embodiment, the fresh air device 200 of the fresh air exchange indoor unit 10 has the following specific structure:
FIG. 4 is a schematic block diagram of the fresh air device 200 of the embodiment shown in FIG. 2; the fresh air device 200 is disposed below the air supply assembly, specifically, below the second air supply assembly 120.
The fresh air device 200 includes an air intake module 210 and a fan module 220, and specifically in this embodiment, the air intake module is located at a lower portion of the fan module, that is, the air intake module 210 and the fan module 220 are distributed up and down inside the casing 100, and the air intake module 210 and the fan module 220 are communicated up and down.
Further, it can be understood by those skilled in the art that the distribution positions of the air intake module 210 and the fan module 220 may be various, such as longitudinal left and right distribution, and in the present invention, the upper and lower distribution is preferred.

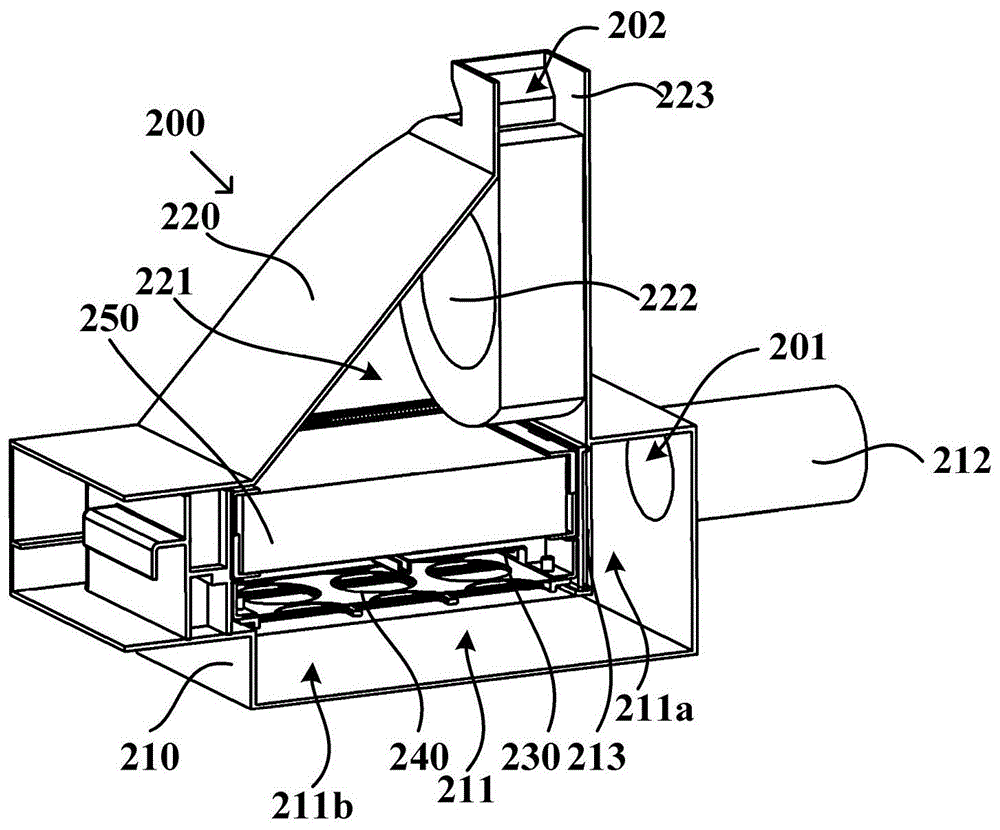

FIG. 5 is an enlarged view of a portion of the fresh air device of FIG. 4; FIG. 6 is a schematic block diagram of the humidification module and the purification module; FIG. 7 is a schematic view of a humidifying component of the fresh air device shown in FIG. 4; fig. 8 is a schematic view of a clip-shaped water tank of the humidifying assembly shown in fig. 6.
Specifically, as shown in fig. 5, the air intake module 210 defines an air intake chamber 211 therein, and the air intake chamber 211 is connected to a fresh air intake duct 212 leading to the outside. Outdoor fresh air enters the air inlet cavity 211 from the fresh air inlet pipe 212 under the action of the fan module 220.
The fan module 220 includes a supply air chamber 221, a fresh air fan 222, and a volute 223. The fresh air fan 222 is specifically a centrifugal fan, the air supply cavity 221 is communicated with the air inlet cavity 211, the centrifugal fan is located on one side of the air supply cavity 221 close to the casing air inlet 101, and the volute 223 is arranged outside the fresh air fan 222. An air inlet of a volute 223 of the centrifugal fan is communicated with the air inlet cavity 211, and an air outlet 202 of the volute faces to the upper part of the fresh air device 200, specifically, the air outlet of the volute faces to the top of the machine shell 100, so that more air is directly conveyed to the air inlet of the volute 223 of the air supply assembly; the centrifugal fan is configured to suck fresh air from the outside through the air inlet chamber 211 and discharge the fresh air from the air outlet 202 of the scroll casing 223 to the inside of the cabinet 100.
The fresh air device 200 is selectively installed on the side close to the casing air inlet 101 of the indoor unit 10 as soon as possible, so that more fresh air from the outside is mixed with the indoor air and then sent into the room again, and the air sent into the room is cool but not hot, and is supplied with air gently.
After the outdoor fresh air is sent to the interior of the casing 100 by the fan module 220, the first air supply assembly 110 and/or the second air supply assembly 120 are sent to the indoor from the top air outlet 102 and the lower air outlet 103 respectively so as to send the fresh outdoor fresh air to the indoor, increase the oxygen content of the air in the closed room and effectively reduce the probability of air conditioning diseases of users.
In some preferred embodiments, the rotation axes of the centrifugal fans (111, 121) of the first air supply assembly 110 and the second air supply assembly 120 are parallel; and the rotation axis of the fresh air fan 222 is perpendicular to the rotation axes of the centrifugal fans (111, 121) of the first and second air supply assemblies 110, 120. The rotation axes of the centrifugal fans (111, 121) of the first air supply assembly 110 and the second air supply assembly 120 are parallel, so that the noise of the indoor unit 10 is reduced, and the user experience is improved. The distribution of the fresh air fans 222, the rotation axis of which can be perpendicular to the vertical plane or the plane on which the rotation axes of the centrifugal fans (111, 121) of the first air supply assembly 110 and the second air supply assembly 120 are located, is mainly to longitudinally arrange the centrifugal fans (111, 121) so as to save the internal space of the cabinet 100. In the embodiment of the present invention, the rotation axis of the fresh air fan 222 is perpendicular to the vertical plane of the rotation axes of the centrifugal fans (111, 121) of the first air supply assembly 110 and the second air supply assembly 120.
Further, the radiuses of the impellers of the centrifugal fans (111, 121) of the first air supply assembly 110 and the second air supply assembly 120 may be the same or different, and the air supply capacities of the first air supply assembly 110 and the second air supply assembly 120 are not required, and may be the same or different. The second air supply assembly 120 may be an alternative air supply assembly, when the air conditioner is started up in an initial stage, the indoor temperature needs to be quickly lowered or raised, a large air volume circulation is needed, the second air supply assembly 120 may be turned on to increase the air volume of the indoor unit 10, so that the indoor temperature quickly reaches the preset temperature of the user, when the indoor temperature is stable, the second air supply assembly 120 may not be operated, and only the first air supply assembly 110 is operated to maintain the indoor temperature stable, so that the air supply capacity of the second air supply assembly 120 is not required to be the same as the air supply capacity of the first air supply assembly 110.
Or, when the indoor air quality is seriously polluted and the oxygen content is low, and the fresh air device 200 needs to be opened, the second air supply assembly 120 can be started to operate, so that the function of auxiliary air supply is achieved, the indoor air is rapidly updated by the outdoor fresh air, and the indoor air quality is rapidly recovered to a good state.
For the new trend device 200, in order to prevent that the winter from using the condition of air conditioner or heating installation for a long time, the room air is comparatively dry, is unfavorable for user healthy, the inventor is to being provided with humidification subassembly 230 in the air inlet chamber of new trend device 200 for carry out the humidification to outdoor new trend.
As shown in fig. 6 to 8, the humidifying assembly 230 includes a clip-shaped water tank 231 transversely disposed in the air inlet chamber, water is injected into the clip-shaped water tank 231, and the humidity in the air inlet chamber is increased by evaporation of water vapor, so as to increase the humidity of outdoor fresh air entering the air inlet chamber. The outer edge of the clip-shaped water tank 231 is fixedly connected with the air inlet cavity.
In some preferred embodiments, the humidifying assembly 230 further comprises a ventilation bar 232 connected to the inner edge of the paper clip 231, and the ventilation bar 232 is distributed with a water-absorbing and water-retaining material communicated with the paper clip 231. The water-absorbing and water-retaining material can absorb water through the internally communicated network, the water in the water-absorbing and water-retaining material on the ventilation grate 232 is taken away by outdoor fresh air, and the water quantity is smaller relative to that in the square-shaped water tank 231, so that a pressure difference is formed, and the water in the square-shaped water tank 231 is continuously absorbed.
The aperture of the water-absorbing and water-retaining material is 1-2 cm, and the water-absorbing and water-retaining material is used for absorbing water in the square water tank 231 to the ventilating grid 232 to humidify outdoor fresh air. Preferably, the aperture of the water-absorbing and water-retaining material is 2mm, so that the humidity at the ventilating grid 232 is ensured, the outdoor fresh air is fully humidified, and the outdoor fresh air stably and smoothly passes through the ventilating grid 232. If the aperture is less than 1mm, a large amount of fresh outdoor air can be collected at the ventilation grating 232, and when the pressure reaches a certain degree, the connection relationship between the water-absorbing and water-retaining material and the clip-shaped water tank 231 is damaged. When the pore diameter is larger than 2mm, the humidifying effect is not so remarkable.
Because the humidifying component is arranged in the air inlet cavity, outdoor fresh air passes through the air inlet cavity and enters the air supply cavity, the outdoor fresh air is humidified by the humidifying component, and the humidity of the outdoor fresh air entering the room is improved. Especially when using new trend device winter, increase the humidity of indoor air, improve user's comfort level.
In other embodiments, as shown in fig. 4 and 5, the fresh air device 200 further includes a filtering component 240 and a purifying component 250, wherein the filtering component 240 is located below the humidifying component 230 and is used for filtering the fresh outdoor air; the purification component 250 is located above the humidification component 230 and used for purifying fresh outdoor air.
In a specific embodiment, the filtering assembly 240 includes a filtering net 241 and a filtering bracket 242 for supporting the filtering net 241, the filtering bracket 242 is detachably and transversely fixed below the square-shaped water tank 231, and can filter fine sand mixed in the outdoor fresh air before the outdoor fresh air enters the humidifying assembly 230. If more fine sand enters the ventilation fence 232, the fine sand is condensed to block the water-absorbing and water-retaining material after being humidified by the humidifying component 230, and even the fine sand is attached to the ventilation fence 232.
In some areas or seasons with good air quality, the filter assembly is not needed, the filter support 242 is detachably mounted, operation of a user is facilitated, and when the air purifier needs to be used, the air purifier can be mounted by the user, and the air purifier is simple and easy to operate.
The cleaning assembly 250 comprises a cleaning module 251 and a handle 252 connected with the cleaning module 251, wherein the cleaning module 251 is transversely arranged above the clip-shaped water tank 231; the pull handle 252 is used to push or pull the purification module 251 to move relative to the humidification assembly 230. As shown in fig. 6, when the cleaning module 251 needs to be replaced or water needs to be filled into the rectangular trough 231, the user pulls out the cleaning module 251 through the pull handle 252, and replaces the cleaning module 251 or fills water into the rectangular trough 231, so that the structure is simple and the operation is convenient for the user.
In addition, there is the clearance between purification module 251 and the ventilation bars 232, and the clearance here plays the cushioning effect to outdoor new trend, can make outdoor new trend fully humidify in ventilation bars 232 department on the one hand, and on the other hand makes the even stable entering of outdoor new trend purify module 251.
The purification module 251 can purify air delivered to the room using a high electric field dielectric technology. Specifically, this purification module 251 is IFD purifier, and IFD is a dust removal technique, for the most advanced among the present dust removal technique, the most efficient technique, and the effectivity is extremely strong. A strong electric field with a dielectric material as a carrier is utilized. The dielectric material forms a honeycomb hollow micro-channel, the dielectric wrapping electrode slice forms a strong electric field in the channel, the strong electric field exerts huge attraction on charged particles moving in the air, only generates minimum air flow impedance, and can adsorb almost 100% of particles moving in the air, and the removal effect on particle pollutants such as PM2.5 and the like is particularly obvious. Adopt above-mentioned purification module 251, can reduce the PM2.5 granule in the air by a wide margin in the weather that the haze was abused, effectively improve the quality of sending into indoor outdoor air.
The purification module 251 can also be filtered by HEPA, which is a high-efficiency filter paper, and can filter 99% of fine particles in the air, so as to ensure that the air output by the fan module 220 is clean and avoid secondary pollution.
In order to better remove the sand and dust mixed in the outdoor fresh air, the inventor further improves the fresh air device 200, as shown in fig. 3 and 4, specifically as follows:
the fresh air device 200 further comprises an air deflector 213, the air deflector 213 is arranged opposite to the air inlet 201 of the air inlet cavity 211, and the air deflector 213 longitudinally divides the air inlet cavity 211 into a first air inlet cavity 211a and a second air inlet cavity 211 b; a gap is formed between the bottom end of the air deflector 213 and the bottom of the air inlet cavity 211; the humidifying component 230 is located in the second air inlet chamber, and one end of the humidifying component is fixed with the air deflector; the bottom end of the filter assembly 240 is on the upper side of the bottom end of the air deflector. After entering the first air inlet cavity 211a, the fresh outdoor air changes the flow direction through the air guide plate 213 and enters the second air inlet cavity 211b through the gap.
Specifically, the air deflector 213 is on the same vertical plane with the rear wall of the blowing cavity 221; the rear wall of the blowing chamber 221 extends vertically downward to obtain the air deflection plate 213. The air deflector 213 can be formed with the air inlet cavity 211 and the air supply cavity 221 of the fresh air device 200 during the manufacturing process, so that the manufacturing process is simplified and convenient.
The air deflector 213 plays two roles in this embodiment, one is to play a role in shielding dust, so as to prevent dust in outdoor fresh air from being directly sucked into the fresh air fan 222 by the fresh air device 200 and damaging the blades of the fresh air fan; secondly, the centrifugal dust settling effect is achieved, outdoor fresh air enters the air inlet cavity 211 from the fresh air inlet pipe 212 under the action of the air deflector 213, the flowing direction is changed to form annular circulating inlet air, large granular substances can be thrown out under the centrifugal effect of the annular inlet air, the large granular substances are prevented from entering the fresh air fan 222, and the two effects jointly guarantee the effect of fresh air exchange.
In addition, the dust removal net is detachably mounted at the air inlet of the fresh air inlet pipe 212, so that dust or mosquitoes can be prevented from entering the fresh air device 200 to pollute or destroy the internal structure of the fresh air device 200, and the quality of fresh air exchanged by the fresh air device 200 is prevented from being reduced.
In the fresh air device 200, the filter assembly 240 and the purification assembly 250 are arranged, so that fresh air entering a room can be purified, especially, the air pollution is increasingly aggravated at present, the purified air is sent into the room, the quality of the indoor air is improved, and the harm of the polluted air to the body is reduced.
In addition, as mentioned above, the air intake module 210 and the fan module 220 of the fresh air device 200 of the present invention are distributed vertically, which is used for more reasonably utilizing the space inside the casing 100. Specifically, the fresh air exchange indoor unit 10 further includes an electrical box 140, as shown in fig. 3, the electrical box 140 is disposed at an upper portion of the fresh air device 200, and in order to effectively utilize the limited space inside the casing 100 of the indoor unit 10, the upper portion of the air supply cavity 221 includes a horizontal section 221a extending backward from the front portion of the casing 100 and an inclined section 221b extending along the horizontal section 221a and continuously inclining upward toward the air outlet 202 of the volute 223 of the fresh air blower 222; the electrical box 140 is located on the inclined section 221 b.
Generally, the electrical boxes 140 are transversely distributed inside the casing 100, however, in the present invention, the electrical boxes 140 are creatively arranged in an inclined manner and fixedly mounted on the inclined section 221b of the air supply cavity 221 of the fresh air device 200, the air supply cavity 221 further plays a role of a bracket, which reduces the original fixing structure of the electrical boxes 140, and makes more space inside the casing 100 used for air circulation, therefore, the fresh air exchange indoor unit 10 provided by the present invention not only has enough power to drive the outdoor fresh air to flow, but also has enough space to make the outdoor fresh air enter the indoor unit 10.
Moreover, the electrical box 140 is obliquely arranged, the interior of the electrical box 140 faces the front part of the shell 100, and the wiring groove of the electrical box 140 is close to the front upright post of the cabinet air conditioner, so that the wiring and the arranging are convenient to maintain, the production efficiency of a production line is improved, and the inspection and the maintenance of after-sales personnel are also convenient.
The fresh air device 200 in each of the above embodiments can be operated independently of the heating or cooling operation of the indoor unit 10, and can also be operated synchronously with the heating and cooling operation of the indoor unit 10.
In the fresh air exchange indoor unit 10 of the air conditioner of the present invention, the fresh air device 200 may be installed inside the indoor unit 10, integrated with the indoor unit 10, or installed outside the indoor unit 10. No matter the installation state of any form, all can reduce the cost of using the new trend system among the prior art by a wide margin, and the noise is low, has better user experience.
In the following description, the terms "front", "back", "upper", "lower", "top", "bottom", "inner", "outer", "lateral", "longitudinal", "left and right", and the like, are used in the orientations and positional relationships indicated in the drawings, which are only for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Thus, it should be appreciated by those skilled in the art that while a number of exemplary embodiments of the invention have been illustrated and described in detail herein, many other variations or modifications consistent with the principles of the invention may be directly determined or derived from the disclosure of the present invention without departing from the spirit and scope of the invention. Accordingly, the scope of the invention should be understood and interpreted to cover all such other variations or modifications.
