Abstract

The invention relates to a device for cooking gelatin for grass, comprising a cooking tank body, a stirring mechanism and a cooking mechanism, wherein the stirring mechanism is installed on the top of the cooking tank body, and the stirring mechanism includes a mounting bottom plate, and the bottom of the mounting bottom plate is mounted on the bottom. A first drive assembly is installed in the middle, the output shaft of the first drive assembly is connected to a stirring shaft through the installation bottom plate, and a detachable stirring blade is installed on the stirring shaft; a cooking mechanism is arranged above the installation bottom plate , the cooking mechanism includes an annular steam outlet pipe, a guide column, a second drive assembly, and a mounting plate, the output shaft of the second drive assembly is connected to a lead screw through the mounting plate, and the mounting plate and the A guide column is arranged between the installation bottom plates to reduce energy consumption and improve resource utilization. The retractable steam outlet pipe fittings cooperate with the stirring mechanism, so that the cooking jellyfish can be heated more reasonably and evenly, speeding up the cooking of the jellyfish. The glue process improves the efficiency of boiling glue.

Description

A device for boiling jellyfish

technical field

The invention relates to the technical field of grass purpurea processing, in particular to a grass purpurea cooking device.

Background technique

Gracilaria is the main raw material for the production of low-viscosity and high-water-holding agar. In the production process, a gelling process is required, and the mixed Gracilaria and water are boiled under normal pressure using cooking equipment until the Gracilaria is completely melted. At present, the cooking of grass is generally used in a cooking pot, which is cooked by steam heating. In the traditional cooking pot, steam is introduced into the bottom of the pot for stirring and cooking, and the heating starts from the bottom. The thermal conductivity of grassula oleracea is low, resulting in uneven heating of the grassula oleracea in the upper layer, resulting in low cooking efficiency.

SUMMARY OF THE INVENTION

In order to solve the above-mentioned problems, the purpose of the present invention is to provide a device for boiling grass, which realizes that the pipeline for introducing steam can move up and down in the cooking tank to reduce the cooking time.

In the embodiment of the present invention, the following scheme is adopted to achieve: a device for boiling grass gras an installation bottom plate, the mounting bottom plate is fixed on the upper end surface of the cooking tank body, a first drive assembly is installed in the middle of the installation bottom plate, and the output shaft of the first drive assembly passes through the mounting bottom plate and is connected to a stirring shaft, a detachable stirring blade is installed on the stirring shaft, and through holes are symmetrically opened on the left and right parts of the installation bottom plate; a cooking mechanism is arranged above the mounting bottom plate, and the cooking mechanism includes an annular steam outlet pipe A guide post, a second drive assembly, and a mounting plate, the second drive assembly is mounted on the mounting plate, and the output shaft of the second drive assembly passes through the mounting plate and is connected with a lead screw, and the mounting plate A guide column is arranged between the installation base plate and the guide column, a push plate is passed through the guide column, a threaded hole is opened in the middle of the push plate, the lead screw passes through the threaded hole, and the A push rod is installed on the lower surface, the push rod passes through the through hole, the end of the push rod is fixed to the annular steam outlet pipe, and the annular steam outlet pipe is connected to the steam generator through a steam hose; The right side of the top of the cooking tank is provided with a stirring water input pipe; the top of the first drive assembly is provided with a lead screw support frame, and the legs of the support frame are fixed on the upper surface of the installation bottom plate; the A discharge port is arranged at the bottom of the tank body, and a discharge valve is arranged in the discharge port to discharge the boiled gelatinous liquid.

In an embodiment of the present invention, a scraper ring is provided on the lower surface of the installation bottom plate at the connection with the push rod; the top of the inner wall of the cooking tank is provided with a scraper ring for a steam hose, the steam A hose passes through the scraping ring; it is used to scrape off the agar or grassels stuck on the push rod and the steam hose.

In an embodiment of the present invention, the first drive assembly and the second drive assembly are both geared motors.

Beneficial effects of the present invention: The present invention provides a gelatinizing device for grass, which reduces energy consumption and improves resource utilization. The retractable steam outlet pipe fittings cooperate with the stirring mechanism, so that the grass being cooked can be more reasonable and uniform. It is heated to speed up the gelatinization process of grass and improve the efficiency of gelatinization.

Description of drawings

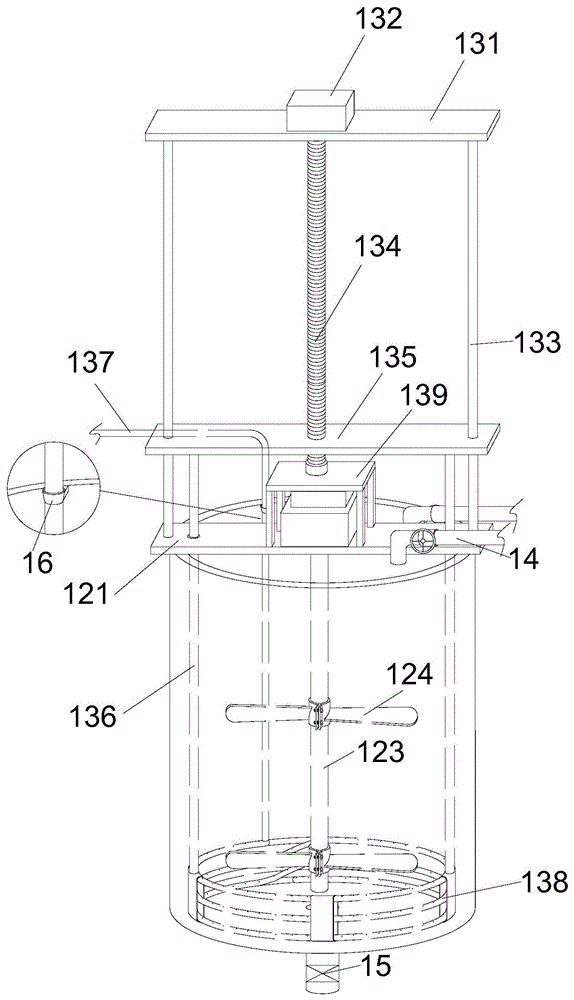

Fig. 1 is a schematic diagram of the structure of a gelatinizing device for grass purpurea.

FIG. 2 is a schematic structural diagram of a device for boiling gelatin for grass purpurea.

Fig. 3 is a partial enlarged schematic diagram of a device for boiling gelatin for grass purpurea.

Detailed ways

The present invention will be further described below with reference to the accompanying drawings.

Please refer to FIGS. 1 to 3 , the present invention provides a device for boiling grass, including a cooking tank 11 , a stirring mechanism 12 and a cooking mechanism 13 , the stirring mechanism 12 is installed on the top of the cooking tank 11 , The stirring mechanism 12 includes an installation bottom plate 121, the installation bottom plate 121 is fixed on the upper end surface of the cooking tank 11, and a first drive assembly 122 is installed in the middle of the installation bottom plate 121. The first drive assembly 122 The output shaft passes through the installation bottom plate 121 and is connected to a stirring shaft 123, and a detachable stirring blade 124 is installed on the stirring shaft 123. The left and right parts of the mounting bottom plate 121 are symmetrically provided with through holes; the installation A cooking mechanism 13 is arranged above the bottom plate 121 , and the cooking mechanism 13 includes an annular steam outlet pipe 138 , a guide column 133 , a second drive assembly 132 , and a mounting plate 131 on which the second drive assembly is mounted. 132, the output shaft of the second drive assembly 132 passes through the mounting plate 131 and is connected with a lead screw 134, and a guide post 133 is arranged between the mounting plate 131 and the mounting base plate 121, and the guide post 133 is above A push plate 135 is passed through, a threaded hole is opened in the middle of the push plate 135, the lead screw 134 passes through the threaded hole, a push rod 136 is installed on the lower surface of the push plate 135, and the push rod 136 passes through the threaded hole. Through the through hole, the end of the push rod 136 is fixed with an annular steam outlet pipe 138, the annular steam outlet pipe 138 is connected to the steam generator through a steam hose 137, and the second drive assembly 132 drives the lead screw 134 rotates, the lead screw 134 cooperates with the push plate 135, so that the push plate 135 moves up and down along the guide column, thereby pushing the annular steam outlet pipe 136 to move up and down, so as to directly heat the upper grass and accelerate the upper gras. The speed of melting glue; the side edge of the cooking tank 11 is provided with a stirring water input pipe 14, and water is added during the stirring process; the top of the first drive assembly 122 is provided with a screw support frame 139, the support The legs of the rack 139 are fixed on the upper surface of the installation bottom plate 121; the bottom of the tank body is provided with a discharge port 15, and a discharge valve is provided in the discharge port 15 to cook the grass. A gelatinous liquid is discharged.

Please continue to refer to FIG. 1 and FIG. 3 , in an embodiment of the present invention, a scraper ring 16 is provided on the lower surface of the installation bottom plate 121 at the connection with the push rod 136 ; A scraper ring 16 with a steam hose 137 is provided, and the steam hose 137 passes through the scraper ring; the material stuck on the push rod 136 and the steam hose 137 is scraped off.

In an embodiment of the present invention, the first drive assembly 122 and the second drive assembly 132 are both geared motors.

The present invention has the following working principle:

When the steam outlet pipe is pushed to the bottom of the tank for cooking, the discharge valve is closed, and the corresponding kelp and the corresponding amount of water are added into the cooking tank at the same time; the steam generator sends the hot steam through the steam hose. The steam inlet and outlet pipe fittings, the outlet holes opened on the steam pipe fittings, the steam enters the tank from the outlet holes, heats the grass in the tank, and uses the first driving component to drive the stirring shaft to rotate, thereby driving the stirring blades to rotate slowly to rotate the stirring river. Grapefruit; after the Grapefruit is gradually cooked for a period of time, that is, after the Grapevine at the bottom of the cooking tank begins to appear gelatinous, the second drive motor drives the lead screw to rotate, thereby driving the steam pipe to move up and down, accelerating the ungelatinized Gracilaria Vegetables are boiled into glue; reduce energy consumption and improve resource utilization.

The above descriptions are only preferred embodiments of the present invention, and should not be construed as limitations to the present application. All equivalent changes and modifications made according to the scope of the patent application of the present invention shall fall within the scope of the present invention.

Claims (3)

1. A gracilaria glue boiling device is characterized in that: the stirring mechanism is arranged at the top end of the cooking tank body and comprises an installation bottom plate, the installation bottom plate is fixed on the upper end face of the cooking tank body, a first driving assembly is arranged in the middle of the installation bottom plate, an output shaft of the first driving assembly penetrates through the installation bottom plate to be connected with a stirring shaft, a detachable stirring blade is arranged on the stirring shaft, and through holes are symmetrically formed in the left part and the right part of the installation bottom plate; a cooking mechanism is arranged above the mounting base plate and comprises an annular steam outlet pipe fitting, a guide post, a second driving assembly and a mounting plate, the second driving assembly is mounted on the mounting plate, an output shaft of the second driving assembly penetrates through the mounting plate to be connected with a lead screw, the guide post is arranged between the mounting plate and the mounting base plate, a push plate penetrates through the guide post, a threaded hole is formed in the middle of the push plate, the lead screw penetrates through the threaded hole, a push rod is mounted on the lower surface of the push plate and penetrates through the through hole, the annular steam outlet pipe fitting is fixed at the tail end of the push rod, and the annular steam outlet pipe fitting is connected with a steam generator through a steam hose; a stirring water input pipe is erected on the right side of the top of the cooking tank body; a screw rod supporting frame is arranged above the first driving assembly, and supporting legs of the supporting frame are fixed on the upper surface of the mounting bottom plate; the bottom of the tank body is provided with a discharge hole, and a discharge valve is arranged in the discharge hole and used for discharging colloidal liquid boiled by the gracilaria.

2. The gracilaria glue cooking device according to claim 1, characterized in that: a scraping ring is arranged at the joint of the lower surface of the mounting bottom plate and the push rod; the top of the inner wall of the cooking tank body is also provided with a scraping ring of the steam hose, and the steam hose penetrates through the scraping ring; used for scraping off agar or gracilaria adhered on the push rod and the steam hose.

3. The gracilaria glue cooking device according to claim 1, characterized in that: the first driving assembly and the second driving assembly are both speed reducing motors so as to ensure that the cooking mechanism realizes self-locking when not moving up and down.
