CN110689689A - Online wisdom supervisory systems of social unit fire control room - Google Patents

Abstract

The invention relates to an online intelligent supervision system for a fire control room of a social unit, comprising an online supervision and alarm terminal equipment for the control room, a transmission network and an online intelligent supervision platform; the online supervision and alarm terminal equipment for the control room includes an alarm host of the online supervision system for the control room and Personnel-on-duty intelligent detectors, high-definition network cameras, multi-functional certificate-holding verification terminals, multi-functional network intercom terminals, and voice acousto-optic alarms are connected to it; The smart supervision platform transmits monitoring/monitoring data and alarm information; the present invention effectively solves the supervision by the urban fire supervision agency of the lack of staff on duty in the fire control room of social units, unattended, undocumented work, fire alarm violation disposal and fire linkage violation settings. To solve the problem, realize the refined, normalized and long-term online intelligent supervision of the fire control room of social units.

Description

An online intelligent monitoring system for fire control rooms of social units

technical field

The invention belongs to the technical field of online intelligent supervision of fire safety, and specifically relates to an online intelligent supervision and management system for fire control rooms of social units based on the Internet of Things, the Internet and the mobile Internet.

Background technique

The fire control room is the control center hub of the building's automatic fire-fighting facilities, the display control center of the fire-prevention and fire-extinguishing facilities in the building (structure), and the information and command center for fire fighting. It is of vital importance to activate the relevant fire-fighting linkage equipment, effectively control the fire and organize the evacuation of personnel. On-duty operators in the fire control room, as workers in specific positions in the fire protection industry, play a key role in effectively ensuring the rapid response of the unit in the event of a fire, and the correct and timely disposal of the initial fire. Therefore, it is of great significance to fully grasp the supervision and management of the fire control room.

Due to the weak awareness of fire safety in some social units and lax daily management, many units currently have mandatory regulations on the number of operators on duty in the fire control room, 24-hour on-duty duty, work with certificates, fire alarm handling procedures and fire linkage status settings. Great discounts, serious problems of formalism, falsification, and coping with inspections, unattended fire control rooms, undocumented posts, and dereliction of duty by off-duty personnel, missing posts, sleeping on duty, and not responding to police in accordance with regulations are not uncommon. It is also commonplace that the fire linkage switch that should be in the automatic state is manually set in the manual state, and there is a major hidden danger of fire safety management. In recent years, due to the unmanned fire control rooms of some units, unlicensed posts, dereliction of duty by the on-duty personnel or failure to operate the automatic fire control equipment, the automatic fire control system failed to function and caused small fires to cause major disasters. occurred, and some also caused heavy casualties and huge property losses, and the lessons were very profound. It is urgent and imperative to comprehensively strengthen the supervision and management of the fire control room of social units.

At present, the urban fire remote monitoring center generally adopts the "patrol inspection post" - "patrol inspection response" function of user information transmission equipment to inspect the personnel on duty in the fire control room of the networked social unit. This method can only inspect the fire control room of the networked unit. Whether there is staff on duty at a certain time, it is impossible to automatically monitor 24 hours a day, and it is impossible to automatically alarm when no one is on duty. On-site inspection and disposal of unit fire alarm points, it is impossible to supervise and manage fire control rooms of several social units at the same time, and there are large technical loopholes in supervision.

To sum up, the fire control room plays a vital role in the fire emergency rescue and fire safety assurance of social units. At present, the management of the fire control room by social units is not optimistic, and some existing supervision technologies in the market are also not optimistic. It is immature, and the supervision and management of the fire control room of social units by the urban fire supervision agency lacks effective supervision technical means, and there are great supervision loopholes and safety hazards. Therefore, innovative invention and promotion of an advanced and efficient "social" “Online Smart Supervision System for Unit Fire Control Room”, 24 hours a day, real-time and dynamic online monitoring of on-duty personnel in the fire control rooms of various social units in the city, on-duty status with certificates, dynamic fire alarm handling and fire linkage setting status, and through advanced Online intelligent pre-alarm, remote intelligent evidence collection and other technical means, combined with corresponding supervision and administrative punishment measures, actively eliminate the management problems and potential safety hazards that currently exist in the fire control room of social units, move forward the fire prevention threshold, and maximize the reduction of social fire risk in units, further strengthen and improve the fire prevention and control and fire emergency response capabilities within social units, comprehensively improve the supervision technical level and comprehensive management and control capabilities of the fire control rooms of social units, and comprehensively improve the social fire safety supervision and law enforcement level and law enforcement effectiveness, It is particularly urgent and important to comprehensively improve the level of social fire safety management and guarantee capabilities, actively prevent fires and reduce fire hazards, and ensure the safety of people's lives and properties.

SUMMARY OF THE INVENTION

In order to effectively solve the problems in the supervision of the fire control rooms of social units by various urban fire supervision agencies in a targeted, systematic and creative way, and effectively solve the problem of the supervision needs of social units with fire control rooms, make up for the existing remote fire control rooms in cities. Aiming at the deficiencies and loopholes in the remote supervision of social unit fire control rooms, the present invention provides an online intelligent monitoring system for social unit fire control rooms based on the Internet of Things, the Internet, and the mobile Internet. The system can monitor the networked social unit fire control rooms. 24 hours a day, real-time online dynamic supervision and management of the on-duty personnel on duty, on-duty with certificates, fire alarm handling and fire linkage setting status, and can also monitor the fire control room on-duty operators and fire control rooms in the event of an emergency fire in a networked unit. On-site fire inspectors conduct remote emergency command of fire disposal.

In order to achieve the above object, the present invention is achieved through the following technical solutions: an online intelligent supervision system for a fire control room of a social unit, including an online supervision and alarm terminal equipment for the control room, a transmission network and an online intelligent supervision platform; the online supervision and alarm of the control room Terminal equipment, including the alarm host of the online supervision system of the control room and the intelligent detector for personnel on duty connected to it, high-definition network cameras, multi-functional certificate-holding verification terminals, multi-functional network intercom terminals, and voice and sound and light alarms. The electronic labels of the fire alarms of each networked unit; the alarm host of the online supervision system of the control room can use the transmission network to transmit monitoring/monitoring data and alarm information to the online smart supervision platform; the transmission network supports Internet\4G network transmission method; the online smart supervision platform includes a system server, a PC client and a mobile client.

The online monitoring and alarm terminal equipment of the fire control room is installed in the fire control room of the networked social unit, which can dynamically monitor the on-duty personnel on duty, the certificate-holding duty, the fire alarm handling and the fire linkage setting status in the fire control room 24 hours a day. When it is detected that the fire control room of the networked social unit is unattended, the staff on duty is insufficient, the duty is undocumented, the handling of the alarm is not in accordance with the regulations, and the fire linkage state setting does not meet the requirements, the on-site voice sound and light alarm can be automatically triggered to warn the fire The on-duty personnel in the control room can correct and rectify violations in a timely manner, and at the same time, various monitoring/monitoring data and alarm information can be transmitted to the online smart supervision platform through the Internet\4G network.

The alarm host of the online supervision system of the fire control room adopts technologies such as system integration, intelligent analysis and processing, intelligent control and the Internet of Things, which can detect the human body detection signals, video monitoring data, and post-certificate verification data, and receive fire alarms for the fire control of networked social units. Various monitoring/monitoring data such as disposal and fire linkage setting status are automatically collected, analyzed, processed, stored and transmitted, and linkage intelligent control such as voice sound and light alarm, video linkage alarm, etc. can be realized. The alarm host of the elimination control online supervision system is composed of a main board, a data acquisition module, a video integration module, a network module, a monitoring hard disk, a power transformer, a battery and a host box, and is equipped with RJ45\RS485\RS232\VGA\USB\no Source switch\IP intercom\monitoring hard disk and other ports, which can be docked and integrated with human-sensing intelligent detectors, high-definition network cameras, multi-functional network intercom terminals, multi-functional certificate verification terminals, voice sound and light alarms, network switches, Monitoring hard disks, 4G full Netcom modules and other equipment support Internet\4G communication transmission mode, and can transmit various monitoring (control) data and alarm information to the online smart supervision platform through the Internet and mobile Internet. The main board adopts high-performance industrial control main board and intelligent chip, which can automatically carry out various data collection, analysis, processing, transmission and storage, with a high level of integration, intelligence and automation; the data acquisition module can pass RS485/no The source switch signal line is connected with the personnel on duty detector and the linkage switch of each automatic fire alarm system, which can automatically collect the human body detector induction signal in the fire control room, the fire alarm signal of the fire alarm host and the fire automatic fire control room in the fire control room. The linkage setting status of automatic fire protection systems such as alarm system, automatic sprinkler system, smoke and smoke exhaust system and fire shutter door system; the video integration module can integrate the video monitoring data of the connected high-definition network camera, and can video Linkage alarm; the network module is composed of a small network switch and a 4G full Netcom module, which can use Ethernet or 4G full Netcom network to realize online communication transmission, in which the small network switch can be connected to the high-definition network camera, multi-functional certificate holder In-service verification terminal, the 4G full Netcom module supports Unicom, China Mobile, Telecom traffic cards or dedicated IoT cards for online monitoring equipment; the monitoring hard disk adopts a large-capacity, high-speed monitoring special hard disk, which can store video monitoring data for more than 2 months ;The battery adopts low-voltage large-capacity maintenance-free battery, which can work continuously for more than 12 hours in the case of power failure; the power transformer adopts AC220V to DC18V power transformer; the host box is made of high-quality steel stamping , The box has locks, cooling holes and signal indicators. The signal indicators include LED indicators such as running, networking, alarm and arming. Further, the alarm host of the online supervision system of the fire control room supports the functions of continuous transmission, remote maintenance, intelligent detection of equipment failure, tamper-proof alarm, power failure and network disconnection alarm, etc., supports a variety of standard communication protocols, and supports secondary SDK. development.

The personnel-on-duty intelligent detector includes an on-duty human presence intelligent detector and a multi-technology human-sensing intelligent detector, which is mainly used for online detection of the presence or absence of an on-duty operator in a fire control room of a networked social unit. The intelligent human presence detector in the duty station is mainly used to detect the area of the duty operation workbench in the fire control room, and can automatically and accurately detect the human respiration, heartbeat and bowel movement of the person on duty in the duty station of the fire control room within a certain range. The multi-technology human body sensor intelligent detector is used to detect the activity range of the on-duty personnel in the fire control room, and can automatically and accurately detect the body movement of the on-duty personnel in the fire control room online. , shaking and small movements of the body. Through the combination of the above two human body detectors, it can automatically and accurately detect online and intelligently sense whether there is an operator on duty in the fire control room. The human presence intelligent detector in the duty station and the multi-technology human body sensing intelligent detector are connected in series with each other and are connected with the human detection signal acquisition port of the main board of the alarm host of the online supervision system of the fire control room through a data cable; when there is no one in the fire control room When the on-duty reaches the preset delay alarm time of the system, the on-site voice sound and light alarm will be automatically triggered by the alarm host of the online supervision system of the fire control room to warn the on-duty personnel to return to the duty operation position in time. The supervision platform alerts the police.

Preferably, the intelligent human presence detector in the duty station adopts the principle of ultra-broad-spectrum radar wave detection, and integrates ultra-broad-spectrum radar wave detection technology, human life feature detection technology, microcomputer intelligent analysis and anti-interference processing technologies. The angle is ∠100°, and the detection range is a conical area with a radius of 4m. When the installation height of the detector is 2.5m (the height adjustment bracket can be installed), it can detect the breathing, heartbeat, bowel movement and other vital signs of the human body within a distance of 2m And subtle movements such as blinking and finger movements of the human body within a distance of 4m. Preferably, the multi-technology human body sensing intelligent detector adopts the principle of multi-element infrared and radar wave detection, combines four high-sensitivity human pyroelectric infrared sensors and one radar wave detector into one, and integrates logical intelligent analysis technology, Mobile frequency division detection technology and anti-interference processing technology, its detection angle can reach ∠160°, when the detector installation height is 2.6-3.5m, it can detect the body movement, shaking and small amplitude of the human body within the range of 8-10m in diameter body movements. The performance of the above two human body detectors is not disturbed and affected by environmental factors such as heat source, light source, temperature, humidity, noise, airflow, electromagnetic, radiation, moving objects, etc. in the control room.

Further, the above-mentioned two kinds of human body sensing intelligent detectors can set the unattended delayed alarm time, detection mode and sensitivity through the hand-held remote controller, and are provided with detection signal LED indicators. Further, the above two kinds of human body sensing intelligent detectors support RS485 serial port and passive switch output, and can be connected to the human body detection signal acquisition port of the alarm host of the online supervision system of the control room through the RS485 or PVV4 signal line, and can be The manned/unmanned status signal and unattended alarm status of the fire control room are displayed online on the online smart supervision platform.

The high-definition network camera is mainly used for online monitoring, video linkage alarm and remote video forensics of the personnel on duty in the fire control room of the networked social unit and the disposal of fire alarms. tool usage. The high-definition network smart camera supports online monitoring, infrared night vision, sound monitoring, video linkage alarm, video intelligent forensics, and remote monitoring of PC clients and mobile clients. The high-definition network camera is connected to the output port of the small network switch built in the alarm host of the online supervision system of the fire control room through a super five or more anti-shielding network cable, and can transmit video surveillance data to the online smart supervision platform through the Internet\4G network. , the PC client and mobile client can be used to dynamically monitor the on-duty and fire handling situation of the on-duty personnel in the fire control room in real time and online, and can query historical video data online. Further, the high-definition network camera supports pre-alarm pre-recording and automatic video-recording and evidence collection functions during the alarm, which can be automatically performed in the fire control room for unattended alarm and fire alarm handling overtime 30s before the alarm (time can be adjusted) and during the alarm process. For video evidence collection, supervisors can view the alarm video in real time through the online smart supervision platform or retrieve the pre-recorded video before the alarm and the alarm playback video.

The multi-functional certificate-holding verification terminal is mainly used for online intelligent verification of whether the on-duty personnel of the fire control room of the networked social unit are on duty with the certificate and whether the certificate level meets the prescribed requirements, and can automatically monitor the on-duty of the fire control room of the networked social unit on-line. Whether the number of personnel on duty and the number of people on duty (time) meet the specified requirements. The multi-functional certificate-holding verification terminal supports functions such as intelligent identification of human biometric features, document scanning, voice warning, intelligent snapshot, GPS positioning, network attendance, automatic data uploading and storage, etc., and can collect on-duty personnel in the fire control room through online collection. The fingerprint, face, iris and other inherent physiological characteristics of the human body and information such as ID card and duty attendance card (need to establish a networked social unit fire control room on-duty information database on the system platform and update it randomly), intelligently identify and identify on-duty The operator's identity and fire professional qualification certificate information can be automatically and intelligently verified by the integration of human and ID cards, and can be automatically calculated and analyzed according to the commuting and attendance data of the on-duty personnel in the fire control room. Specify requirements. The multi-functional certificate-holding verification terminal can adopt one or more human biometric identification technologies such as fingerprint identification, iris identification, and face identification, and can adopt one or more identification technologies such as IC card, ID card or ID card. More than one document identification technology. Preferably, the multi-functional certificate-holding on-the-job verification terminal adopts three verification and identification methods of fingerprint + face recognition + ID card, so as to improve the reliability of the intelligent verification of the integration of human and card. The multi-functional certificate-holding verification terminal is connected to the small network switch port built in the alarm host of the fire control room online supervision system through a super five or more anti-shielding network cable, which can intelligently identify the on-duty personnel in the fire control room to work without a certificate In the case of non-compliance with certificates, insufficient number of people on duty, and non-compliance with regulations, the on-site voice acousto-optic alarm is automatically triggered, and an alarm is sent to the online smart supervision platform through the Internet\4G network at the same time.

The multifunctional network intercom terminal can be used as a remote video intercom terminal for on-duty supervision and management of the fire control room at ordinary times, and can also be used as a one-key alarm and a remote emergency command tool when a fire breaks out in a unit. The multifunctional network intercom terminal has functions such as one-key alarm, remote visual intercom, remote monitoring, broadcast intercom, cluster intercom, full-duplex intercom and GPS positioning. Preferably, the multi-function network intercom terminal is connected to the video intercom panel port of the alarm host of the online supervision system of the fire control room through a super five or more anti-shielding network cable, and can use the Internet\4G network for instant messaging transmission. When a fire breaks out in a networked social unit, the on-duty personnel in the fire control room can use the "one-key alarm" function of the multi-functional network intercom terminal to send an alarm to the online smart supervision center platform, and the center platform can automatically forward the alarm information. To the platform of the city 119 fire command center, the municipal emergency rescue command center and the command center of the fire rescue team in the jurisdiction, as well as the mobile client of the person in charge of fire safety of the unit, the platform can automatically display the name of the alarm unit, geographical location, video and video of the fire control room when alarming. Electronic map routes, road conditions and other information, the city 119 fire command center, the city emergency rescue command center and the district fire rescue team command center can use the city fire emergency command platform to conduct multi-party coordinated command operations, and can monitor the fire alarm unit fire control room duty personnel remote emergency command for fire emergency disposal.

The voice acousto-optic alarm is mainly used for on-site alarm warnings of illegal (law) behaviors such as unattended fire control rooms in networked social units, unlicensed posts, fire alarm violation disposals, and fire linkage status violation settings, etc., with voice warnings. Sound and light alarms are used to warn the on-duty personnel in the fire control room to pay attention to timely correction and rectification of violations. The voice acousto-optic alarm has the functions of voice alarm broadcast and acousto-optic alarm. It is connected with the voice, acousto-optic alarm output port of the alarm host of the online supervision system of the fire control room through the RS485 data line, and the corresponding warning can be played according to different alarm contents. Voice and siren sounds.

The electronic label is mainly used for the supervision and management of whether the fire inspection personnel go to the scene to check after the fire alarm of the networked social unit. The electronic label adopts radio frequency identification technology, adopts NFC passive electronic label, and is pasted on various fire alarms of various networking units. security, vandal resistance and metal interference. After receiving the fire alarm in the fire control room, the inspectors rushed to the alarm point to scan the QR code of the electronic label pasted on the various fire alarms of the unit with their smart phones, and can report the scene of the alarm point to the online smart supervision platform. The inspection time, the location of the alarm point, and the information of the on-site inspectors, and can edit and send the on-site viewing photos, alarm reasons, processing results and other fire alarm disposal information to the online smart supervision platform through the smart phone.

The transmission network supports Internet\4G network transmission mode, and the built-in Ethernet module of the alarm host of the online supervision system of the control room can be connected to the public network network equipment of the fire control room for wired transmission, or the control room can be used for wired transmission. The built-in 4G full Netcom module of the alarm host of the online supervision system performs wireless transmission. When the Ethernet wired network is disconnected, the system can automatically switch to 4G wireless network transmission.

The system server is a platform for various data collection, calculation, analysis, processing, storage, transmission and information service center of the social unit fire control room online intelligent supervision system, generally belonging to the city fire remote monitoring center or local fire supervisor Other third-party supervision service units licensed by the unit serve as the online smart supervision center platform for the fire control room of the local urban social unit.

The PC client is the PC-side alarm handling and supervision and management platform of the online intelligent supervision system for the fire control room of the social unit, including the PC client of the alarm reception center and the PC client of the fire supervision unit.

The mobile phone client is the mobile terminal alarm handling and supervision and management platform of the online intelligent supervision system of the fire control room of the social unit, and can also be used as an online interaction platform between the urban fire supervision organization and the networked social unit, including the mobile APP It supports two types of smart phones of various brands and models on the market, and supports mainstream systems such as Android and iOS.

Further, the online intelligent supervision system for the fire control room of a social unit has five subsystems: on-duty personnel on duty, on-duty with a certificate, fire alarm handling, fire linkage setting online intelligent supervision, and remote emergency command for fire disposal. Modules can be used in full, in combination or individually.

The invention provides an online intelligent supervision system for fire control rooms of social units based on the Internet of Things, the Internet and the mobile Internet. The fire linkage setting status can be monitored and managed online 24 hours a day in real time, and in the event of a fire in a networked unit, the on-duty operators in the fire control room and on-site fire inspection personnel can be remotely commanded for fire disposal. It can effectively solve the current problems in the supervision of fire control rooms of social units by various urban fire supervision agencies, and effectively solve the problem of supervision needs of social units with fire control rooms, making up for the existing urban fire remote monitoring system for social unit fire control rooms. Weaknesses and loopholes in remote supervision.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the following will briefly introduce the drawings required in the description of the embodiments or the prior art. Obviously, the drawings in the following description are only For some embodiments of the present invention, for those of ordinary skill in the art, other drawings can also be obtained according to these drawings without creative efforts.

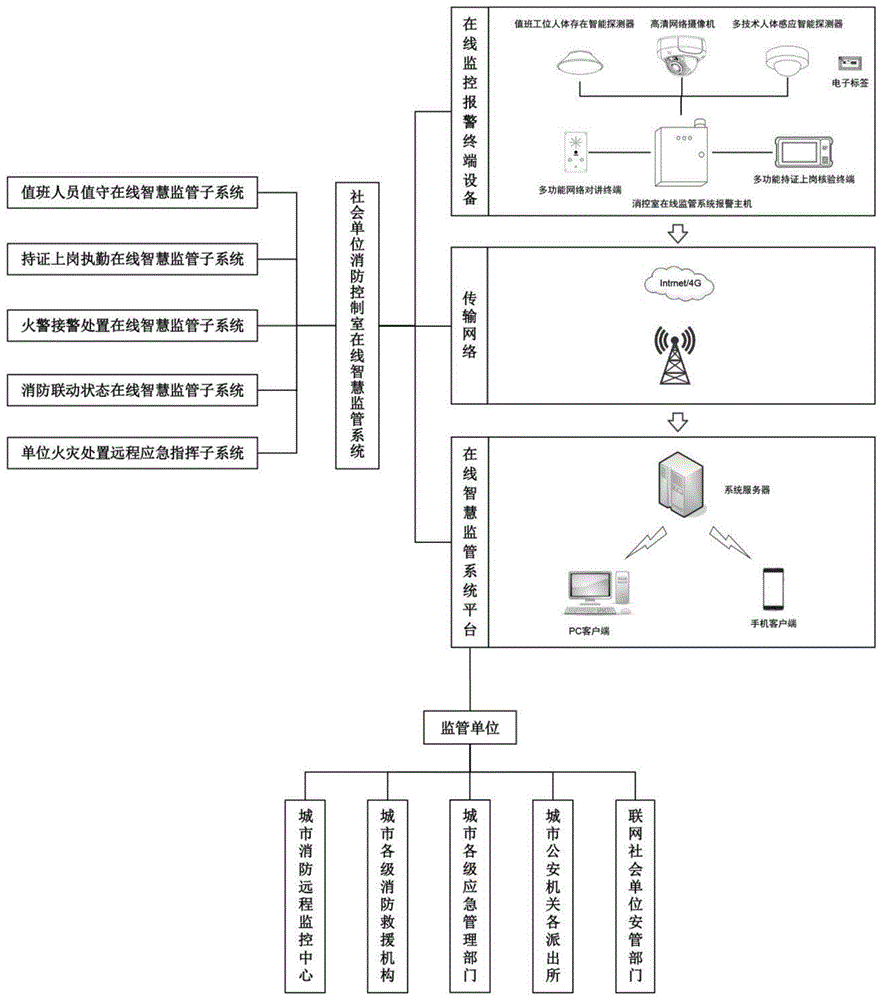

Figure 1 is a schematic diagram of the architecture and system composition of an online smart supervision system for a fire control room in a social unit of the present invention

Figure 2 is a schematic diagram of the online smart supervision subsystem on duty in the fire control room of a social unit according to the present invention

Fig. 3 is the flow chart of the online smart supervision subsystem on duty in the fire control room of the social unit according to the present invention

Figure 4 is a schematic diagram of the online smart supervision subsystem of the social unit fire control room of the present invention.

Fig. 5 is the flow chart of the online smart supervision subsystem of the social unit fire control room of the present invention with a certificate

FIG. 6 is a schematic diagram of the online intelligent supervision subsystem for fire alarm disposal in the social unit fire control room of the present invention

Fig. 7 is the flow chart of the online intelligent supervision subsystem for fire alarm disposal in the social unit fire control room of the present invention

FIG. 8 is a schematic diagram of the online intelligent supervision subsystem for the fire linkage setting of the fire control room of the social unit according to the present invention.

Fig. 9 is the flow chart of the online smart supervision subsystem for fire linkage setting in the fire control room of the social unit according to the present invention

Figure 10 is a schematic diagram of the remote emergency command subsystem for fire disposal in the fire control room of a social unit of the present invention

Fig. 11 is the flow chart of the remote emergency command subsystem for fire disposal in the fire control room of the social unit of the present invention

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention clearer, the present invention will be further described in detail below with reference to the accompanying drawings and embodiments. The exemplary embodiments and descriptions of the present invention are only used to explain the present invention, and are not intended to limit the present invention. Changes in structure, method or function made by those of ordinary skill in the art according to these embodiments are all included within the protection scope of the present invention.

As shown in Figure 1, the online intelligent supervision system of the fire control room of a social unit includes the online supervision and alarm terminal equipment of the control room, the transmission network and the online intelligent supervision platform; the online supervision and alarm terminal equipment of the control room includes the alarm host of the online supervision system of the control room. and connected personnel on duty intelligent detectors, high-definition network cameras, multi-functional certificate-holding verification terminals, multi-functional network intercom terminals, voice acousto-optic alarms, and electronic labels set on the fire alarms of each networked unit; The alarm host of the online supervision system for the control room can transmit monitoring/monitoring data and alarm information to the online intelligent supervision platform by using the transmission network; the transmission network supports the Internet\4G network transmission mode; the online intelligent supervision platform includes the system Server, PC client and mobile client. The system includes five subsystems: on-duty personnel on duty, on duty with certificates, fire alarm handling, online intelligent supervision of fire linkage status, and remote emergency command for unit fire disposal. The supervisory units include the city fire remote monitoring center, city fire rescue agencies at all levels, city emergency management departments at all levels, police stations of city public security organs, and safety management departments of networked social units.

The intelligent detectors for personnel on duty include two types of intelligent detectors for human presence on duty stations and multi-technology human body sensing intelligent detectors, wherein the intelligent detectors for human presence on duty stations are installed in the fire control room of networked social units for on-duty work. The detection range should cover the duty station area of the fire control room at an appropriate position on the ceiling above the platform; the multi-technology human-sensing intelligent detector should be installed at a suitable position on the ceiling or wall of the fire control room, and the detection range should cover the fire control room. On-duty staff activity area. Specifically, the intelligent human presence detector in the duty station is mainly used to detect human presence signals in the duty station of the fire control room, and can detect human respiration, heartbeat, peristalsis, etc. in the duty station within a certain range. Vital signs and very subtle movements such as blinking and finger movement; the multi-technology human body sensing intelligent detector can detect human body movement, shaking and small limb movements in the fire control room. Through the above two human body detectors Used in combination, it can automatically and accurately detect and intelligently sense whether there is an operator on duty in the fire control room. Specifically, the intelligent human presence detector at the duty station is connected in series with the multi-technology human sensing intelligent detector, and is connected to the human detection signal collection port of the alarm host of the supervision system through an RS485 data cable, which can The manned/unmanned detection signal and unattended alarm status of the fire control room are transmitted to the online smart supervision platform through the Internet\4G network. When the fire control room is unattended and reaches the preset delay alarm time of the human body detector, the on-site voice acousto-optic alarm can be automatically triggered to warn the on-duty personnel to return to the duty operation position in time, and to the online through the transmission network. Smart supervision platform alarm.

The high-definition network camera is installed in a position that is convenient for monitoring the range of human activities in the fire control room of a networked social unit. The specific installation location and number can be flexibly controlled according to the room structure, layout and area of the fire control room, so as to basically cover the fire control room. The main activity area of the staff shall prevail. The high-definition network camera is connected to the output port of the small network switch built in the alarm host of the supervision system through a super five or more anti-shielding network cable. Specifically, the high-definition network camera can transmit video surveillance data to the online smart supervision platform in real time through the Internet\4G network, and can automatically video linkage alarm when the fire control room is unattended or when the fire alarm response time reaches the alarm threshold. It can automatically perform pre-alarm pre-recording and in-alarm video forensics, and supervisors can view the alarm video in real time through the online smart supervision platform or retrieve pre-alarm pre-recorded video and alarm playback video.

The multi-functional certificate-holding verification terminal is installed in the fire control room of the networked social unit at the main exit and convenient for operation, and each networked social unit fire control room is installed with one. The multi-functional certificate-holding verification terminal is connected to the output port of the small network switch built in the alarm host of the supervision system through the super-five-type or more anti-shielding network cable, and can collect the fingerprints, faces, iris and other human bodies of the on-duty attendance personnel. Inherent physiological characteristics and information such as ID card and on-duty time card, perform automatic and intelligent verification of the integration of human and identity cards, and can automatically calculate and analyze the number of on-duty personnel and the number of on-duty personnel and on-duty time according to the on-duty attendance data of the on-duty personnel in the fire control room. meet the specified requirements. Specifically, the multi-functional certificate-holding verification terminal can automatically provide on-site voice and sound and light warnings when the on-duty personnel in the intelligent identification fire control room are on duty without a license, the witness card does not match, the number of people on duty is insufficient, and the on-duty time does not meet the regulations. It can also automatically take pictures of those who are on duty without a license and whose personal certificates do not match, and at the same time, alarm the online smart supervision platform through the Internet\4G network.

The multi-functional network intercom terminal is installed in a position convenient for operation and monitoring inside the fire control room of the networked social unit, and one set is installed in each fire control room of the networked social unit. The multi-function network intercom terminal is connected to the video intercom panel port of the monitoring system alarm host through the super five or more anti-shielding network cables, and has one-key alarm, remote video intercom, remote monitoring, and broadcast intercom. , cluster intercom, full-duplex intercom and GPS positioning and other functions, support Internet\4G network communication transmission. Specifically, the multi-functional network intercom terminal can be used as the intelligent supervision center of the fire control room of the urban social unit, the fire supervision agencies at all levels in the city, and the fire safety management personnel of the networked social unit to remotely visualize the duty personnel of the fire control room. The intercom terminal can also be used as a one-key alarm and remote emergency command tool when a fire occurs in the unit.

The voice sound and light alarm is installed above the alarm host box of the supervision system or on the ceiling and wall of the main entrance and exit of the fire control room, and one is installed in the fire control room of each networked social unit. The voice acousto-optic alarm is connected to the voice acousto-optic alarm output port of the alarm host of the supervision system through the RS485 data line. In case of illegal (law) behaviors such as the setting of the linkage state with the fire protection does not meet the requirements, the alarm host of the supervision system can automatically trigger the voice sound and light alarm at the preset alarm threshold and frequency of the system, and warn in the form of voice warning and sound and light alarm. The on-duty personnel in the fire control room shall pay attention to timely correction and rectification of violations. Specifically, when the voice acousto-optic alarm alarms, the corresponding warning voice can be played according to different alarm contents, and the alarm can be given in combination with the acousto-optic siren.

The electronic label is pasted on the surface or one side of various fire detectors in networked social units, and one is pasted at each alarm point. The electronic tag adopts NFC passive electronic tag, which has the functions of information reading and writing and positioning, and is non-reproducible, anti-destructive and metal interference. It supports scanning code by smart phones with NFC function, and the reading distance is 1 to 10 meters. Specifically, after receiving a fire alarm in the fire control room, fire inspectors rush to the alarm point to scan and paste the QR code on the electronic label of various types of fire alarms in the unit by scanning the code with their smartphone, which can be fed back to the online smart supervision platform. The time of on-site inspection of the alarm point, the location of the alarm point and the information of the on-site inspectors, and the fire alarm disposal information such as on-site viewing photos, alarm reasons, and processing results can be edited and sent to the online smart supervision platform through smart phones.

The alarm host of the online supervision system of the fire control room is installed on one side or above the distribution box in the fire control room of the networked social unit, and one fire control room is installed in each networked social unit. The power supply of the equipment is AC220V through the PVV2 power cord and the distribution box. Always connect to the power supply. The monitoring system alarm host has the functions of automatic monitoring (control) data collection, intelligent analysis and processing, linkage alarm control, online communication transmission and automatic data storage, etc., and can collect online real-time on-duty personnel in the fire control room on duty and on duty with certificates Various monitoring (control) data such as fire alarm handling and fire-fighting linkage status can be automatically linked to the voice sound and light alarm and linked to the high-definition network camera to take photos and video for evidence collection under the alarm status, which can be obtained through Internet\4G The network transmits various monitoring (control) data and alarm information to the online smart supervision platform, and automatically records and stores various monitoring (control) data and alarm information for later traceability. Intelligent detection of equipment faults, tamper-proof alarm, power failure and network disconnection alarm and other functions. Specifically, the monitoring system alarm host supports 12 wired defense zones and 12 wireless defense zones, supports access to multi-channel human detectors, multi-channel network cameras, 1-channel multi-function network intercom terminal, and 1-channel voice sound and light alarm It can also collect online fire alarm signals from the fire alarm host and automatic fire alarm systems, automatic sprinkler systems, smoke and smoke exhaust systems and fire shutter door systems in the fire control room. The linkage setting status signal of the fire protection system. Specifically, after the installation of the online monitoring and alarm terminal equipment is completed, the parameters such as the serial number, ID number, IP address, etc. Perform configuration to ensure that the monitoring system alarm host, network camera and multi-functional certificate-holding verification terminal and the public network of the fire control room are on the same network segment.

As shown in Figure 2, the on-duty personnel in the fire control room of the social unit are on duty in the online intelligent supervision subsystem. It is composed of the light alarm and the alarm host of the online supervision system of the control room. The on-duty online intelligent supervision system adopts advanced human presence intelligent detection and human sensing intelligent sensing technology, logical intelligent analysis and anti-jamming processing technology, video linkage alarm, intelligent control and other technologies, and combines the Internet of Things, the Internet and Modern information technology such as mobile Internet can automatically and accurately detect whether there are on-duty operators in the fire control room of networked social units 24 hours a day, and dynamically monitor the on-duty status of the on-duty personnel in real time online. It has online intelligent detection, automatic alarm and intelligent Forensics, etc.

Through the application of the online intelligent supervision system for the on-duty personnel in the fire control room, an advanced and efficient online supervision technical means can be provided for the urban fire supervision agency, which can effectively solve the problem of unattended supervision of the fire control room of social units. Comprehensively improve the on-duty rate of on-duty personnel in the fire control room, prevent the behavior of leaving, off-duty, and sleeping, prevent the delay of the best remedial time for the initial fire due to the unattended fire control room, and ensure that in the event of an emergency fire in the unit The on-duty personnel can detect the fire in time, call the police in time, and deal with the initial fire quickly and effectively.

Specifically, the intelligent human presence detector in the duty station can automatically and accurately detect the human presence signal in the duty station of the fire control room online, and intelligently analyze and identify whether there are on-duty personnel in the duty station of the fire control room; Technology Human body induction intelligent detector can automatically and accurately detect the human activity signal of the on-duty personnel in the fire control room online, and intelligently analyze and identify whether there are personnel on duty in the active area of the fire control room. Combined, it can automatically and accurately detect online and intelligently sense whether there is an operator on duty in the fire control room. Further, the on-duty workstation human presence intelligent detector and multi-technology human body sensing intelligent detector are connected to the human body detection signal acquisition port of the alarm host of the online supervision system of the control room through the RS485 signal line, and can be used in the intelligent supervision system. The platform displays the manned/unmanned detection signal and unattended alarm status of the fire control room.

Specifically, the high-definition network camera is connected to the output port of the small network switch built in the alarm host of the online supervision system of the fire control room through the anti-shielding network cable of more than five categories, and can implement 24-hour real-time and dynamic control of the fire control room of the networked social unit. Online video surveillance, with unattended automatic video linkage alarm and intelligent photo and video evidence collection functions, the online intelligent supervision platform can automatically pop up the alarm screen of the monitoring site when it alarms. Check the unattended alarm video of the fire control room of the unit, and promptly urge the duty personnel to return to the duty operation position. The fire supervision agency can view the pre-alarm pre-recorded video and the alarm video playback of the unattended fire control room of the alarm unit online through the PC client or the mobile client, conduct online evidence collection and immediately supervise the alarm unit to make timely rectification.

Specifically, the voice acousto-optic alarm device is connected to the voice acousto-optic alarm output port of the alarm host of the supervisory system through an RS485 data line. When the fire control room is unattended and reaches the delay alarm threshold preset by the system, it can be Automatically warn the duty personnel to return to the duty operation position in time by means of voice warning + sound and light alarm.

Specifically, the alarm host of the online supervision system for the fire control room can automatically collect and intelligently analyze and process the human body monitoring data signals of the front-end human intelligent detectors. When the fire control room is unattended and reaches the preset delay alarm threshold, it can automatically Link the connected voice sound and light alarm to alarm, and can automatically link the connected high-definition network camera for intelligent snapshot, video and evidence collection, and at the same time alarm to the online intelligent supervision platform through the Internet\4G network.

The alarm host of the online supervision system of the fire control room, the power supply of the equipment is connected to the AC220V power supply of the distribution box of the fire control room, and the online monitoring is 24 hours a day. It runs fully automatically without manual operation. Further, the system has functions such as terminal equipment tampering alarm, power failure alarm, network disconnection alarm, breakpoint resume transmission, dual-network transmission, etc., which can prevent fraudulent behaviors of networked social units or disconnection of signal transmission.

As shown in Figure 3, the on-duty personnel in the fire control room of the social unit is on duty in the online smart supervision system module process: when the fire control room is normally on duty, the alarm will not be triggered; when the fire control room is unattended and reaches the on-site alarm time set by the system, Automatically trigger the on-site voice acousto-optic alarm to give an alarm to warn the on-duty personnel to return to the duty position in time; if the on-duty personnel returns to the operating position in time within the warning time, the alarm will be automatically cancelled and the system will re-enter the monitoring state; if the on-duty personnel is in the warning time If the fire control room does not return to the operating position, it will continue to alarm until the on-duty personnel are in place; when the unattended time of the fire control room reaches the platform alarm time set by the system, it will automatically alarm to the online smart supervision system center platform, the system center The platform can automatically push the alarm information to the mobile client of the fire safety management personnel of the alarm unit in real time, warning them to deal with and rectify the unattended violation of the fire control room in time, and at the same time, it can push the customized alarm information to the mobile client of the supervisory personnel of the fire supervision unit in the jurisdiction. , to warn them to promptly supervise and supervise the violation of the unit.

Specifically, the unattended on-site alarm time of the on-duty personnel in the fire control room of the social unit is generally set to be unattended for 3 to 5 minutes to start the on-site voice from the perspective of humanization and safety and control. Sound and light alarm is appropriate, and the designated on-site alarm delay time point can also be set according to the requirements of the local fire department. In order to minimize the false alarm rate and the alarm rate to the supervision system platform, and to give the fire control room duty personnel a certain time to return to their positions, the online intelligent supervision can be set through the alarm host of the online supervision system of the control room. The delayed alarm push time of the platform is generally 30s to 60s, that is, after an unattended on-site alarm is issued, if the on-duty personnel return to the operating position within 30s to 60s of the on-site alarm, they will no longer report to the online smart supervision. The system platform alarms. If the on-duty personnel still do not return to the operating position within 30s to 60s of the on-site alarm, the alarm will be automatically sent to the online smart supervision system platform. The delay time of this alarm to the platform can also be determined according to the local fire chief set according to the requirements of the unit.

As shown in Figure 4, the terminal equipment of the social unit fire control room is mainly composed of a multi-functional certified nuclear energy terminal and an online supervision system alarm host of the fire control room. The online intelligent supervision system for on-duty work with certificates adopts advanced intelligent identification technology of human biometrics, intelligent verification technology of human-document integration, remote network attendance technology, and combines big data, cloud computing, Internet of Things, Internet, mobile Internet, etc. Information technology, through the multi-functional certificate-holding verification terminal installed in the main entrance and exit of the fire control room, can automatically collect, identify and verify the identity and qualification information of the on-duty personnel, and can intelligently identify whether the on-duty personnel in the fire control room of the networked social unit are on duty. Hold a certificate and meet the requirements of the required certificate level, and can online statistical analysis of the number of on-duty personnel in the fire control room of the networked social unit and the number of people on duty (time) meet the specified requirements, and can connect the networked social unit through the Internet\4G network. The alarm information and on-duty attendance data of the fire control room, such as unlicensed employment, inconsistency of personal certificates, insufficient certificate level, and insufficient on-duty personnel, are transmitted to the online smart supervision platform. Through the application of the online intelligent supervision system for fire control rooms on duty with certificates, an advanced and efficient online supervision technology means can be provided for urban fire supervision agencies, which can effectively solve the problem of fire control rooms of social units working without a certificate and holding a certificate level. Insufficient supervision and supervision problems such as insufficient staff on duty, effectively eliminate the illegal acts of "posting without a license" and "posting with a certificate" in the fire control room of social units and the bad phenomenon of "Li Daitao stiff", and prevent the operators on duty from not working in the event of a fire in the unit. Accidents in which the automatic fire control system will be operated or improperly operated, and the automatic fire protection facilities cannot function, causing small fires to cause major disasters.

Specifically, the multi-functional certificate-holding verification terminal is connected to the output port of the small network switch inside the alarm host of the online supervision system of the fire control room through the super-five or more anti-shielding network cable, and can be sent to the online smart supervision through the Internet. The platform transmits the alarm information and on-duty attendance data of the fire control room of each networked social unit, such as undocumented employment, inconsistency of personal identification, insufficient certification level, and insufficient staffing on duty.

Specifically, the multi-functional certificate-holding verification terminal has a voice intelligent warning function. When the fire control room duty personnel are on duty without a certificate, the witness card does not match, the certificate level is insufficient, the number of people on duty is insufficient, and the duty time does not meet the regulations. , which can be automatically warned by voice intelligent alarm, and the content of the voice warning can correspond to the content of the violation (law).

Further, the online smart supervision system for on-duty with certificates can centralize and manage the basic information of on-duty staff in the fire control room of each networked social unit, as well as fire protection occupational training, occupational qualification certificates and personnel changes. Establish a database of on-duty personnel in the fire control room of social units, so that the urban fire supervision agency can fully grasp the staffing rate, certificate-holding rate, certificate-holding grade, and professional quality level of the on-duty personnel in the fire control room of each social unit. The professional skills training plans and programs for operators of firefighting facilities have been developed, which greatly improves the employment rate and vocational skills of operators on duty in various social units.

As shown in Figure 5, the process of the online smart supervision subsystem of the social unit fire control room on duty with a certificate: first collect the avatars, fingerprints, ID cards, professional qualification certificates and other information of the on-duty personnel in the fire control room of the networked social unit. After the staff has checked and verified that it is correct from the national online inquiry website of the national vocational qualification certificate, it is entered into the database of the online smart supervision system platform. When the on-duty personnel in the fire control room of the networked social unit go to and from get off work, the multi-functional certificate-holding verification terminal can intelligently identify and verify the on-duty personnel by collecting the face, fingerprint characteristics and ID card or on-duty attendance card information of the on-duty personnel. It can intelligently verify and identify whether the on-duty personnel are on duty with the certificate, whether the witness card matches and whether the certificate level meets the prescribed requirements, and can intelligently calculate and analyze the number of on-duty personnel in the fire control room and the number of on-duty personnel on duty, Whether the on-duty time meets the requirements, when the system identifies that the on-duty personnel in the fire control room are on duty without a license, the witness card does not match, the certificate level is insufficient, the number of people on duty is insufficient, and the on-duty time does not meet the requirements, it can automatically give a voice alarm warning, and The online smart supervision platform is reported to the police through the Internet.

As shown in Figure 6, the online intelligent supervision subsystem for fire alarm handling in the fire control room of the social unit, the terminal equipment is mainly composed of the alarm host of the online supervision system of the fire control room, the voice sound and light alarm and the electronic label. The mobile client of the control room duty personnel. The online intelligent supervision system for fire alarm handling adopts advanced data collection technology, radio frequency identification technology, intelligent analysis and processing technology, and combined with advanced information technology such as the Internet of Things, the Internet, and the mobile Internet, which can automatically and accurately collect the fire control room online. The fire alarm signal of the fire alarm host can intelligently analyze and identify whether the on-duty personnel in the fire control room have illegal response and disposal behaviors. It has functions such as fire alarm response and disposal time supervision, on-site inspection and supervision of alarm points, and alarm disposal feedback supervision. It can be used in a networked society. When the on-duty personnel in the fire control room of the unit receive the alarm, on-site inspection and alarm handling are slow, they will automatically give voice and sound and light warnings. Through the application of the online intelligent supervision system for fire alarm handling in the fire control room, it can effectively prevent the "lazy" and "cheating" behaviors of the on-duty personnel from dismissing the fire alarm signal and artificially shielding it. It can effectively solve the supervision problem of the fire safety management personnel of the city fire supervision agency and social unit fire safety management personnel handling the illegal handling of the police on duty in the fire control room, and can prevent the delay of the real fire due to the dereliction of duty of the duty personnel. to prevent major fire accidents caused by untimely disposal of initial fires.

Specifically, the fire control room online supervision system alarm host has a built-in data acquisition module, which is connected to the fire alarm host alarm output port of the fire control room through the RS485 data line, and can automatically collect the fire alarm signal of the fire alarm host. It can automatically identify the address code information of the fire alarm point.

Specifically, the electronic tag adopts NFC passive electronic tag, which is pasted on the surface or one side of various fire detectors such as smoke detectors and temperature detectors and manual fire alarms in networked social units, and has information reading and writing and positioning functions. Scan code to upload on mobile phones of various mainstream brands (need to support NFC function).

Specifically, the mobile client of the on-duty personnel is downloaded and installed on the smart phones of the on-duty personnel in the fire control room of the networked social unit and the fire inspection personnel, and has functions such as automatic code scanning and uploading, photographing and uploading, and editing and uploading of alarm handling information. After the unit fire alarm, when the fire inspection personnel go to the fire alarm point to check, use the mobile client to scan the electronic label QR code of the alarm point, and automatically upload the alarm point and on-site inspection personnel to the online smart supervision platform. On-site inspection personnel can also use the mobile phone client to edit and send the on-site photos of the alarm points, alarm reasons and disposal results to the online smart supervision system platform.

Specifically, the alarm host of the online supervision system of the fire control room can automatically calculate the fire alarm reception time, on-site inspection time and alarm handling feedback time of the on-duty personnel in the fire control room, and can automatically receive the feedback from the system platform. Time and alarm handling feedback time, when the fire control room on-duty personnel do not respond to the alarm in a timely manner, the on-site inspection is not timely, and the fire alarm handling feedback is not timely, the alarm host of the online supervision system of the fire control room can automatically trigger the voice sound and light alarm. Early warning and warning, warning the duty personnel to correct the violation in time, after the warning is invalid, the information of the unit's violation of the alarm and disposal can be automatically transmitted to the online smart supervision platform through the Internet\4G network.

As shown in Figure 7, the process of the online smart supervision subsystem for fire alarm handling in the fire control room of the social unit: when a fire monitoring point in the networked social unit alarms, the alarm host of the supervision system can automatically collect the fire alarm of the fire alarm host After the fire alarm, if the on-duty personnel does not respond to the alarm normally within the limited time, the sound and light warning will be automatically issued first. If the fire-receiving and disposal time of the on-duty personnel reaches the preset alarm time threshold, The system can automatically alarm to the online supervision system platform; if the fire inspectors do not go to the alarm point for on-site inspection and feedback processing information within the limited time, they will automatically give voice and sound and light warnings first, and the fire inspectors will inspect and deal with feedback on site. When the time reaches the system alarm time threshold, it will automatically alarm to the online supervision system platform. Specifically, if the on-duty personnel in the fire control room normally receive and handle the alarm during the early warning time, or the fire inspection personnel go to the alarm point for on-site inspection and timely feedback the alarm handling information to the online smart supervision system platform during the early warning time, the early warning will be automatically lifted, and no Then report to the online smart supervision system platform.

As shown in Figure 8, the fire control room of the social unit is equipped with an online smart supervision subsystem, and its terminal equipment is mainly composed of an alarm host of the online supervision system of the control room and a voice acousto-optic alarm. This system adopts advanced data acquisition technology and intelligent control technology, combined with advanced information technology such as the Internet of Things, Internet and mobile Internet, through online monitoring of the switch signal of the fire linkage setting state of the fire control room of the fire control room of the networked social unit, It can automatically and accurately monitor the automatic/manual setting status and fault status of several important fire linkage controllers online, and transmit the monitoring data online to the online smart supervision system platform through the Internet/4G network. When the time limit for setting violations of the fire linkage status of the networked social unit reaches the early warning time, it can automatically give a voice and sound and light warning (the name of a fire linkage switch that has been set illegally can be broadcast). Automatically alarm the online smart supervision platform. Through the application of the online intelligent supervision system for the fire linkage setting in the fire control room of the social unit, it can prevent the fire control room duty personnel from putting the fire linkage switch that should be set to the automatic state artificially in the manual state or deactivated state for a long time, effectively solving the problem of fire supervision. The institution has the problem of long-term illegal setting of the fire linkage status of social units with fire control rooms, long-term failure status or even deactivation, to prevent the fire linkage status of the automatic fire-fighting facilities of the networked social units being set improperly, troubleshooting is not timely or disabled. And trigger the linkage alarm or linkage control that affects the fire, which leads to the fire safety responsibility accident of the small fire causing the catastrophe.

Specifically, the fire control room online supervision system alarm host has a built-in data acquisition module, which is connected to the fire linkage status switch output port of the fire control room fire alarm host through the RS485 data line, and can automatically collect networked social units. Automatic fire alarm system, automatic sprinkler system, smoke and smoke exhaust system, fire shutter system, fire pump control system and other systems of fire protection facilities. Automatic/manual setting status and fault status. Further, the online intelligent supervision system for the fire linkage setting can be set through the online intelligent supervision system central management platform to set the on-site early warning time, early warning frequency and platform alarm time of the illegal setting of the fire linkage status.

As shown in Fig. 9, the process of the online intelligent supervision subsystem for the fire linkage setting of the social unit fire control room: the system does not trigger an alarm under the normal linkage setting state of the automatic fire protection facilities of the networked social unit building; when the system monitors When the illegal setting of the fire linkage status of the networked social unit reaches the early warning time, the on-site voice sound and light alarm will be automatically triggered to give an early warning. Re-enter the monitoring state, otherwise it will automatically transfer to the alarm program; when the system monitors that the networked social unit fire linkage state violates the setting state and reaches the set alarm time, it can automatically report to the online smart supervision system through the Internet\4G network. Platform alarm.

As shown in Figure 10, the remote emergency command subsystem for fire disposal in the fire control room of the social unit is mainly composed of multi-functional network intercom terminals, high-definition network cameras and alarm host of the fire control room online supervision system. The auxiliary tools are connected to the Internet The social unit firefighter mobile client, the social unit fire disposal remote emergency command system platform includes the social unit fire control room online smart supervision center, the city 119 fire command center, the municipal emergency rescue command center and the district fire rescue team command center. The system adopts advanced video integration, network linkage alarm, full-duplex video intercom, remote video conference and other technologies, and combines advanced and Internet of Things, Internet, mobile Internet and other information technologies to support one-key alarm, video linkage alarm , Remote video intercom, remote video conference and remote emergency command functions. In the event of a fire in a networked social unit, the on-duty personnel in the fire control room can use the "one-key alarm" function of the multi-functional network intercom terminal to send an emergency alarm to the social unit fire disposal remote emergency command platform, and the fire inspection personnel at the fire site It is also possible to use the "one-key alarm" function of the mobile phone client to send an emergency alarm to the social unit fire disposal remote emergency command platform. When the social unit fire disposal remote emergency command platform alarms, the fire alarm information can be automatically forwarded to the city 119 fire command center, the municipal emergency rescue command center and the jurisdiction fire rescue team command platform through the social unit online smart supervision center platform. After receiving the alarm, the city 119 fire command center, the municipal emergency rescue command center and the fire rescue team command center in the jurisdiction can implement multi-unit coordinated command operations and remote fire response through the social unit fire disposal remote emergency command platform or fire rescue emergency command platform. command. Through the application of the remote emergency command system for fire disposal in the fire control room of social units, the fire alarm time of the on-duty personnel in the fire control room of the networked social unit can be saved, and the problem of the fire emergency disposal time of the on-duty personnel in the fire control room is effectively solved by the traditional telephone alarm method. It is convenient for the city 119 fire command center, the city emergency rescue command center and the fire rescue team in the jurisdiction to understand the basic situation of the fire at the first time, and can quickly organize and coordinate the joint operations and emergency joint command of relevant units and departments, and effectively solve the traditional fire emergency command. Communication The problems of low efficiency and slow linkage command greatly improve the linkage combat efficiency and emergency command level of social unit fire disposal.

Specifically, the multi-function network intercom terminal is installed in a location where the fire control room of the networked social unit is convenient for operation and use, and supports functions such as one-key alarm, remote visual intercom, full-duplex intercom, and GPS positioning. In the event of a fire, an emergency alarm can be sent to the social unit fire disposal emergency command platform with one click.

Specifically, the high-definition network camera is installed in the fire control room of the networked social unit to facilitate monitoring of the activity area of the on-duty personnel and the position of the fire control cabinet of the automatic fire-fighting facilities in the building, supports video linkage alarm and remote monitoring functions, and can pass the fire of the social unit. Remote emergency command platform for remote viewing of alarm video.

Specifically, the alarm host of the online supervision system for the control room is installed in the fire control room of the networked social unit, and is provided with a multi-function network intercom terminal interface. Through the built-in small network switch, it can be connected to multiple high-definition network cameras in the control room, and supports Internet \4G network communication transmission.

Specifically, the mobile client for firefighters in social units is installed on the smart phones of the on-duty personnel in the fire control room of the networked unit and the fire inspectors, and supports one-key alarm, remote video intercom and GPS automatic positioning functions. At the same time, you can send an emergency alarm to the social unit fire emergency command platform with one key.

Further, the social unit fire control room fire disposal remote emergency command subsystem supports a variety of communication standard protocols, and can be seamlessly connected with the city 119 fire command center, the municipal emergency rescue command center and the jurisdictional fire rescue team command center platform. Further, the remote emergency command subsystem for fire disposal in the fire control room of the social unit can also be embedded in the platform system of the city 119 fire command center, the city emergency rescue command center and the fire rescue team command center of the jurisdiction.

As shown in Figure 11, the process of the remote emergency command subsystem for fire disposal in the fire control room of the social unit: when the networked social unit confirms that a fire has occurred, the on-duty personnel in the fire control room can use the "one-key" button of the multi-functional network intercom terminal. The "Alarm" function will give an emergency alarm to the social unit fire disposal remote emergency command platform, and the fire inspection personnel at the fire site can also use the "one-key alarm" function of the mobile client to send an emergency alarm to the social unit fire disposal remote emergency command platform. The online smart supervision center platform of the social unit fire control room can automatically transfer the fire alarm information to the city 119 fire command center, the city emergency rescue command center and the command platform of the fire rescue team in the jurisdiction, and automatically transfer the fire alarm information to the jurisdiction. The mobile client of the person in charge of fire supervision and the person in charge of fire safety of the unit.

After receiving the alarm information of the fire alarm unit, the city 119 fire command center, municipal emergency rescue command center, and district fire rescue team command center can quickly learn the name, location, The fire location, fire material, fire development and fire remediation, etc., and quickly order the mobilization of the nearest fire rescue team to go to the fire scene to put out fire and rescue, cooperate with multiple parties to formulate fire rescue and fire extinguishing plans, and cooperate with multiple units to command operations and remote emergency command for fire disposal .

After receiving the fire alarm information, the person in charge of the fire supervision unit in the jurisdiction, the commander of the fire rescue team in the jurisdiction, and the person in charge of the fire safety of the networked social unit can use the emergency command function of the mobile client after they understand the basic situation of the unit fire at the first time. , to implement remote emergency command for the operation of automatic fire protection facilities and fire emergency response procedures for the personnel on duty in the fire control room, and also to implement remote emergency command for the evacuation of fire inspection personnel at the fire site, fire fighting and other work.

Claims (8)

1. A social unit fire control room online intelligent supervision system is characterized in that: it comprises a control room online supervision and alarm terminal equipment, a transmission network and an online intelligent supervision platform; the online supervision and alarm terminal equipment of the control room includes an online supervision of the control room. The system alarm host and its connected personnel on duty intelligent detectors, high-definition network cameras, multi-functional certificate-holding verification terminals, multi-functional network intercom terminals, voice acousto-optic alarms, and electronic fire alarms installed in each networked unit. label; the alarm host of the online supervision system of the control room can use the transmission network to transmit monitoring/monitoring data and alarm information to the online intelligent supervision platform; the transmission network supports the Internet\4G network transmission mode; the online intelligent supervision platform, Including system server, PC client and mobile client. 2. The online intelligent supervision system for a fire control room of a social unit according to claim 1, characterized in that: the alarm host of the online supervision system of the control room comprises a main board, a data acquisition module, a video integration module, a network module, a monitoring hard disk, Power transformer, battery and main engine box, the data acquisition module can automatically collect the human body sensor detector signal in the fire control room, the fire alarm signal of the fire alarm host, and the automatic fire alarm system and automatic sprinkler in the fire control room. The linkage setting state of the system, the smoke and smoke exhaust system and the fire shutter door system; the video integration module can integrate the video surveillance data of the high-definition network camera connected to it and can video linkage alarm; the network module includes a small network switch And 4G full Netcom module, can use Ethernet or 4G full Netcom network to achieve online communication transmission. 3. The online intelligent supervision system for a fire control room of a social unit according to claim 2, characterized in that: said personnel-on-duty intelligent detector comprises an on-duty human presence intelligent detector and a multi-technology human-body induction intelligent detector. The intelligent human presence detector and multi-technology human sensing intelligent detector in the duty station mentioned above are connected in series with each other and are connected to the human detection signal acquisition port of the main board of the alarm host of the online supervision system of the fire control room through the data cable; when the fire control room is unattended, the system reaches the When the preset delay alarm time occurs, the on-site voice sound and light alarm is triggered by the alarm host of the online supervision system of the control room, and the alarm can be sent to the online intelligent supervision platform through the Internet\4G network. 4. The online intelligent supervision system for a fire control room of a social unit according to claim 2, wherein the high-definition network camera is connected to the output port of the small network switch built in the alarm host of the online supervision system of the fire control room through an anti-shielding network cable and passes through the The Internet\4G network transmits video data to the online smart supervision platform. 5. The online intelligent supervision system for a fire control room of a social unit according to claim 2, wherein the multifunctional certificate-holding verification terminal is installed in the main entrance and exit of the fire control room, and collects the fingerprints of the on-duty personnel, Face physiological characteristics and ID card, on-duty time card information, intelligently identify and identify the identity of the on-duty operator and fire protection professional qualification certificate information, and perform automatic and intelligent verification of the integration of human and ID cards. The anti-shielding network cable is connected to the output port of the small network switch built in the alarm host of the online supervision system of the fire control room. When it is identified that the on-duty personnel in the fire control room are on duty without a license, the witnesses do not match, the number of people on duty is insufficient, and the on-duty hours do not meet the regulations. The alarm host of the control room online supervision system automatically triggers the on-site voice sound and light alarm and sends an alarm to the online smart supervision platform through the Internet\4G network. 6. The online intelligent supervision system for a fire control room of a social unit according to claim 2, wherein the multifunctional network intercom terminal is a visual intercom between the main board of the alarm host of the online supervision system of the fire control room through the anti-shielding network cable The panel port is connected and uses the Internet\4G network for instant communication transmission. 7. The online intelligent supervision system of social unit fire control room according to claim 2, it is characterized in that: described voice sound and light alarm, through RS485 data line and the voice sound and light alarm output of the main board of the fire control room online supervision system alarm host port connection. 8. The online intelligent supervision system for a fire control room of a social unit according to claim 1, characterized in that: the electronic label adopts NFC passive electronic label, which is pasted on the fire alarm of each networked unit, and is connected to the fire control room. After the fire alarm arrives, the fire inspectors rush to the alarm point to scan the QR code on the electronic label with their smart phones, and feed back to the online smart supervision platform the time of on-site inspection of the alarm point, the location of the alarm point and the information of the on-site inspectors, and pass the information. The smartphone edits and sends on-site viewing photos and fire alarm disposal information to the online smart supervision platform.
